Product Overview
Description

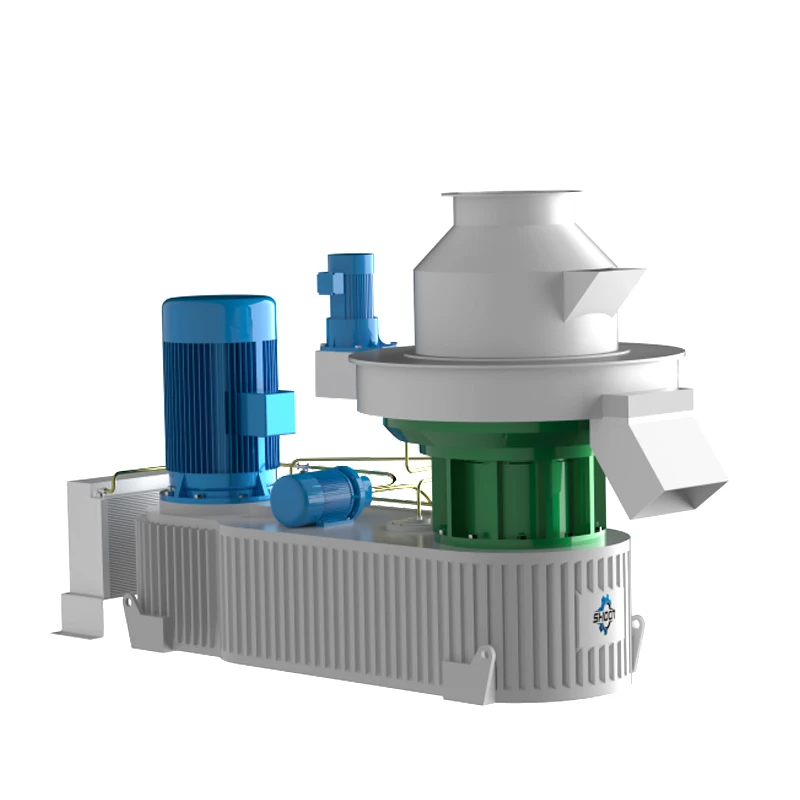

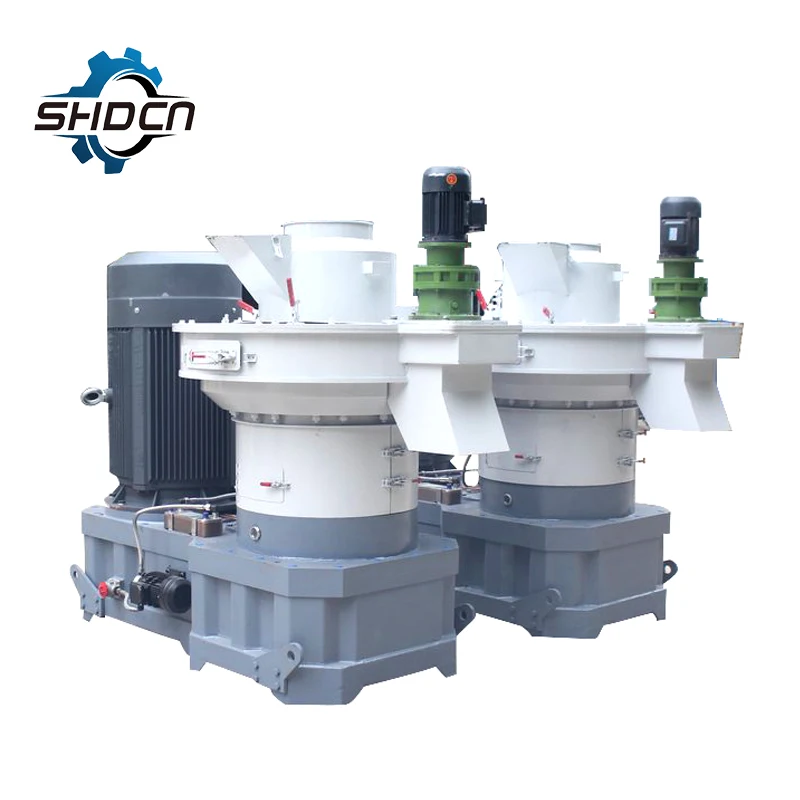

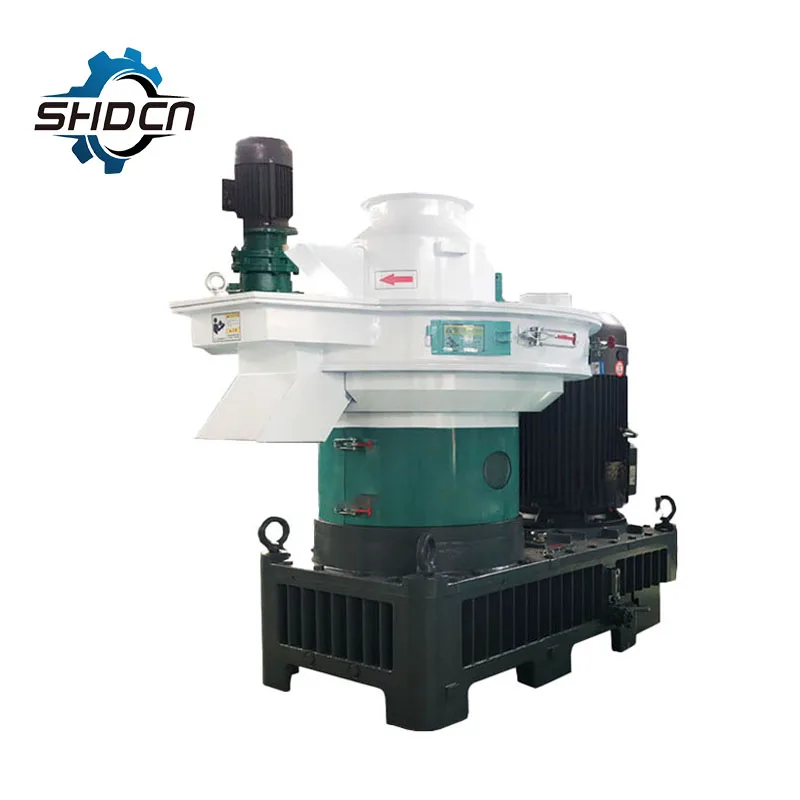

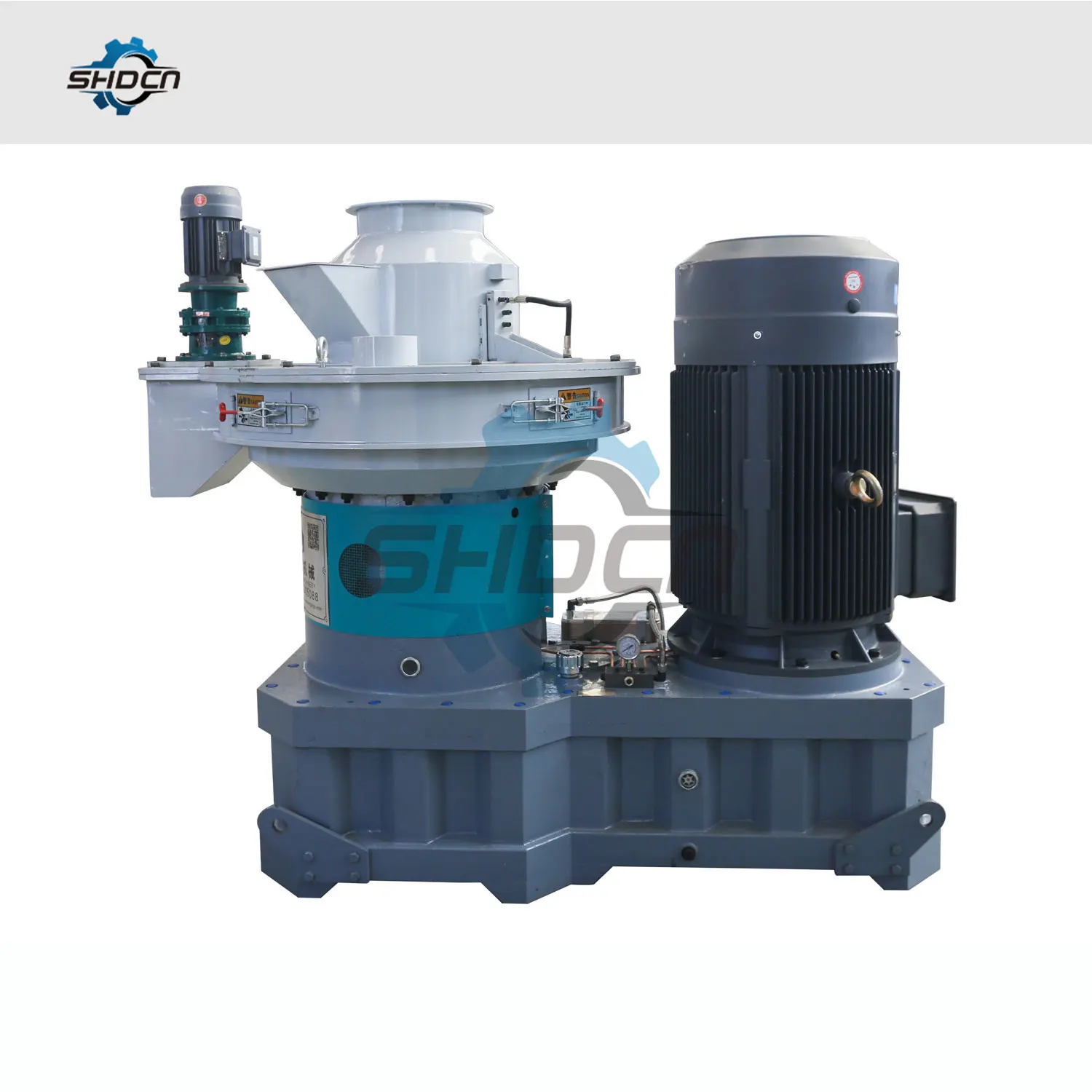

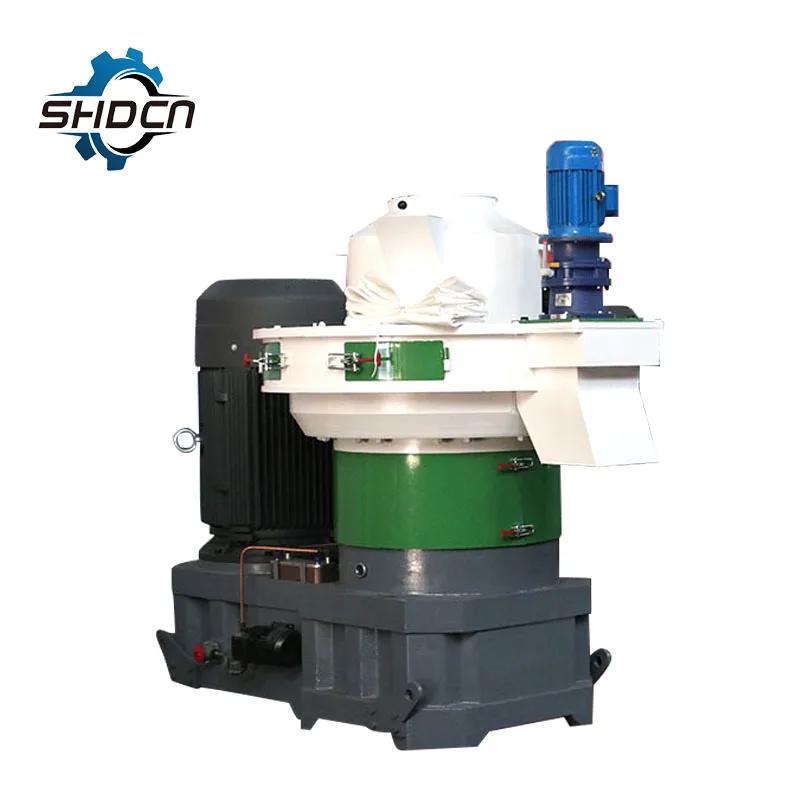

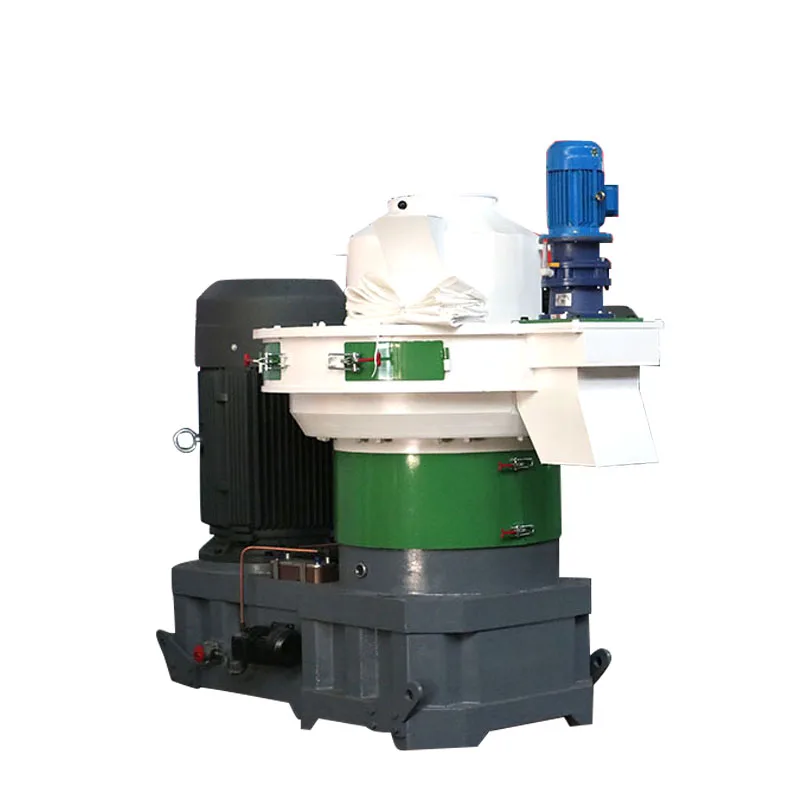

wood pellet machine
Product introduction:
The sawdust pellet machine is a production-type machine that crushes eucalyptus, pine, birch, poplar, fruit wood, crop straw, and bamboo chips into sawdust and chaff to produce biomass fuel. The new generation of sawdust pellet machine solves the shortcomings of difficult granulation and poor effect of biological crude fiber. The main machine is driven by belt drive, the ring die adopts quick-release hoop type, and the feeding adopts frequency conversion and speed regulation to ensure uniform feeding. , The door cover is equipped with a forced feeder, and the advanced manufacturing technology can be used to customize the molds for various raw materials for your various pellet machines, so that the life of your equipment will be extended, the product quality will be improved, and the consumption cost per ton will be reduced.

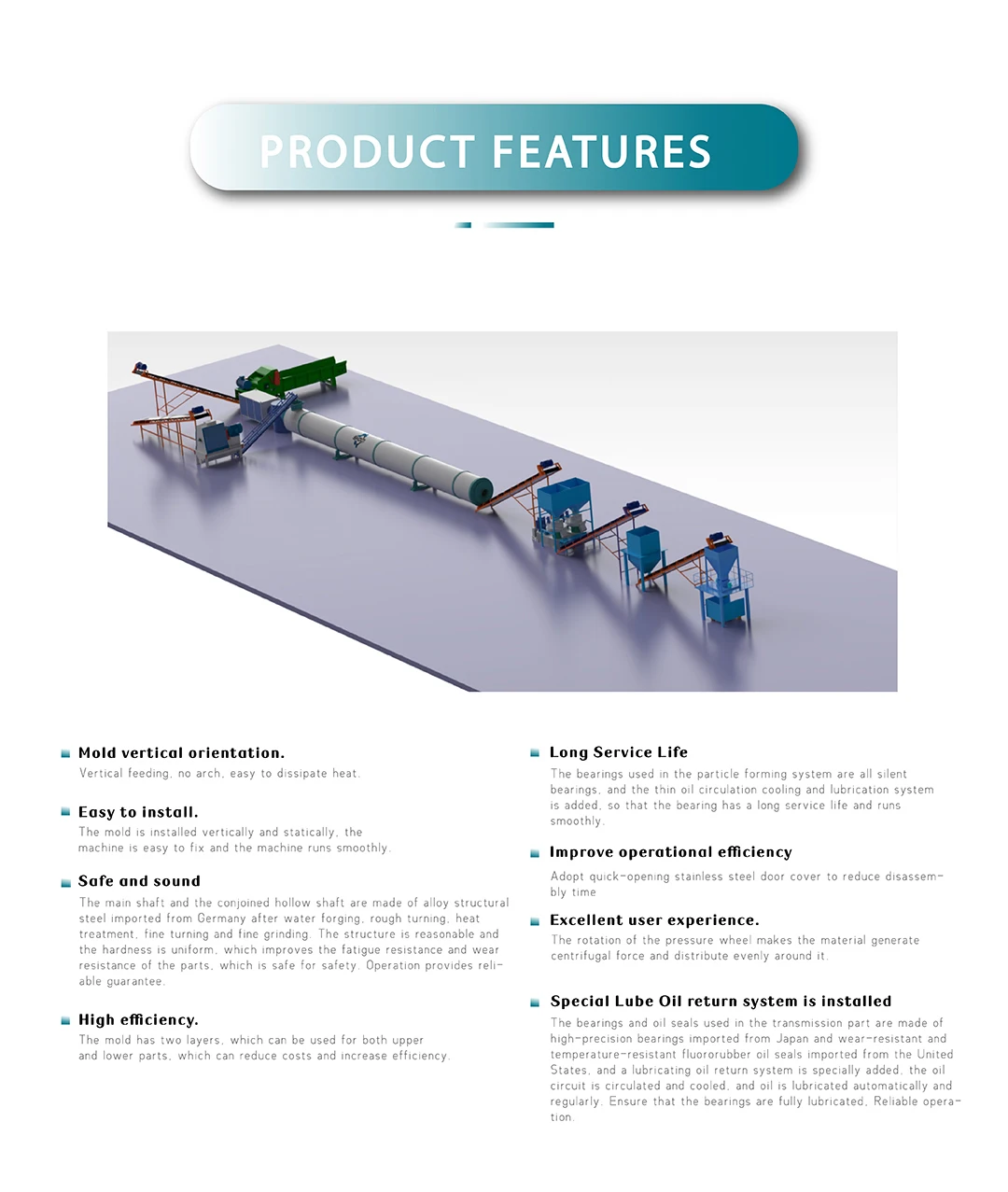

Product charact eristics:
1. Vertical feeding, directly in place.
2. The mold is stationary, the pressure wheel rotates, and the material is centrifugally distributed around.
3. The mold has two layers, which can be used for both upper and lower parts, which can reduce costs and increase efficiency, and can also be used for dual purposes, with high output and energy saving.
4. One mold with two hole diameters can press products of different specifications.
5. Large hole mold, round tube wire connection, increase the stroke and increase the compactness.
6. Ring mold, vertical structure, which is good for heat dissipation and cooling in the granulation chamber.
7. The discharge device with independent frequency conversion ensures the molding rate of the pellets.
2. The mold is stationary, the pressure wheel rotates, and the material is centrifugally distributed around.
3. The mold has two layers, which can be used for both upper and lower parts, which can reduce costs and increase efficiency, and can also be used for dual purposes, with high output and energy saving.
4. One mold with two hole diameters can press products of different specifications.
5. Large hole mold, round tube wire connection, increase the stroke and increase the compactness.
6. Ring mold, vertical structure, which is good for heat dissipation and cooling in the granulation chamber.
7. The discharge device with independent frequency conversion ensures the molding rate of the pellets.
Model | Power(kw) | Pellet Diameter(mm) | Capacity(t/h) | Weight(t) | Size(mm) |
SHD560 | 90 | 4-12 | 1.0-1.5 | 6.1 | 2500*1300*2300 |
SHD560 | 110 | 4-12 | 1.3-1.8 | 6.5 | 2500*1300*2300 |
SHD650 | 132 | 4-12 | 1.5-2.0 | 6.7 | 2600*1300*2400 |
SHD760 | 160 | 4-12 | 2.0-2.5 | 7.5 | 2900*1300*2400 |
SHD850 | 220 | 4-12 | 3.0-3.5 | 12 | 3200*1400*3100 |
SHD880 | 250 | 4-12 | 3.5-4.0 | 14 | 3300*1400*3100 |
