KT 668 полный автомат 8 станция вращающаяся машина для ПВХ из термопластичной резины, защитный чехол для мобильного телефона из термополиуретана, роторная литьевая машина для изготовления обувной подошвы
- Category: Shoe Making Machines >>>
- Supplier: Dongguan Kingtour Technology Co. Ltd.
Share on (1600737288287):
Product Overview
Description
Product Overview

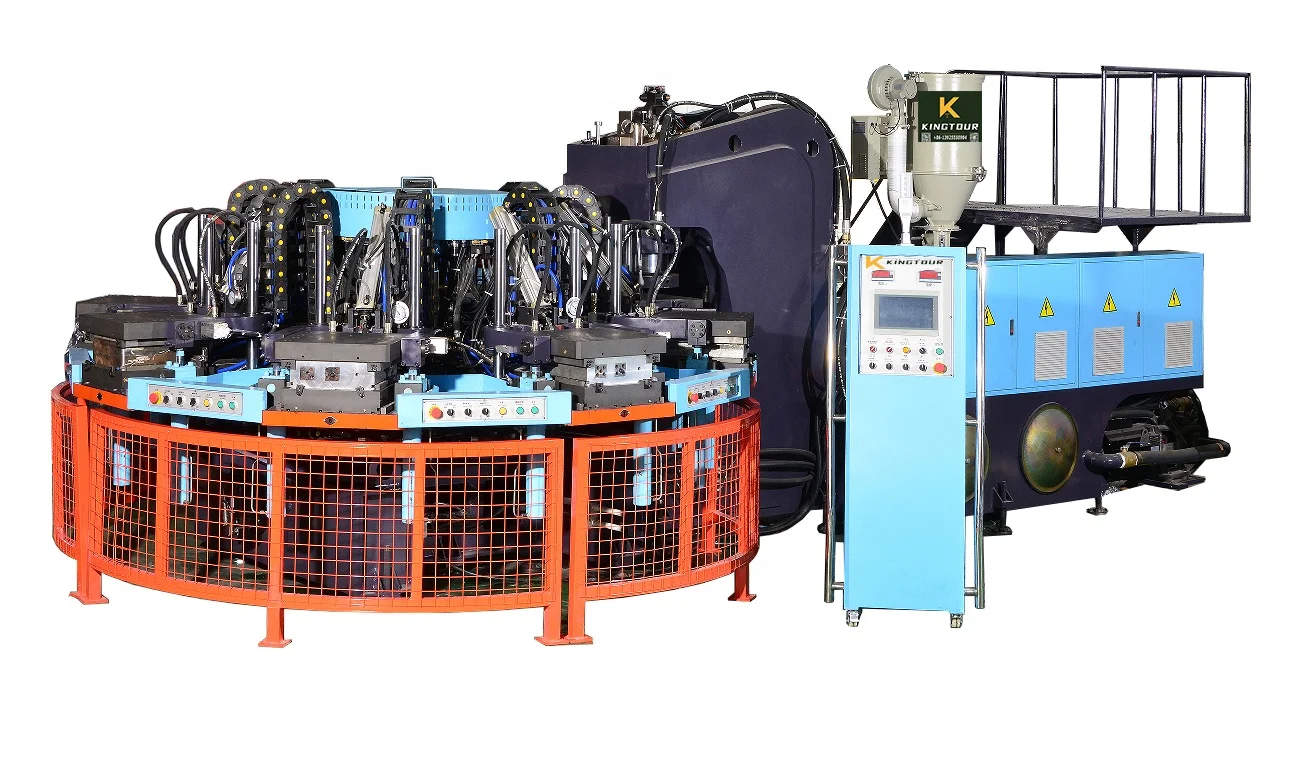

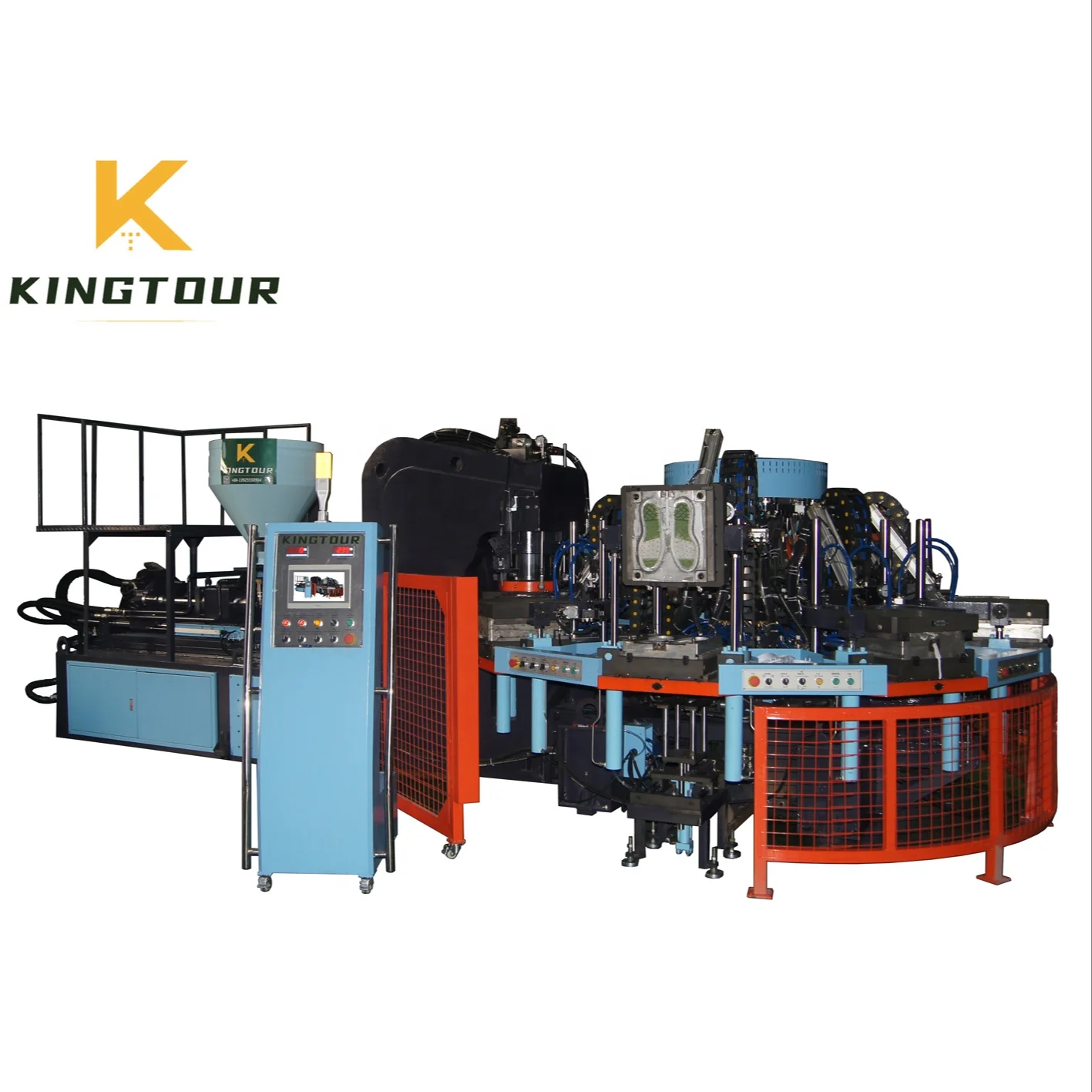

KT-668 Full Automatic 8 Station Rotary PVC TR Shoe Sole Injection Molding Machine
Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.
1. Computerization in analysis and design, the machine is well in stability.
2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.
3. Conformed to human engineering in design,it features operational compatibility.
4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.
6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.
8. It could be equipped with air blowing system and can produce light weight.
9. All new model,2 color machine only need one worker for operation.
10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.
1. Computerization in analysis and design, the machine is well in stability.
2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.
3. Conformed to human engineering in design,it features operational compatibility.
4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.
6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.
8. It could be equipped with air blowing system and can produce light weight.
9. All new model,2 color machine only need one worker for operation.
10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-668
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 7300*3900*2430 mm
Machine weight: 16800 kgs
Loading into a 40 feet container
Model: KT-668
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 7300*3900*2430 mm
Machine weight: 16800 kgs
Loading into a 40 feet container
1 color PVC sole making machine
2 color PVC sole making machine
3 Color PVC sole making machine
Machine Video
Sole sample
Man
1 Color Sole
Woman
2 Color Sole
Children
3 Color Sole
PRODUCT CONFIGURATION
PLC+Full-touch screen operation
Imported control valve
Power saving of servo system

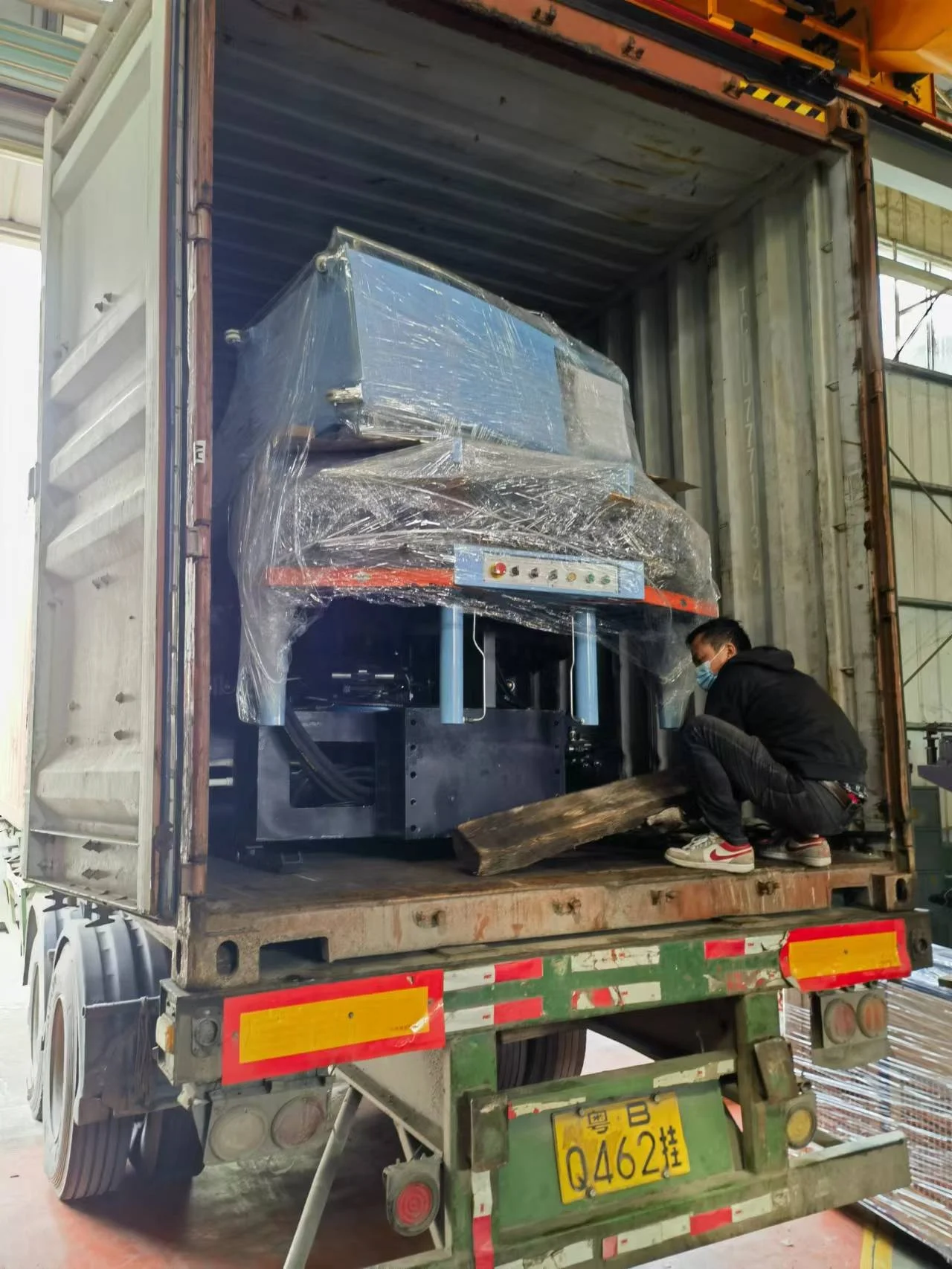

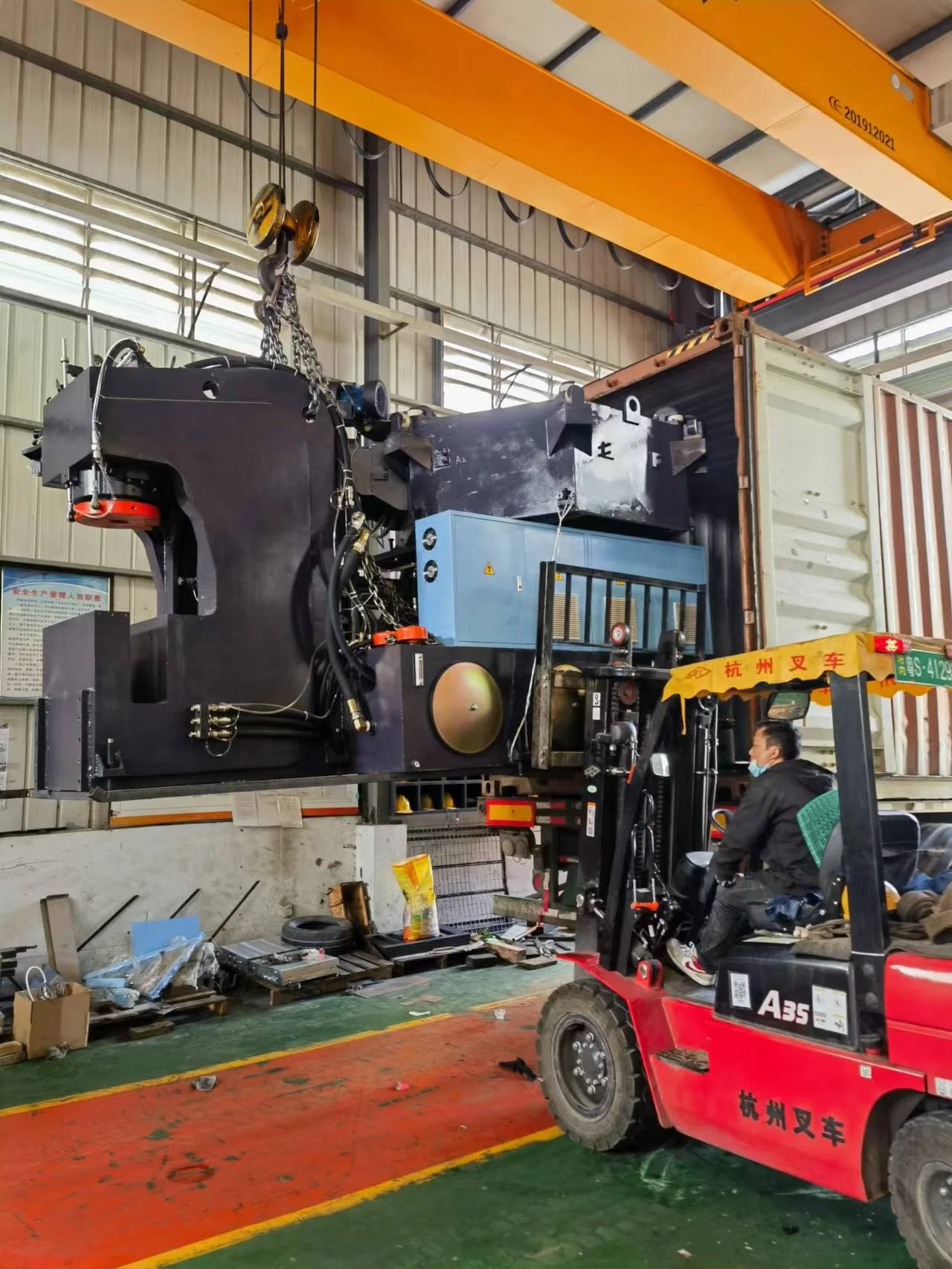

CONTAINER LOADING
Certificate
SALES AND SERVICE NETWORK
