Golden Dragon medical bus Mobile Dental Bus mobile dental clinic
US $28500-$29500
Ambulance Car Transit V362 Monitoring Medical ABS Interior ICU Emergency Ambulance Vehicle Ambulance Manufacturer
- Category: >>>
- Supplier: Zhuhai Pengyu Automobile Co. Ltd.
Share on (1600737331728):
Product Overview
Description
Product Description
Specification

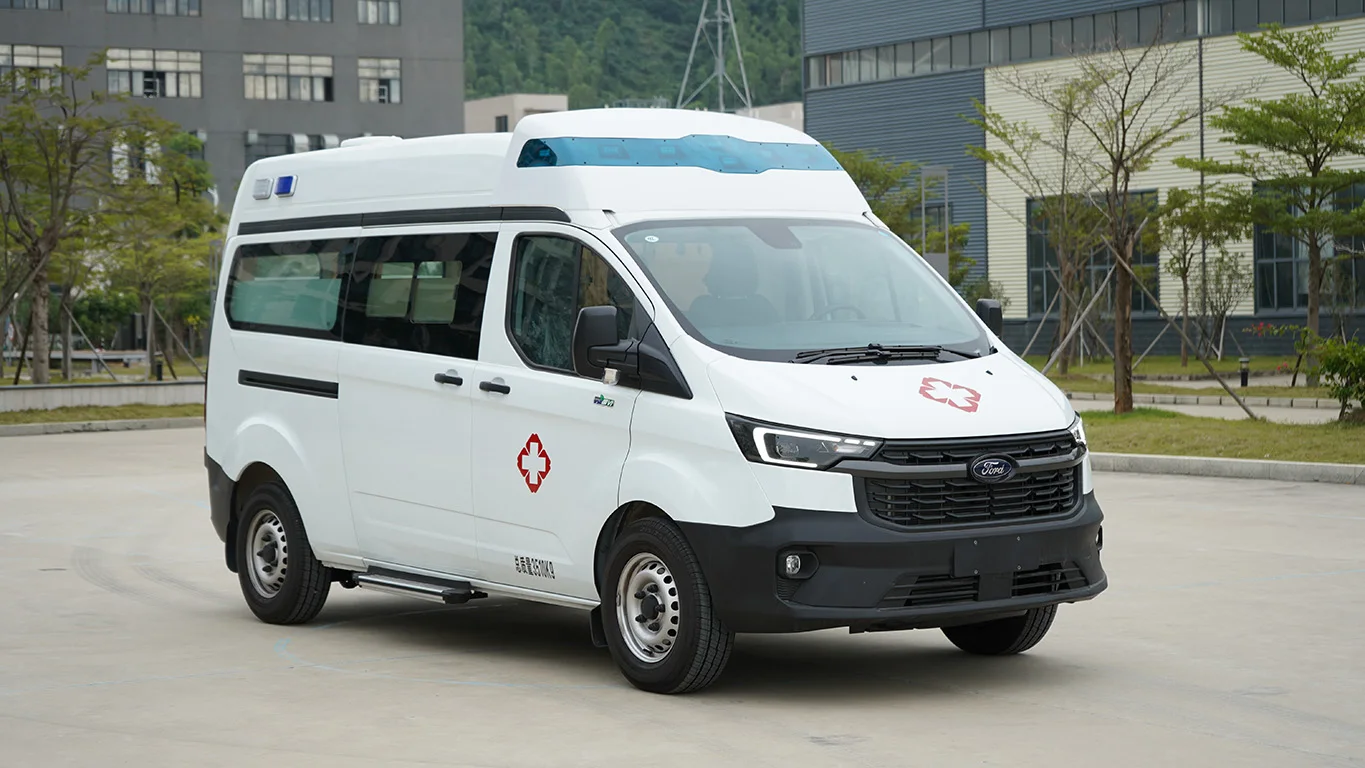

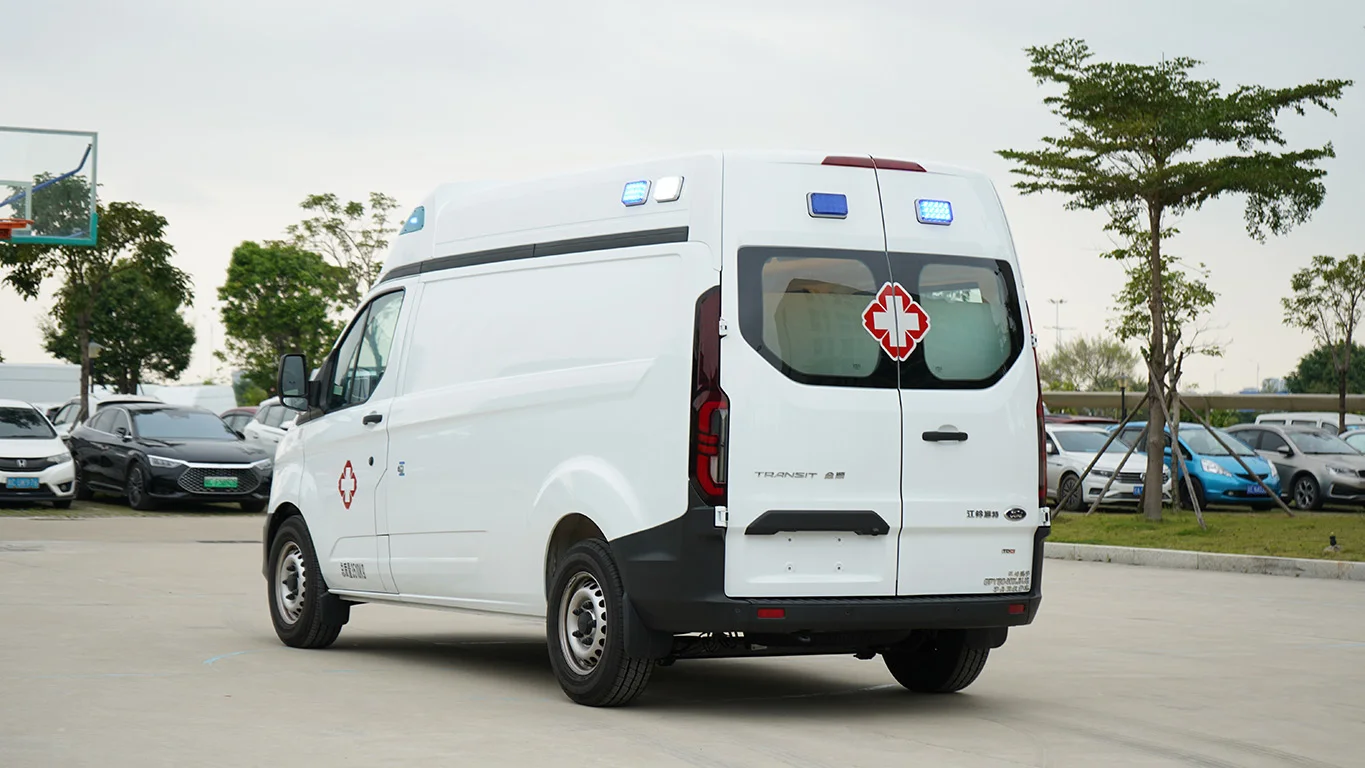

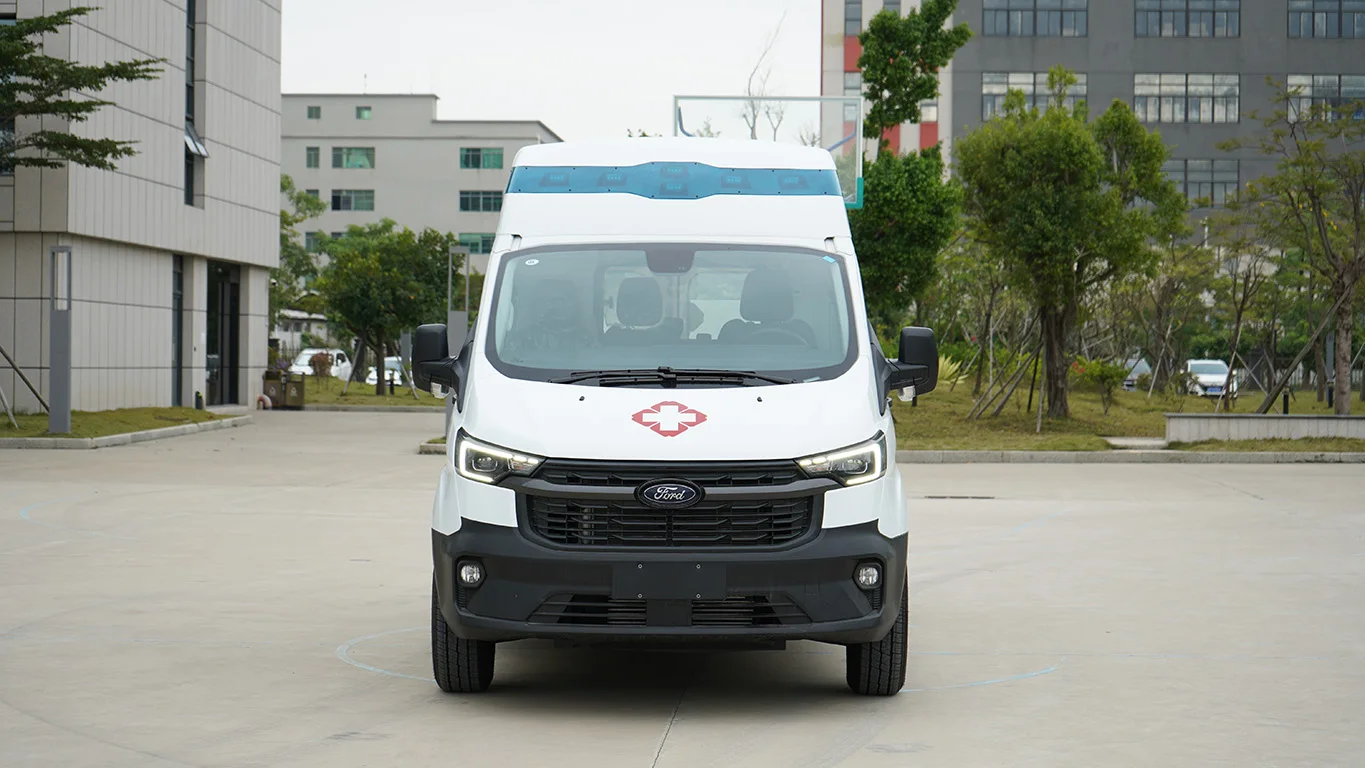

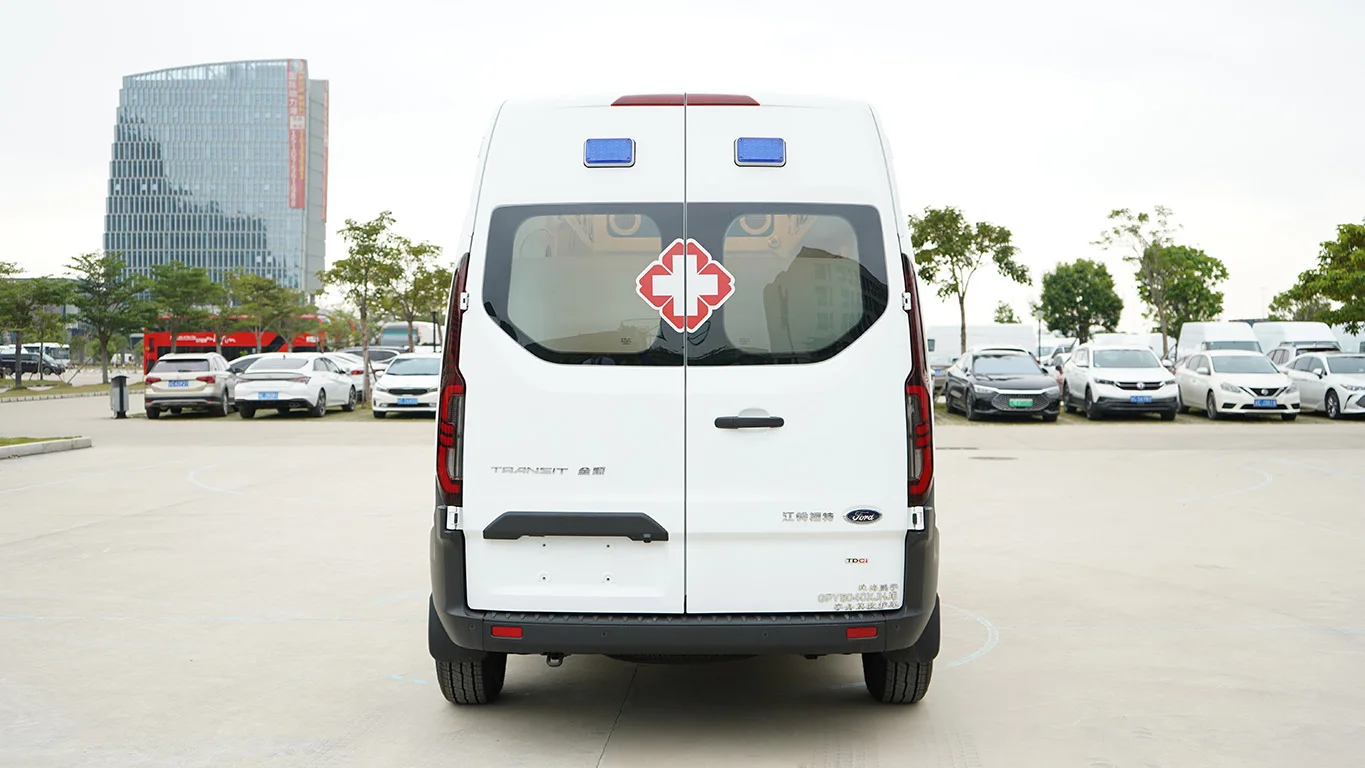

Transit V362 Monitoring Ambulance ABS Interior (Gasoline , MT, Euro6)
Basic Data | ||
Model | GPY5030XJHJ3 | |
Engine type | ECOBOOST4G20E6L | |
Fuel type | Gasoline | |
Displacement (ml) | 1997 | |
Emission standard | Euro VI | |
Curb weight (kg) | 2700 | |
GVW (kg) | 3495 | |
Wheelbase (mm) | 3300 | |
Working way of Engine | In-line 4 cylinder, water-cooled direct injection, inter-cooling, direct injection, compression ignition | |
The dimensions of the Vehicle (mm) | 5341×1986×2420mm (L x W x H) | |
Max power（Kw/rpm） | 162/5500 | |
The maximum torque Nm/rpm | 300/3000 | |
Suspended system | Front: McPherson independent suspension Rear: Leaf spring non independent suspension | |
Braking System | Hydraulic double circuit disc brake | |
Transmission | MT: 5 forward gears,1 reverse gear | |
Top Speed(km/h) | 170 | |
The Capacity of Fuel Tank（L） | 80 | |
Seat | 3-7 | |

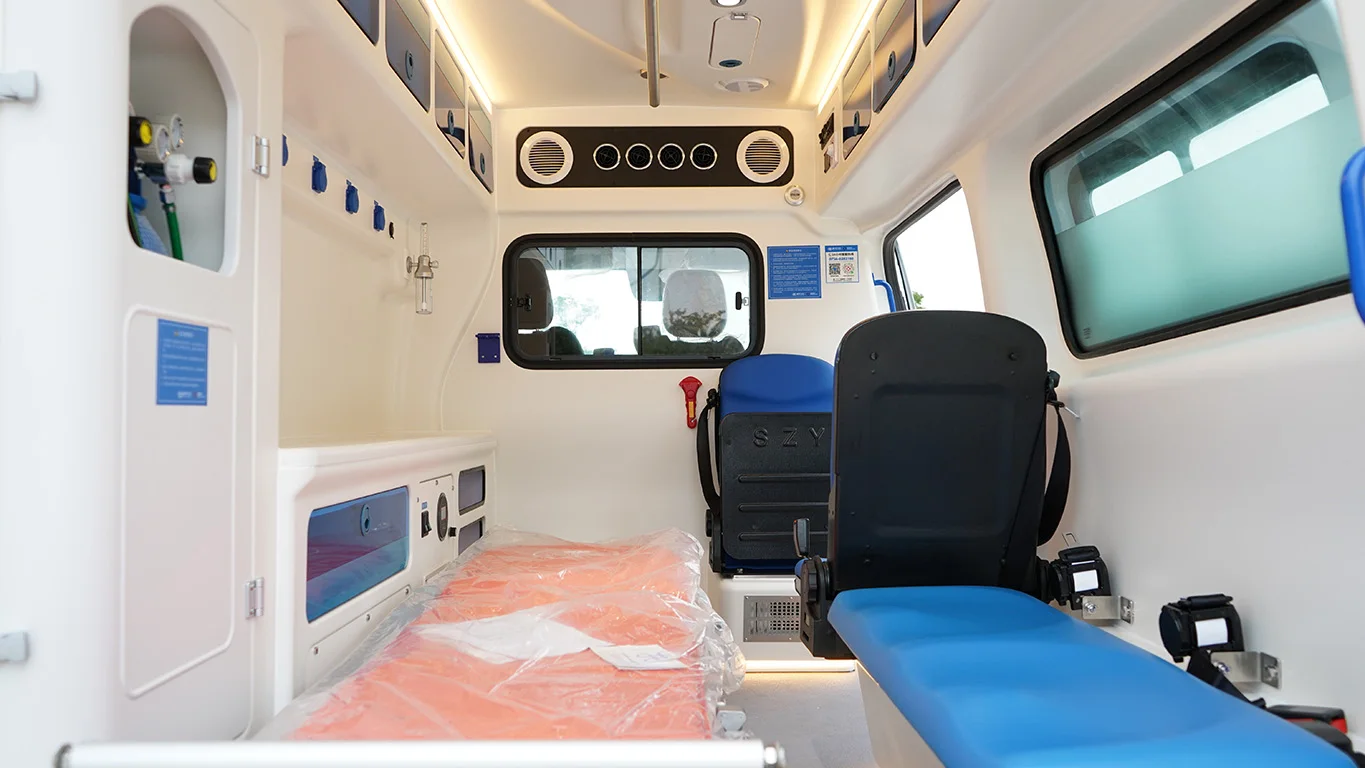

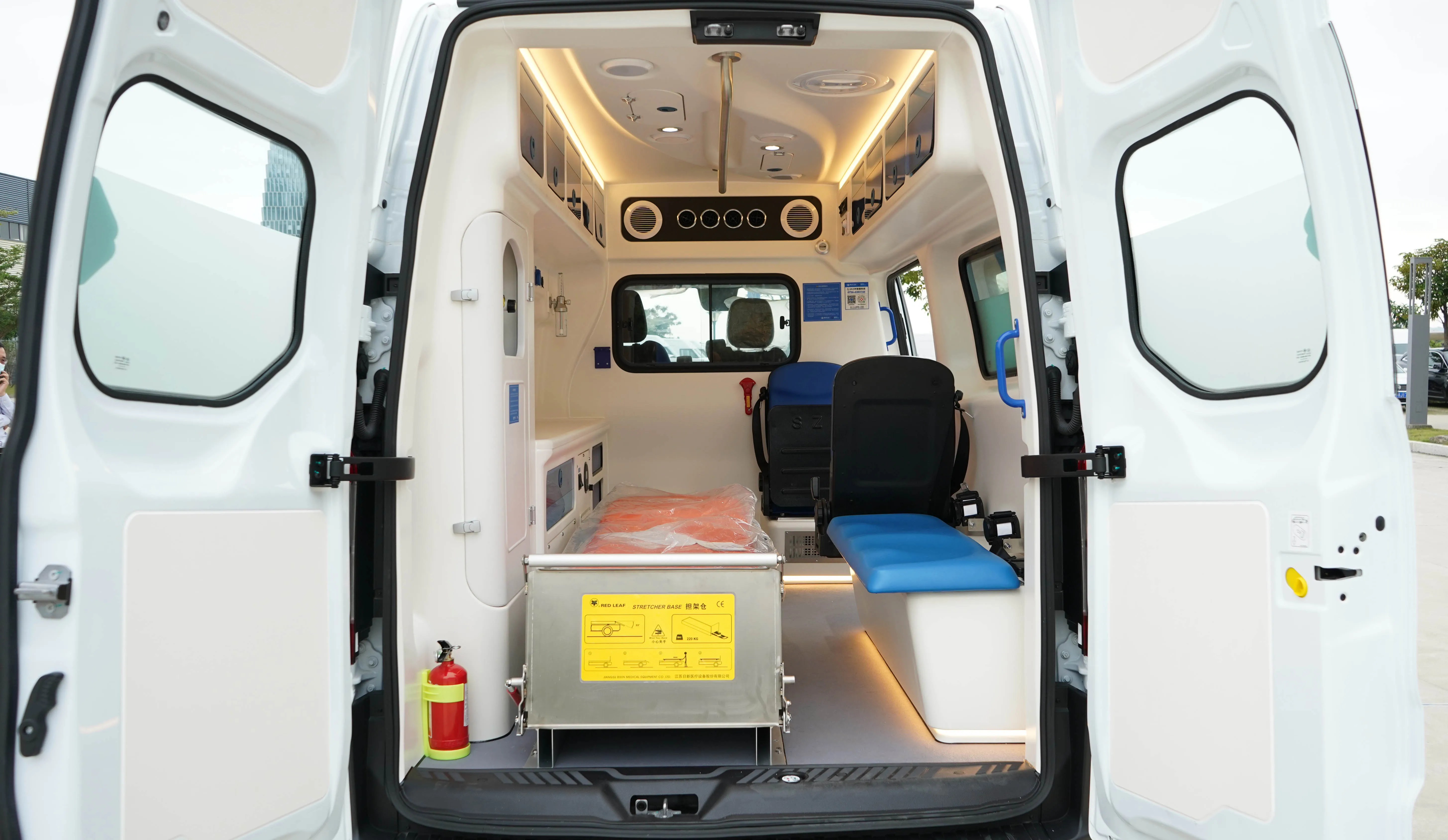

Medical compartment device | ||||
1. | Installation of ABS partition wall with sliding window. | 1 | ||
2. | Installation of Air-conditioner outlets on the partition wall | 1 | ||
3. | Installation of Air-conditioner inlets on the partition wall | 1 | ||
4. | Installation of folding doctor’s seat | 1 | ||
5. | Equipped with emergency hammer. | 1 | ||
6. | Installation of intercom system. | 1 | ||
7. | Equipped with dustbin. | 1 | ||
8. | Installation of middle door handrail. | 1 | ||
9. | Installation of ABS interior panel of wall and an ABS wall cabinet with 4 lockers on the right side of the medical compartment. | 1 | ||
10. | Installation of oxygen socket (for ventilator and humidifier). | 1 | ||
11. | Installation of long medical cabinet on the of the medical compartment. | 1 | ||
12. | Central control system (to control LED light, atmosphere light, air-conditioner, heater, exhaust fan, UV light, AC power, intercom, negative pressure system.) | 1 | ||
13. | Installation of ABS bench cabinet with seatbelt. | 1 | ||
14. | Installation of a crew seat with an ABS base. | 1 | ||
15. | Installation of ABS interior panel of wall and an ABS wall cabinet with 5 lockers on the left side of the medical compartment. | 1 | ||
16. | Installation of ABS oxygen cylinder cabinet | 1 | ||
17. | Equipped with 10L oxygen cylinder with reducer. | 2 | ||
18. | Installation of handrail on the top of the medical compartment. | 1 | ||
19. | Equipped with 1kg fire extinguisher. | 1 | ||
20. | Installation of infusion hanger. | 1 | ||
21. | Installation of exhaust fan. | 1 | ||
22. | Installation of sound insulation and insulation | 1 | ||
23. | Medical compartment with environment friendly waterproof, antiskid, anti-static and anti-corrosion plywood floor with floor leather. | 1 | ||

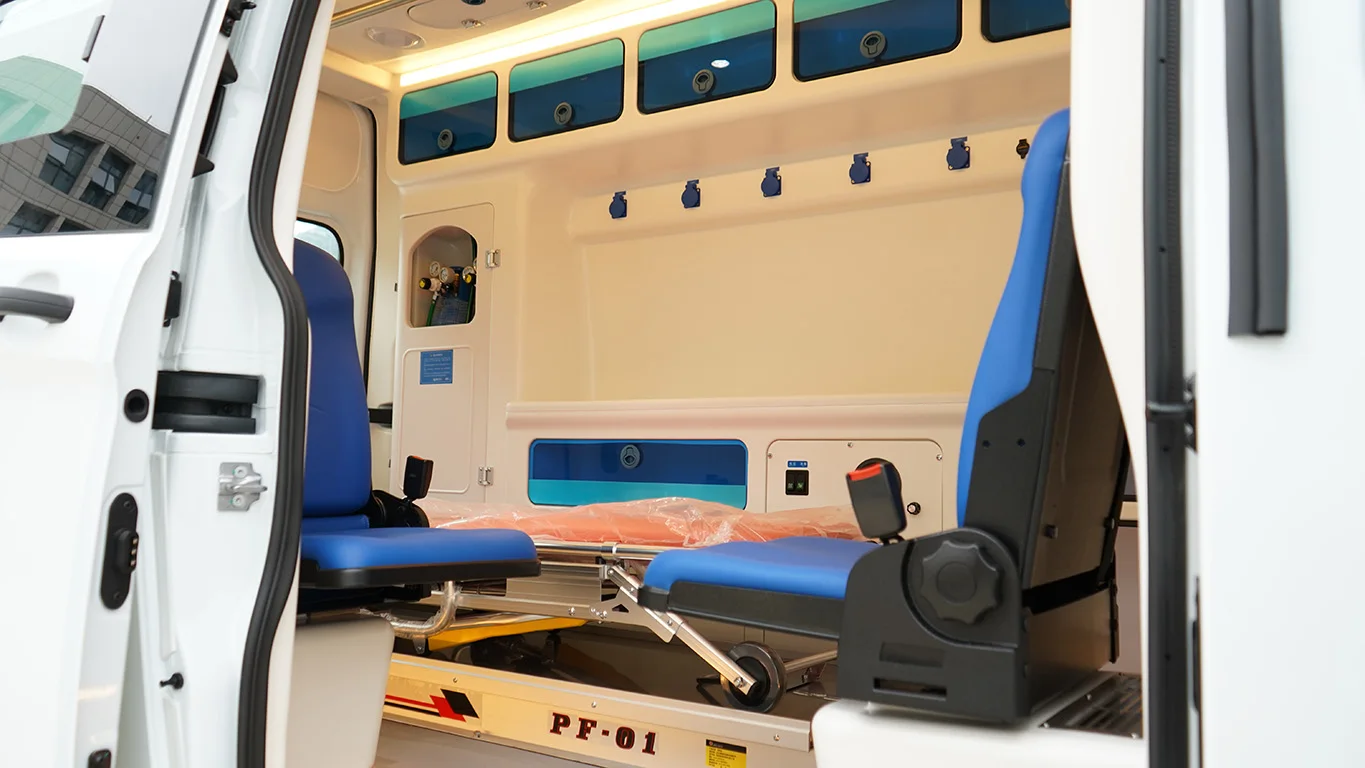

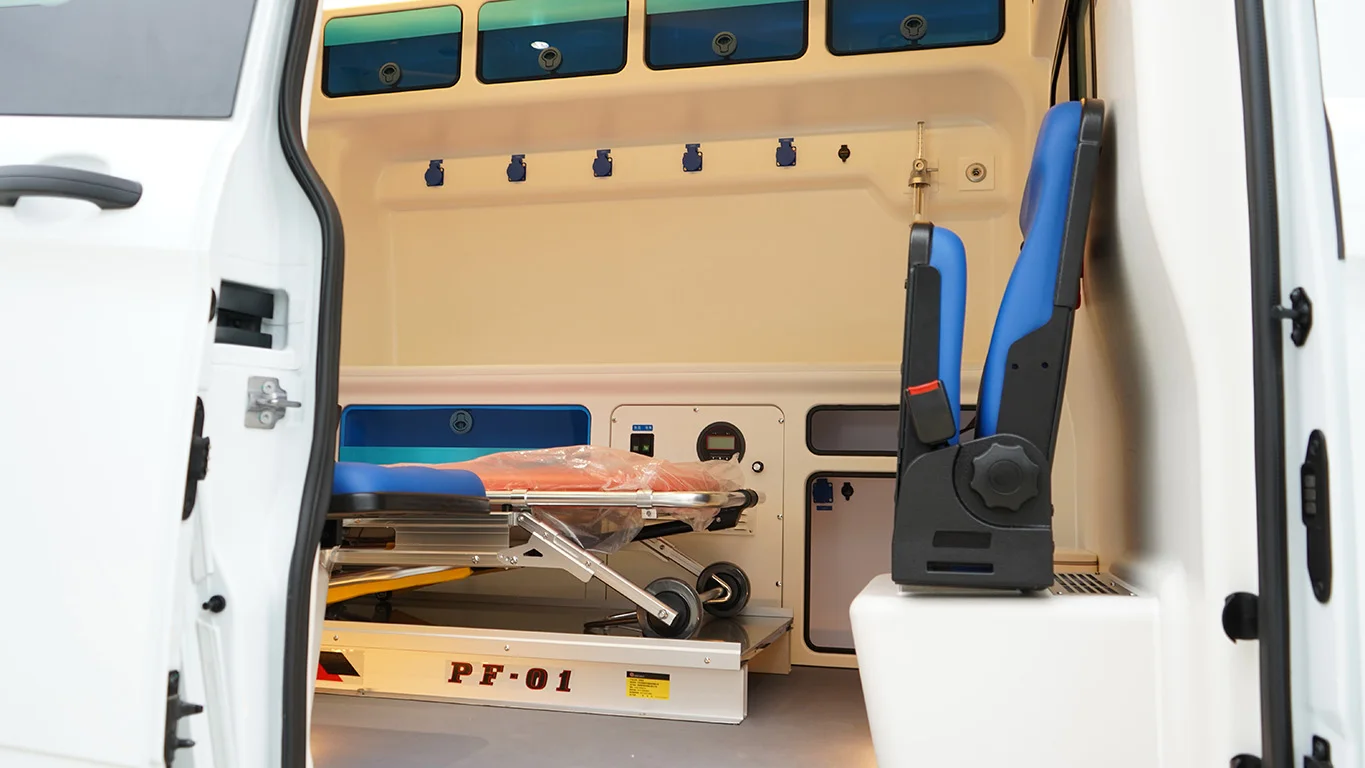

24. | Equipped with loading stretcher and platform (with fixer and safety belt). | 1 | ||
25. | Reflective decal on the vehicle | |||
Pictures for reference only, subject to customer order specification
