Horizontal rotogravure offset printers press
- Category: >>>
- Supplier: Ruian Jinghong Machinery Co. Ltd.
Share on (1600737332504):
Product Overview
Description
Horizontal rotogravure offset printers press
Application
This machine is suitable for continuous ,multi-color printing or rolling material in good printing performance such as tobacco packing,paper,non woven,PP woven,aluminum foil,BOPP,PET,NYLON,PVC,PE and so on.
Features
1. The whole set is in permutation and combination style, possible to add and reduce color class and add on reverse printing mechanism as required by customers.
2.Seven motors tension system automatic control for complete machine, steady tension control.
3. Pneumatic back-pressure moving erasing knife, non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate changing.
4. Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5. Adopting pneumatic elements for control of all printing pressure roll drawing pressure roller and open & close of oven.
6. Sealed type lengthened oven, fast drying with less energy consuming, and auto constant temperature control system.
7. Printing ink circulating system, inflatable type shaft draw in and draw out.
8. High-accuracy gear transmission box, adopting patented technique.
9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing material change without machine halt.
10.Adopting aluminum alloy guide roll after anode oxidation processing and in balance.
11. Full automatic computer registering devices and computer still examining graphics.
12. Diesel oil air-stove system is available for stove heating.
2.Seven motors tension system automatic control for complete machine, steady tension control.
3. Pneumatic back-pressure moving erasing knife, non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate changing.
4. Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5. Adopting pneumatic elements for control of all printing pressure roll drawing pressure roller and open & close of oven.
6. Sealed type lengthened oven, fast drying with less energy consuming, and auto constant temperature control system.
7. Printing ink circulating system, inflatable type shaft draw in and draw out.
8. High-accuracy gear transmission box, adopting patented technique.
9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing material change without machine halt.
10.Adopting aluminum alloy guide roll after anode oxidation processing and in balance.
11. Full automatic computer registering devices and computer still examining graphics.
12. Diesel oil air-stove system is available for stove heating.
Specifications
Model | JHAY-AH-650 | JHAY-AH-850 | JHAY-AH-1050 |
No.of colors | 1-12 | 1-12 | 1-12 |
Printing cylinder diameter | 100-320mm | 100-320mm | 100-320mm |
Printing width | 600mm | 800mm | 1000mm |
Rewind &Unwind diameter | 600mm | 600mm | 600mm |
Printing speed | 100-200m/min | 100-200m/min | 100-200m/min |
Dry form | electric heating | electric heating | electric heating |
Total power | 162kw | 170kw | 178kw |
Dimension | 14500*3150*2880mm | 14500*3350*2880mm | 14500*3550*2880mm |
Weight | 17000kg | 19000kg | 20000kg |

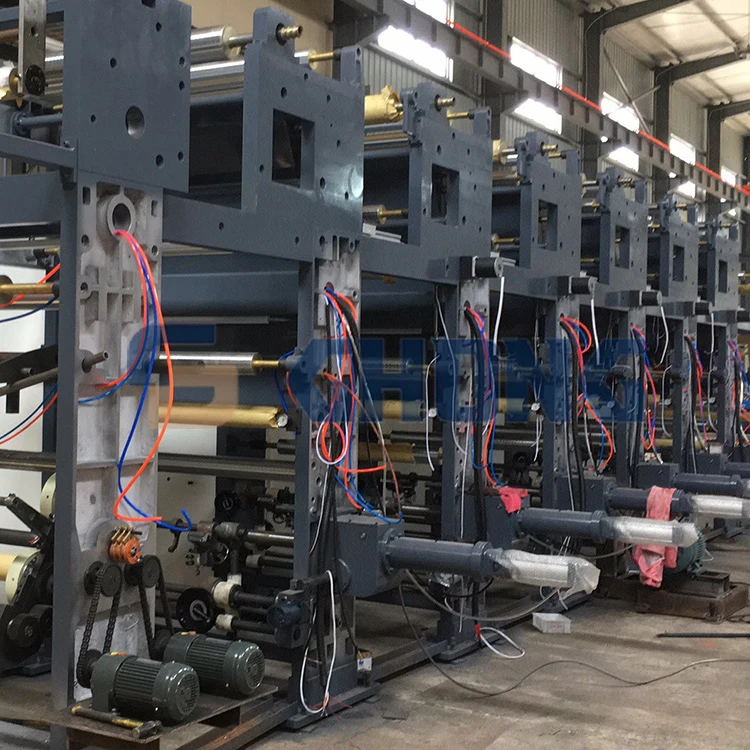

Details Images

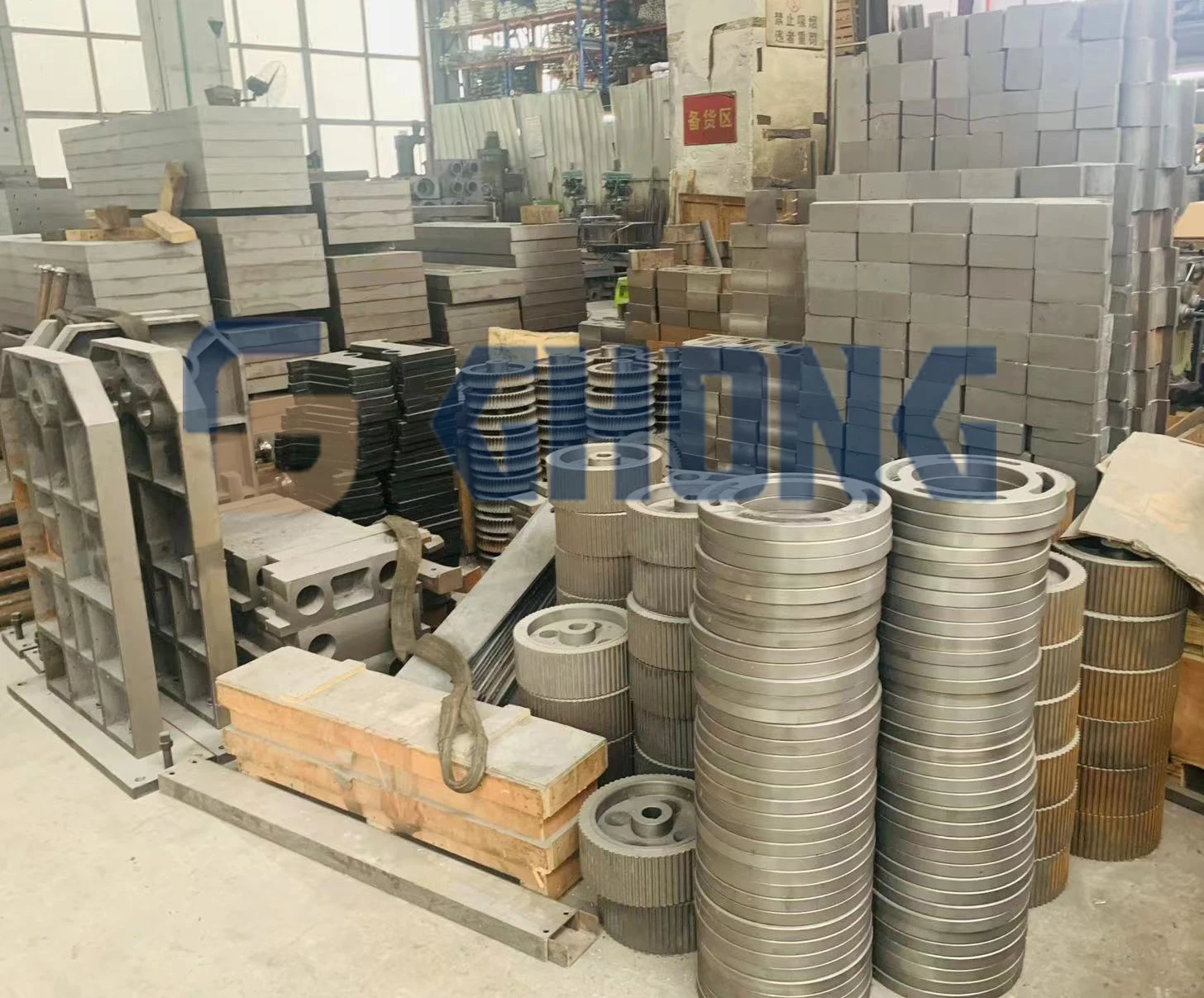

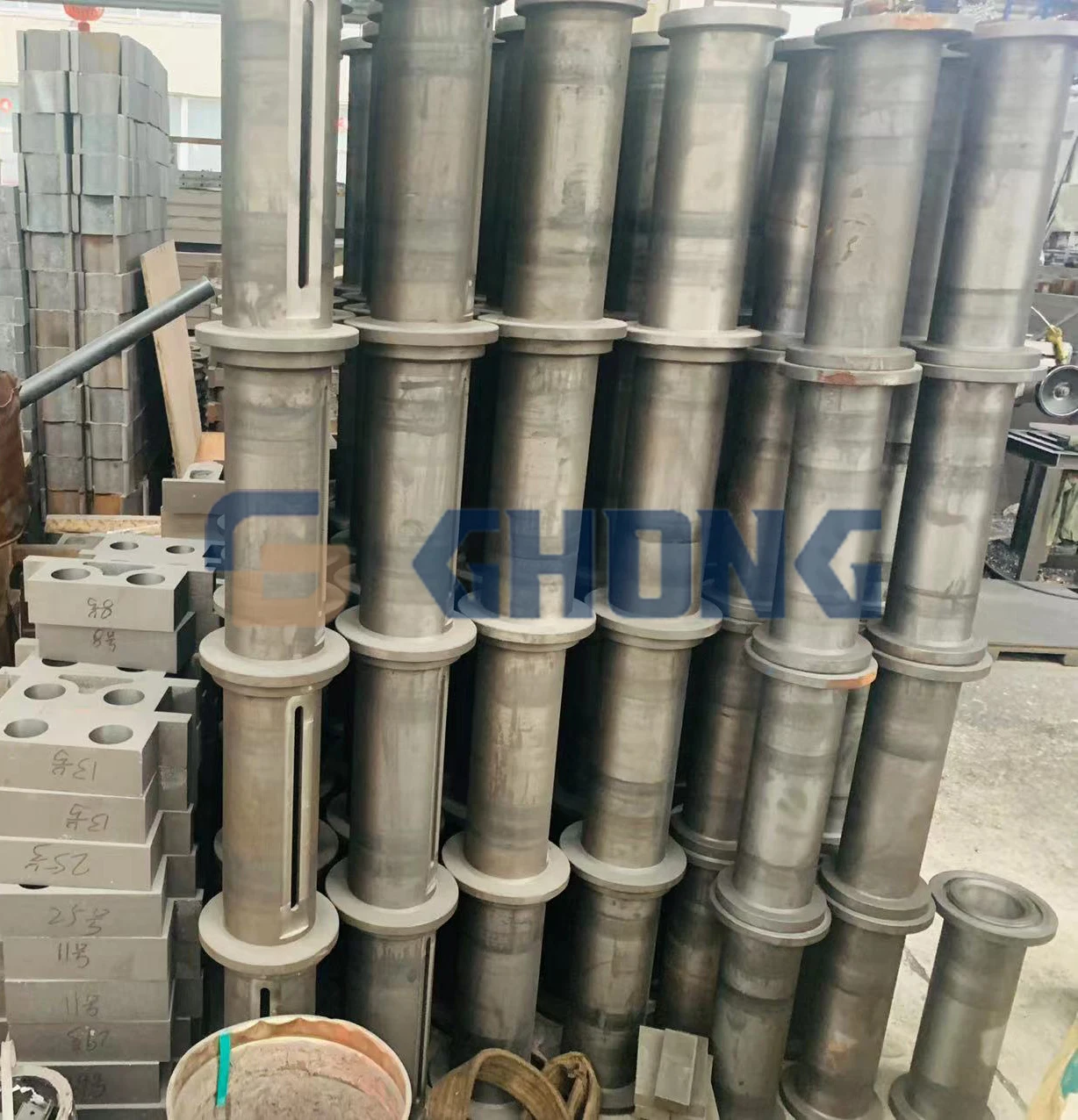

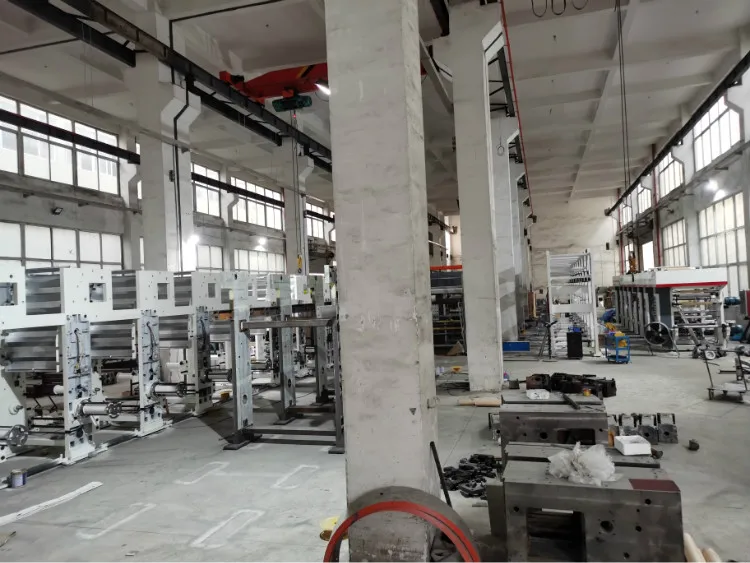

Production

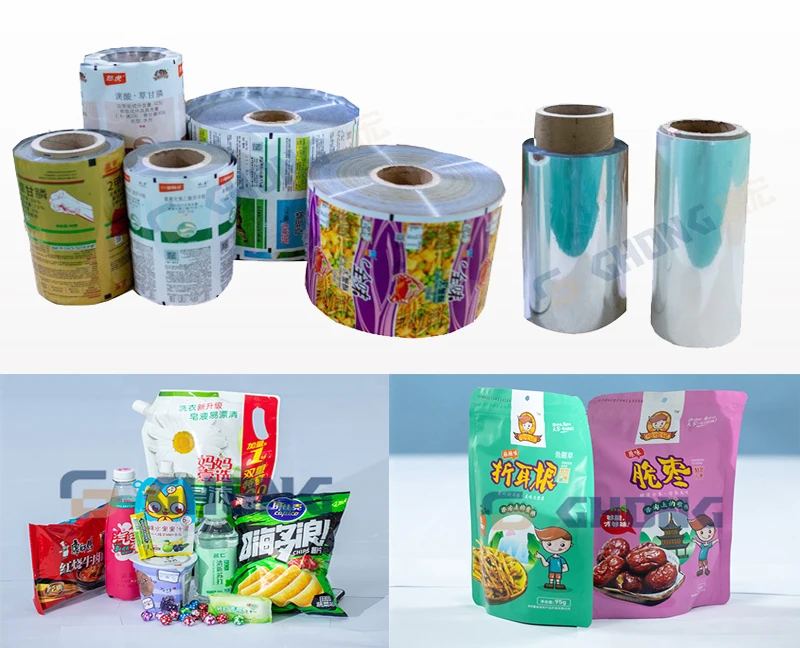

Samples

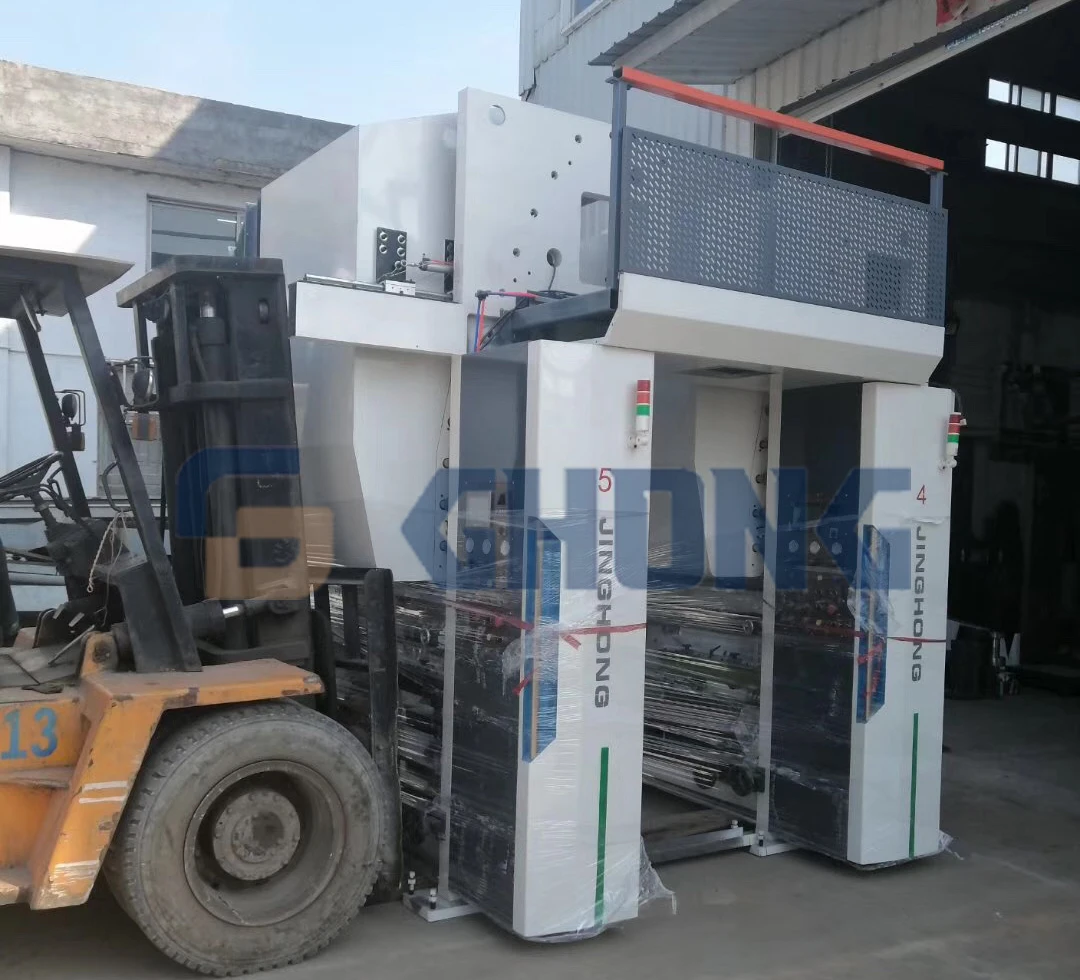

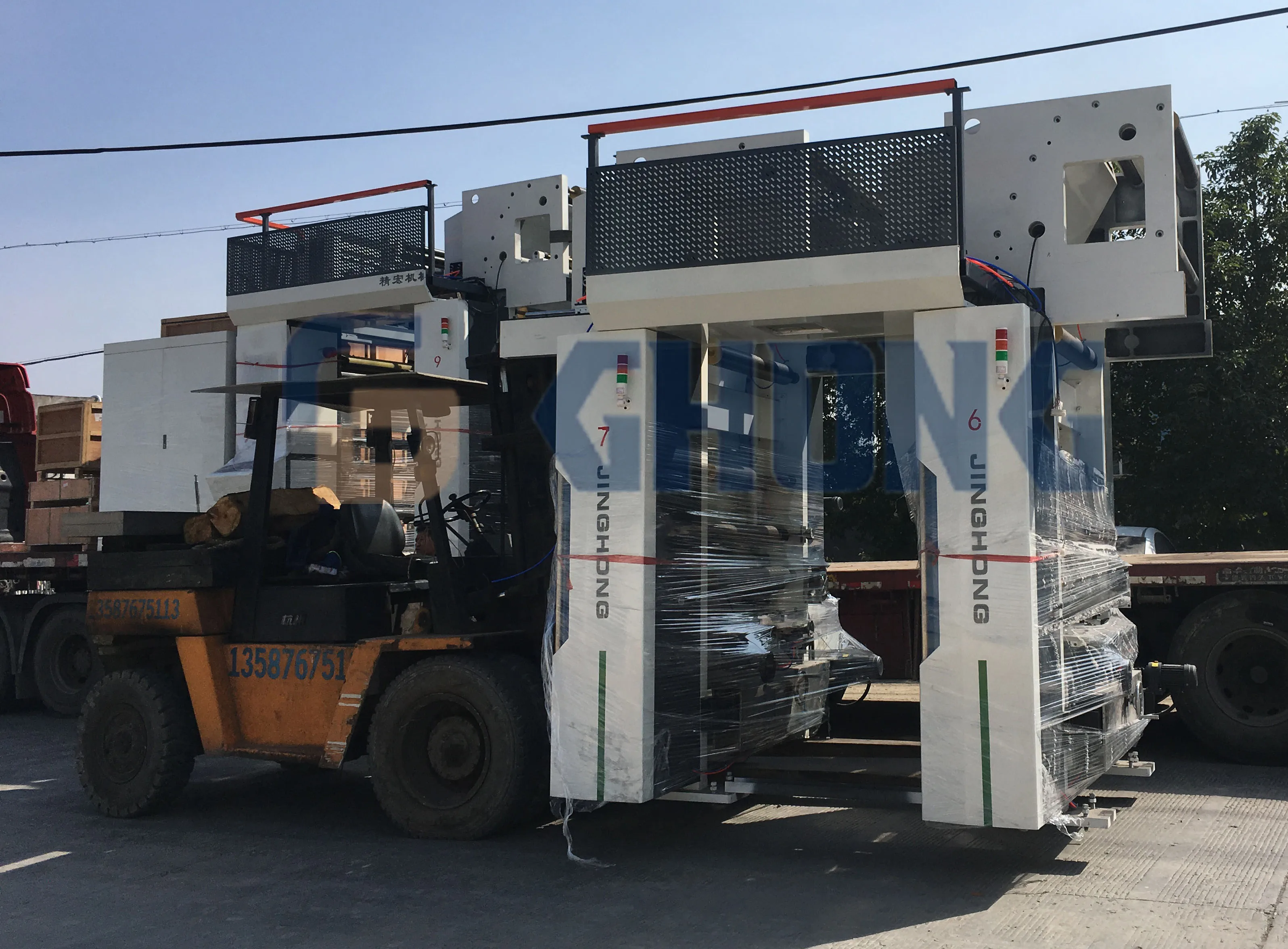

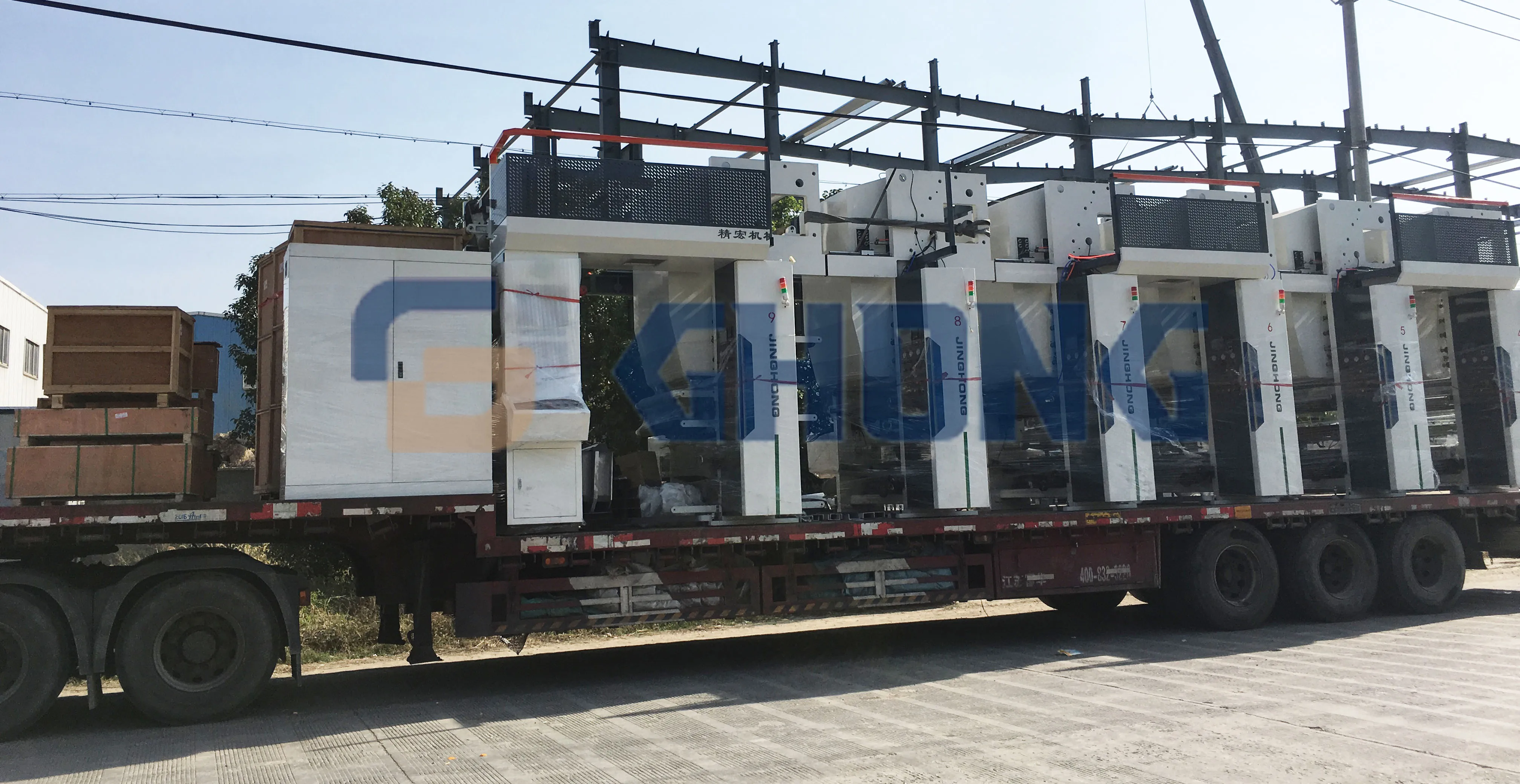

Packaging & Delivery

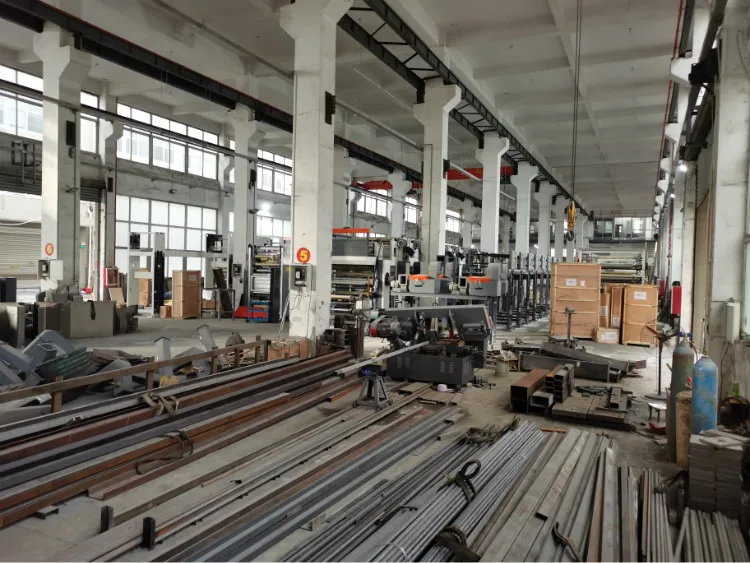

Company Profile
222
Ruian Jinghong Printing Machinery Co.,Ltd. always insists On its principle of "Creating quality with faithful integrity, creating future with science & technology; and has never stopped its step in technical and management innovation, is now developing along the directions of multi-function, high-speed, automation, interaction as well as environmental protection; the human based service with high quality, low-cost, high efficient and low consumption which we provided for masses of printing & packing enterprises will surely ensure the reliable equipment as well as powerful comprehensive support, and creates sustained maximum benefit for our customers.
