Huawei MA5800 Series GPSF 16 Ports GPON Service Board B C C GPON OLT
- Category: >>>
- Supplier: Shenzhen Huowei Sunshine Technology Co. Ltd.
Share on (1600737342967):
Product Overview
Description
Product Description

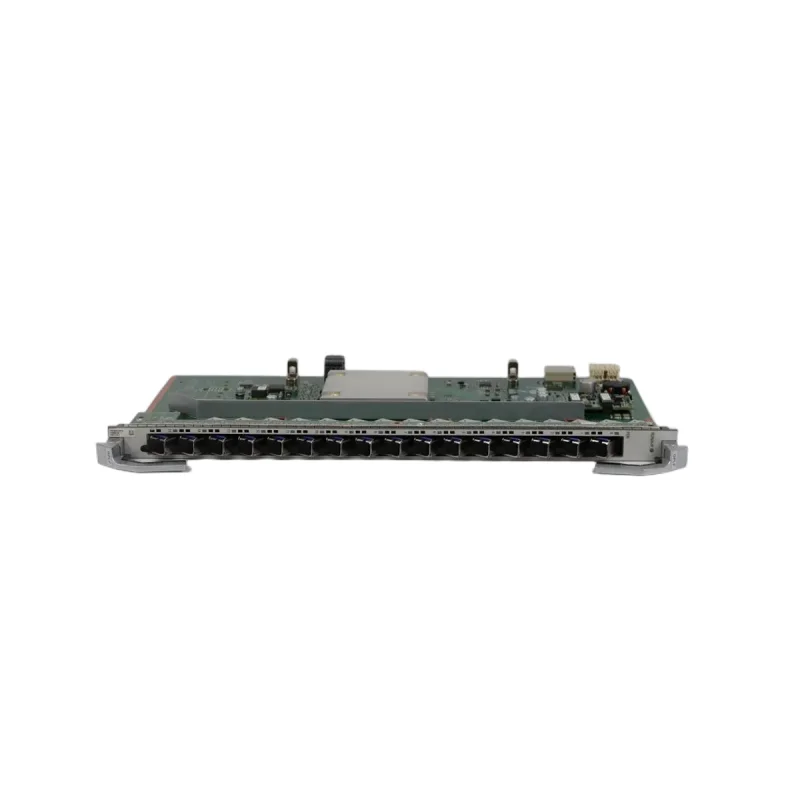

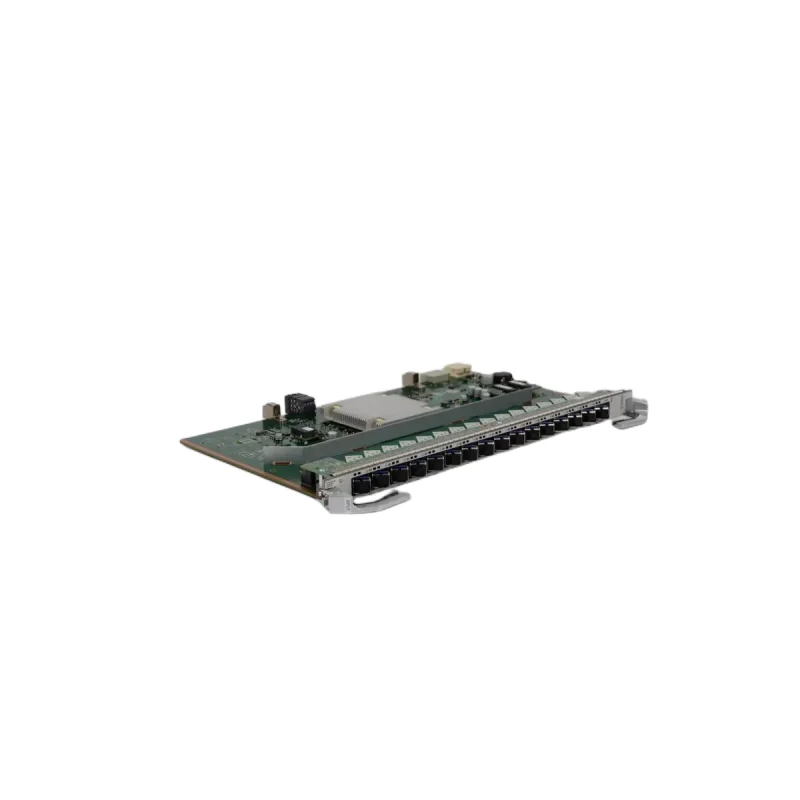

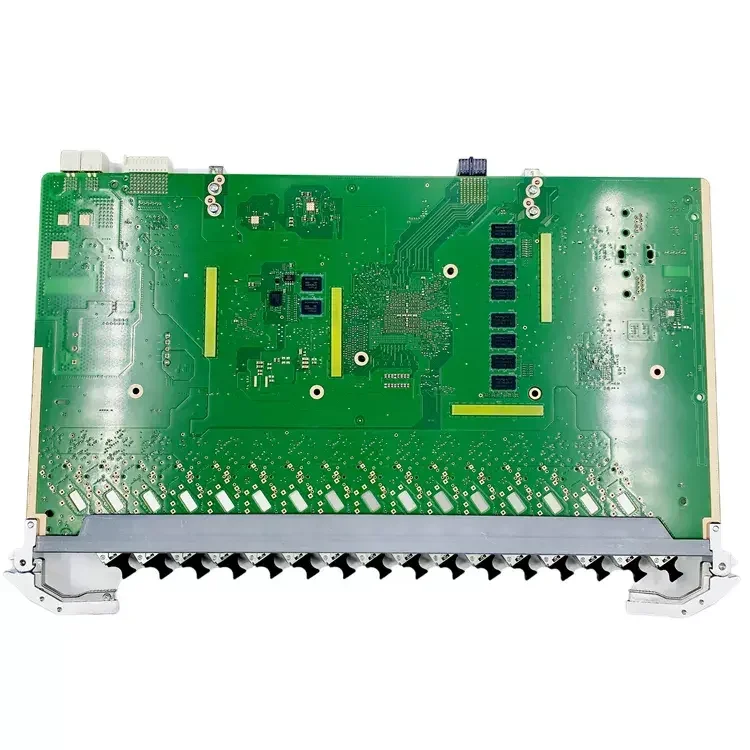

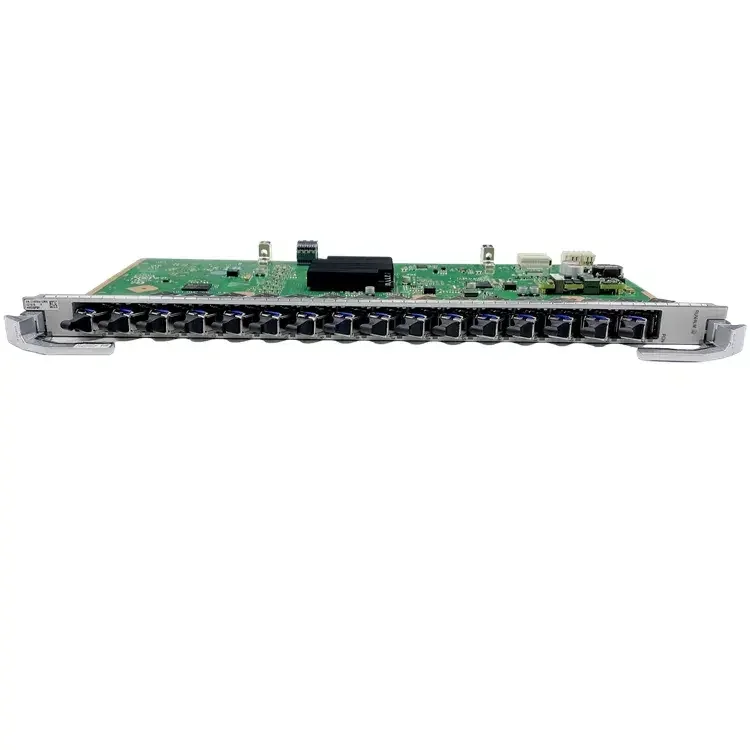

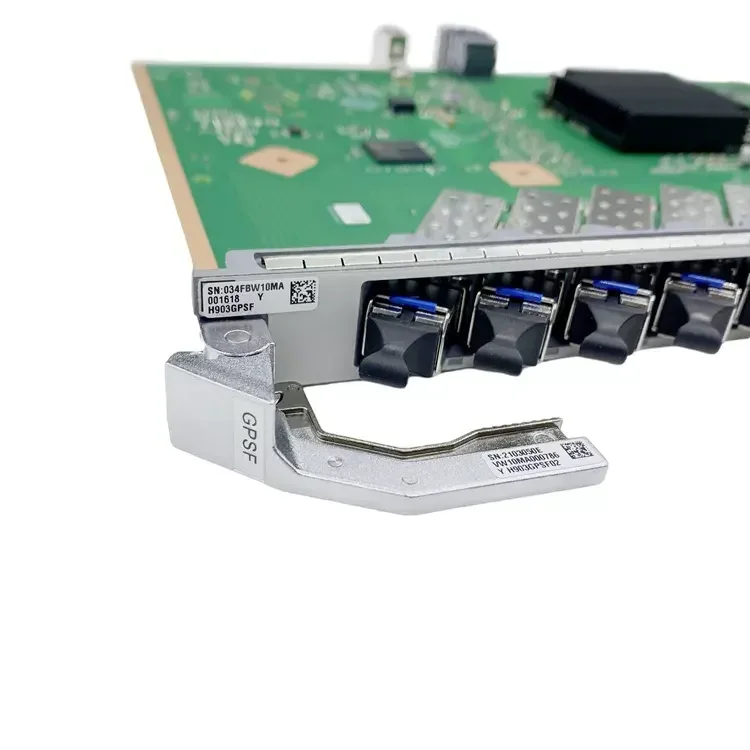

Huawei GPSF Service Board is 16-port GPON OLT interface board with C+ SFP module for Huawei MA5800 series. It works together with the optical network unit (ONU) to provide GPON access services.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
Product Features
1, High density and energy saving
High density, low power consumption, support 2048 access users.
Idle PON port manual shutdown, to avoid power waste.
2, Intelligent management channel
Level 4 HQoS to improve the user experience.
9216 Jumbo frame, greatly improving the transmission efficiency.
3, Easy to operate and maintain
Real-time rogue ONU detection and isolation, to ensure stable operation of the business
1:64 eOTDR, accurate fault sharing and quick fault location.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
Product Features
1, High density and energy saving
High density, low power consumption, support 2048 access users.
Idle PON port manual shutdown, to avoid power waste.
2, Intelligent management channel
Level 4 HQoS to improve the user experience.
9216 Jumbo frame, greatly improving the transmission efficiency.
3, Easy to operate and maintain
Real-time rogue ONU detection and isolation, to ensure stable operation of the business
1:64 eOTDR, accurate fault sharing and quick fault location.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Specification
item | value |
Model Number | GPSF |
Type | OLT |
Place of Origin | China |
Guangdong | |
Brand Name | huawei |
Use | FTTX |
Warranty Time | 1 year |
Network | None |
Brand | Huawei |
Model | GPSF |
GPON Port | 16-GPON Port |

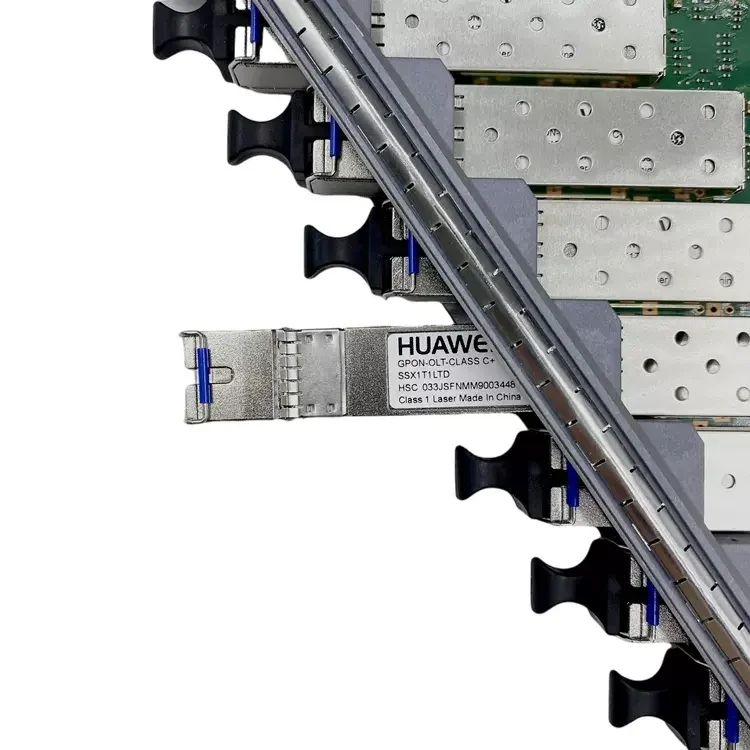

Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimum Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption | Static: 25W; Maximum:50W |
Maximum Frame Size | 2004 bytes |
9216 bytes (jumbo frame enabled) | |
Operating temperature | -40°C to +65°C |
Company Profile
Shen Zhen Huo Wei Sunshine Technology Co.,Ltd as a high-tech company specialized in optical fiber communication technology with rich experience in communication network equipment focusing on the sales of optical fiber communication products for more than 10 years. We are main business is to sell optical fiber communication products such as OLT,ONU,ONT,switch,optical fiber,optical module and so on. We mainly supply Huawei, ZTE, Fiber home brand GPON/EPON/XPON ONU with English version but also we can offer OEM service.
Extensive experience in mass production of optical fiber products ensures high quality reliability and excellent product
performance. These years, due to the short delivery time, rapid delivery, timely after-sales. Products in the major operators and private networks to obtain good reputation, in all parts of the world to obtain a good reputation and trust.
We are partner of Huawei & ZTE & Fiberhome who get special offer and technical support from them.Competitive price, 100% brand new and original. One Year Warranty, 24hours online services. We have an energetic and professional technical team that can ensure our service support is the best. Please feel free to contact us if you have any inquiries or quotations, we always welcome, and response at once. We hope to create a bright future of optical communication industry together with new and old customers.
Extensive experience in mass production of optical fiber products ensures high quality reliability and excellent product
performance. These years, due to the short delivery time, rapid delivery, timely after-sales. Products in the major operators and private networks to obtain good reputation, in all parts of the world to obtain a good reputation and trust.
We are partner of Huawei & ZTE & Fiberhome who get special offer and technical support from them.Competitive price, 100% brand new and original. One Year Warranty, 24hours online services. We have an energetic and professional technical team that can ensure our service support is the best. Please feel free to contact us if you have any inquiries or quotations, we always welcome, and response at once. We hope to create a bright future of optical communication industry together with new and old customers.
FAQ
1. who are we?
We are based in Guangdon, China, start from 2015,sell to Domestic Market(70.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(3.00%),Africa(2.00%),South America(1.00%),Eastern Europe(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Telecommunication network products,EOC Network products,Security products,New Energy storage products,Electrical products
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,French
We are based in Guangdon, China, start from 2015,sell to Domestic Market(70.00%),North America(10.00%),Southeast Asia(10.00%),Western Europe(3.00%),Africa(2.00%),South America(1.00%),Eastern Europe(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Telecommunication network products,EOC Network products,Security products,New Energy storage products,Electrical products
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,French
