EDM Isostatic graphite block
- Category: Other Graphite Products >>>
- Supplier: Pingdingshan,Kaiyuan,Special,Graphite,Co.,Ltd.
Share on:
Product Overview
Description
Product Dispaly
Feature of Special Graphite Products:
We are the one factory that can make more than 800mm diameter, grain size 2μm
1. High density: our isostatic graphite can meet 1.92g/cm3 density for special industry application.
2. High purity: carbon content 99.97% , purified graphite with below 50PPM ash content.
3. High Strength: compressive strength 135MPa to 145Mpa, hardness 80-85Mpa
4. High temperature and corrosion resistance
5. Support customization for different size
2. High purity: carbon content 99.97% , purified graphite with below 50PPM ash content.
3. High Strength: compressive strength 135MPa to 145Mpa, hardness 80-85Mpa
4. High temperature and corrosion resistance
5. Support customization for different size
We are the one factory that can make more than 800mm diameter, grain size 2μm

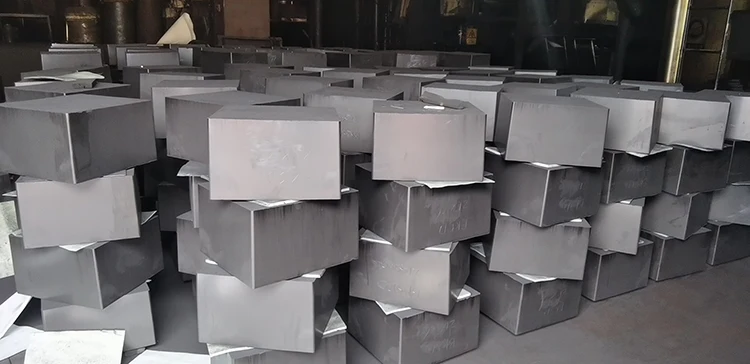

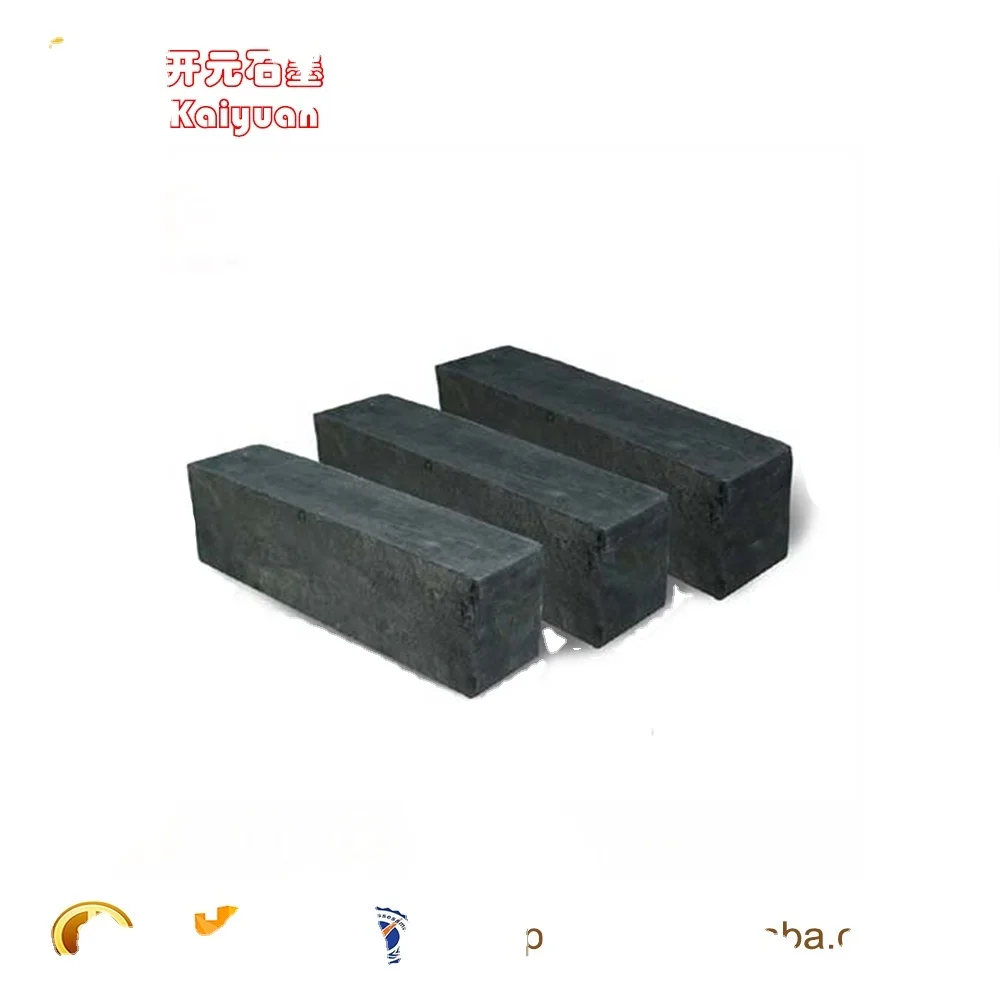

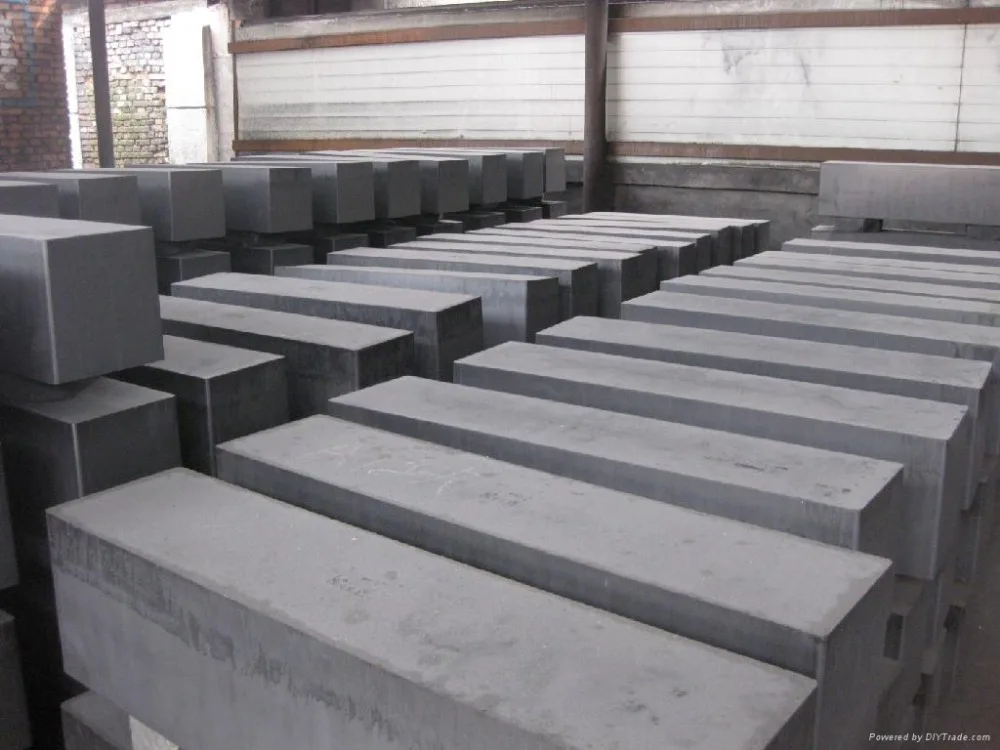

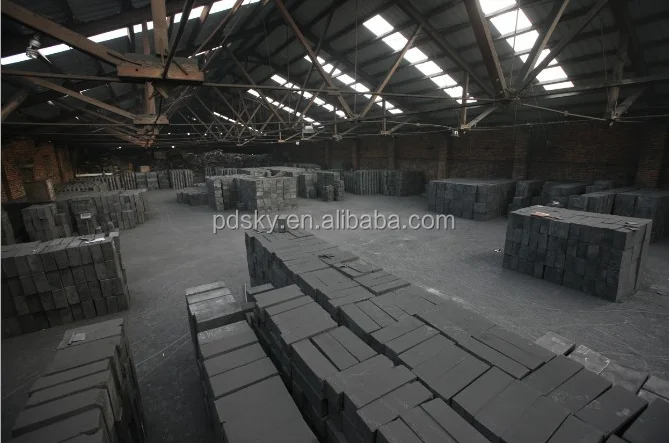

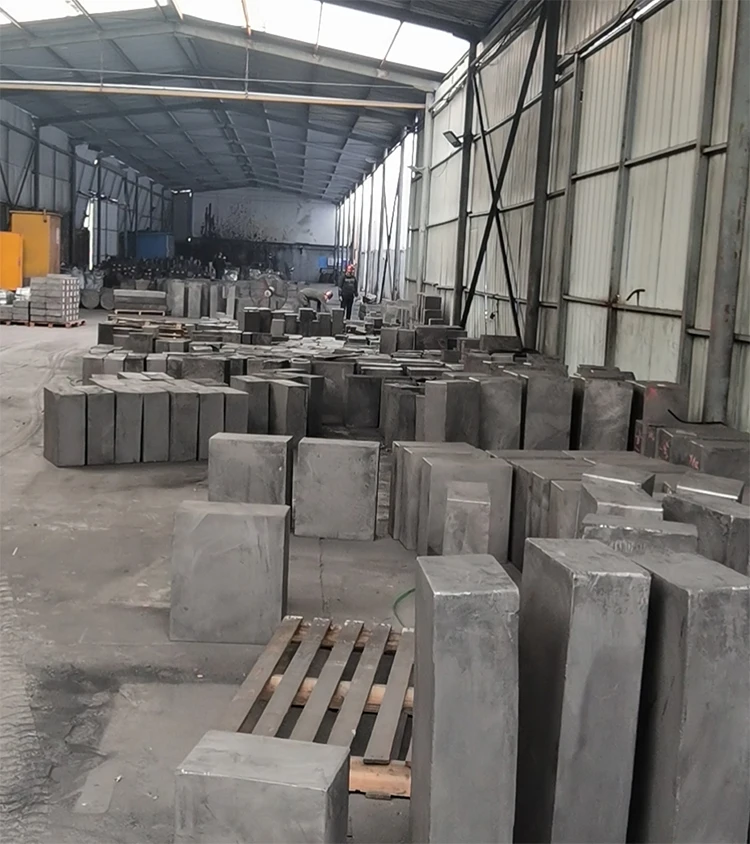

Raw Blanks of Isostatic Graphite
Surface Finish
Product Description
Technical References for Graphite Material:
A. For Roughing Machining
Bulk Density: ≥1.76 g/cm3;
Bulk Density: ≥1.76 g/cm3;
Flexural Strength: ≥40Mpa;
Compressive Strength: ≥82Mpa;
Ash content:≤500ppm
B. For Finishing Machining
Bulk Density: ≥1.92 g/cm3;
Bulk Density: ≥1.92 g/cm3;
Flexural Strength: ≥60Mpa;
Compressive Strength: ≥135Mpa;
Ash content:≤50ppm
Note: The above is often selected grade.
Note: The above is often selected grade.
We can choose appropriate grade according to your application conditions and our rich
on-site experiences and know-how in graphite applications.
on-site experiences and know-how in graphite applications.

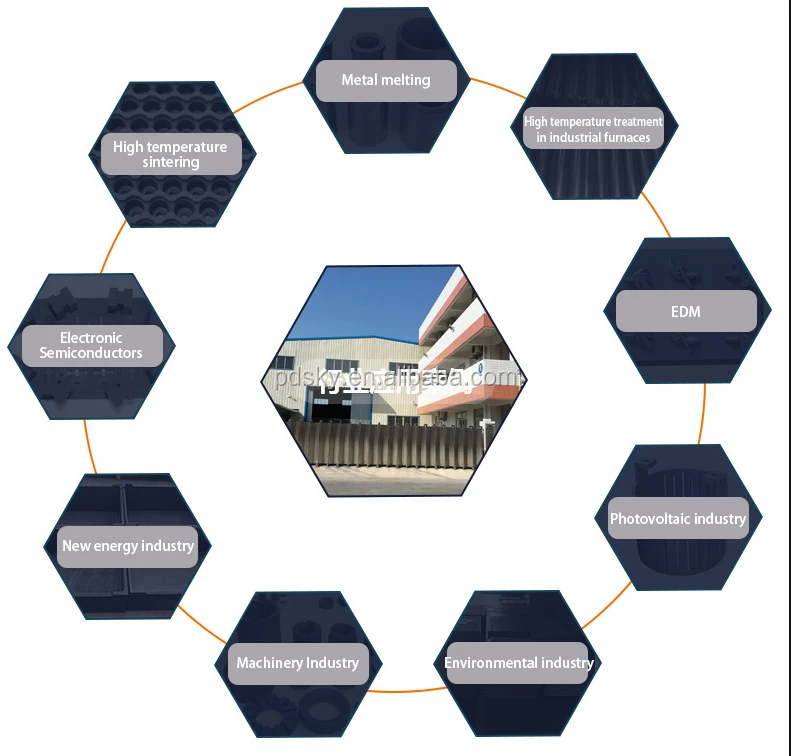

Product application of our grade as below:
Specification
Isostatic graphite property indicators for EDM industry： | ||||||||||||
Model | Density | Electrical Resistivity | Shore Hardness | Compressive Strength | Flexural Strength | Average Granularity | ||||||
g/cm3 | μΩm | HSD | Mpa | Mpa | μm | |||||||
KYX-7 | 1.76 | 12～16 | 40 | 80 | 40 | 8 | ||||||
KYX-60 | 1.78 | 12～16 | 45 | 90 | 45 | 4 | ||||||
KYD-8 | 1.84 | 12～16 | 70 | 105 | 55 | 6 | ||||||
KYX-70 | 1.85 | 12～16 | 55 | 100 | 50 | 8 | ||||||
Isostatic/molded graphite property indicators for other industry： | ||||||||||||
Model | Density | Electrical Resistivity | Shore Hardness | Compressive Strength | Flexural Strength | Average Granularity | ||||||
g/cm3 | μΩm | HSD | Mpa | Mpa | μm | |||||||
KYM-5 | 1.8 | 8～10 | 45 | 80 | 40 | 12 | ||||||
KYD-6 | 1.81 | 11～14 | 60 | 90 | 45 | 8 | ||||||
KYD-8 | 1.86 | 10～14 | 72 | 120 | 55 | 6 | ||||||
KYD-9 | 1.9 | 10～14 | 75 | 125 | 60 | 2~4 | ||||||
Common Specifications, other size can be customized | ||||||||
Square Products | 900*300*200mm | 600*500*200mm | 500*400*200mm | 550*450*200mm | ||||
400*300*200mm | 500*300*200mm | 2400*500*300mm | 2200*700*350mm | |||||
1850*650*400mm | 1400*700*300mm | 1000~2200*500*300mm | 600*500*400mm | |||||

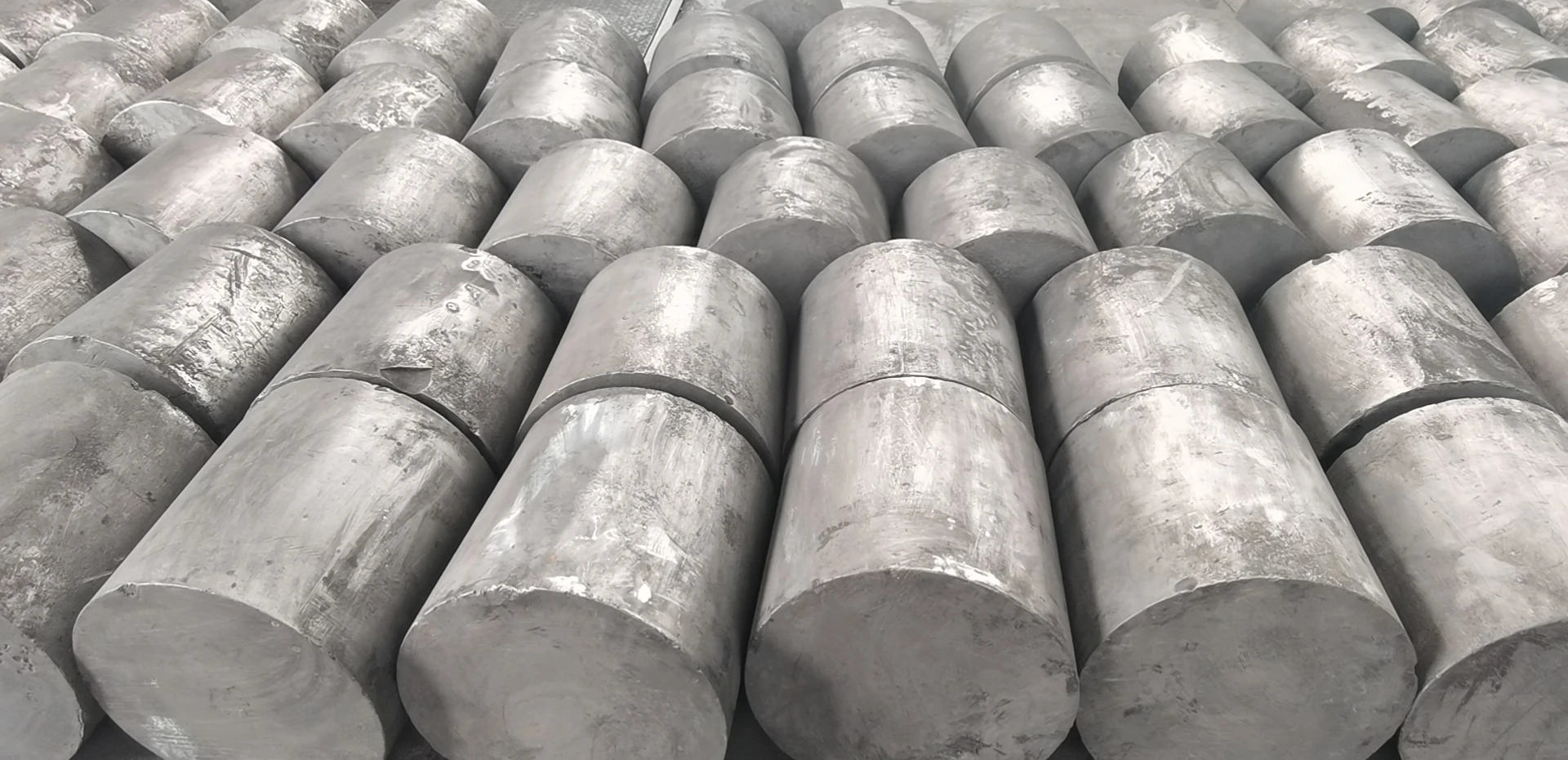

Round Products | Φ90*120mm | Φ120*200mm | Φ160*260mm | Φ135*260mm | ||||
Φ180*260mm | Φ210*260mm | Φ240*410mm | Φ260*260mm | |||||
Φ310*310mm | Φ980*1000mm | Φ920*850mm | Φ850*850mm | |||||
Φ750*700mm | Φ220*2100mm | Φ330*1200mm | Φ620*620mm | |||||

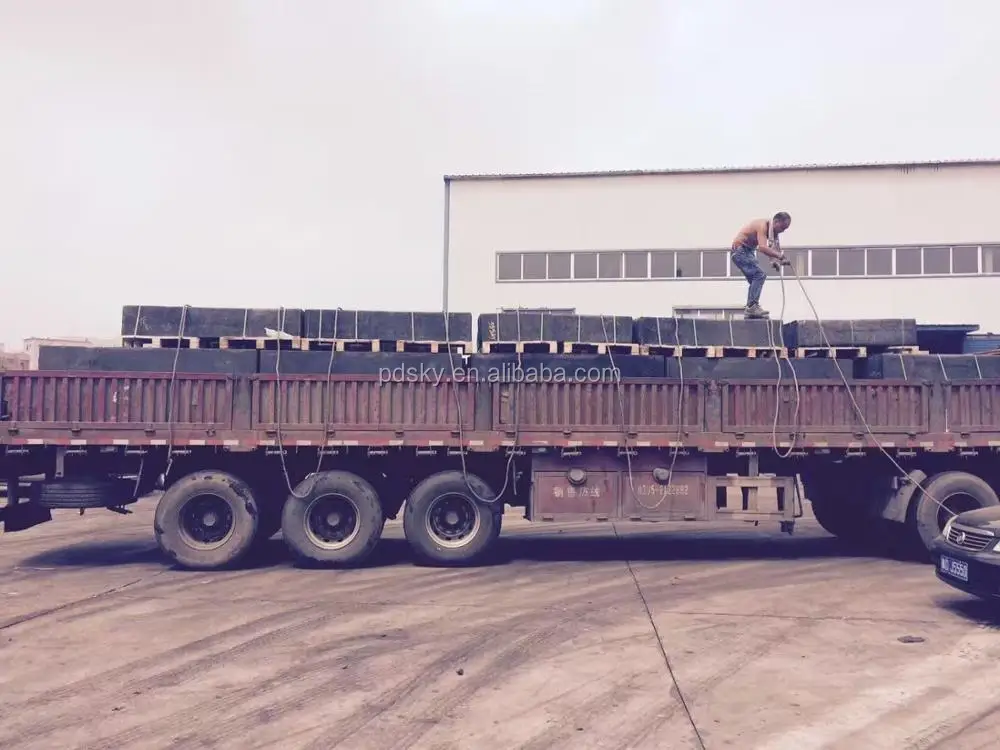

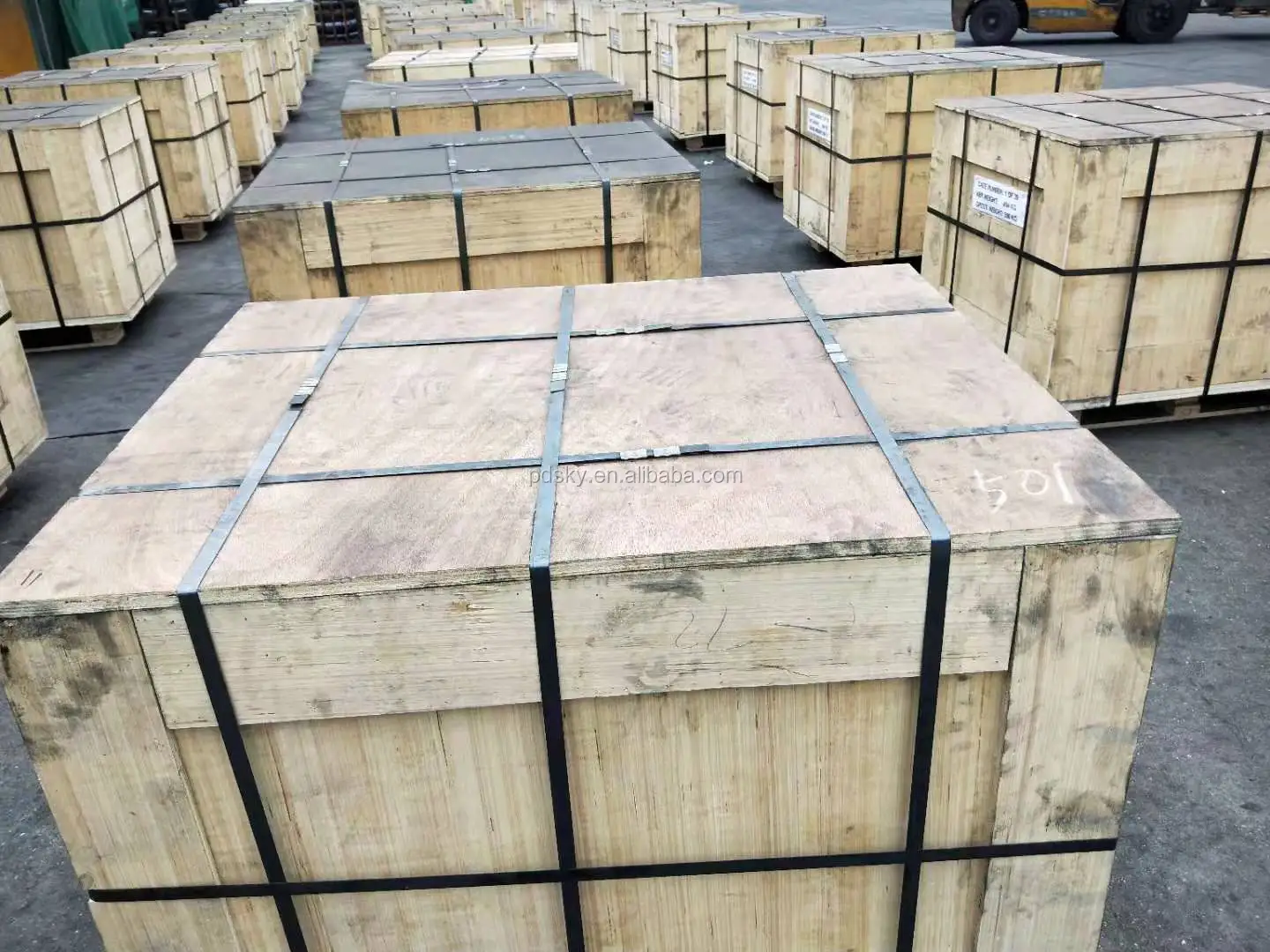

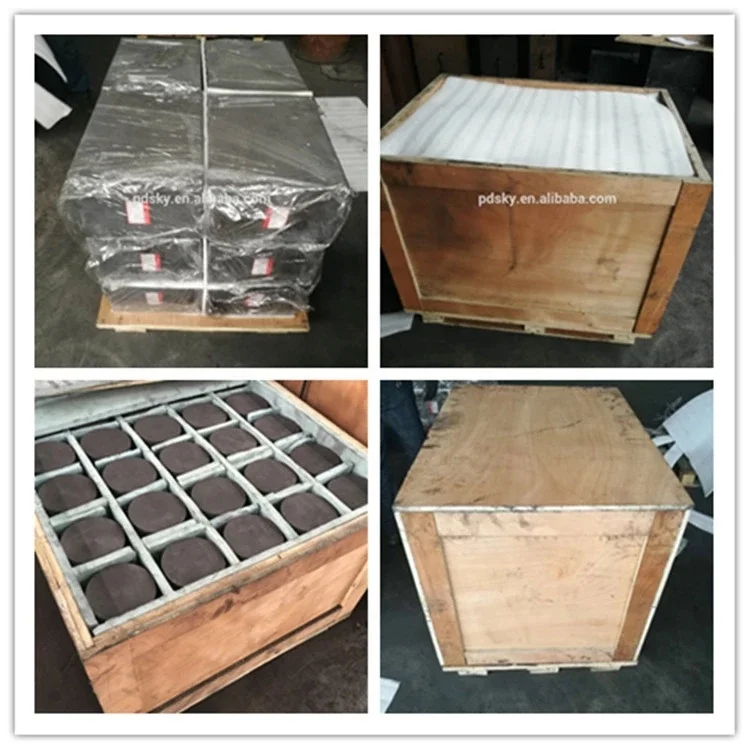

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

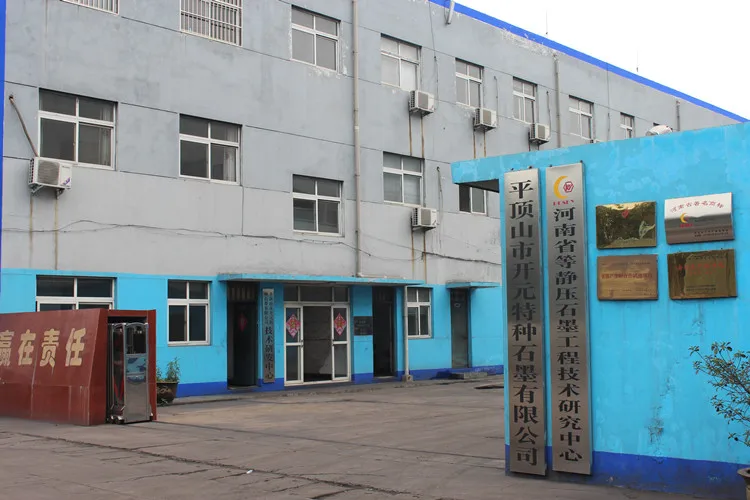

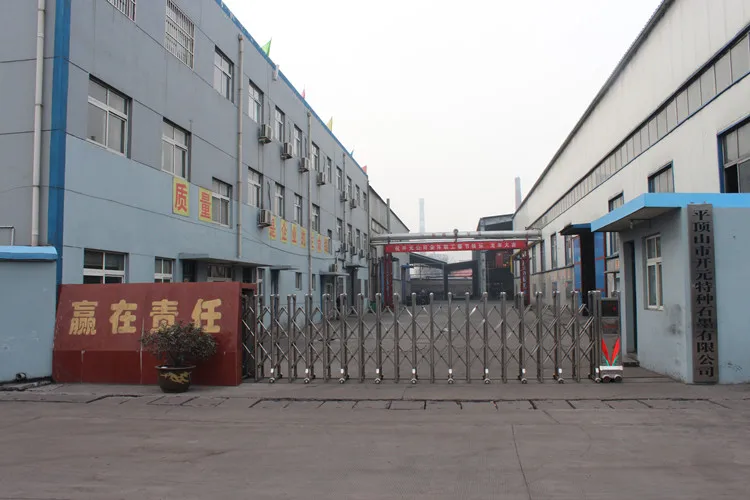

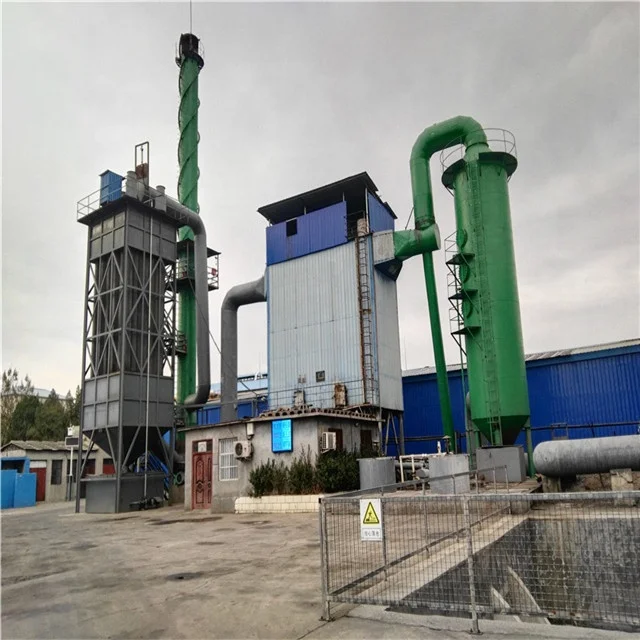

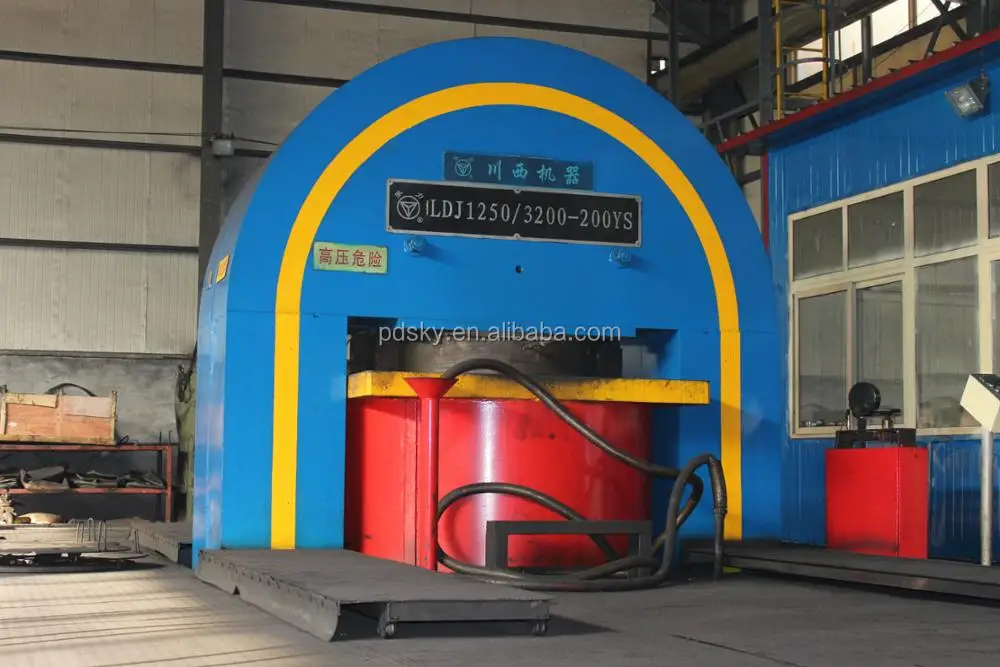

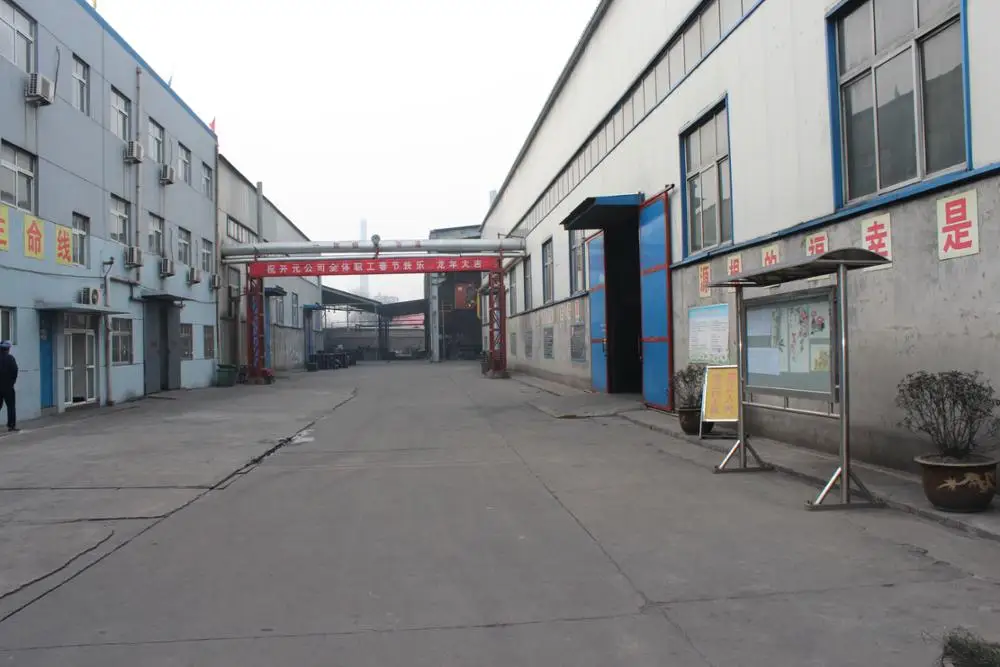

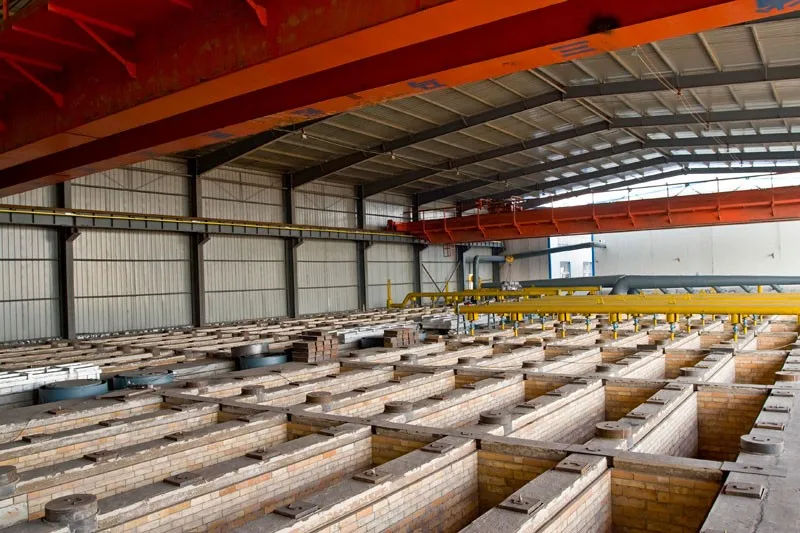

Company Profile
Pingdingshan Kaiyuan Special Graphite Co.,Ltd established in May 2008, located in Pingdingshan City, is mainly focus on the production of special graphite and deep processing of graphite products.
We have a strong technical team which has over 200 staffs, the college degree or above is 54 person and R&D people is 26. Our product includes isostatic graphite blocks, molded graphite blocks, rounds and different types of graphite crucible and graphite machining products. Different density and size can meet all kinds of application, such as EDM, sintering industry, continuous casting, 3D glass mold, photovoltaic and other industries.
We have a strong technical team which has over 200 staffs, the college degree or above is 54 person and R&D people is 26. Our product includes isostatic graphite blocks, molded graphite blocks, rounds and different types of graphite crucible and graphite machining products. Different density and size can meet all kinds of application, such as EDM, sintering industry, continuous casting, 3D glass mold, photovoltaic and other industries.

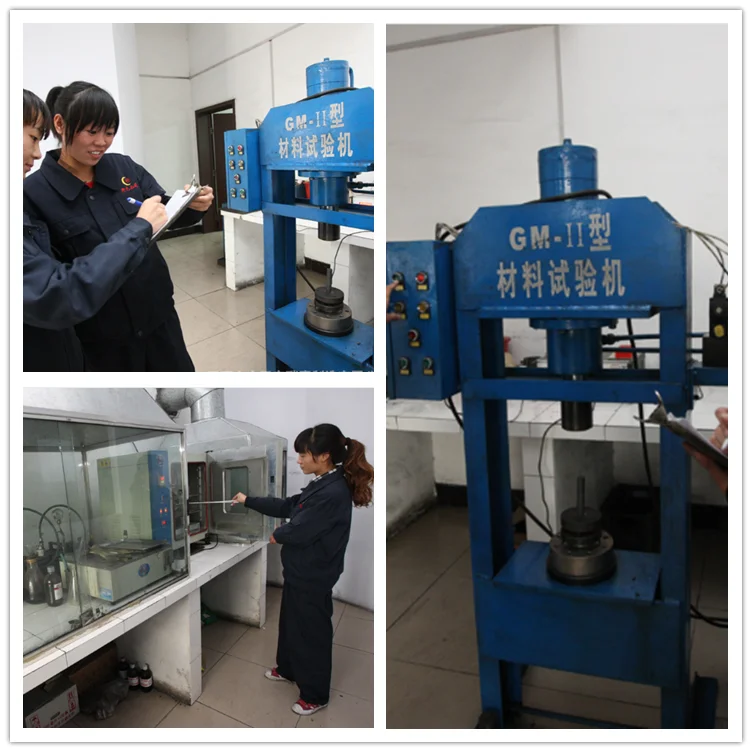

Material Test
The main technical values will be tested in each lot, such as graphite density, electrical resistivity, Shore hardness, Flexural Strength, Compressive Strength, Ash. And then classify based on different test result for different product application.
Certifications
Kaiyuan graphite strict quality management, has achieved ISO9001 quality management system certification. The company has receivedPingdingshan City "high-tech enterprise", "high 50 enterprises", "safety standard enterprise" has been repeatedly awarded the"civilized business integrity unit" honor the business sector. 2011 has been applied for, including "isostatic graphite production methods" patents, including 10 invention patents.
Exhibition
Industrial exhibitions in Shanghai,Guangzhou, Germany and Vietnam.
PDSKY participates in various exhibitions at home and abroad to expand the company's reputation and got a good evaluation

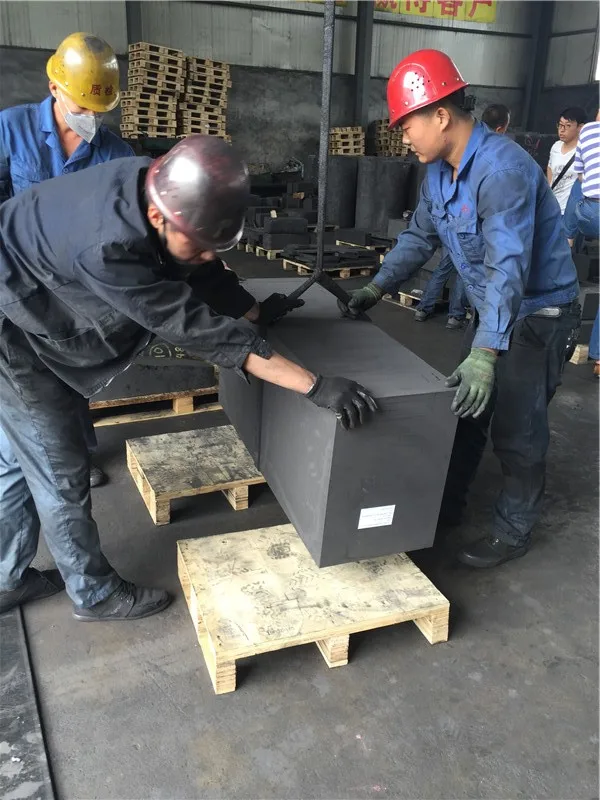

Customer Visit
Contact us
FAQ
1.When can i get the price?
We will reply you within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 3-10 days.
3.What about the lead time for mass product?
The lead time is based on the quantity,about 7-12days.For graphite product,apply Dual-use items
license need about 15-20working days.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that,
we can also shipping by Air and Express.
5.Product packaging?
We are packed in wooden cases, or according to your requirements.
6.Notice
Please note that the price on alibaba is a rough price.The actual price will depends on raw materials,
exchange rate ,wage and your order quantity .
We will reply you within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 3-10 days.
3.What about the lead time for mass product?
The lead time is based on the quantity,about 7-12days.For graphite product,apply Dual-use items
license need about 15-20working days.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that,
we can also shipping by Air and Express.
5.Product packaging?
We are packed in wooden cases, or according to your requirements.
6.Notice
Please note that the price on alibaba is a rough price.The actual price will depends on raw materials,
exchange rate ,wage and your order quantity .
