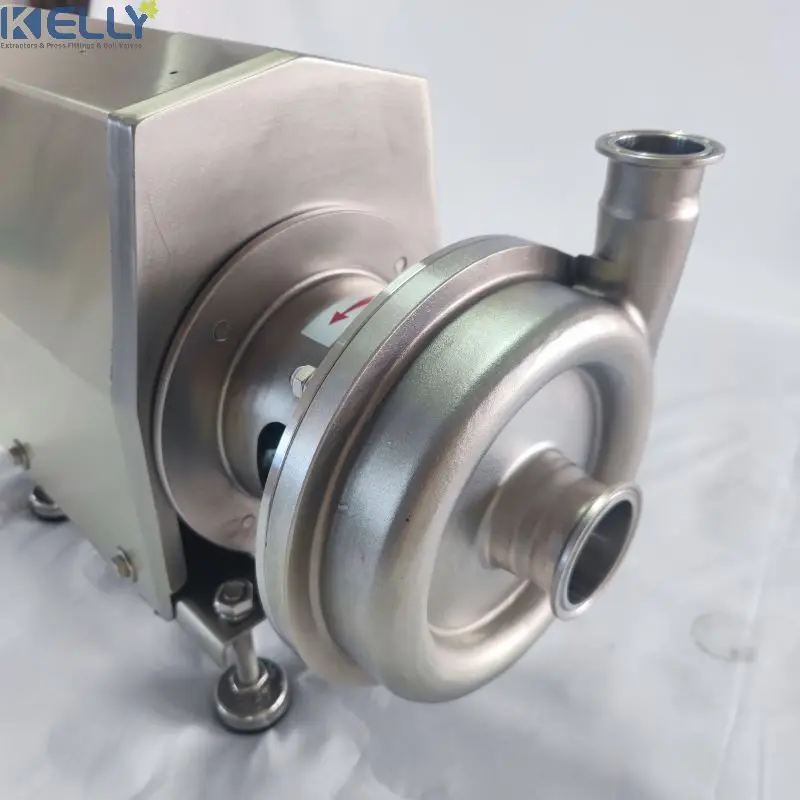

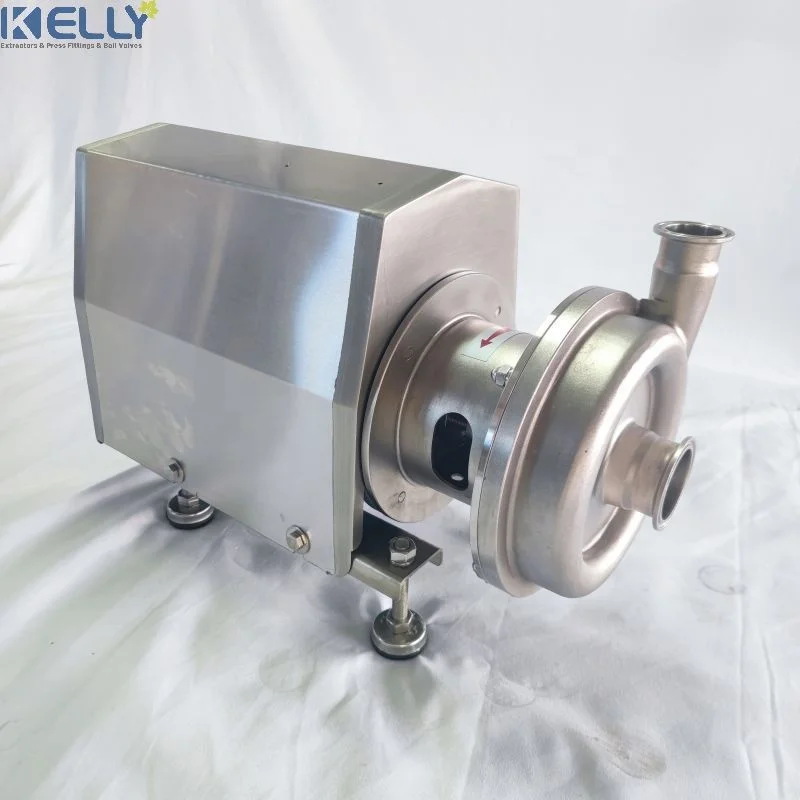

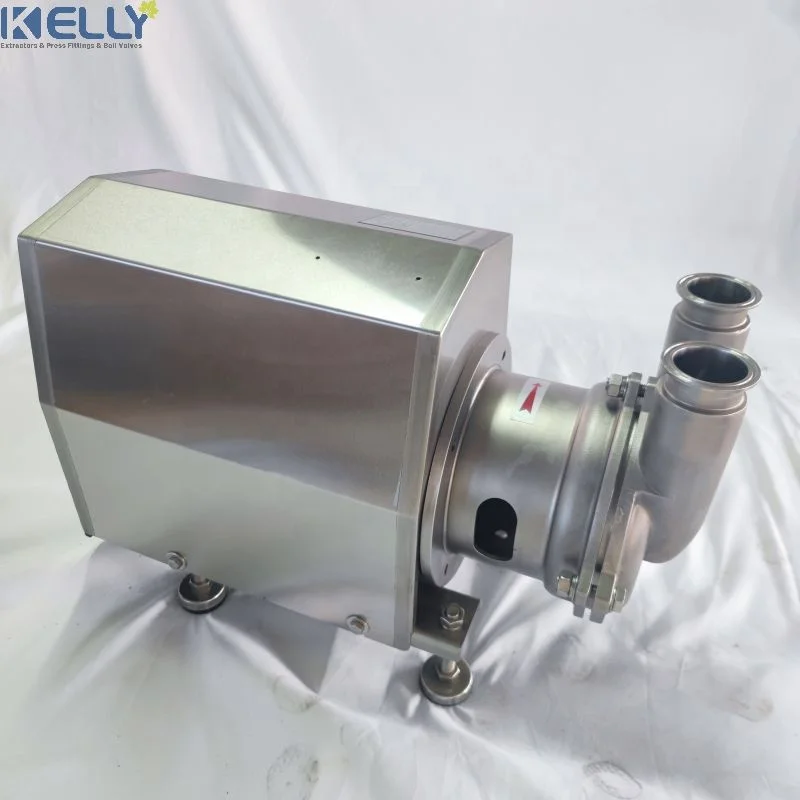

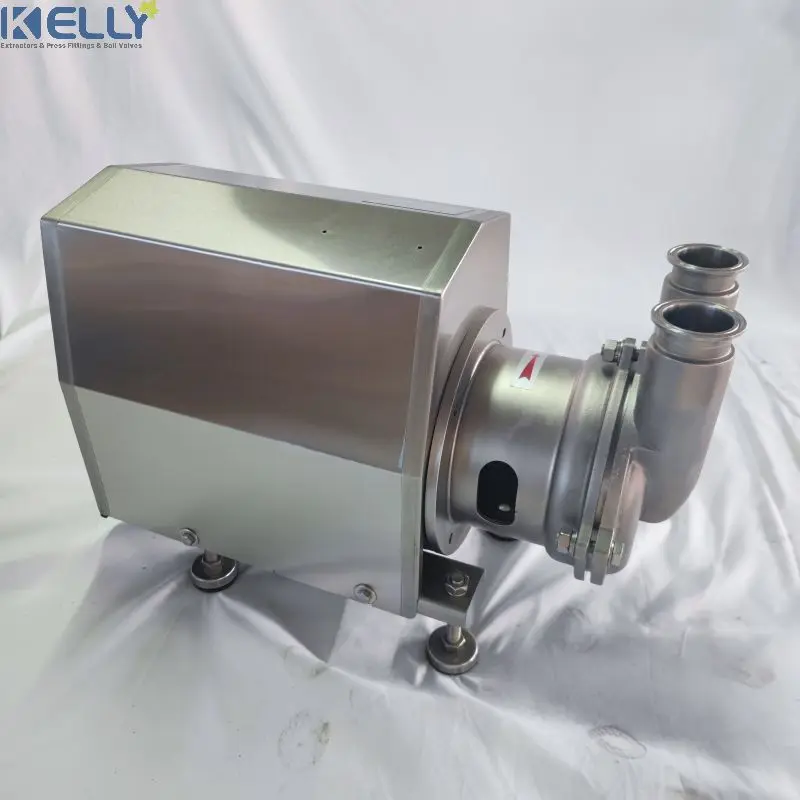

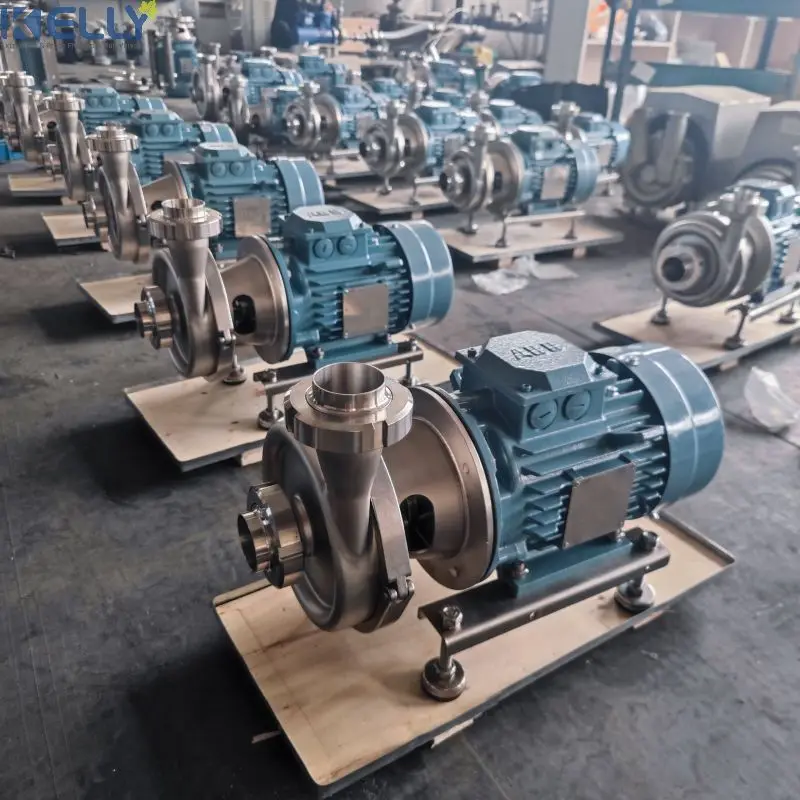

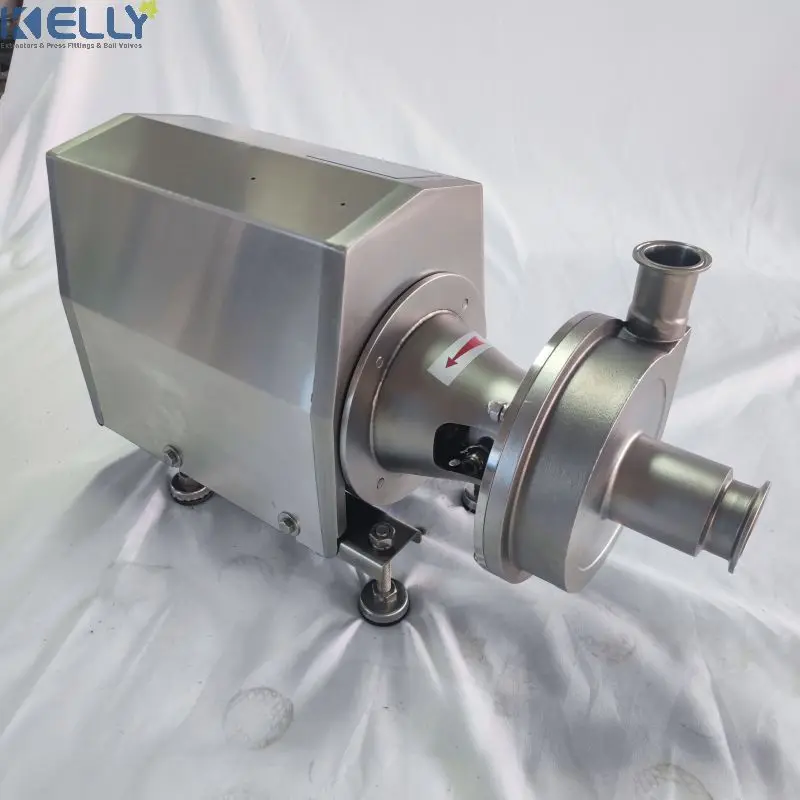

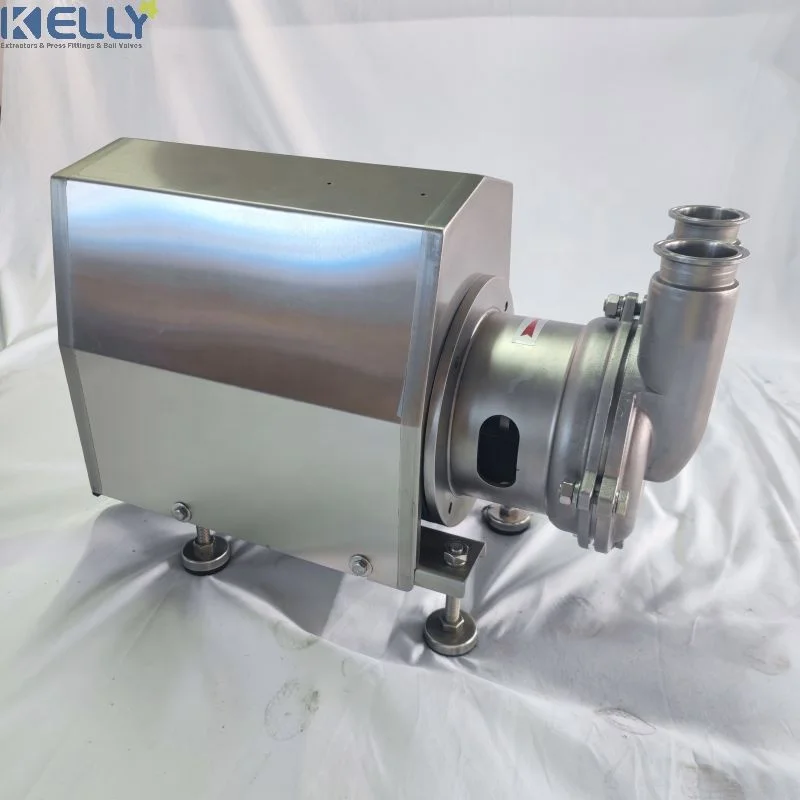

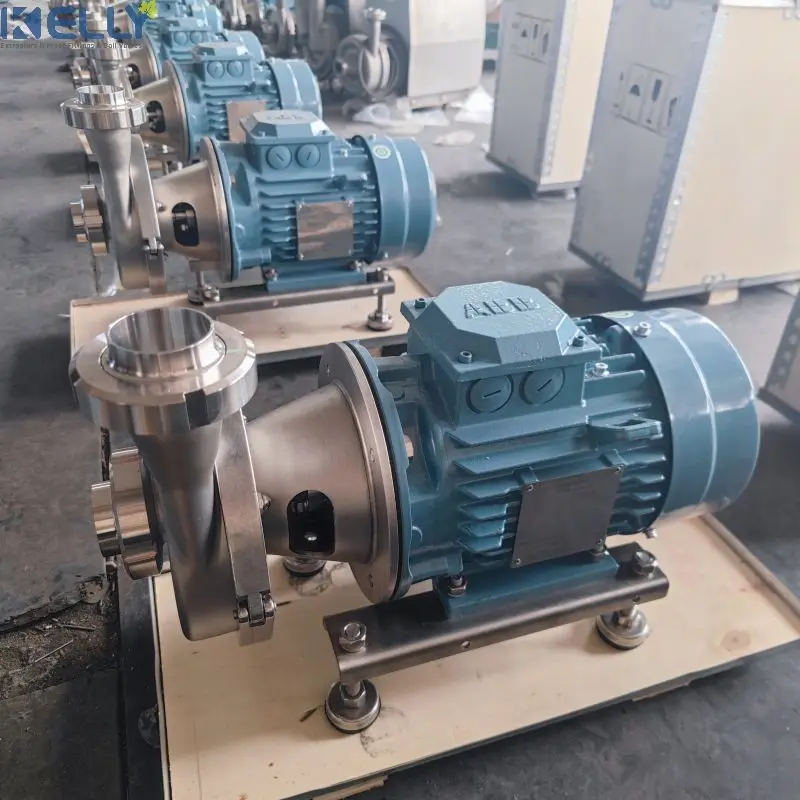

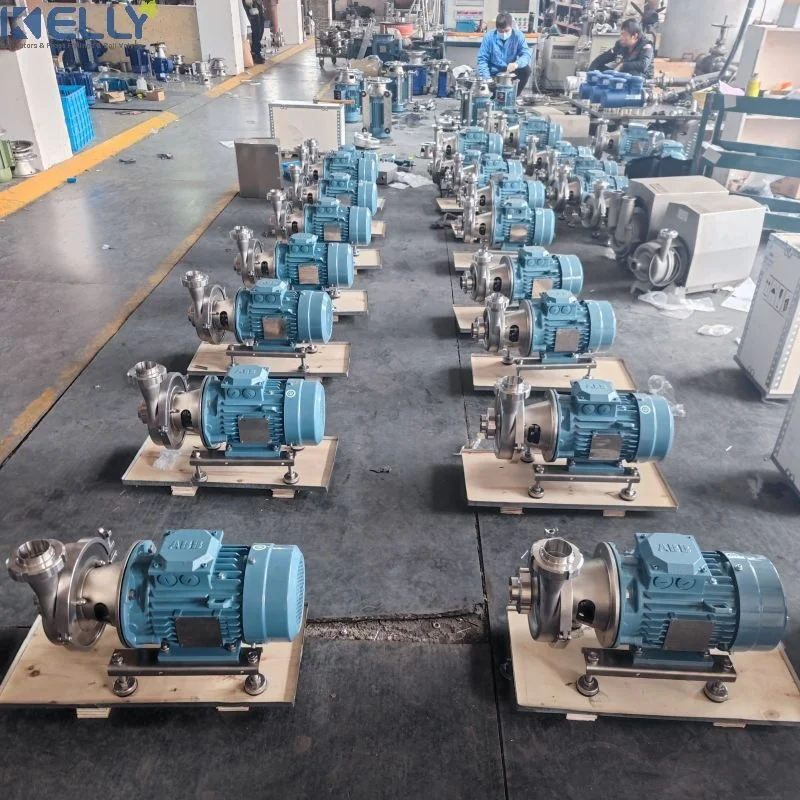

Factory SS304 sanitary milk/beer pump stainless steel centrifugal pump with ABB Motor

Product Overview

Description

Factory SS304 sanitary milk/beer pump stainless steel centrifugal pump with ABB Motor

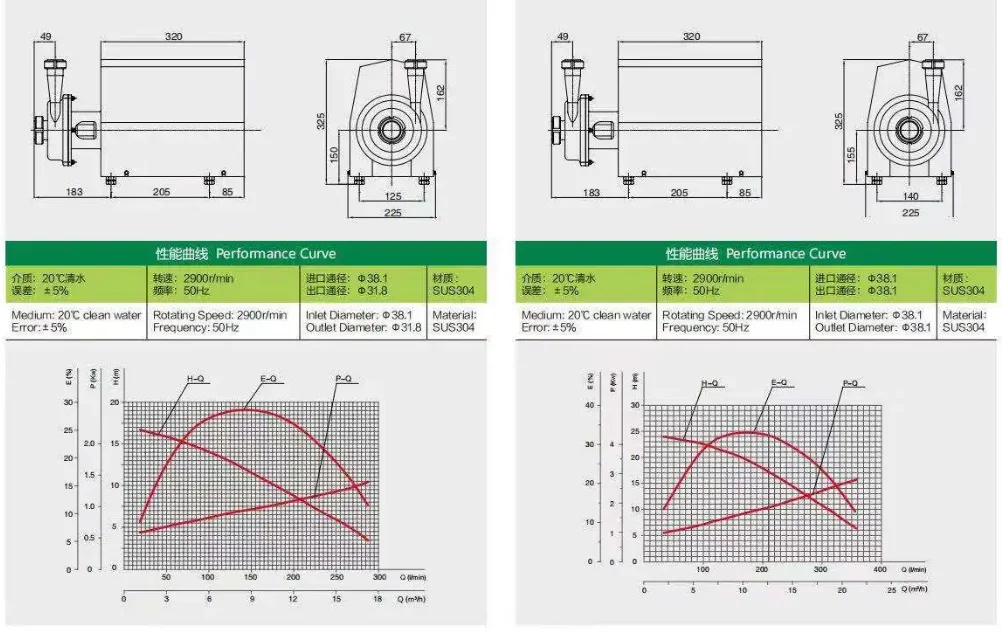

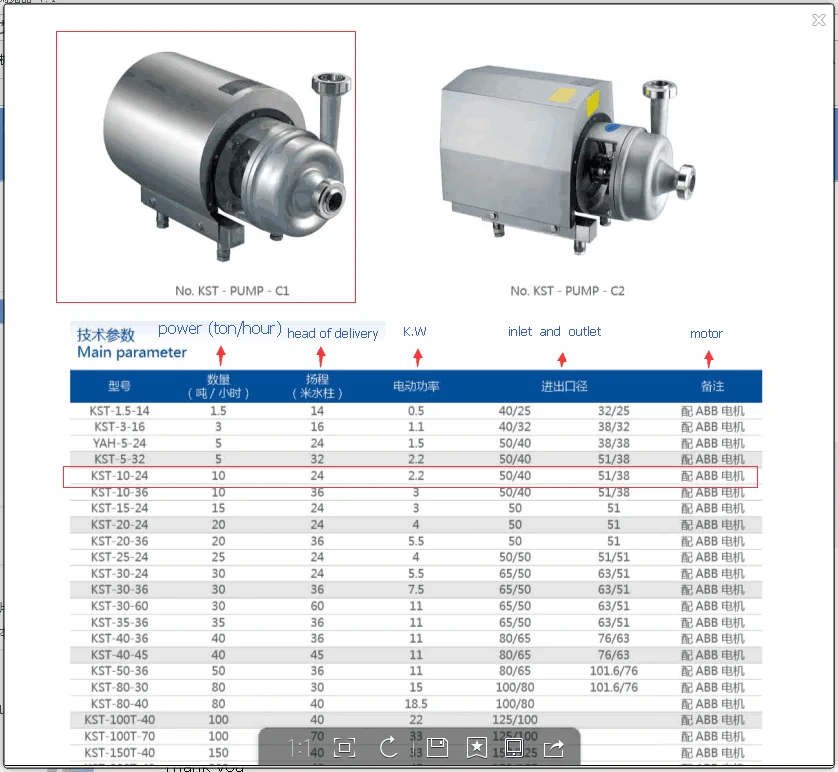

Technical Parameter:
Spec:3T-180T,0.55kw-75kw
Material:SUS304,SUS316L,the pump body,pump cover and impeller contact with medium made of SS316L,SS304.
Standards:DIN,SMS

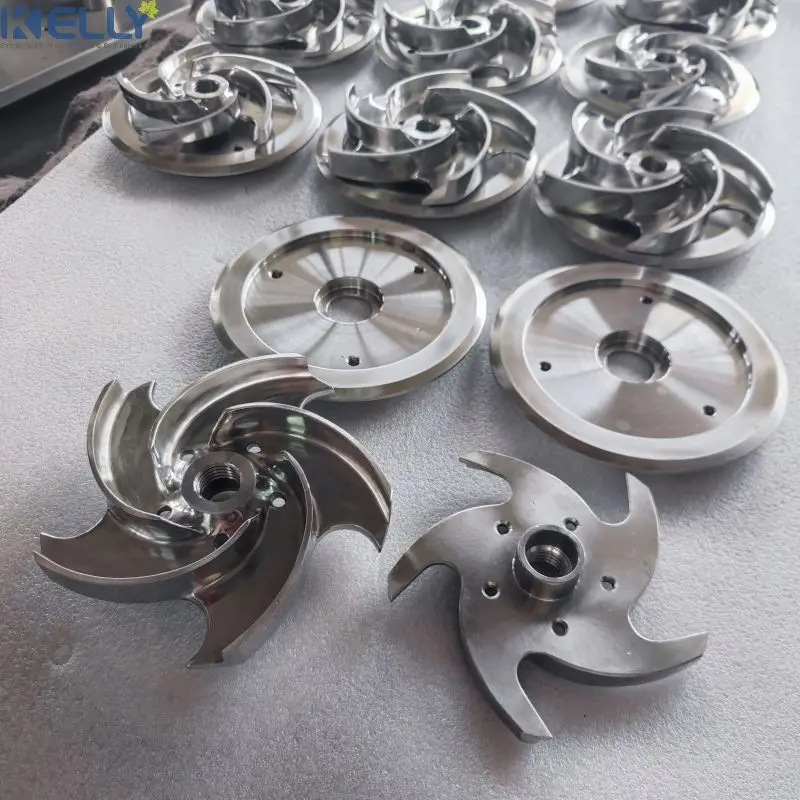

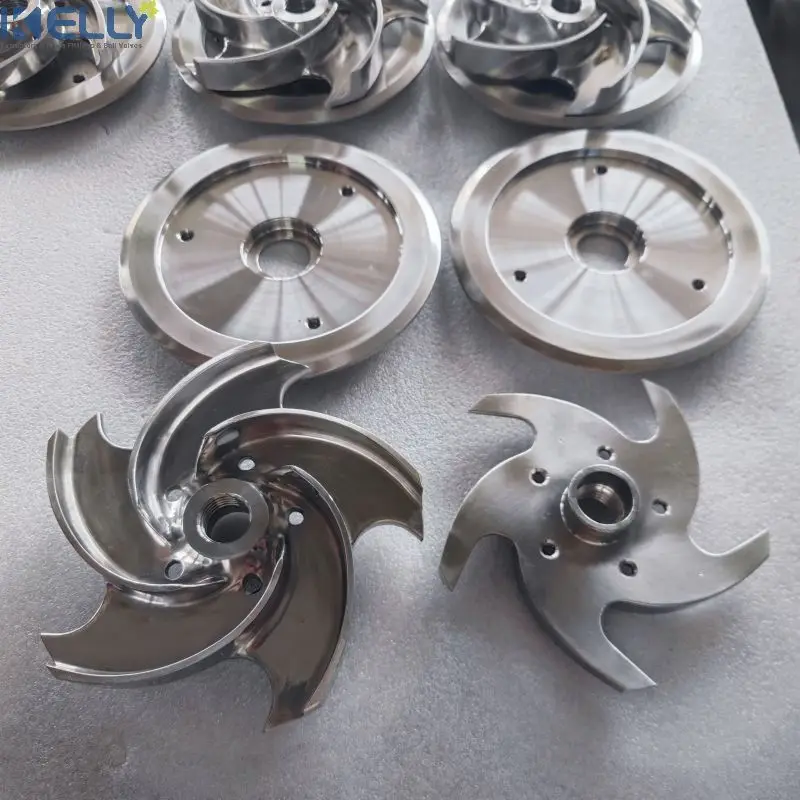

Impeller:
open type impeller,there is no dead end.Operation condition:Health centrifugal pump is a few horizontal transport of high and low lever,is not the self-priming type.
Surface Treatment:
the part contact with medium is polished and other parts glass painted and sand blaste
Max Inlet Pressure:0.5Mpa
Temperature Range:
-10℃ to +140 ℃(EPDM)

Flushed Shaft mechanical sealing
water pressre:Max 0.1Mpa water
Lift:0.25-0.5L/min

Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
