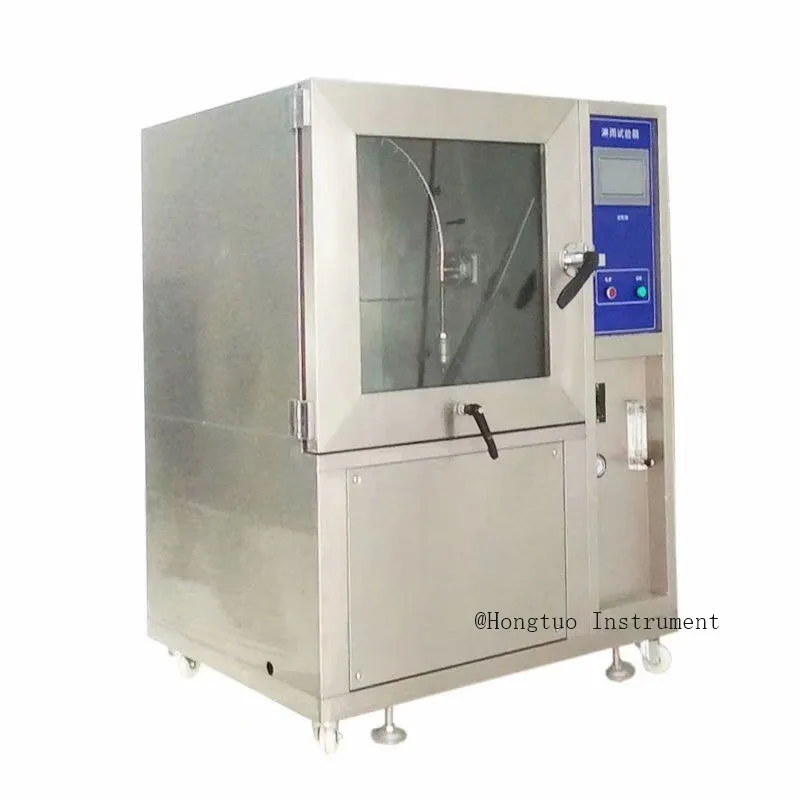

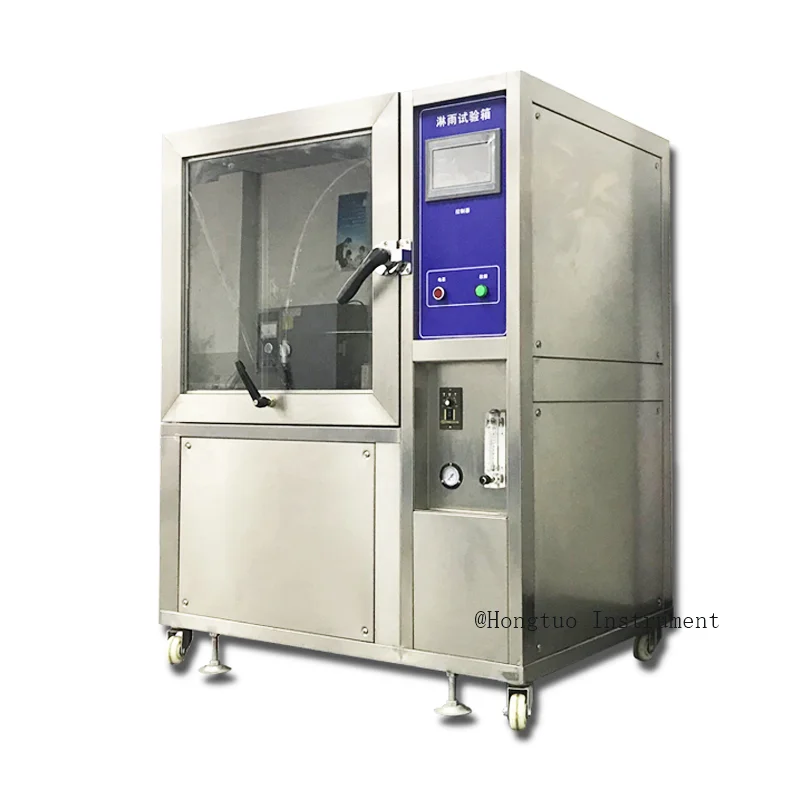

IEC60529 Lab Stainless Steel Waterproof Rain Spray Testing Chamber
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600737480445):
Product Overview
Description
IEC60529 Lab Stainless Steel Waterproof Rain Spray Testing Chamber
Product Description
This product meets GB 2423.38-90 “Basic Environmental Test Regulations for Electrical and Electronic Products Test R: Water Test Method ”, GB / T10485-2007, strictly according to the protection of IPX3...IPX4...IPX5...IPX6... grades of GB / T4942.2-93, GB 4208—93, GB 4706, GB 7000 and other corresponding national standards and other relevant technical parameters.Can carry out water test specified by corresponding standards.
In accordance with IEC60529: 2001 Degrees of protection provided by enclosures (IP Code),GB4208-2008 "Enclosure protection level (IP code)" 14.2.5, 14.2.6 clauses and Figure 6 and GB7000.1 "Lamps Part 1: General Requirements and Tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
Specification:
Name: IPX3/4/5/6 rain test chamber
Model number: DH-IPX3.4.5.6-1000
Internal dimensions: W1000 X H1000 x D1000mm (W stands for width, H stands for height, D stands for depth)
Weight: about 300kg
Power source: AC380V three-phase 50HZ
Technical Parameters
Test range: | IEC60529 IPX3-IPX4-IPX5-IPX6 |
Water temperature range | The spray water level is the ambient temperature. |
Spray method | IPX3-IPX4 pendulum rain, IPX5-IPX6 spray rain |
Spray flow | IPX3, X4 water flow per hole 0.07L / min IPX5: 12.5 L / min ± 5% IPX6: 100 L / min ± 5% |

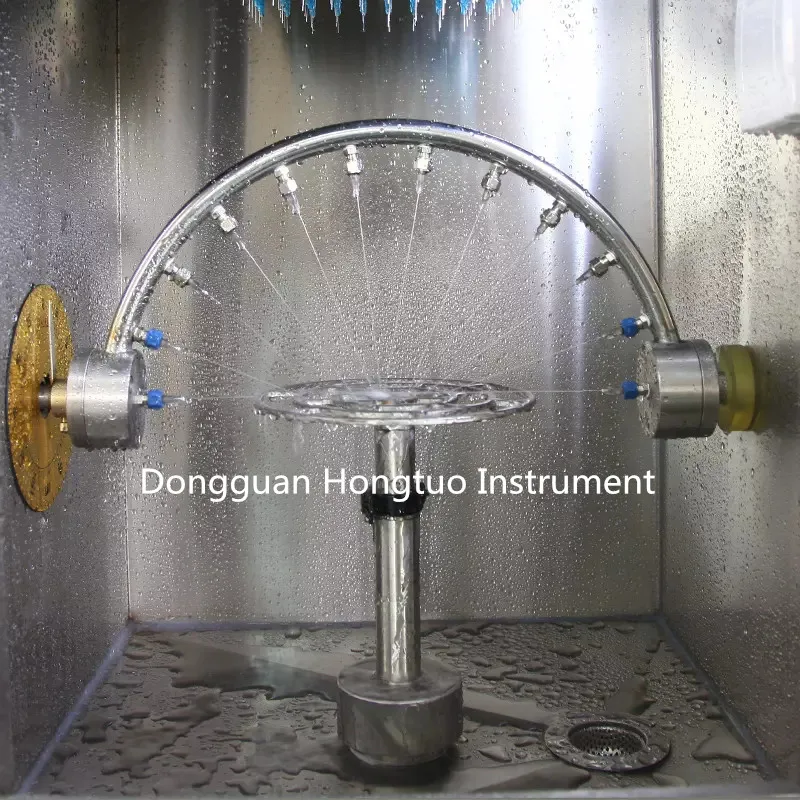

| Swing tube | semi-circular swing tube 180 ° |
| Swing tube radius: | R300 mm |
Swing tube inner diameter | 16mm |
| Swing tube swing | 90 ° front and back, the angle can be arbitrarily set within a total range of 180° |
Spray pendulum tube cycle | 1 ~ 20 times / minute adjustable |
| Nozzle placement: | The nozzles are distributed on 90 ° arcs on both sides of the vertical plane. |
| Nozzle pitch | 50mm |
Nozzle aperture: | IPX3, X4: 0.4mm IPX5: 6.3mm IPX6: 12.5mm |
| Sample turntable size | 350mm |
| Speed of sample turntable | 1 ~ 20r / min adjustable |
| Sample carousel load | 20kg |
Structure
Material: Inner box: SUS304 stainless steel plate
Outer box: stainless steel or painting

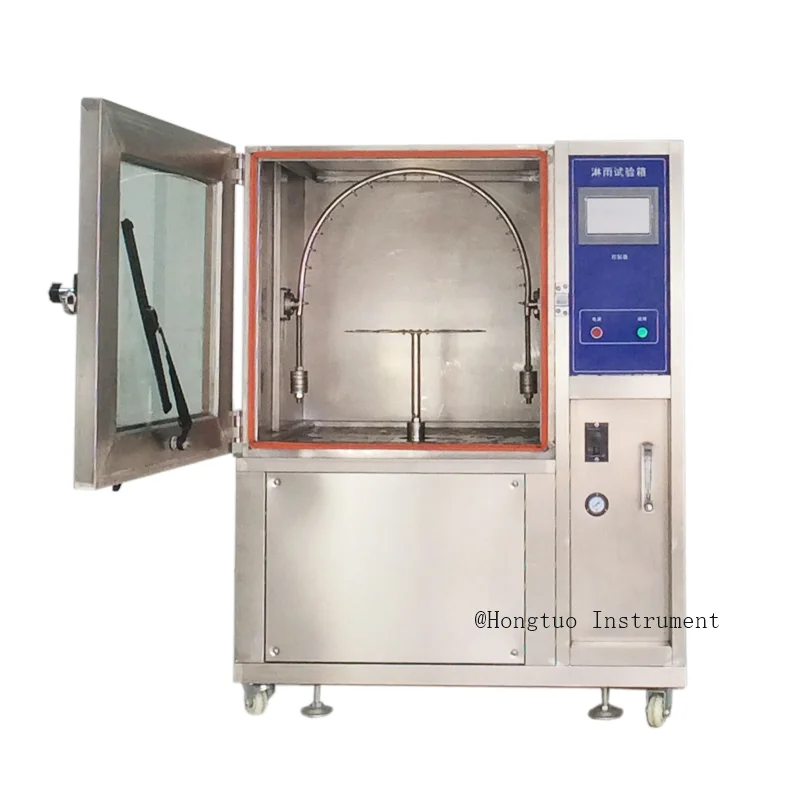

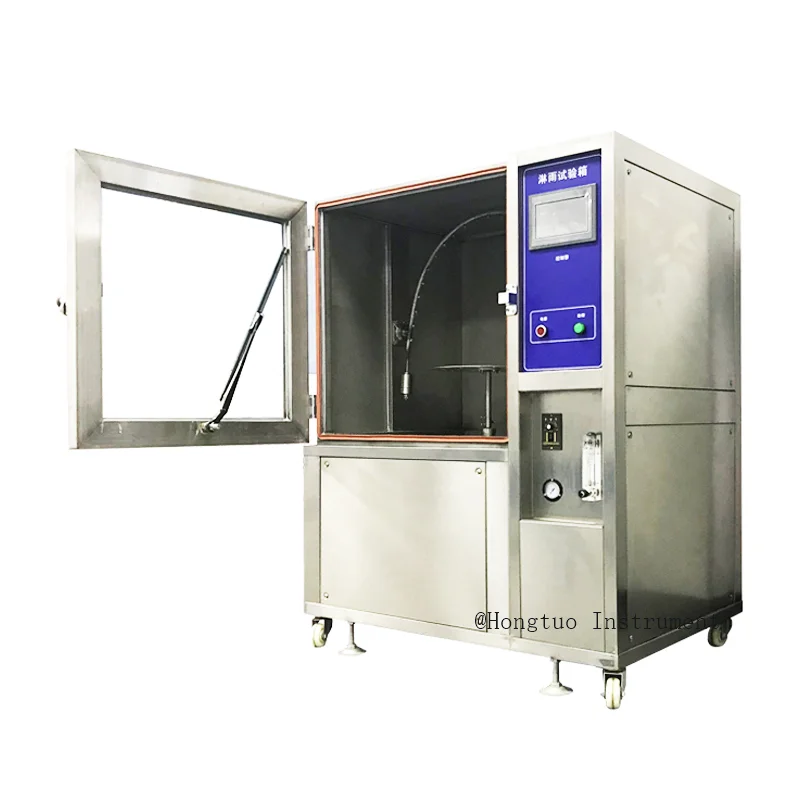

Box door:
Single-piece door, open to the left, flat handle, with handle on the right hand side
With observation window W300xH450mm transparent glass window
Window wiper
One pcs of illumination lamp in the box
Power distribution control cabinet:
Main power circuit breaker
Switchboard
Cooling fan
Pump motor
Turntable rotation motor
Packaging & Shipping
1.Sea shipping method.CIF term.
If the machine needs to be shipped to Europe.there is rail shipping optional.to door service.please consult with us about the rail shipping cost.
2.Please contact us before your placing order.
