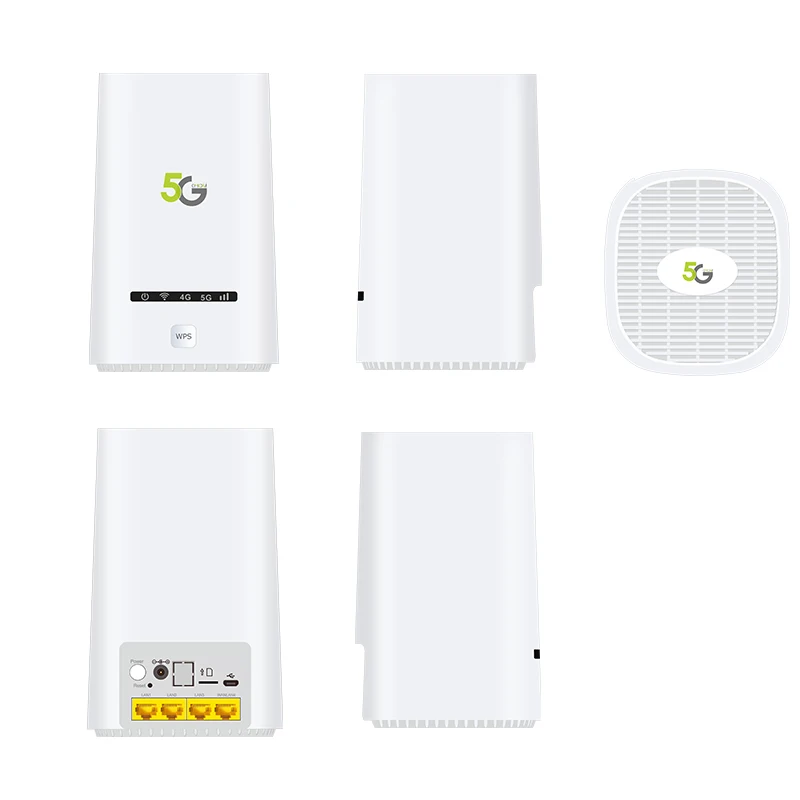

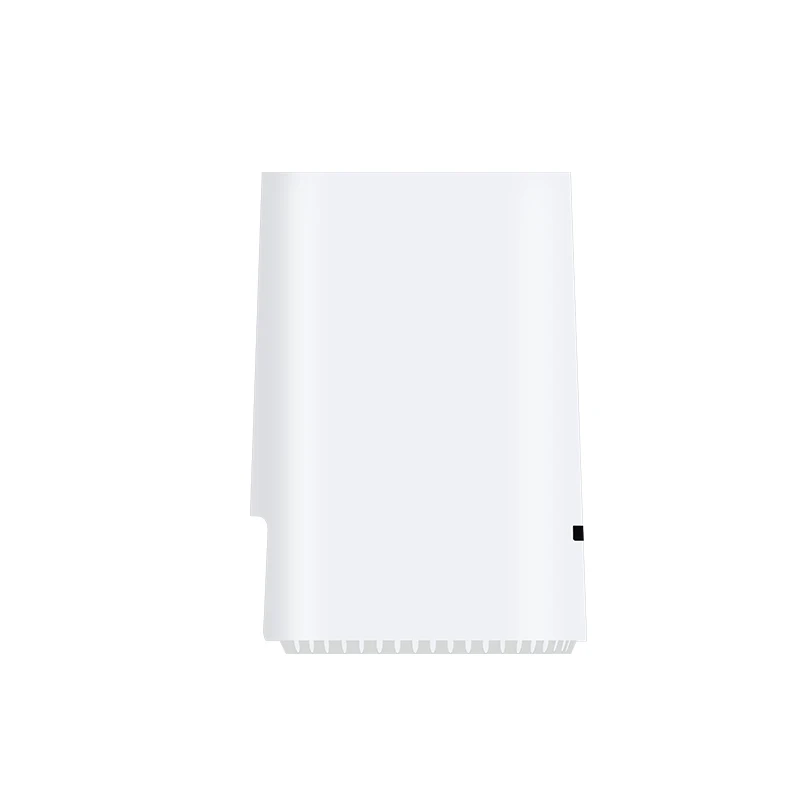

Use Dual Core Arm Cortex A55 Processor 5G Modem With Sim Slot Indoor Router For Internet Of Vehicles

Chip set

5G/LTE:UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz

RF standard

5G NR (3GPP Release 15)，FDD-LTE

Memory

5G Module: Nand flash 2Gbits + RAM 4Gbits LPDDR4x

RAM

DDR 4 Gb

Ethernet LAN

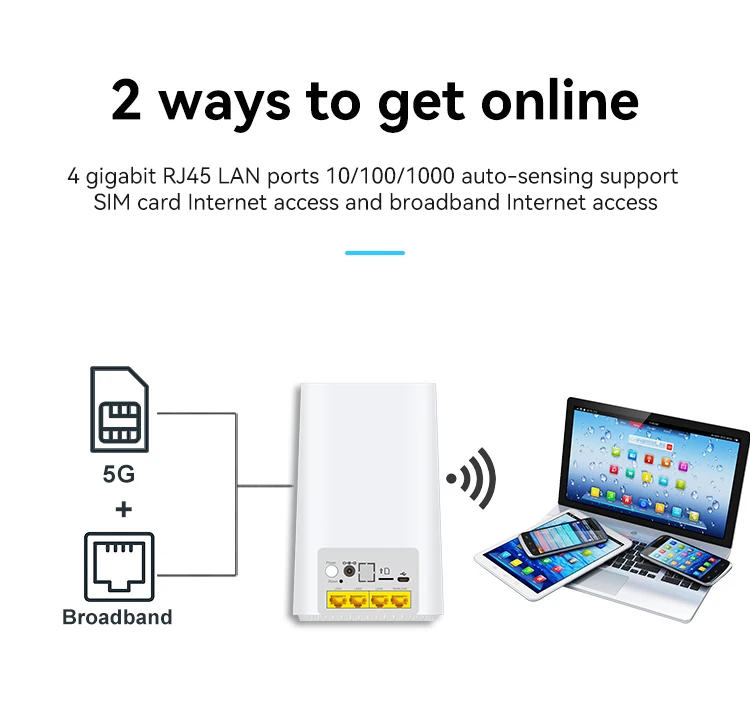

4 * Gigabit RJ45 LAN Ports 10/100/1000 auto-sensing

LED

5 LED Indicators (PWR, 5G/LTE, 5G Wi-Fi, 2.4G Wi-Fi, Network Signal)

SIM

1 SIM (FF)
Support 1,8V & 3.3V

Reset Button

Tact Switch

Antenna

7 Built-in 5G/LTE antennas, 4 Built-in Wi-Fi antennas (2.4G+5G)

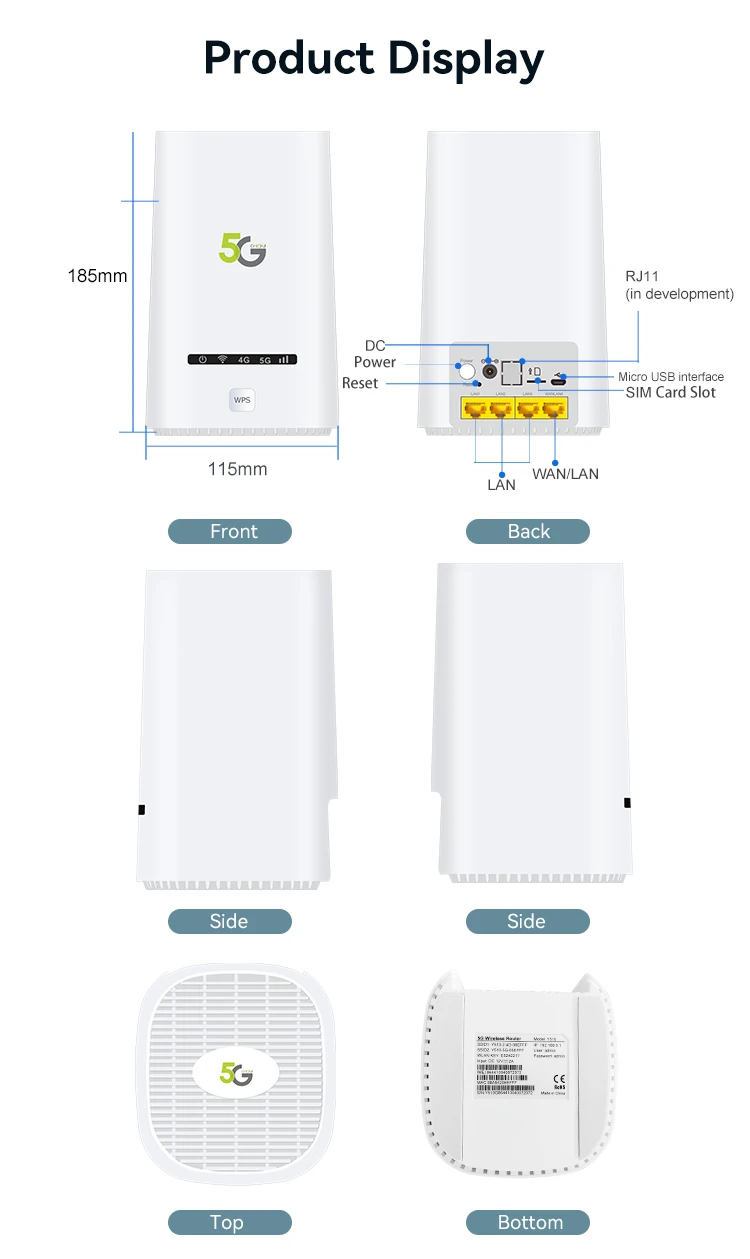

Dimensions

117mm*117mm*180mm

Weight

580g

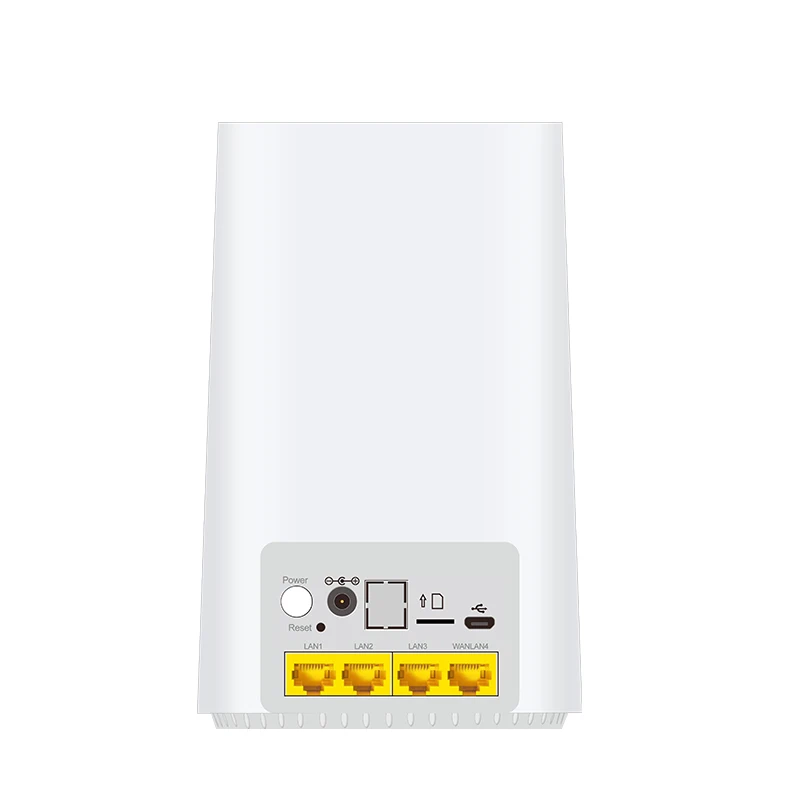

LAN – RJ 45

The LAN port allows you to connect PC to surf internet via CPE

USIM Slot

Support standard 1.8V / 3.3V USIM

DC

DC 2.0

LAN/WAN

GE Port * 4,
(Currently DHCP/STATIC mode).

Power Supply

POE 48V, 1A

Power Consumption

< 24W

Support Bands

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

Support Bands

4G FDD: B1/2/3/4/5/7/8/20/26/28
4G TDD: B34/38/39/40/41
3G WCDMA: B1/B8

ENDC

DC_1A_n77A,DC_1A_n78A,
DC_1A_n79A,DC_20A_n78A,DC_28A_n77A,DC_28A_n78A,DC_38A_n78A,DC_39A_n41A,DC_39A_n78A,DC_39A_n79A,DC_3A_n41A,DC_3A_n77A,DC_3A_n78A,DC_3A_n79A,DC_41A_n78A,DC_5A_n78A,DC_7A_n78A,DC_8A_n77A,DC_8A_n78A,DC_1A_n41,DC_8A_n41A,DC_8A_n79A,DC_40A_n41A,DC_3C_n41A,DC_3C_n78A,DC_7C_n78A,DC_41C_n78A,DC_1A-3A_n78A,DC_1A-3A_n78A,DC_1A-5A_n78A,DC_1A-5A_n78A,DC_1A-8A_n78A,DC_1A-8A_n78A,DC_1A-20A_n78A,DC_1A-20A_n78A,DC_1A-28A_n78A,DC_1A-28A_n78A,DC_3A-8A_n78A,DC_3A-8A_n78A,DC_3A-20A_n78A,DC_3A-20A_n78A,DC_3A-28A_n78A,DC_3A-28A_n78A,DC_5A-7A_n78A,DC_5A-7A_n78A,DC_7A-20A_n78A,DC_7A-20A_n78A,DC_7A-28A_n78A,DC_7A-28A_n78A,

3CC

CA_3D,CA_7D,CA_40D,CA_41D,CA_1A_3C,CA_3C_5A,CA_3C_8A,CA_3C_20A,CA_3C_28A,CA_3A_1C,CA_5A_7C,CA_5A_40C,CA_7C_20A,CA_7C_28A,CA_8A_41C,CA_20A_38C,CA_28A_40C,CA_28A_41C,CA_1A_1A_5A,CA_1A_3A_5A,CA_1A_3A_8A,CA_1A_3A_20A,CA_5A_7A_7A

CA
(Inter/Intra 2CA)

2CC DL intra-band contiguous:
CA_1C,CA_3C,CA_7C,CA_38C,CA_39C,CA_40C,CA_41C,
2CC DL intra-band noncontiguous:
CA_1A_1A,CA_3A_3A,CA_7A_7A
2CC DL inter-band:
4A-7A,CA_1A_1A,CA_3A_3A,CA_7A_7A,CA_1A-3A,CA_1A-5A,CA_1A-8A,CA_1A-20A,CA_1A-28A,CA_3A-5A,CA_3A-8A,CA_3A-20A,CA_3A-28A,CA_5A-7A,CA_5A-38A,CA_5A-40A,CA_5A-41A,CA_7A-8A,CA_7A-20A,CA_7A-28A,CA_8A-38A,CA_8A-39A,CA_8A-40A,CA_8A-41A,CA_20A-38A,CA_20A-40A,CA_28A-38A,CA_28A-40A,CA_28A-41A,CA_39A-41A
2CC UL intra-band contiguous:
1C,3C,7C,38C,39C,40C,41C

MIMO

5G DL MIMO 4*4, UL MIMO 1*1
LTE: MIMO 2*2
WIFI：MIMO 2*2(5G) MIMO 2*2(2.4G)

Output Power@25℃

5G:n41/77/78/79 : Power Class 2 ；n1/20/28 : Power Class 3
LTE: Power Class 3；Power Class 2(only B41)

5G/4G Antenna

4 Built-in 5G antennas
2 Built-in 4G antennas

Wi-Fi Frequency

2.4GHz/5GHz

Wi-Fi Antenn

2 Built-in 2.4G Wi-Fi antennas
2 Built-in 5G Wi-Fi antennas

Wi-Fi Output Power

16 dBm/2.4G; 18 dBm/5G;

Wi-Fi Channel BW

20MHz,40MHz,80MHz(ac)

Wi-Fi Antenna Gain

4 dB

Peak Throughput

NR: 1.6 Gbps /230 Mbps
LTE: 600 Mbps /150 Mbps
DC-HSPA+: 42 Mbps /5.76 Mbps
HSPA+: 21 Mbps /5.76 Mbps

Language

English，Simple Chinese,Could be customized

User Login

Support two users (admin user and normal user) and different limitation and display

Network Status

Signal strength；Network type(5G/4G..)；SIM card status；Wi-Fi Status；LAN Status

System Status

Mobile parameters,
APN/DHCP/Wi-Fi information, Memory details,
Version/Device information

Internet Settings

Network mode setup, Data switch, ；Roaming setup

APN Setup

APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6),
MTU size，Multi APN (Totally 3 APNs)

DHCP Setup

Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time
