DPB150 Automatic Blister Packing Machine For Butter/Honey/Ketchup
- Category: >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd
Share on (1600737568545):
Product Overview
Description
Products Description
Model | DPB-150 |
Punch Frequency | 10-35 times/min |
Production Capacity | 1200-4200 bisters/hour |
Nosie | <75dBA |
Standard Stroke Range | 50-120mm( can be designed as per user’s required) |
Standard plate size | 80x57mm ( can be designed as per user’s required) |
Max forming area | 80X105X25(mm) |
Air pressure | 0.4-0.6Mpa |
Total power | 380V 50HZ 3.8kw |
Main electrical power | 1.5kw |
PVC hard film | (0.15-0.5)×150mm |
PTP Aluminum film | (0.02-0.035)×150mm |
Dialysis paper | (0.02-0.035)×150mm |
Cooling of mold | Tap water or recycled water |
Overall dimension | 2315×635×1405mm(L×W×H) |
Weight | 820kg |
Max. Forming area & Depth | 150x110(standard depth <=15mm) |
Max. Depth 26mm |
Appliacation:
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Feature
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Product Category
Our Certificate
Company Profile
1. Professional Team
2.Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site
Buyer Feedback

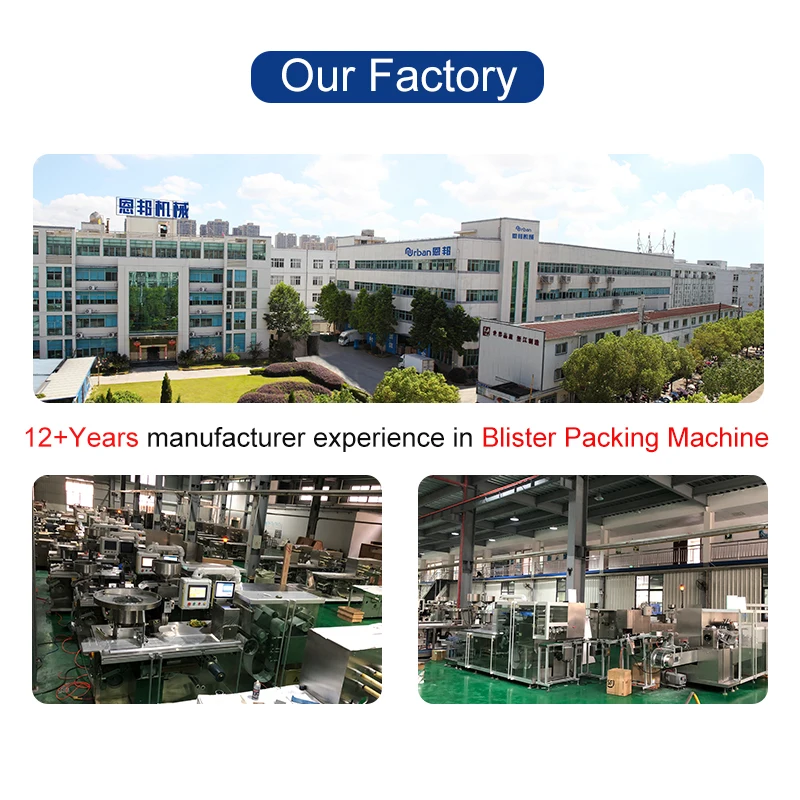

Production Process
Packing & Shipping
FAQ
Welcome to visit our website>>urbanpack.en.alibaba.com
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
Wish You Have A Pleasant Purchasing Time! Pls Click >>Contact Us
