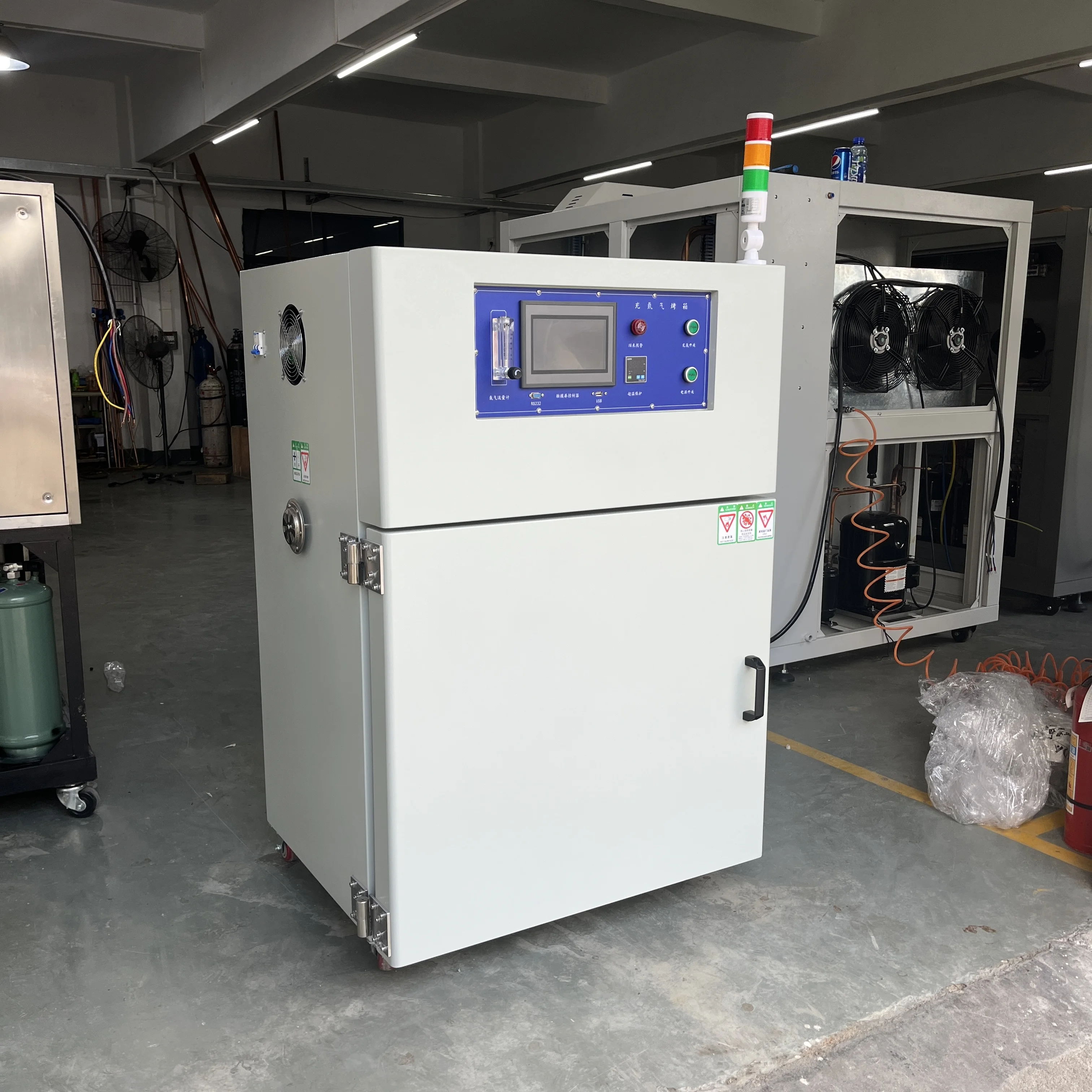

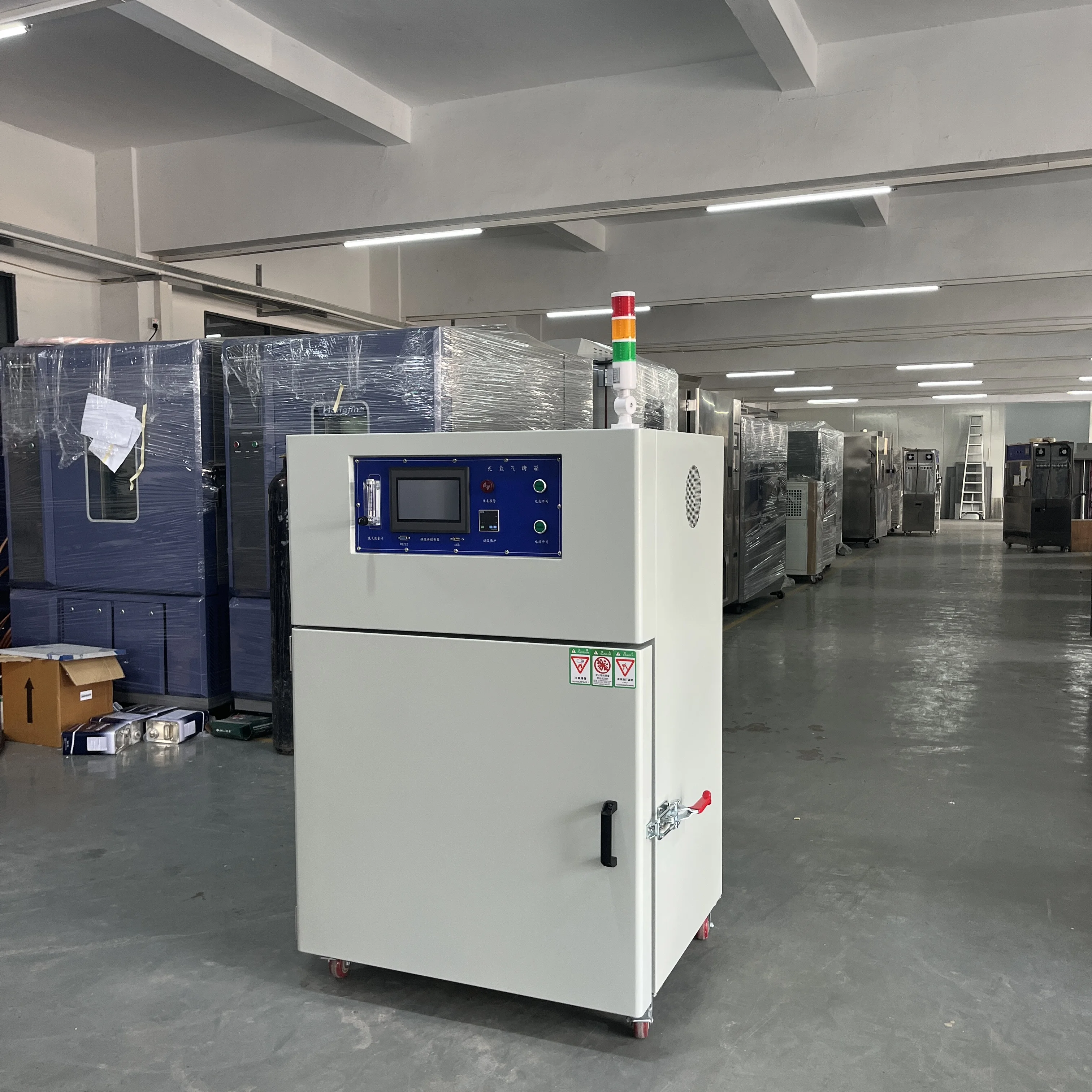

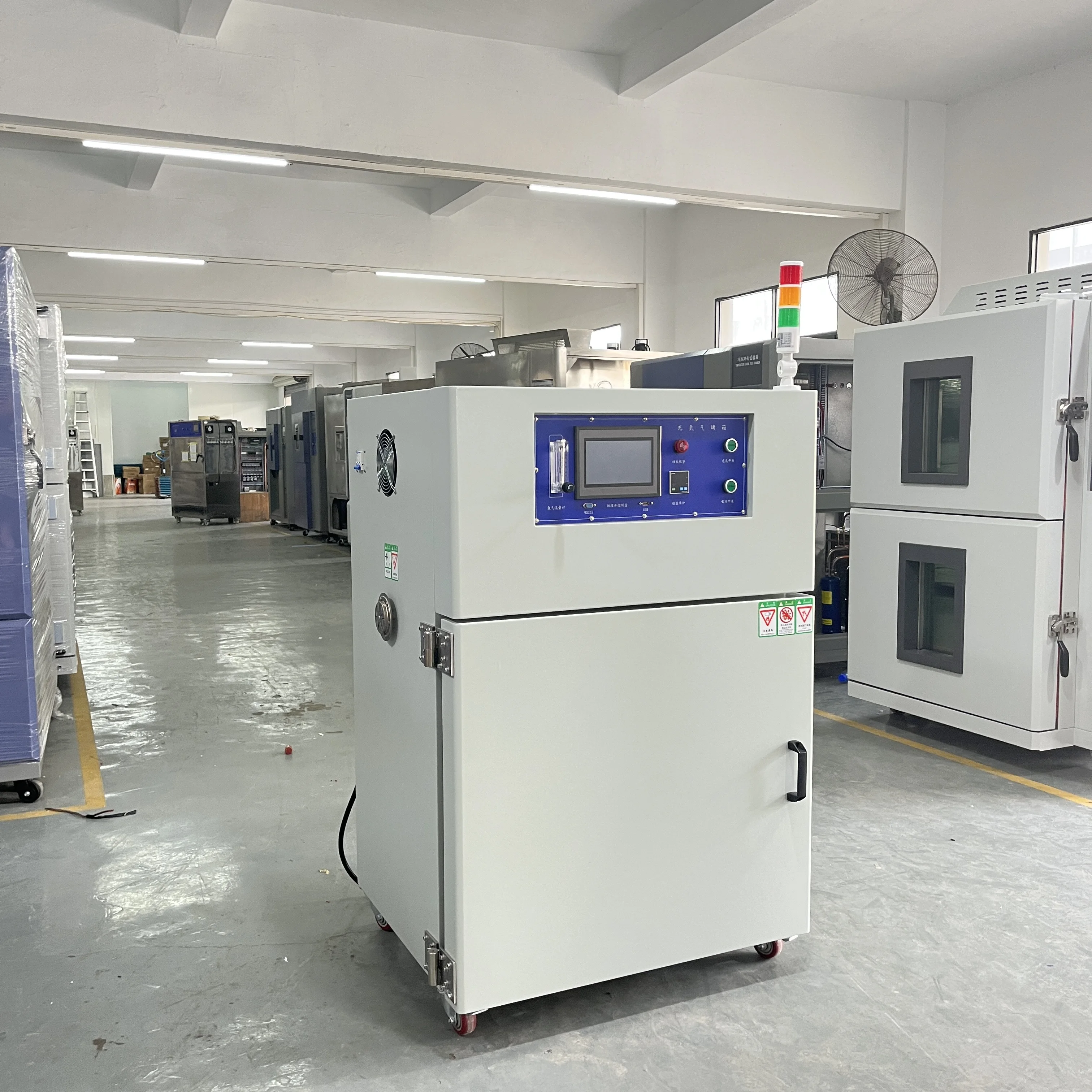

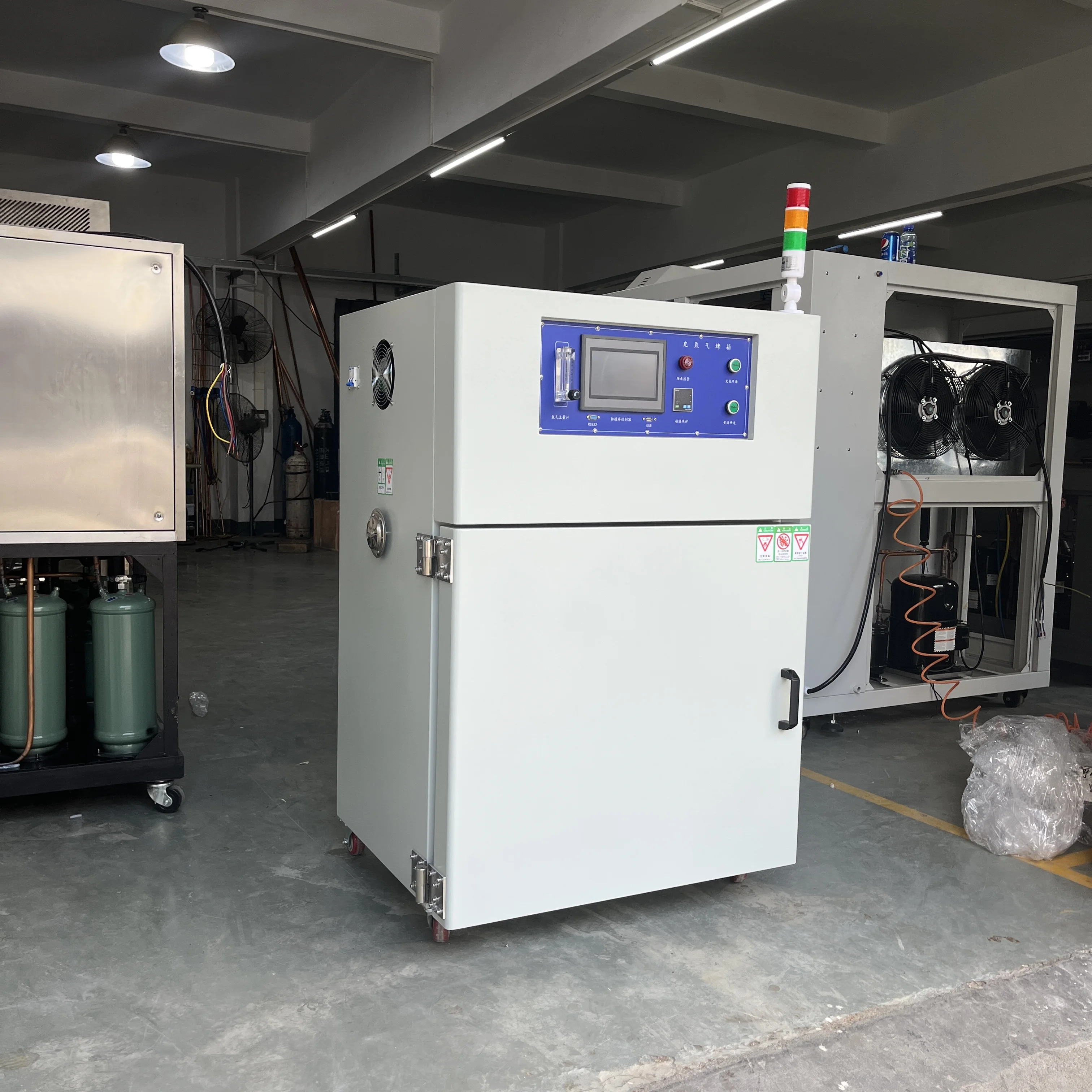

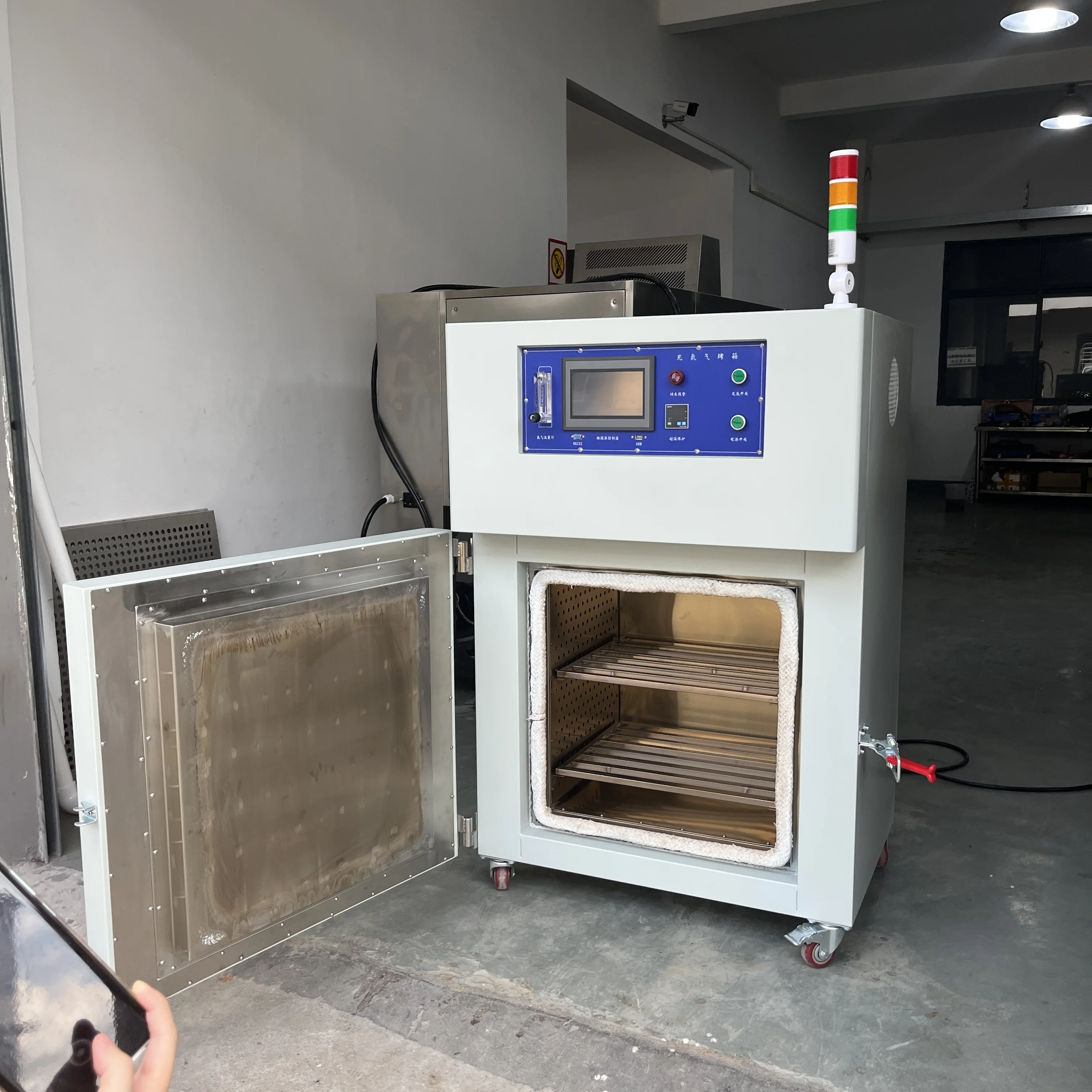

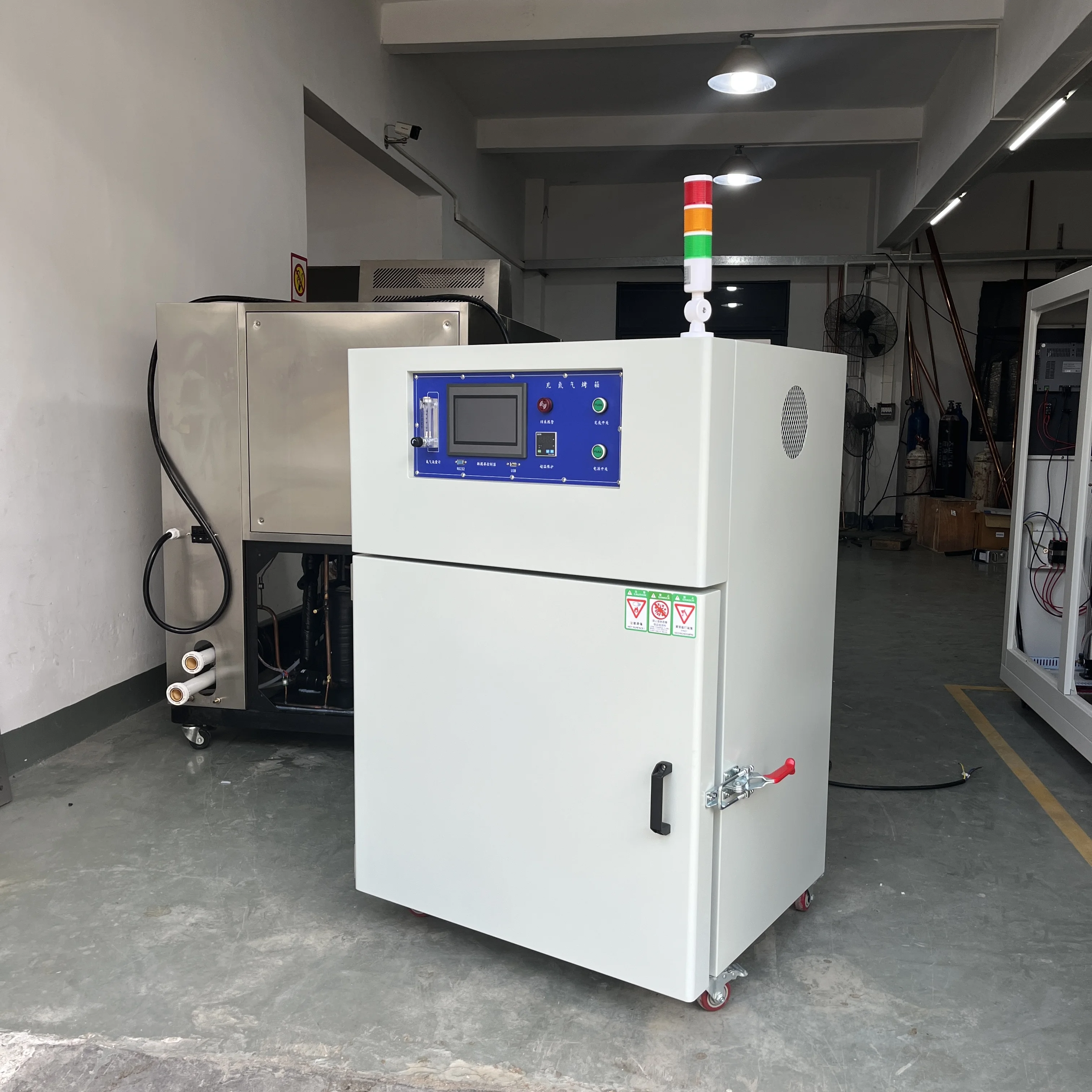

Hongjin High Temperature Hot Air Circulating Equipment Manufacture Price Drying Oven Industrial Oven Price Dryer Machine
- Category: Chemical Machinery & Equipment >>>
- Supplier: Guangdong,Hongyu,International,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Application:
It is used to test the performance of parts and materials of related products such as electronics and electrical engineering, automobiles, motorcycles, aerospace, rubber, plastics, metals, ships and weapons, colleges and universities, scientific research institutions, etc. under high temperature and constant temperature changes Indicators.
Main indicators:

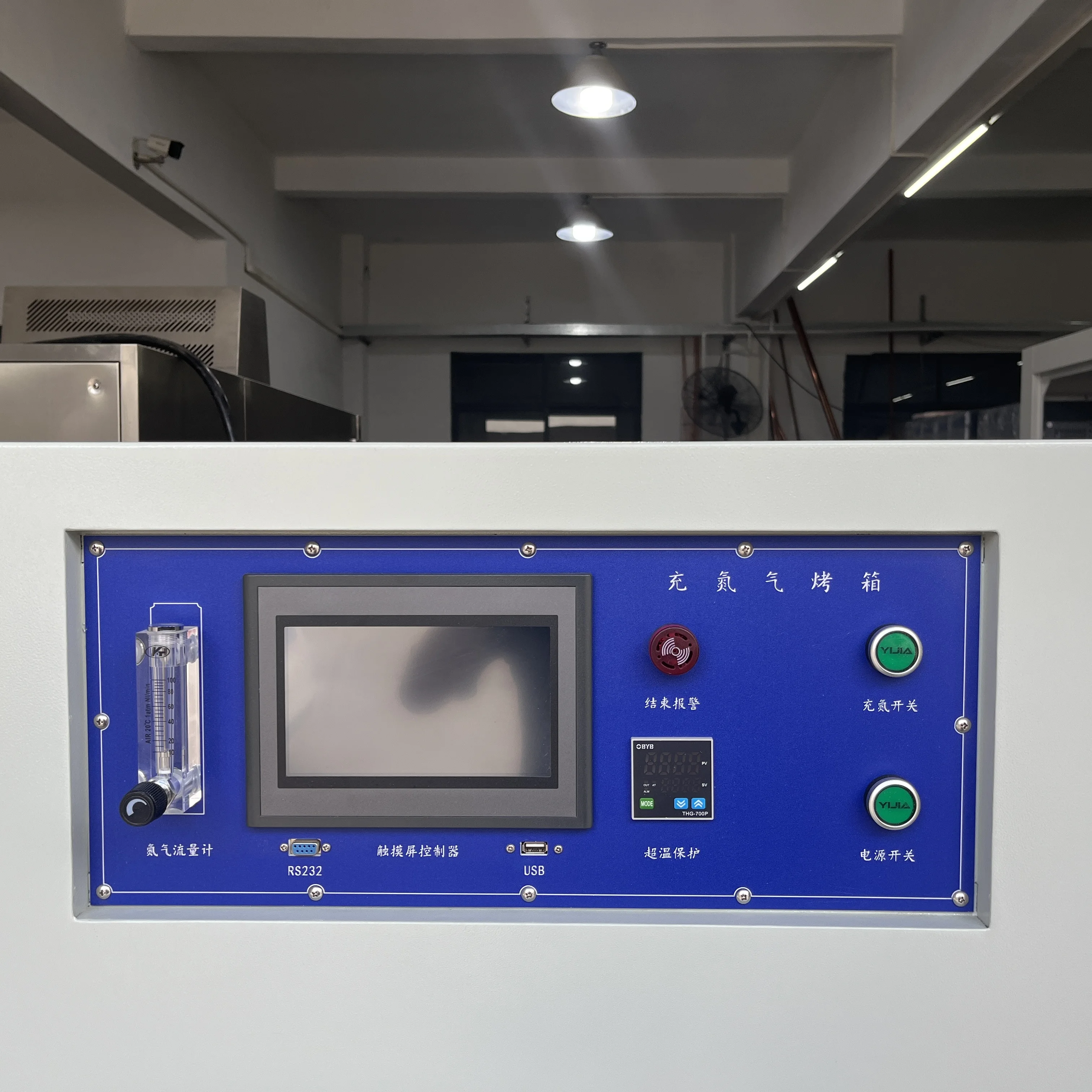

use touch control system, data recording function, shell spray or stainless steel, stainless steel inner tank.
Model | Size |
HJ-64 | D400*W400*H400mm |
HJ-150 | D500*W500*H600mm |
HJ-240 | D500*W600*H800mm |
HJ-270 | D500*W600*H900mm |
HJ-480 | D600*W800*H1000mm |
HJ-672 | D700*W800*H1200mm |
Specification
item | value |
Type | Drying Oven |
Application | Medicine Processing, Chemicals Processing, Food Processing |
Voltage | 200v/50Hz |
Power | 300W/1400W/2000W |
Dimension(L*W*H) | 620*500*480 mm |
Applicable Industries | Garment Shops, Manufacturing Plant, Farms, Energy & Mining |
Video outgoing-inspection | Provided |
Core Components | PLC |
Timer setting | 1 second-9999 hours |
Temperature sensing line | (K) type |
The signal output | 3-32V |
Heating control | solid state relay SSR has no contact |
The heating element | high temperature resistant heating tube |
Temperature range | RT+20~200℃ |
Heating rate | 100℃ about 15 minutes |
Control accuracy | ±1.0℃ |
Display accuracy | 0.1℃ |
The uniformity of temperature deviation distribution | ±2.5℃. (No-load test) |
Safety protection system 1. Over-temperature protection system: When the temperature is out of control and exceeds the set temperature of the over-temperature protector, the heating and power supply will be automatically stopped to protect 2. The safety of your products and machines; 2. Circuit protection: grounding protection, fast insurance, circuit breaker, etc.
