Price:$105.00 - $120.00

Quantity:


Product Overview

Description


 1 (27)1 (24)

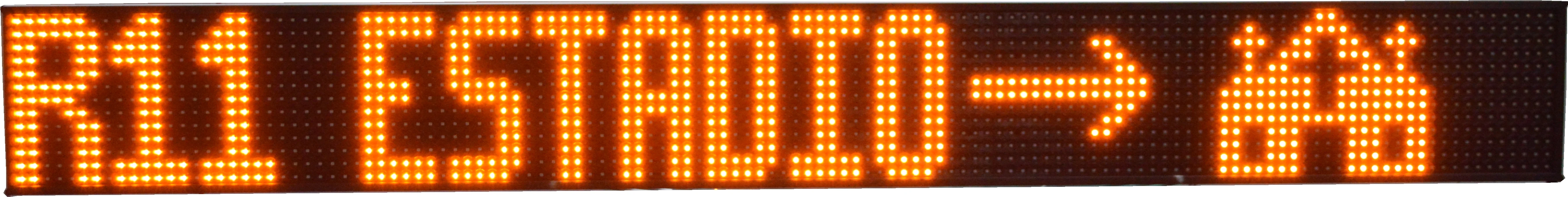

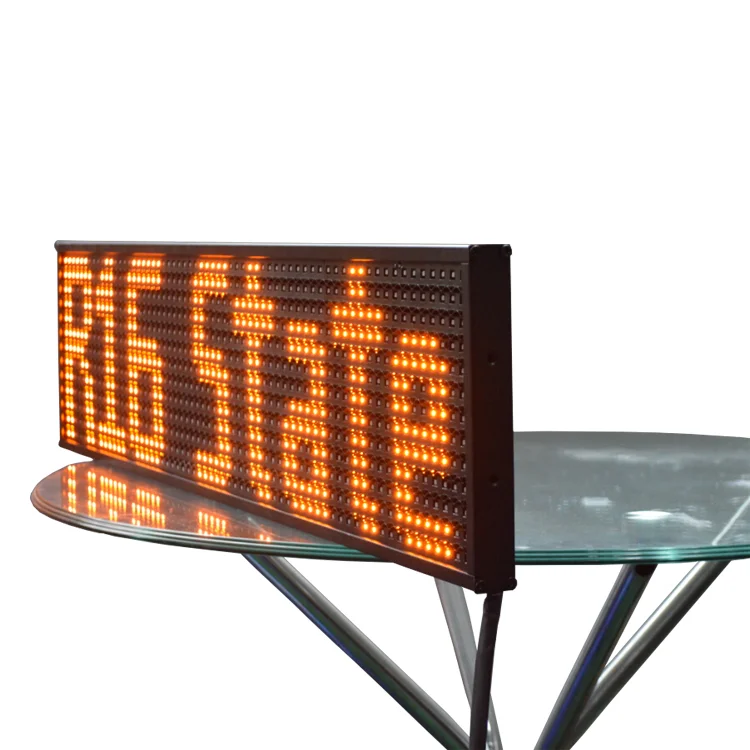

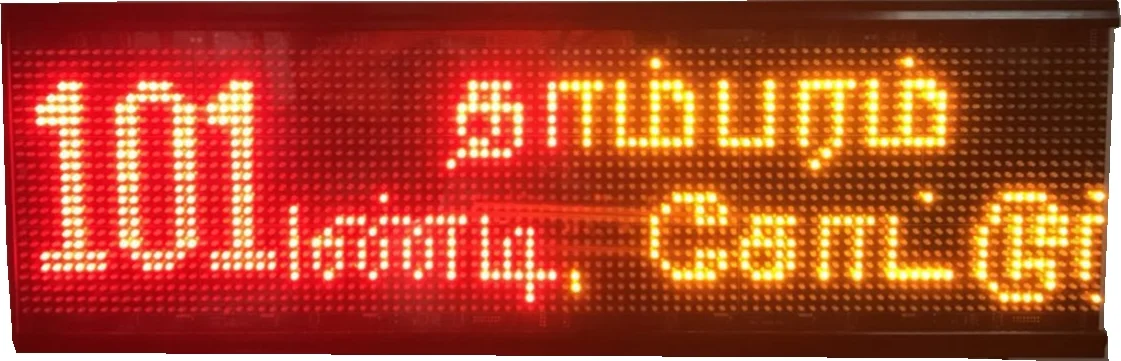

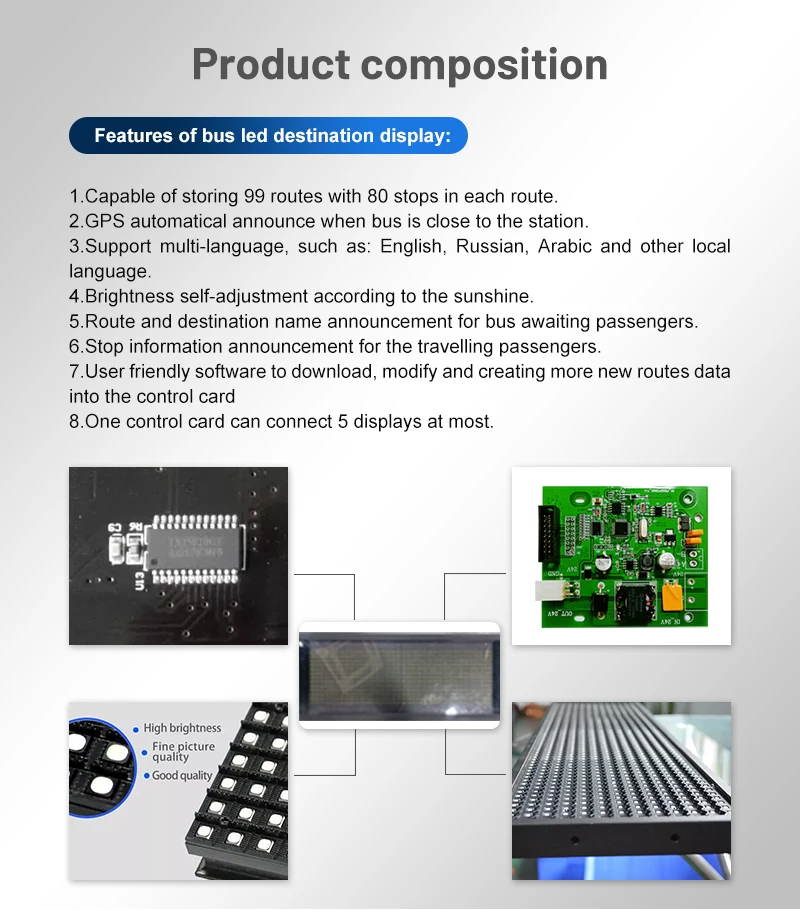

 Features of bus LED destination display:LED

Specifications of bus LED destination signs:

















































































































Product Name




BUS LED DESTINATION SIGN




Model




EL-1364S




Type of Media




SMD3528 (Taiwan brand chip)




LED color




Amber (Red,White)


  Wavelength  592 to 595
  Pitch  13mm horizontal,14mm vertical
  Line Resolution   13*64 dots
  Character Height   182 mm
  Display Area Dimensions  832mm(W)*182mm(H)
  Enclosure Dimensions  852mm(W)*200mm(H) *25mm(D)
  View distance/Viewing Angle  >60m;120°H/60°V
  Information to be displayed   destination,route,station,other service message
  Languages Supported  English/Spanish/Portuguese and any other regional language
  Fonts Supported  Windows fonts,especially we have customized fonts for English/Spanish/Portuguese
  Brightness adjust  Auto adjusted with inbuilt light sensor,clearly visible under direct sunlight.
Also can be adjusted by software with 4classes,25%,50%,75%,100%
  Data Interface  RS485,TCP,wireless(not recommended)
  In built Controller   3000routes/1000 stations per route
  Relative Humidity Level  No test yet
  UV Resistant  yes
  Operating Voltage Range  DC12V~36V
  Ingress protection  If need IP65,will add a organic glass
  Ambient Operating Temperature  "-40℃ to +80℃
  Cabinet  Aluminium
  Weight  2.0KG
  Vibration  100% vibration test
  Certification  E-MARK ,CE,AIS in india,ISO9001-2015
  Warranty  4years







 .jpg











Who we are?



What we offer?

We offer 4 to 10 years warranty

If there is any man-made problem with the products during the warranty, we offer spare parts and send to customer for free. But Customers need to pay for the shipping.

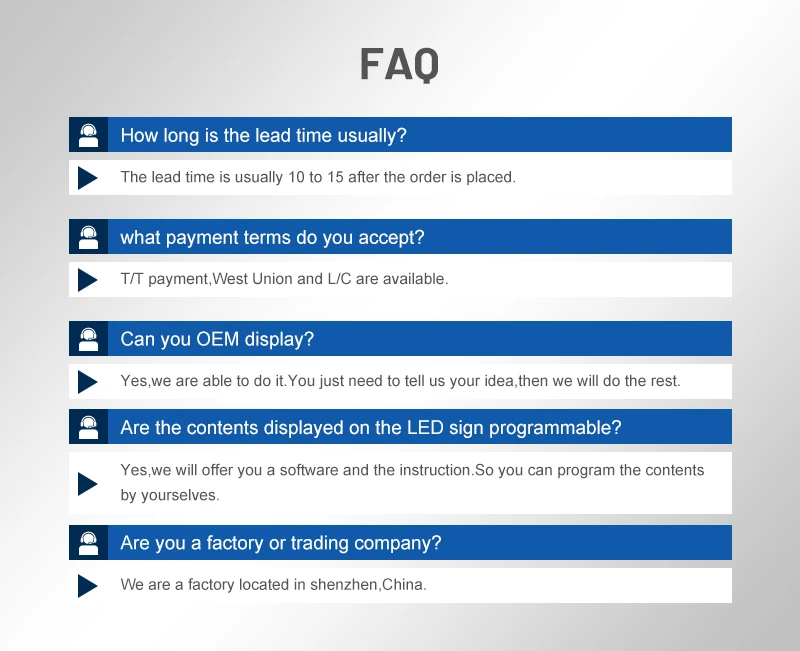

FAQ
