Product Overview
Description
Product Description
Work Principle
X-ray diffractometer analyzes natural or synthetic inorganicor organic material,widely used in the field of clay minerals,cement, building materials,environmental dust,chemicalproducts, pharmaceuticals, asbestos, rock, polymer research.

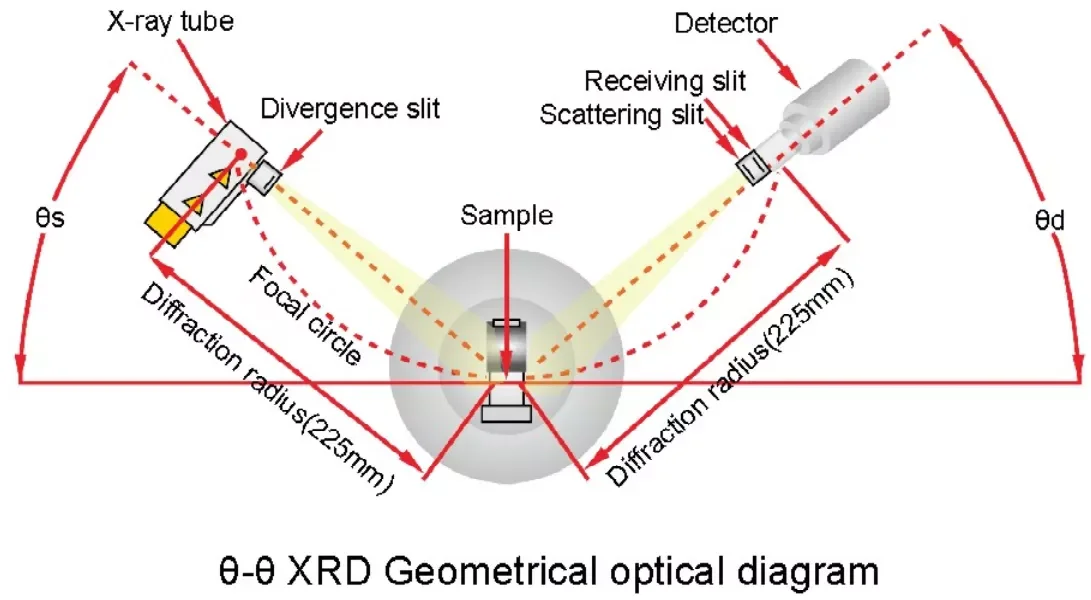

● θ-θ geometry-based optical design is easy for sample preparation and the installation of various accessories
● The application of metal ceramic X-ray tube greatly enhanced diffractometer's operating power
● Closed proportional counter is durable and maintenance-free
● Silicon drift detector, with superior angular resolution and energy resolution, enables measurement speed increased by more than 3 times
● Varies diffractometer accessories meet different analytical purposes needs
● Modular design，known as plug-and-play components, allows operators to accurately use diffractometer corresponding attachments，without needing calculating optical system.
Data measurement function

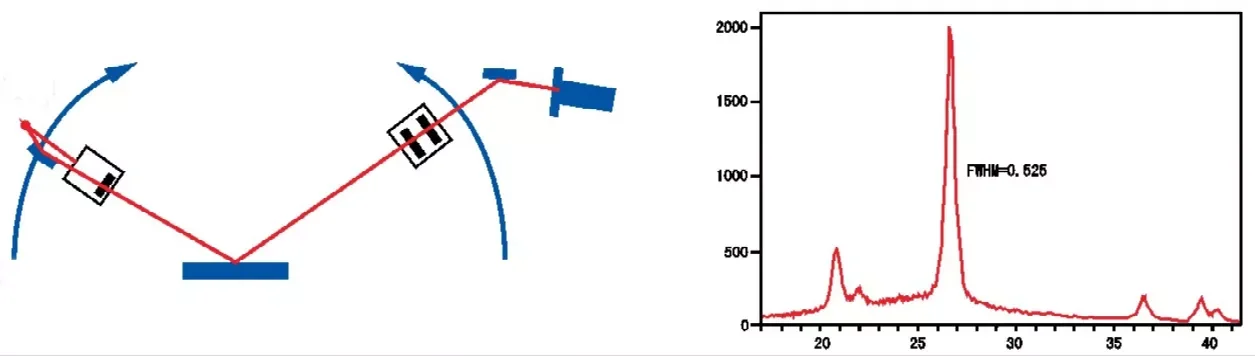

θs-θd conventional symmetric measurements
Qualitative and quantitative analysis Samples crystal structure analysis Crystal's crystallization evaluation Evaluation on Lattice size and lattice stress

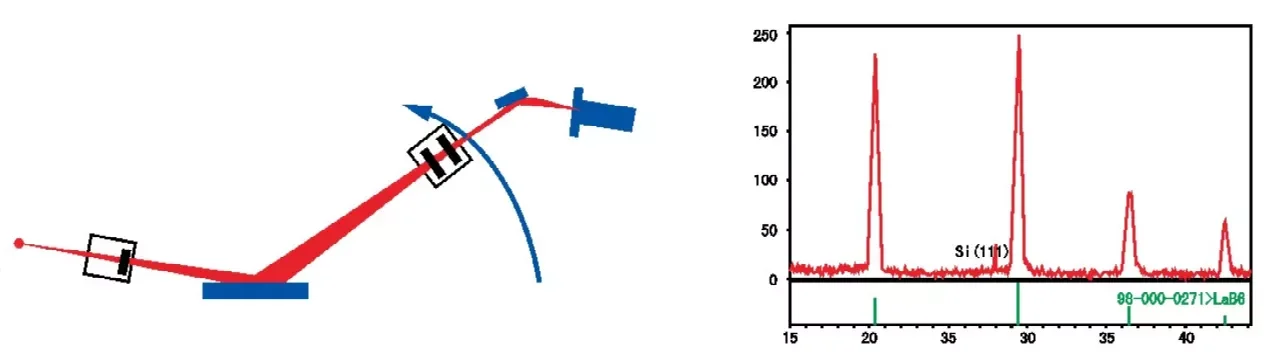

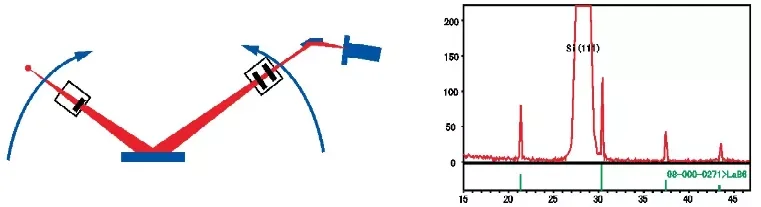

θs-θd asymmetry measurement
(grazing measurement)
Qualitative analysis and structural analysis on film / powder sample Precise analysis on lattice constants Evaluation on residual
stress / orientation Film/density measurement
Qualitative analysis and structural analysis on film / powder sample Precise analysis on lattice constants Evaluation on residual
stress / orientation Film/density measurement
Parallel optical path system
Qualitative analysis and configuration evaluation of thin film/powder samples Precision analysis of lattice constants Residual stress /orientation assessment Roughness evaluation for film/density/interface

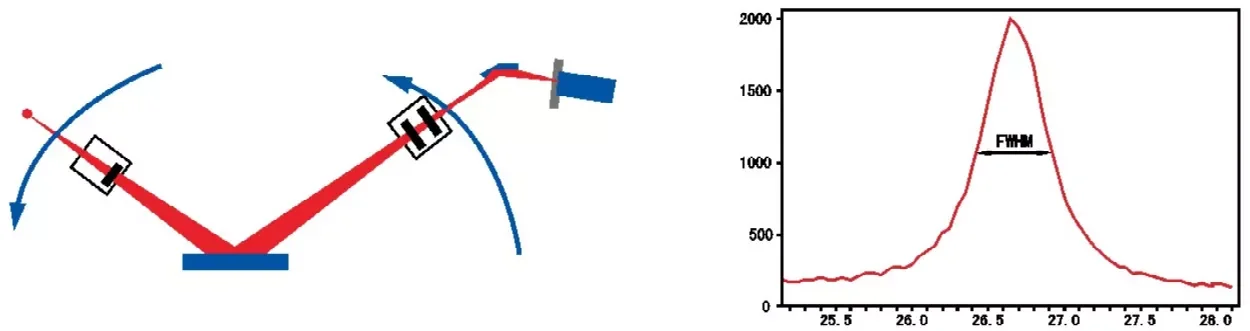

Omg swing measurement
Precise evaluation on sample's crystallization status

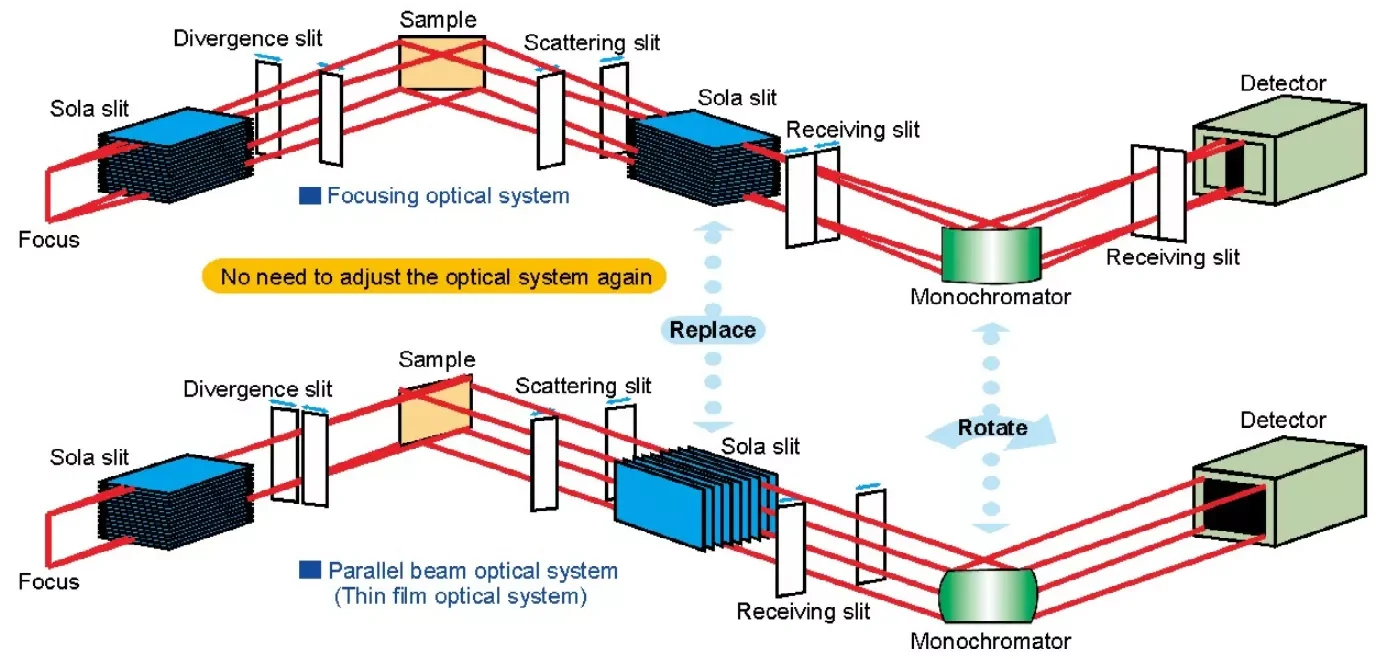

Optical system converter
Sola slit structure can be changed without needing to disassemble Sola slit body. Due to this character, the instrument，without needing readjust, can achieve the converter between focus optical system and horizontal optical system.
Data Processing Software Includes The Following Features
Basic data processing functions (peak searching,smoothing,background subtraction, peak shape fitting,peak shape enlargement, spectra comparison, K α 1, α 2 stripping,diffraction lines indexing );
● No-standard sample's rapid quantitative analysis
● Crystal size measurement
● Crystal structure analysis (crystal cell parameters rmeasurement and refinement)
● Macroscopic stress measurements and microscopic stress
● Two-dimensional and three-dimensional display ofmultiple drawing
● Diffraction peak drawings' cluster analysis
● Diffraction data's half-peak width calibration curve
● Deviation data's angular deviation correction curve
● Rietveld based conventional quantitative analysis
● Use lCDD database or user database to perform phase qualitative analysis
● Use ICDD database or ICSD database to perform quantitative analysis
● No-standard sample's rapid quantitative analysis
● Crystal size measurement
● Crystal structure analysis (crystal cell parameters rmeasurement and refinement)
● Macroscopic stress measurements and microscopic stress
● Two-dimensional and three-dimensional display ofmultiple drawing
● Diffraction peak drawings' cluster analysis
● Diffraction data's half-peak width calibration curve
● Deviation data's angular deviation correction curve
● Rietveld based conventional quantitative analysis
● Use lCDD database or user database to perform phase qualitative analysis
● Use ICDD database or ICSD database to perform quantitative analysis
Technical Specifications:
Model | AE-XRD-2700A | AE-XRD-2700B | |
Rated power | 3kW(High frequency high voltage control technology) | 4kW | |
Tube voltage | 10-60kV | ||
Tube current | 5-50mA | 5-80mA | |
X-ray tube | Metal ceramic tube Target maretial: Cu, Fe, Co, Cr, Mo etc. Power:2.4kW | ||
Focus size | 1*10mm, 0.4*14mm or 2*12mm | ||
Stability | ≤0.005% | ≤0.01% | |
Goniometer structure | Sample level (θ-θ) | ||
Radius of diffraction | 225mm (or custom by request : 150-285 range) | ||
2θ Scanning range | -6 -160° (θs: -3 - 80°, θd: -3 - 80°) | ||
Scanning speed | 0.0012° - 50°/min | ||
Angle locating speed | 1500°/min | ||
Scanning fashion | θs/θd dlinkage/single action: continuous, stepping and Omg | ||
Minimal stepping angle | 1/10000° | ||
Angle repeatable accuracy | 1/10000° | ||
2θ Angular linearity | International standard sample (SI.Al203), the angle deviation of all peak in full pectrum are not mare than ±0.02° | ||
Detector | Proportional counters(PCjor scintillation counter(SC), Silicon drift detector(SDD),High speed one-dimensional semiconductor array detector | ||
Maximal counting rate of linearity | 5*105CPS (PC.SC with the compensate function of drop out counting) 15* 104(SDD) 9× 102 (one-dimensional array) | ||
Energy resolution ratio | ≤25%(PC, one-dimensional array), ≤50%(SC), ≤200eV(SDD) | ||
Counting fashion | Differential coefficient or integral, PHA automatically, dead time regulate | ||
Stability of system measure | ≤0.01% | ||
Scattered rays dose | ≤1μ Sv/h (without X-ray protective device) | ||
Instrument integrative stability | ≤0.1% | ≤0.5% | |
Figure size | 1000*800*1600mm | ||
