Skyline voip products goip 16 256 port bulk sms texting 4G gsm marketing gateway
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600737701524):
Product Overview
Description
Product Description

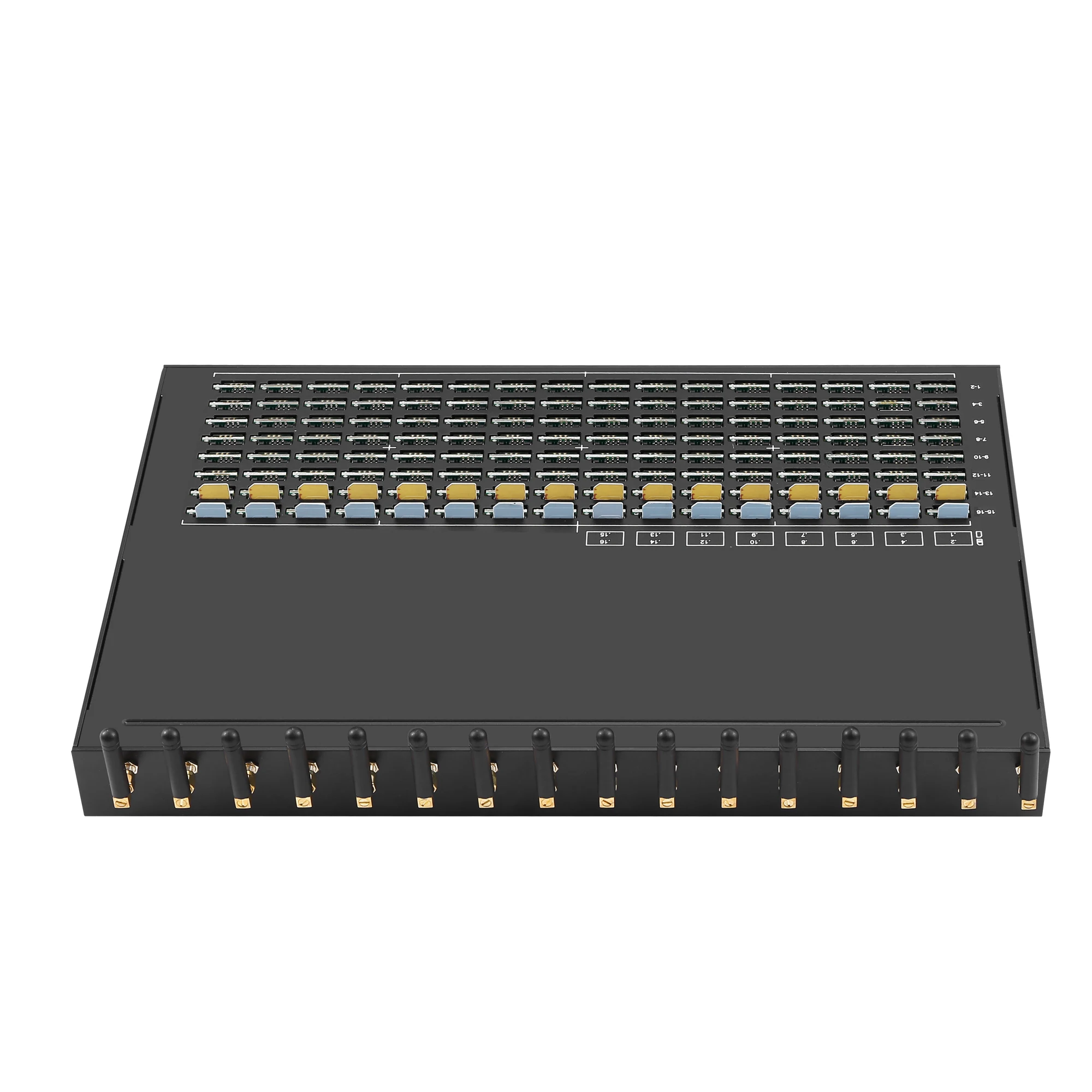

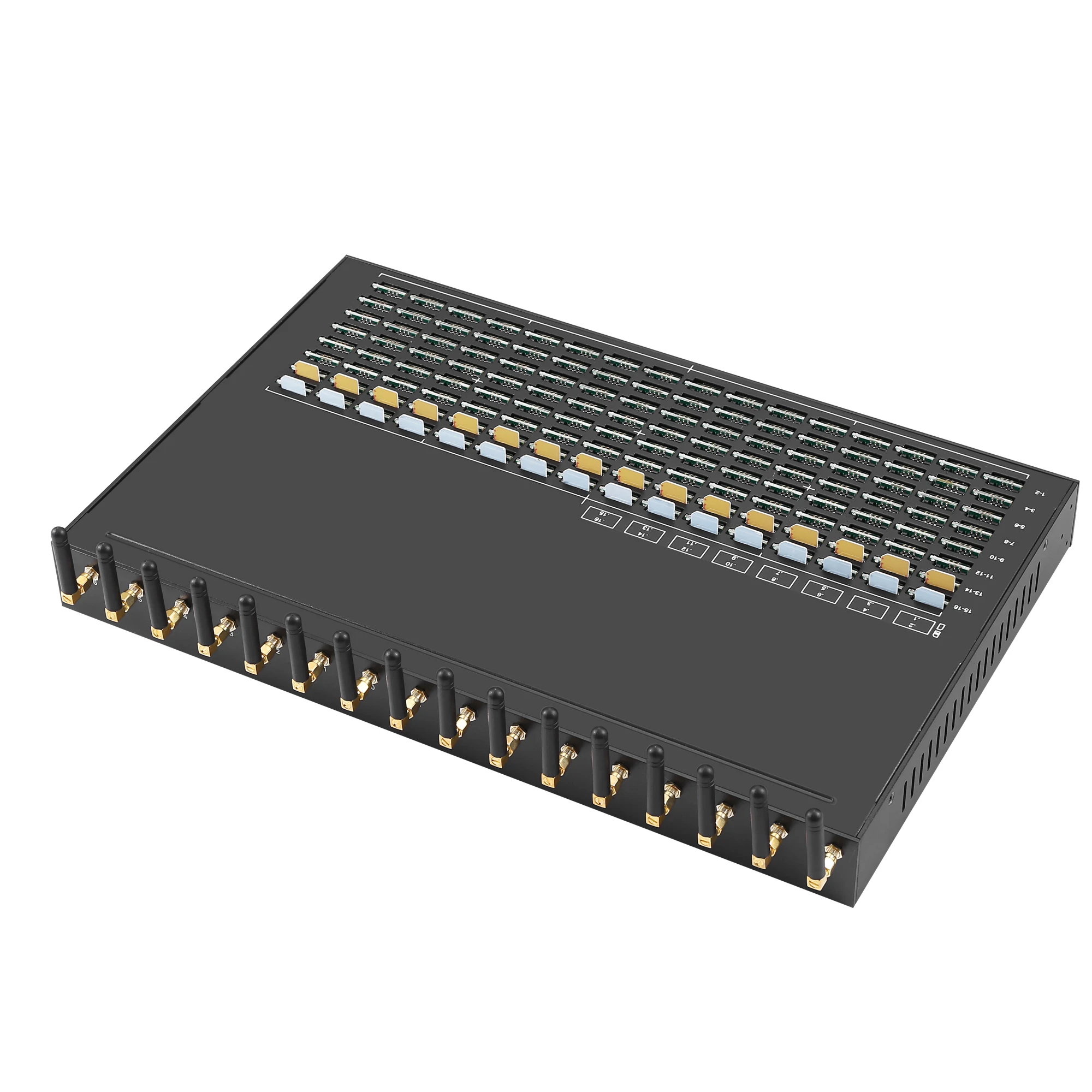

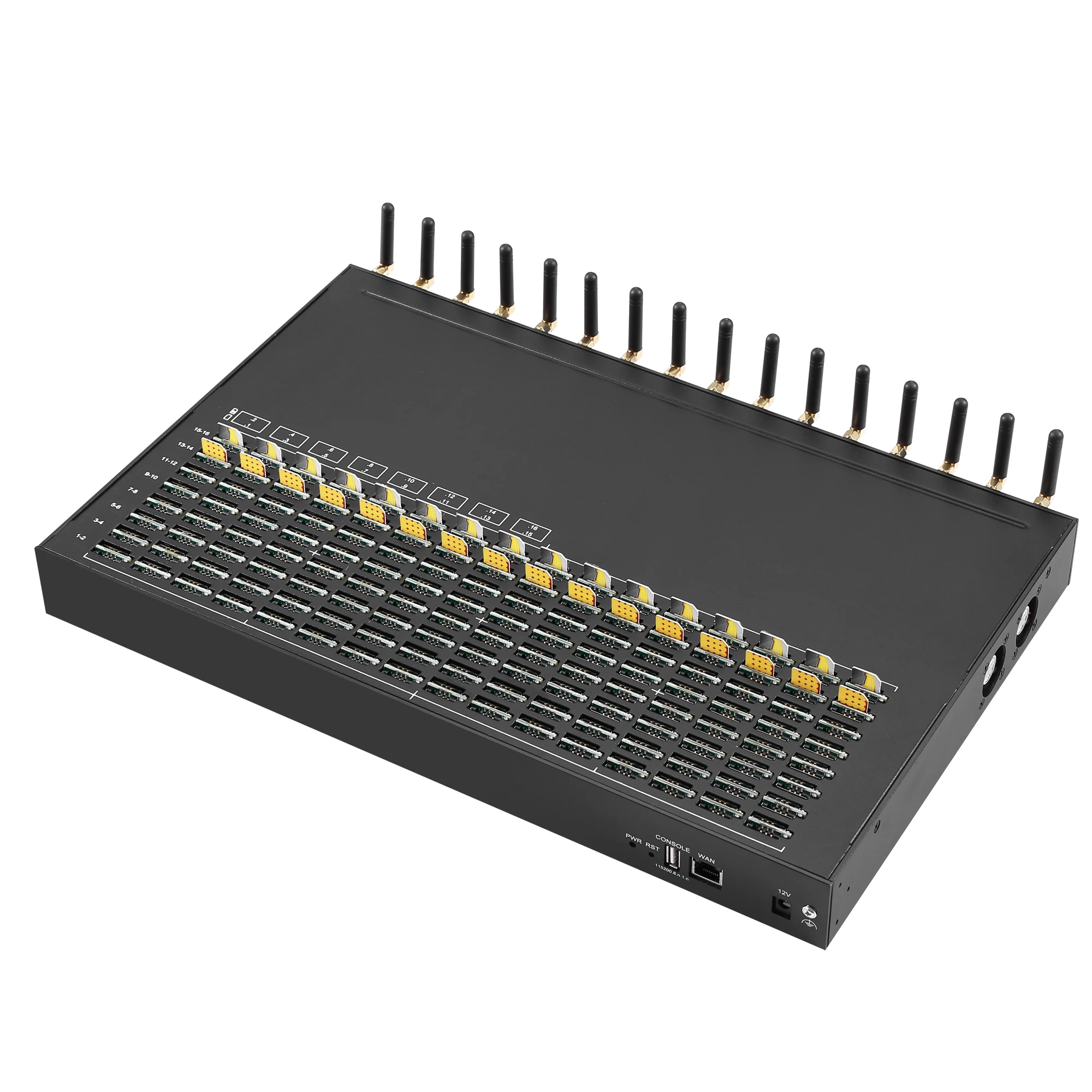

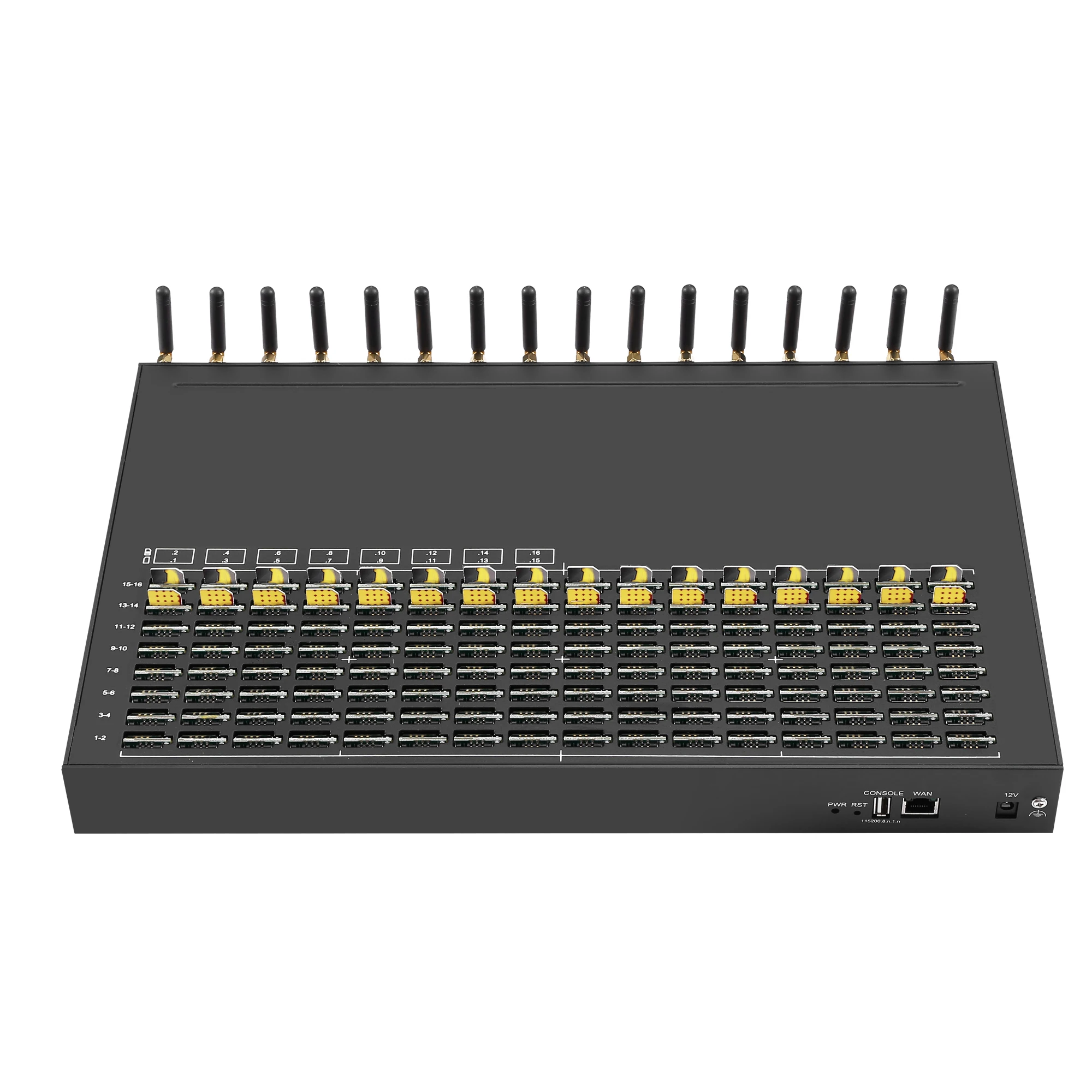

4G SK16-256 SMS Gateway
4G SK 16-256 SMS Gateway is a multi-functional and high performance product, which supports SMS sending, receiving and group sending. It’s different from traditional modem, it’s based on IP network, with the SMPP/HTTP API, customers can develop SMS server easily. It is widely used in mobile marketing, verify code, bulk of SMS and corporate SMS.SK 4G 16-256 SMS Gateway, 16 channels 256 SIM cards
1) Each channel 16 port rotate work
2) IMEI Change
3) AT command directly
4) Base Station Change
5) Support USSD balance enquiry, billing
6) Direct to monitor Status of Sending SMS
7) Support to do sms route
8) Auto suffer the internet to use Internet traffic
9) Support SIMS hot-swap
10) Support SMPP server/client
11) Support HTTP/SIP SMS API
1) Each channel 16 port rotate work
2) IMEI Change
3) AT command directly
4) Base Station Change
5) Support USSD balance enquiry, billing
6) Direct to monitor Status of Sending SMS
7) Support to do sms route
8) Auto suffer the internet to use Internet traffic
9) Support SIMS hot-swap
10) Support SMPP server/client
11) Support HTTP/SIP SMS API
Specification:
Model | 4G SK 16-256 SMS Gateway |
Number of Channels | 16 channels (one port with 16 sim cards rotate) |
SMS Sending Speed | 16 Port: 19200 SMS one hour 9600 MMS one hour |
Frequency | 2G GSM: 850/900/1800/1900MHz 3G: UG96 4G: EC25-EC |
SMS Control Protocols | EIMS (Skyline Private SMS Internet Protocol) |
Network Protocols | IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP |
Configuration and Maintenance | Web-based GUI |
Console, Telnet command line | |
Remote Management Center | |
Firmware Update | Local file, FTP, TFTP and HTTP |
1 WAN 10/100Base-T Ethernet(RJ-45 connector) | |
1 LAN 10/100Base-T Ethernet(RJ-45 connector) | |
1 console(USB connector) | |
LEDs | 1 power and 16 groups of signal strength and running indicator(defining...) |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/8A OUT |
Dimensions | Rack mountable 1U chassis(compatible with 19" Rack) |
Width: 540mm | |
Height: 9mm | |
Depth: 430mm | |
Weight: 7KG | |
Operating Environment | Operating temperature: - 20ºC~50ºC |
Operating humidity: 10 – 90% | |
Warranty | 12 Months |
- Functions:
• SMS receiving/bulk sending, AT command compatible
• Support Skyline registration and peer-to-peer
• Update firmware by local or Internet
• Support Skyline registration and peer-to-peer
• Update firmware by local or Internet
- Features:
• 16 SIM cards per channel for rotation
(SIM Switch version optional)
• LCR automatically route
• Remote Management and Control via Internet
(SIM Switch version optional)
• LCR automatically route
• Remote Management and Control via Internet
• Receiving and sending bulk SMS
• AT command directly
• Support USSD balance enquiry, billing
• AT command directly
• Support USSD balance enquiry, billing
• Automatically lock/switch SIM card according to its balance, balance alarm
• Master and slave EIMS server SIM card hot plug
• Master and slave EIMS server SIM card hot plug
• IMEI Chnaged
- Maintenance and Management:
• Multi-language Interface
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• ETMS: For central management of all your SK gateways in one page, with auto-recharge system embedded in
• EIMS1.0: For sending bulk SMS
• EIMS2.0: For SMS termination
• ESPS: For manage gateway and simpool, and set your own SIM assignation strategy
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• ETMS: For central management of all your SK gateways in one page, with auto-recharge system embedded in
• EIMS1.0: For sending bulk SMS
• EIMS2.0: For SMS termination
• ESPS: For manage gateway and simpool, and set your own SIM assignation strategy
Application:
1) Ideal for telecom distributors, resellers, service providers2) SMS Verification & ONE time passwords
3) Marketing campaigns (promotion, sale)
4) Bulk SMS Compagin, SMS termination
5) Information services
6) SMS- Newsletters
7) Notification- SMS (appointment, birthday)
8) Surveys & Feedback request
9) Sims Business
10) Store SMS Content in device page
• Remote Management Center
The remote management center could be an Internet SMS Modem Pool, a gateway, even an usual computer as the service computer. Users can access to the service computer by any personal network device like personal computer or smart phone installed the relative software application. Users make use of the GSM,wifi or USB cable to visit the service computer and manage other Internet SMS
Modem Pools in different areas and countries.
• Mobility Extension
Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIMs. Mobile phones can be considered as “mobile extensions” of the telephone system. Additionally, “Least Cost Router” permits to select the cheapest route for any SMS.
• Bulk SMS Sending
The device supports EIMS SMS sending and receiving, used with the SIP server as a SMS gateway.
The remote management center could be an Internet SMS Modem Pool, a gateway, even an usual computer as the service computer. Users can access to the service computer by any personal network device like personal computer or smart phone installed the relative software application. Users make use of the GSM,wifi or USB cable to visit the service computer and manage other Internet SMS
Modem Pools in different areas and countries.
• Mobility Extension
Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIMs. Mobile phones can be considered as “mobile extensions” of the telephone system. Additionally, “Least Cost Router” permits to select the cheapest route for any SMS.
• Bulk SMS Sending
The device supports EIMS SMS sending and receiving, used with the SIP server as a SMS gateway.
Frequency:
2G model: 850/900/1800/1900Mhz
3G model: 850/900/1800/1900/2100Mhz
4G model:
3G model: 850/900/1800/1900/2100Mhz
4G model:
Module | Frequency | Suitable for Countries or Regions |
EC25-E | LTE FDD:B1/B3/B5/B7/B8/B20 LTE TDD:B38/B40/B41 WCDMA:B1/B5/B8 GSM:B3/B8 | Europe, Middle East, Africa, Korea, Thailand, Southeast Asia |
EC25-EC | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | Europe, United Arab Emirates |
EC25-J | LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 | Japan |
EC25-A | LTE FDD:B2/B4/B12 WCDMA:B2/B4/B5 | USA, Canada |
EC25-AU | LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 | Australia, New Zealand, Latin America, Mexico |
EC25-V | LTE FDD:B4/B13 | USA Verzon |
Gateway Web Management
Packing&Shipping

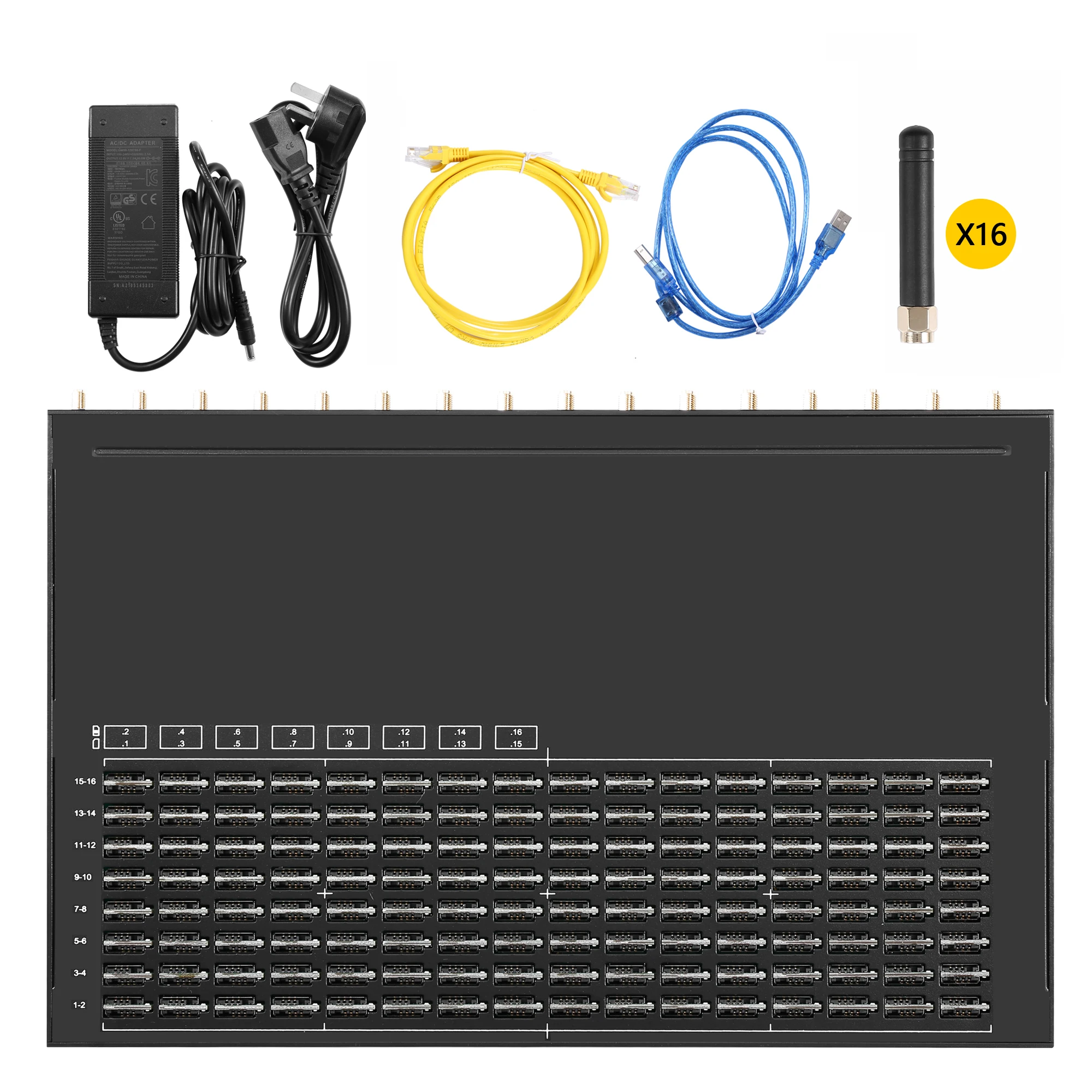

Packing List:
(1) SK SMS Gateway x 1
(2) USB Cable x 1
(1) SK SMS Gateway x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 16
(5) Antennas x 16
Trade Terms | FOB, CFR, EXW |
Payment Terms | Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, Cash |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1 . How can I start sms business?
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Skype: live:demi_1045
Whatsapp: 008613686892147
Telegram: @skylinedemi
Q : 2. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :3. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 4.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:5.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Q : 2. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :3. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 4.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:5.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Q: 6 If i can not do the customs clearance , then what can i do ?
A: We do have the DVD Amplifier Case and it can pass 99% countries customs without customs issue. If you buy gateways to Pakistan and Bangladesh, we will handle the customs clearance and responsible for all risk.
A: We do have the DVD Amplifier Case and it can pass 99% countries customs without customs issue. If you buy gateways to Pakistan and Bangladesh, we will handle the customs clearance and responsible for all risk.
