Lichuan Motor Stepper 2 Axis Cnc Kit 3.0A DC24V 50V 2 Axis 2phase Nema 34 Stepper Motor Driver kit MC556 2A LC86HS66
- Category: >>>
- Supplier: Shenzhen Xinlichuan Electric Co. Ltd.
Share on (1600737769014):
Product Overview
Description
Packing List
NO. | Product Name | Model / Description | Quantity |

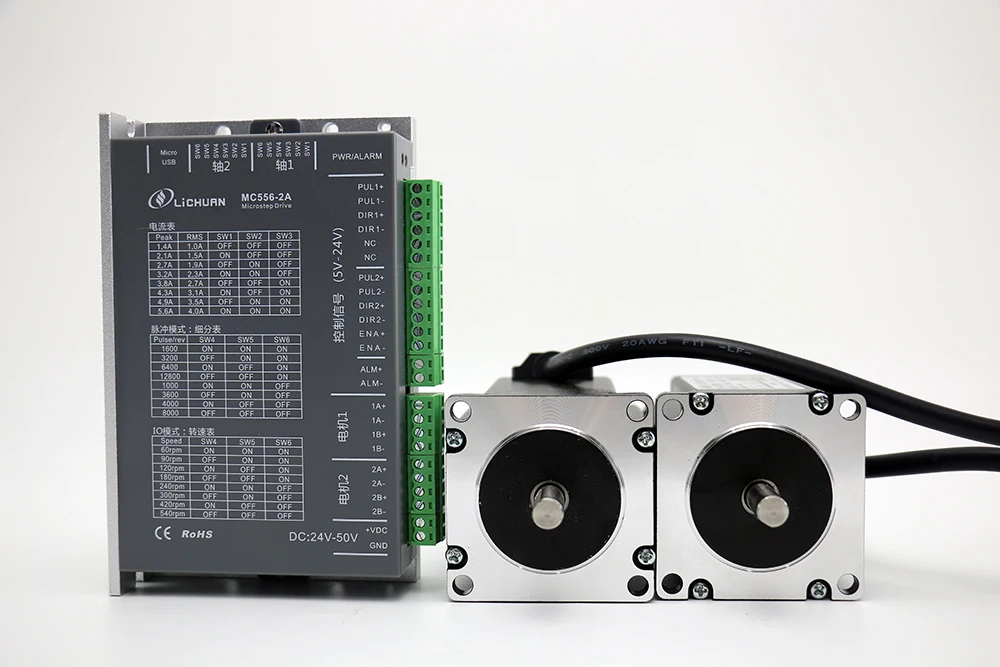

1 | 2 Axis Stepper Driver | MC556-2A | 1 |

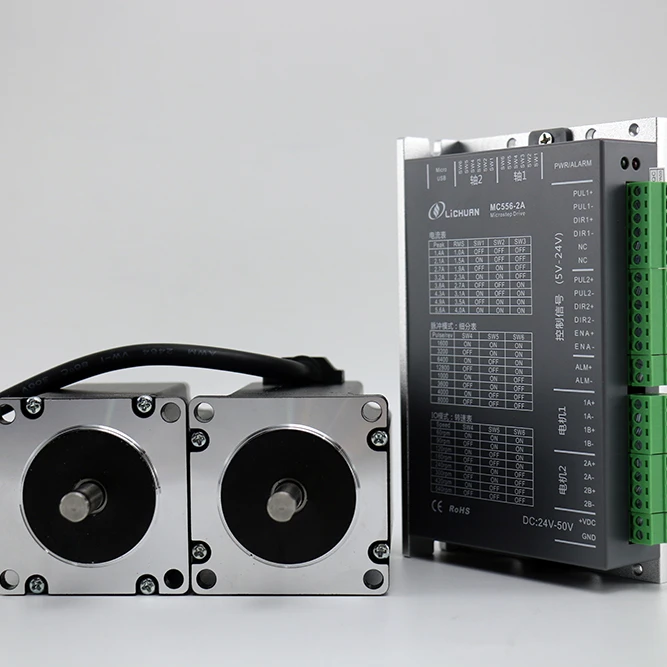

2 | 2 Axis 2phase Nema 34 Stepper Motor | LC86HS66 | 2 |
Products Description

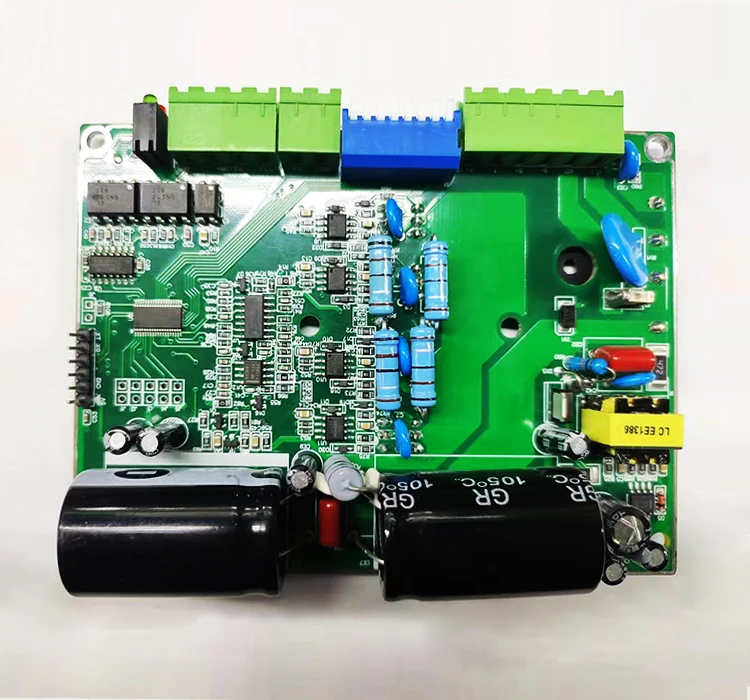

MC556-2A , developed based on the latest generation 32-bit DSP chips, is a digital step drive device controlled by one drive and two axes and used for 57-, 60- and 86-seat step motors; This drive integrates two control modes regarding external pulse and IO spontaneous pulse and can be used to independently or synchronously control the two-axis step motors for precise positioning or control motor running through external I0 velocity regulation. This drive integrates the stepping of the two axes, saving not only one pulse axis and the cost, but also improving the flexibility and convenience of on-site application.
Drive function | Instructions |
Micro step subdivision or RPM setting | SW4 ~ SW6 three dial switches to set the drive micro-step subdivision or speed settings, a total of 8, users set subdivision or speed, should first stop the drive operation, specific micro-step subdivision or speed settings, please follow the instructions on the drive panel. |
Output current setting | 8 output currents can be set for the Driver through 3 dial switches SW1~SW3. See driver panel instruction for output current settings. |
Automatic half-flow function | The user can set the automatic semi-flow function of the driver through the software. By setting the half-current proportion and half-current time, the driver can enter the half-current state at a certain time after the pulse train stops, thus reducing the heat of the motor itself and improving the reliability. |
Signal interface | Pulse mode: PUL + and PUL-for the control pulse signal positive and negative; DIR + and DIR-for direction signal positive and negative ENA + and ENA-for enable signal positive and negative. Spontaneous Pulse IO mode: PUL + and PUL-for the start signal positive and negative; DIR + and DIR-for the direction of the signal positive and negative: ENA + and ENA-for the enable signal positive and negative |
Power connector | DC power supply, working input voltage range: 24V ~ 50VDC, recommended working voltage 36VDC, power supply more than 150W |
Installation Notes | Dimensions of the Driver: 134 x 83 x 33mm, installation pitch of holes: 111mm. |
Match with motor
Item | LC86HS66 |
Step Angle(°) | 1.8 |
Motor Length(mm) | 66 |
Holding Torque(N.m) | 3.3 |
Rated Current(A) | 3.0 |
Motor Weight (Kg) | 2.0 |
Ambient Temperature | -20°C~ * 50°C |
Phase Resistance(Ω) | 0.6 |
Phase Inductance(mH) | 1.6 |
