Android Board Rockchip Rk3588 SOM Octa Core 8g ram 8K UHD 6TOPS AI Linux Main Board with 4G/5G GPS module Mipi Camera/Lvds/CAN
- Category: >>>
- Supplier: Shenzhen Ctfly Electronic Technology Co. Ltd.
Share on (1600737838064):
Product Overview
Description
Product Description

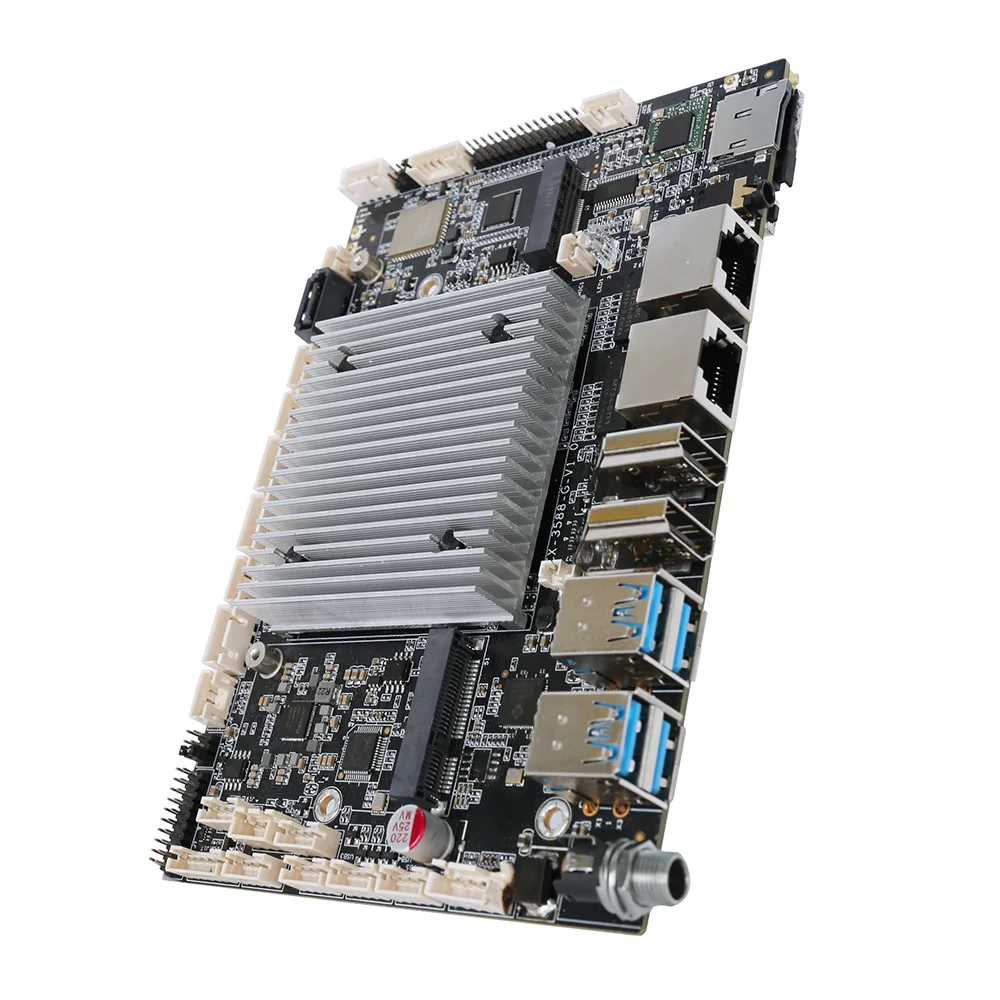

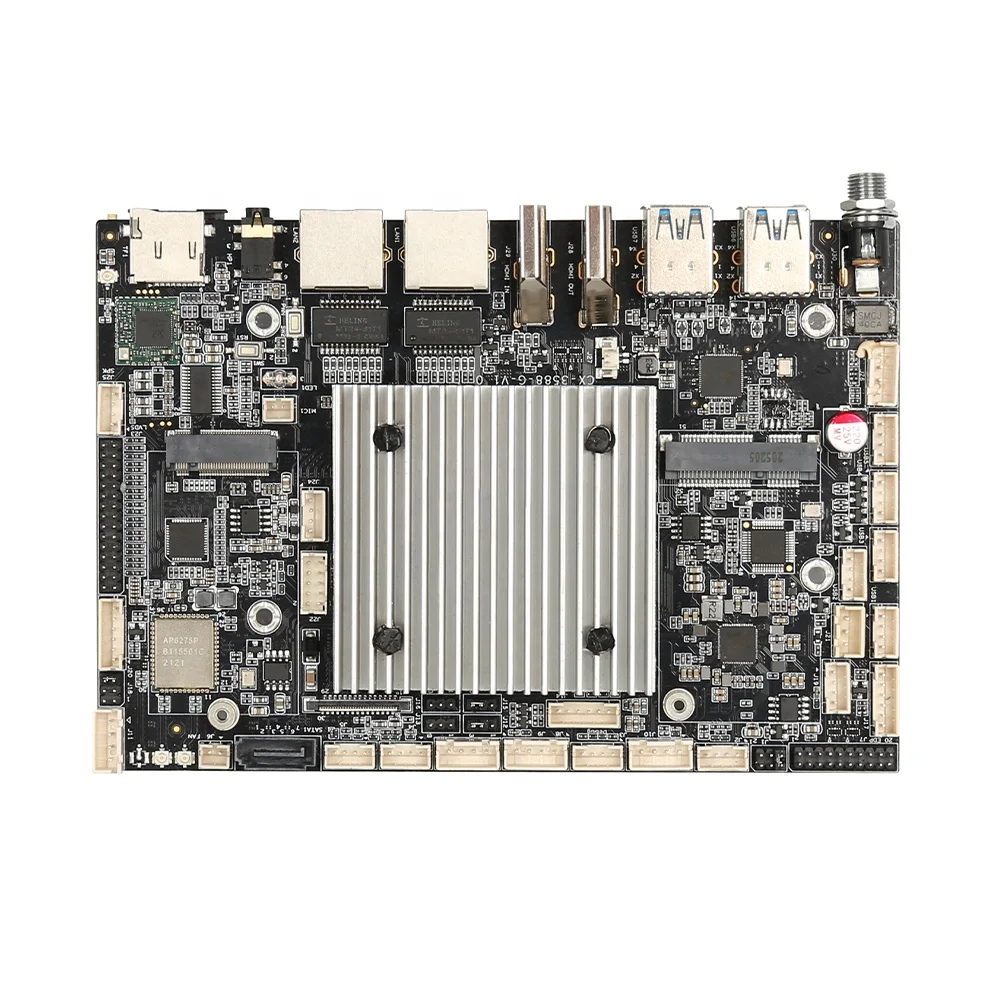

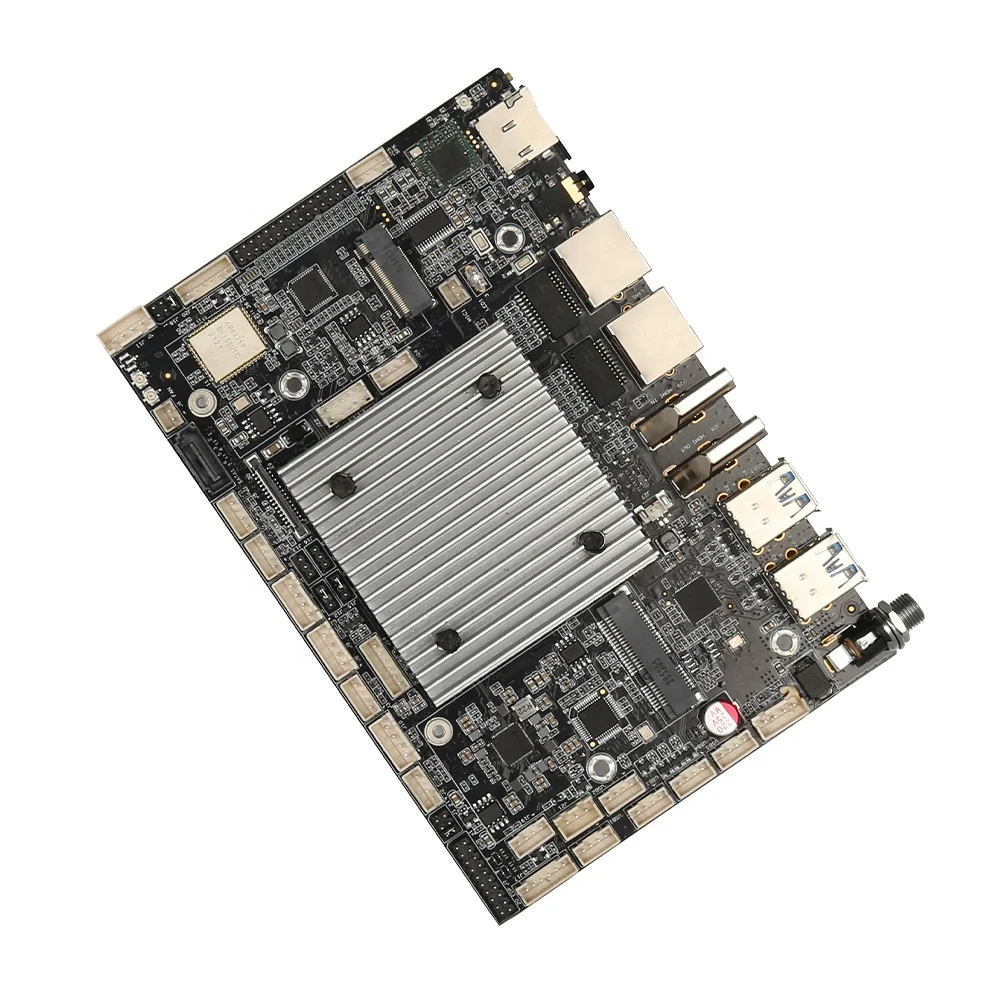

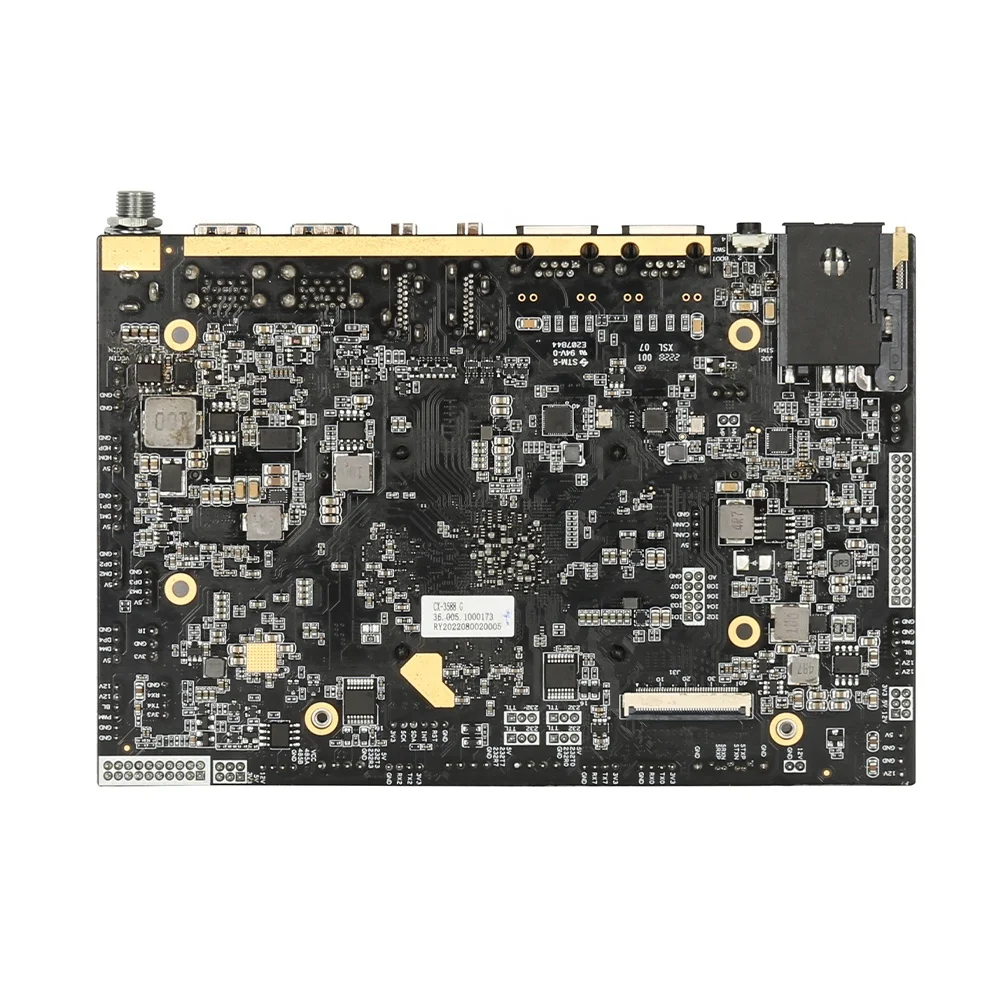

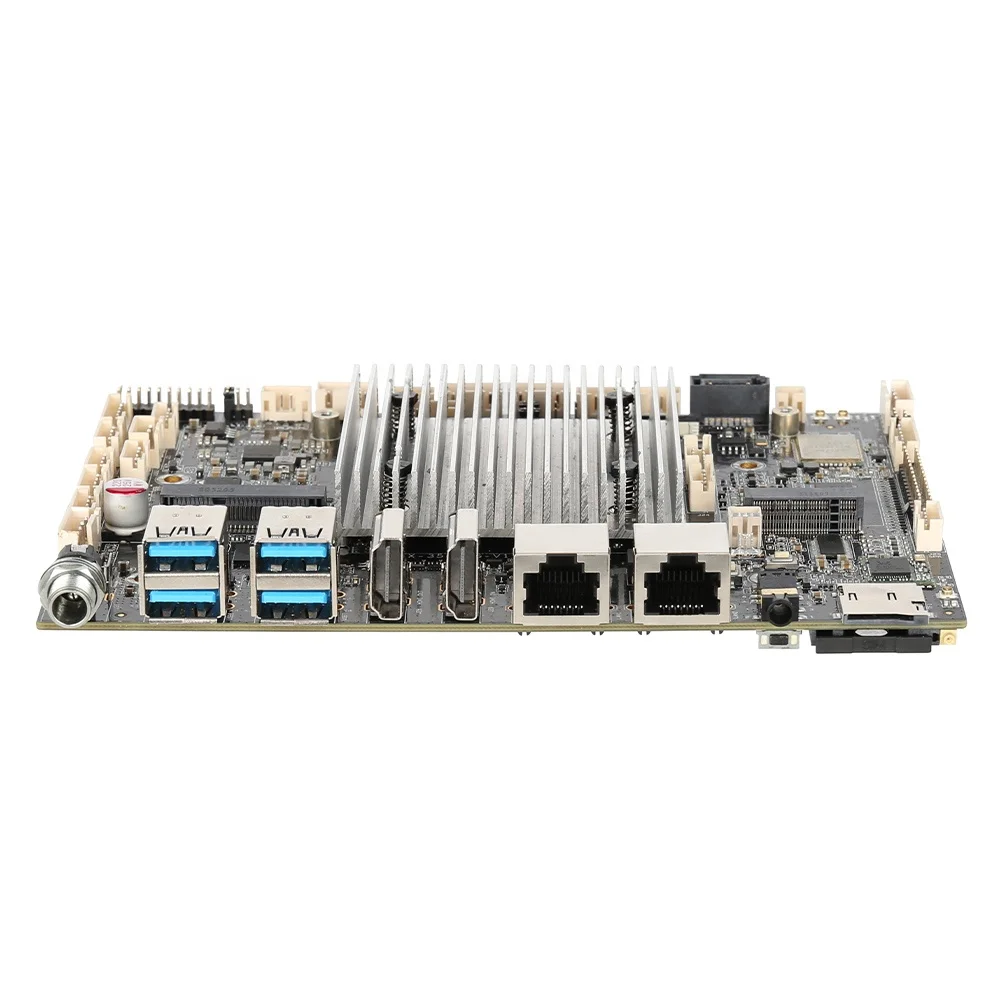

High Performance Rk3588 Octa Core Motherboard for AIOT
CX-3588-G belongs to the high-performance android series products, with 8nm advanced process; with 8-core 64-bit large and small core architecture, 4 A76 large-core main frequency can reach 2.4G, 4 A55 small-core main frequency can reach 1.8G ;With NPU, with 6TOPS AI computing power, using Mali-G610 MC4 GPU; 8K video codec, 8K display output.
Functional features:
1.Multiple display interfaces: LVDS, eDP, MIPI, HDMI multiple display output interfaces.

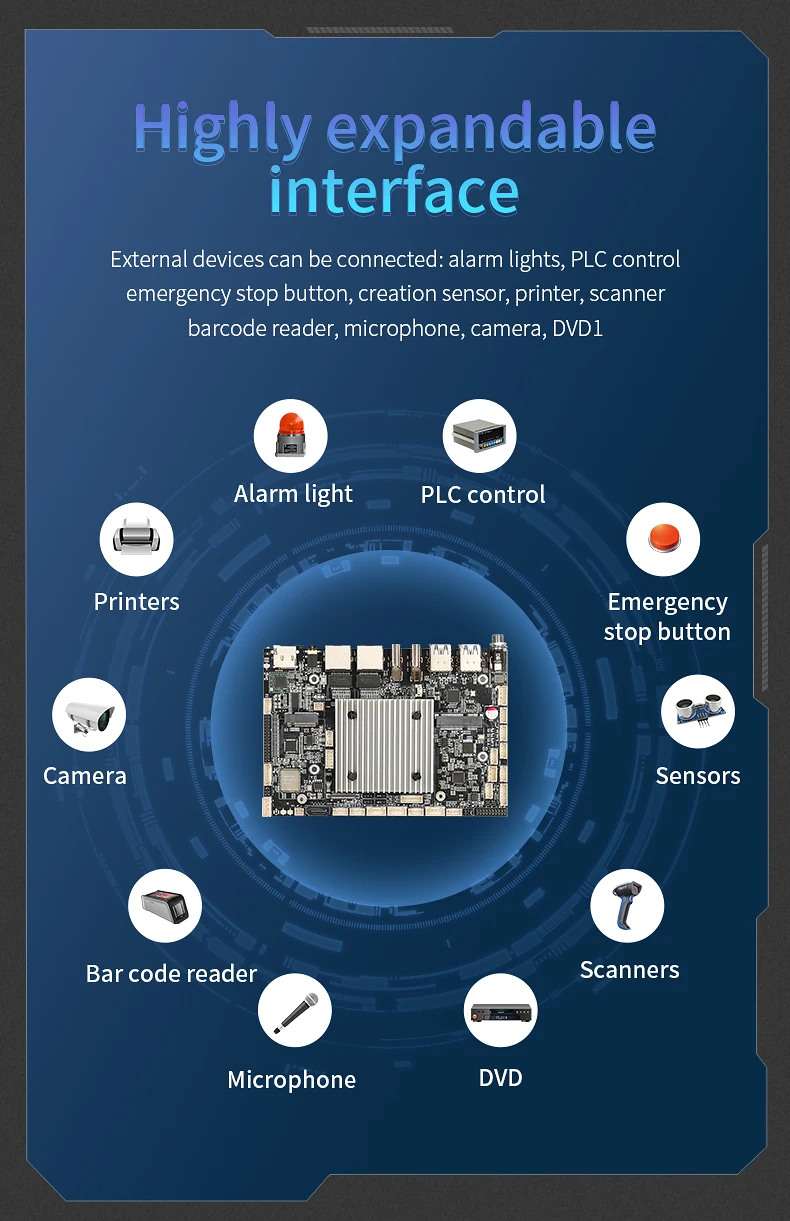

2.Rich expansion interfaces: 9 USB interfaces (3 USB3.0 HOST standard interfaces, 5 USB2.0 PH2.0 HOST interface sockets, 1 standard USB3.0 OTG interface), 1 TTL serial port, 1 RS232 , 1 channel of RS485, 2 channels of TTL/RS232 serial ports that can be switched by jumper caps, 6 channels of GPIO, one of which is multiplexed with button LED light output and GPIO 1 (can be adjusted by software, the default button LED light output), which can meet the needs of the market. Various peripheral requirements.
3.Multiple network interfaces: 2 1000M Ethernet interfaces, support 5G and 2.4G WIFI, built-in PCI-E 4G, M.2 5G module interface.
4.High definition: maximum support 8K/60HZ video output, support LCD display with LVDS/eDP/MIPI/HDMI and other interfaces, onboard HDMI IN input port can support 4K high-definition input.
5.Support Android system customization, provide system call interface API reference code, and perfectly support the development of customer's upper application APP.
6.Perfect support for various mainstream touch screens such as infrared, optical, capacitive, resistive, and touch film.
2.Rich expansion interfaces: 9 USB interfaces (3 USB3.0 HOST standard interfaces, 5 USB2.0 PH2.0 HOST interface sockets, 1 standard USB3.0 OTG interface), 1 TTL serial port, 1 RS232 , 1 channel of RS485, 2 channels of TTL/RS232 serial ports that can be switched by jumper caps, 6 channels of GPIO, one of which is multiplexed with button LED light output and GPIO 1 (can be adjusted by software, the default button LED light output), which can meet the needs of the market. Various peripheral requirements.
3.Multiple network interfaces: 2 1000M Ethernet interfaces, support 5G and 2.4G WIFI, built-in PCI-E 4G, M.2 5G module interface.
4.High definition: maximum support 8K/60HZ video output, support LCD display with LVDS/eDP/MIPI/HDMI and other interfaces, onboard HDMI IN input port can support 4K high-definition input.
5.Support Android system customization, provide system call interface API reference code, and perfectly support the development of customer's upper application APP.
6.Perfect support for various mainstream touch screens such as infrared, optical, capacitive, resistive, and touch film.
Applications
Applications
RK3588 motherboard has strong competitiveness in smart security and is widely used in homes, communities, transportation, fire protection, office parks, etc
In addition, RK3588 has a wide range of applications, specifically covering eight product application directions, including high-end tablets, ARM PCs, smart large screens, intelligent cockpits, edge computing, IPC, NVR, and virtual/augmented reality, covering thousands of AIoT industries.
In addition, RK3588 has a wide range of applications, specifically covering eight product application directions, including high-end tablets, ARM PCs, smart large screens, intelligent cockpits, edge computing, IPC, NVR, and virtual/augmented reality, covering thousands of AIoT industries.
Company Profile
FAQ
Q1: Are you the manufacturer of the products?
A1: Yes, certainly we are, We are manufacture that have OEM/ODM experience for over 13 years.We have confidence to offer you satisfying products with better quality and better price.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell a sample for you to test, and also have a large supply of regular stock. If you may need customization, there will be corresponding moq requirements.
Q4: What is the lead time of your products?
A4: With neutral testing sample units, prepare time is 3 days(24 hours run-in testing before delivery). 10-15 working days for a large quantity. If need customization, leading time will be different accordingly.
Q5: What payment method do you accept?
A5:T/T,Western Union,PayPal, alibaba trade assurance
Q6: Do you offer any discount?
A: Discount can be offered by order quantity and parameters accordingly. About these Motherboard Android and WinDows are from original manufacturer factory.
Q7:What is application of our industrial motherboard?
A7:Our motherboard products are widely used in smart cities, IoT smart devices, retail self-service terminal equipment, education terminal equipment, security monitoring equipment, smart home, face recognition, gate channels, industrial control terminals and other fields , It is deeply integrated with mainstream APK applications, MES system, smart campus information system, POS cash register system, face recognition algorithm and other industry application software
Q8: I haven't done business with you before, how can I trust your company?
A8: It is the question that bothers most, after all it is overseas transaction, all traditional buyers wish a most reliable real supplier. Now Online transaction is our best choice, by Alibaba online insurance order, your money and transaction are gurranteed by Alibaba.com. At the same time, if possible, you are very welcome to visit our factory, we will be happy to help you and make every effort to become your long-term business partner as a reliable supplier of Android and WinDows motherboards.
Q9:what can you buy from us?
A9: ARM board, industrial x86 board, industrial panel pc, open frame industrial tablet pc, industrial monitors, industrial mini pc and MES terminals etc.
Q10: How long is the warranty time for your products?
A10: Our officially promised warranty time is 3 years after delivery at best.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell a sample for you to test, and also have a large supply of regular stock. If you may need customization, there will be corresponding moq requirements.
Q4: What is the lead time of your products?
A4: With neutral testing sample units, prepare time is 3 days(24 hours run-in testing before delivery). 10-15 working days for a large quantity. If need customization, leading time will be different accordingly.
Q5: What payment method do you accept?
A5:T/T,Western Union,PayPal, alibaba trade assurance
Q6: Do you offer any discount?
A: Discount can be offered by order quantity and parameters accordingly. About these Motherboard Android and WinDows are from original manufacturer factory.
Q7:What is application of our industrial motherboard?
A7:Our motherboard products are widely used in smart cities, IoT smart devices, retail self-service terminal equipment, education terminal equipment, security monitoring equipment, smart home, face recognition, gate channels, industrial control terminals and other fields , It is deeply integrated with mainstream APK applications, MES system, smart campus information system, POS cash register system, face recognition algorithm and other industry application software
Q8: I haven't done business with you before, how can I trust your company?
A8: It is the question that bothers most, after all it is overseas transaction, all traditional buyers wish a most reliable real supplier. Now Online transaction is our best choice, by Alibaba online insurance order, your money and transaction are gurranteed by Alibaba.com. At the same time, if possible, you are very welcome to visit our factory, we will be happy to help you and make every effort to become your long-term business partner as a reliable supplier of Android and WinDows motherboards.
Q9:what can you buy from us?
A9: ARM board, industrial x86 board, industrial panel pc, open frame industrial tablet pc, industrial monitors, industrial mini pc and MES terminals etc.
Q10: How long is the warranty time for your products?
A10: Our officially promised warranty time is 3 years after delivery at best.
