MF02 Face Recognition Module Face Identification 3D Facial Recognition 100 Capacity Binocular IR Camera 1.0 Second Unlock
- Category: Other Access Control Products >>>
- Supplier: Guangzhou Gouku Technology Co. Ltd.
Share on (1600737848878):
Product Overview
Description
Product Description
Overview
MF02 face recognition module solution is based on a high-performance application processor as the hardware platform, with binocular sensors for live detection, with fast startup speed, financial grade recognition ability, ultra-low power consumption and other characteristics. With ultra-low power consumption and powerful computing speed, it enables various industries in a variety of application fields.
Product form

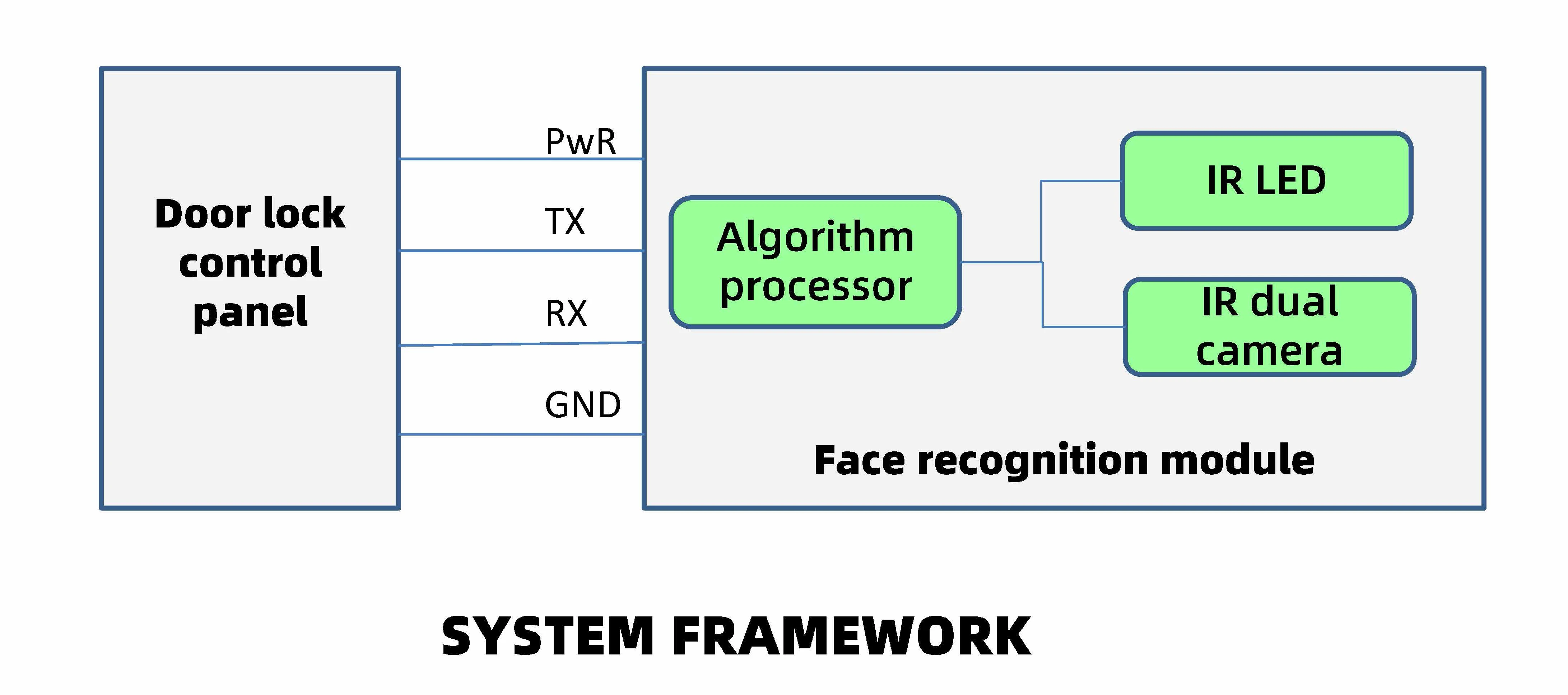

MF02 face recognition module is composed of a professional-grade video application processor and binocular 3D infrared camera module.The power supply and communication interface are connected by the universal 4-PIN socket, providing the most convenient and easy to use integration way for customers.
MF02 face recognition module solution is based on a high-performance application processor as the hardware platform, with binocular sensors for live detection, with fast startup speed, financial grade recognition ability, ultra-low power consumption and other characteristics. With ultra-low power consumption and powerful computing speed, it enables various industries in a variety of application fields.
Product form
MF02 face recognition module is composed of a professional-grade video application processor and binocular 3D infrared camera module.The power supply and communication interface are connected by the universal 4-PIN socket, providing the most convenient and easy to use integration way for customers.
Security
This face recognition module built-in self-developed embedded system 3D depth restoration algorithm, 3D face recognition algorithm and multi-mode live guard algorithm, can effectively protect the user information and unlock security, under the premise of 99% pass rate, can achieve less than one million error rate.At the same time, the multi-mode live anti-counterfeiting algorithm can effectively shield the attack of photos, videos and various head models and dummies.
Ease of use
This face recognition module built-in self-developed embedded system 3D depth restoration algorithm, 3D face recognition algorithm and multi-mode live guard algorithm, can effectively protect the user information and unlock security, under the premise of 99% pass rate, can achieve less than one million error rate.At the same time, the multi-mode live anti-counterfeiting algorithm can effectively shield the attack of photos, videos and various head models and dummies.
Ease of use
The smart door locks built by the module will unlock the door without contact, eliminating the need to press your fingerprint or enter a password.
The single unlock time from the cold startup to the recognition input can be less than 1.0 seconds at the fastest, providing a smooth door opening experience.
The wide lens used in the camera module enables the door lock to be adjustable for a wide range of heights (refer to the installation instructions in this manual), covering both children and tall people.
Reliability
The single unlock time from the cold startup to the recognition input can be less than 1.0 seconds at the fastest, providing a smooth door opening experience.
The wide lens used in the camera module enables the door lock to be adjustable for a wide range of heights (refer to the installation instructions in this manual), covering both children and tall people.
Reliability
Mature and stable chip hardware solutions;
Strict product quality inspection;
A wide range of temperature adaptation (-20℃ ~ 60℃);
Ultra-low power consumption
The peak power consumption of the module is less than 2.0W.
Super-fast speed
The maximum unlock speed is 1.0s when the module is started from the shutdown state.
The interface is simple and easy to integrate
The hardware adopts industry-common PCB size and screw hole design, providing standard serial port for customers to quickly complete integration. The motherboard and camera adopt the integrated design to meet the installation requirements of different structure of the whole product. The power input ranges from 5.0V to 14.0V.
Application scenario
Intelligent door lock, intelligent access control system, attendance machine, etc
Face payment system: 3D face payment
Intelligent device unlock and human-computer interaction application
Low power battery face recognition system
Strict product quality inspection;
A wide range of temperature adaptation (-20℃ ~ 60℃);
Ultra-low power consumption
The peak power consumption of the module is less than 2.0W.
Super-fast speed
The maximum unlock speed is 1.0s when the module is started from the shutdown state.
The interface is simple and easy to integrate
The hardware adopts industry-common PCB size and screw hole design, providing standard serial port for customers to quickly complete integration. The motherboard and camera adopt the integrated design to meet the installation requirements of different structure of the whole product. The power input ranges from 5.0V to 14.0V.
Application scenario
Intelligent door lock, intelligent access control system, attendance machine, etc
Face payment system: 3D face payment
Intelligent device unlock and human-computer interaction application
Low power battery face recognition system
Characteristic
High performance algorithm chip
Binocular 3D camera module
Wide Angle low distortion lens
Infrared imaging
Financial payment level identification algorithm
Vivo detection, against all kinds of attacks
UART communication interface
Supports 5.0V to 14.0V power supply
Standard size
High performance algorithm chip
Binocular 3D camera module
Wide Angle low distortion lens
Infrared imaging
Financial payment level identification algorithm
Vivo detection, against all kinds of attacks
UART communication interface
Supports 5.0V to 14.0V power supply
Standard size
Algorithm specifications
FAR (False Acceptance Rate) <1/1,000,000
FRR (False Rejection Rate) <2%
Response speed: identification time 1.0s
Live identification; effectively shield photos, videos, head models, masks, dummy and other attack means
FAR (False Acceptance Rate) <1/1,000,000
FRR (False Rejection Rate) <2%
Response speed: identification time 1.0s
Live identification; effectively shield photos, videos, head models, masks, dummy and other attack means

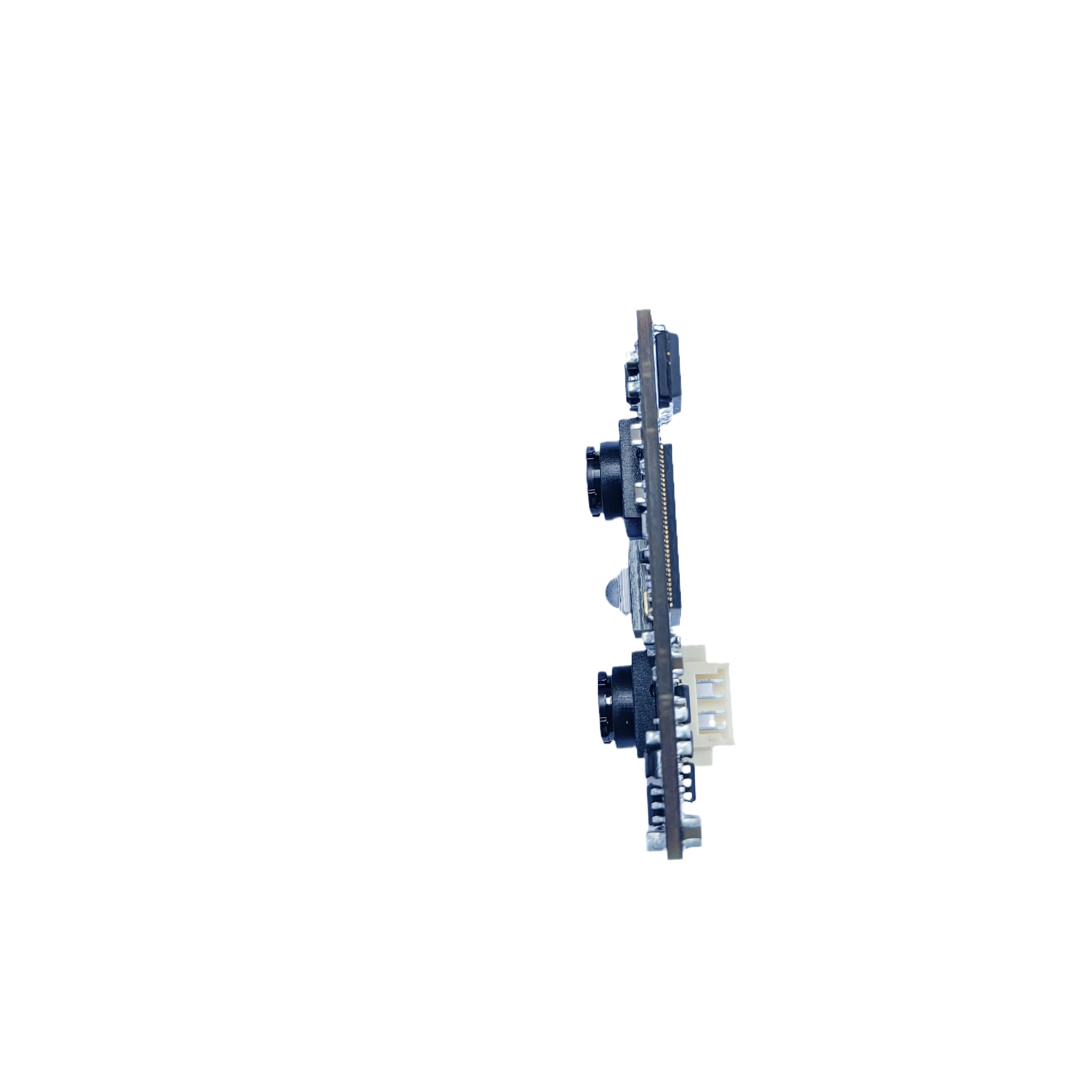

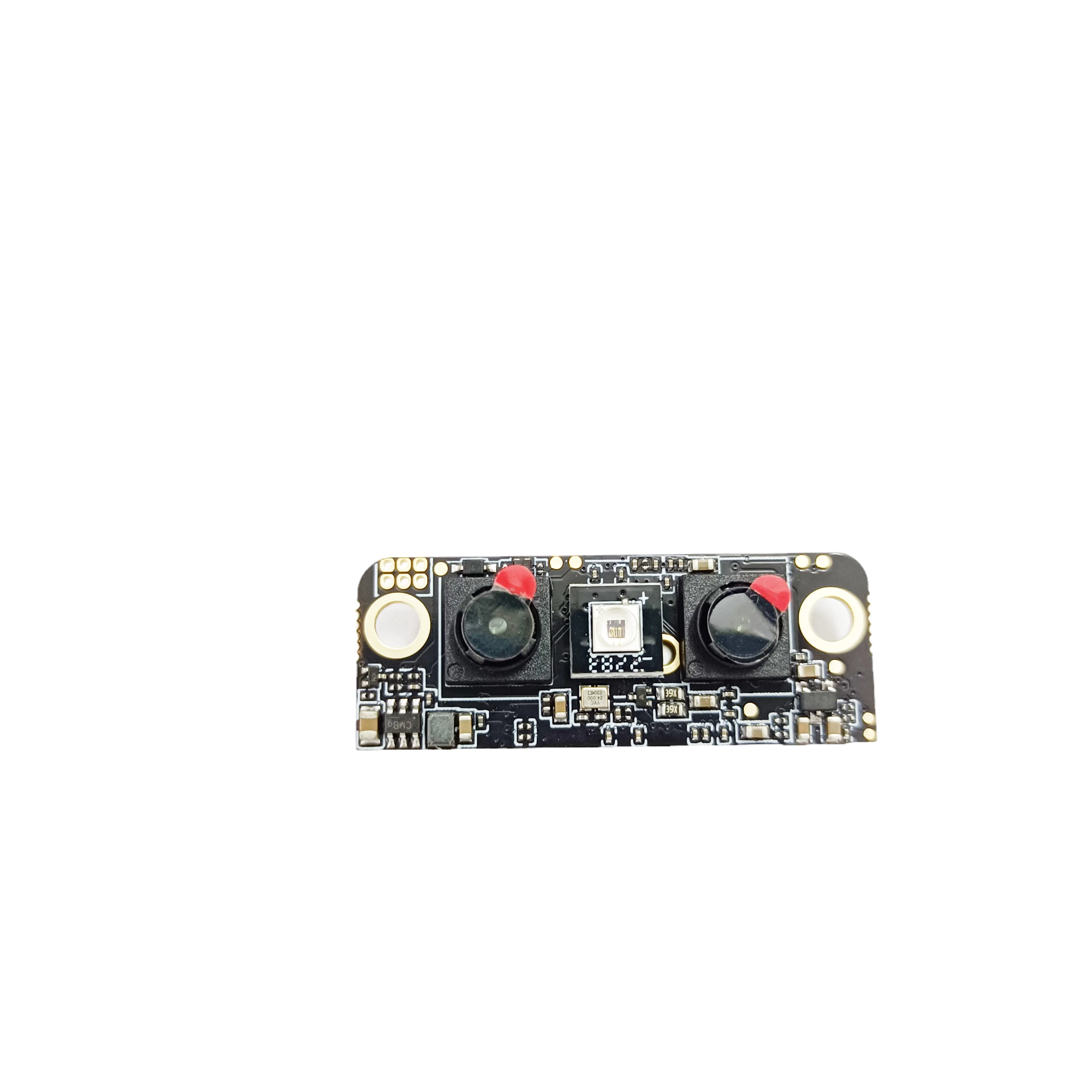

Products Show
Product Paramenters
Type | Description | Specification |
Algorithm core board | CPU | High performance processor |
Interface | UART, industry standard line sequence | |
Motherboard size | 40mm * 15mm * 4.1mm | |

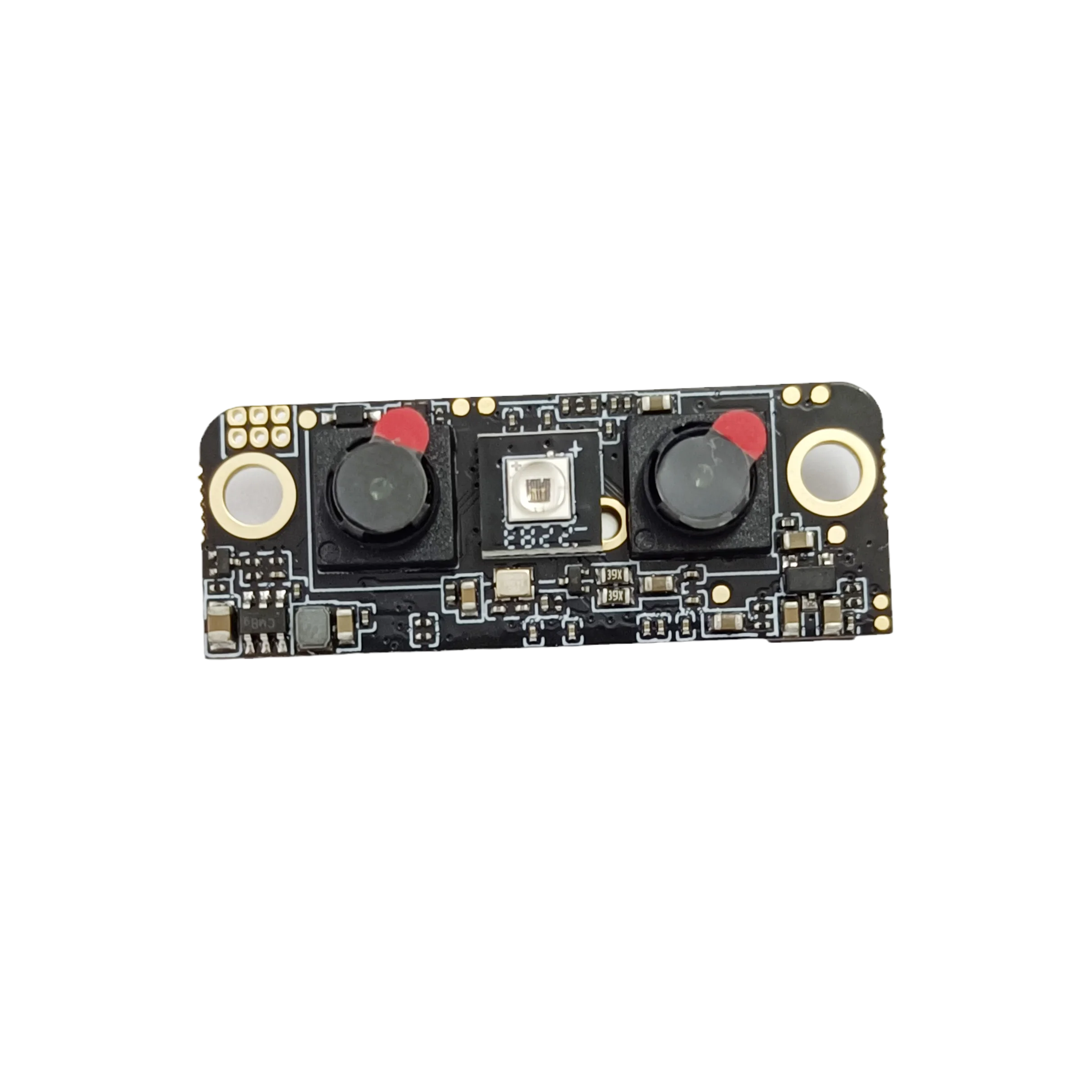

Camera module | Specification | Binocular IR camera |
Field angle | D80.0° H53.3° V67.5° | |
Recognition performance | Recognition time | 1.0s unlock |
Face number | 100 | |
FAR | < 0.0001% (one part in a million) | |
FRR | < 2% | |
Identification distance | 0.4 ~ 1.0 m | |
Identify height | 1.05m~ 2.00m (dip Angle of @20°) | |
Operating conditions | Power input | DC 5.0 ~ 14.0V, typical voltage: 7.4V (voltage of two lithium batteries) |
Power consumption | Less than 2.0W | |
Operating temperature | -20℃ ~ 60℃ | |
Environment humidity | 10% to 90% no condensation | |
Storage condition | Temperature 23±5℃, relative humidity RH 35 ~ 70% | |
Storage life | Under recommended storage conditions, you are advised to use it within 6 months |

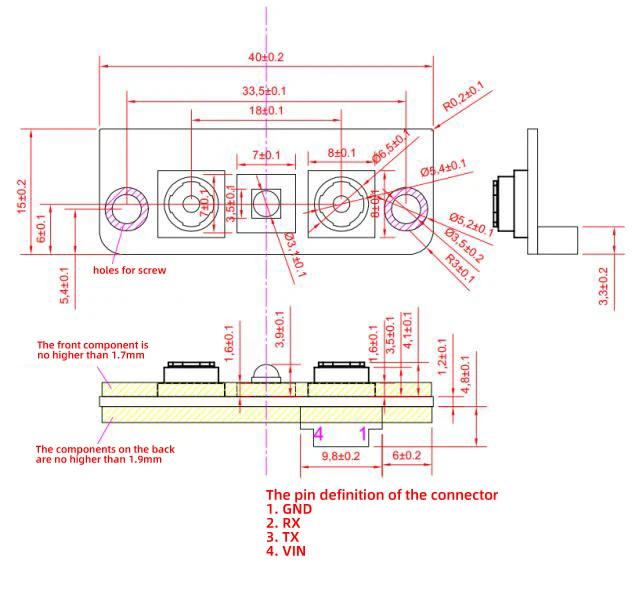

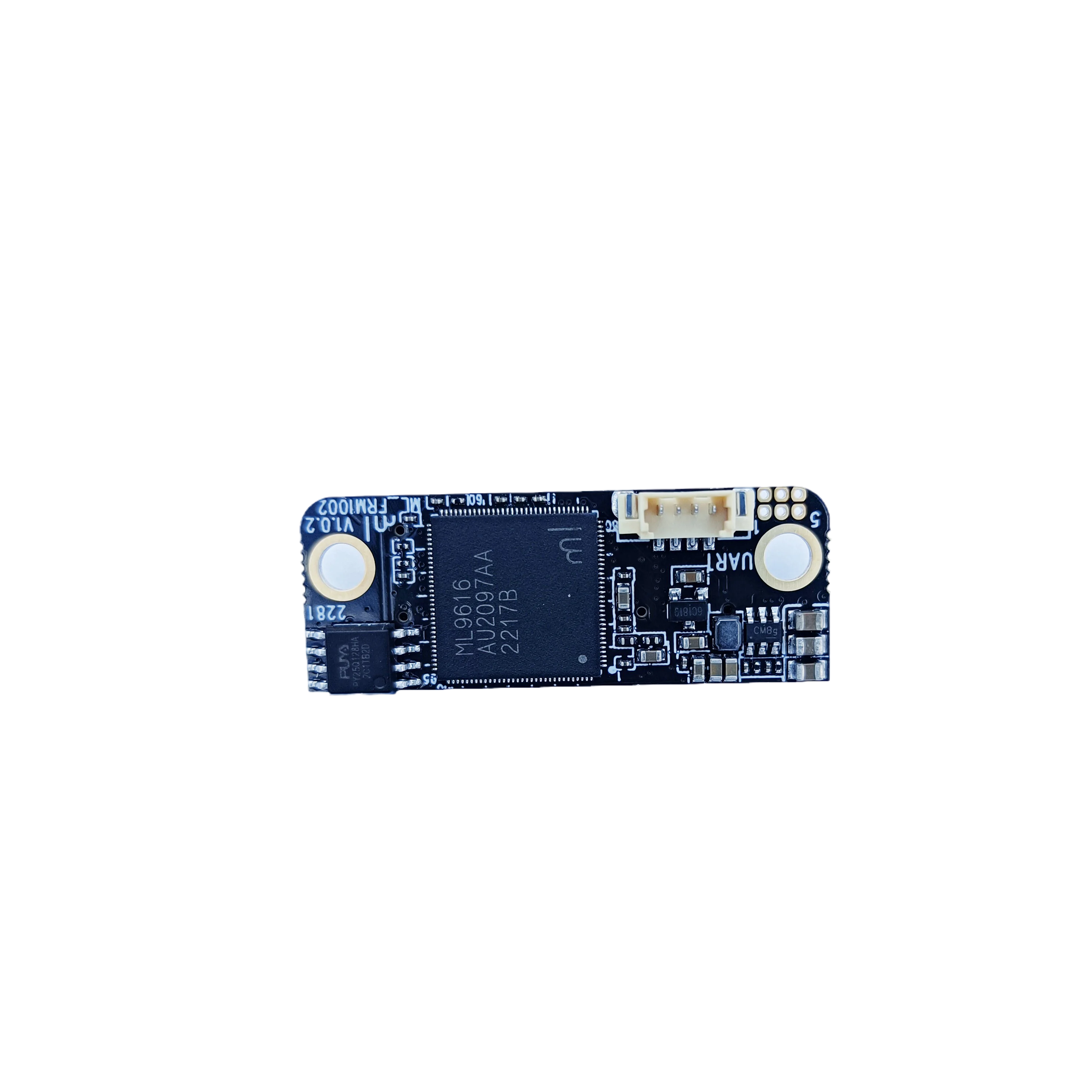

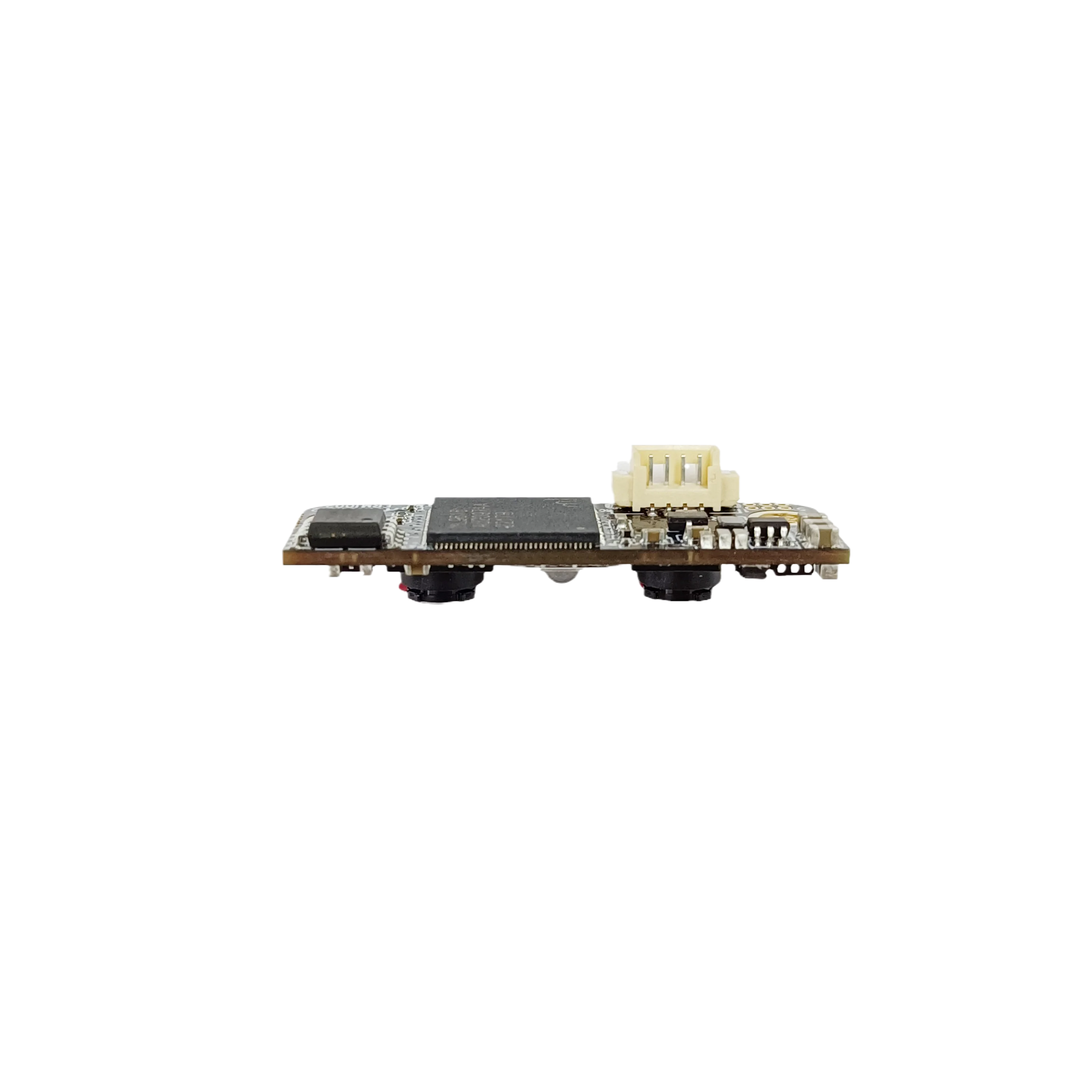

Algorithm core board
The PCB board size is 40mm * 15mm * 4.1mm (height 4.1mm is the height between the lens surface and the PCB surface).The structure diagram is shown in the following figure (unit: mm).The power supply and communication ports are connected by 1.25-4Pin (1.25mm pin spacing) sockets. Pin definitions are shown in the following table.
The PCB board size is 40mm * 15mm * 4.1mm (height 4.1mm is the height between the lens surface and the PCB surface).The structure diagram is shown in the following figure (unit: mm).The power supply and communication ports are connected by 1.25-4Pin (1.25mm pin spacing) sockets. Pin definitions are shown in the following table.
Company Profile
Guangzhou Gouku(sounds like GO COOL) Technology Co., Ltd. is located in Guangzhou, one of the four major cities in China.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of human biometric identification, our company is a leading human biometric recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules, face recognition module and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules and face recognition modules, whose recognition speed and efficiency are in the world's leading level.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of human biometric identification, our company is a leading human biometric recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules, face recognition module and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules and face recognition modules, whose recognition speed and efficiency are in the world's leading level.
Why choose us?
1. Strong scientific research ability
We are one of the best human biometric development companies all over the world.
We have tens of engineers who are experienced with the research of the biological recognition.
We have the ability for your technology support.
2. Focus, professional
We focus on developing and producing the fingerprint module and face recognition modules , so we are so professional on the human biometric identification.
3. Insist on high quality and good service
Our modules have three characteristics: 1) Good recognition effect; 2) Fast reaction speed; 3) Stable quality.
1. Strong scientific research ability
We are one of the best human biometric development companies all over the world.
We have tens of engineers who are experienced with the research of the biological recognition.
We have the ability for your technology support.
2. Focus, professional
We focus on developing and producing the fingerprint module and face recognition modules , so we are so professional on the human biometric identification.
3. Insist on high quality and good service
Our modules have three characteristics: 1) Good recognition effect; 2) Fast reaction speed; 3) Stable quality.

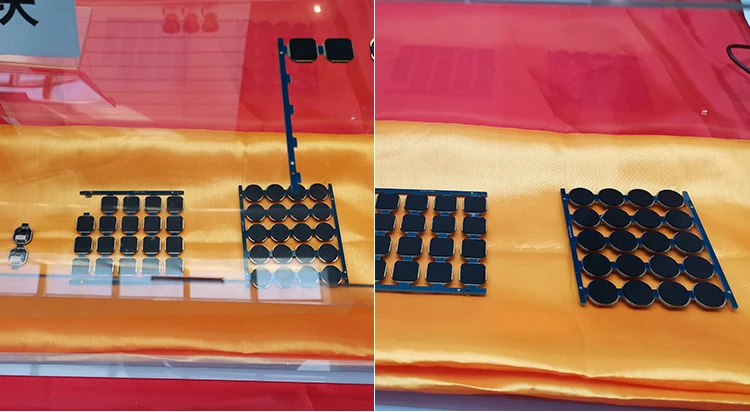

Exhibition
Certifications
Good Development Ability
Our fingerprint module is independently developed by us, and the algorithm is written by ourselves, which is in the world's leading level.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
FAQ
1. Are you a factory or a trader?
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification and face identification technology.
We are one of the best fingerprint and face identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the human biometric algorithms, which makes our human biometric modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification and face identification technology.
We are one of the best fingerprint and face identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the human biometric algorithms, which makes our human biometric modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
