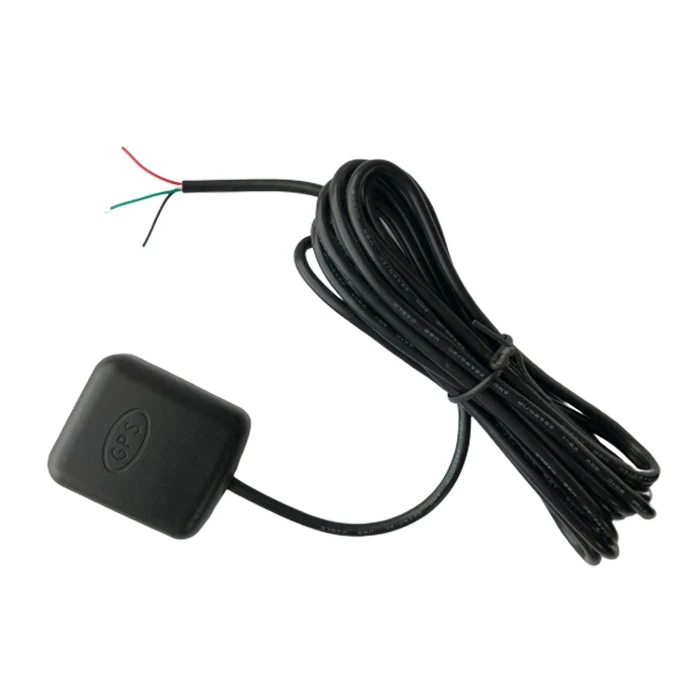

DIY 4 pin GPS Receiver UBX 9140 KT Solution 25HZ TTL Level NMEA0183 G mouse antenna
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600738004142):
Product Overview
Description
Product Description
This product baud rate、update rate、output level、connector form can be customized according to customer requirements,if you need to change the configuration,please contact sales before order!Thank you!
Applications:
■ Handheld GNSS receiver
■ LBS (Location Based Service)
■ PND (Portable Navigation Device)
■ Vehicle navigation system
■ PND (Portable Navigation Device)
■ Vehicle navigation system
■ Car navigation and tracking
■ Timing application
■ Build on high performance, low-power chip U-blox UBX-M9140-KT
■ Ultra high sensitivity: -167dBm
■ Extremely fast TTFF at low signal level
■ Built in high gain LNA
■ Extremely fast TTFF at low signal level
■ Built in high gain LNA
■ Low power consumption:Max25mA 3.3V
■ Support NMEA-0183 compliant protocol or custom protocol
■ Operating voltage: 3.0V--5.0V
■ Operating temperature range:-40to85℃
■ Patch Antenna Size: 25x25x4mm
■ Small form factor: 45x38x13.5mm
■ Support NMEA-0183 compliant protocol or custom protocol
■ Operating voltage: 3.0V--5.0V
■ Operating temperature range:-40to85℃
■ Patch Antenna Size: 25x25x4mm
■ Small form factor: 45x38x13.5mm
■ Update rate:Default 25HZ
■ Baud rate:Default 115200bps
■ Communication type:UART TTL protocol (Can be set to RS232)
■ Wire interface type: 4 Cable(VCC,GND,TX,RX), L=150cm
■ RoHS compliant (Lead-free)
■ Communication type:UART TTL protocol (Can be set to RS232)
■ Wire interface type: 4 Cable(VCC,GND,TX,RX), L=150cm
■ RoHS compliant (Lead-free)
Spec | Instructions | ||
Spec of Chip | Chip | UBLOX-M9140 | |
Receiving mode | GPS,GLONASS,BeiDou,GaliLeo,QZSS and SBAS | ||
Frequency | GPS/QZSS L1 C/A,GLONASS L10F,BeiDou B1 | ||
Channels | 94-Channels | ||
Sensitivity | Tracking | -167dBm | |
Reacquisition | -160dBm | ||
Cold start | -148dBm | ||
Hot start | -157dBm | ||
Accuracy | Horizontal accuracy | 2.0m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 1μs | ||
Cold start | 26s | ||
Warm start | 2s | ||
Hot start | 1s | ||
Baud rate | Default 115200 | ||
Output level | UART TTL protocol | ||
Output protocol | NMEA-0183 protocol | ||
Single GNSS | Up to 25Hz | ||
Standard GNSS | Default 25Hz | ||
Work Limit | Altitude | 50000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Voltage | 5.0V | ||
Current | Normal 70mA 5.0V | ||
Physical Parameters | Size | 48mm*35mm*13.5 | |
Weight | 60g | ||
Wire length | 1.5m(Custom) | ||
Connector | 4 Cable(VCC,GND,TX,RX) | ||
Antenna | Antenna | Built in antenna | |
Output Protocol | Default Protocol | GNRMC,GNVTG,GNGGA,GNGSA,GPGSV,GLGSV,GNGLL | |
Operating temperature | -40℃ to +85℃ | ||
Storage temperature | -40℃ to +125℃ | ||

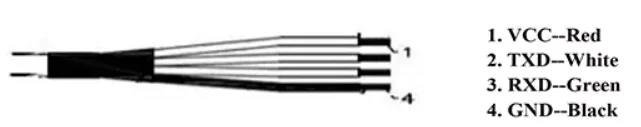

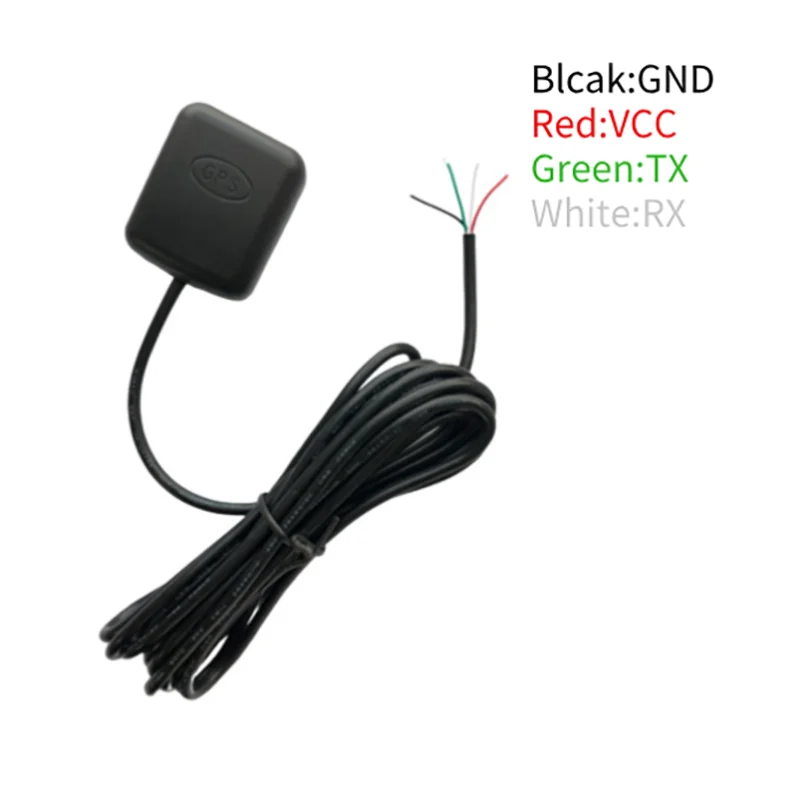

Pin Configuration:

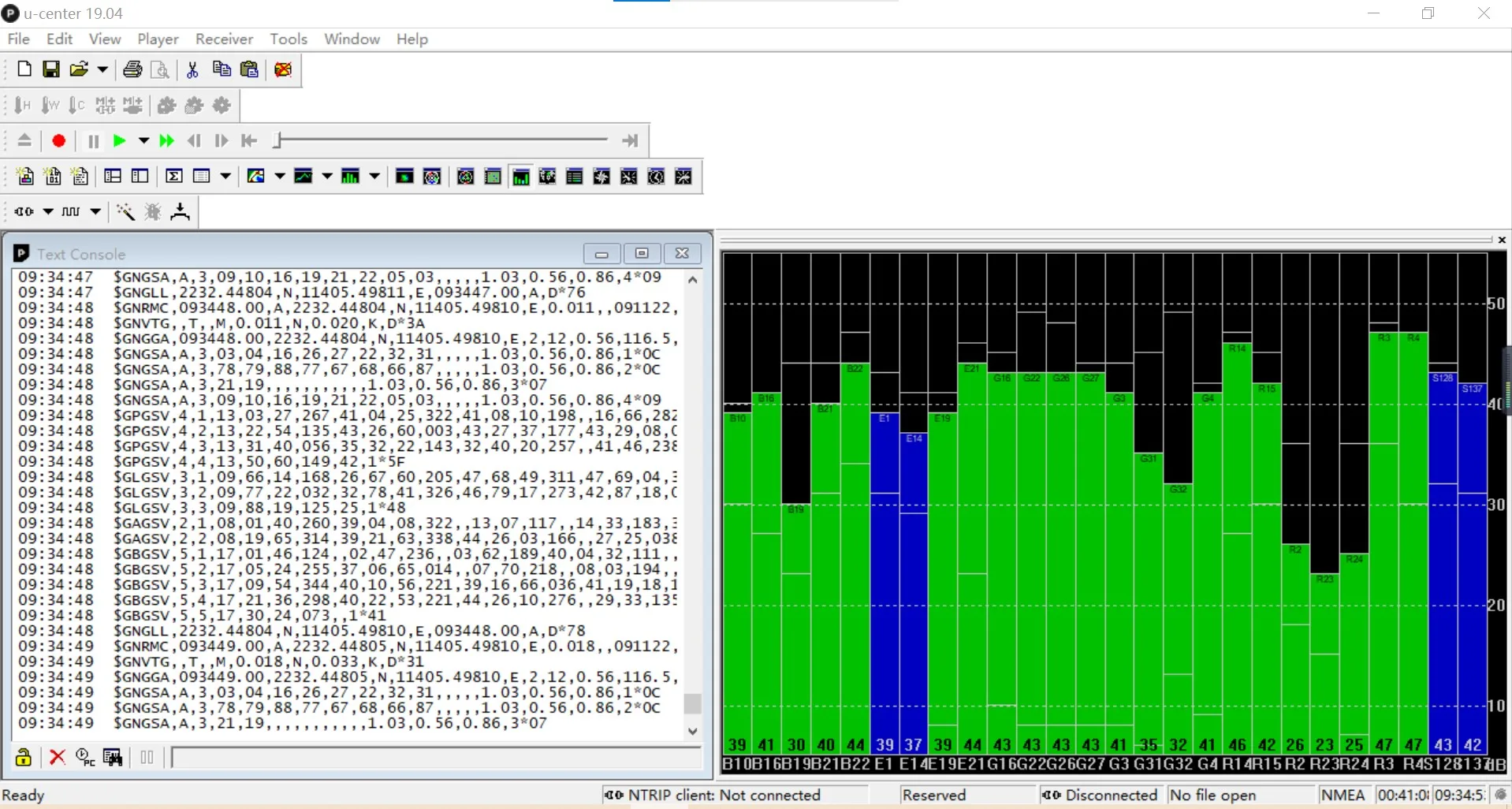

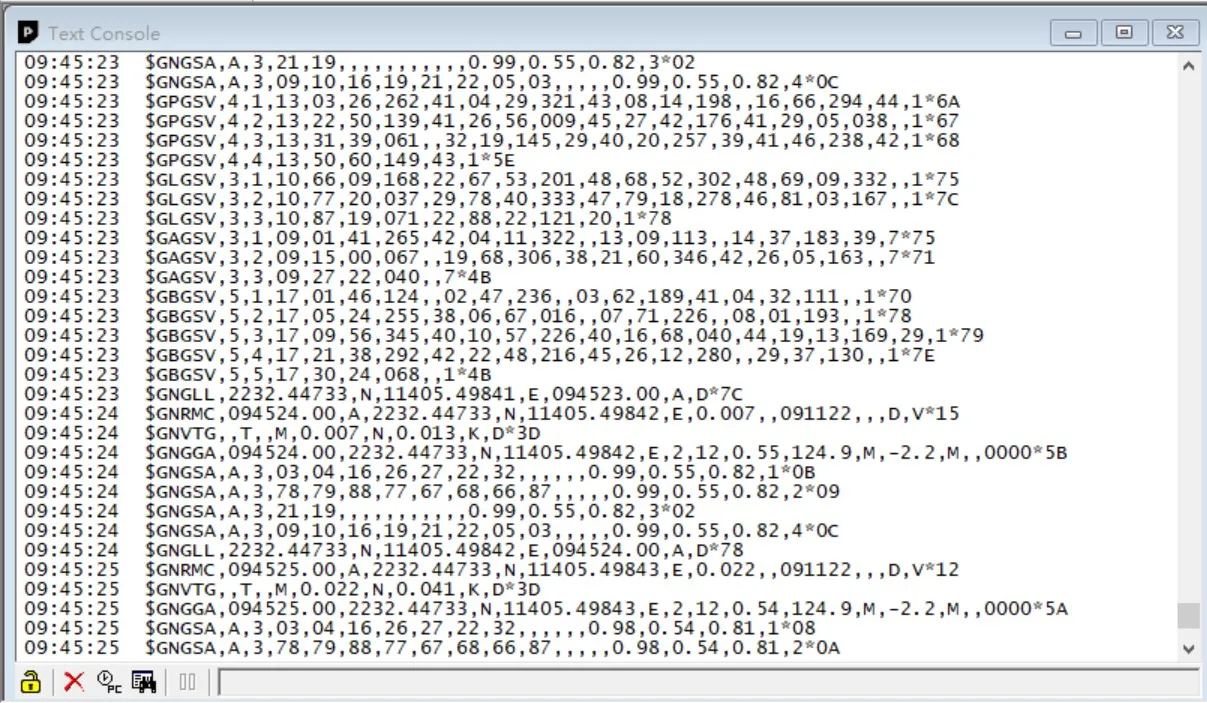

NMEA data output:
