Датчик уровня топлива WNK для дизельных и бензиновых баков Гидростатический Датчик уровня воды

Share on:

Price:38,00 $ - 45,00 $
Price in USD:Details


Product Overview


Product Description

4-20mA, 0-5V, 1-5V, customization
Measured Range
Max overload
150% of sensor range
Applicable Media
Liquid, Water
≤ ±0.2%FS,
Long Term Stability
±0.25% FS/year
Housing Material
Stainless steel

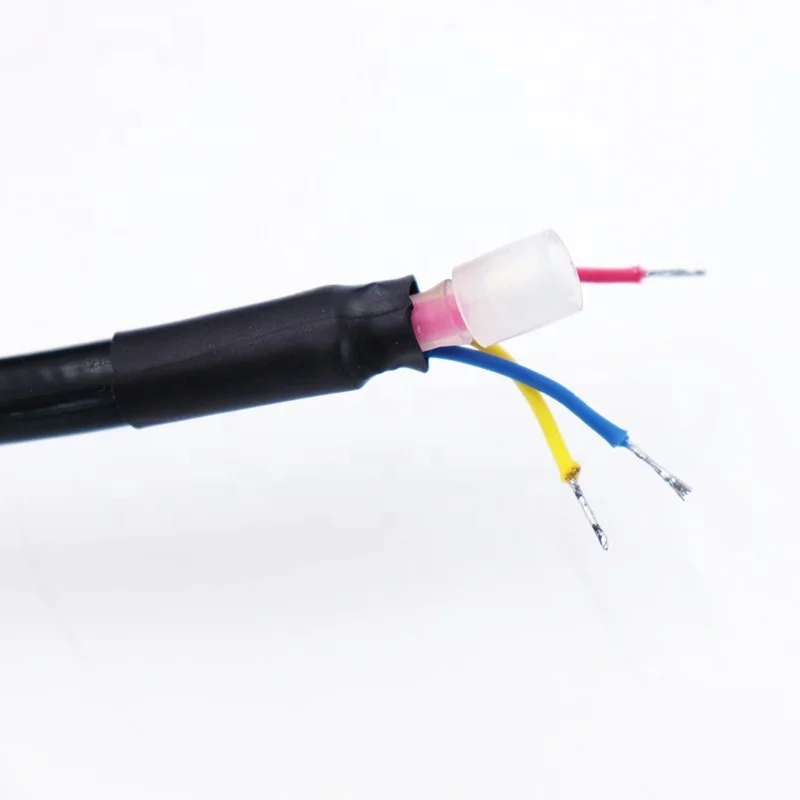

Cable Material
Polyvinyl Fluoride, PTFE
Power supply
24V DC
Operating Temperature
Compensation Temperature
Protection Class

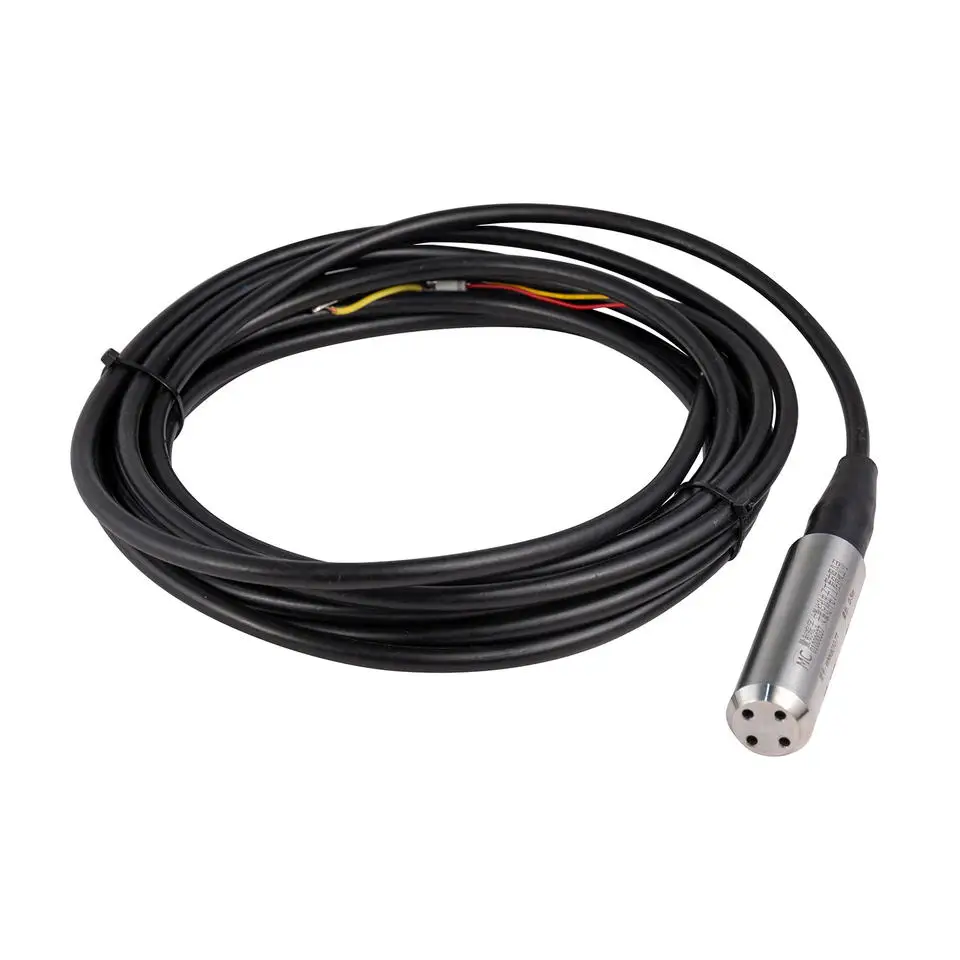

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

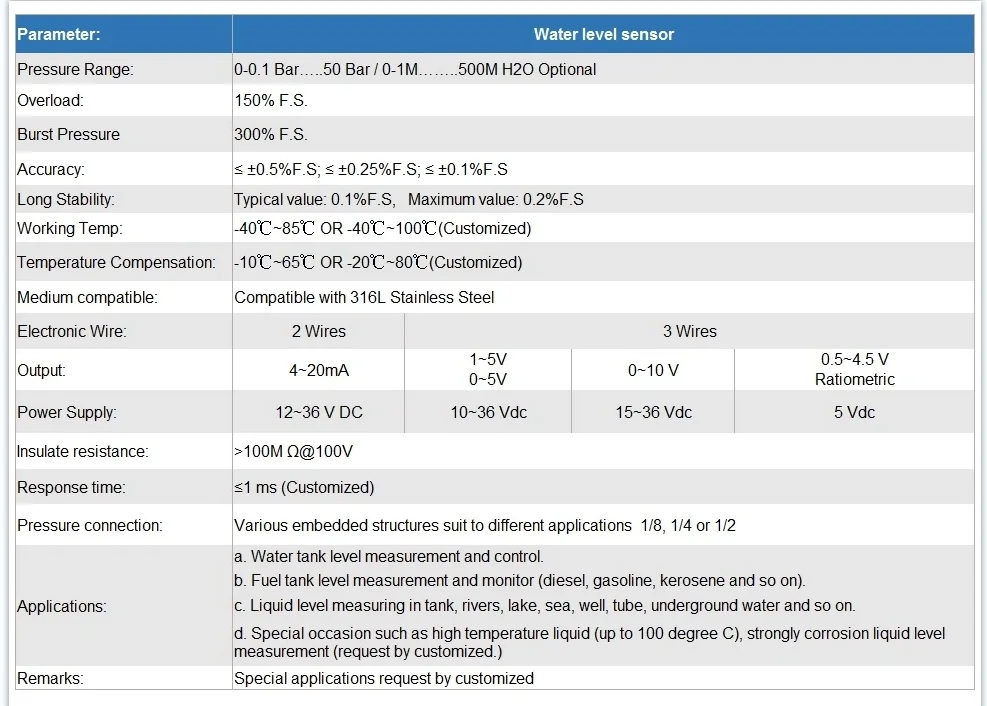

Technical Parameters

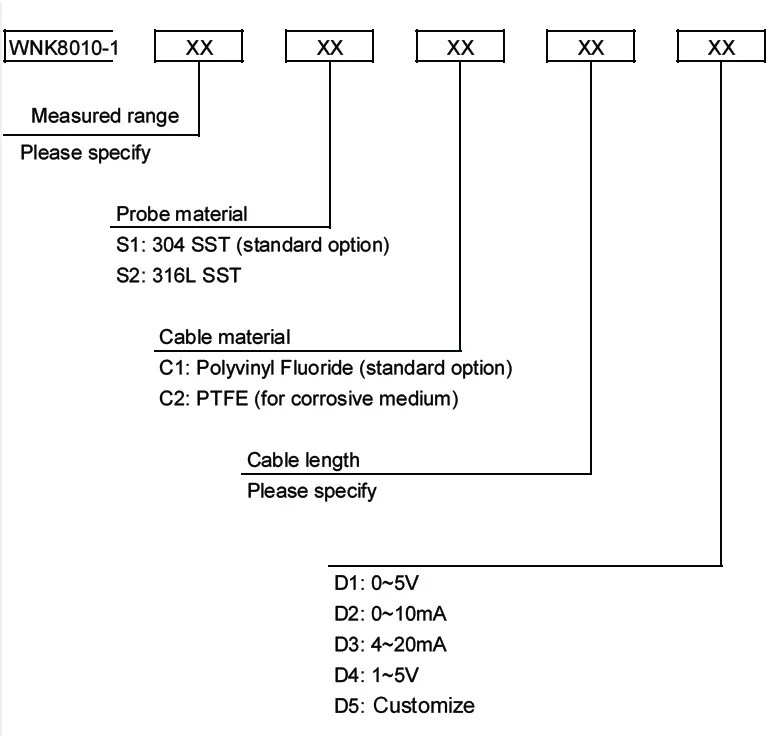

Ordering Code

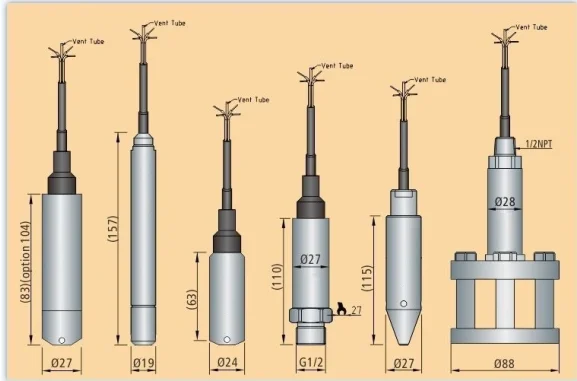

Dimensions - IP68 Sumbersible Liquid Level Sensor

Product Show

Company Profile

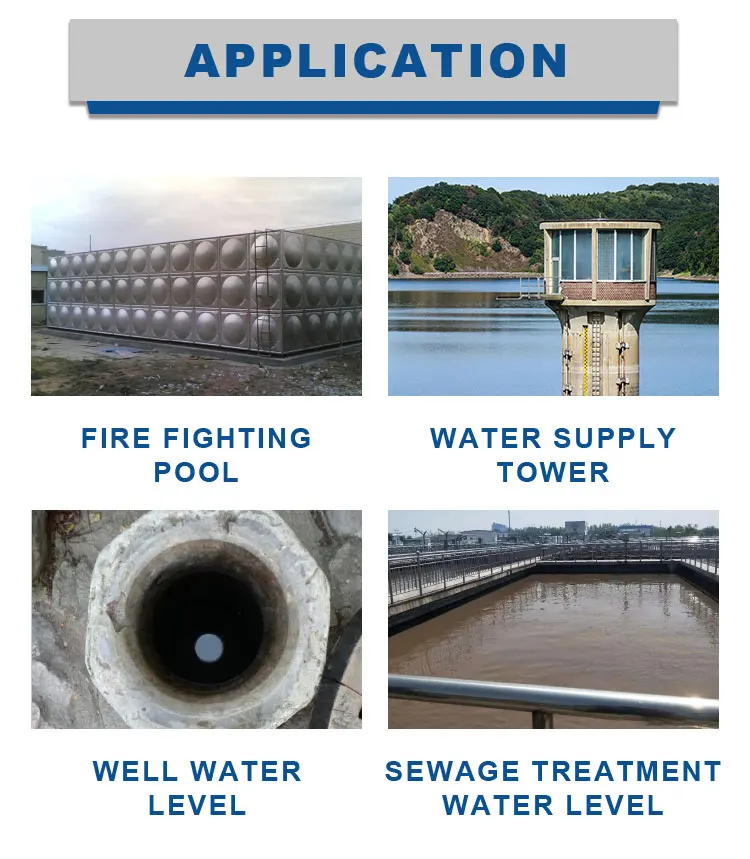

Application Cases



Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we
also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For
more goods we can arrange by air or by Sea.
