Green 2023 On line Automatic UV Sensible Conformal Coating Machine with Automatic Conveyor Machine for PCBA/PCB/LED Coating
- Category: >>>
- Supplier: Green Industrial (china) Co. Ltd.
Share on (1600738213765):
Product Overview
Description
Product Description
Specification

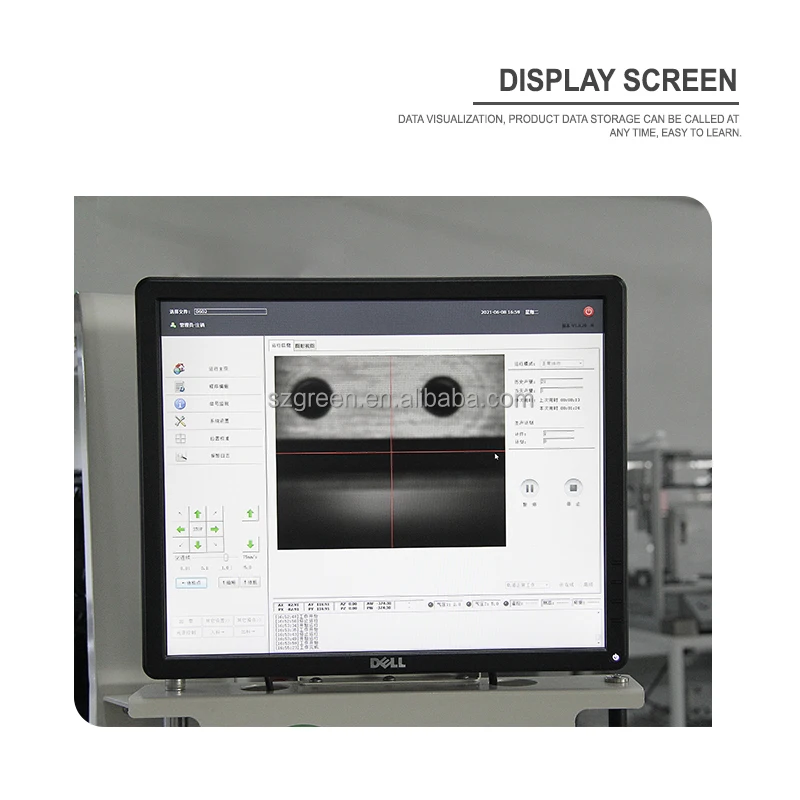

1. High-definition display screen | data visualization, product data storage can be called at any time, easy to learn. |

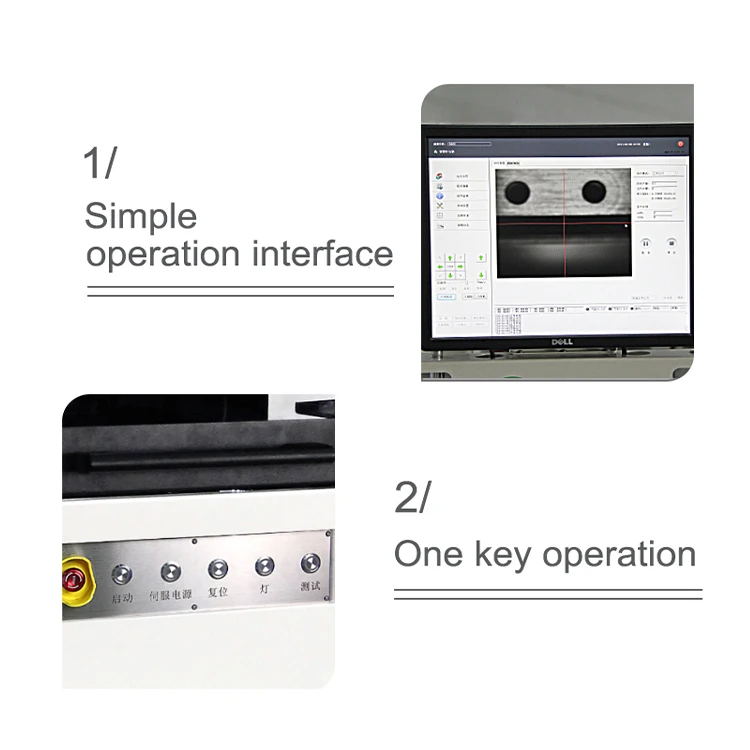

2. Operation panel | one-key operation button, simple operation, easy to learn and easy to use. |
3. Guide rail belt | high-quality imported material, high precision, low noise, high efficiency, aluminum material is anti-corrosion, not easy to deform. |

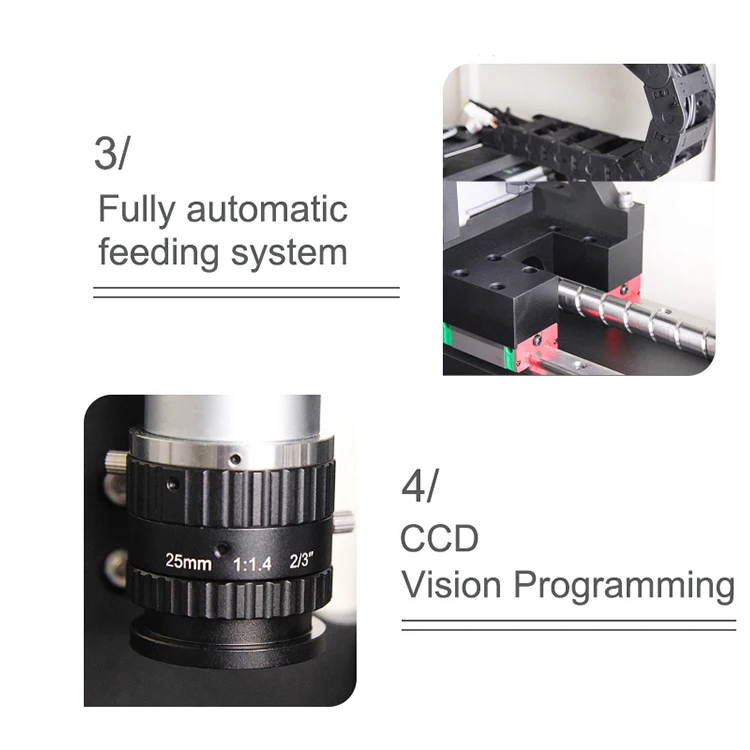

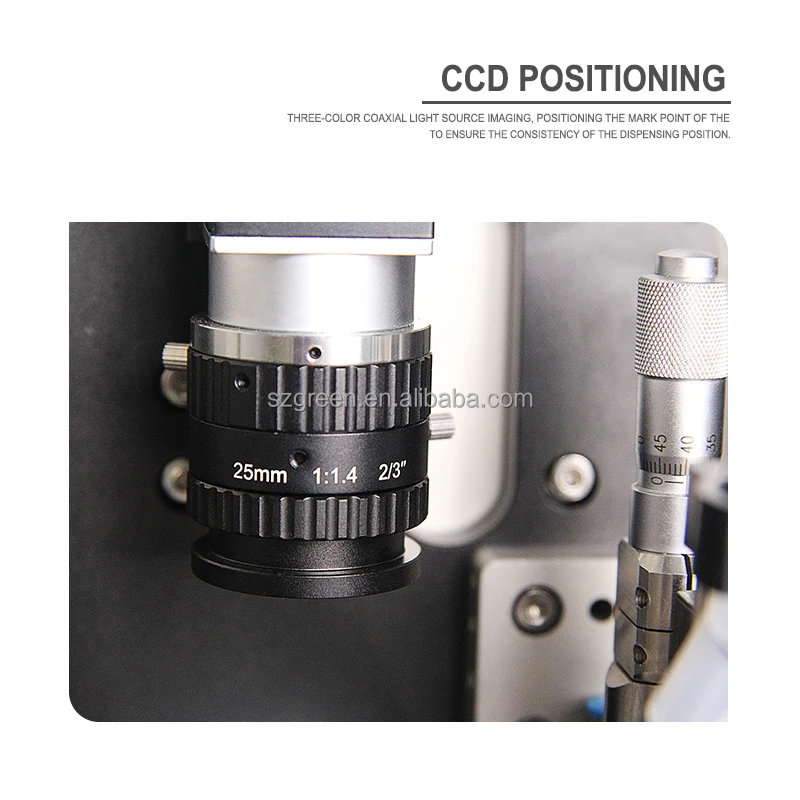

4. CCD positioning | three-color coaxial light source imaging, positioning the MARK point of the scanning path, to ensure the consistency of the dispensing position. |
Item: | Specifications: |
Model: | DP1010 |
X axis | 350mm |
Y axis | 450mm |
Z axis | 50mm |
XY repeatability | 0.01mm |
XY positioning accuracy | 0.015mm |
Z axis load | 0.015mm |
XY max. speed | 1000mm/s |
Z max. speed | 500mm/s |
Max. acceleration | 1.0g |
Orbital transmission height | 90025mm |
Orbital widening range | 50~300mm |
Orbital maximum load | 4KG |
Maximum dispensing range | 300*300mm |
Movement direction | left~right(right-left) |
Power supply | AC220V 10A 50~60Hz |
Input air pressure | 0.5~0.7MPa |
Max.power | 2.5KW |
Outer dimension(L*W*H) | 1020*815*1490(mm) |
Weight | Around 500KG |
Product Features:
1. Cost-effective, non-contact jet valve under high performance conditions, enabling smaller dispensing diameter and wider application field jet valve.
2. The minimum overflow width is only 0.2mm (related to configuration and glue)
3. CCD identification system, identify MARK points, more accurate alignment, identity recognition, automatic program adjustment, foolproof, data statistics and other functions to achieve intelligent manufacturing.
4. Support three-axis space linear interpolation, arc interpolation, ellipse interpolation, irregular curve, continuous interpolation input program and other functions can be three-dimensional dispensing.
5. Dispensing force automatic compensation function.
6. Precise selection, precise control of electronic equipment, improve production efficiency and improve product quality.
2. The minimum overflow width is only 0.2mm (related to configuration and glue)
3. CCD identification system, identify MARK points, more accurate alignment, identity recognition, automatic program adjustment, foolproof, data statistics and other functions to achieve intelligent manufacturing.
4. Support three-axis space linear interpolation, arc interpolation, ellipse interpolation, irregular curve, continuous interpolation input program and other functions can be three-dimensional dispensing.
5. Dispensing force automatic compensation function.
6. Precise selection, precise control of electronic equipment, improve production efficiency and improve product quality.
Applicable glues
Applicable glues include red glue, UV glue, black glue, hot melt glue, silver paste, and
solder paste.
solder paste.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Green Intelligent Equipment (ShenZhen) Co.,Ltd. (formerly: Shenzhen Green Electronics Co.,Ltd.) was established in 2006. It is a high-tech enterprise focusing on production, research and development, sales and service of industrial robots and intelligent equipment.At the same time,to provide customers with a complete set of services from key consumables,core components,robots to system solutions.It is a integrated solution provider in intelligent manufacturing industry.
Relying on years of technology and industry accumulation,GREEN extensively serve customers in different industries, like 3C electronics, LED, household appliances, toys, automotive electronics, communication electronics, medical electronics, security electronics, solar photovoltaic, aerospace, smart home, new energy lithium batteries and so on.
The world has entered the industrial age of 4.0.. Green will continue to innovate as an entrepreneur, continuously develop and update more specialized technologies and products to serve customers.
Company partner
Certifications
After-sales Service
1.Product quality and after-sales service is the basis for enterprise, from the beginning of establishment, we have established the "honesty, quality first, users first" , in order to complete this commitment, we have established a hard-working and excellent technical team in green. Our company can provide training guidance and equipment maintenance when you are interested in the product.
2. Our company strictly comply with ISO9001-2000 international quality management system standard.
3. We supply various industrial robot accessories. in order not to affect the normal work of the robot, you can buy accessories through the phone in advance, our company will arrange delivery the same day! It is recommended that users buy original Green accessories to achieve the best effect of use.
4. All users will enjoy one-year warranty and lifelong maintenance after-sales service with
"product quality warranty card" !
"product quality warranty card" !

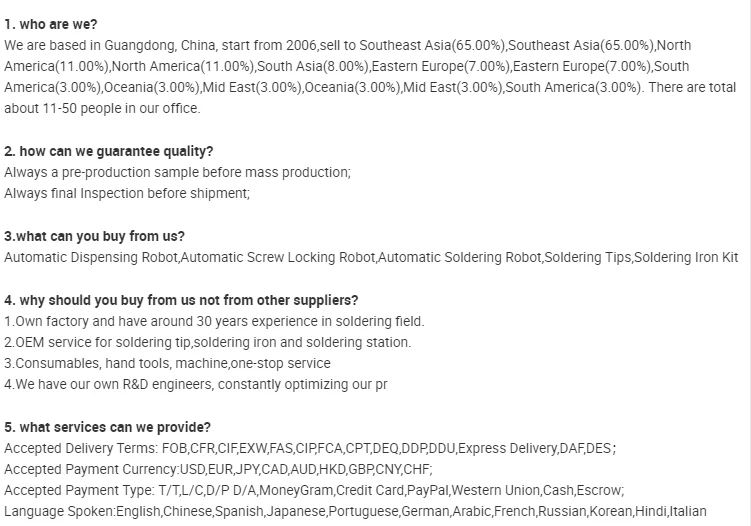

FAQ
