HSRQ 700G High speed 1 line polythene plastic shopping bag making machine

Product Overview

Description

HSRQ-700G High speed 1 line polythene plastic shopping bag making machine

1.Feature:

1)This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.

2)It adopts PLC computer control, servo motor fixed length, photo-sensor tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.

3) It is of high speed degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.

4)adopt automatic punching function, increase vest bag making speed and save labor.

2. Main Technical Specification

Model	HSRQ-700G
Bag making width	150-600mm
Bag making length	320-950mm
Single layer film thickness	9micro-100micro
Max.Bag making speed	30-150pcs/min (depend on bag length and thickness)
Air pressure request	7.5HP
Voltage	220V,Single phase 50HZ
Main motor	1.5KW
Total power	9KW
Gross weight	1600KG
Overall dimension	5500×1500×1600mm



3.Detail picture show

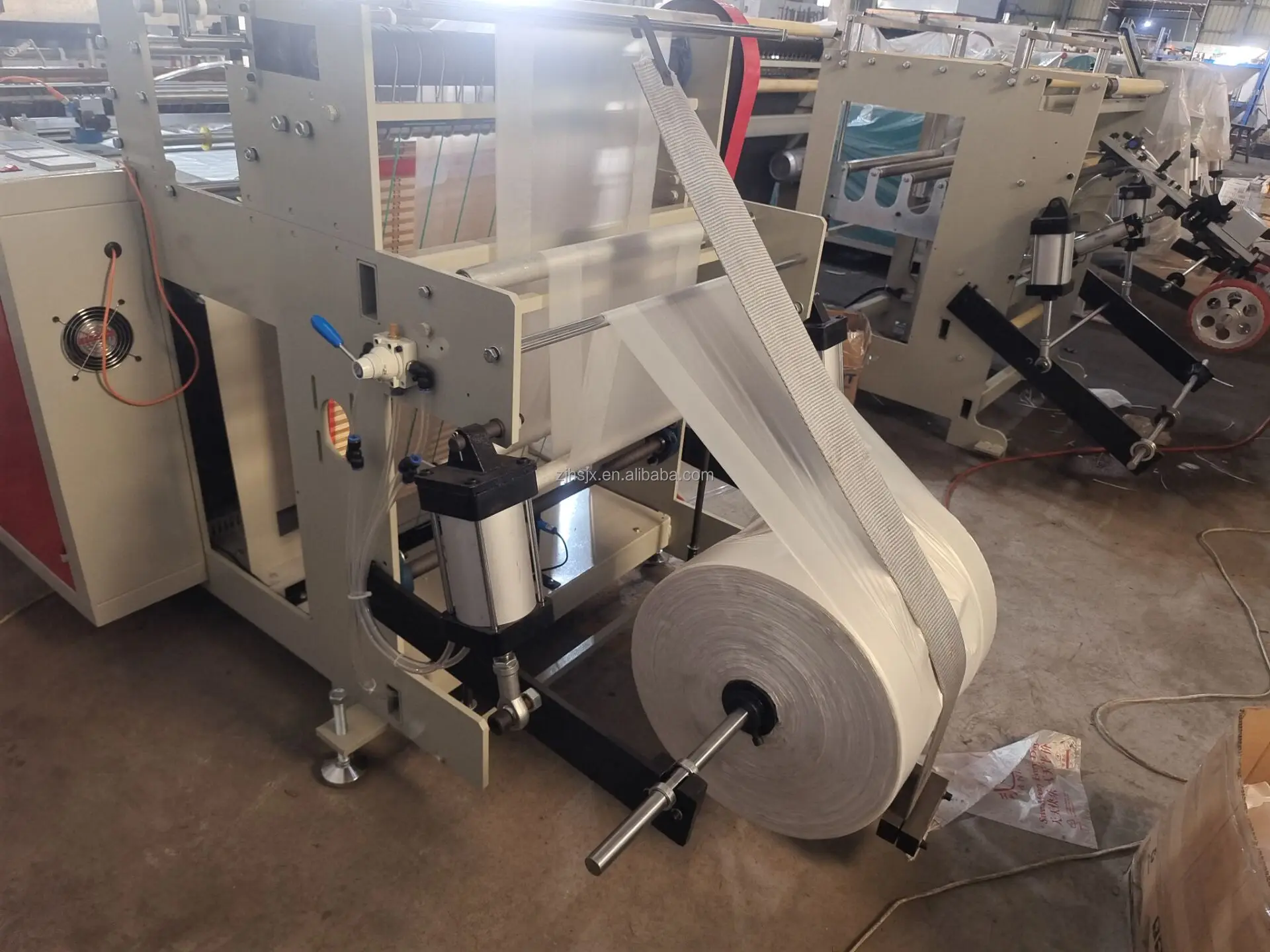

1)single roll feeding

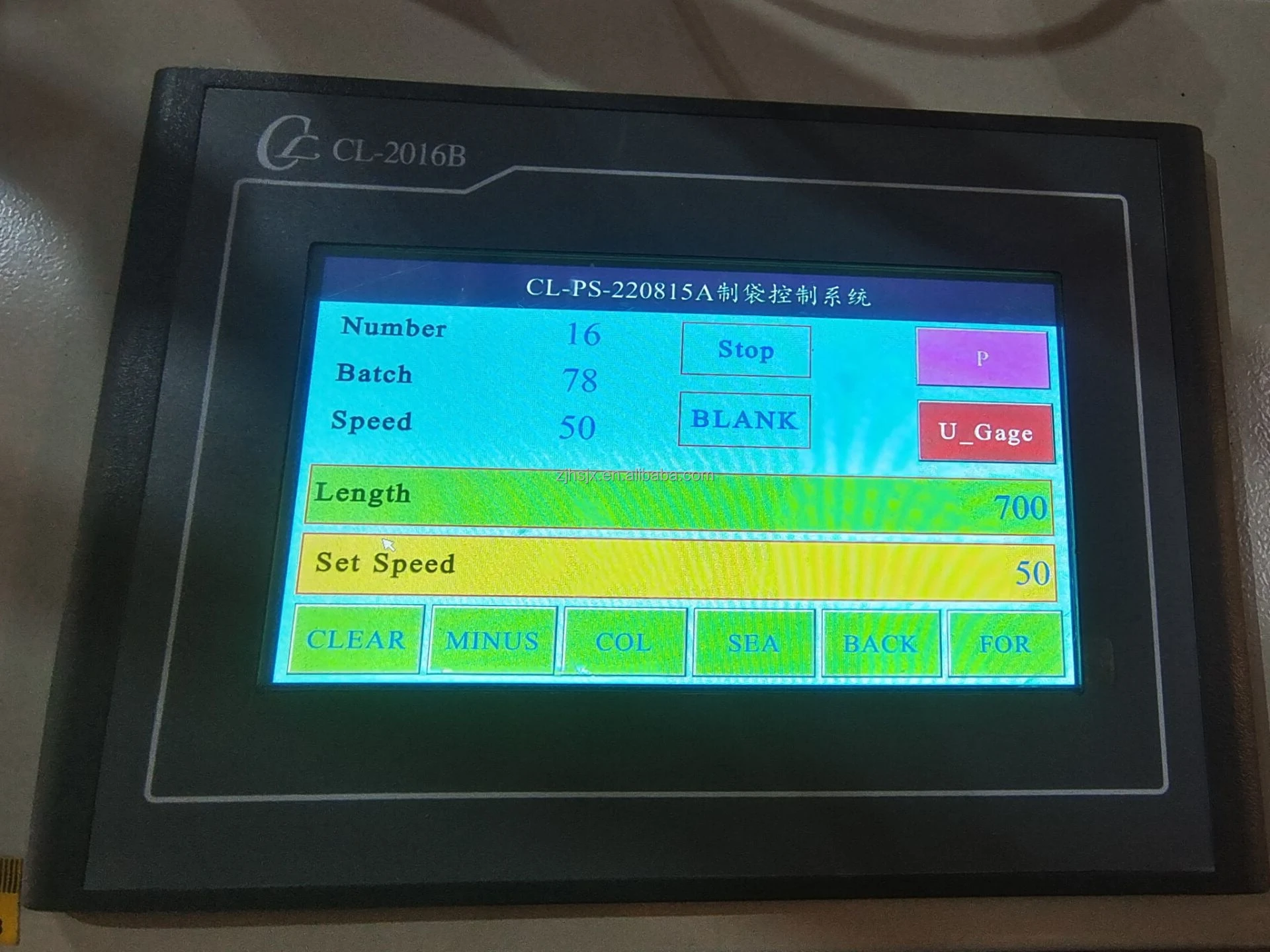

2)controller panel

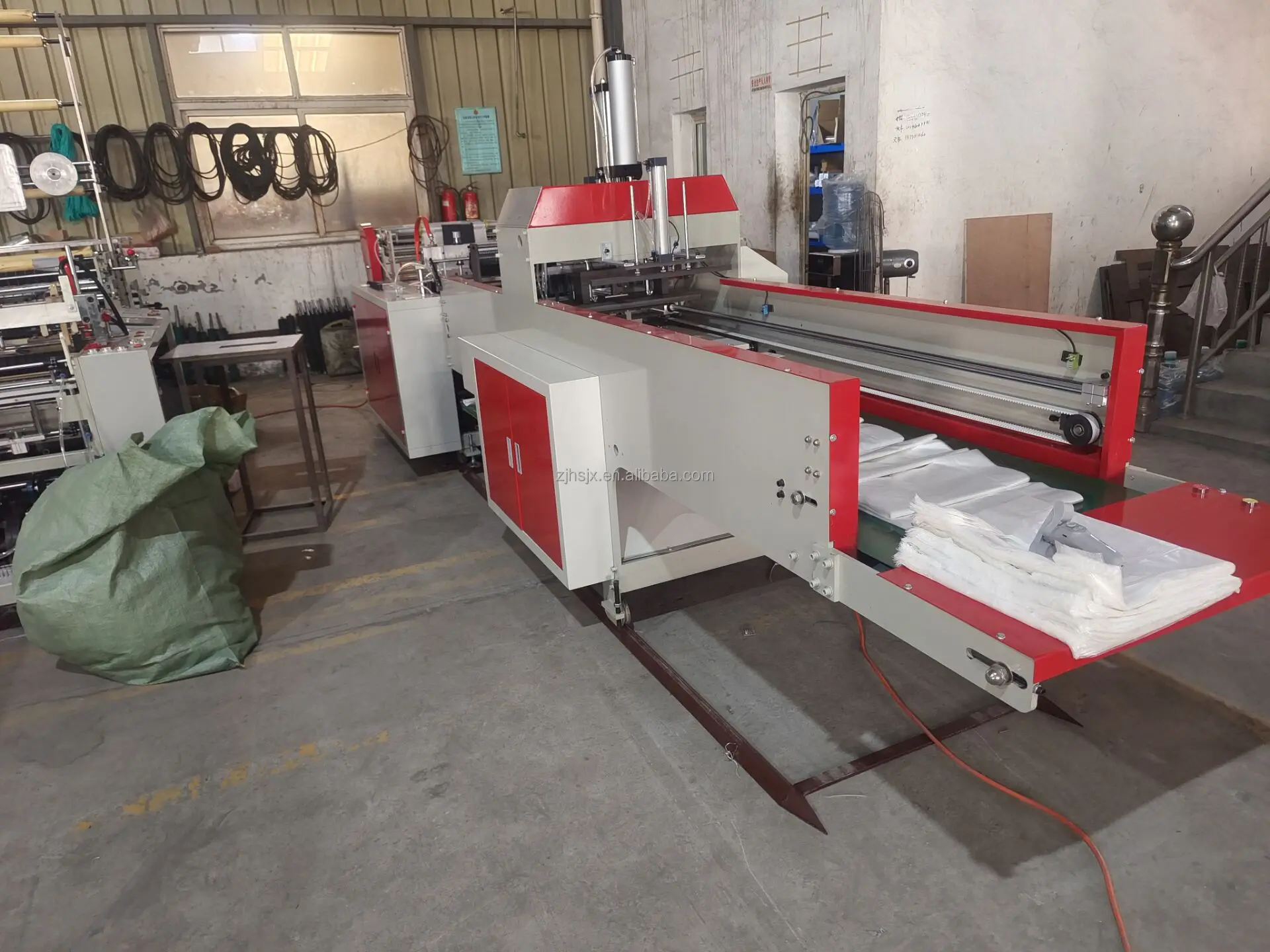

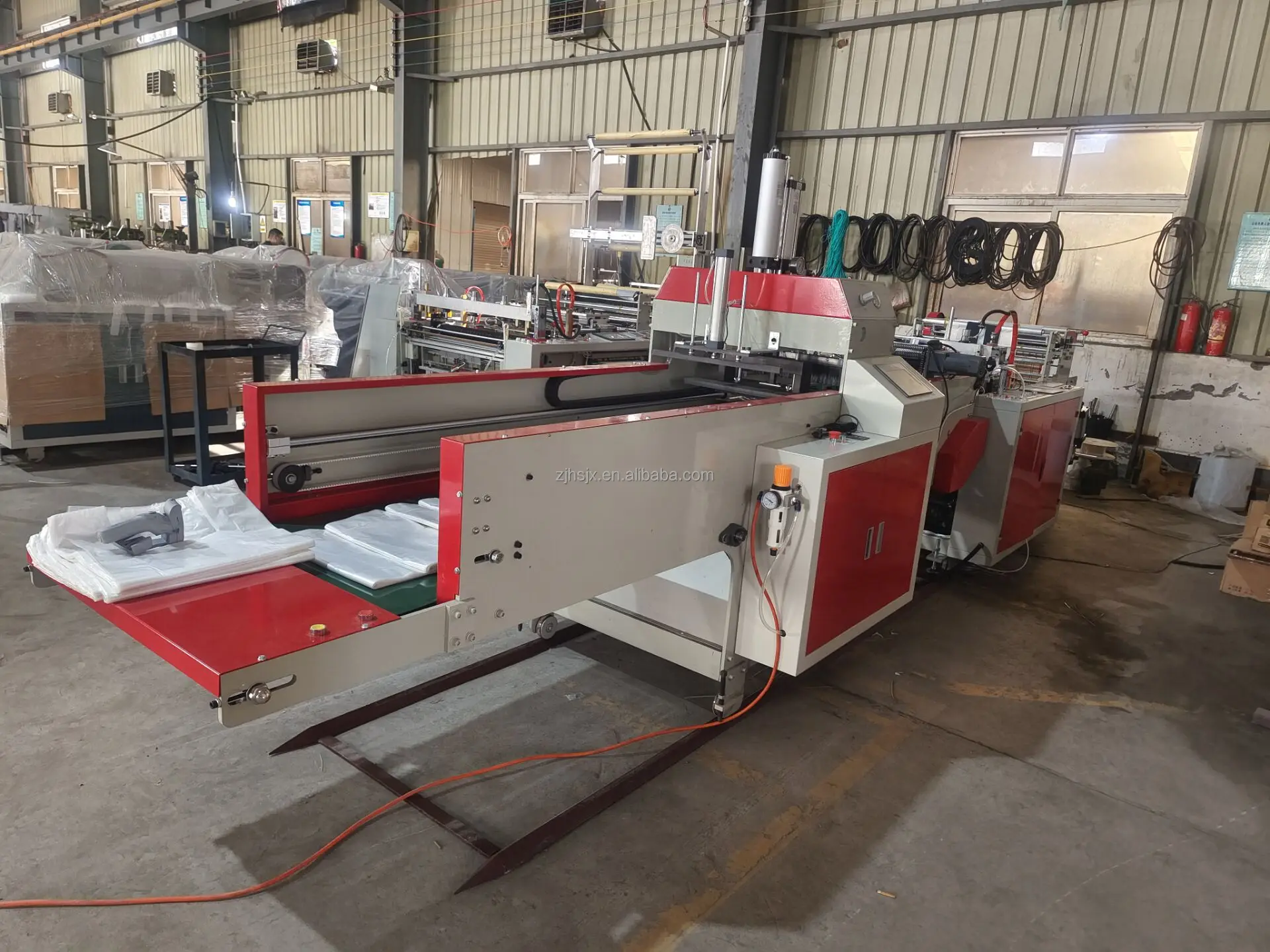

3)machine side view



4) single line tracking sensor



5)T-shirt  seafood thicker bag
