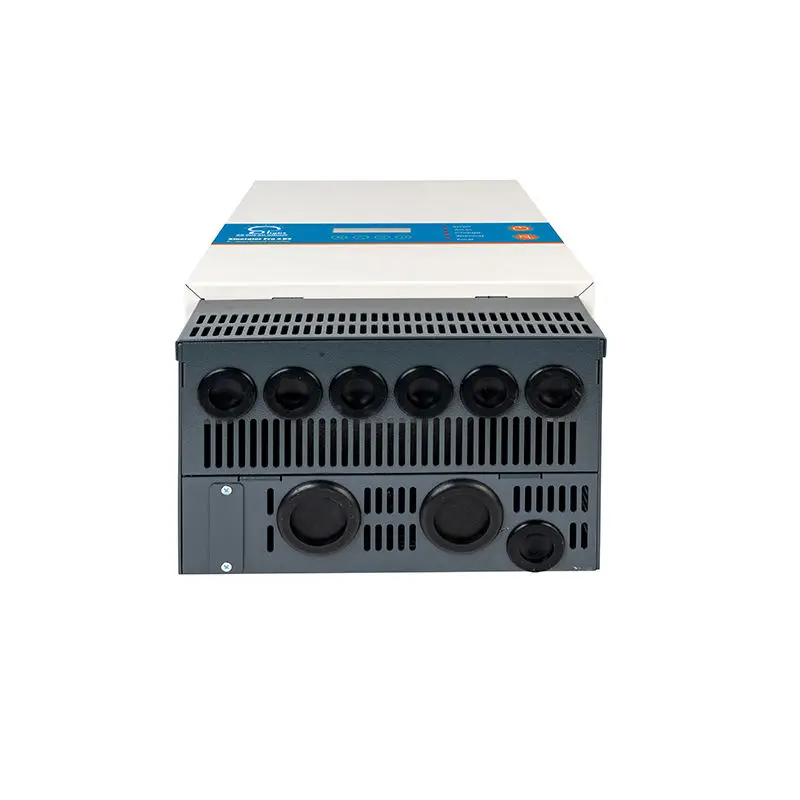

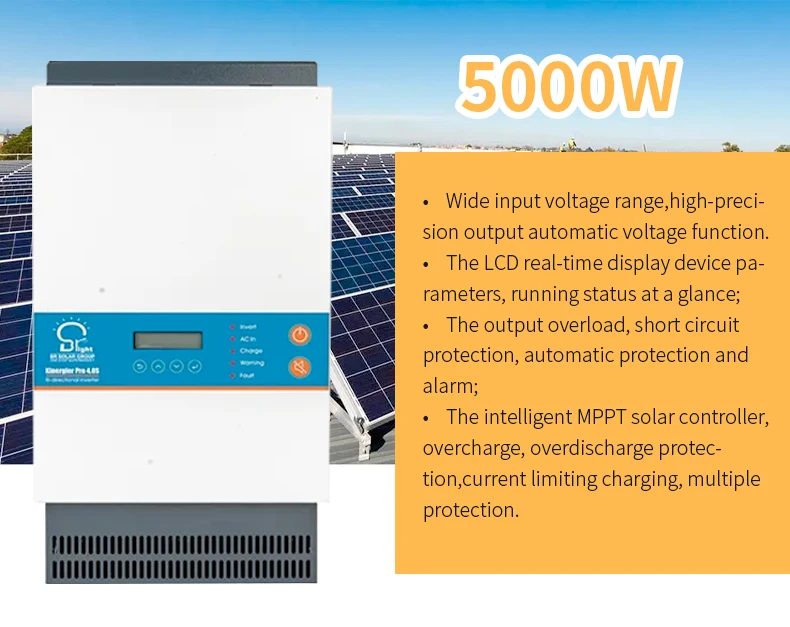

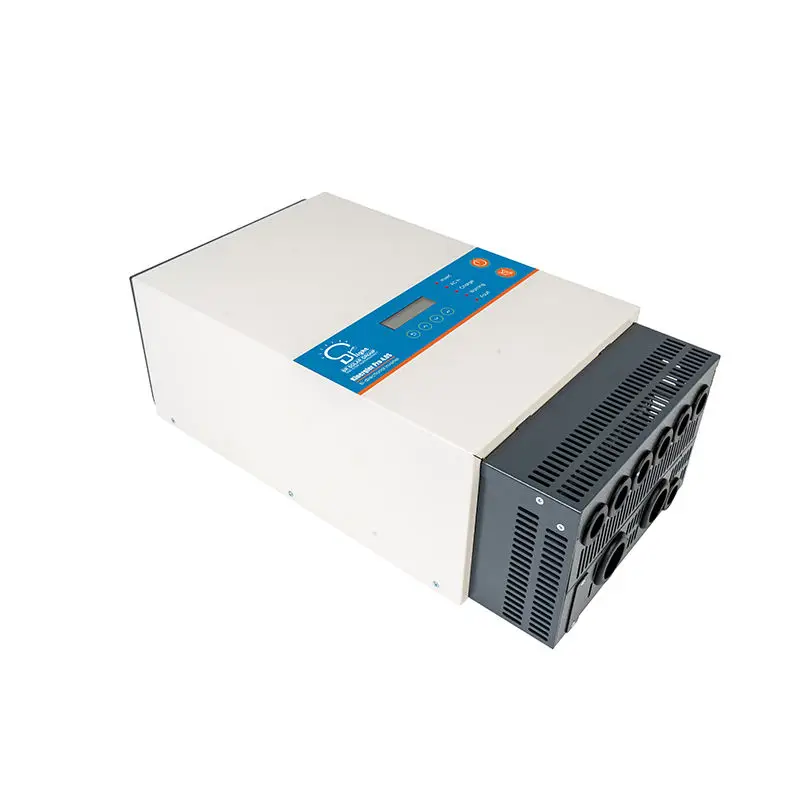

BR SOLAR Hybrid off grid 5KW 6KW 8KW Three Phase Single Phase Pure Sine Wave Inverter for solar power system
- Category: >>>
- Supplier: Yangzhou Intelligence Solar Co. Ltd.
Share on (1600738229871):
Product Overview
Description
Model No. | CK4.0M | CK5.0M | CK4.0S | CK5.0S | CK6.0S | CK8.0S | |||||||||
Power assist | Yes | ||||||||||||||
Feed-in to grid | Yes | ||||||||||||||
AC input voltage range (VAC) | 175~265 | ||||||||||||||
AC input Frequency range(Hz) | 45~65 | ||||||||||||||
AC input Current (transfer switch)(A) | 50 | ||||||||||||||
Nominal batteryvoltage(VDC) | 24 | 48 | |||||||||||||
nput voltage range (VDC) | 21~34 | 42~68 | |||||||||||||
AC output voltage(VAC) | 220/230/240±2% | ||||||||||||||
AC output Frequency(Hz) | 50/60±0.1% | ||||||||||||||
Harmonic distortion | <2% | ||||||||||||||
Cont. output power at 25°C (VA) | 4000 | 5000 | 4000 | 5000 | 6000 | 8000 | ||||
Cont. output power at 25°C (W) | 3600 | 4500 | 3200 | 4000 | 4800 | 6500 | ||||
Peak power (30min) (W) | 4000 | 5000 | 4000 | 5000 | 6000 | 8000 | ||||
Peak power (10 sec) (W) | 8000 | 10000 | 8000 | 1000 | 12000 | 16000 | ||||
Cont. output power at 40°C (W) | 2800 | 3600 | 2800 | 350 | 4200 | 5600 | ||||
Maximum efficiency | 94% | 96% | 96% | |||||||
Zero load power (W) | 18 | 23 | 17 | 20 | 26 | |||||
