Product Overview
Description
Products Description

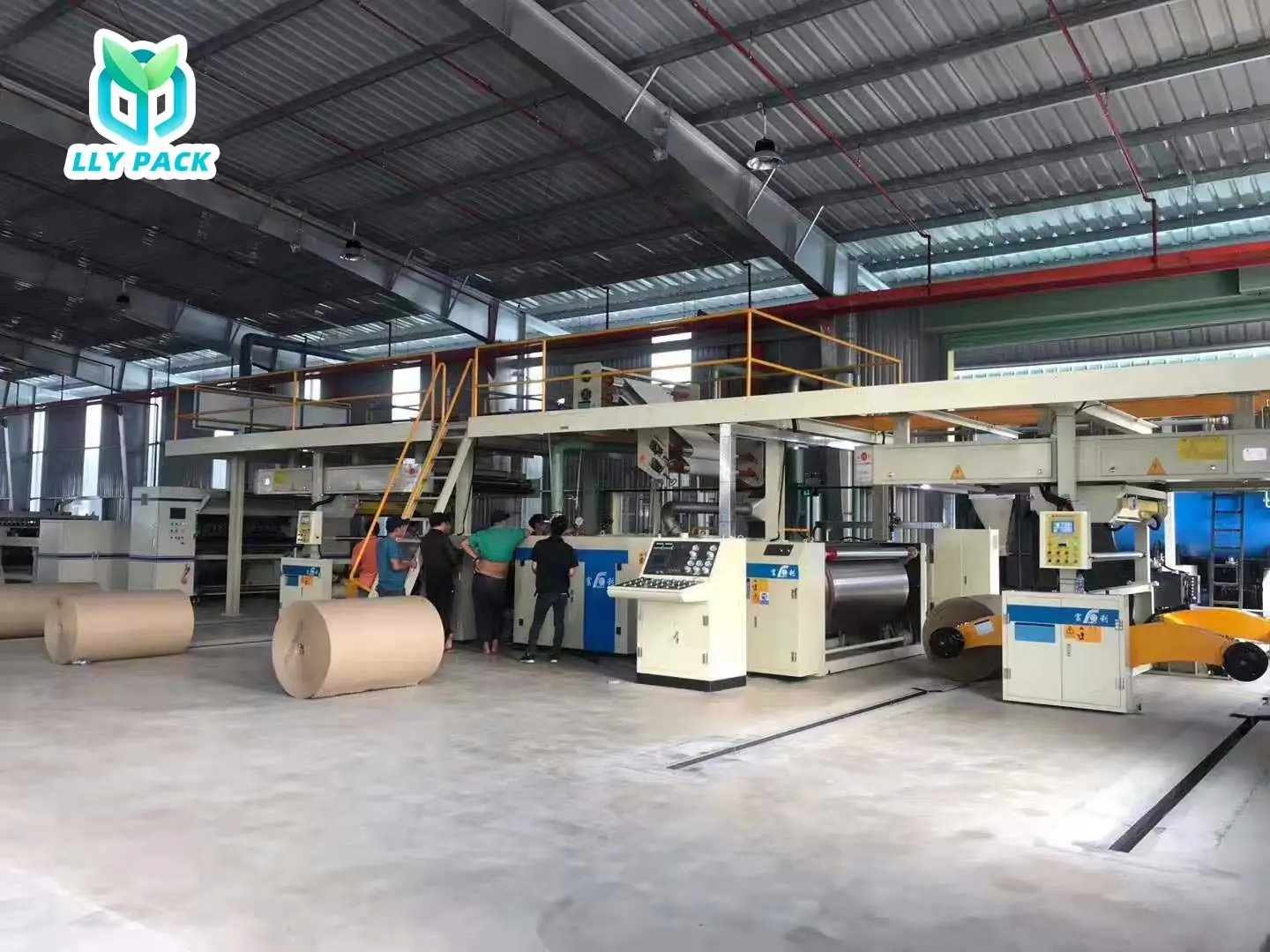

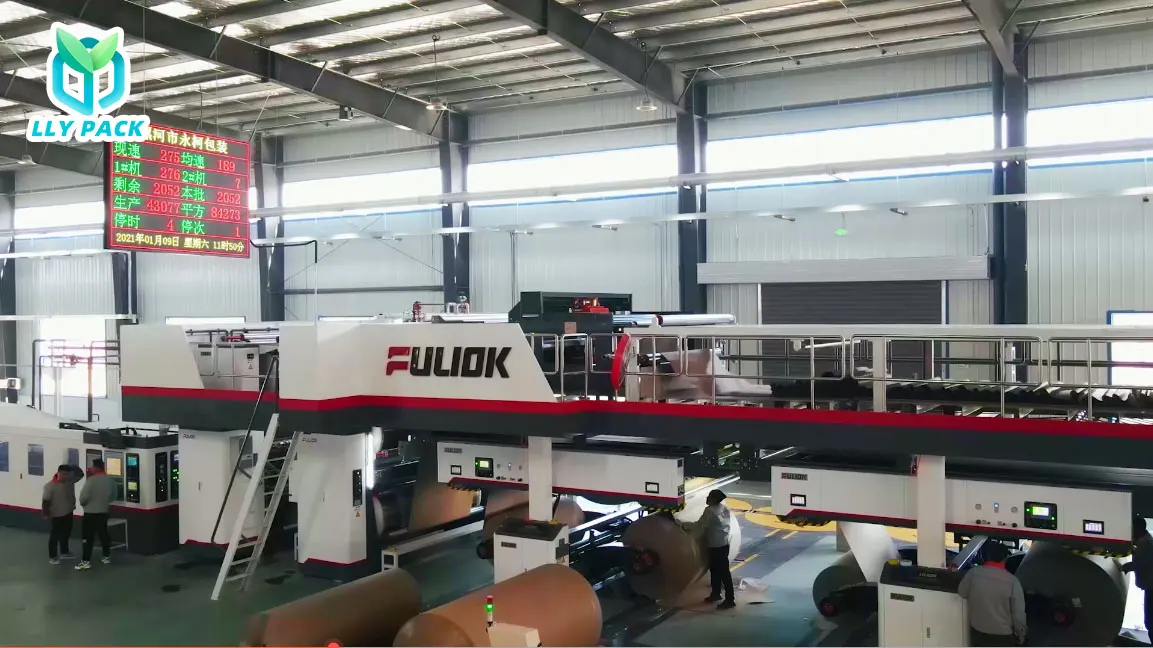

Corrugated Cardboard Production Line

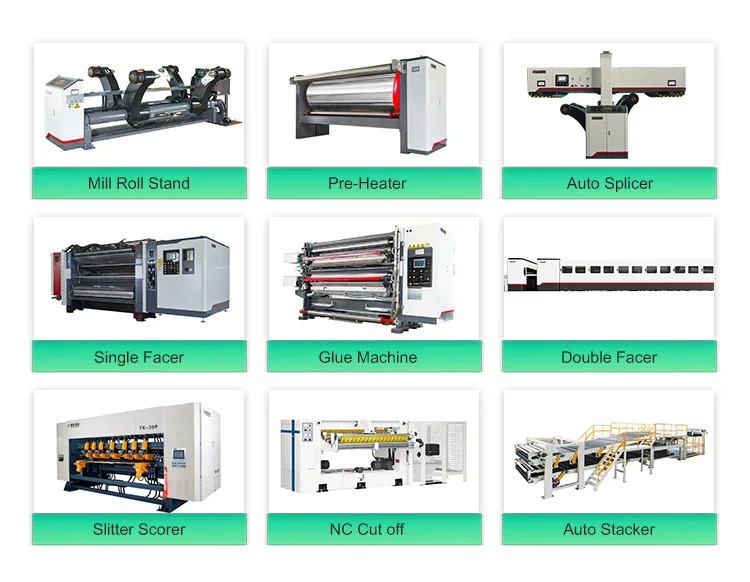

A Complete Corrugating Board Production Line Includes The Following Machines: Mill Roll Stand, Pre-Heater, Splicer, Single Facer, Over Bridge, Heavy Duty Drive, And Glue Machine, Double Facer, Slitter Scorer, Cutoff, Stacker, And Ect.
Raw Paper Roll Is Fed To The Roll Stand, After Heated And Moisture Adjusted By The Per-Heater, Raw Paper will Go To The Single Facer, Corrugated By lt, And Gluing Together With Another Raw Paper To Become Single Faced Corrugating Paper, Then Conveyed Through The Over Bridge, Re-Heated By Multi-Pre-Heater, After Glued By Glue Machine, Jointed By The Double Facer, Continuous Corrugating Board Comes Out.
After Slitting And Scorering By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated And Then Send Out By The Stacker.
After Slitting And Scorering By Slitter Scorer And Transverse Cutting By Cutoff, Corrugating Board With Different Sizes Are Produced. At Last, These Different Sizes Corrugating Board Will Be Stacked, Calculated And Then Send Out By The Stacker.
Heating Way: Steam Heating
Product | Corrugated Cardboard Production Line |
Maximum mechanical speed | 300m/min |
Web Size | 1400-2800mm |
Heating Way | Steam Heating |
Steam Pressure | 10 KG/CM2 |
BOILER | 2,3,4 MT/H,according to the line speed |

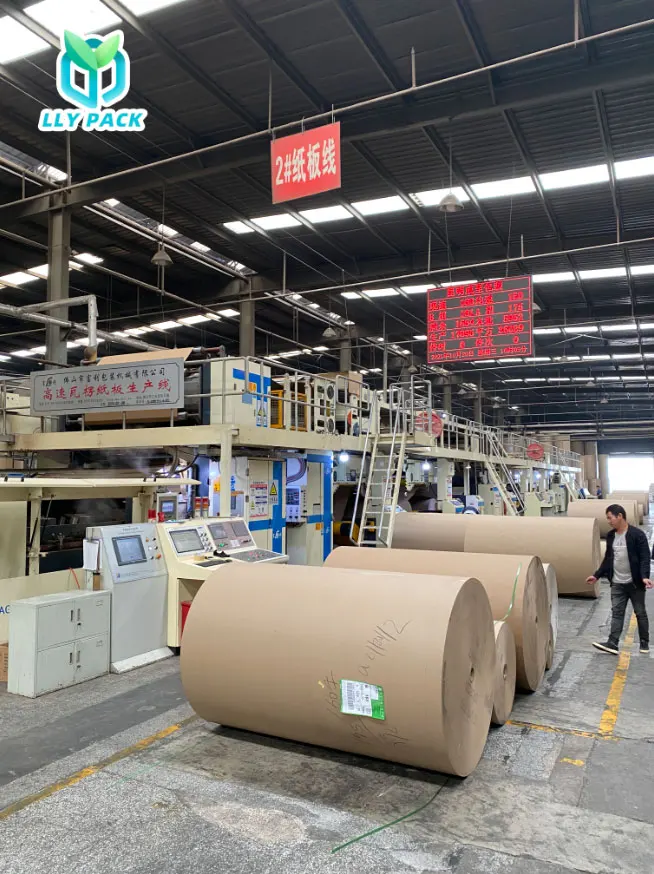

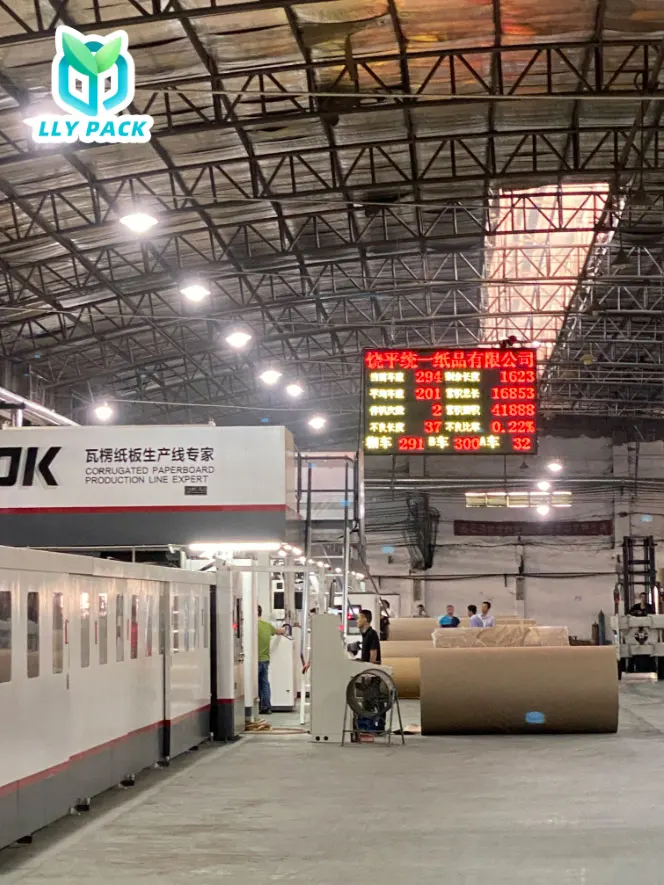

Customer Cases
Item | Equipment | Specifications |
1 | Hydraulic Shaftless Mill Roll Stand | Hydraulic Drive, Double-Station Design, Multi-Point Disc Braking |
2 | Positive Pressure Cassete Type Single Facer | B-Flute Tungsten Cardbide Corrugating Roll Φ380mm, Plc Auto Glue Adjustment Importing Brearing |
3 | Pre-Heating Cylinder | Φ1028mm, Rotating At Constant Speed; With Auto Adjust Area |
4 | Triplex Pre-Heating Cylinders | Preheater Φ1028mm Rotation At Constant Speed |
5 | Web-Guide & Tension Controller | 1 Set Of Web-Guie 1 Set Of Tension Control |
6 | Duplex Glue Applying Machine | Glue Roller Low Speed Autorotate |
7 | Double Facer | 18 Pcs Of Heating Plates With 4 Sets Of Auto Press (Independent Pneumatic Cylinder Control) With Auto Alignment For Top &Bottom Belt |
8 | Heavy-Duty Drive | Main Motor And Frequency Convertor, Speed Regulated |
9 | Multi-Function Auto Rotary Cutter | N.C.Control |
10 | Computer-Controlle D Slitter Scorer | 5 Blades 8 Scores Servo Motor Control |
11 | Duplex N.C.Control Helical Cross Cutting Machine | With Double-Drive Servo Motor Control; Outer Rotation Type Four-Motion Model |
12 | Two-Layer Automatic Stacker | Duplex Model Fully Automatic Stacking Top: Auto Down Stacker Top:Max.Height 1500mmm Bottom: Auto Gantry Stacker; Max.Height 480mmm |
Company Profile
⭐A state-of-the art factory with a total area of 57,000 square meter.
⭐Having 4 sets of advanced CNC center, from OKUMA, Japan, Mitshibishi, Japan and Toshiba, Japan. ⭐ Over 22 years experience specialized in manufacturing corrugated machines and spare parts
Customers Feedback
⭐Reliable Delivery and Quality ensured
⭐We pursuit“Win-Win cooperation
Certifications
⭐More than 100 patent right and certificates from the industry.
Exhibition
FAQ
Q1: Where is your company?
A: Our factory is located in Foshan City, Guangdong Province, China.
A: Our factory is located in Foshan City, Guangdong Province, China.
Q2: How can i get a quotation?
A: You can send us inquiry directly! We will reply you ASAP!
A: You can send us inquiry directly! We will reply you ASAP!
Q3: How about the after-sale service?
For most of machines, engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
One year warranty period under normal use for most of machines.
For most of machines, engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
One year warranty period under normal use for most of machines.
