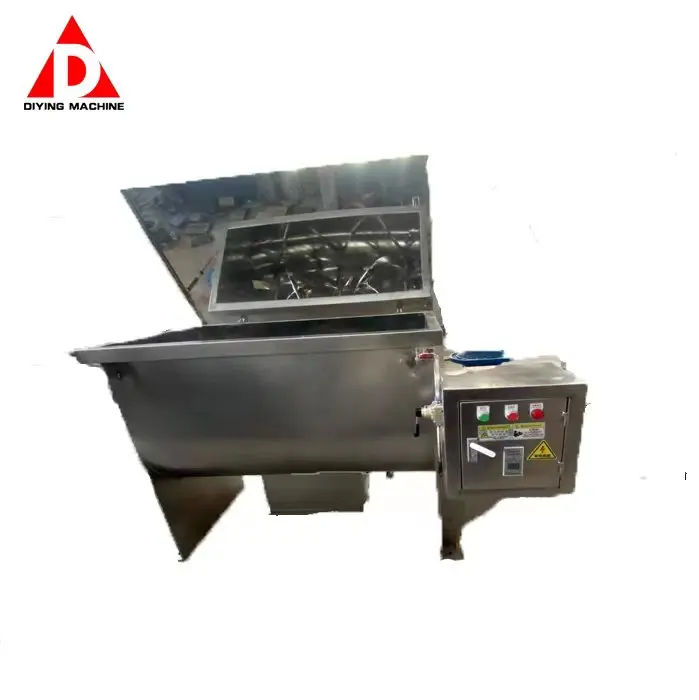

Horizontal Clay Ribbon Mixer Mixing Machine

Product Overview

Description

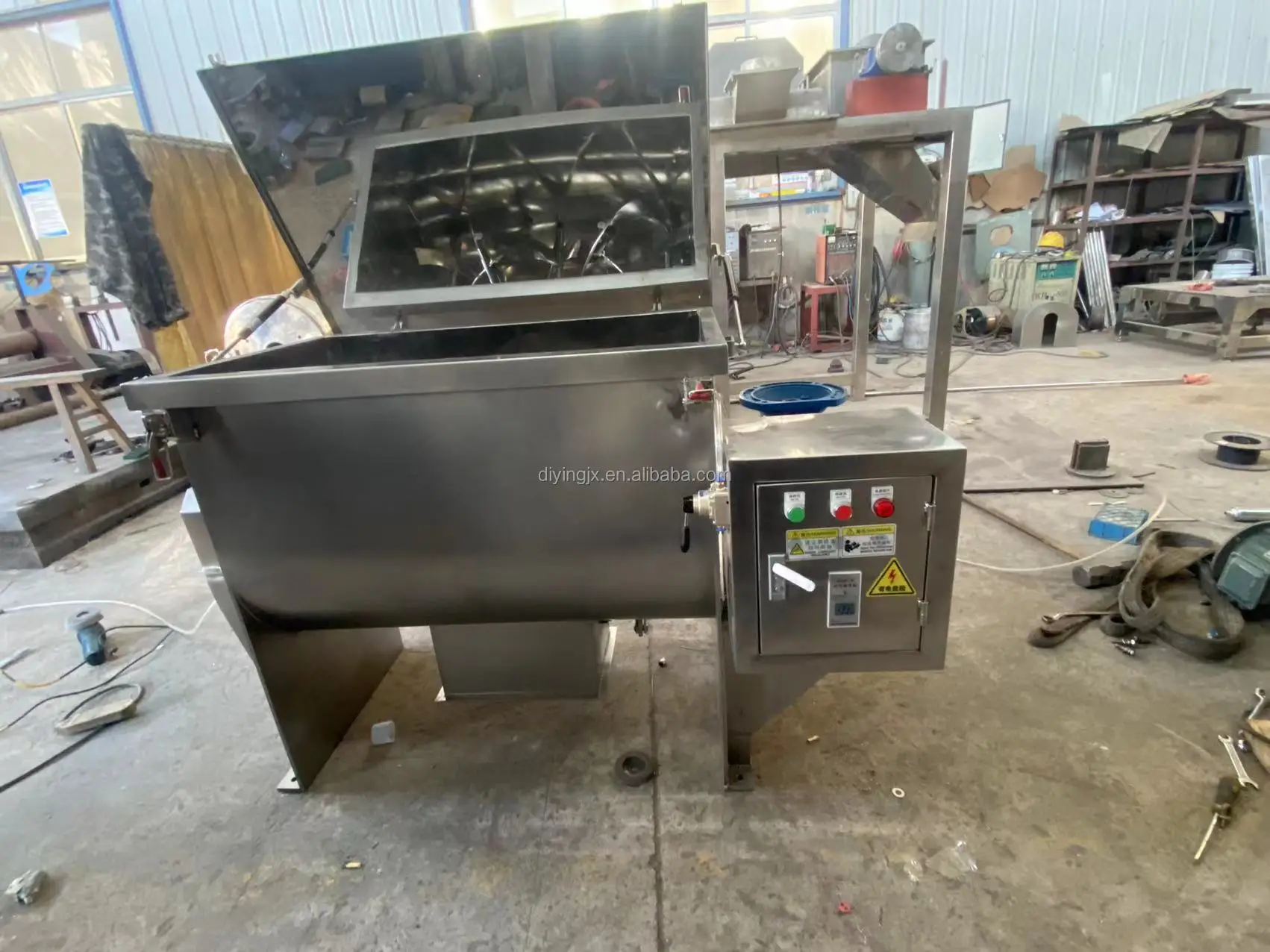

Horizontal Clay Ribbon Mixer Mixing Machine

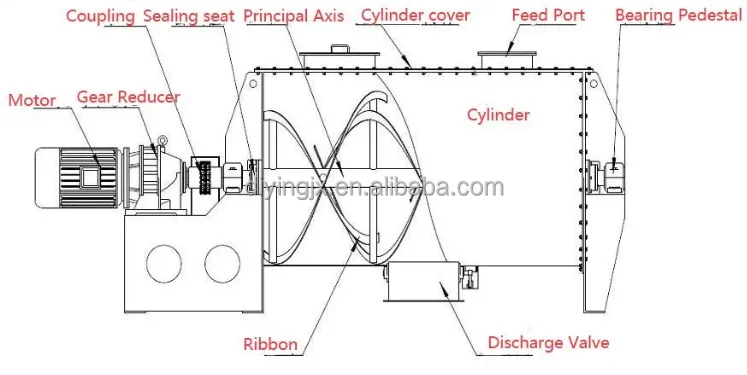

Working Principle of the Horizontal Clay Ribbon Mixer Mixing Machine:

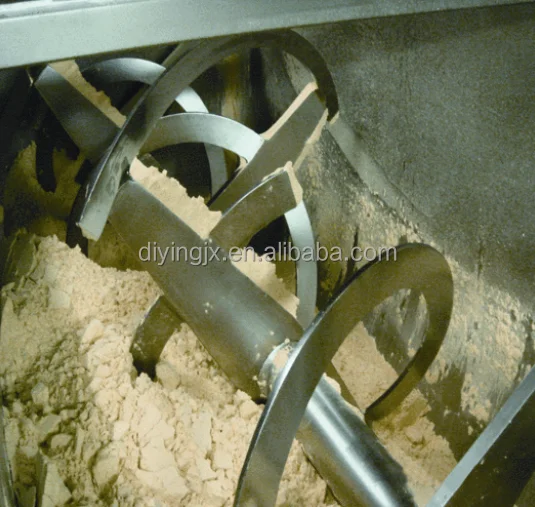

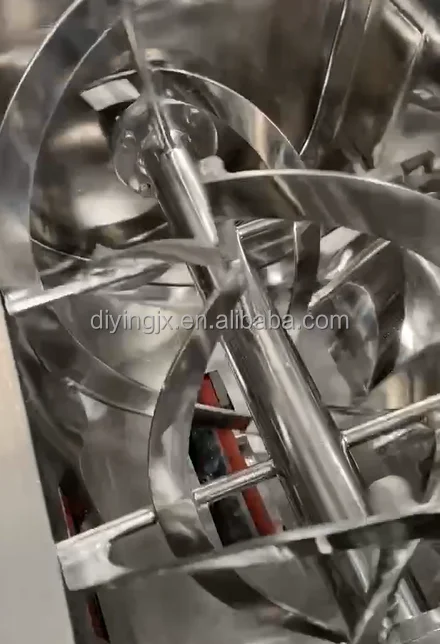

usually has 2 or 3 layers,the outer screw will push the material from the sides to the center, and the inner screw will push the material from the center back to the sides, the convection mixing is form in this way.



Applicable to:

This mixer is mainly used in the mixing of viscous or adhesive powder material and powder material with liquid and paste added. Because it is difficult to clean for mixing viscous material, we recommend to use this machine for mixing large output production which doesn’t required to displacing variety material frequently.





Specifications of the Horizontal Clay Ribbon Mixer Mixing Machine:



Model	One time mixing (kg)	Motor power (kg)	Equipment weight (kg)
WLDH-0.1	30-50	1.5-4	300
WLDH-0.3	100-150	3-3.5	500
WLDH-0.5	200-300	4-11	900
WLDH-1	400-600	7.5-15	1400
WLDH-1.5	600-900	11-18.5	1900
WLDH-2	800-1200	15-22	2500
