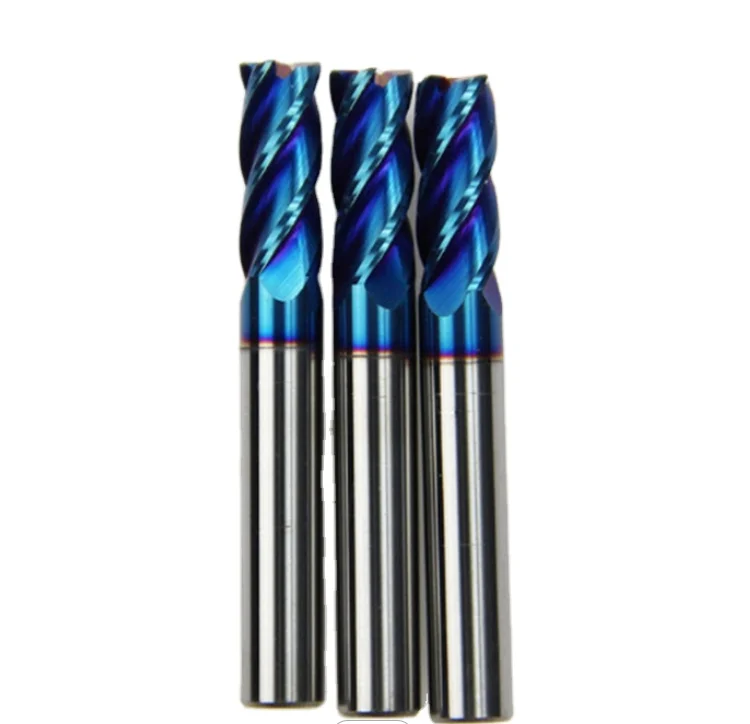

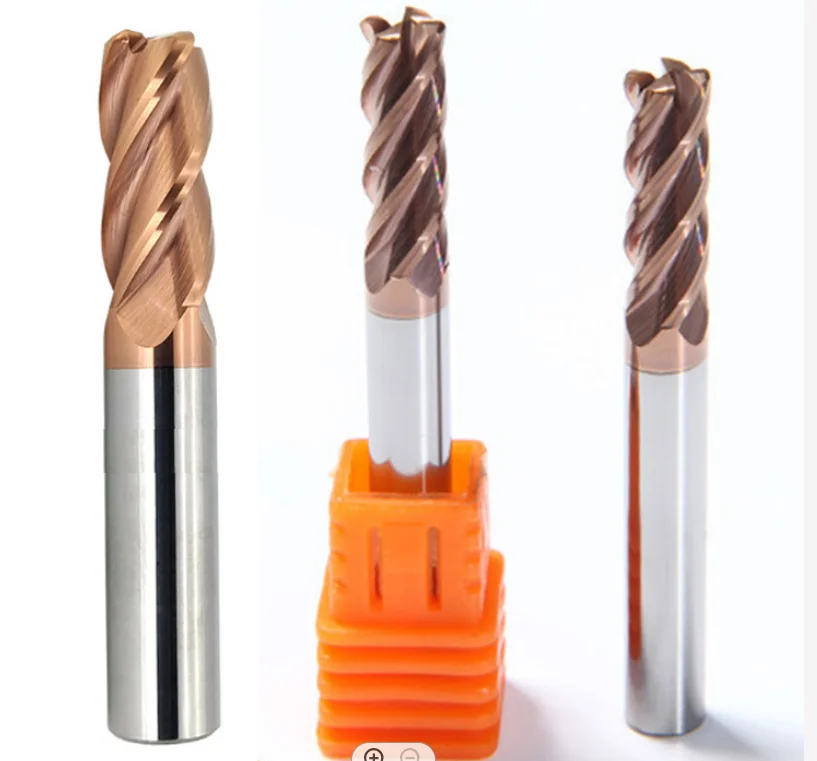

BOMI BMKK 332 solid carbide 4flutes nano coating end mills durable and sharp tungsten carbide drill bit for metal
- Category: >>>
- Supplier: Changzhou,Bomi,Tools,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
|6Pcs Machine Use M3 to M10 MetricTitaniumCombined Combination HSS Drill and Tap Set
Product Name
for Screw Drilling Tapping
Size
M3×0.5,M4×0.7,M5×0.8,M6×1,M8×1.25,M10×1.5
Material
HSS and HSS Cobalt
Process
Fully Ground Point Angle
135 Degree Split Point(118 Degre is Also Available).
Flute Type
|Spiral Flute Right Hand Cutting
Shank Type
Quick Change Hex Shank(Hex Shankwith Magnetic Socket is Also Available)
Surface Finish
Titanium Coating (Bright, Black Oxide are Also Available)
Package
|Six Pieces Packed in One Plastic Box
1.Complete hole drilling,tapping,deburring and countersinking in one operation with power drill saves labor and time. 2.Self-centering point, do not need assistant center drilling or center punching.
3.Taps produce internal threads in previously formed holesand can be used in machines(such as drill presses)or with hand tools.
Features
4.Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds 5.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
6.Made from HSS with titanium coated,high hardness and rust resistance,durable and long service life. 7.Suitable for drilling,tapping,cutting on soft metal,aluminum plate,iron,et
for Screw Drilling Tapping
Size
M3×0.5,M4×0.7,M5×0.8,M6×1,M8×1.25,M10×1.5
Material
HSS and HSS Cobalt
Process
Fully Ground Point Angle
135 Degree Split Point(118 Degre is Also Available).
Flute Type
|Spiral Flute Right Hand Cutting
Shank Type
Quick Change Hex Shank(Hex Shankwith Magnetic Socket is Also Available)
Surface Finish
Titanium Coating (Bright, Black Oxide are Also Available)
Package
|Six Pieces Packed in One Plastic Box
1.Complete hole drilling,tapping,deburring and countersinking in one operation with power drill saves labor and time. 2.Self-centering point, do not need assistant center drilling or center punching.
3.Taps produce internal threads in previously formed holesand can be used in machines(such as drill presses)or with hand tools.
Features
4.Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds 5.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
6.Made from HSS with titanium coated,high hardness and rust resistance,durable and long service life. 7.Suitable for drilling,tapping,cutting on soft metal,aluminum plate,iron,et
Size | Drill Diameter(mm) | Drill Length(mm) | Thread Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
M3×0.5 | 2.5 | 24 | 10 | 54 | 6.35 |
M4×0.7 | 3.3 | 24 | 12.5 | 55 | 6.35 |
M5×0.8 | 4.2 | 28 | 16 | 58 | 6.35 |
M6×1 | 5 | 20 | 20 | 58 | 6.35 |
M8×1.25 | 6.8 | 18 | 24 | 59 | 6.35 |
M10×1.5 | 8.5 | 20 | 27 | 59 | 6.35 |
Size | Drill Diameter(inch) | Drill Length(inch) | Thread Length(inch) | Overall Length(inch) | Shank Diameter(inch) |
4-40NC | 0.089 | 1/4" | 9/16" | 1-7/8" | 1/4" |
4-48NF | 0.930 | 1/4" | 9/16" | 1-7/8" | 1/4" |
5-4ONC | 1.1015 | 9/32" | 5/8" | 1-15/16” | 1/4" |
5-44NF | 0.104 | 9/32" | 5/8" | 1-15/16” | 1/4" |
6-32NC | 0.1095 | 5/16" | 11/16" | 2" | 1/4" |
6-40NF | 0.115 | 5/16" | 11/16" | 2" | 1/4" |
8-32NC | 0.1360 | 3/8" | 3/4" | 2-1/8" | 1/4" |
8-36NF | 0.1385 | 3/8" | 3/4" | 2-1/8" | 1/4" |
10-24NC | 0.152 | 13/32" | 7/8" | 2-3/8" | 1/4" |
10-32NF | 0.1610 | 13/32" | 7/8" | 2-3/8" | 1/4" |
12-24NC | 0.1770 | 13/32" | 7/8" | 2-3/8 | 1/4" |
12-28NF | 0.1835 | 13/32" | 7/8" | 2-3/8 | 1/4" |
1/4-20NC | 0.2010 | 17/32" | 15/16" | 2-1/2" | 1/4" |
1/4-28NF | 0.2175 | 17/32" | 15/16" | 2-1/2" | 1/4" |
5/16-18NC | 0.2570 | 11/16" | 1-1/8" | 3" | 1/4" |
5/16-24NF | 0.2720 | 11/16" | 1-1/8" | 3" | 1/4" |
3/8-16NC | 0.3125 | 13/16" | 1-1/4" | 3-1/2" | 1/4" |
3/8-24NF | 0.3345 | 13/16" | 1-1/4" | 3-1/2" | 1/4" |
7/16-14NC | 0.3680 | 1" | 1-7/16" | 3-7/8" | 1/4" |
7/16-20NF | 0.3890 | 1" | 1-7/167 | 3-7/8" | 1/4" |
1/2-13NC | 0.4250 | 1-1/8" | 1-21/32" | 4-1/4" | 1/4" |
1/2-20NF | 0.4510 | 1-1/8" | 1-21/32" | 4-1/4 | 1/4" |
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Company Overview
Changzhou Bomi Tools Co., Ltd is a manufacturer and trader specialized in the research, development and production of Long length
twist drills, Taper drills, Step drills. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets through out the world.
twist drills, Taper drills, Step drills. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets through out the world.
FACTORY
1) We're a direct manufacturer and 100% export to worldwide(USA, Isrel, Jordan, Thailand,Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 10 years producing experience.
3) Our drill product:HSS drill bits, masonry drill, SDS drill,glass&tile drill, step drill,Taper Point Drill Bit ，Center Drill Bit, Brad Point Drill Bit, drill set etc.
4) Above 95% customers will place a formal order after testing the samples.
2) We have around 10 years producing experience.
3) Our drill product:HSS drill bits, masonry drill, SDS drill,glass&tile drill, step drill,Taper Point Drill Bit ，Center Drill Bit, Brad Point Drill Bit, drill set etc.
4) Above 95% customers will place a formal order after testing the samples.
A variety of product classification details
More product details are displayed for reference
application
Used for woodworking, wall, metal
packaging and shipping
Transport by sea freight by air express
Photos of hardware Exhibition
Participated in Shanghai hardware exhibition, Japan exhibition, Zhejiang Yongkang show pictures
Display of packaged products
step drill bit set ,sds plus drill bit set,wood spade drill bit set
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to North America(24.00%),Western Europe(18.00%),South America(17.00%),Southern Europe(10.00%),Eastern Asia(7.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Mid East(3.00%),Northern Europe(3.00%),Oceania(2.00%),South Asia(00.00%),Africa(0.00%),Central America(0.00%). There are total about 1-20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drill Bit/Hole Saw/Saw Blade/
4. why should you buy from us not from other suppliers?
We have a professional service team, with product quality as the core, customer as the center, to provide quality service chain, to solve all customer concerns.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Korean
We are based in Jiangsu, China, start from 2017,sell to North America(24.00%),Western Europe(18.00%),South America(17.00%),Southern Europe(10.00%),Eastern Asia(7.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Mid East(3.00%),Northern Europe(3.00%),Oceania(2.00%),South Asia(00.00%),Africa(0.00%),Central America(0.00%). There are total about 1-20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drill Bit/Hole Saw/Saw Blade/
4. why should you buy from us not from other suppliers?
We have a professional service team, with product quality as the core, customer as the center, to provide quality service chain, to solve all customer concerns.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Korean
