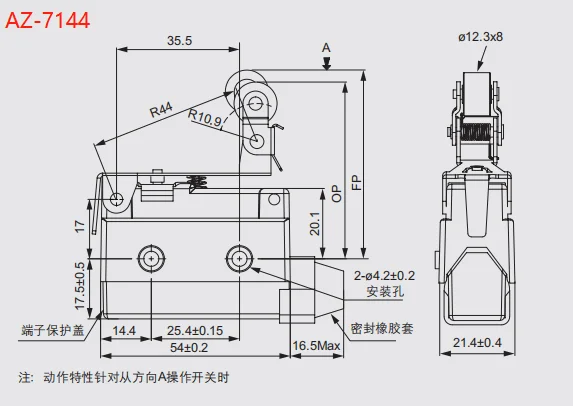

Micro switch AZ 7144 travel switch limit switch
- Category: >>>
- Supplier: Yueqing Jixin Electronic Co. Ltd.
Share on (1600738291373):
Product Overview
Description
Specification
item | Micro Switch |
Certification | CE CCC |
Place of Origin | ZHE |
Brand Name | PINYI |
Model Number | AZ-7144 |
Max. Current | 15A |
Max. Voltage | 250V |
Operating Temperature | -5-+65 |
Protection Level | IP40 |
Product Display
Products Description
Features:
Economical, high utility enclosed switch
Enclosed switches with built-in basic switches.
Various of actuators, the operation position is adjustable
Outer shell covered with intensive plastic, water-proof and oil-proof.
The mechanical strength is better than TM type of micro switch, bear shocK.
Economical, high utility enclosed switch
Enclosed switches with built-in basic switches.
Various of actuators, the operation position is adjustable
Outer shell covered with intensive plastic, water-proof and oil-proof.
The mechanical strength is better than TM type of micro switch, bear shocK.

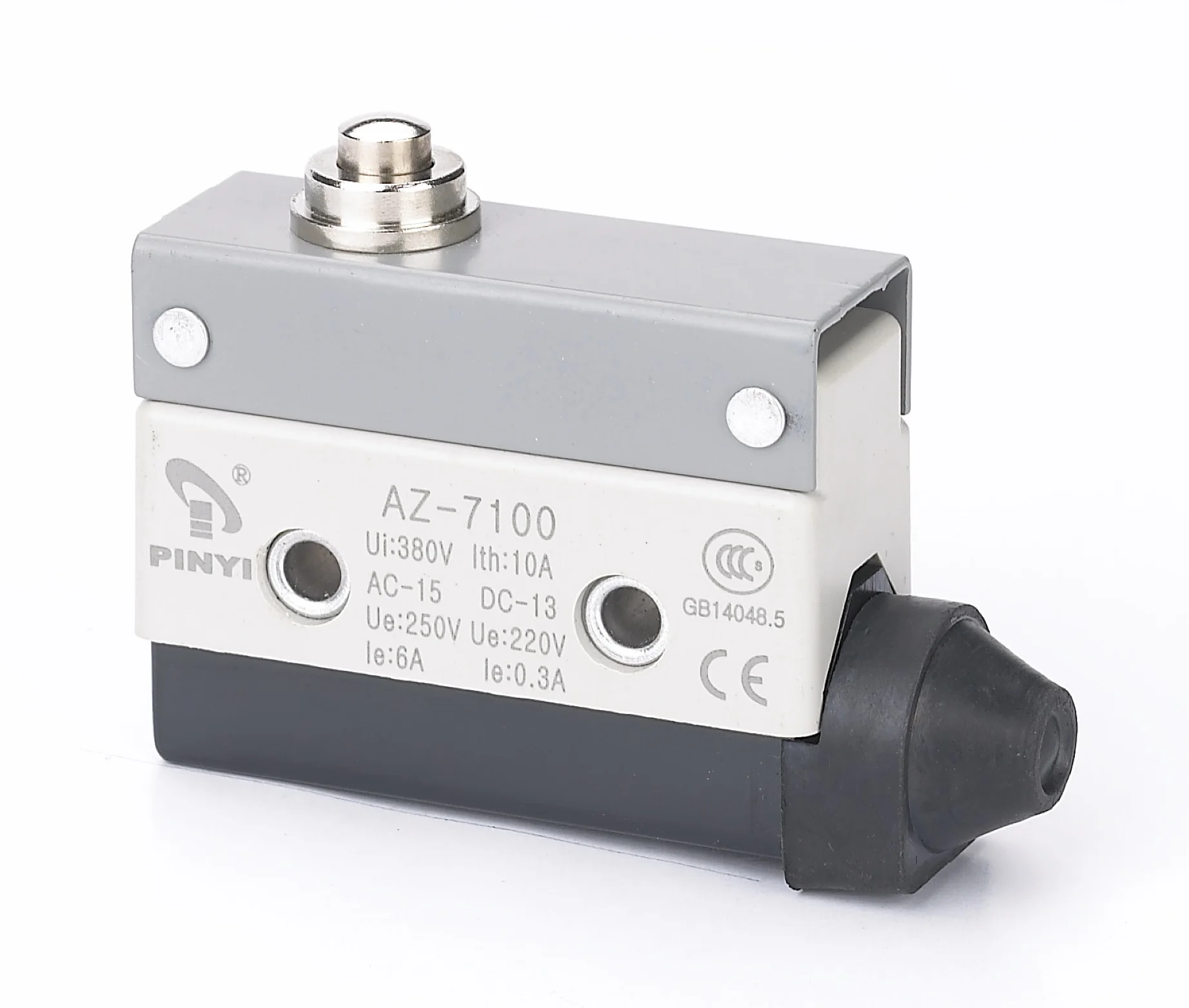

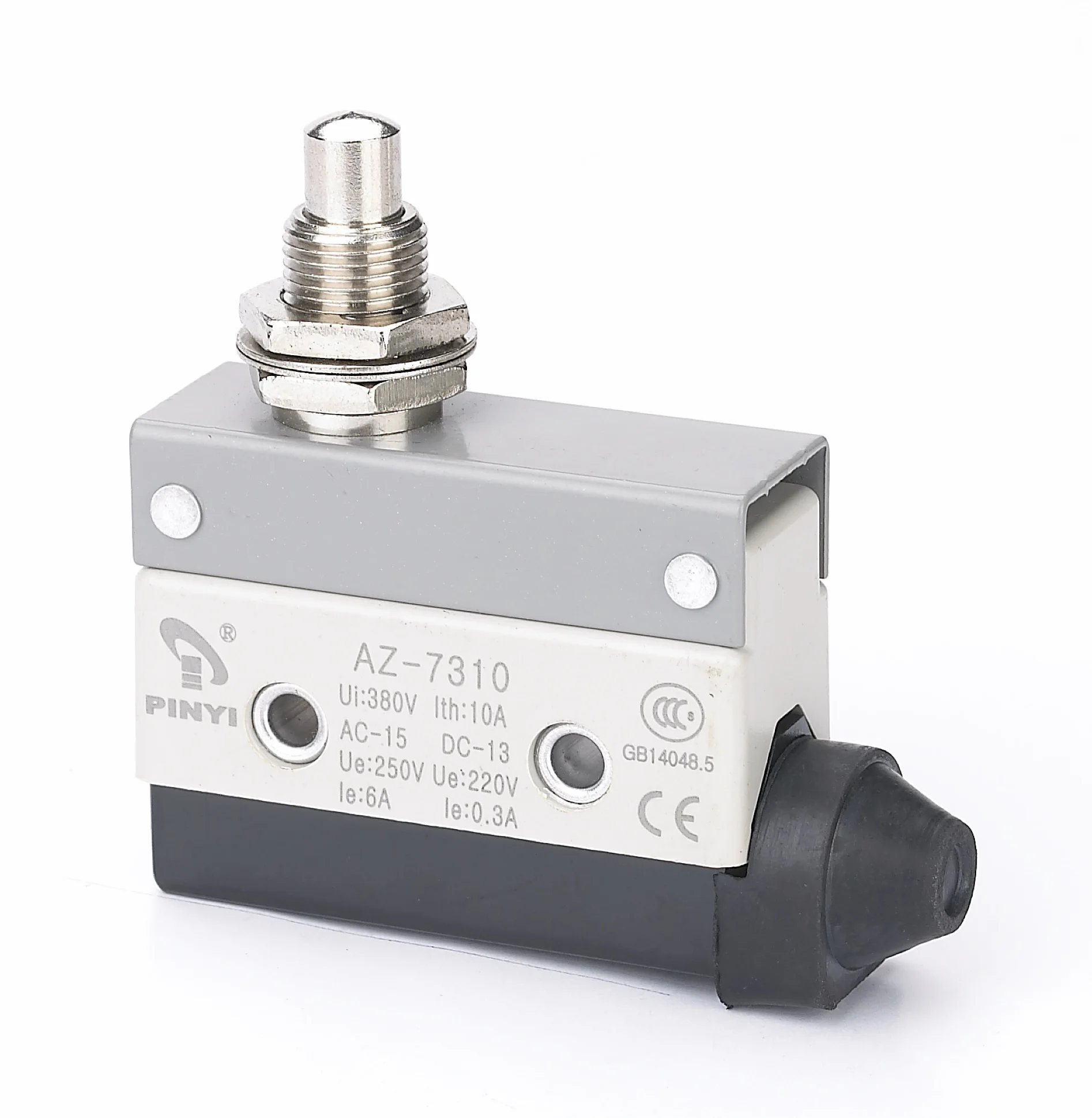

Rated voltage | Non-inductive Load (A) | Inductive Load (A) | ||||||||||||
Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||||||||
NC | NO | NC | NO | NC | NO | NC | NO | |||||||
125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||||||||
250VAC | 10 | 2.5 | 1.25 | 10 | 3 | 1.5 | ||||||||
480VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||||||||
8VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||||||||
14VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||||||||
30VDC | 8 | 3 | 1.5 | 6 | 5 | 2.5 | ||||||||
125VDC | 0.5 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | ||||||||
250VDC | 0.25 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 | ||||||||
Operating Characteristics | ||
Operation speed | 0.5mm-50cm/s | |
Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute | |
Contact resistance | 15MΩ Max. (initial value) | |
Insulation resistance | 100MΩ min. (at 500VDC) | |
Dielectric strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity | |
1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | ||
1500VAC, 50/60Hz for 1 minute between each terminal and ground | ||
Vibration | 10-55Hz, 1.5mm double amplitude | |
Shock | Mechanical durable: 1,000m/ Sec2 (about 100G’ S) Malfunction: 300m/ Sec2 (about 30G’ S) | |
Ambient temperature | -10℃- 80 ℃ (with no icing) | |
Humidity | 95% RH | |
Life | Mechanical: 10,000,000 operations above (under rated OT) Electrical: 500,000 operations above | |
Weight | About 60g | |
Protection | IEC specification: IP40 | |
Characteristics | ||||||||||||
Models | AZ-7100 | AZ-7110 | AZ-7310 | AZ-7311 | AZ-7312 | AZ-7120 | ||||||
OF(Max.) | 600g | 600g | 600g | 600g | 600g | 150g | ||||||
RF(Min.) | 100g | 100g | 100g | 100g | 100g | 40g | ||||||
PT(Max.) | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 13.5mm | ||||||
OT(Min.) | 0.8mm | 5.0mm | 6.0mm | 6.0mm | 6.0mm | 4.0mm | ||||||
MD(Max.) | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 3.2mm | ||||||
OP | 30.5±0.8mm | 44±1.2mm | 21.8±1.2mm | 33.3±1.2mm | 33.3±1.2mm | 25±1mm | ||||||
FP | 35mm | |||||||||||
Characteristics | ||||||||||||
Models | AZ-7140 | AZ-7121 | AZ-7141 | AZ-7124 | AZ-7144 | AZ-7166 | ||||||
OF(Max.) | 220g | 180g | 240g | 200g | 280g | 120g | ||||||
RF(Min.) | 60g | 50g | 80g | 60g | 100g | |||||||
PT(Max.) | 8.5mm | 11.0mm | 6.5mm | 11mm | 6.5mm | 250mm | ||||||
OT(Min.) | 2.5mm | 3.0mm | 2.0mm | 3.0mm | 2.0mm | 11mm | ||||||
MD(Max.) | 2.0mm | 2.4mm | 1.5mm | 2.4mm | 1.5mm | 3.2mm | ||||||
OP | 25±1mm | 40±1mm | 40±1mm | 50±1.2mm | 50±1.2mm | |||||||
FP | 32mm | 46mm | 56mm | 35mm | ||||||||
Company Profile

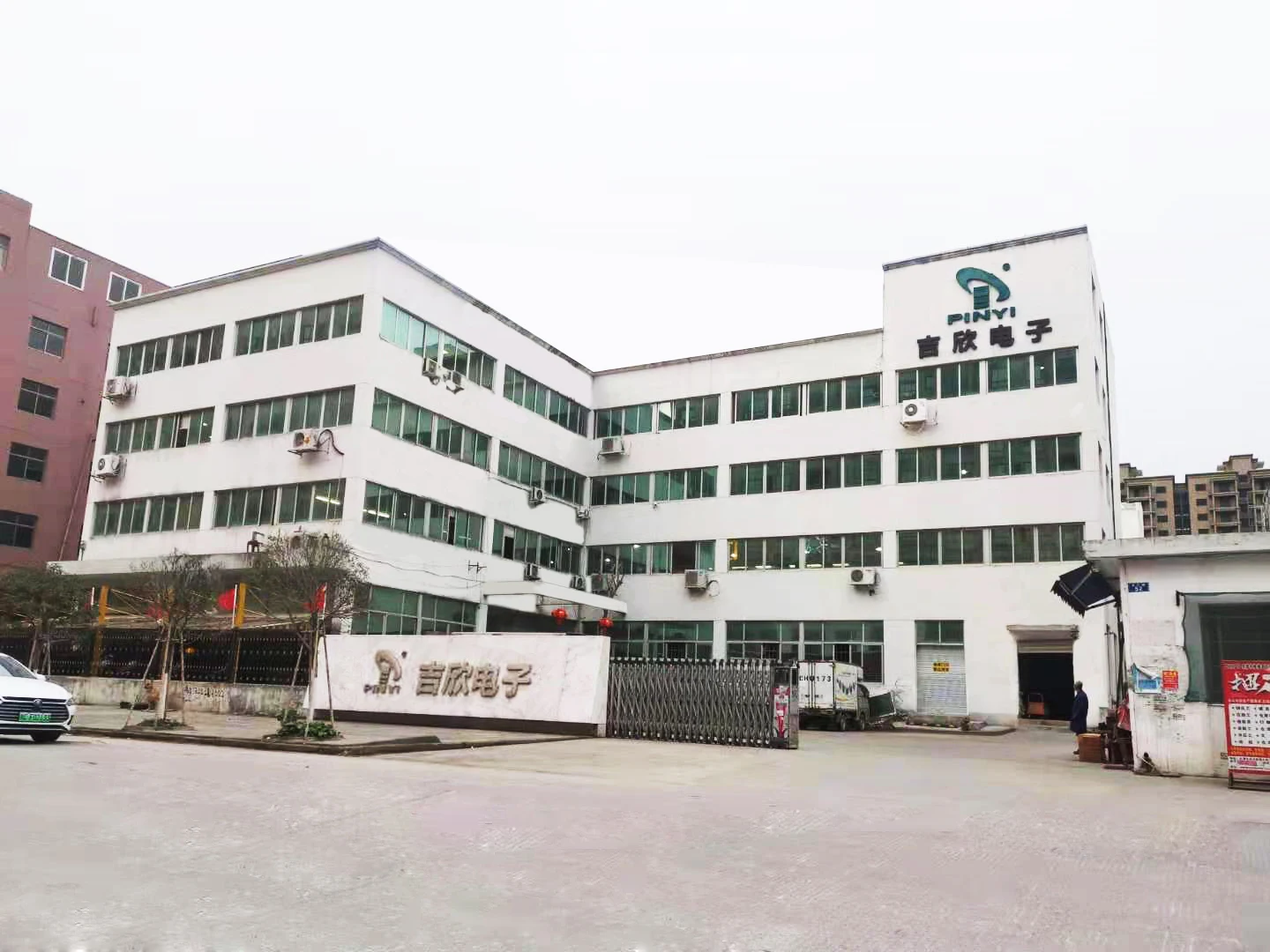

Yueqing Jixin Electronics Co., LTD was founded in 2018. It is located at Wenzhou Bridge Industry Zone,which is rated the national
