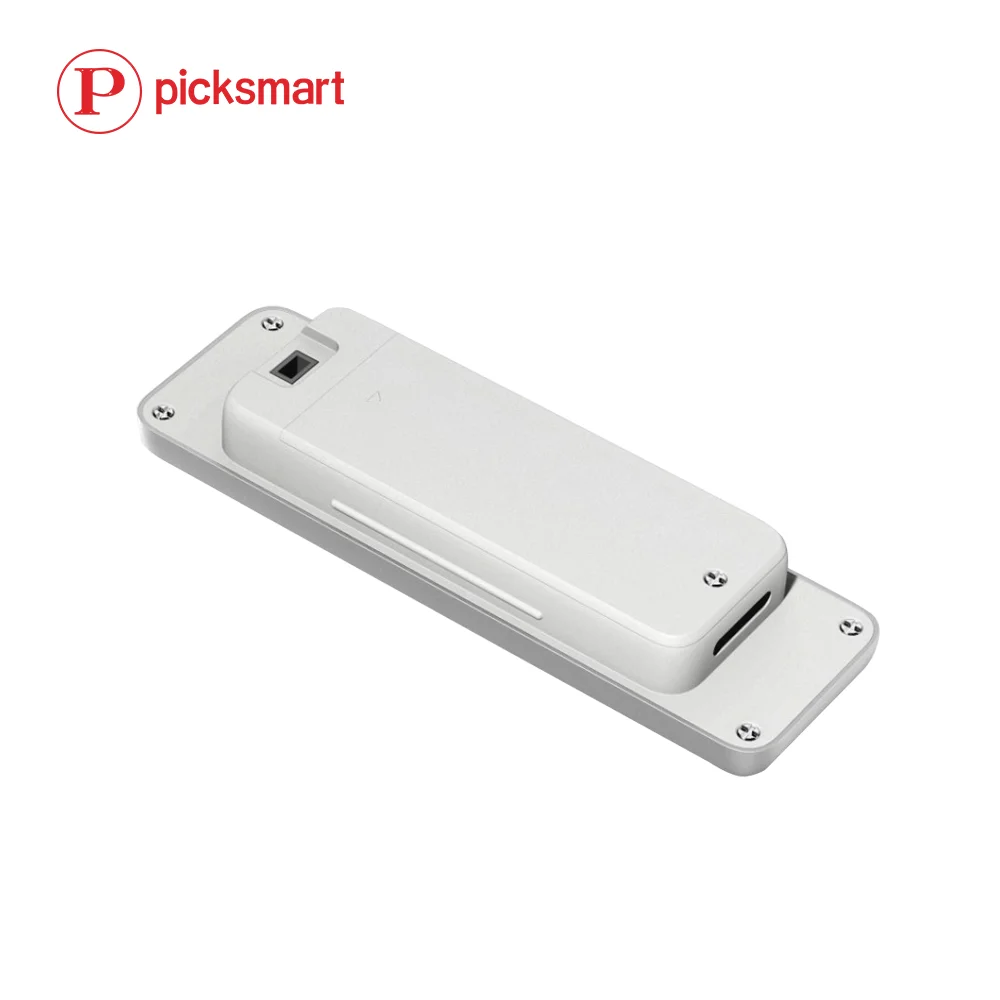

Picksmart High quality pick to light devices sensor smart tag multi functional indicators esl shelf label
- Category: >>>
- Supplier: Picksmart Technology Co. Limited
Share on (1600738308451):
Product Overview
Description
Product Description
Warehouse Pick To Light System is a kind of advanced light guiding technology, which replaces the picking list with a complete set of electronic display devices (such as signal lights, displays, confirmation buttons) on the shelf space to increase the working efficiency of the warehouse or distribution center. It is a paperless, efficient and cost-effective solution.

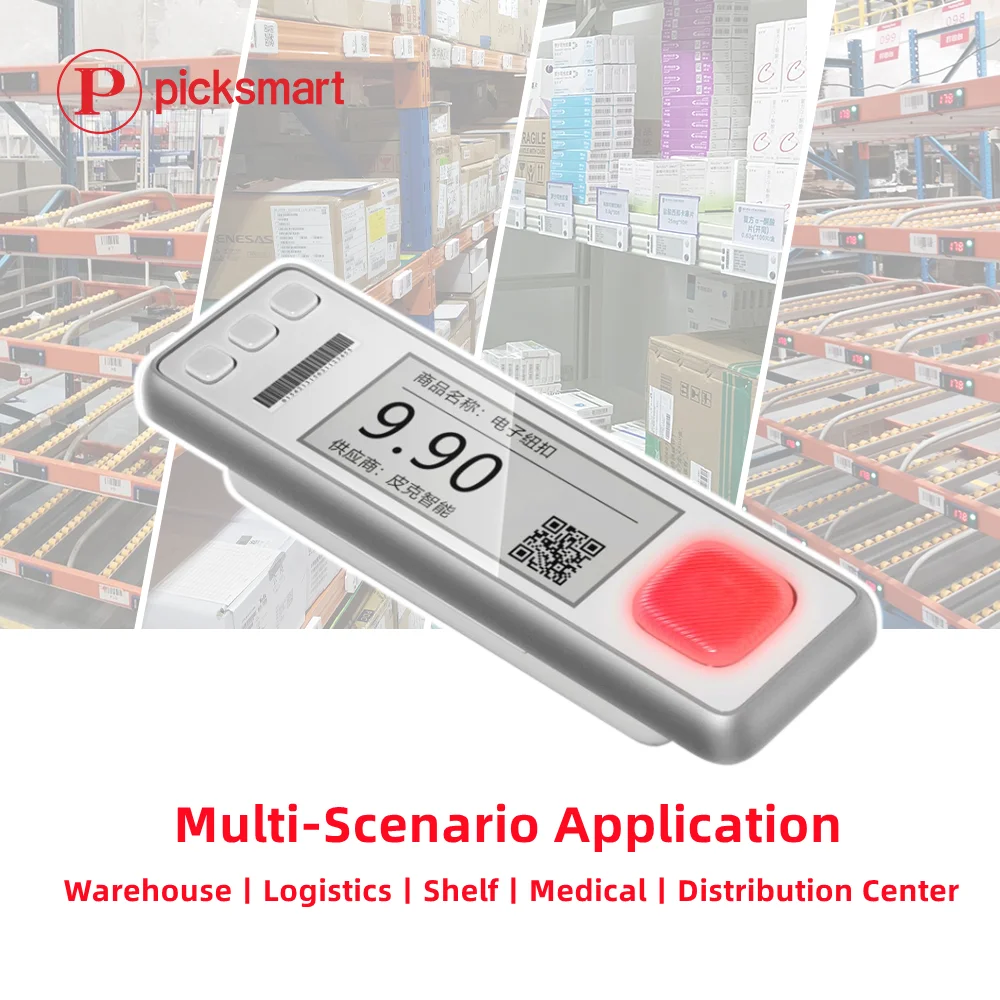

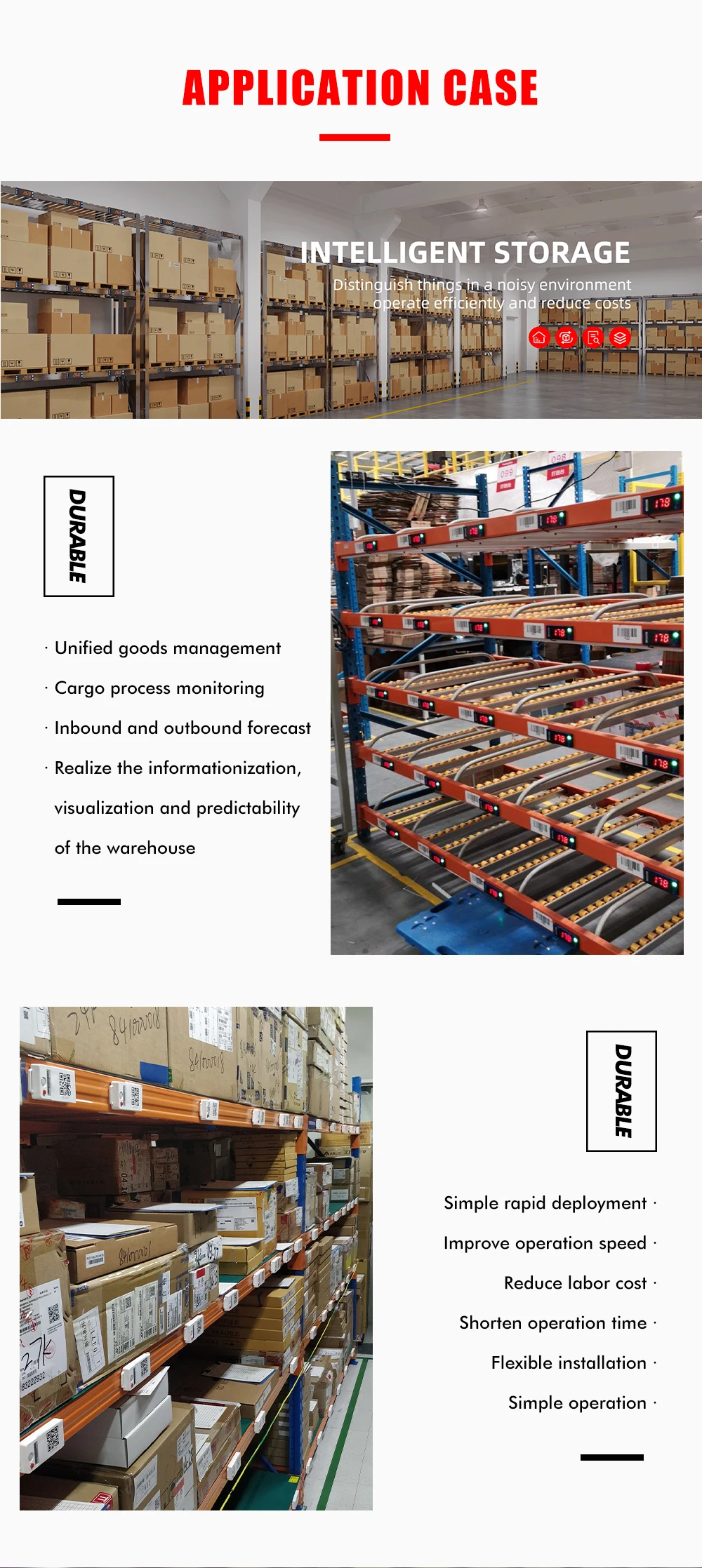

Picksmart Pick To Light System has been successfully applied to e-commerce, logistics, electronics, daily chemical, medicine,clothing, precision hardware, auto parts, packaged food, printing, jewellery, fresh cold chain,retail distribution industries, as far as relate to material picking ,sorting and circulation control, all can be good to solve by pick to light
system, and it also can seamless docking enterprises's ERP, WMS, MES system, improve efficiency, prevent mistakes.
Details Images
item | value |

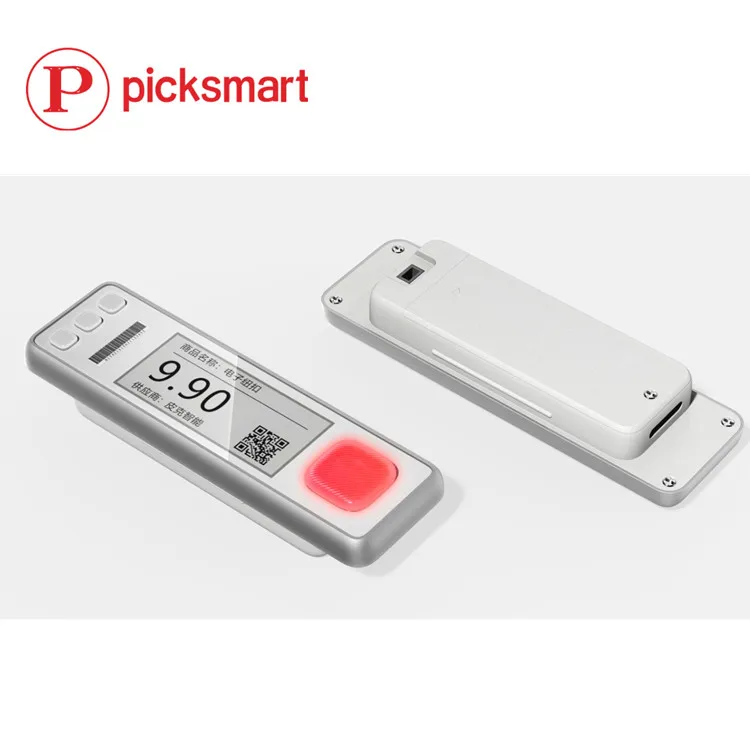

Product name | Pick To Light Electronic Shelf Label |
Brand | PICKSMART |

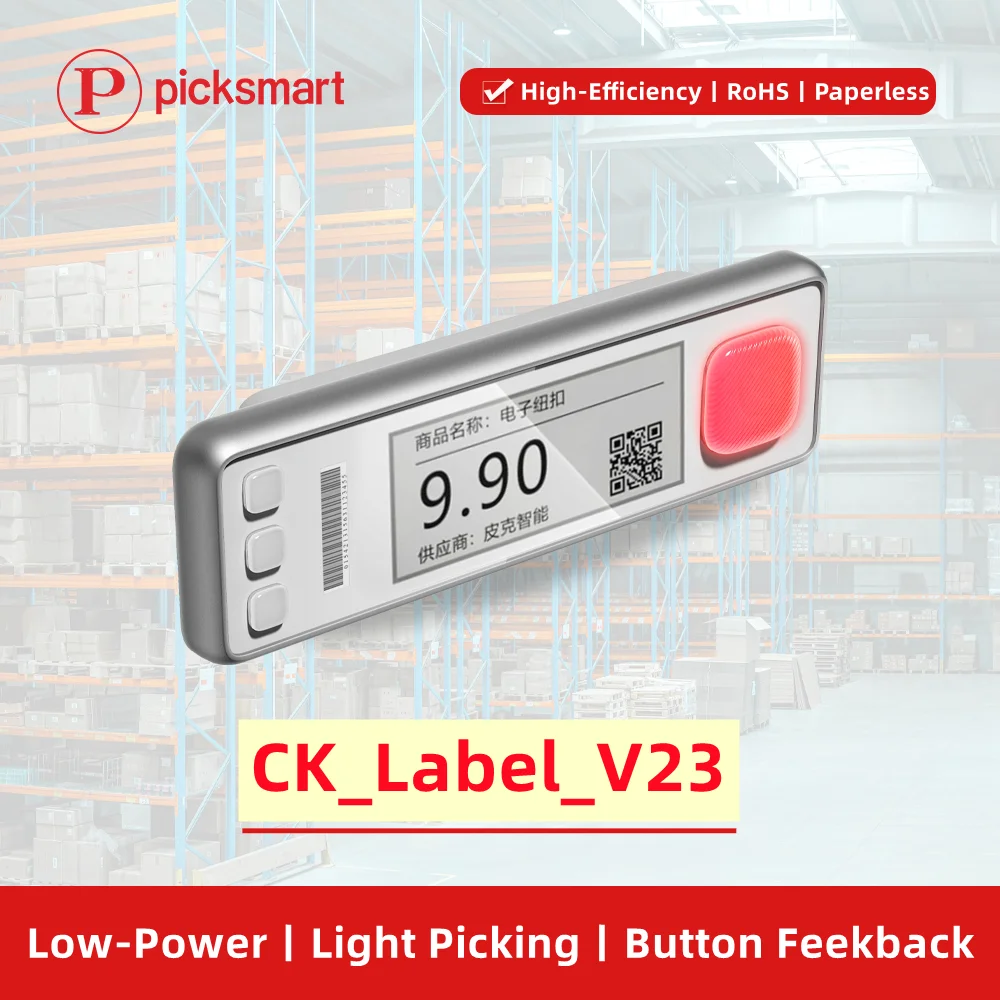

Model | CK_Label_v23_B/CK_Label_v23_E |

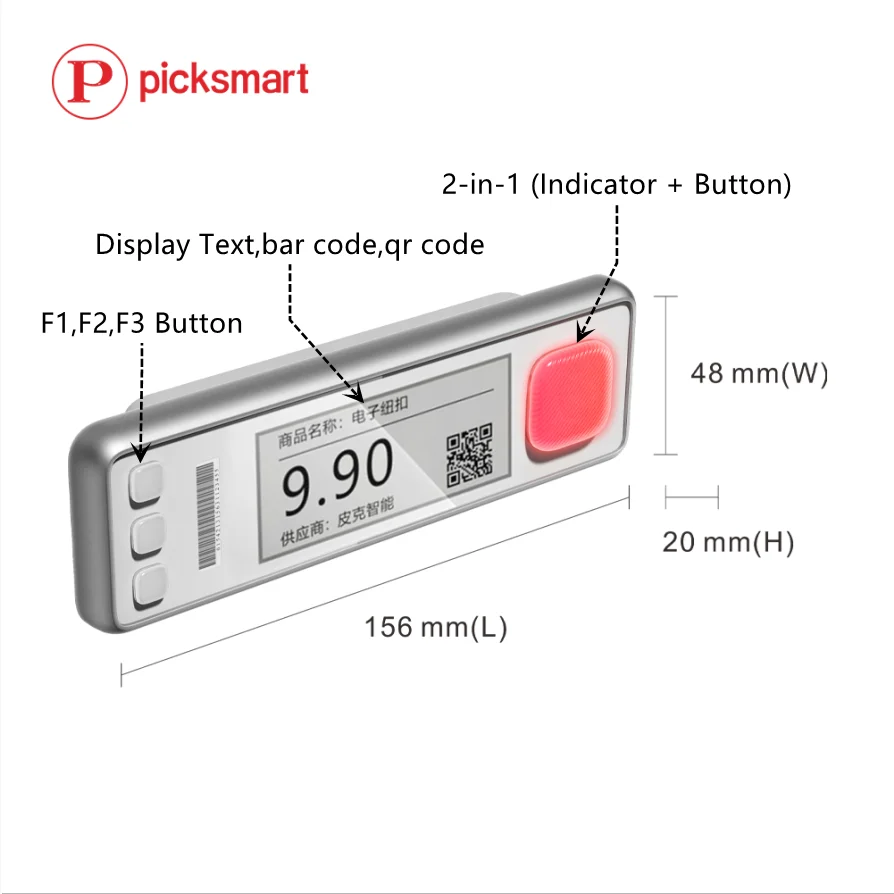

Dimension | 156x48x20mm/156x48x14.7mm |
Display Technology | Full Graphic E ink Display |
Pixel Color | Black & White |
Button | 4 Buttons |
Indicator Light | 4 RGB Lights |
Displayable Content | Text/Picture/Barcode/QRcode |
Power Supply | External power supply/Battery power supply |
Battery | Battery power (AA Battery*4),Replaceable |
Battery Lifetime | >3year (10 times per day) |
Communication Equipment | Controller: PICK_Controller_V1.4/PICK_Controller_V1.2 |

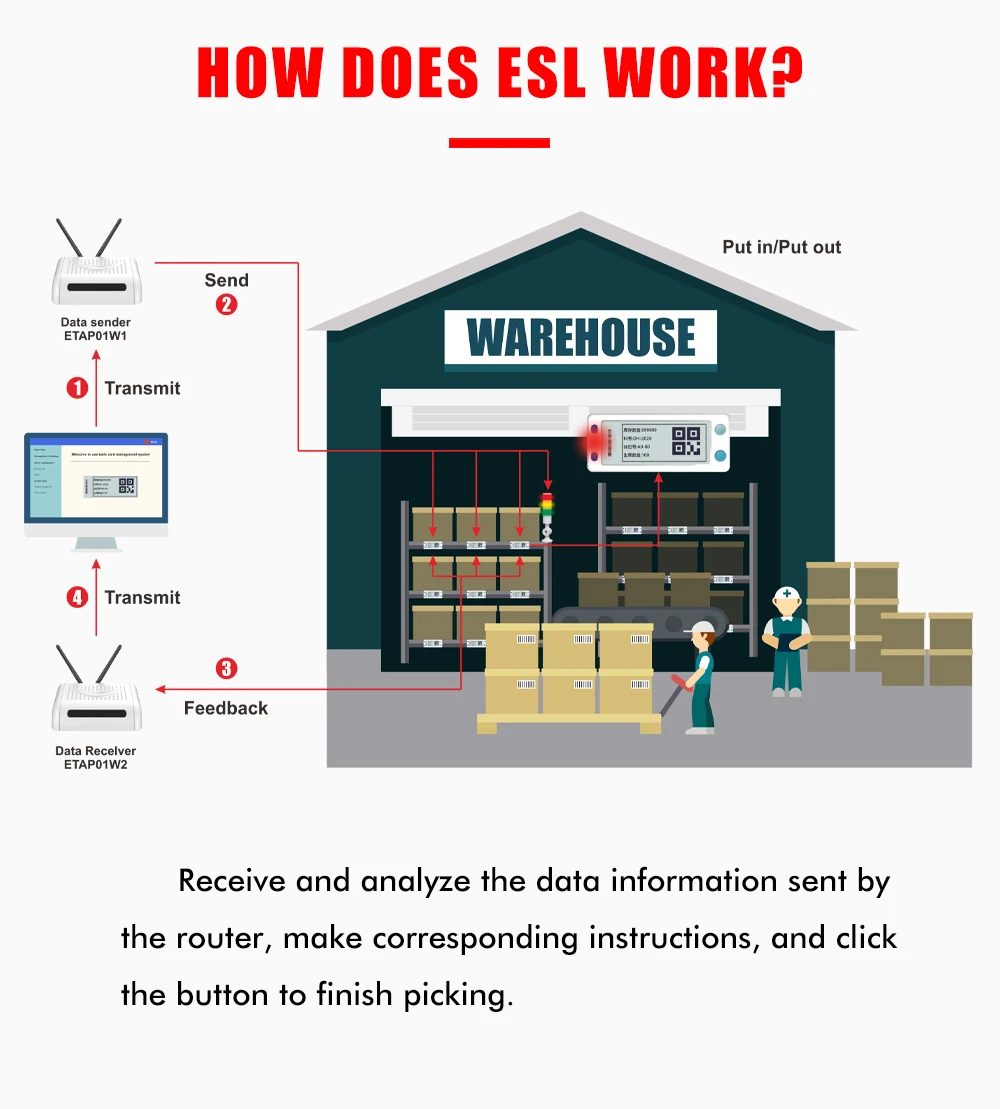

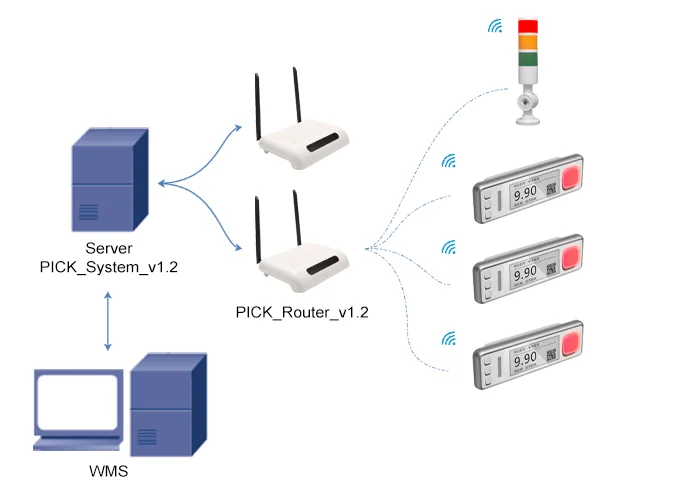

How the ESL Working?
The PTL Solution has two ways to work:
Solution①(Label management software+V1.2 Label Controllers+Picking tags): It is possible to remotely manage one or more stores (different locations) by installing an ESL software and using the API to connect to customers' system.
Solution②(V1.4 Label Controller+(+V1.2 Label Controllers)+Picking tags): V1.4 controller have integrated server and software device that it can work directly by connecting to the local network, without installing the software. It is very simple
and convenient to install in the local.
and convenient to install in the local.

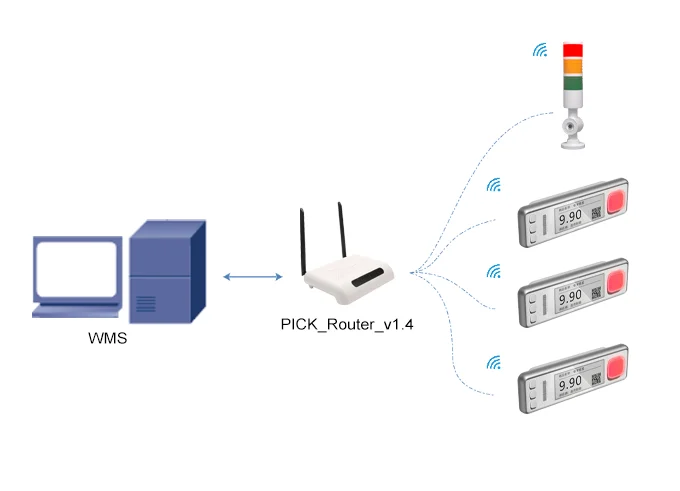

1.Data Source: The existing WMS system, ERP, MIS, etc. or manually inputting the information.
2.Label Controller:Using to download the orders or receive instructions from WMS and send information to the picking tags through the wireless network frequency 868MHz, and feed back the status information of the tag to the WMS. It is a Two-way transmission way.
3.Picking Tag:used to display the goods info, Bar code,quantity and send out indicating info.
4.Alarm Light:used in the working area to prompt the task to be done in the area.
3.Picking Tag:used to display the goods info, Bar code,quantity and send out indicating info.
4.Alarm Light:used in the working area to prompt the task to be done in the area.

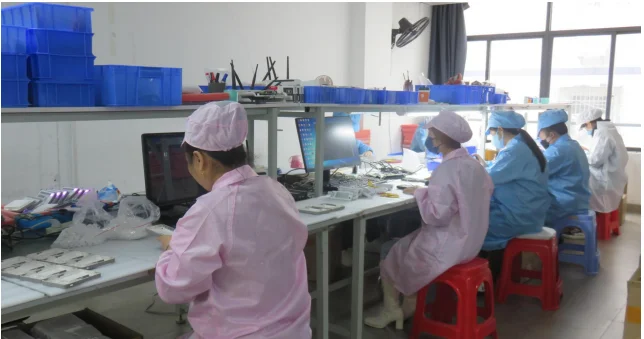

Company Profile
Picksmart is a global leading solution provider of intelligent hardware products and system, and is able to make independent R&D and innovation, software and hardware solution integration, and resources integration of the whole industry chain.Our Headquarter is in Shenzhen, China. Our businesses mainly focus on supermarket, retail, warehouse, medical and so on. Following the diversified development of retail industry, Picksmart had a deep insight base on the digital revolution of retail industry and internet field, insists our core motivation on innovation and R&D, provides our superio solutions and services, and helps our customers to build their core competence.
At present, Picksmart has developed its Smart ESL with the carrier of wireless IoT, with the special service and product of smart warehouse management system. Especially, it has gained a lot of experience on low power consumption wireless applications.
Picksmart takes innovation as motivation, takes market as orientation, takes efforts to build a special and core competitive
Hi-tech enterprise.
Our Services & Strength
Picksmart has developed its Smart ESL with the carrier of wireless IoT, with the special service and product of smart warehouse management system. Especially, it has gained a lot of experience on low power consumption wireless applications. We are good at low power system integration.
OEM is supported
ODM is supported
Picksmart takes innovation as motivation, takes market as orientation, takes efforts to build a special and core competitive
Hi-tech enterprise.
Our Services & Strength
Picksmart has developed its Smart ESL with the carrier of wireless IoT, with the special service and product of smart warehouse management system. Especially, it has gained a lot of experience on low power consumption wireless applications. We are good at low power system integration.
OEM is supported
ODM is supported
FAQ
A. Will the base station interfere with the wifi signal in the store?
Because the frequency band belongs to different, so there will be no interference to the WIFI signal in the store.
B.Do you have electronic tags of other technologies?
We currently have 2.4GHz, Bluetooth, NFC, WIFI, 868MHz five kinds of technology electronic label solutions.
C.What are the differences between different technology electronic tags?
*2.4GHz and 868MHz electronic tags need to be updated by base station, which can realize cloud multi-store management, omni-channel pricing and other functions, suitable for large supermarkets or chain stores.
*WIFI tags do not need to use base stations, can also realize multi-store management, but the stability is relatively poor, more suitable for use as an office door tag.
*BLE tags with low one-time investment, do not need to use base stations,simple deployment and easy operation, which cannot realize multi-store management and are suitable for small boutiques.
*NFC tags have two ways to use, one requires NFC server or installation of cloud software, can realize data docking, computer control, batch management.Another kind of mobile NFC requires customers to develop their own APP, and we will provide the agreement.
D. I want to develop my own software, do you provide SDK?
At present, Our product will provide an API integration protocol.
E. How about the lead time?
Sample order is usually 2-3 days, for bulk order is 1-3 weeks.
F. Can I become an agent distributor?
Yes, you are welcome to be our long-term partner, please contact us for specific agency details.
Because the frequency band belongs to different, so there will be no interference to the WIFI signal in the store.
B.Do you have electronic tags of other technologies?
We currently have 2.4GHz, Bluetooth, NFC, WIFI, 868MHz five kinds of technology electronic label solutions.
C.What are the differences between different technology electronic tags?
*2.4GHz and 868MHz electronic tags need to be updated by base station, which can realize cloud multi-store management, omni-channel pricing and other functions, suitable for large supermarkets or chain stores.
*WIFI tags do not need to use base stations, can also realize multi-store management, but the stability is relatively poor, more suitable for use as an office door tag.
*BLE tags with low one-time investment, do not need to use base stations,simple deployment and easy operation, which cannot realize multi-store management and are suitable for small boutiques.
*NFC tags have two ways to use, one requires NFC server or installation of cloud software, can realize data docking, computer control, batch management.Another kind of mobile NFC requires customers to develop their own APP, and we will provide the agreement.
D. I want to develop my own software, do you provide SDK?
At present, Our product will provide an API integration protocol.
E. How about the lead time?
Sample order is usually 2-3 days, for bulk order is 1-3 weeks.
F. Can I become an agent distributor?
Yes, you are welcome to be our long-term partner, please contact us for specific agency details.
