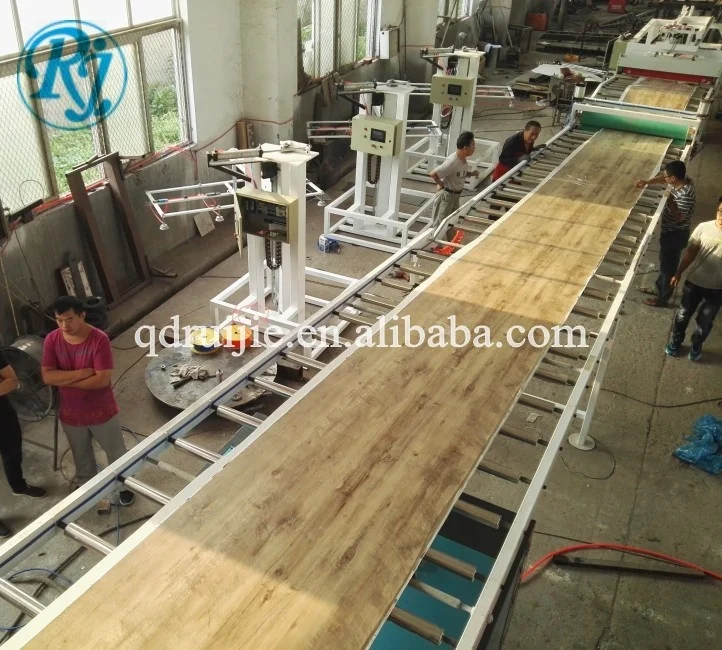

spc floor tile machine spc floor vinyl production line PVC flooring sheet machine
- Category: >>>
- Supplier: Qingdao Ruijie Plastic Machinery Co. Ltd.
Share on (1600738340200):
Product Overview
Description
Advantage of SPC :
1)As the main component of SPC is stone powder, so it performs well with water, and mildew will not happen with high humidity.
2)Fire Retardant According to the authorities, 95% of the victims were burned in the fire caused by the toxic fumes and gases. The fire rating of SPC flooring is NFPA CLASS B. Flame retardant, not spontaneous combustion, leave the flame automatic out in 5 seconds, won't produce toxic of harmful gases.
3)No Formaldehyde SPC is high quality stone power & PVC resin, without harmful material such as benzene, formaldehyde, heavy metal.
4)No Heavy Metal, No Lead Salt The Stabilizer of SPC is Calcium zinc, no lead salt heavy metal.
5) Dimensionally Stable Exposed to 80° heat, 6 hours---Shrinkage ≤ 0.1%; Curling ≤ 0.2mm
6) High Abrasion SPC flooring has a transparent wear-resisting layer, whose revolution is up and higher than 10000 turns.
7) Superfine Anti-sliping SPC flooring has special skid resistance and wear-resisting layer of the floor. Compared with common floor,SPC flooring has higher friction when it's wet.
8) Low requirement of subfloor Compared to traditional LVT, SPC flooring has a distinct advantage because it is rigid core, which can hide many imperfections of subfloor.
Item | Machine | QTY |
1 | Automatic Additives Batching Machine | 1 set |
2 | SRL-Z2000/6000 Inverter Control High Speed Mixing and Cooling Machine with vacuum feeder and dust collection | 1 set |
3 | 3 Cube meter silo | 1set |
4 | SJSZ110/220 SPC Flooring Production Line | 1 set |
5 | UV coating machine | 1 set |
6 | Multiple saw slitter with knives | 1 set |
7 | Chinese Slotting machine | 1set |
8 | VZZ402-3 Plate Turnover Machine | 1 set |
9 | CJP482 Electrostatic Dust Collector | 1 set |
10 | Slotting tools (Chinese brand) | 1 set |
11 | Connection parts for Slitter and Tenoner | 1 set |
12 | SWP1000 Crusher | 1 set |
13 | Environment friendly-SMP800 Miller | 1 set |
14 | Semi-auto packing machine | 1 set |
15 | Flooring backside laminating line | 1 set |
16 | Slotting machine Dust-collection systems | 1 set |
The working process of WPC production line:

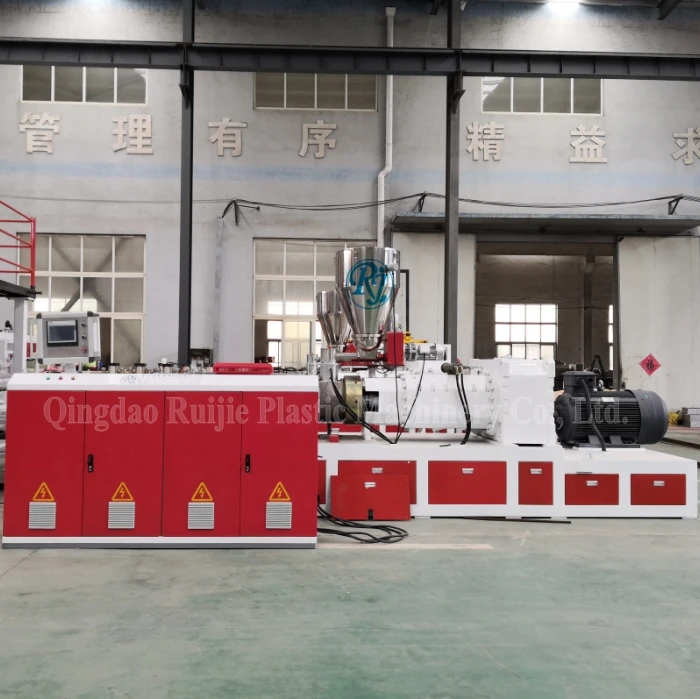

SJSZ110/129 conical double screw extruder
SJSZ92/188
Motor: 37kw
Capacity: 900-1200KG/H
Heating by electricity
cooling by blowing fan

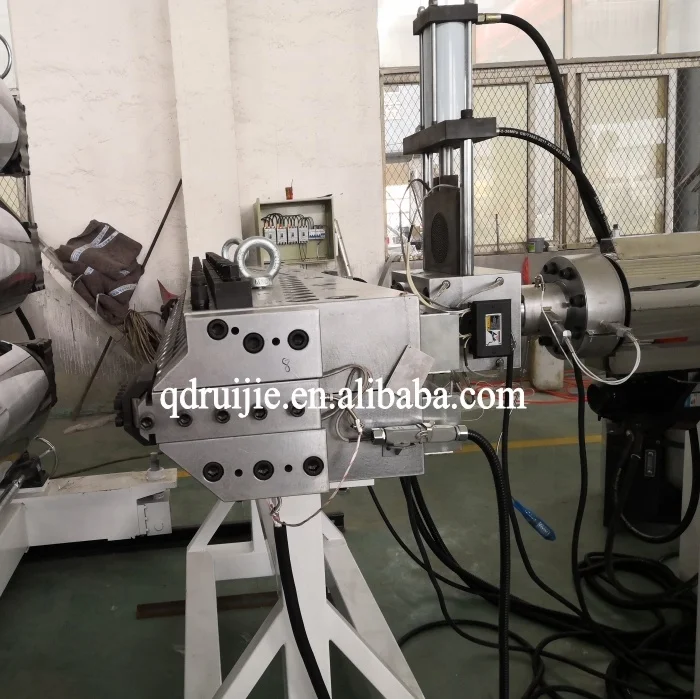

Mould
Mould Structure \tClothes bracket
Mould Valid Width and Thickness\tWidth:1050mm,Thickness3-8mm
Heating Zone \t7 zones
Heating Power \t21KW
Mould Valid Width and Thickness\tWidth:1050mm,Thickness3-8mm
Heating Zone \t7 zones
Heating Power \t21KW

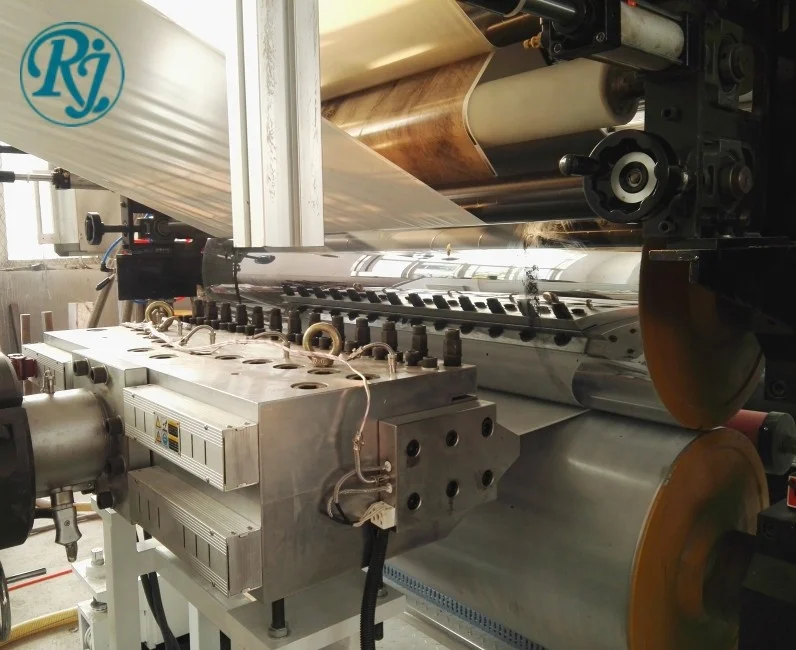

5-roller calender
include lamination，PLC control
Temperature Controller \t
Cooling Medium \tOil
Temperature Range \t35－180℃
Temperature Accuracy \t≤±1℃
Controlling Method \tRecycle separately
Power \t5*15KW
Cooling Medium \tOil
Temperature Range \t35－180℃
Temperature Accuracy \t≤±1℃
Controlling Method \tRecycle separately
Power \t5*15KW
Three roller calendaring machine for SPC extrusion line
The roller diameter: 400mm,
length: 1450mm,
the roller is bilayer structure
roller control: separately control
Edge cutting device for SPC extrusion line
Edge Cutting Machine \t
Valid Cutting Width\t1300mm
Blade 6CrW2Si high alloy steel, long life
Valid Cutting Width\t1300mm
Blade 6CrW2Si high alloy steel, long life

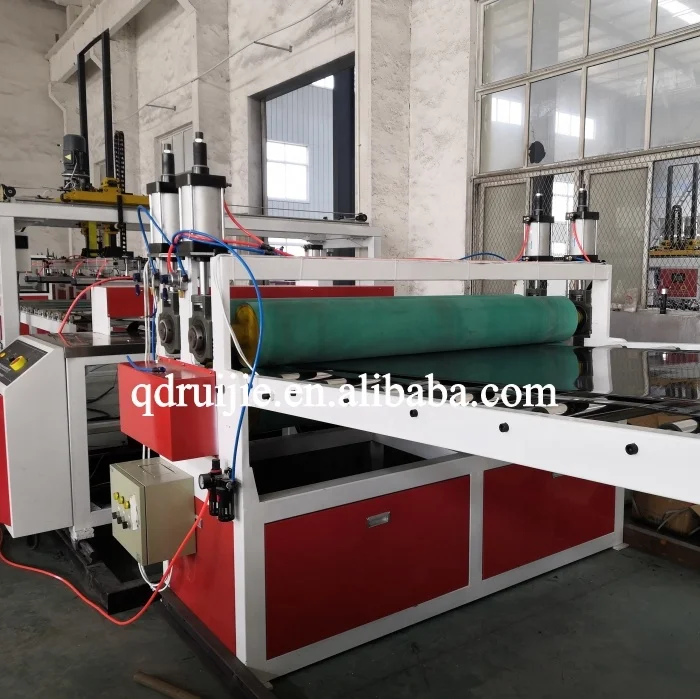

Haul-off Machine
Haul-off Machine
Size of Rubber roller \tΦ250mmx1400mm
Quantity \tOne pair, synchronous traction
Drive \tFrequency control motor
Motor Power \t1.5kw
Size of Rubber roller \tΦ250mmx1400mm
Quantity \tOne pair, synchronous traction
Drive \tFrequency control motor
Motor Power \t1.5kw
Cutting Machine
Cutting Machine Valid Cutting Width 1300mm Blade 6CrW2Si high alloy steel, long life

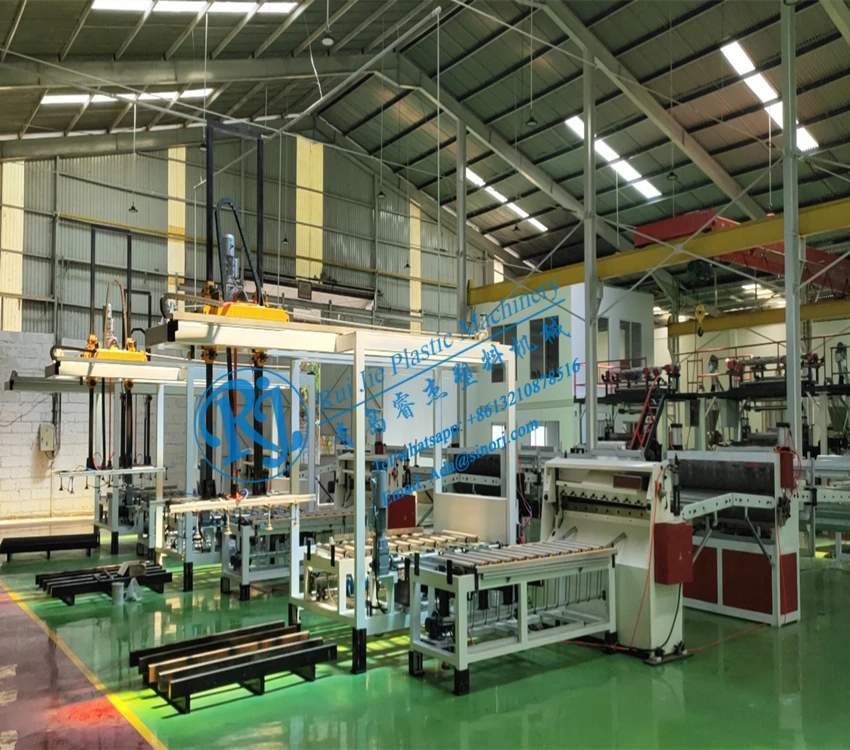

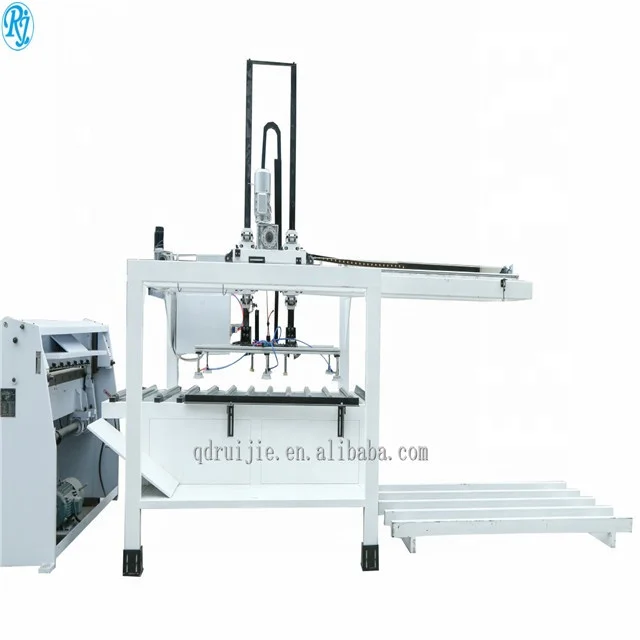

Full-automatic stocker
Specification
3600×1800mm
3600×1800mm
Qingdao Ruijie Plastic Machinery Co., Ltd. is located in Jiaozhou Town ,Qingdao City ,Shandong Province . It takes about 30 minutes from the company to Qingdao airport . With multiple high-speed roads go across Jiaozhou Town ,the traffic is very convenient.
Company Certificates:Ruijie Plastic Machinery Company has passed ISO9001 Quality Management System Certificate, ISO4001 Environmental Management System Certificate , CE Certificate and other certificates.
Company Philosophy:Ruijie Plastic Machinery Company takes the technology as the most important and makes the better machine. We owns the business philosophy of directing by market ,living on the machine quality, developing on the innovation. We try to create value for clients and grow together with clients.
Company Certificates:Ruijie Plastic Machinery Company has passed ISO9001 Quality Management System Certificate, ISO4001 Environmental Management System Certificate , CE Certificate and other certificates.
Company Philosophy:Ruijie Plastic Machinery Company takes the technology as the most important and makes the better machine. We owns the business philosophy of directing by market ,living on the machine quality, developing on the innovation. We try to create value for clients and grow together with clients.
1. who are we?
We are based in Shandong, China, start from 2010,sell to South Asia(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC WPC Board machine,PE pipe produciton line,PVC Pipe extruder,WPC Profile extrusion line,Single wall corrugated pipe machine
We are based in Shandong, China, start from 2010,sell to South Asia(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC WPC Board machine,PE pipe produciton line,PVC Pipe extruder,WPC Profile extrusion line,Single wall corrugated pipe machine
