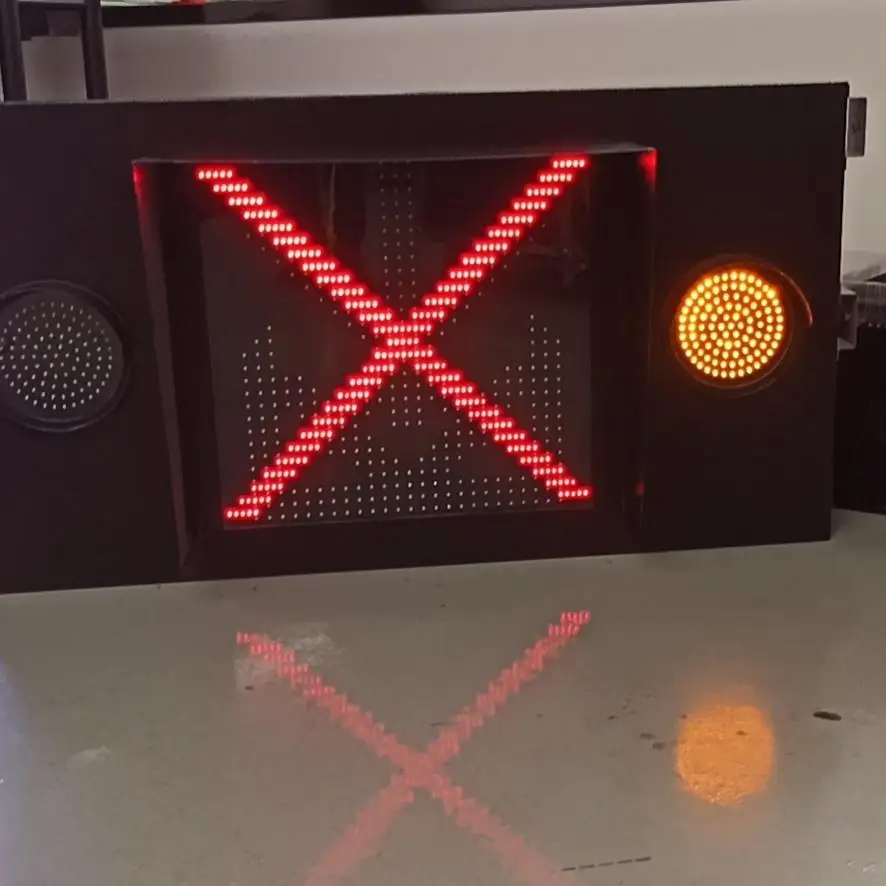

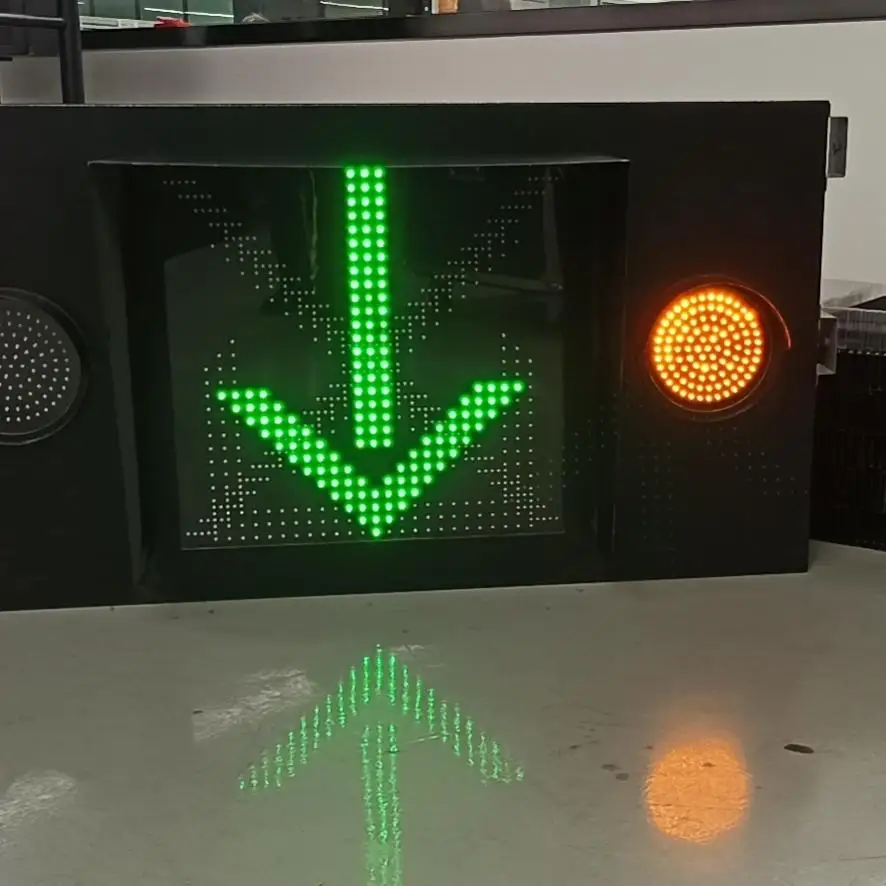

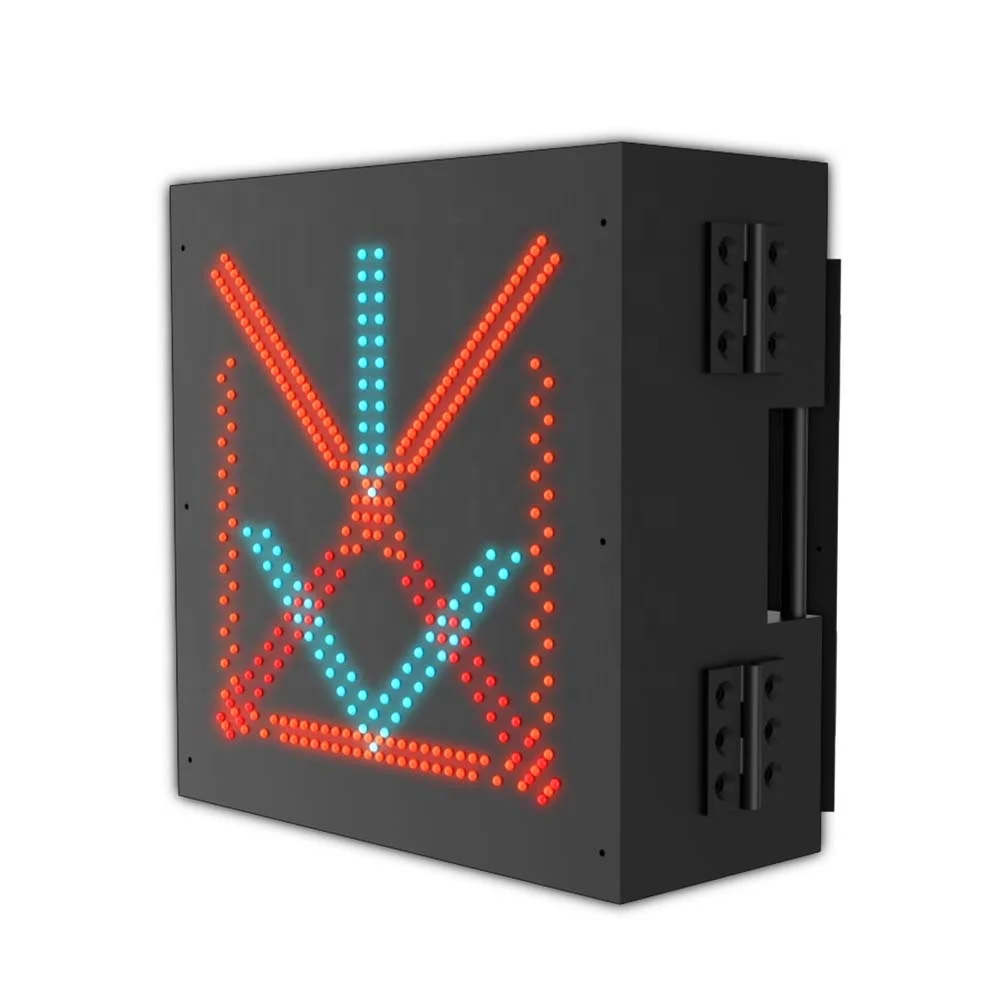

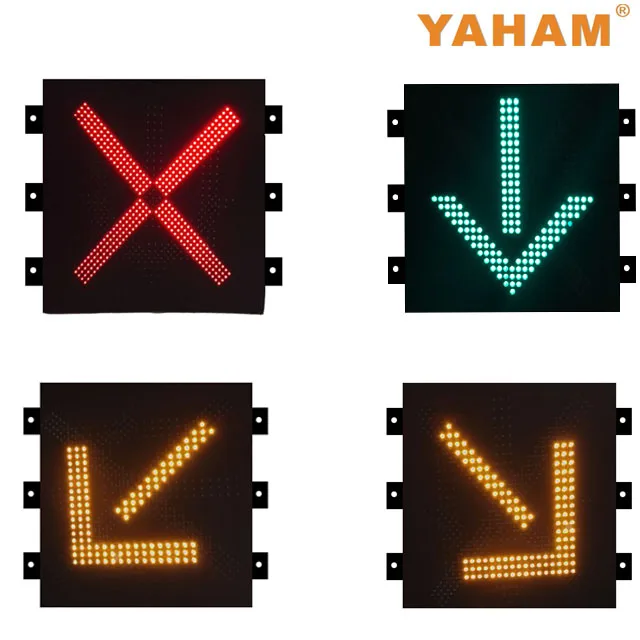

Traffic signs led arrow light signal traffic road led sign lane control left right Arrow stop LED board variable messsage sign
- Category: >>>
- Supplier: YAHAM OPTOELECTRONICS CO. LTD
Share on (1600738361208):
Product Overview
Description
YAHAMYaham Optoelectronics Co.，Ltd. SLSseries
VR
New Integrated Optical Len
Improved flatness
Instead of manually implanting optical len one by one, new module comes all the lens are moduled in one piece, resulting in perfect module flatness
High color consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the color more consistent and content more readable.
Better contrast ratio
The surface of each optical len is designed with carved strips that could reduce light reflection.
Effortless replace
Thanks to the integrated optical len design, no glue coating on the PCB is required, making diode or driver replacement much easier than before.
Thinner cabinet
New OT16 and OT20 modules measure only 40mm and 35mm thick respectively, 50% thinner than the previous generations, facilitating
installation.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
Specifications
Item | YHT-SLS-OT10 | YHT-SLS-OT12 | YHT-SLS-OT16 | YHT-SLS-OT20 | YHT-SLS-OT25 | YHT-SLS-OT31.25 | |||||
Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm | |||||
LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | |||||
Pixel density | 10000 pixels/㎡ | 6944 pixels/㎡ | 3906 pixes/㎡ | 2500 pixels/㎡ | 1600 pixels/㎡ | 1024 pixels/㎡ | |||||
Module dimension | 320x160mm | 192x192mm | 256x128mm | 320x160mm | 200x200mm | 250x250mm | |||||
Module resolution | 32x16 | 16x16 | 16x8 | 16x8 | 8x8 | 8x8 | |||||
Cabinet material | 2mm aluminum Alloy | ||||||||||
Screen weight | 65kg/㎡ | 65kg/㎡ | 65kg/㎡ | 65kg/㎡ | 65kg/㎡ | 65kg/㎡ | |||||
Cabinet dimension | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm | 1000x1000mm | 1000x1000mm | |||||
Brightness | L3,L3*:EN12966(Red:>3100nits,Green>3720nits,Blue>1240nits,Amber>7440nits,Whiter>12400nits) | ||||||||||
Driving method | 2S | 2S | Static | Static | Static | Static | |||||
Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 | |||||
Color coordinates | C2:EN12966 | C2:EN12966 | C2:EN12966 | C2:EN12966 | C2:EN12966 | C2:EN12966 | |||||
Viewing angle | H 15/-15 Deg./V 8/-10 Deg(B6:EN12966) | ||||||||||
Contrast ratio | R2:EN12966 | R2:EN12966 | R2:EN12966 | R2:EN12966 | R2:EN12966 | R2:EN12966 | |||||
Refresh rate | >90+Hz | >90+Hz | >90+Hz | >90+Hz | >90+Hz | >90+Hz | |||||
Display control | Asynchronous control system available | ||||||||||
Signal transfer | Cat 5 Network Cable,RS232,RS485 optional | ||||||||||
Display capacity | Text,image,graphics animations | ||||||||||
Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | |||||
Power supply | 12-24V DC/110-230V AC | ||||||||||
Max.Power consumption | 400W/㎡ | 380W/㎡ | 250W/㎡ | 220W/㎡ | 220W/㎡ | 220W/㎡ | |||||
Avg.Power consumption | 130W/㎡ | 120W/㎡ | 80W/㎡ | 70W/㎡ | 70W/㎡ | 70W/㎡ | |||||
Operation temperature | -25~+60℃ | -25~+60*℃ | -25~60℃ | -25~60℃ | -25~60℃ | -25~60℃ | |||||
Storage temperature | -40~+80C | -40~+80℃ | -40~80C | -40~80C | -40~80C | -40~80C | |||||
Operating humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | |||||
Store humidity | 15%~95% | 15%~95% | 15%~95% | 15%~95% | 15%~95% | 15%~95% | |||||
Protection level | IP56(P3:12966) | ||||||||||
Maintenance method | Rear service | ||||||||||
EN12966 | compliance | ||||||||||
Product Feature and Advantages

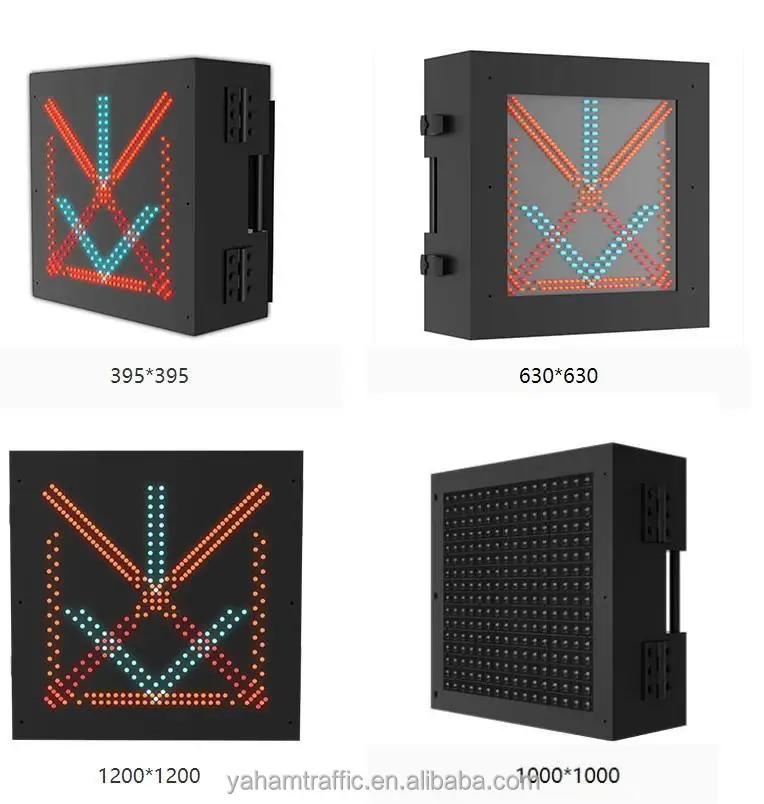

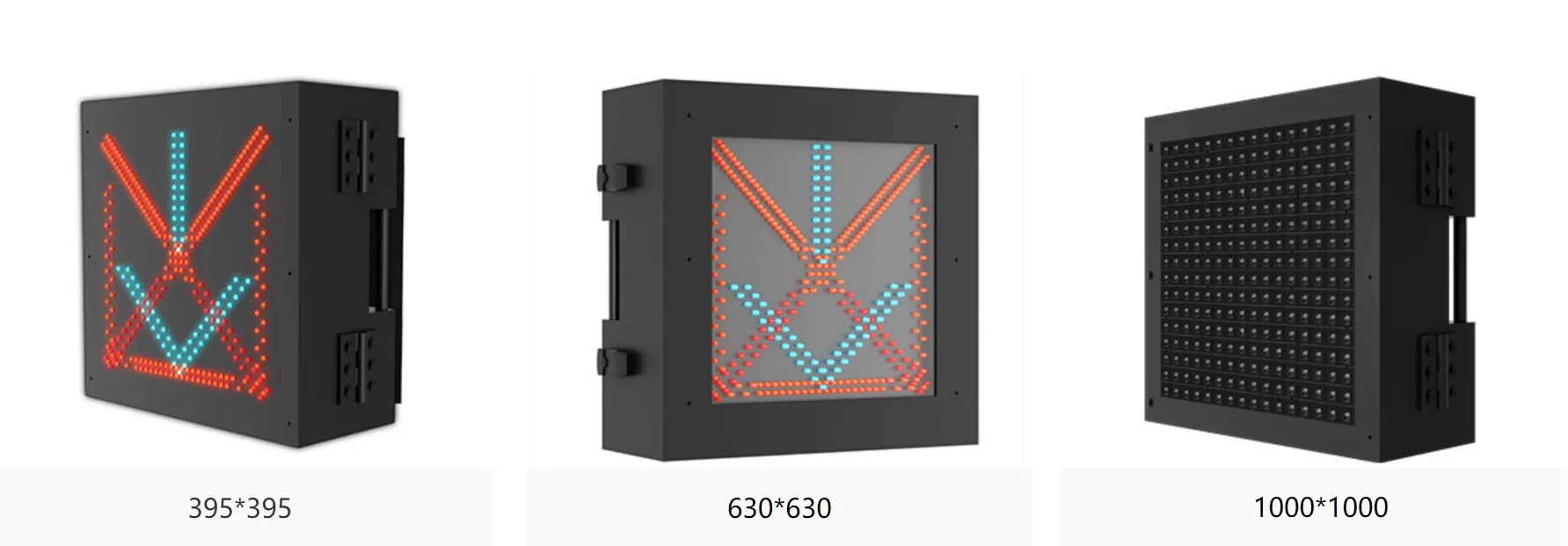

Customized color and sizes
Yaham LCS is a highly customized product with color availability including monochrome, full-color and dual-color. Available in variety of sizes and cabinet colors Networkable with other displays and controllers.
Global positioning system
Each LCS is paired with GPS, locations and SLS amount could be simply apparent to your eye.

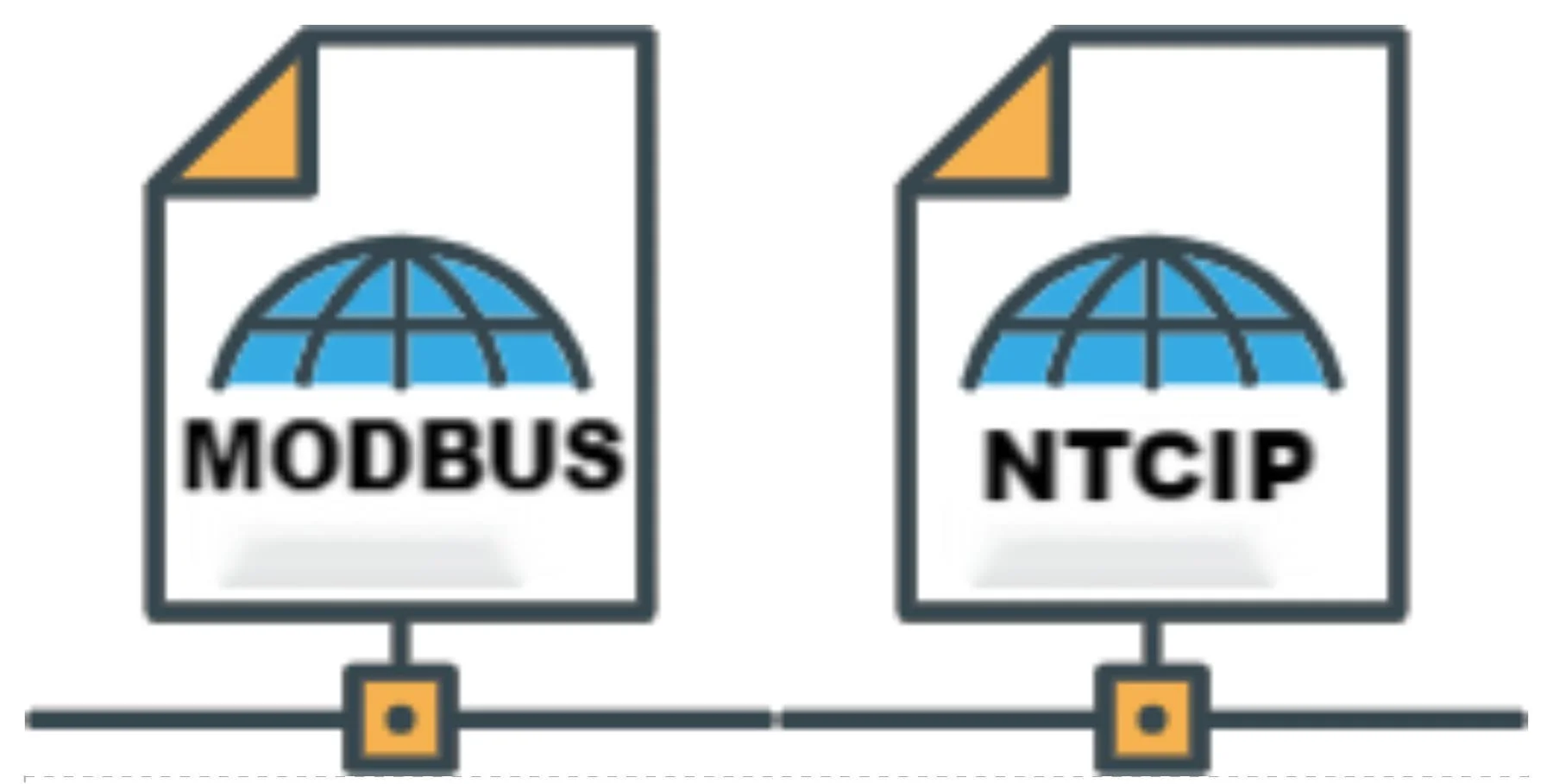

NTCIP and MODBUS based
Yaham traffic information displays are programmed based on the world two most prevailing 1.programmed NTCIP (National Transportation Communications for ITS protocol) and Modbus, more than just that, we also provide customized protocol if necessary.
Self-diagnosis and failure report
Yaham SLS can activate self-diagnosis and report health status, monitor can identify equipment health status, current message ID, current operating mode temperature, humidity, etc.
Wireless and remote control
Messages, photos are capable of being edited and displayed remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Auto dimming
Probes are applied to the front and back of the display. It can ensure that the display brightness will change accordingly whether
sun exposure to the back of the screen or front.
sun exposure to the back of the screen or front.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Dust proof

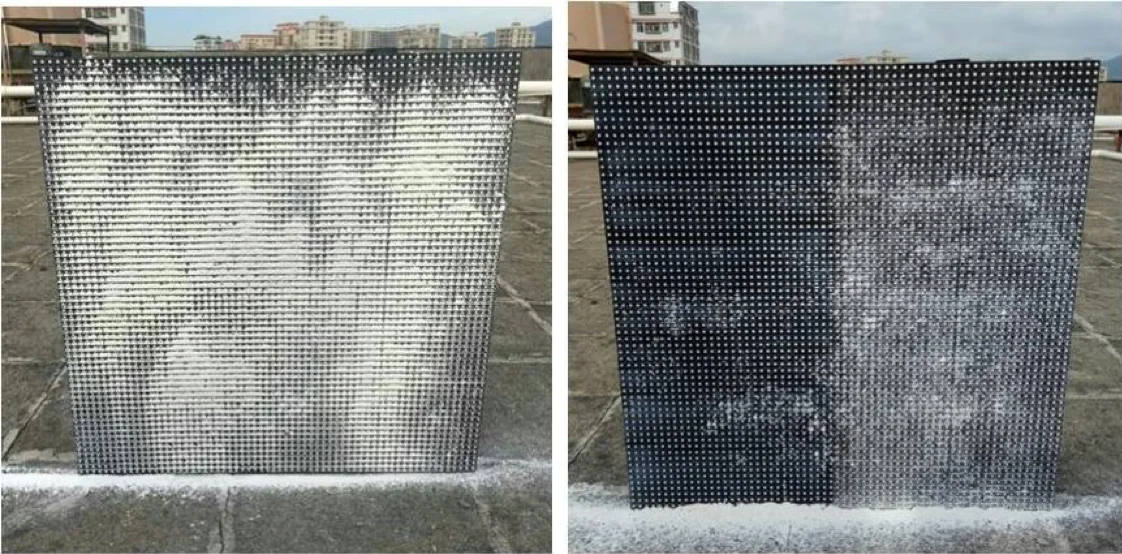

A protection layer shall be formed on the surface of the LCS by applying a patented nano technology, to avoid detain or accumulation of dust or other large particles from air. Hereafter is a comparison of test results within 24h after spraying of talc powder on the surface of LED matrix with (right) and without (left) nano material.
LED Module Sample Picture
Applications and Cases

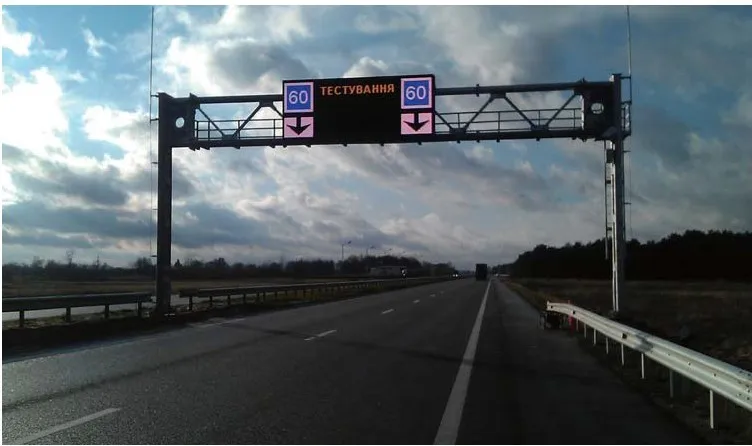

Highway lane control sign
Lane control sign are widely used in traffic system. The control center can update real time traffic information on LCS, so drivers will know road conditions the first time, which will ensure safety and efficiency. Yaham Optoelectronics Co., Ltd. has served LED display field for over ten years. As one of leading LED visual solution provider in China, Yaham are committed to producing high reliability, long operation life and energy saving LED display and VMS products, it have ability to endure the harsh conditions of life in outdoor. We promise our product is your best choice.
Poland
United Kingdom
Russia
Why Choose Us
Company Profile
Yaham Optoelectronic Co., Ltd (Yaham) is a company creates led display, led traffic signage and led lighting, today, the Yaham Optoelectronic is based in Yongwei Industrial Park, Shenzhen, Guangdong, where the products are designed and manufactured for the market all over the world. Our mission is to draw upon a spirit of artisanship and perfectionism to create the most reliable and custom-designed integrated led display system, as of now, we have brought the Yaham's light to more than 112 countries. Since 2002, Yaham has been the pioneer of led display technology and was the first to provide custom-designed display system for the world A-list brand like Luis Vuitton. It is our passion to continuously reinvent the way you display by our constantly upgraded led display technology.
Certified and Patented Technology
Product Packaging and Deliver
Customer visit and Evaluation
Contact US
Company Name | Yaham Optoelectronic Co., Ltd. |
Tell | +86-755-29371701 +0086 13713851062(vivi) +0086 18320992371(nina) |
Email | sales@yahamtraffic.com vivi@yaham.com nina@yaham.com |
Add | Floor 1 -6 Of Building A, Floor 3 Of Building B And Floor 1 -2 Of Building D Of Yongwei Industrial Park, 118 Yongfu Road, Shenzhen, Guangdong, China |
Website | //www.yaham.com //www.yahamtraffic.com |
FAQ
Q1.Can I have a sample order for your company products?
A: Yes, we welcome sample order to test and check quality. one set sample is acceptable.
Q2. What about the lead time?
A:sample order needs 10 days ,40 days for order quantity more than 100 units.
Q3. Do you have any MOQ limit for this product order?
A:Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL, UPS, FedEx or TNT for sample, It usually takes 3-5 days to arrive. Airline and sea shipping also
optional for the qty order
Q5. How to proceed an order for led display?
A: 1. let us know your requirements or application and your car parameters
2. We quote according to your requirements or our suggestions.
3. confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.How to deal with the faulty?
1.Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
2. we will send the extra parts along with the goods for you
About the defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation
Q8. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
For further information, feel free to contact VIVI and NINA.
