Rear view Monitor 12.3 Inch IPS HD 1080P Trailer Bus Camera Display Digital Rearview E side Mirror
- Category: >>>
- Supplier: Shenzhen Mingzhiyuan Technology Co. Ltd.
Share on (1600738412166):
Product Overview
Description
Related Products
Specification

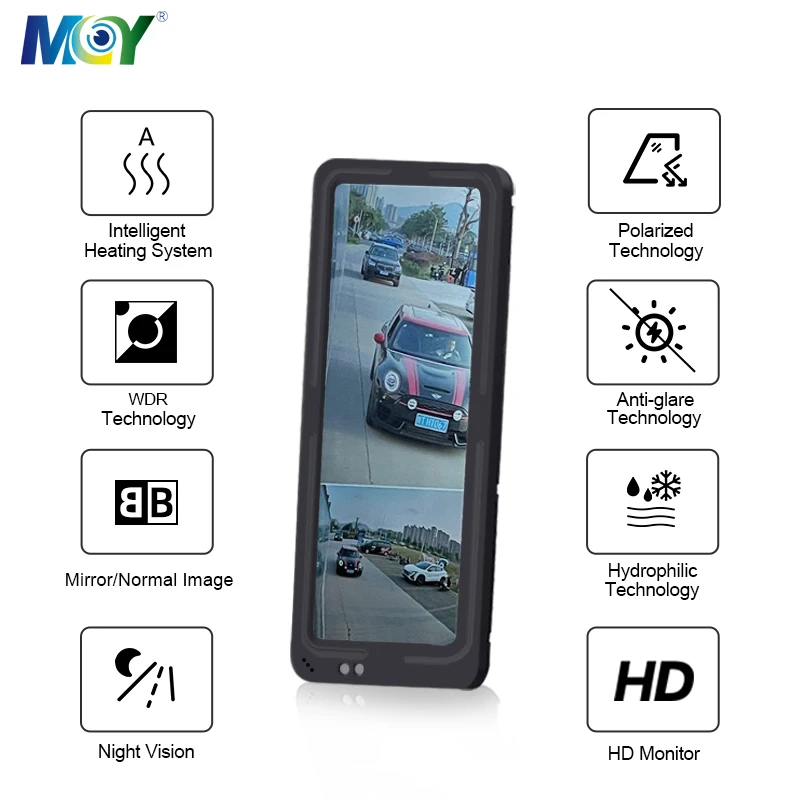

FEATURES:

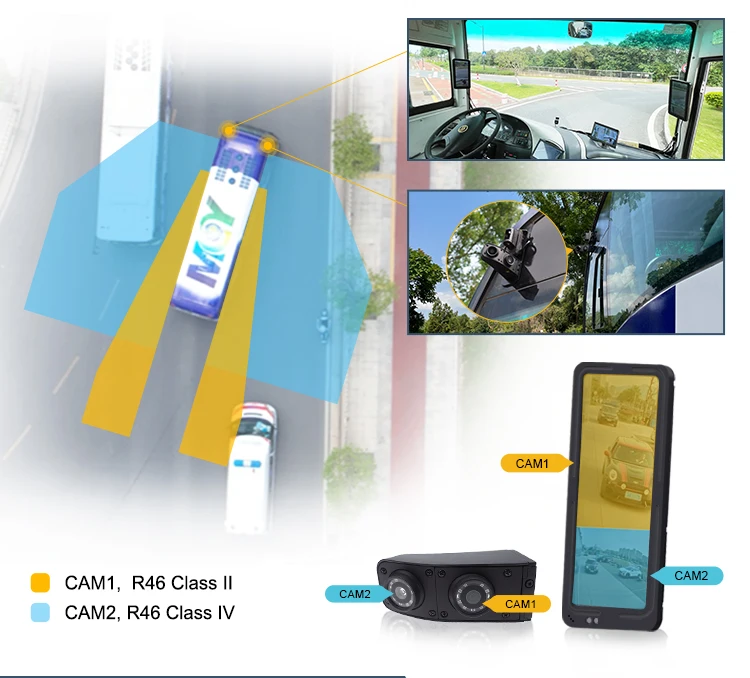

MCY 12.3inch E-Side Mirror System is designed for replacing traditional rearview mirror. The system collectes image from dual lens
camera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3inch screen fixed on
the A-pillar inside the vehicle, and then display on the screen.
* WDR for capturing clear and balanced images/videos

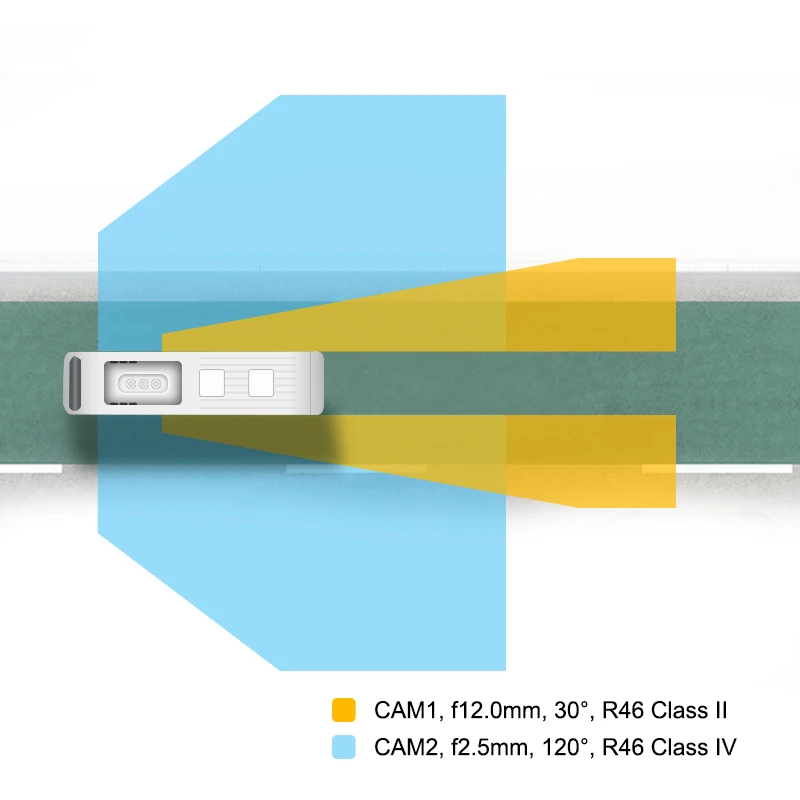

* Class II and Class IV view to increase driver visibility
* Hydrophilic coating to repel water droplets
* Glare reduction to lower eye strain
* Automatic heating system to prevent icing (for option)
* BSD system for road users detection (for option)
* Support SD card storage (max. 256GB) (for option)
MCY 12.3inch E-Side Mirror System is designed for replacing traditional rearview mirror. The system collectes image from dual lens
camera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3inch screen fixed on
the A-pillar inside the vehicle, and then display on the screen.
* WDR for capturing clear and balanced images/videos
* Class II and Class IV view to increase driver visibility
* Hydrophilic coating to repel water droplets
* Glare reduction to lower eye strain
* Automatic heating system to prevent icing (for option)
* BSD system for road users detection (for option)
* Support SD card storage (max. 256GB) (for option)
Specification of 7 inch TFT Wireless Monitor | ||||||
Product Name | Model | Specification | QTY | |||
12.3inch Monitor | TF1233-02AHD-1 | 12.3inch (8:3) IPS Screen, metal housing, PAL/NTSC/AUTO | 1 | |||
Dual Lens Camera | MSV18-20EM-25-M&20EM-12-M | Dual lens camera (both looking back), AHD 1080P, WDR, mirror image, IP69K Waterproof, PAL OR NTSC | 1 | |||
*Note: If you need any accessories to complete the system, kindly let us know. Thank you! | ||||||

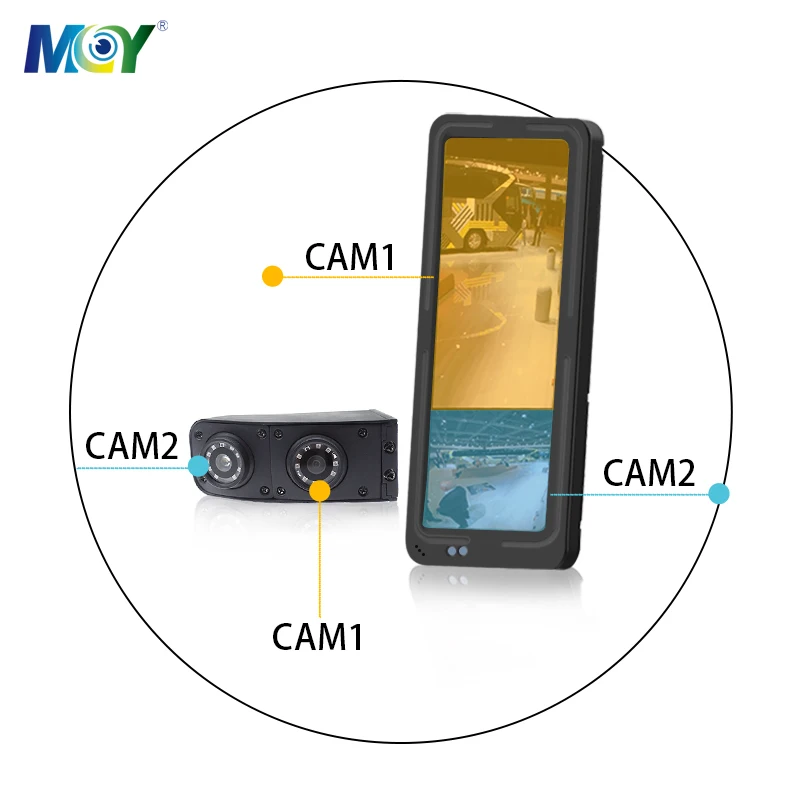

1: 12.3inch Electronic Rearview Mirror Monitor | ||
Model | TF1233-02AHD-1 | |
Screen Size | 12.3 inch (8:3) IPS | |
Resolution | 1920 * 3 (RGB) * 720 Pixel | |
View Angle | L: 85° / R: 85° / U: 85° / D:85° | |
Active Area | 292.32 (H) * 109.62 (V) [mm] | |
TV System | PAL&NTSC (Auto) | |
Brightness | 750cd/m2 | |
Contrast | 1000:1 | |
Operation Method | Remote Control | |
Language | Simplified Chinese/ English | |
Power Supply | DC10V-32V | |
Power Consumption | MAX 25W | |
Working Temperature | -40℃~75℃ | |
Storage Temperature | -40℃~75℃ | |
Signal Interface | 4pin Din Aviation Male Connector (1. +12V; 2. GND; 3. NC; 4. VIDEO) | |
Video Input | 2ch Video Input (AHD 720P/1080P) | |
Housing Material | Metal | |
Outer Dimension | 343mm*160mm*31.5mm(L*W*H) | |
Net Weight | 1035g | |
2:Dual Lens Side View Camera | ||||
Model | MSV18-20EM-25-M&20EM-12-M | |||
TV System | PAL/NTSC (optional) | PAL/NTSC (optional) | ||
Picture Elements | 1920 (H) x 1080 (V) | 1920 (H) x 1080 (V) | ||
Sensitivity | 0.01 Lux | 0.01 Lux | ||
Scanning System | Progressive scan RGB CMOS | Progressive scan RGB CMOS | ||
Synchronization | Internal | Internal | ||
S/N Ratio | More than 46dB (AGC Off) | More than 46dB (AGC Off) | ||
Auto Gain Control (AGC) | Auto | Auto | ||
Electronic Shutter | Auto | Auto | ||
BLC | Auto | Auto | ||
Infrared Spectrum | n/a | n/a | ||
Infrared LED | n/a | n/a | ||
Video Output | 1 Vp-p, 75Ω,AHD | 1 Vp-p, 75Ω,AHD | ||
Audio | N/A | N/A | ||
Mirror | Available | Available | ||
ICR | N/A | N/A | ||
Noise Reduction | 3D | 3D | ||
Dynamic range | 120 dB | 120 dB | ||
Lens | f2.5mm Megapixel | f2.5mm Megapixel | ||
Power Supply | 12V DC±10% | 12V DC±10% | ||
Power Consumption | 85mA(Max) | 185mA(Max) | ||
Dimensions | 150 x 60 x 83.9 mm | |||
Weatherproof/Water Proof | IP69K | |||
Operating Temperature | -30° C ~ +70 ° C | |||
Product Description

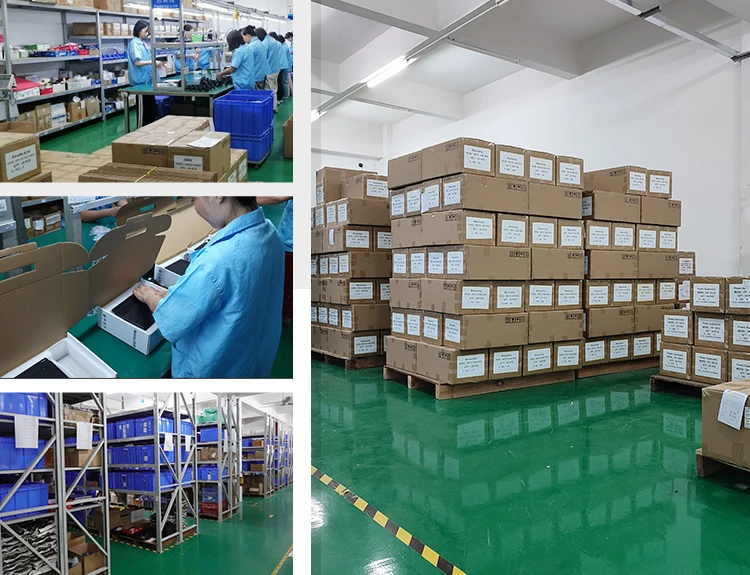

Packing & Delivery
Company Profile
Shenzhen Mingzhiyuan Technology Co., Ltd. founded in 2018, is a high-tech enterprise specialized in researching, developing, manufacturing and selling vehicle monitoring systems. MCY specializes in the production of in-vehicle mini cameras, vehicle monitoring system, ADAS and Anti Fatigue system, network monitoring system,180 degree back up system, 360 degree surround view monitoring system, MDVR, mobile TFT monitor, cables and other series products.

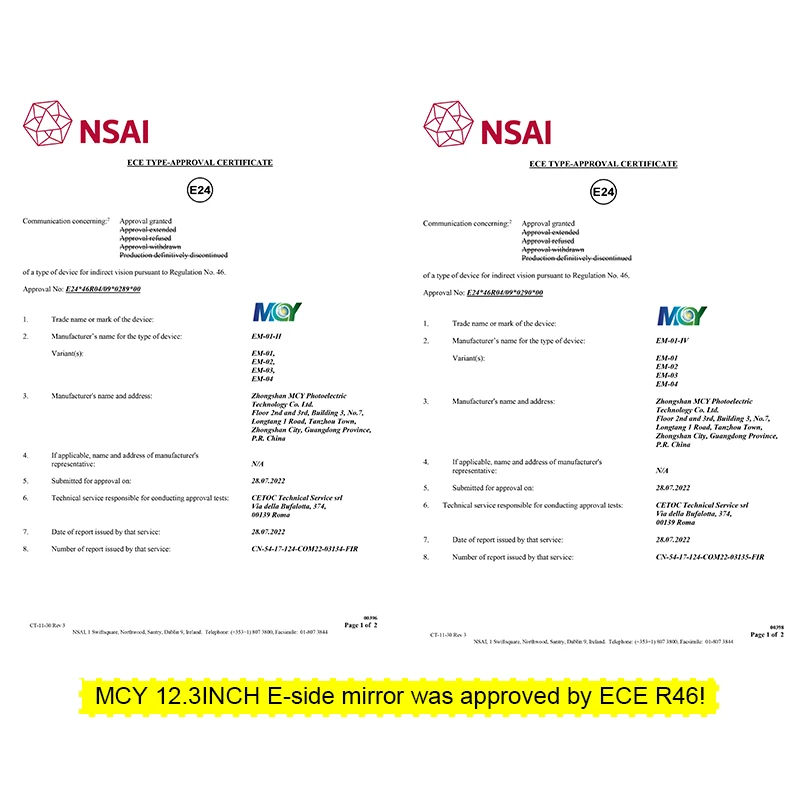

Certifications
Exhibition
FAQ
Q1. What is your terms of packing?
A: Packing goods in neutral white boxes and brown cartons. If you have OEM package, please let us know.
Q2. How about your lead time?
A: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: We offer samples, with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
A: T/T(Bank transfer), PayPal, Western Union.

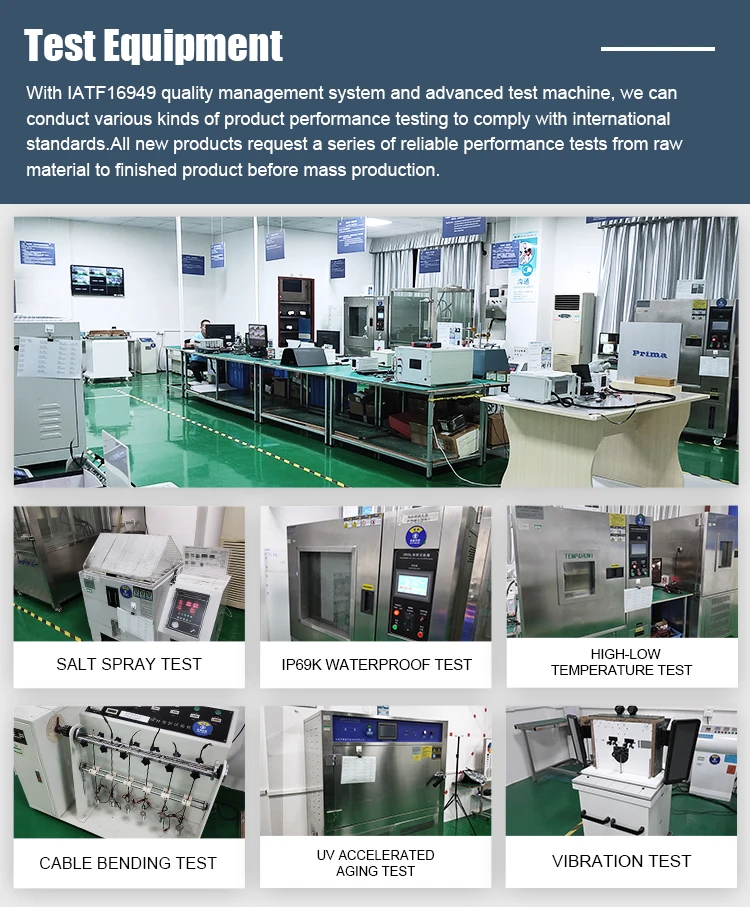

Q5. Do you test all your goods before delivery?
A: Yes, please don't worry. we have 100% test before delivery.
A: Packing goods in neutral white boxes and brown cartons. If you have OEM package, please let us know.
Q2. How about your lead time?
A: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
A: We offer samples, with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
A: T/T(Bank transfer), PayPal, Western Union.
Q5. Do you test all your goods before delivery?
A: Yes, please don't worry. we have 100% test before delivery.
