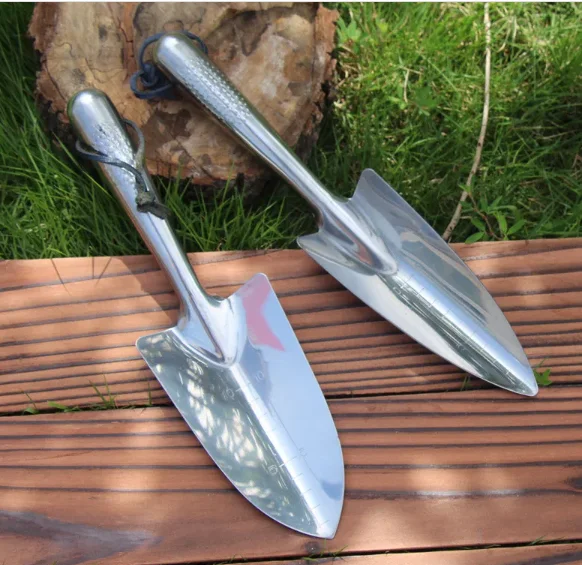

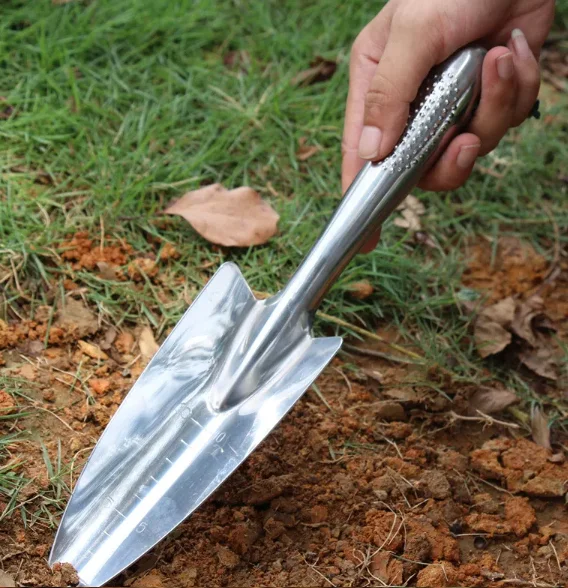

Stainless Steel Garden Hand Shovel With Handle Embossing Making Machine Metal Stamping Machine Punching Press Machine
- Category: >>>
- Supplier: Dongguan Qiaosen Machinery Co. Ltd.
Share on (1600738421237):
Product Overview
Description
Product Specifications
NO | Item | Unit | ST-200V | ST-200H | |
1 | Punching capacity | ton | 200 | ||
2 | Ability occurrence point | mm | 6 | 3 | |
3 | Slider strokes per minute | SPM | 20-50 | 50-70 | |
4 | Long slider length | mm | 200 | 100 | |
5 | Maximum mode height | mm | 460 | 510 | |
6 | Slider adjustment amount | mm | 100 | ||
7 | Up platform area | mm | 1130*630*90 | ||
8 | Down platform area | mm | 1400*820*160 | ||
9 | Slider center to machine distance | mm | 415 | ||
10 | Platform to floor distance | mm | 995 | ||
11 | Shank hole | mm | ᶲ65 | ||
12 | Main motor power | kw*p | 18.5*4 | ||
13 | Air presure | kg/cm^2 | 6 | ||
14 | Punch accuracy grade | JIS 1 | |||
15 | Punch dimension（L*W*H） | mm | 2615*1690*4075 | ||
16 | Punch weight | ton | 23 | ||
17 | Die cushion capacity（optional） | ton | 14 | ||
18 | Stroke（optional） | mm | 100 | ||
19 | Active area（optional） | mm | 710*480 | ||
Product Overview

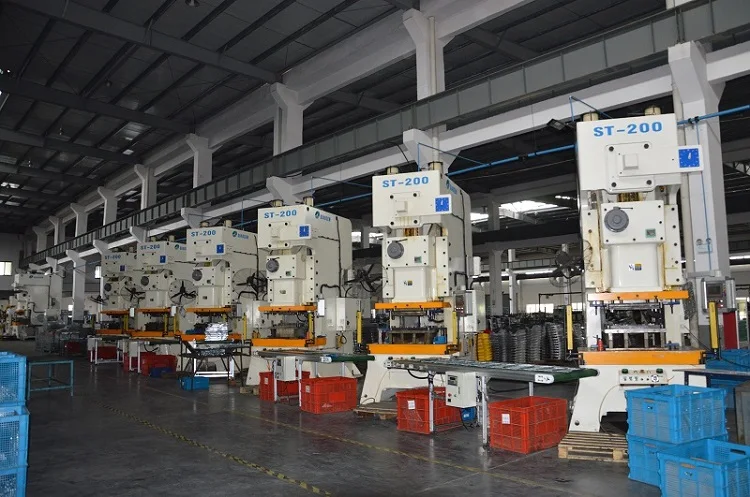

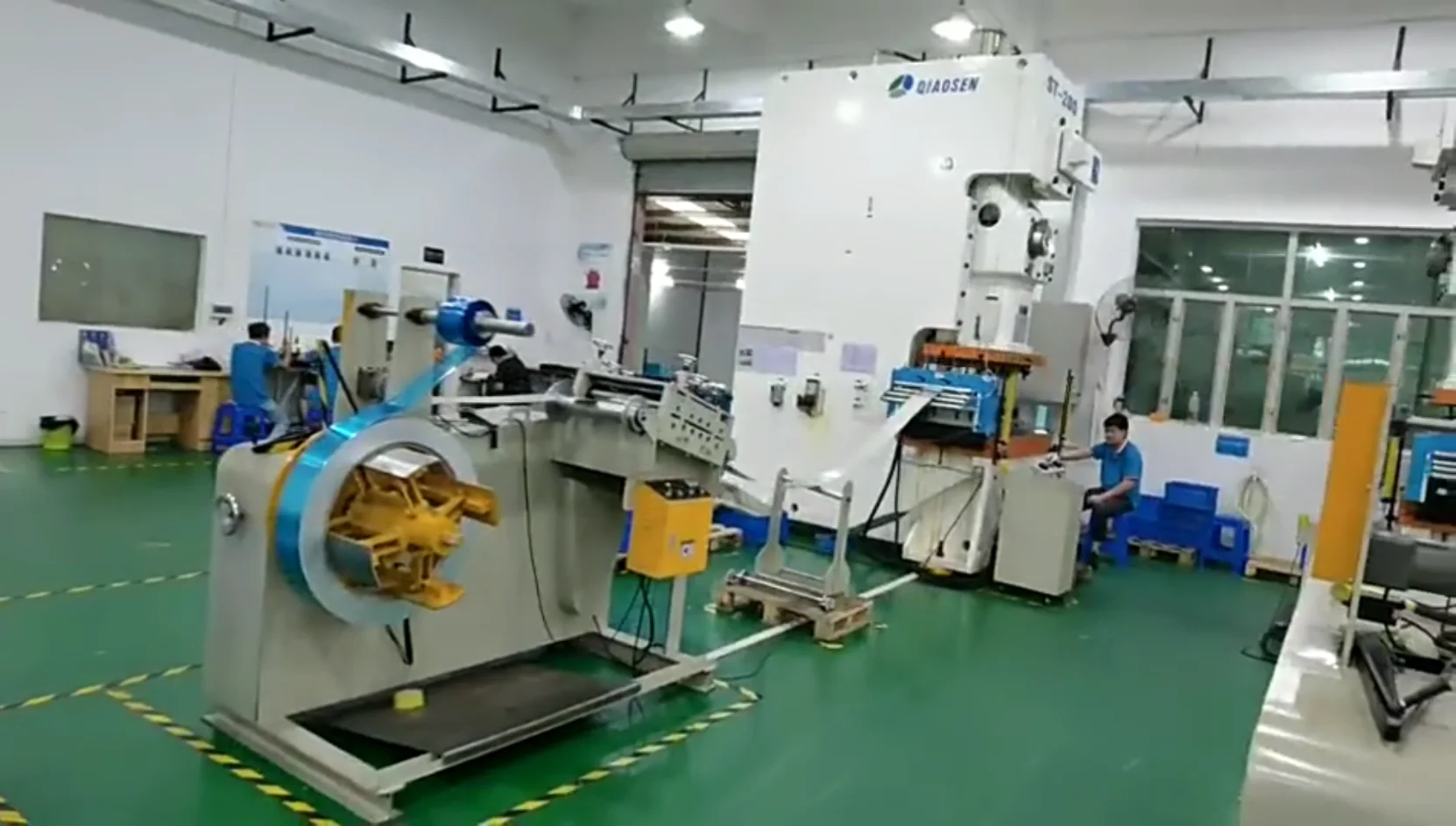

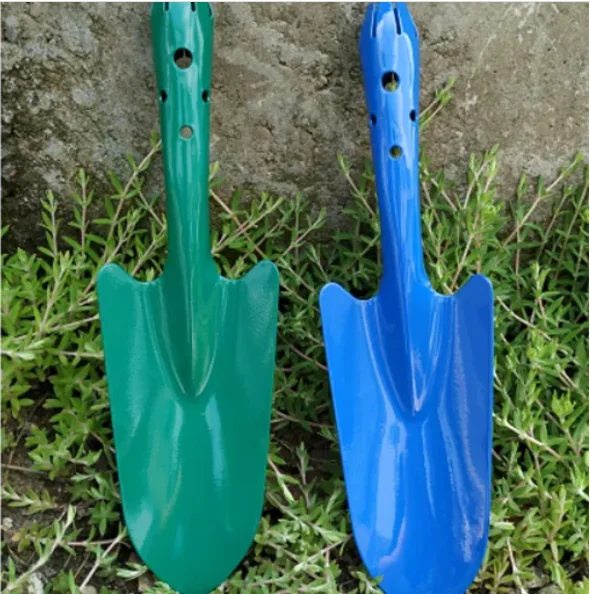

Whole Production Line For Metal Garden Shovel Making
●C-frame punching machine provides maximum rigidity and minimum deformation for accurate metal shovel parts and long tool life.
●Steel welded frame for high rigidity and minimal deformation Compact.
●Steel welded frame for high rigidity and minimal deformation Compact.
●Thick metal plates and large columns provide you with the stable platform you need for your demanding applications.

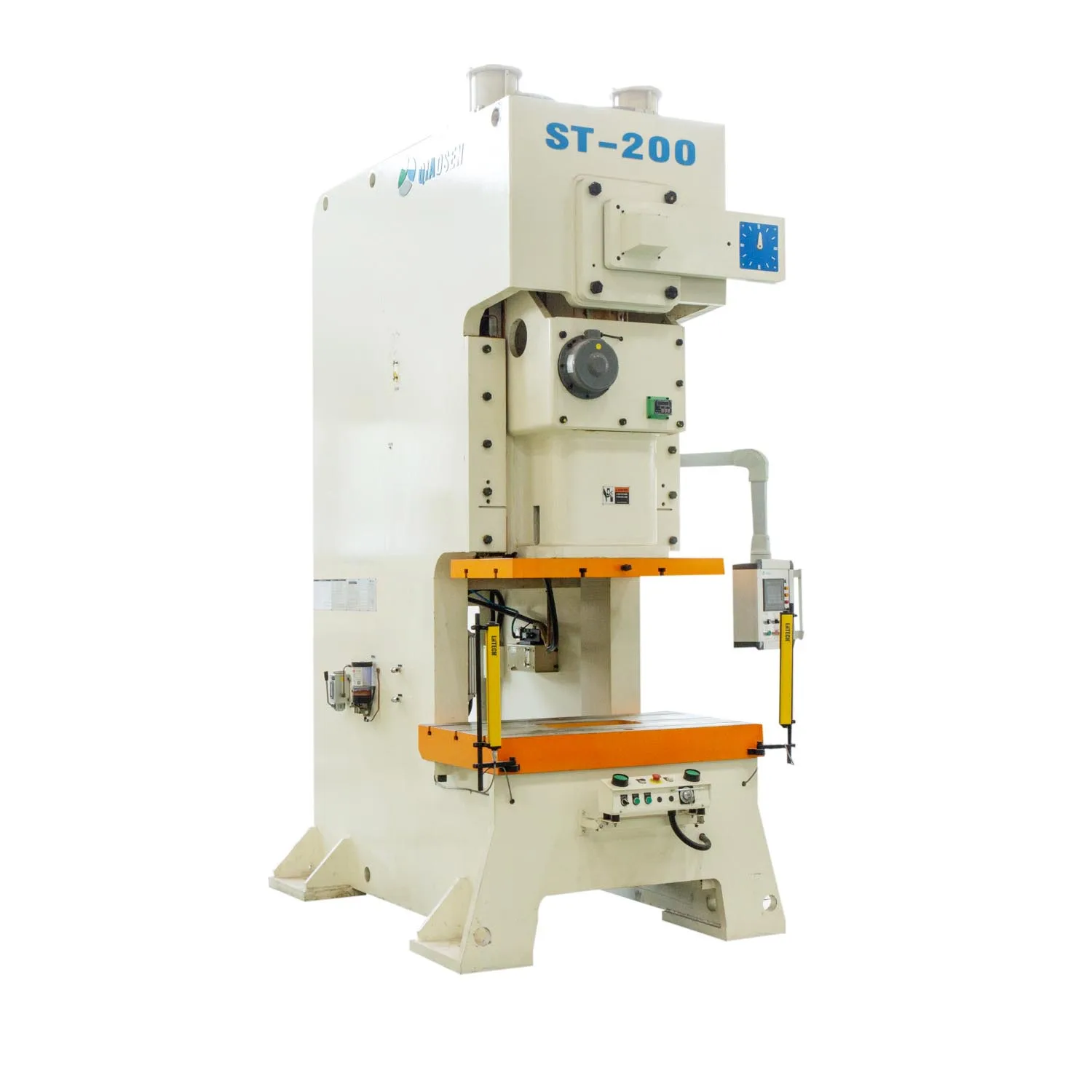

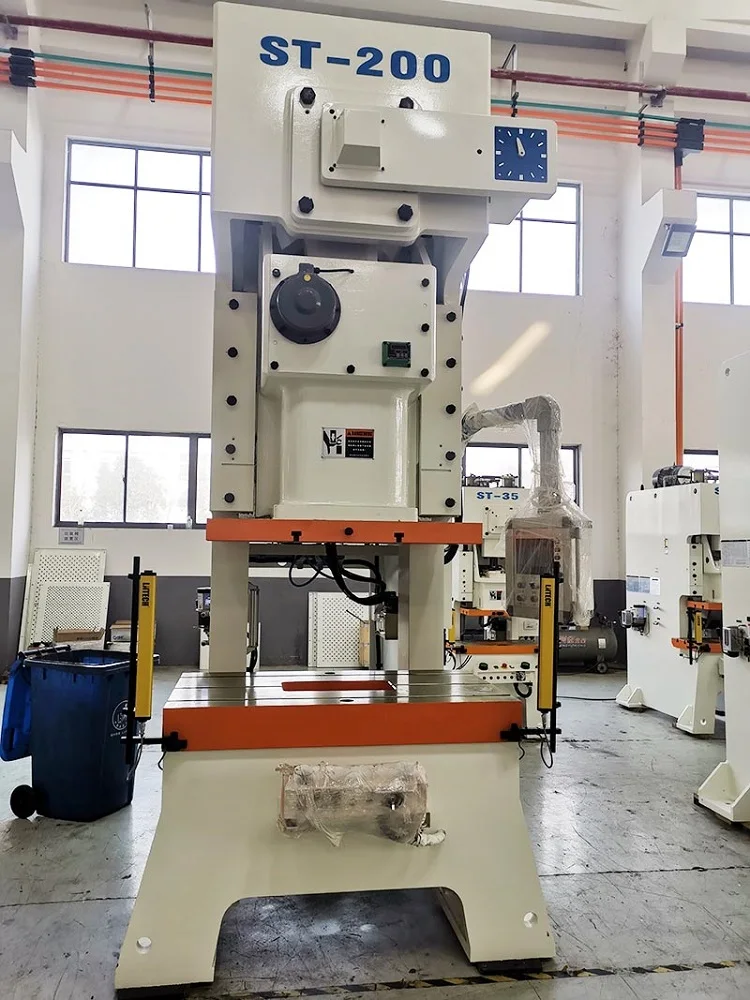

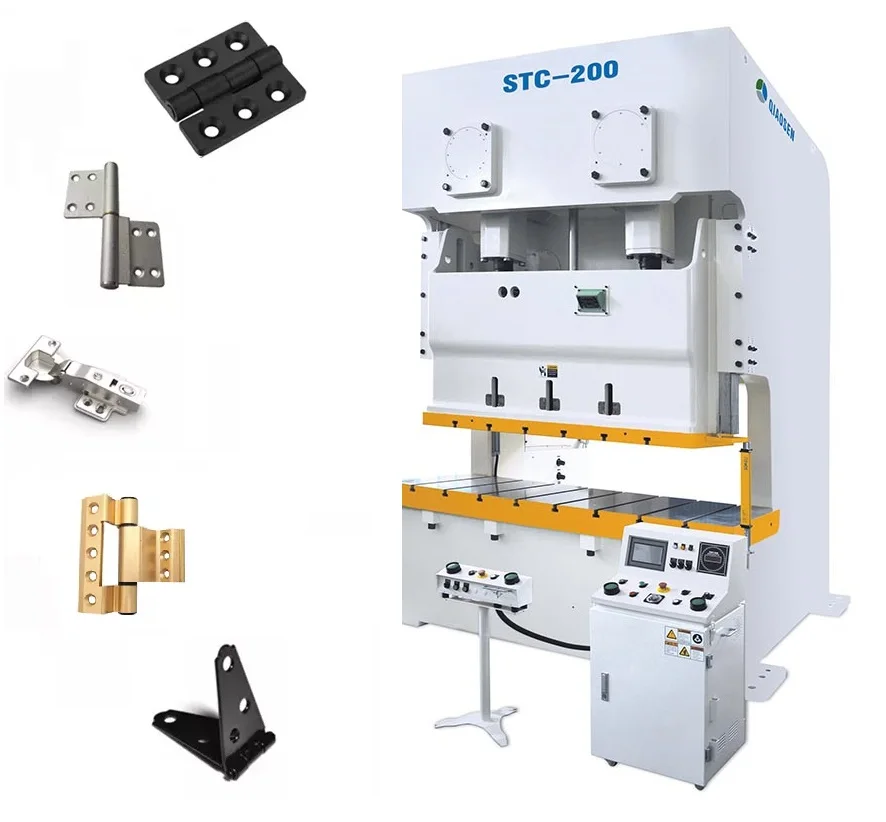

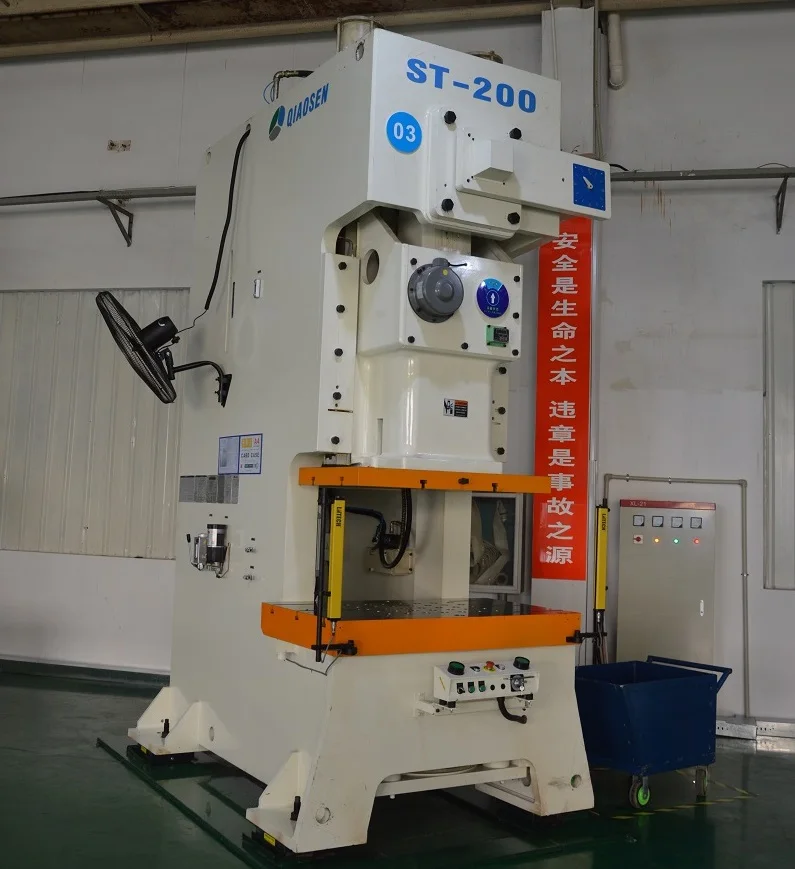

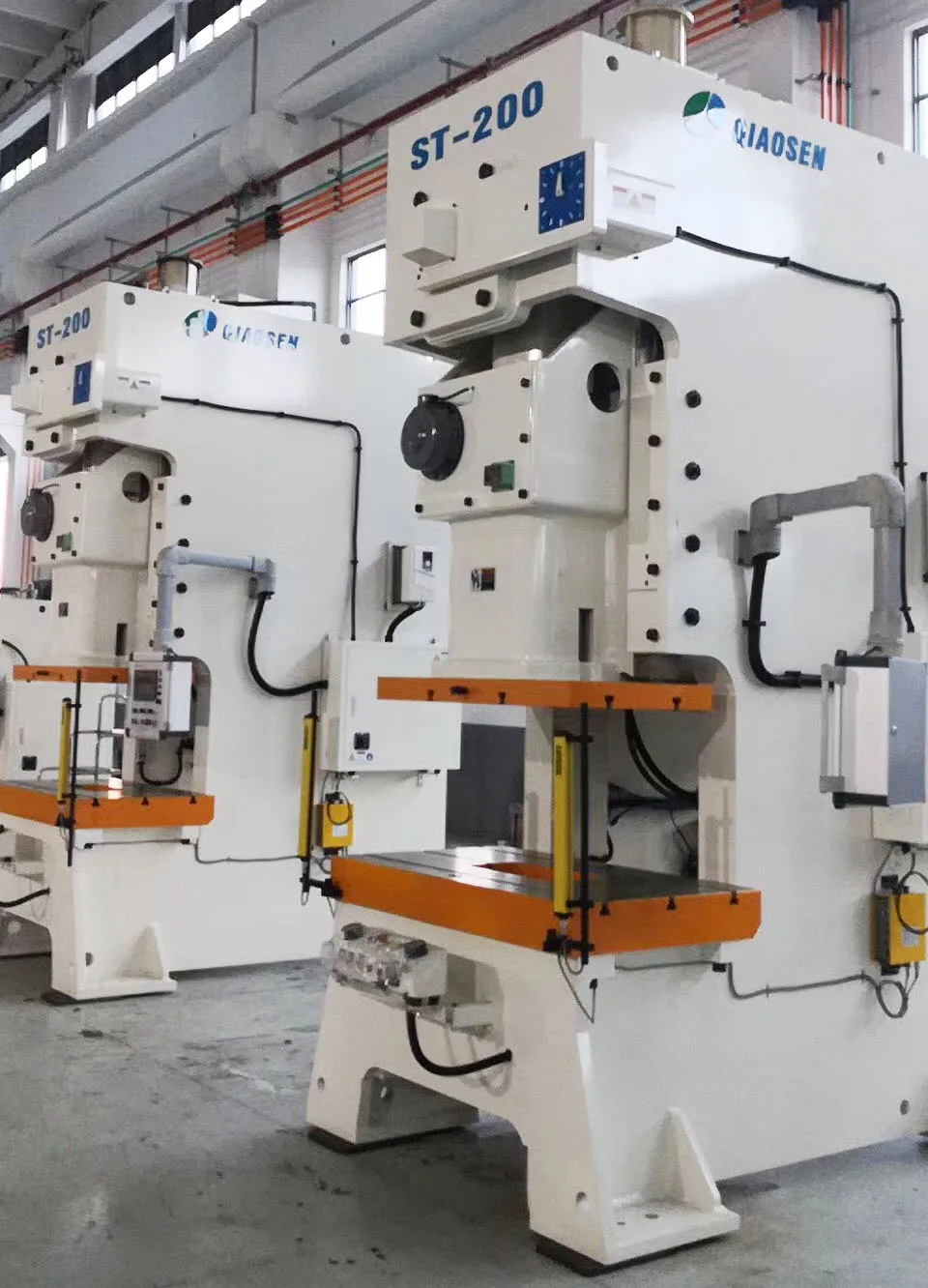

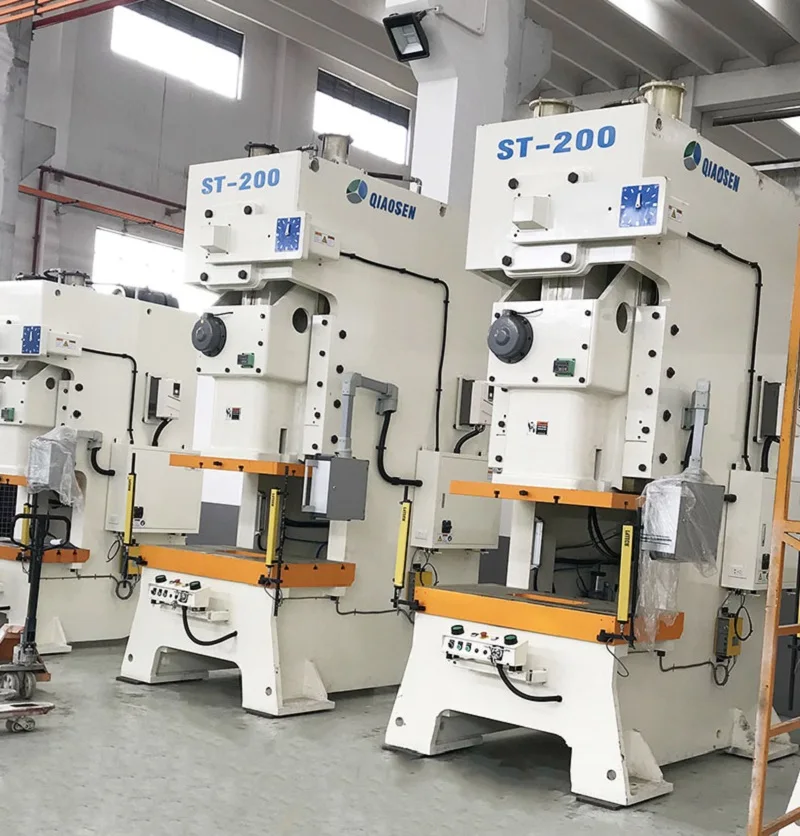

200Ton Power Press Machine Stamping Machine

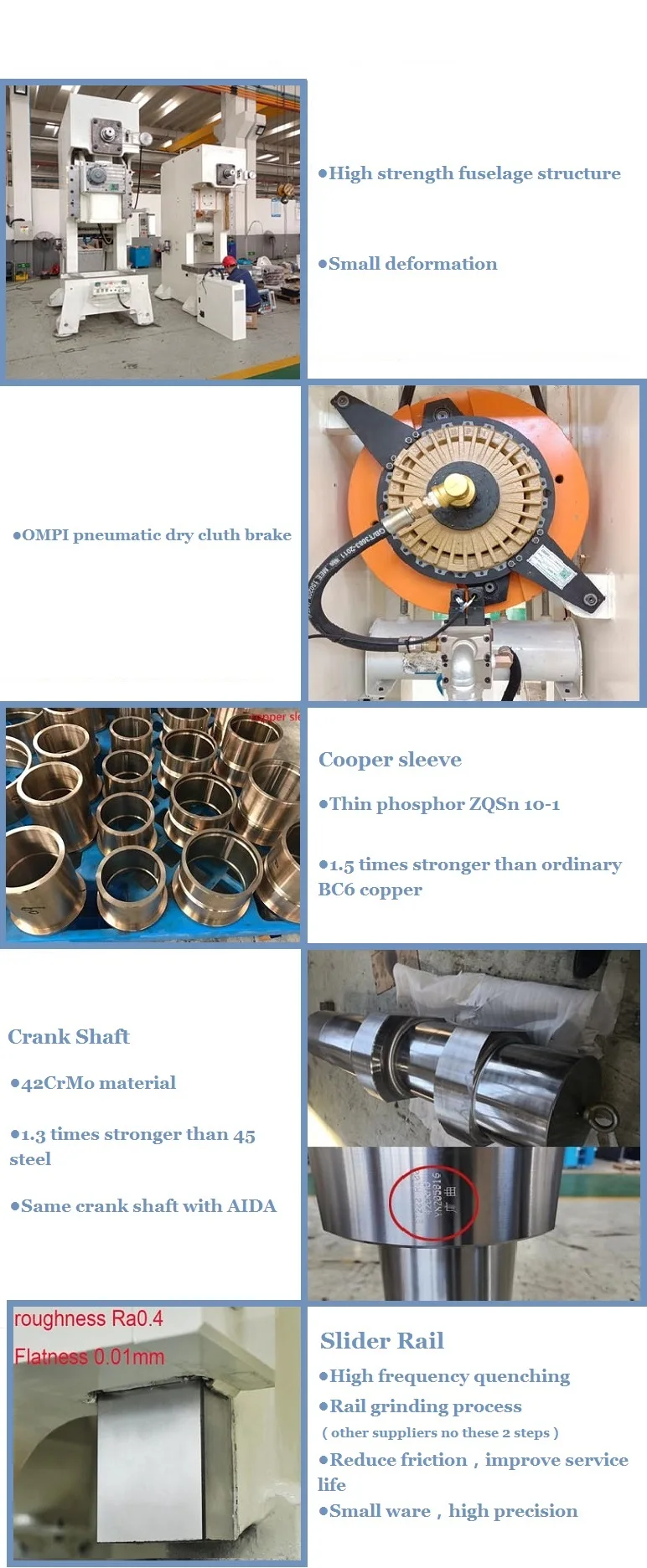

●The high-strength fuselage structure has small deformation and high precision.
●OMPI pneumatic dry clutch brake.
●The slider adopts 2corner and 6sided guides.
●The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve service life.
●Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel.
●The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
●Highly sensitive hydraulic overload protection device protects the press and die service life.
●Optional mat (air cushion).
●The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
●Highly sensitive hydraulic overload protection device protects the press and die service life.
●Optional mat (air cushion).
Related Products
Company Profile

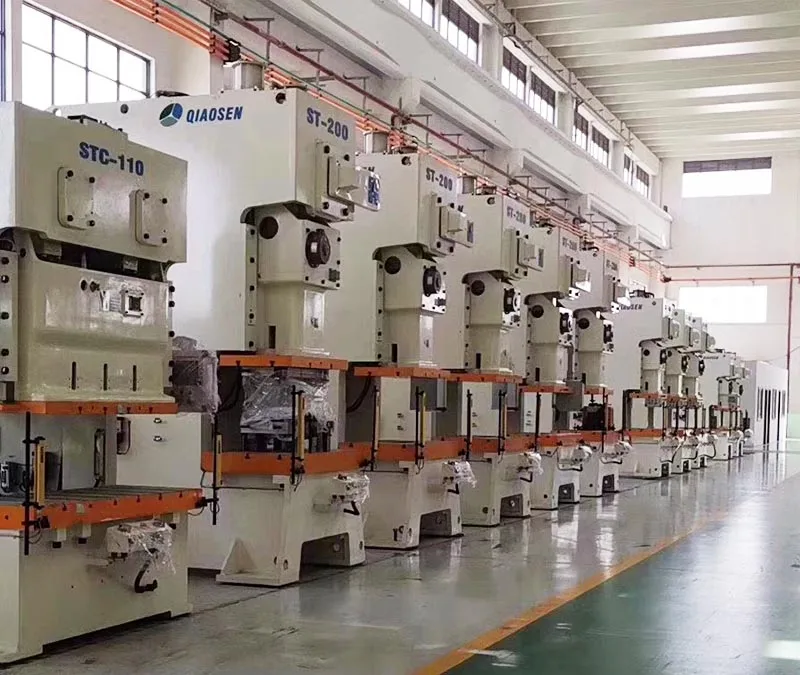

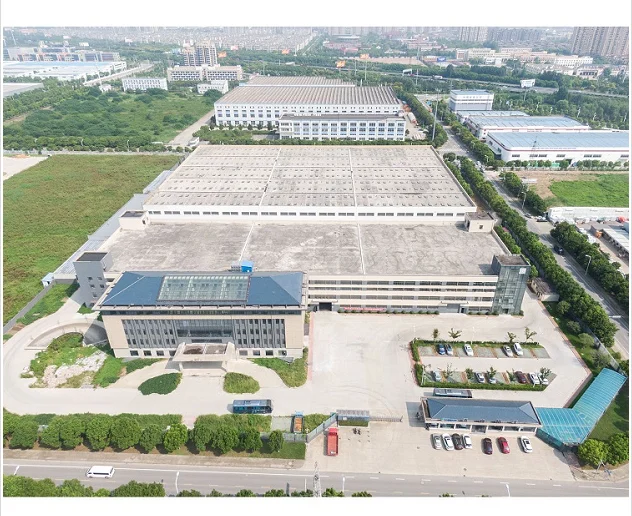

Dongguan Qiaosen Machinery Co.,Ltd which have our own factory located in Jiangsu province, established in 2016,Closed to shanghaicity and transportation is very convenient, a birth place of creative minds and gifted talents.
Our factory took the lead in passed authentication of the ISO9001:2008 quality management system . A factory specialized in the production of hydraulic press machine. Mainly products 10 tons to 2000 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.
Our factory took the lead in passed authentication of the ISO9001:2008 quality management system . A factory specialized in the production of hydraulic press machine. Mainly products 10 tons to 2000 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.
Warranty And Service
▼ One year warranty for whole press machine.
▼ All spare parts are available as most of the parts produced by our factory.

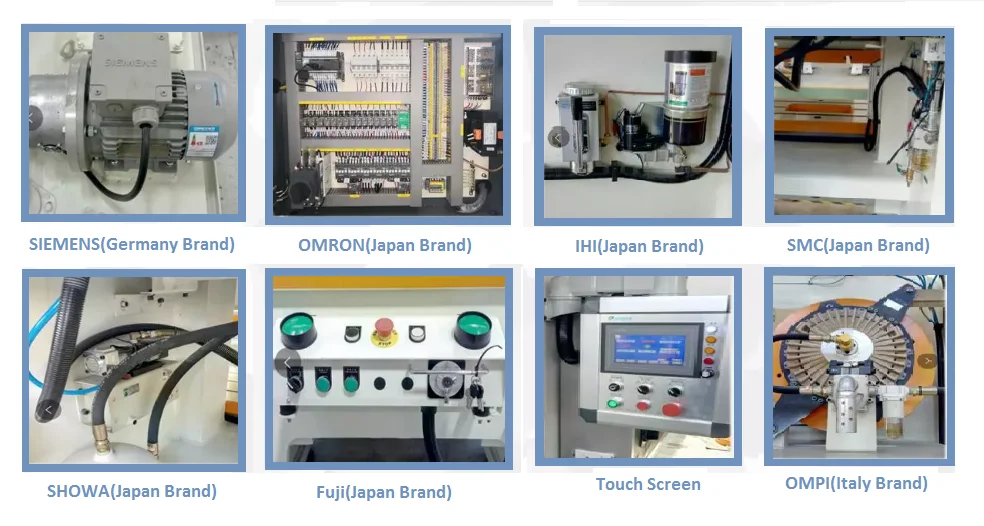

▼ It is easy to get the electric parts as all are international famous brands.
▼ We can provide technical training and consulting via email, phone or video.
▼ We can send out engineers for service, installation or training with reasonable additional cost.
▼ English operation and maintenance manual is provided with the press.
▼ Certificate of conformity will be sent with press.
▼ All spare parts are available as most of the parts produced by our factory.
▼ It is easy to get the electric parts as all are international famous brands.
▼ We can provide technical training and consulting via email, phone or video.
▼ We can send out engineers for service, installation or training with reasonable additional cost.
▼ English operation and maintenance manual is provided with the press.
▼ Certificate of conformity will be sent with press.
FAQ
▼Who are we?
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
▼Why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
▼How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
▼Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
▼Can I do different color machine?
A: Yes, we can customize your own colors to match your production line
▼Can the touch screen board language change to others?
A: Yes, we can do it according to your requirement like Spanish, French ect...
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
▼Why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
▼How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
▼Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
▼Can I do different color machine?
A: Yes, we can customize your own colors to match your production line
▼Can the touch screen board language change to others?
A: Yes, we can do it according to your requirement like Spanish, French ect...
