Станок для лазерной резки труб из углеродистой стали с круглым квадратным прямоугольным углом и H образным лучом диаметром 15 800 мм
- Category: >>>
- Supplier: Jinan Unique Cnc Equipment Co. Ltd.
Share on (1600738444099):
Product Overview
Description

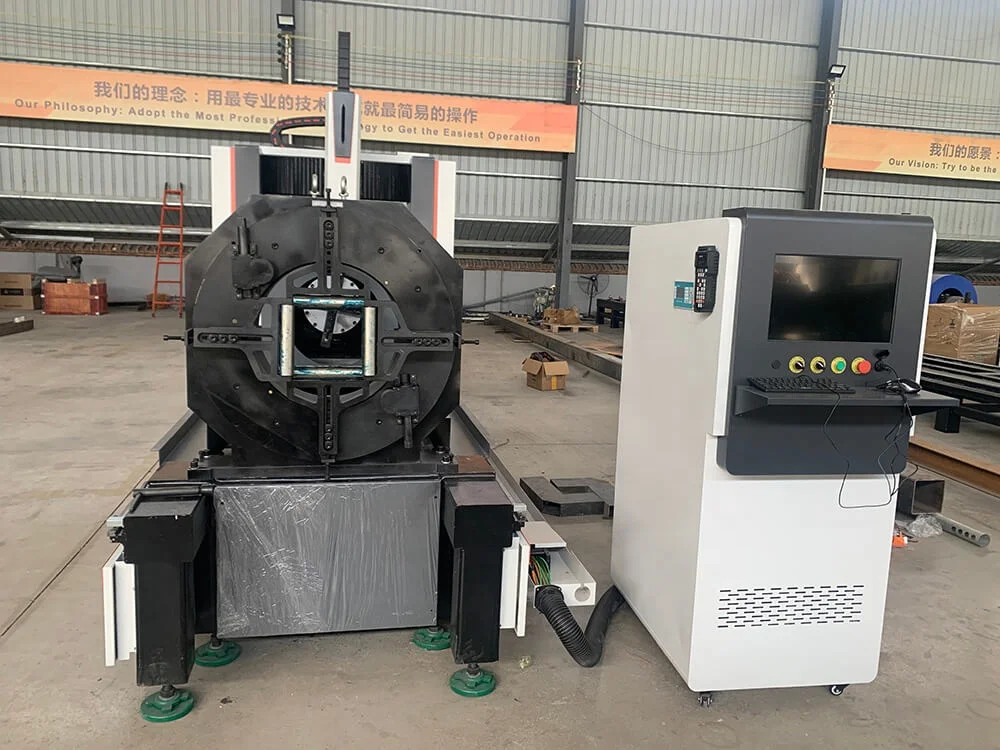

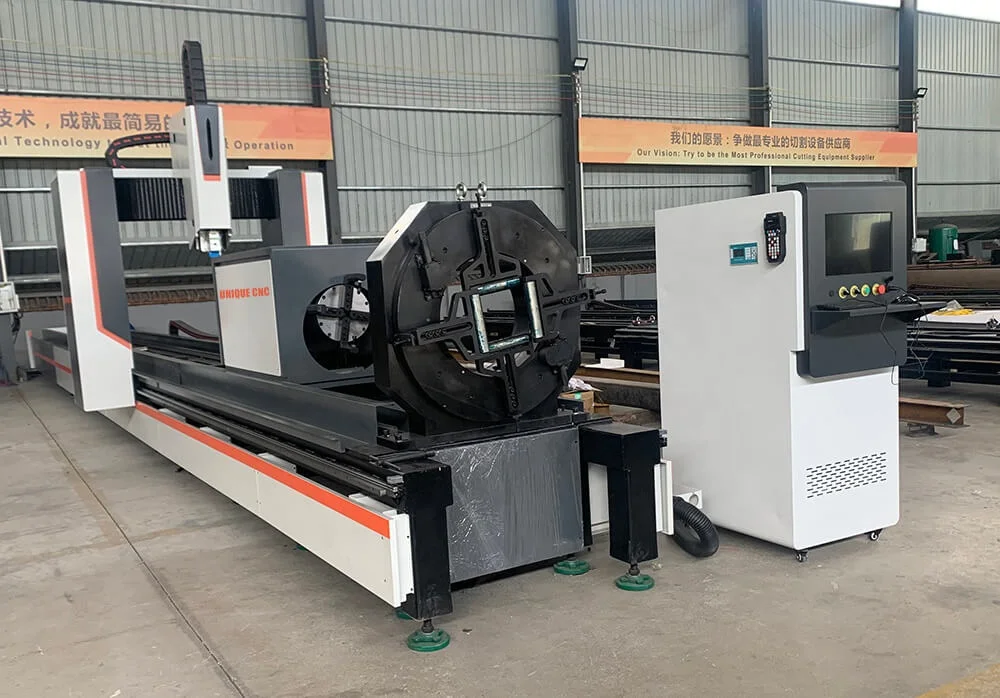

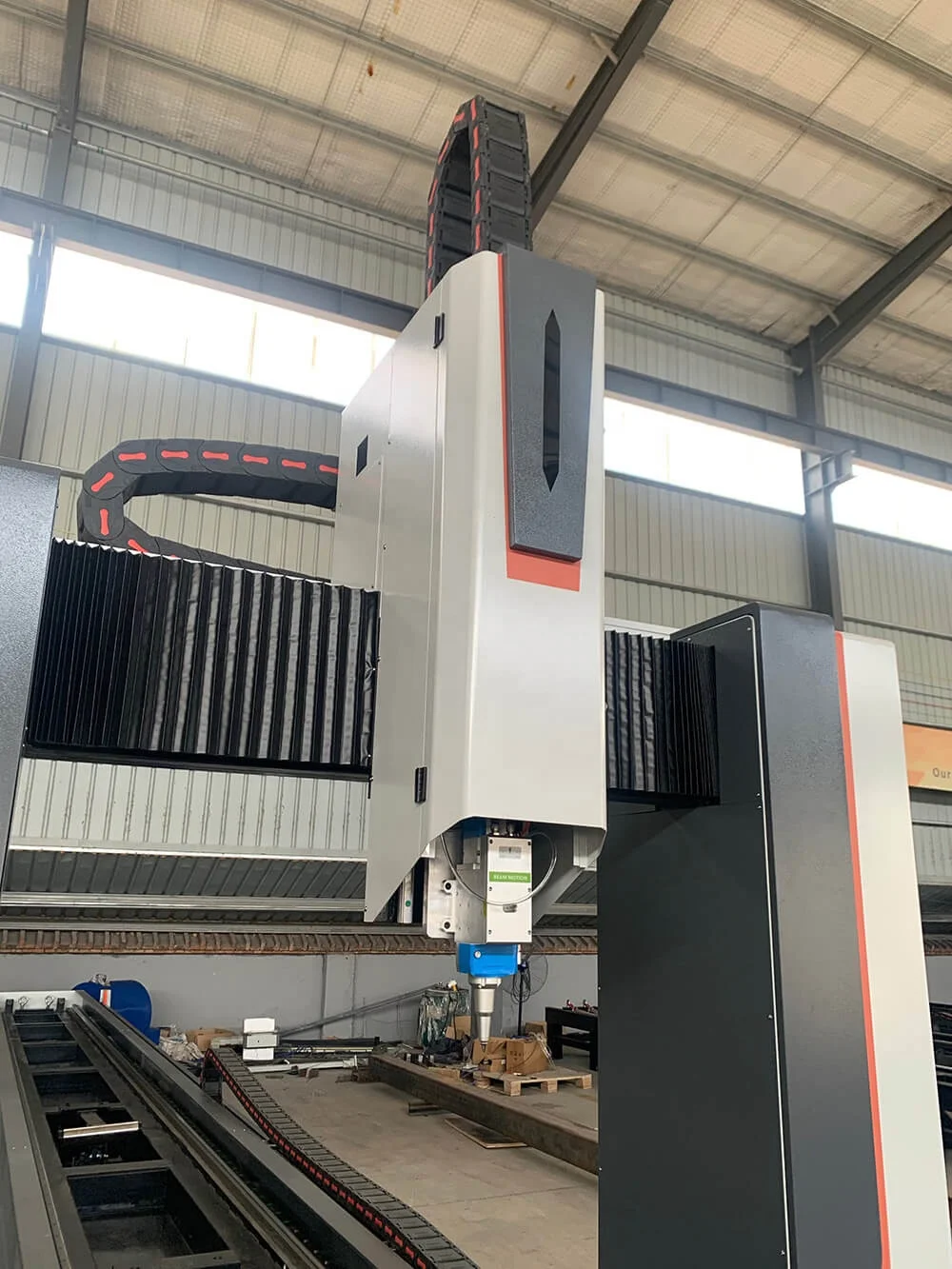

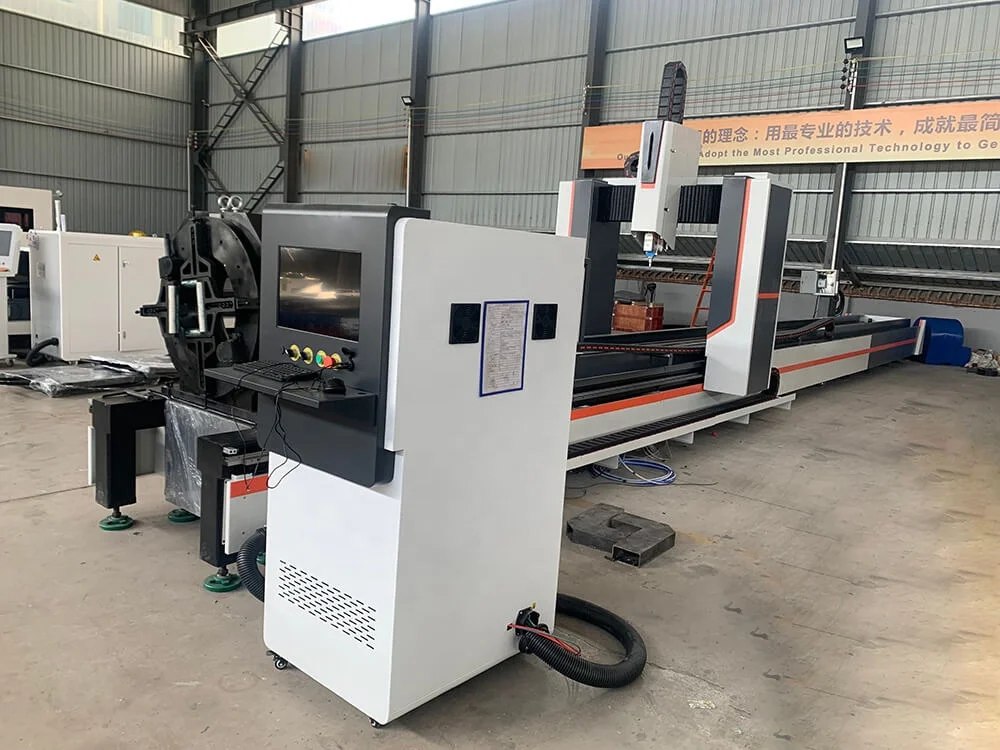

Unique CNC 5 Axis fiber laser pipe cutting machine can easily cut various pipes. It can cut round pipes, square pipes,
rectangular pipes, angle steel, channel steel, H-shaped steel and other profiles.
rectangular pipes, angle steel, channel steel, H-shaped steel and other profiles.
* Designed for large sizes steel pipes. Cutting length 6-12M while diameter can reach 800mm at most.
* It not only can cut round and square tubes, but also H beam, angle steel, channel steel,etc.
* Heavy-duty cast-steel structure, quenching treatment, no deformation, high precision.
* Rear chuck automatic feeding.
* Pneumatic chuck and manual chuck options.
Product Description
Specification
Model No. | U-T6/9/12 five axis cnc fiber cutter for tube cutting | |
Cutting materials | Steel square tube,round tube,oval tube,ractangle tube,angle steel, channel steel, H beam | |
Cutting length | 6-12M | |
Max.cutting diameter options | 220mm/320mm/420mm/500mm/600mm/800mm | |
Cutting machine axis | 5 axis | |
Transmission system | Gear racks+rails | |
Driving motors | Servo | |
X.Y maximum moving speed | 60m/min | |
X, Y axis positioning accuracy | ±0.05/1000mm | |
X, Y, Z axis repeat positioning accuracy | ±0.03/1000mm | |
Fiber laser source | Max/Raycus 1000W-12000W | |
Cooling way | Water cooling | |
Cutting thickness | Depends on different fiber source and materials | |
Working voltage | 220V/380V |
