Customized Industrial Heat Resistance Scraper Chain Conveyor Machine For Coal

Product Overview

Description



Introduction of Customized Industrial Heat Resistance Scraper Chain Conveyor Machine For Coal

Mining Scraper conveyor is mainly used for transporting coal in thin coal seam or ultra-thin coal seam,  general mining, fully mechanized mining and other working faces, and can also be used for driving roadway transportation and smoothing. In the trough transportation, when working with shearer, the middle Flute of the scraper conveyor is also the walking track of the shearer. Scraper conveyor is a conveyor that is pulled by a scraper chain to transport bulk material in a tank. It consists of middle flute, chain, scraper and traction system.



SGB Scraper Chain Conveyor Machine apples to slow gently inclined thin coal seam working face conveyor of coal. Mining height is broken floor to 0.6 m, dip angle of coal seam is not more than 25 degrees.



SGB Scraper Chain Conveyor Machine is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine.



Main Characteristics of Heavy Type Coal Mine Use Scraper Machine / Chain Scraper Conveyor



1. Solid structure: SGB Scraper Chain Conveyor Machine can withstand coal and waste rock or other materials of blunt, hit, and other external force.

2. It can adapt to the coalface floor rugged, bending goes needs, can withstand the vertical or horizontal bending.

3. Body short, easy to install.

4. It can double as the shearer running the orbit .

5. SGB Scraper Chain Conveyor Machine can reverse operation, easy to deal with bottom chain accident. zmwm09



Parameter of Customized Industrial Heat Resistance Scraper Chain Conveyor Machine For Coal

Model		SGB420/22	SGB420/30	SGB420/40X	SGB620/40	SGB620/55)	SGB620/80
Delivery Capacity  (t/h)		60	80	100	150	150	150
Standard length(m)		80	100	100	100	100	160
Chain speed(m/s)		0.88	0.88	0.86	0.86	0.86	0.86
Electric motors	Model number	JDSB-22	JDSB30	JDSB40	DSB40	DSB55	DSB40
	Power(kW)	22	30	40	40	55	2*40
	Voltage(V)	220/380	380/660	380/660	380/660	380/660	380/660
Scraper chain	Form	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded
	Chain size(mm)	14*50	14×50	18×64	18×64	18×64	18×64
	Breaking load(KN)	≥250	≥250	320	≥320	≥320	≥320

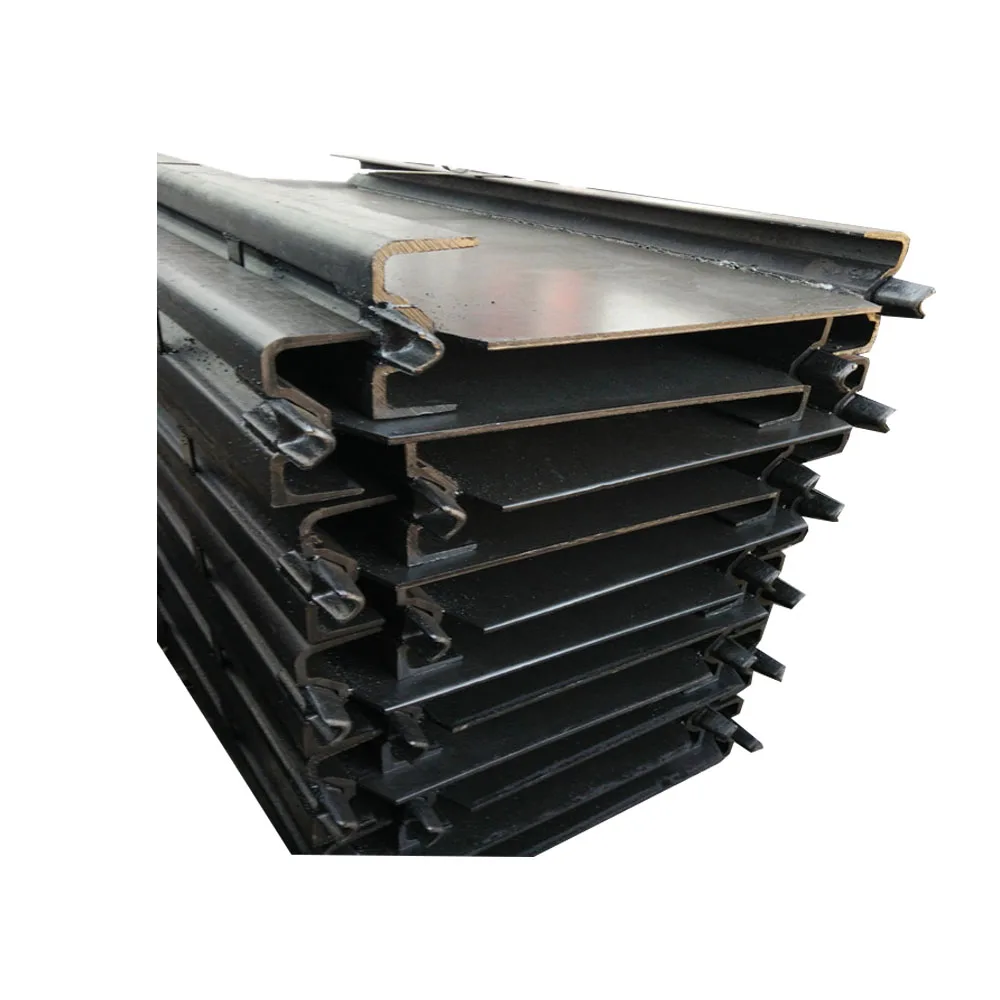

Middle Flute size          (L x W x H)		1200×420×150	1200×420×150	1200×420×180	1500×620×180	1500×620×180	1500×620×180
Total weight(t)		8.5	10.6	16	17.8	17.9	28.6

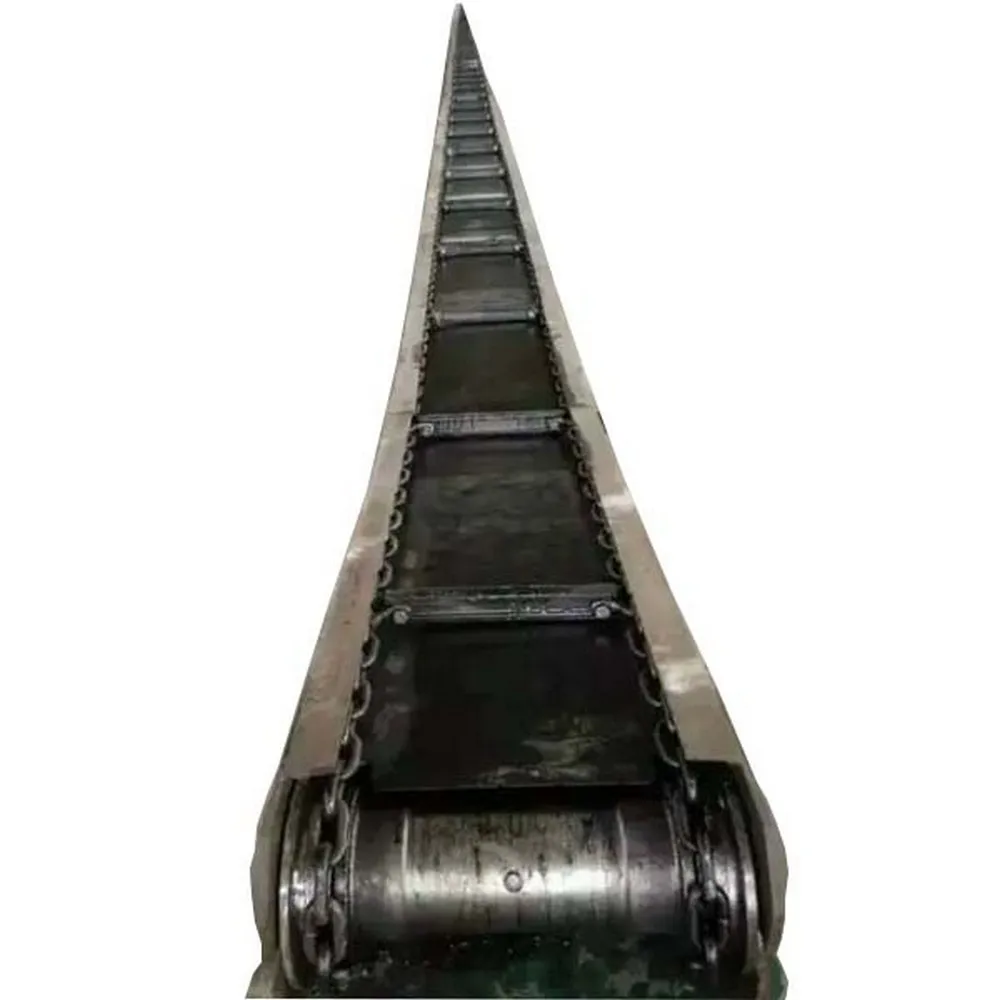

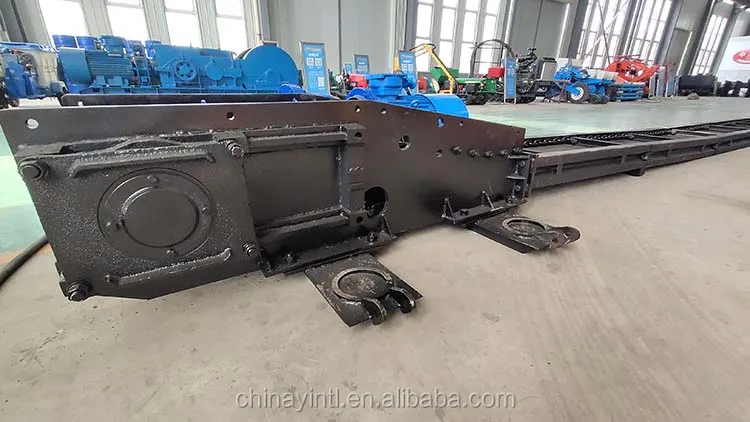

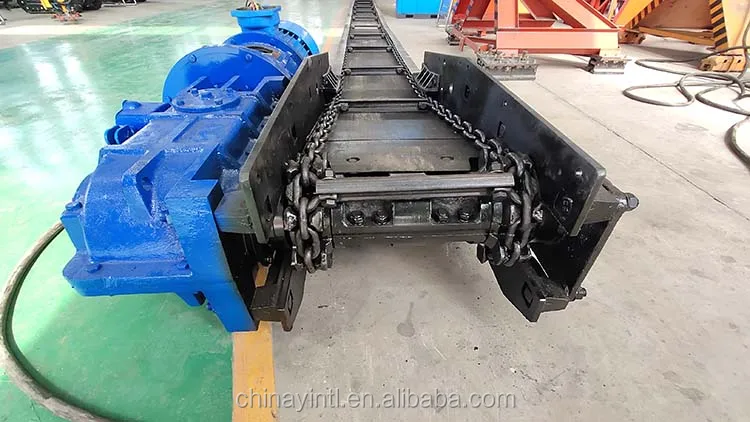

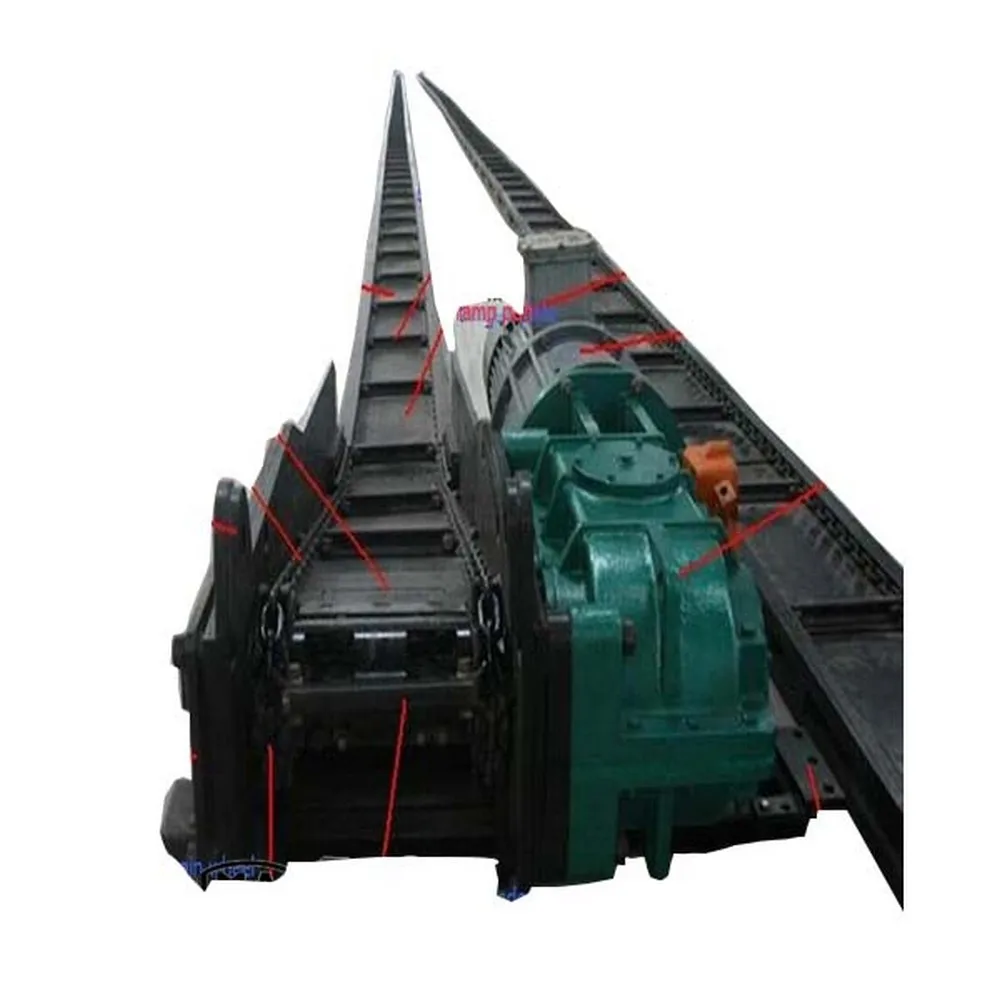

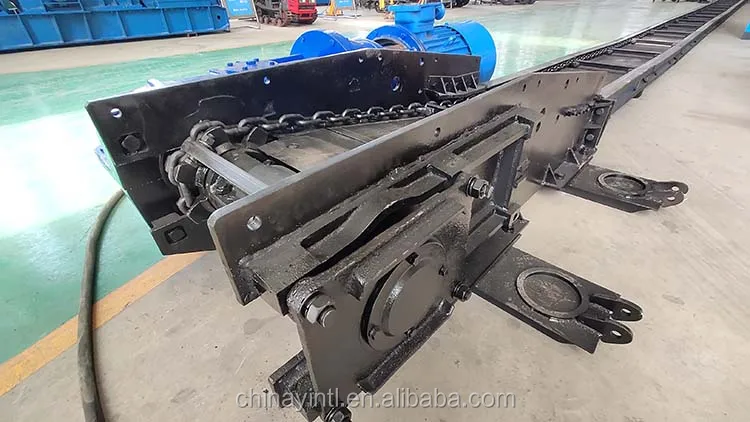

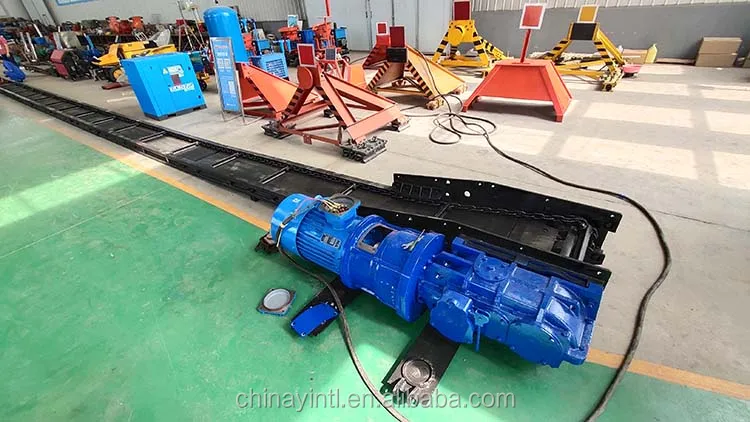

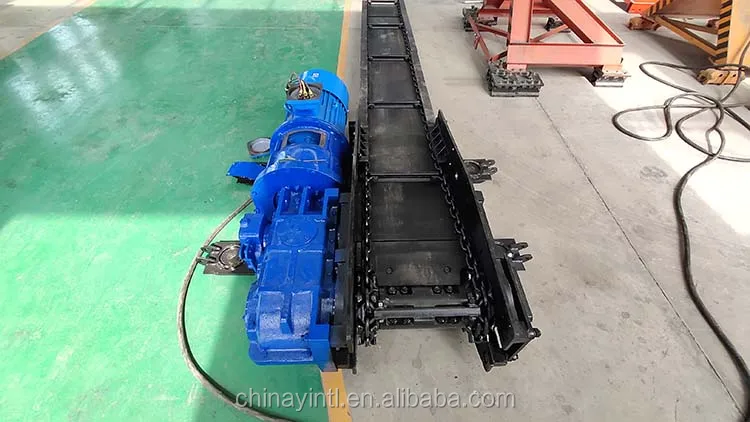

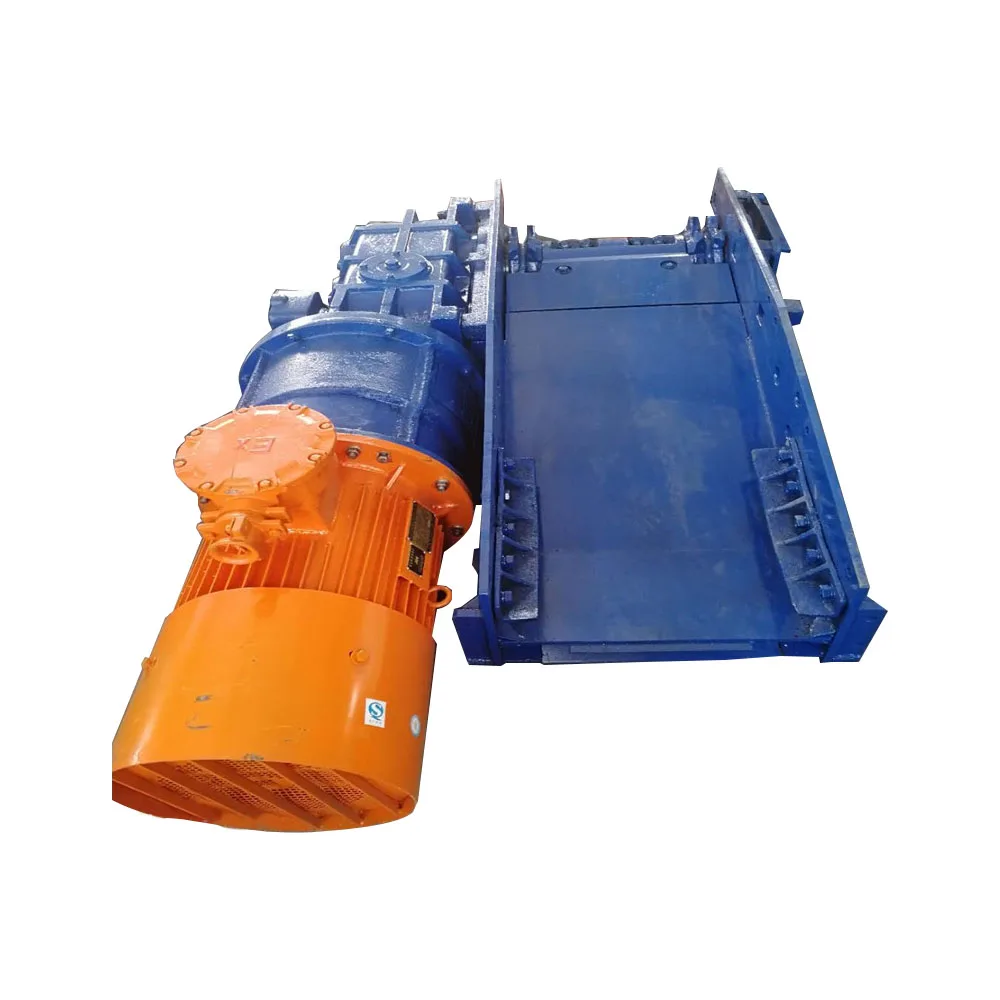

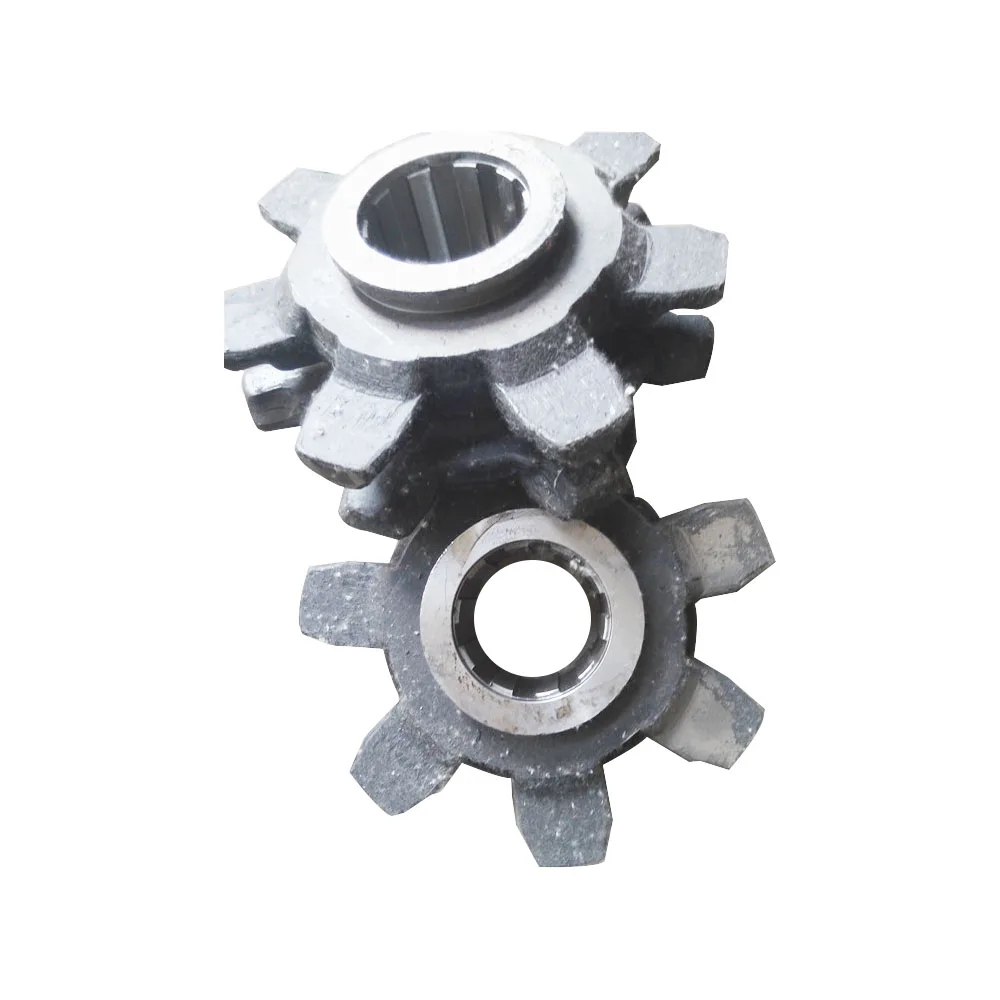

Photos of Customized Industrial Heat Resistance Scraper Chain Conveyor Machine For Coal
