Price:US$9,600.00 - US$9,800.00

Quantity:


Product Overview

Description



Product Description


Product Application

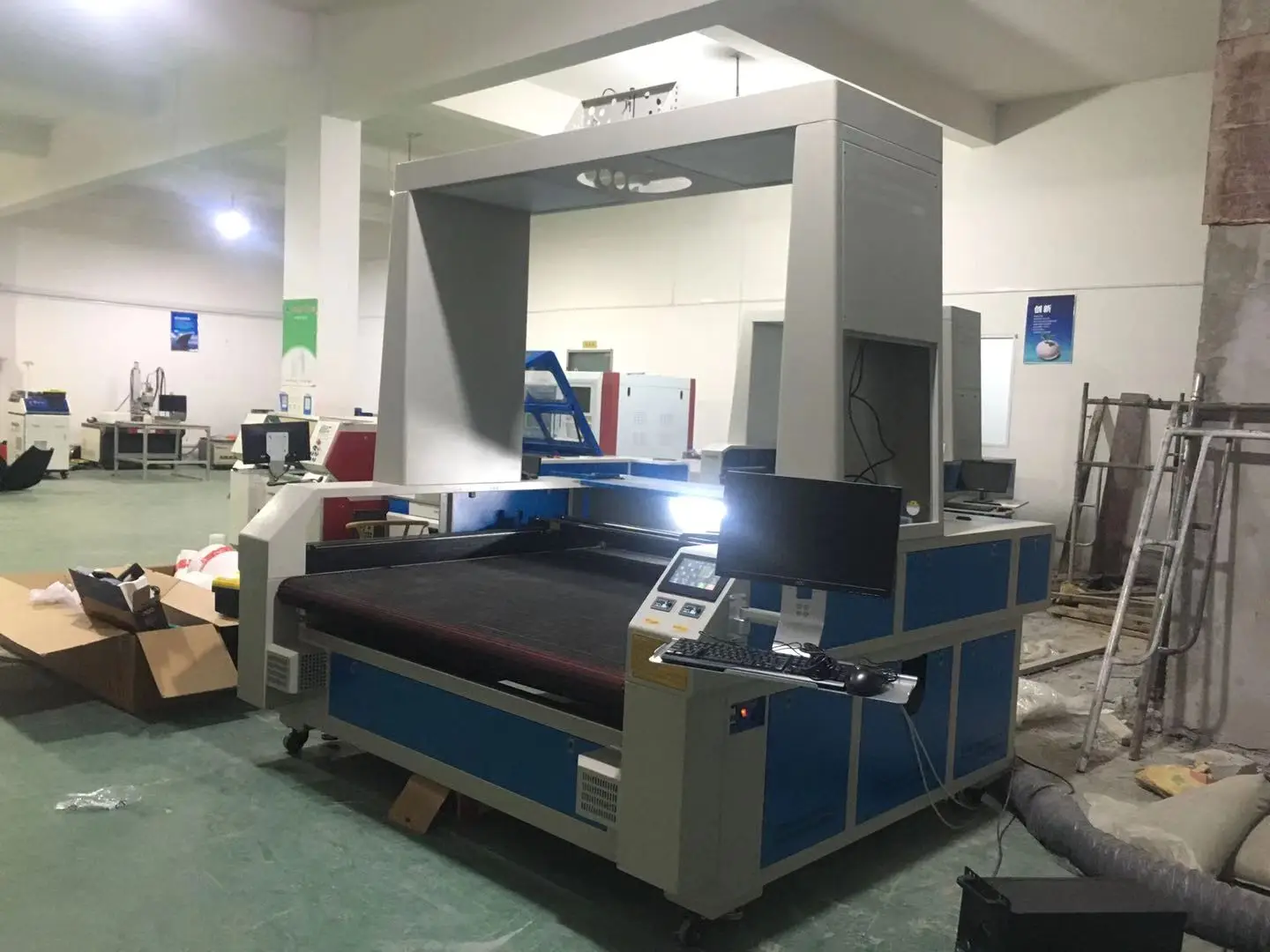

CHANXAN LASER auto feeding fabric / cloths / toys / home textile laser auto cutting machine.

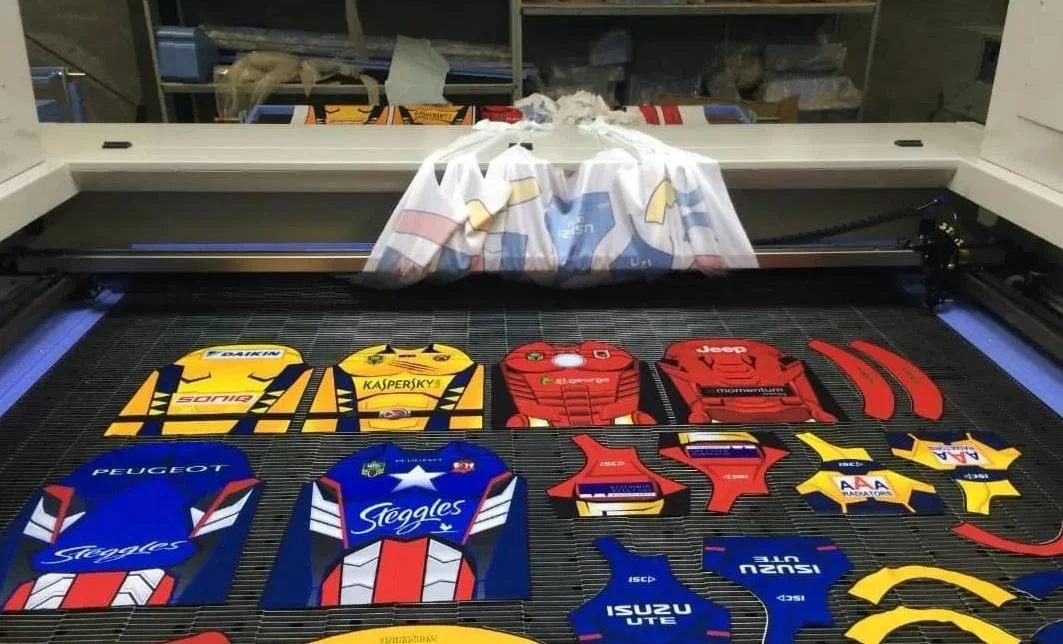

Large format printing fabrics, automaticly identification of the special and complex design cutting accurate cutting textile such as embroidery and trade mark and etc, Specially used in sports field, printing field.



SPECIFICATIONS FOR CHANXAN LASER auto feeding textile industry laser cutting machine for 10 % discount
Model

CW-1814HS
Working area
1800mm*1400mm
Laser power
80W
Laser type
CO2 glass tube
Lens
A full set laser transmission lens imported from USA
Cooling type
Water cooling system
Carving scanning speed

0-60000mm/min
Cutting speed
0-40000mm/min
Laser energy control
0-100% by software settings
Maximum scanning accuracy
≤+0.02mm
Control system
Chanxan professional laser intelligent idenfication system
Graphic format supported
DSP/PLT/BMP/DXF/DWG/AL/LAS
Software supported
TAJIMA/CORELDRAW/PHOTOSHOP/AUTOCAD AND ETC
Machine weight
600KG
Drive system
Stepper motor and belt drive system
Accessories
Exhaust fan and pipe
Power
AC110V/220V±10%,50HZ/60HZ
Working condition
Temperature:1-45℃,humidity:5-95%






Main Features

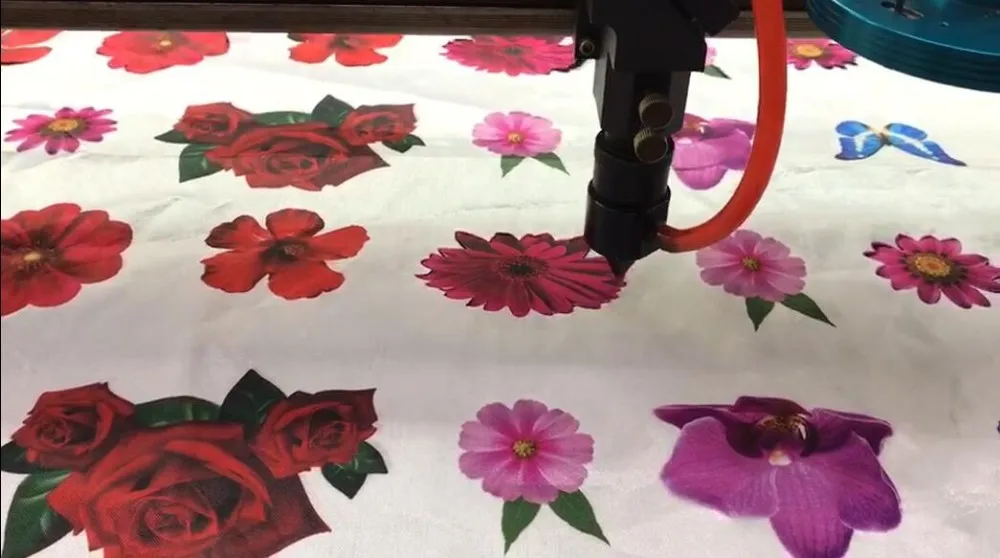

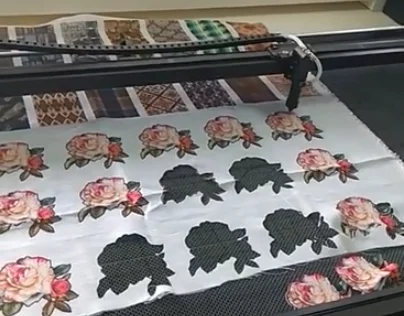

1. The camera can identify the whole work table design and cutting.
2. can auto-generated the graphics according to the pattern on the fabric,, automatic cutting no need drawing.
3, The machine can be attached automatic feeding device, to improve cutting efficiency.

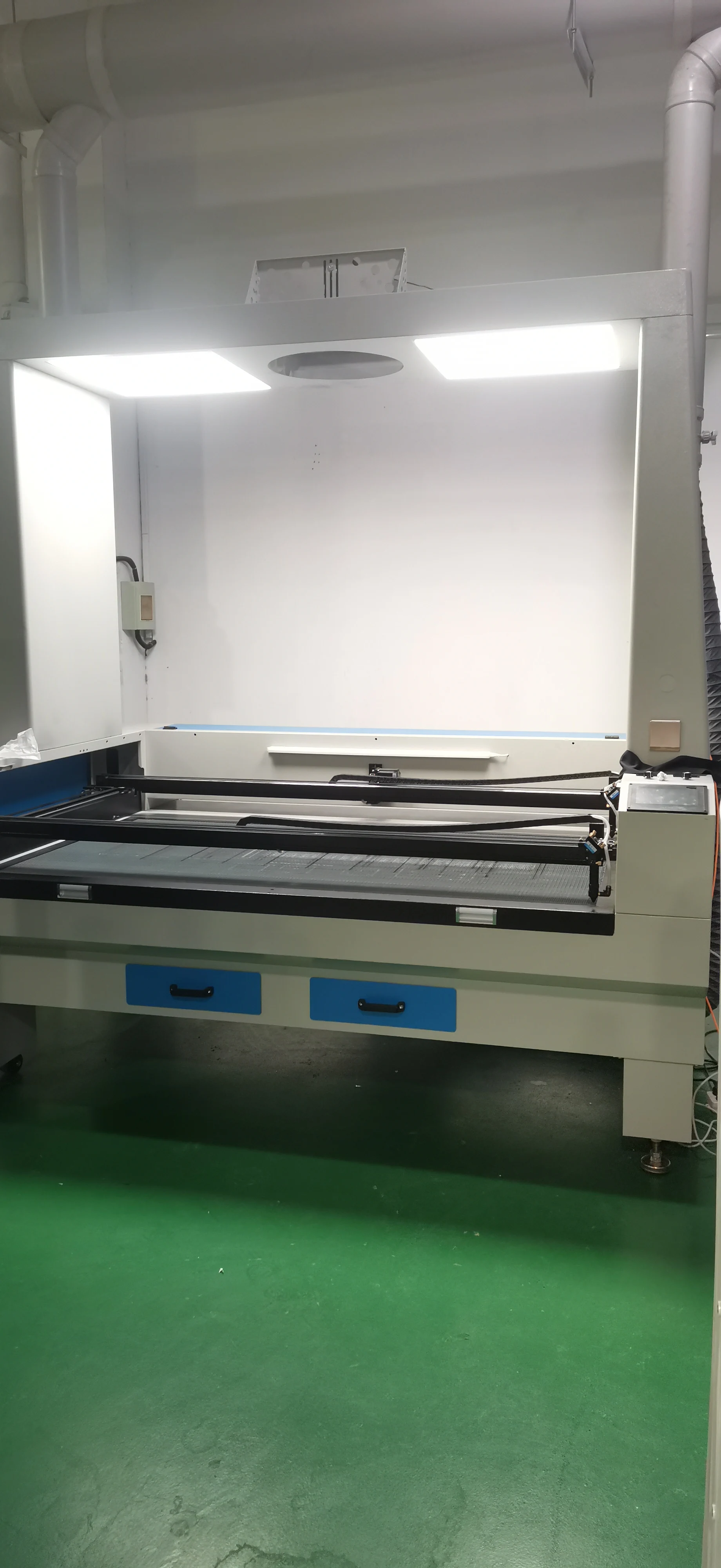

4, High permeability side and top protective cover and constant light system make the cutting area gets good lighting and identification and cutting.

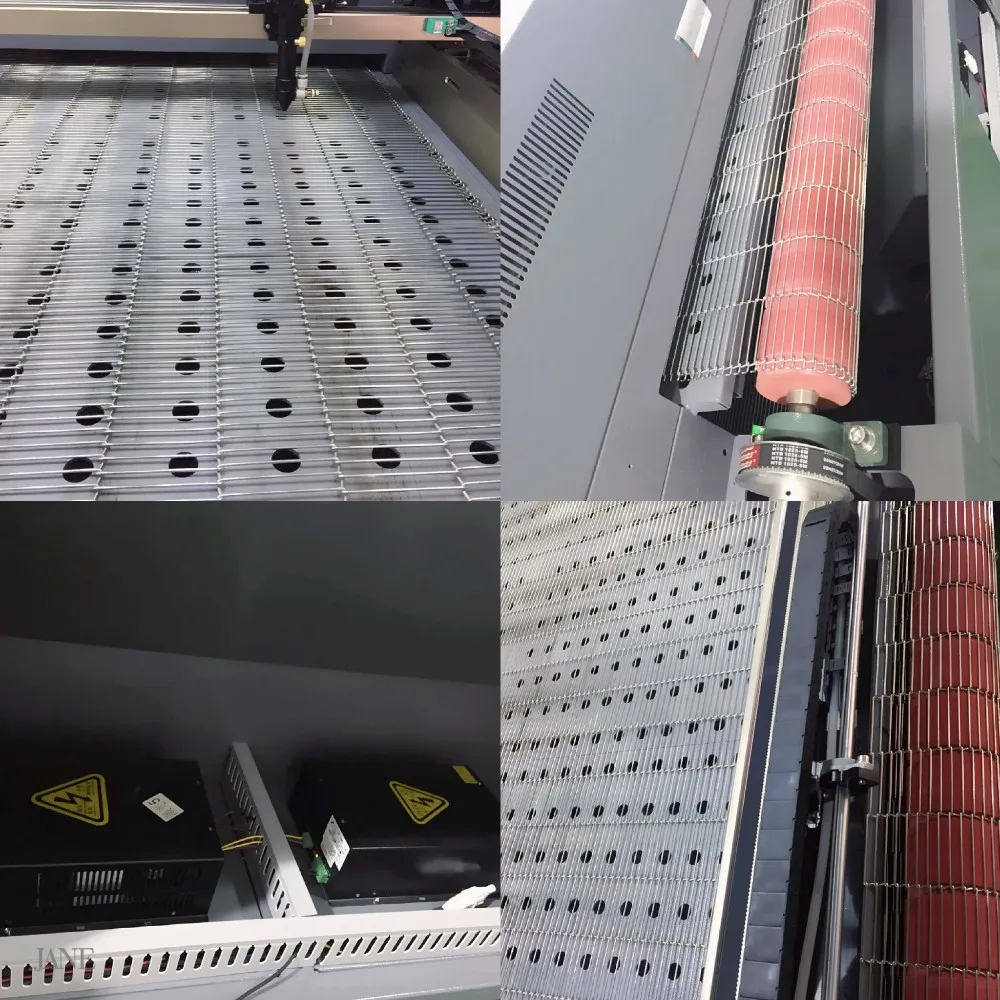

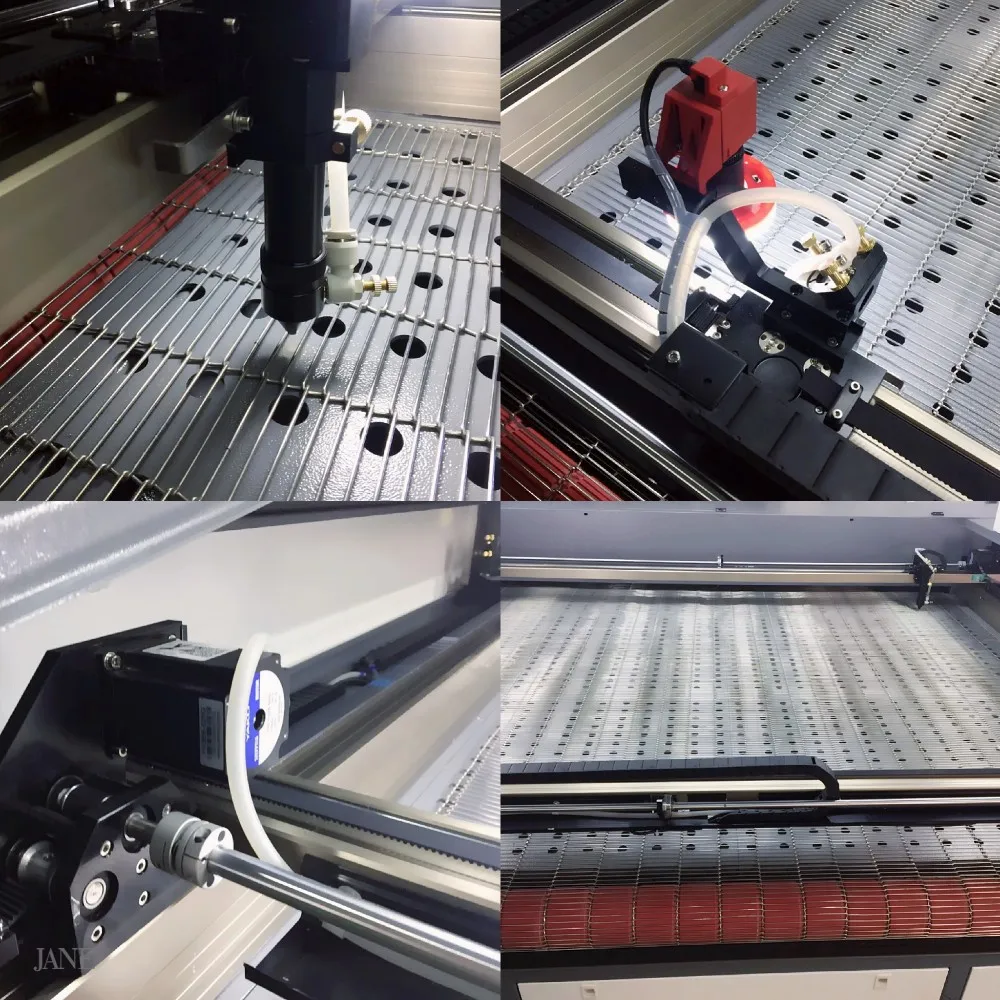

Detailed Images

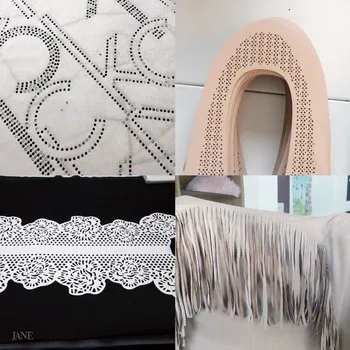

SAMPLES






Industry Application




Certifications

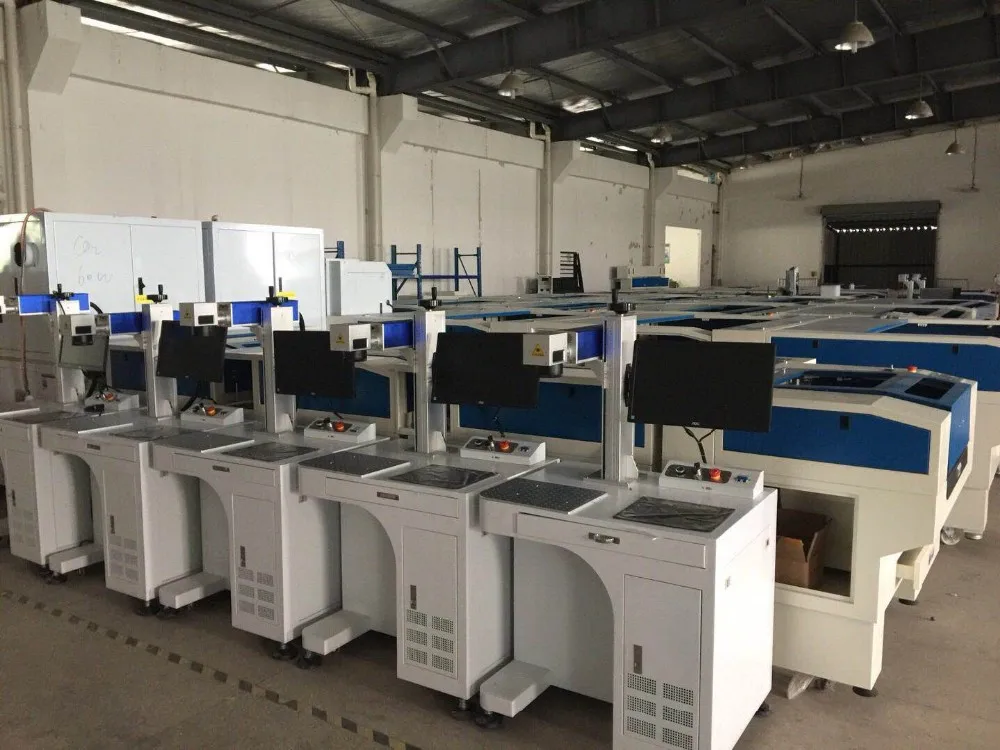

Our Company










Exhibition






Package&delivery
