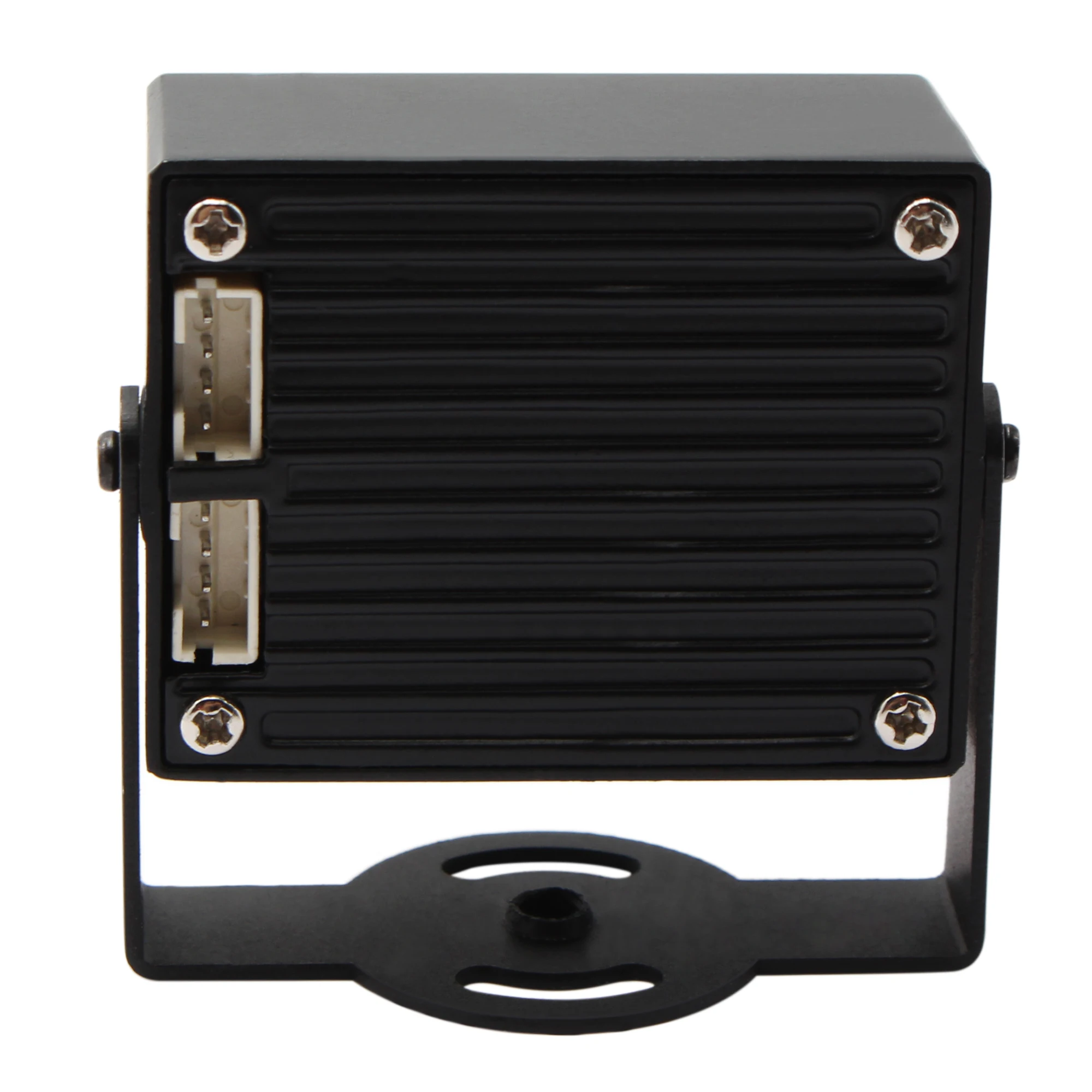

ELP IR Day Night Vision 2MP 1080P Stereo Webcam UVC Dual Lens 3D VR USB Camera with Case for Biometric Retina Analysis
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600738535615):
Product Overview
Description
Product Description

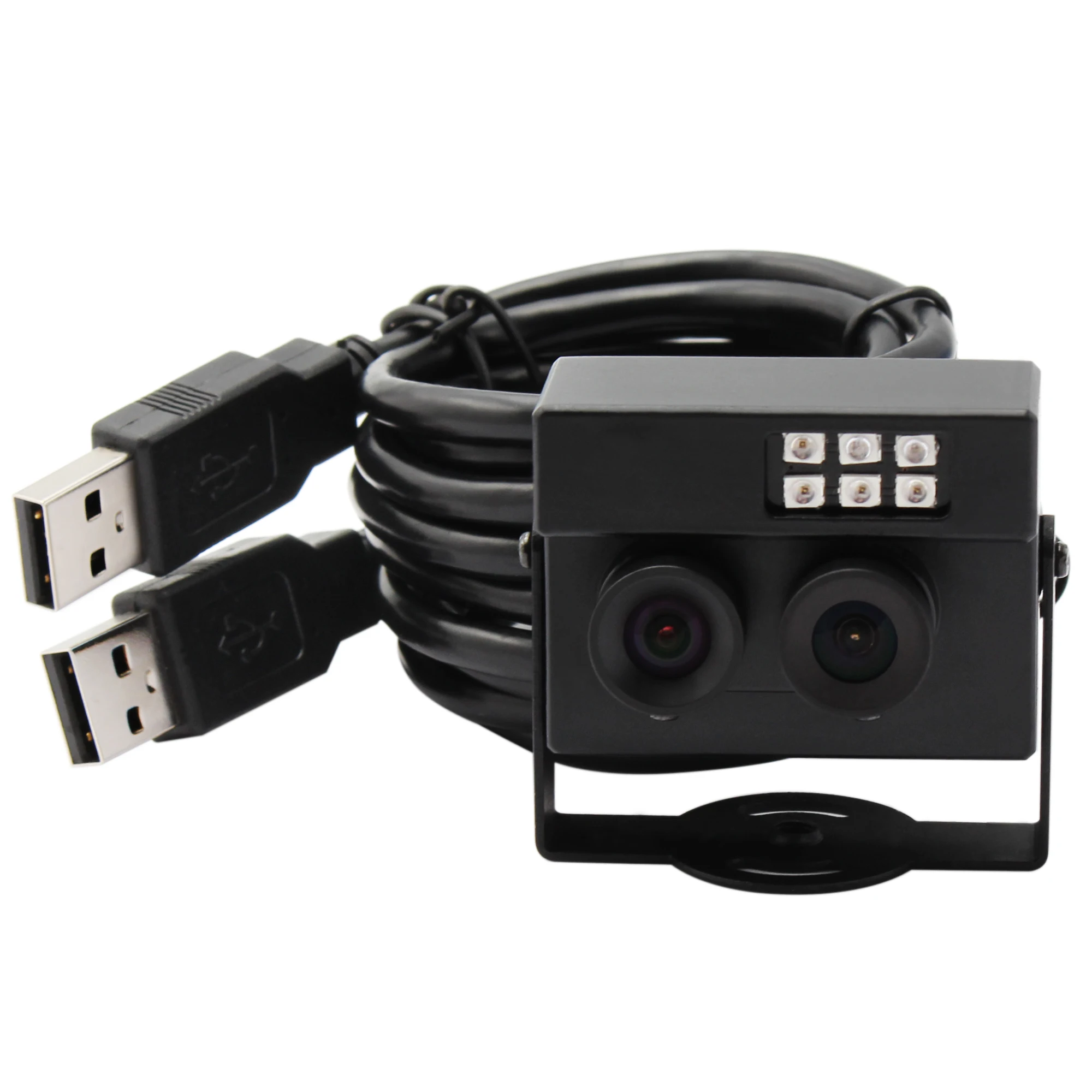

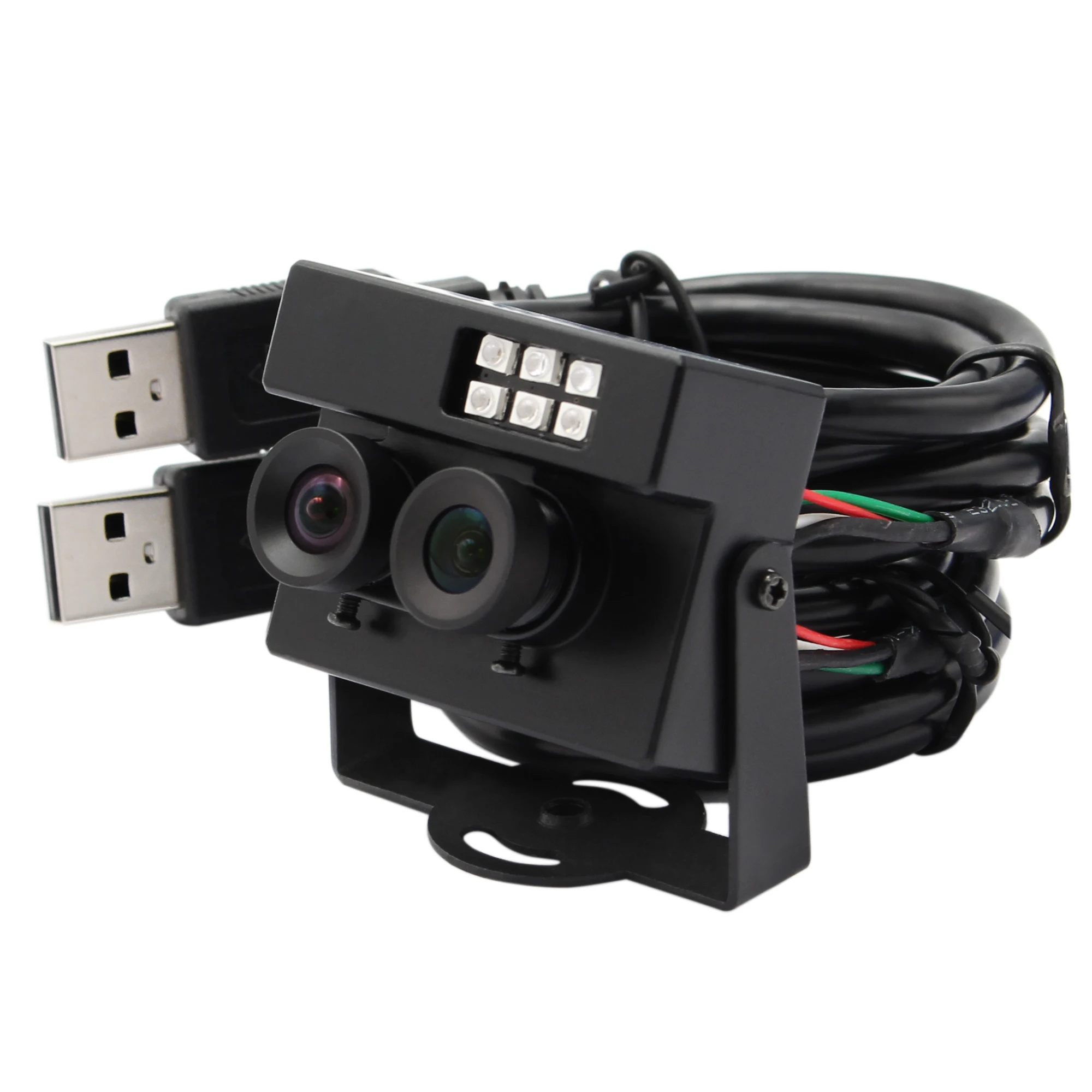

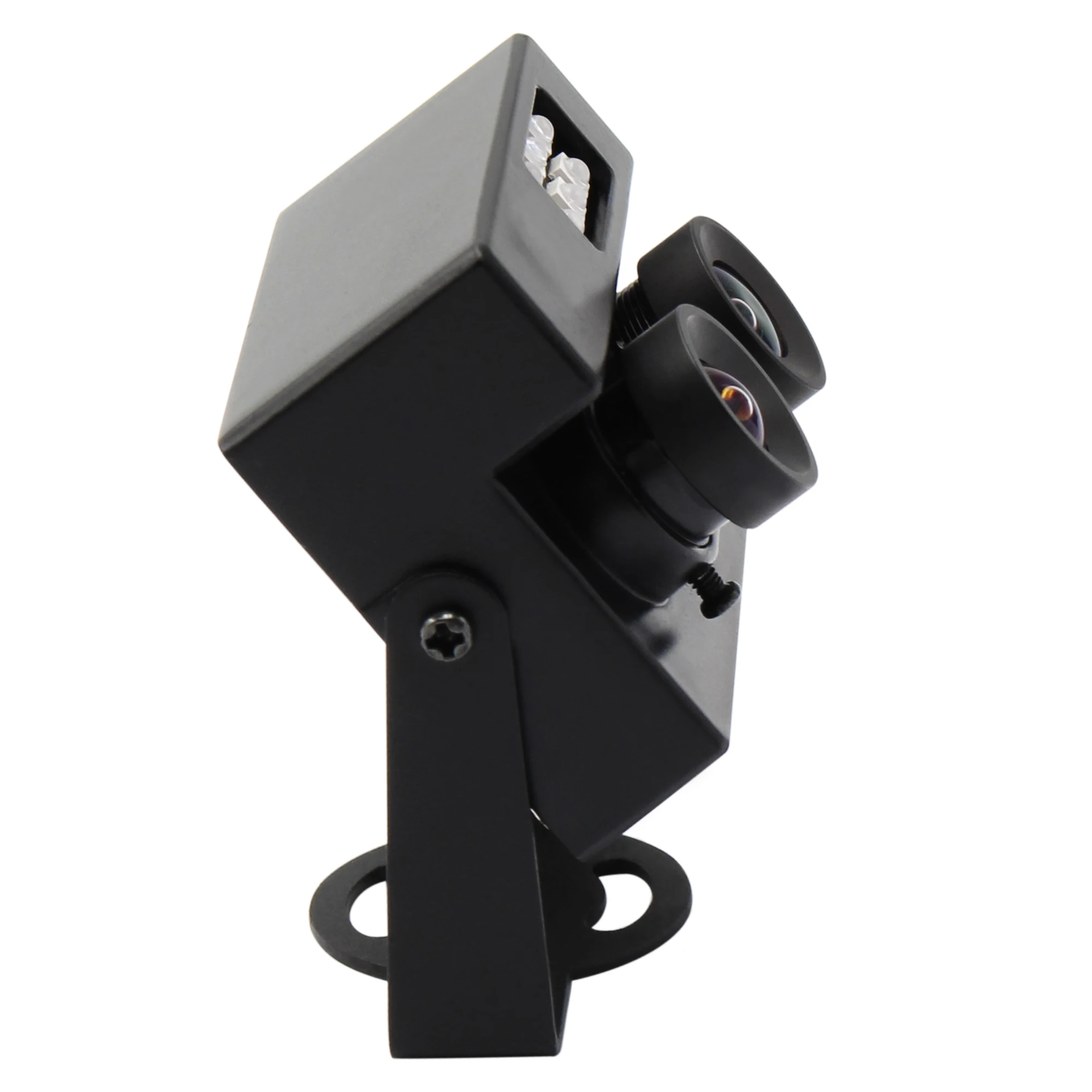

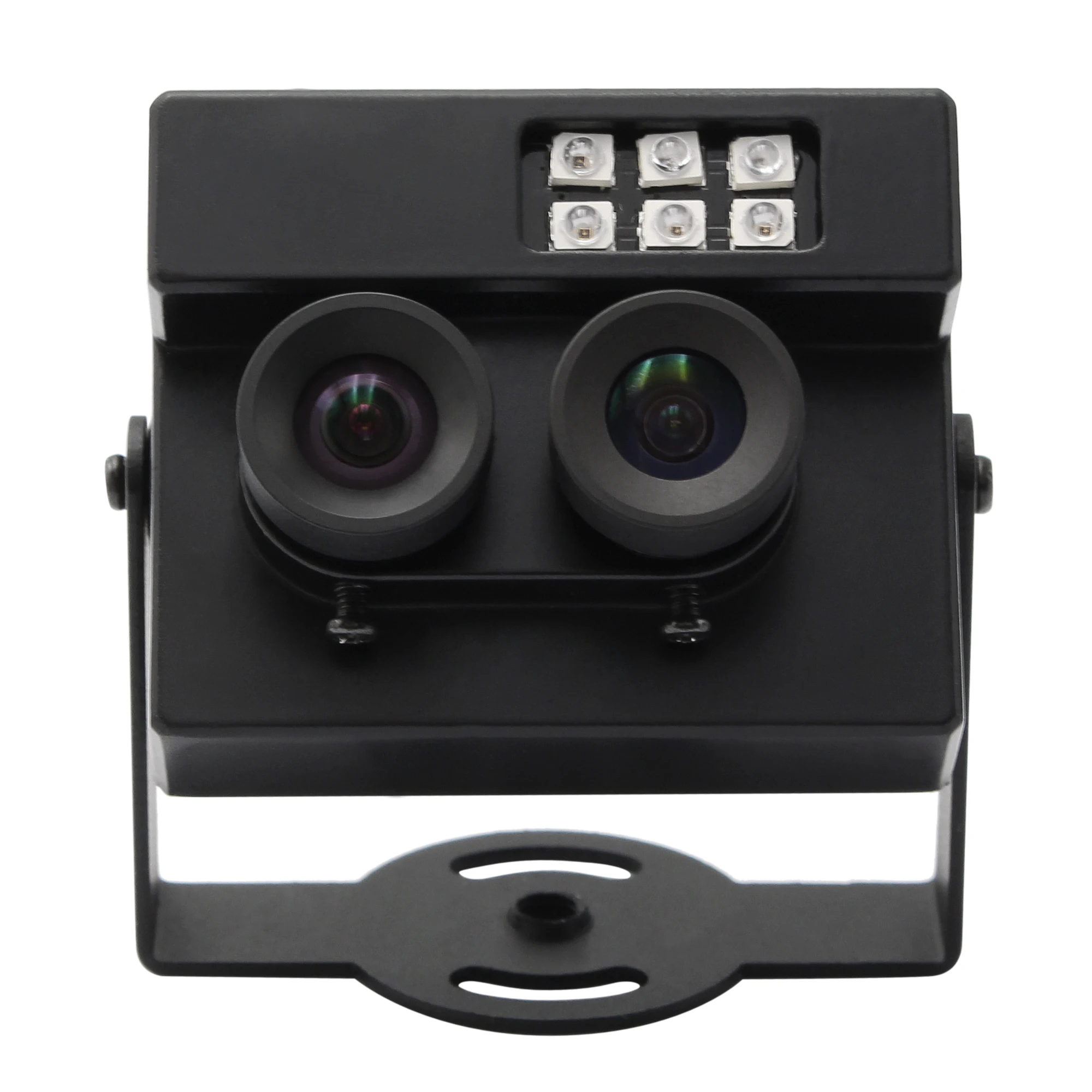

ELP IR Day Night Vision 2MP 1080P Stereo Webcam UVC Dual Lens USB Camera with Case for 3D VR Biometric Retina Analysis
Features:
* 2 megapixels WDR AR0230 sensor, Dynamic Range 105dB.
* Equipped with dual lens, both without distortion.
*Two different output. One is RGB mode, another is IR use narrowband 850nm IR Filter
*Equipped with 6pcs IR LEDs, IR distance 1-2 meters
* Widely used to in various applications: face recognition , Biopsy detection and other application scenarios.Also support
secondary development according to customers’ own requirements.
* This camera has 2 pices 1 meter USB cable
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
* 2 megapixels WDR AR0230 sensor, Dynamic Range 105dB.
* Equipped with dual lens, both without distortion.
*Two different output. One is RGB mode, another is IR use narrowband 850nm IR Filter
*Equipped with 6pcs IR LEDs, IR distance 1-2 meters
* Widely used to in various applications: face recognition , Biopsy detection and other application scenarios.Also support
secondary development according to customers’ own requirements.
* This camera has 2 pices 1 meter USB cable
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model | ELP-USB0230X2-V90-BX |
Sensor | AR0230 |
Lens Size | 1/2.7 inch |
Pixel Size | 3.0µm x 3.0 µm |
Image Area | 3888µm x 2430 µm |
Max. Resolution | 1920(H)X1080(V) |
Compression format | MJPEG |
Resolution & frame | RGB: MJPEG:1920*1080@30fps/1280X720@30fps/640X480@30fps W/B MJPEG:1920*1080@30fps/1280X720@30fps/640X480@30fps |
S/N Ratio | 41dB |
Dynamic Range | 105dB |
Sensitivity | 4.0V/lux-sec@550nm |
Mini illumination | 0 lux (IR) |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | M12 Lens FOV(D) 138 (H) 100 degree |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Working current | -10~70ºC |
Working temperature | -20~85ºC |
Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Cable | Standard 1m cables (2M,3M,5M optional ) |
Certifications
Details Images
Packing & Delivery
Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.
Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Sample Room & Production Process
Our Company
Shenzhen Ailipu Technology Co.,Ltd start in 2005,already 16 years history, is a professional manufacturer of USB Camera. Ailipu has its own brand ELP, which already well know in video camera system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Exhibition
Partner
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
