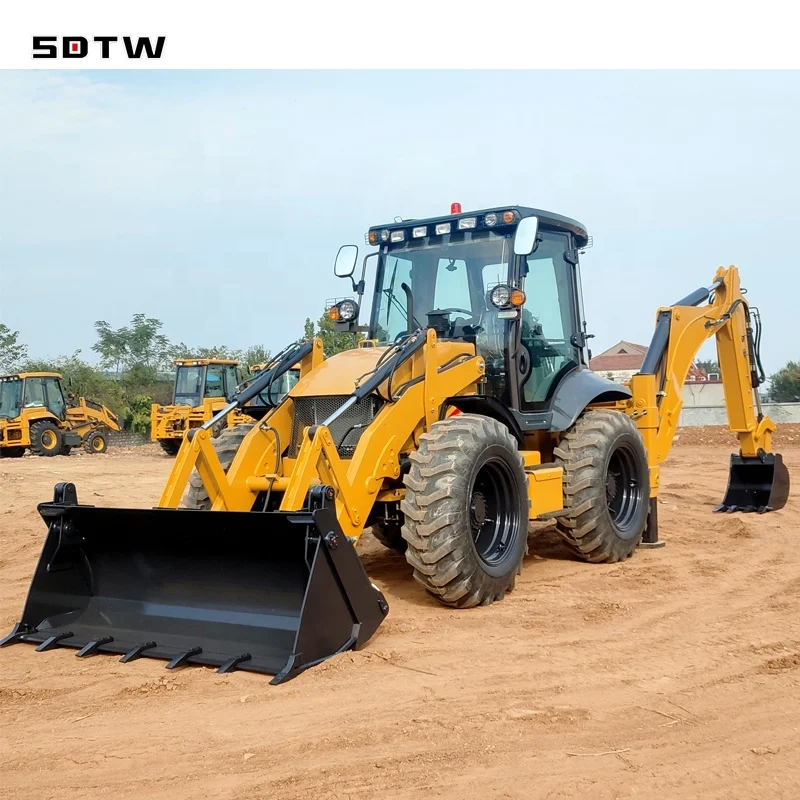

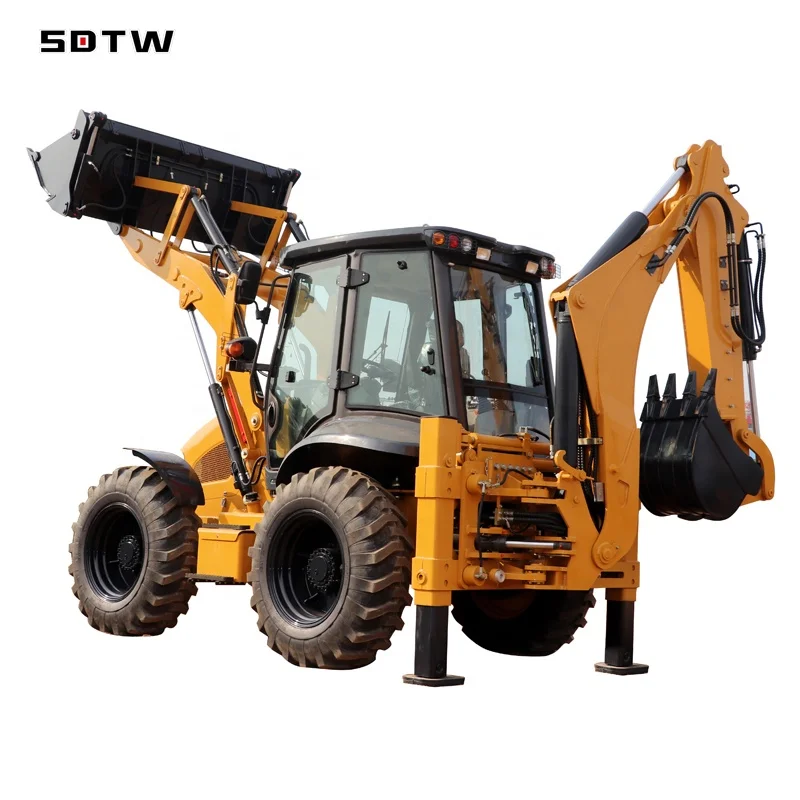

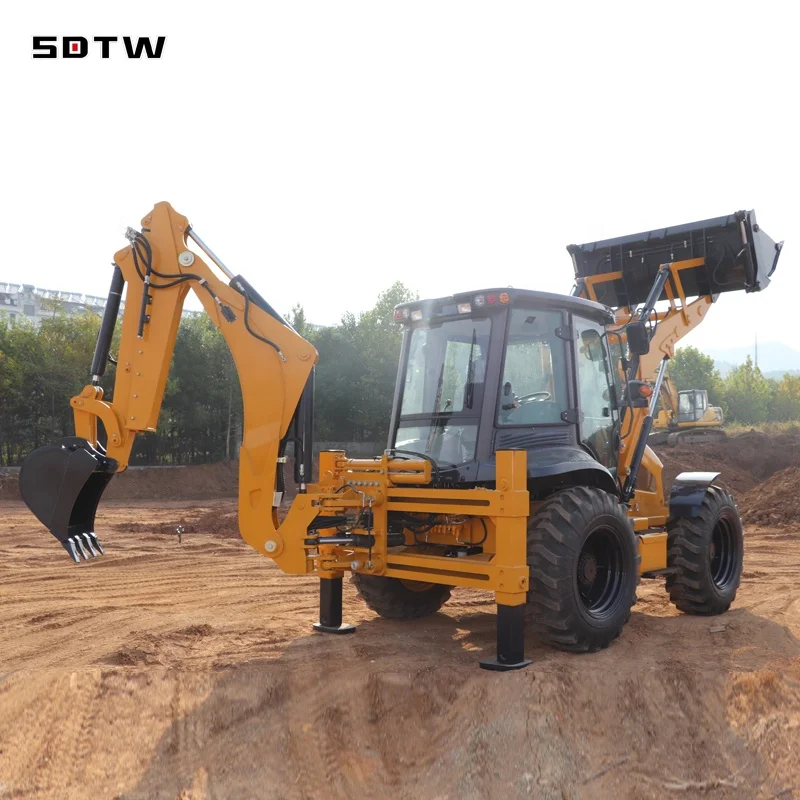

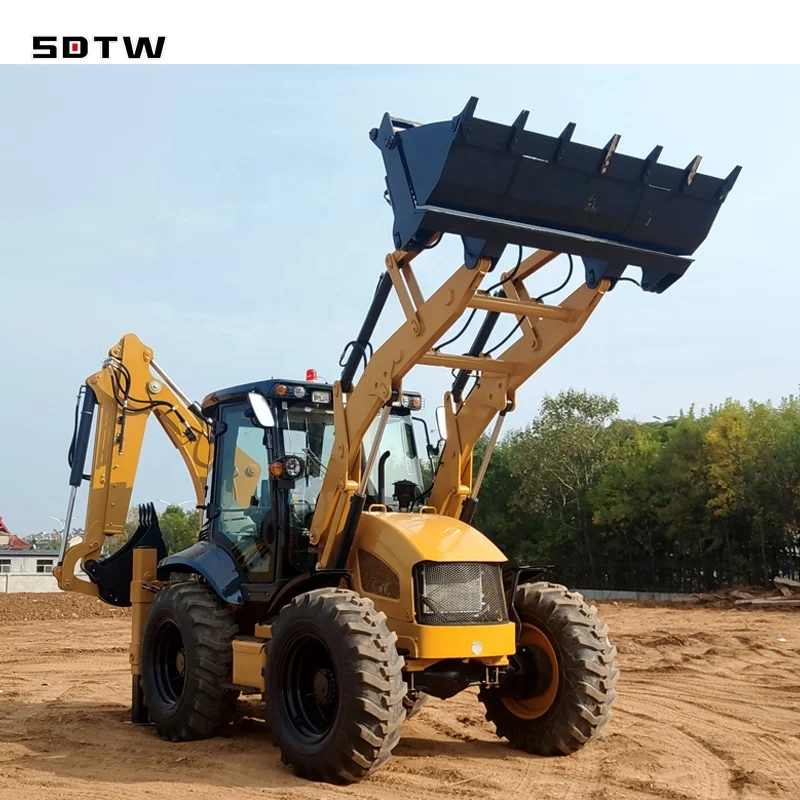

9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale
9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale

9t Hot Sale Factory 4x4 Mini Small Tractor With Front End Loader backhoe loader For Sale

Share on (1600738558244):


Price:$13,000.00 - $33,000.00

Quantity:


Product Overview

Description

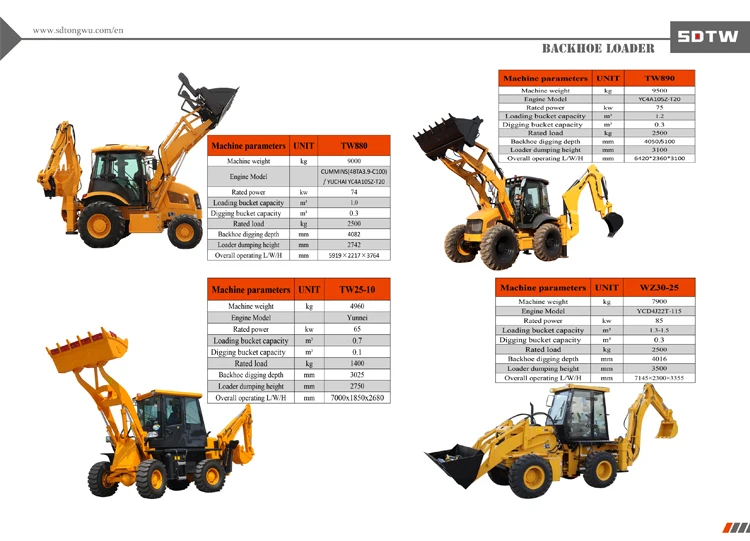

SDTW TW890 backhoe loader 9.5ton, 4x4 wheel drive, yuchai engine
SDTW MINI EXCAVATOR




Overall Operating Weight
9500KG
Final Reducer
Single Stage Final Reducer
Transport Dimension
Rated Loader of Axle
13t
mm L*W*H
6420×2360×3100
Transmission System
Wheel base
2335mm
Torque Converter
Min. Ground Clearance
300mm
Model
YJ290
Bucket Capacity
1.2m3
Type
Single-stage Three Elements
Breakout Force
38KN
Max. Efficiency
84.4%
Loading Lifting Capacity
2500KG
Inlet Pressure
0.5 Mpa
Bucket Dumping Height
3100mm
Outlet Pressure
1.1Mpa—1.3 Mpa
Bucket Dumping Distance
900mm
Cooling Method
Oil-cooling Pressure Circulation
Digging Depth
52mm
Gearbox
Backhoe Capacity
0.3 m3
Type
Mechanically operated hydraulic synchronous shift
Max. Digging Depth
4050/5100（extension arm）mm
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Swing Angle of Excavator Grab
190o
Gears
Four Gears Ahead, Four Gears Astern
Maximum Digging Force
5100 kgf
Max.Speed
33Km/h
Engine
Tyre
Model
 YUCHAI
YC4A105Z-T20
Model
16.9-28
Type
In Line Direct injection Four-Stroke and Injection Combustion Chamber
Pressure of Front wheel
0.35 Mpa


Cylinder-Inside Diameter*Stroke
4-102×120
Pressure of Back Wheel
0.45 Mpa
Rated Power
75KW
Brake System
Rated Speed
2200r/min
Service Brake
Gas pushed oil
Min. Fuel Consumption
≤242g/km.h
built-in
Max.Torque
≥410N.M
Self-regulation
Displacement
4.8L
Self-balance
Steering System
Emergency Brake
Operation Power Implementing brake
Model of Steering Device
BZZ5-250
Manual Operation Power Terminating Brake
Steering Angle
±36 o
Hydraulic System
Min. turning radius
4036mm
Working pump discharge
63ml/r
Pressure of the system
12Mpa
Working pump pressure
20Mpa
Axle
Type of steering gear
BZZ5-250
Manufacturer
Feicheng Axle Factory
Hydraulic tank capacity
125L
Model
WL100
Diesel tank capacity
125L


Product description

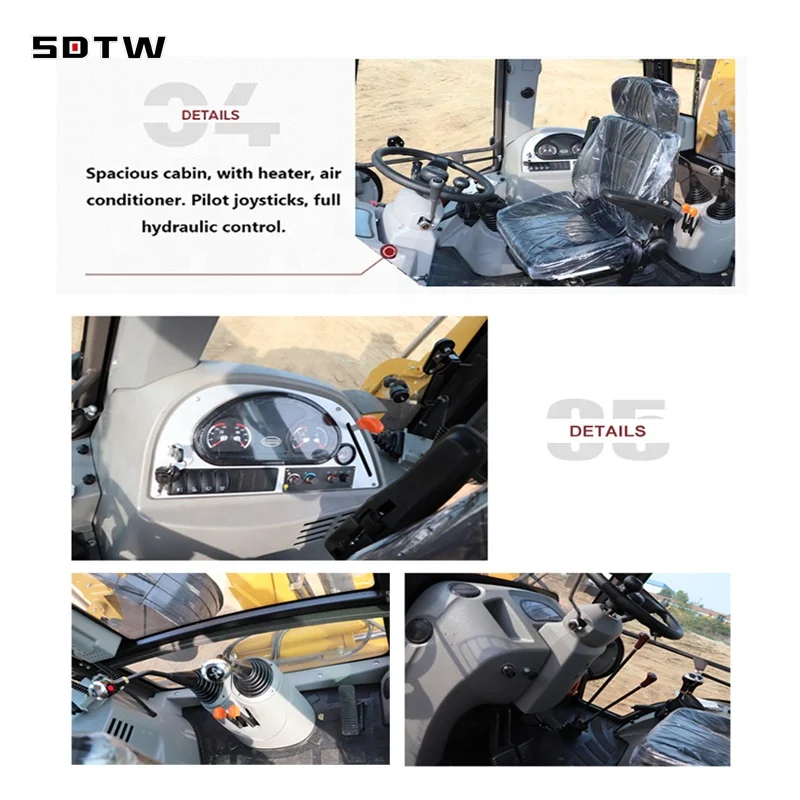

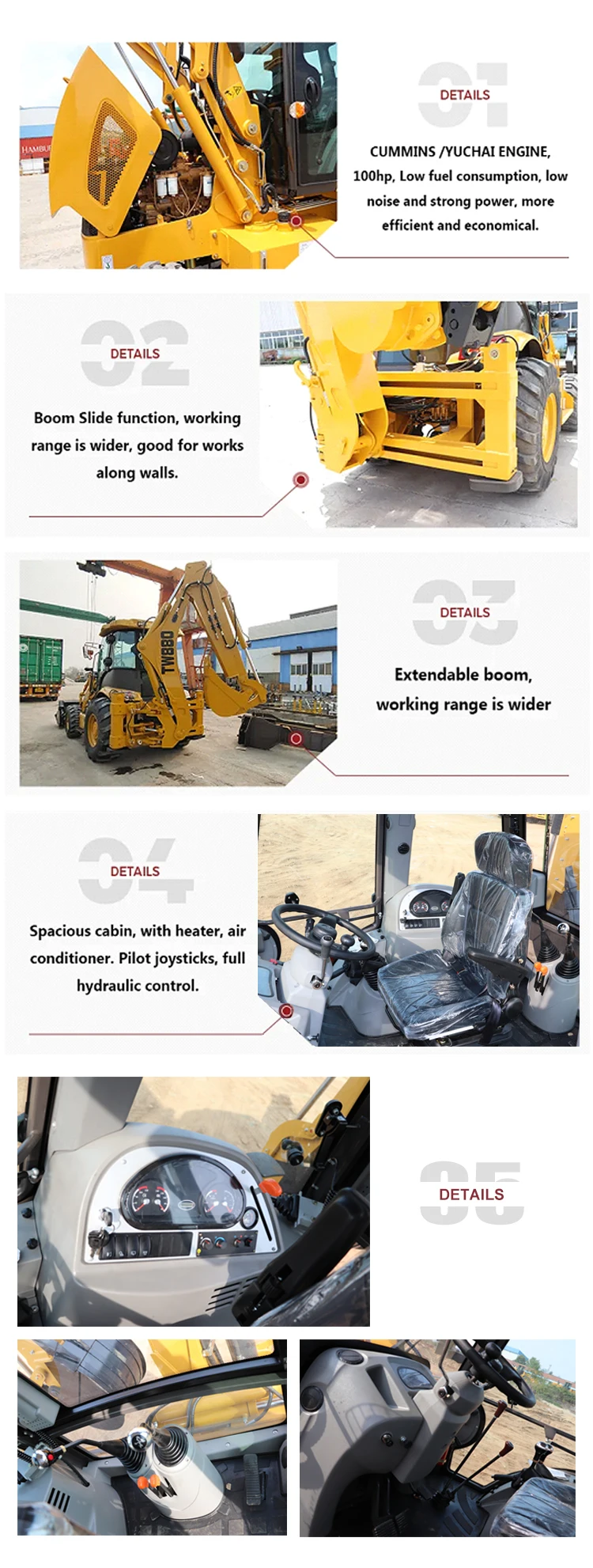

Details Images

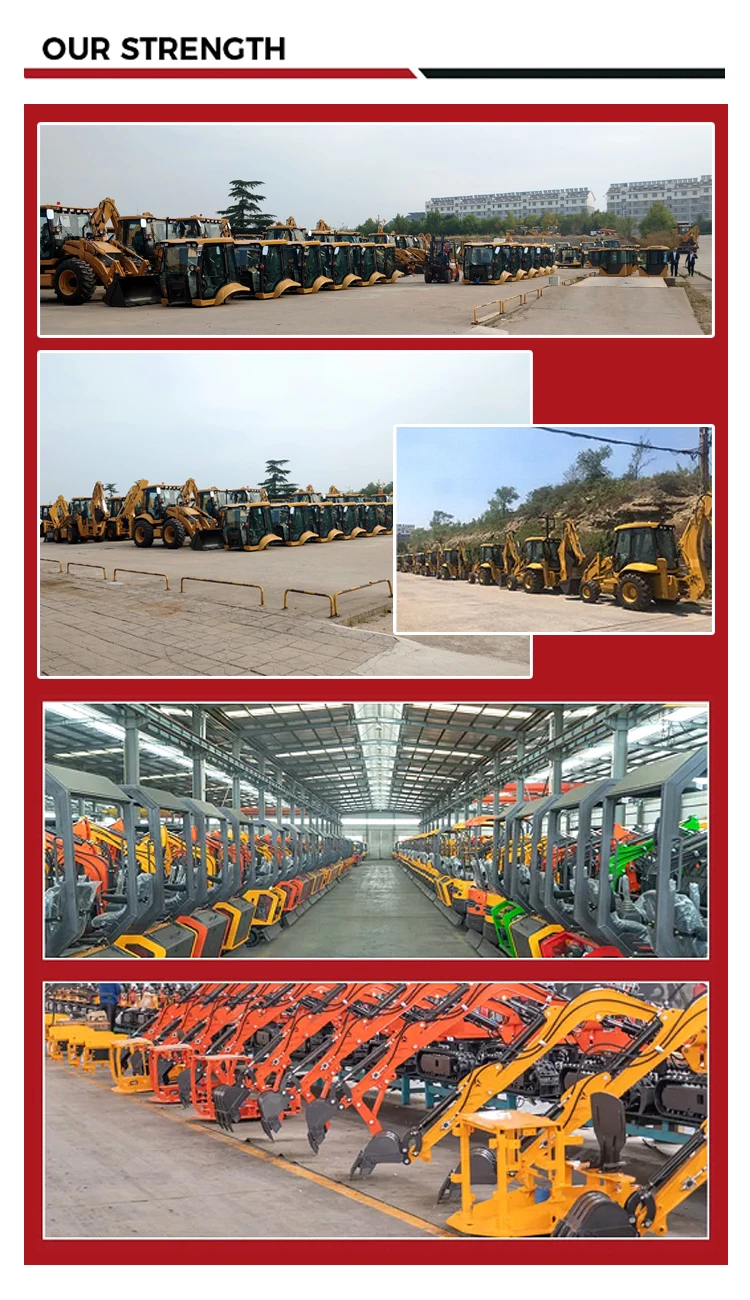

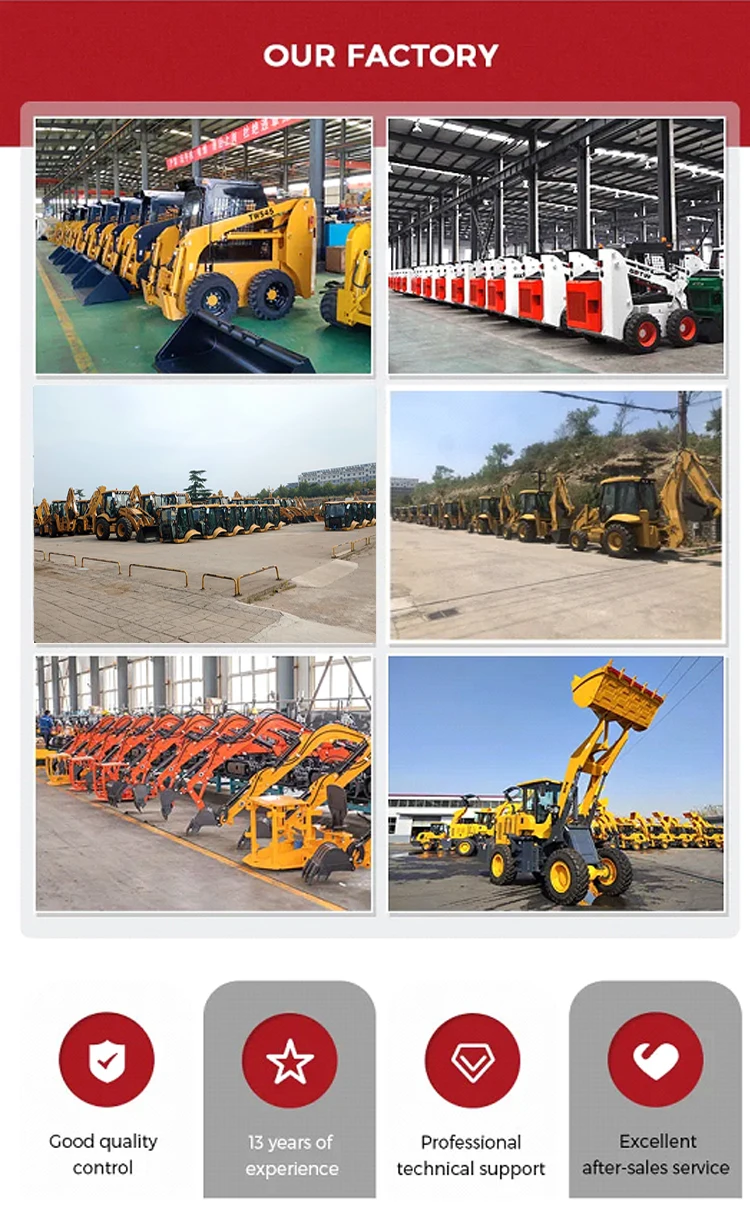

Our Strength




More Discounts

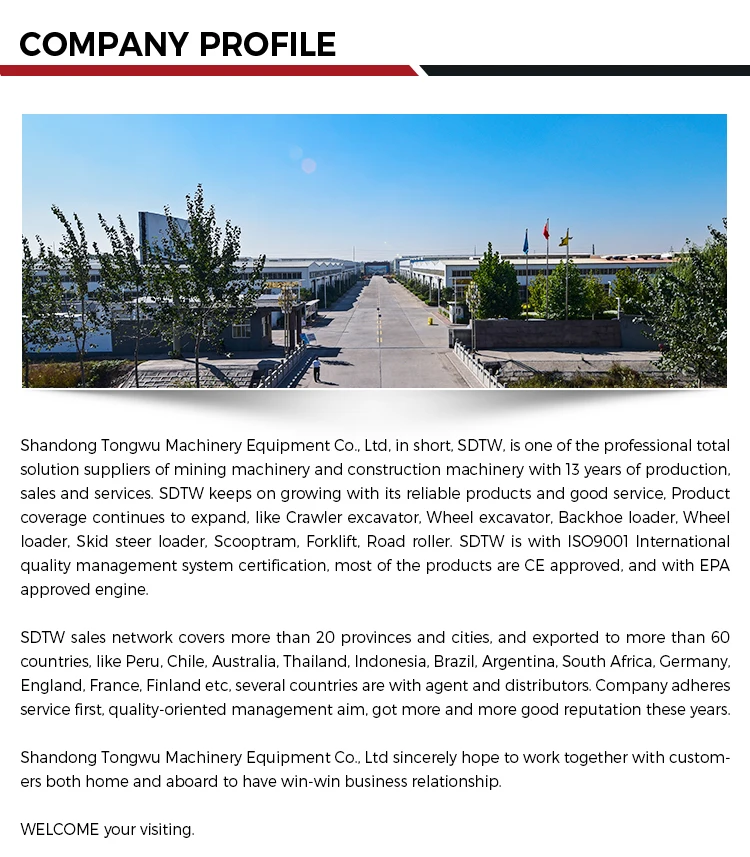

Company Information

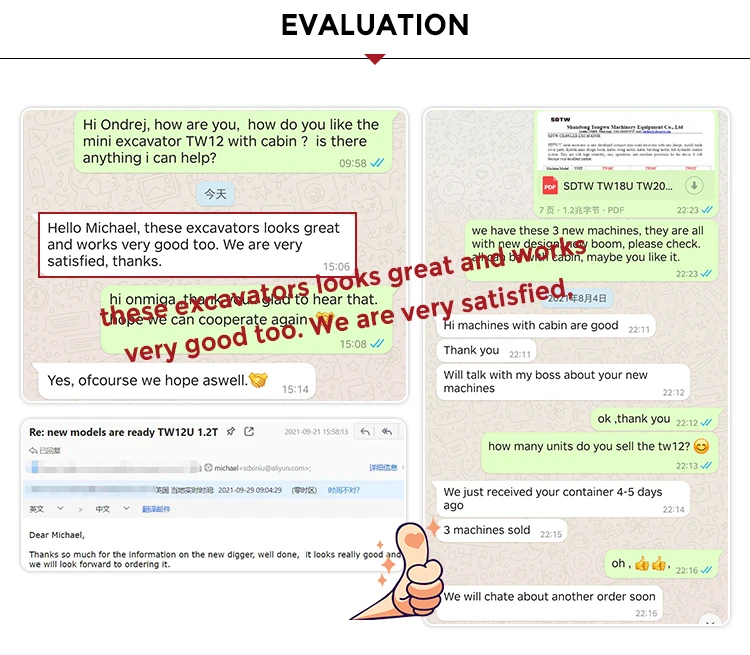

Our Customer

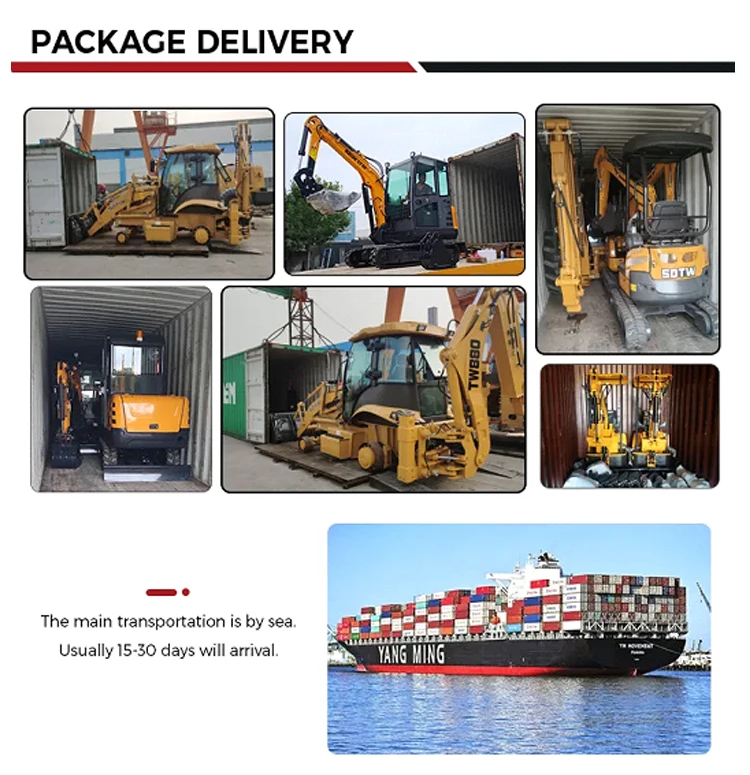

packaging and Shipping




FAQ


1. Who are we?
We are based in Shandong, China, start from 2018,sell to South America(30.00%),Western Europe(20.00%),Oceania(15.00%),Eastern
Europe(10.00%),South Asia(8.00%),Central America(7.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50
people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Mini Excavator/ Crawler Excavator/ Wheel Excavator/ Wheel Loader/ Backhoe Loader/ Skid Steer Loader/ Forklift Lift,Scooptram/
Underground Truck/ Mucking Loader/ Drilling Jumbo

4. Why should you buy from us not from other suppliers?
we are professional manufacturer of construction machinery, like excavator, wheel loader, forklift, skid loader, scooptram, dump
truck Quick delivery. 7-20 days. Good guarantee Excellent after-sale service 24 hours on-line service Technical training

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
