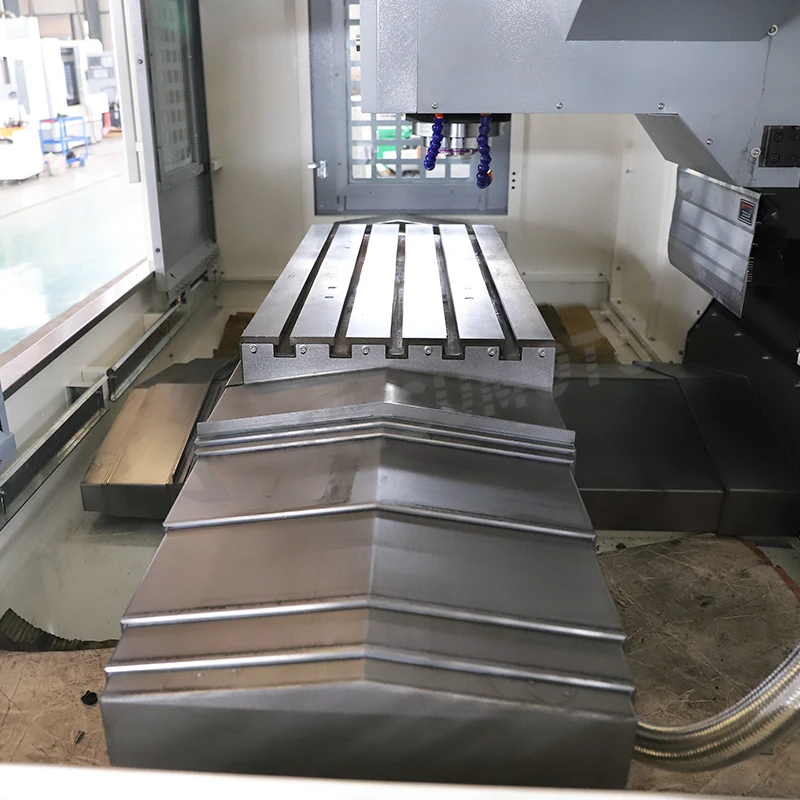

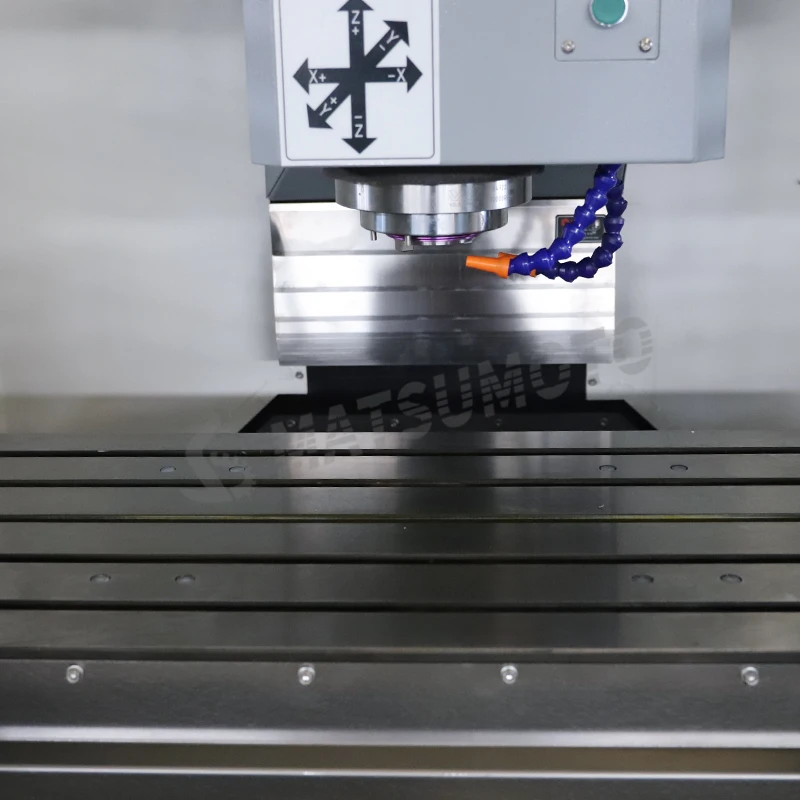

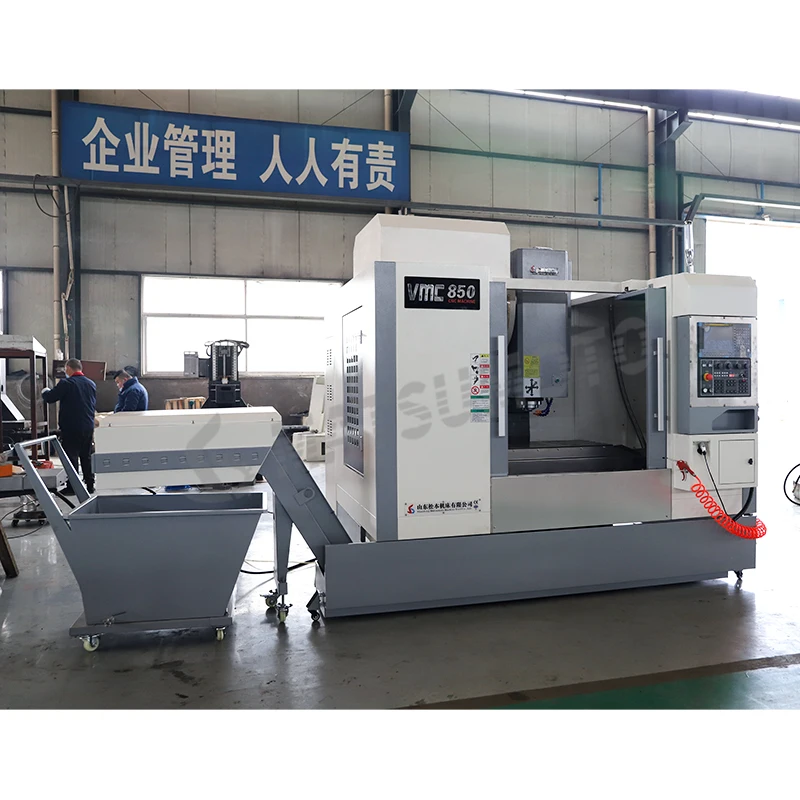

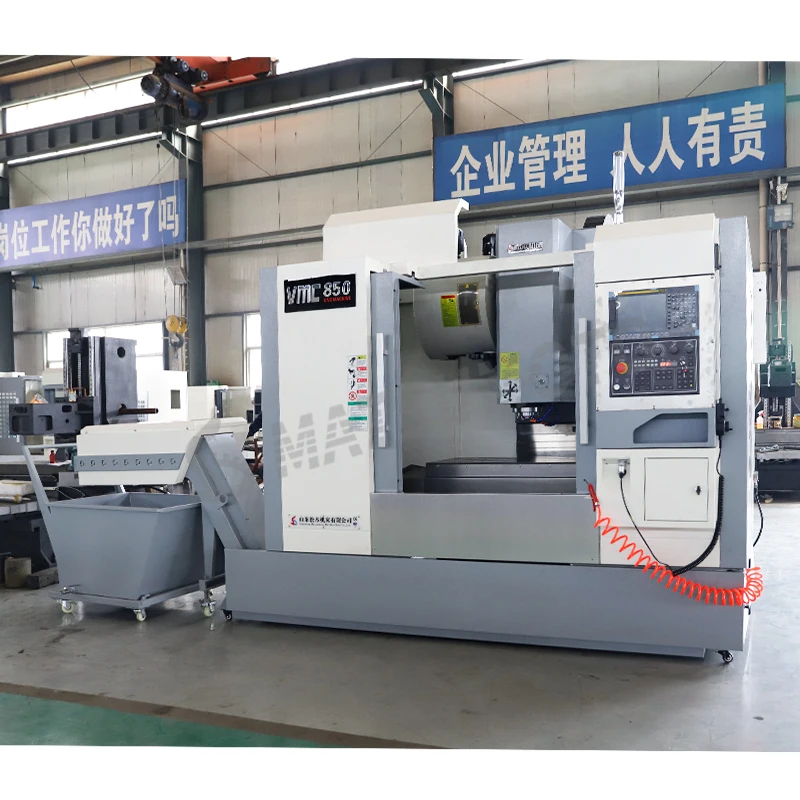

VMC640 VMC650 VMC850 VMC855 CNC milling machine price universal Machining Center Machine
- Category: >>>
- Supplier: Shandong Matsumoto Machine Tool Co. Ltd.
Share on (1600738643160):
Product Overview
Description
Products Description

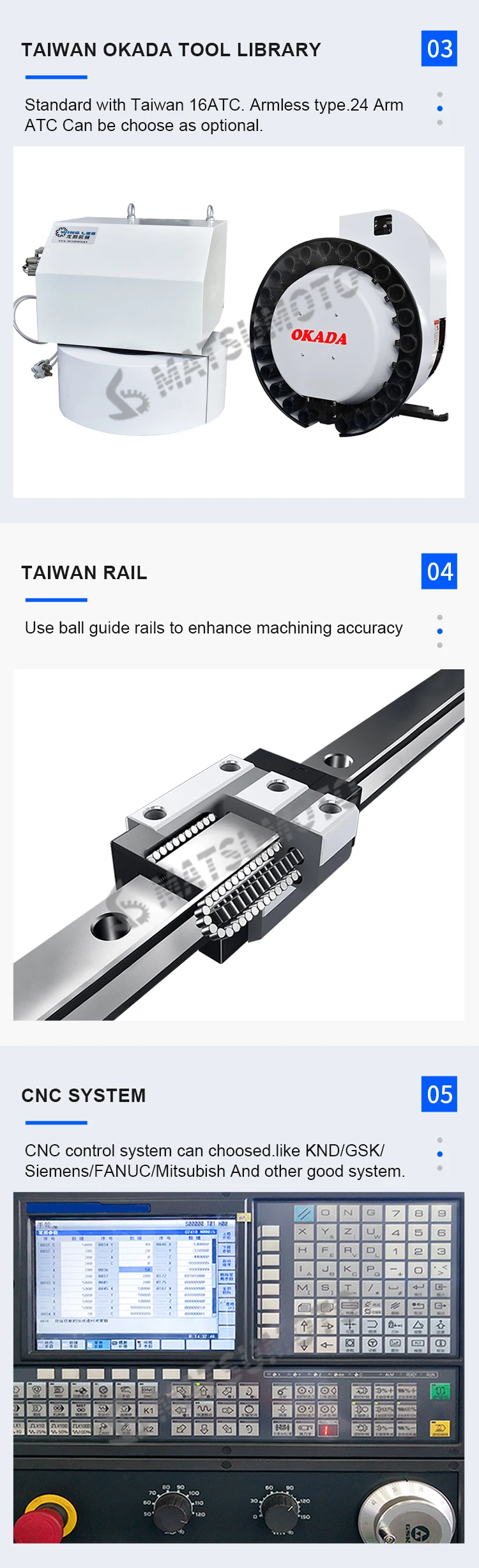

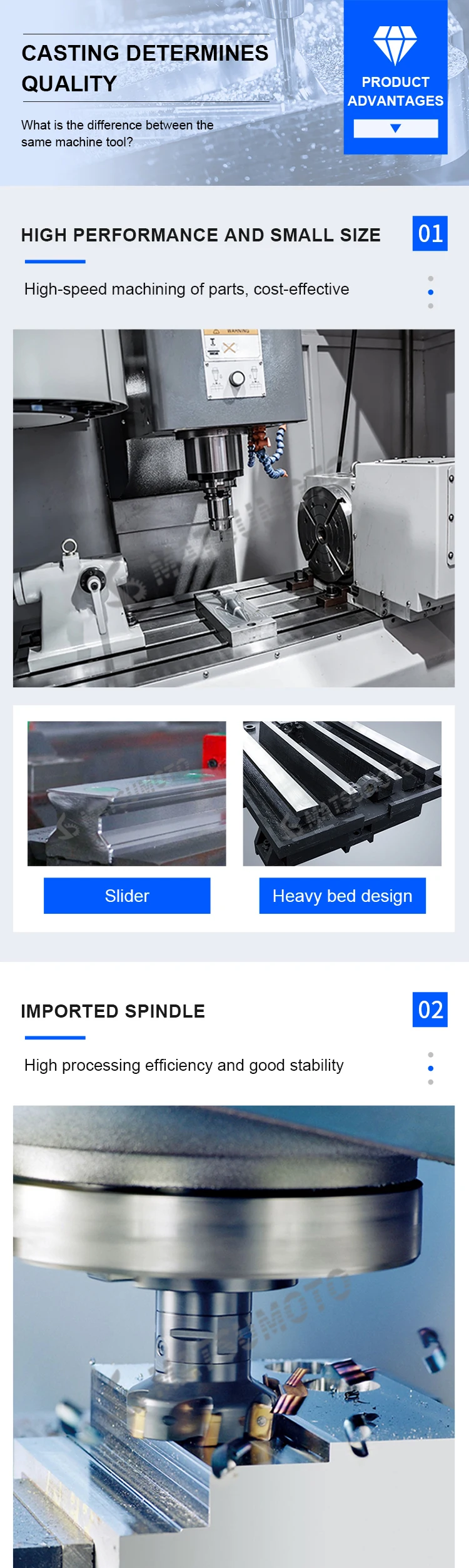

Details Images
Product Paramenters

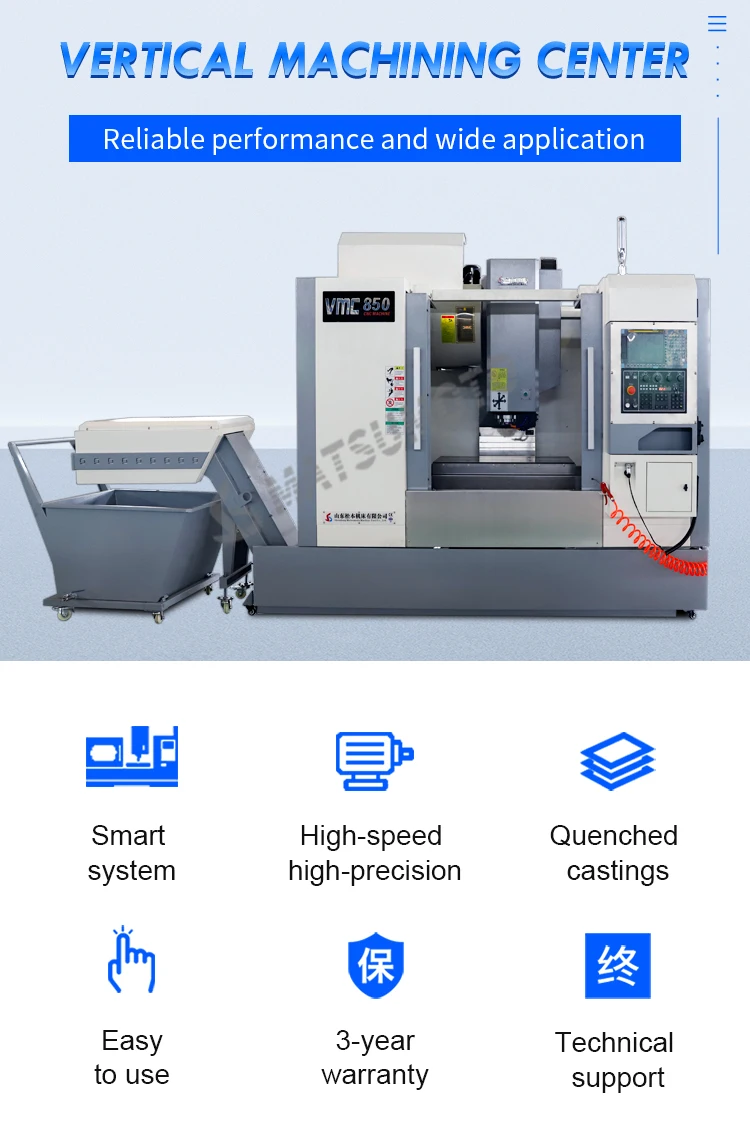

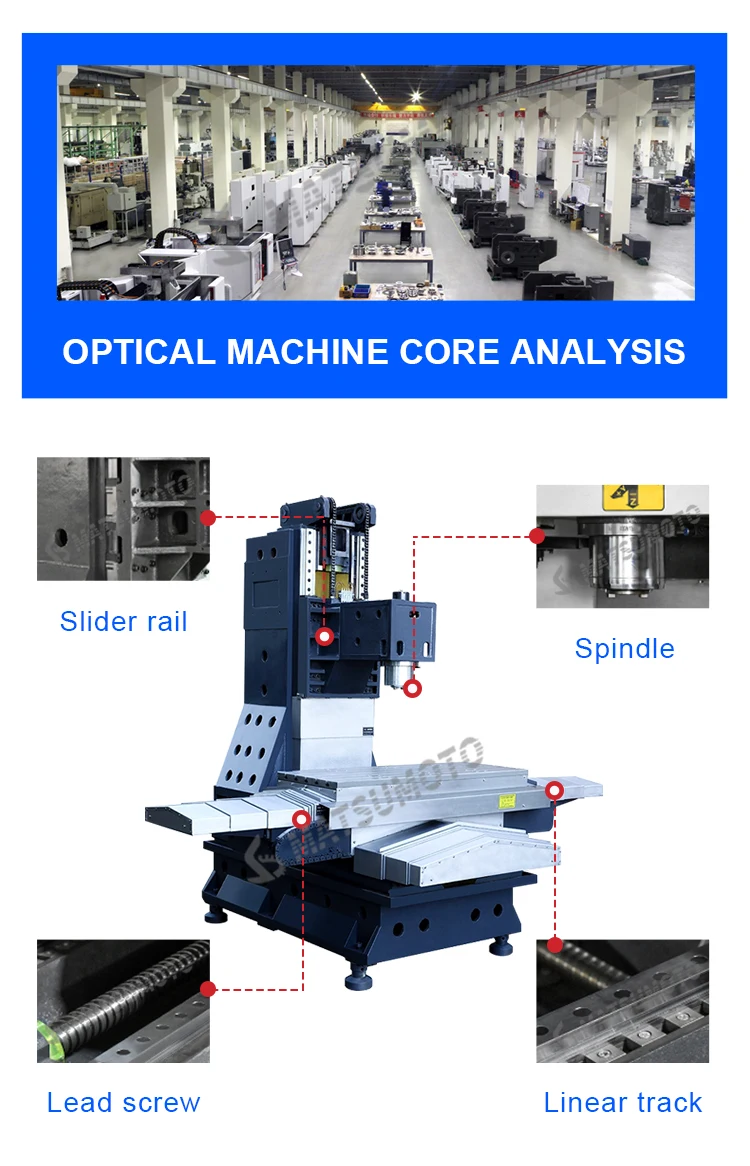

Vertical machining center Features
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system

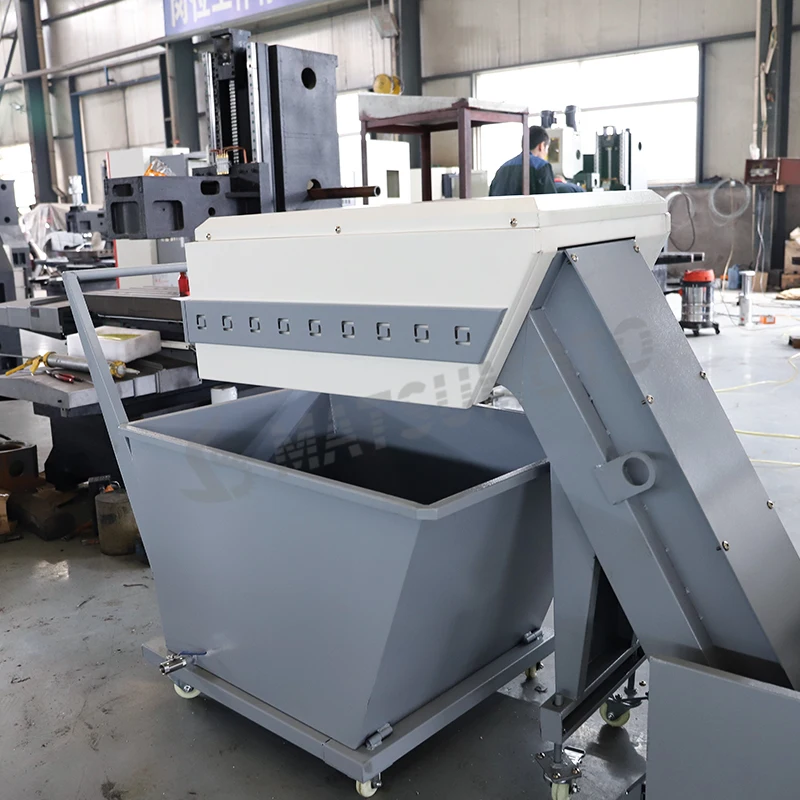

Chip conveyor at optional
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Machine type | VMC850 | ||
Capacity | Table size | 1000x500mm | |
Max. table load | 800kg | ||
T slot qty-width*distance | 5-18*90mm | ||
Spindle | Spindle speed | 10000 rpm | |
Spindle nose to table surface | 100-650mm | ||
Spindle center to Column surface | 550mm | ||
Spindle taper | BT40-150 | ||
Main motor power | 7.5/11kw | ||
Three-axis servo motor power | 2.5/3.0kw | ||
Box way | X axis travel | 800mm(900mm) | |
Y axis travel | 500mm | ||
Z axis travel | 550mm | ||
X/Y axis rapid feed | 24m/min | ||
Z axis rapid feed | 24m/min | ||
Cutting feed speed | 0-10000mm/min | ||
Automatic tool changer | Tool changer type | Disc type / hat type (arm type optional ) | |
Standard tool number | 24pcs | ||
Maximum tool diameter | Empty Φ 120/ full tool Φ 80 | ||
Maximum tool length | 300mm | ||
Maximum tool weight | 7kg | ||
Accuracy | Positioning accuracy | 300mm/±0.005mm | |
Accuracy of repeated positioning | 300mm/±0.003 mm | ||
Weight & Size | Net Weight | 5500 kg | |
Overall Dimension | 2780*2350*2700mm | ||
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
