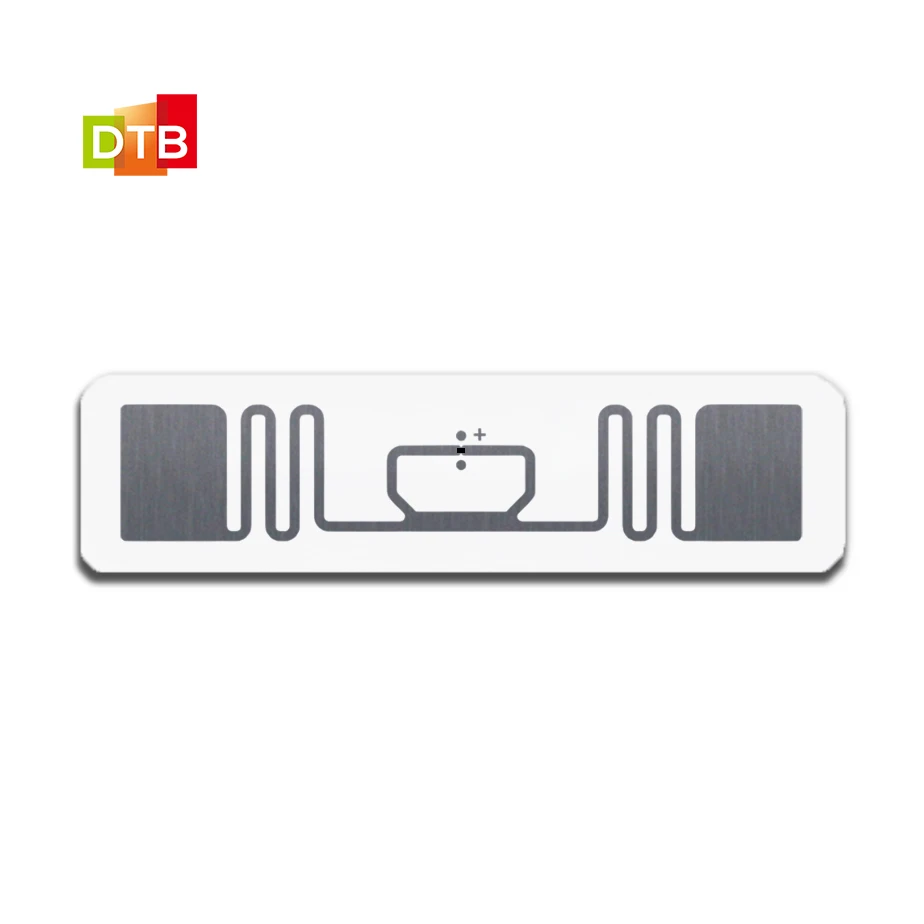

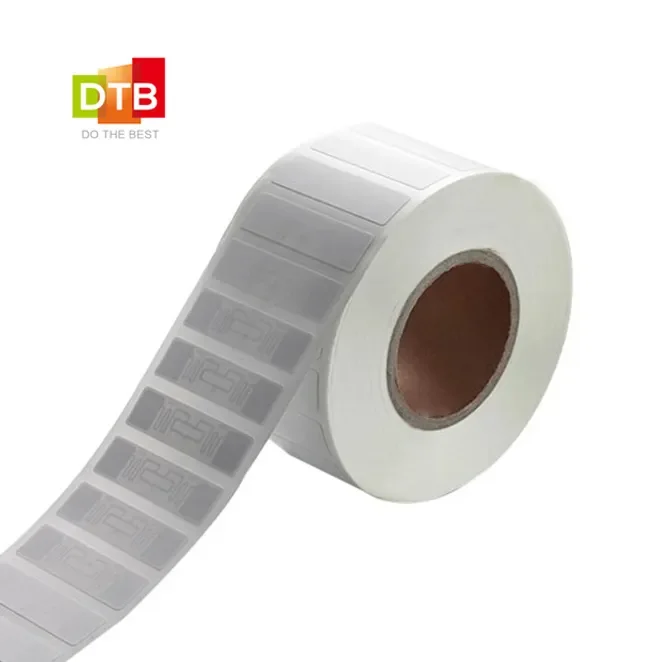

Inventory ER62 uhf rfid tag , Passive RFID 860~960 MHz Impinj Monza R6 R6 P chip tag rfid Sticker label
- Category: >>>
- Supplier: Shenzhen DTB RFID Co. Ltd.
Share on (1600738647532):
Product Overview
Description
*Hot Products Recommend
Shenzhen DTB RFID Co., Ltd.
RFID Label can be widely applied in identification, public transportion , event ticketing electronic toll collection, asset
management ,libraries and rental, loyalty system and access control management etc. MIND company provides programming and encoding
services which exactly fit customer’s programming or encoding requirements.Our selection of RFID labels feature:
* Coated white matte paper, Thermal transfer, Thermal PP, Thermal paper, PET.
* Permanent adhesive
* EPC Class 1, Gen 2 compliance ; ISO1444A, ISO15693 and NFC protocol.
* High Frequency (HF) and Ultra High Frequency (UHF) RFID chips
* HF chip: 1K bytes memory; UHF chip: 96-480 bits of EPC or up to 512 bits of user memory
* Frequently-used sizes: 4"*1", 4"*2", 4"*4", 4"*6", etc.
management ,libraries and rental, loyalty system and access control management etc. MIND company provides programming and encoding
services which exactly fit customer’s programming or encoding requirements.Our selection of RFID labels feature:
* Coated white matte paper, Thermal transfer, Thermal PP, Thermal paper, PET.
* Permanent adhesive
* EPC Class 1, Gen 2 compliance ; ISO1444A, ISO15693 and NFC protocol.
* High Frequency (HF) and Ultra High Frequency (UHF) RFID chips
* HF chip: 1K bytes memory; UHF chip: 96-480 bits of EPC or up to 512 bits of user memory
* Frequently-used sizes: 4"*1", 4"*2", 4"*4", 4"*6", etc.
Details Images
Product Paramenters
Mechanical Specification | ||
Substrate | PET | |
weight | 1 Kg / reel | |

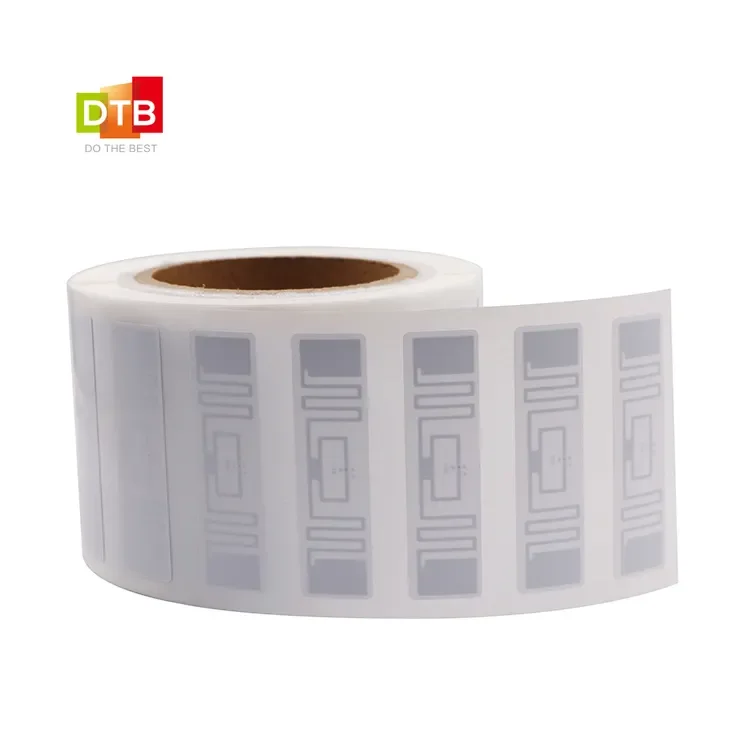

Delivery format | 2500 pcs on reel | |
Pitch on reel | 25.4mm / 1.00” | |
Reel core inner diameter | 76.2mm / 3” | |

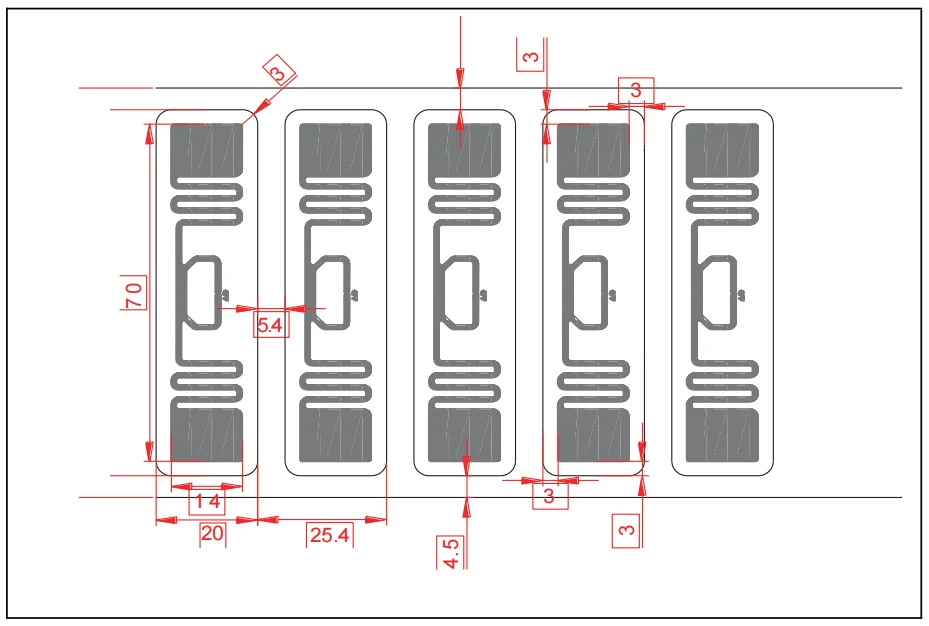

Tag dimensions | 76*20mm l 2.99"*0.79” | |
Electrical Specification | ||
Device type | Class 1 Generation 2 passiveUHF RFID transponder | |
Air interface protocol | EPC Global Class 1 Gen2ISO18000-6C | |
Operational frequency | Global 860-96OMHz | |
lC type | lmpinj Monza R6P | |
Memory configuration | EPC 96 bits; Unique TID 48 bits;User Memory 32 bits | |
Read range | Up to 12m / 39.37ft | |
Environmental Resistance | ||
Operating temperature | -40°℃~85°C /-40°F~185°F | |
Ambient temperature | -20°C~50°C/ -4°F~122°F | |
Storage condition | 20%-90% RH | |
Expected lifetime | 2 years in normal operating conditions | |
Products Description
Customizable label structure
Widely used in books, clothing, jewelry, assets and other fields

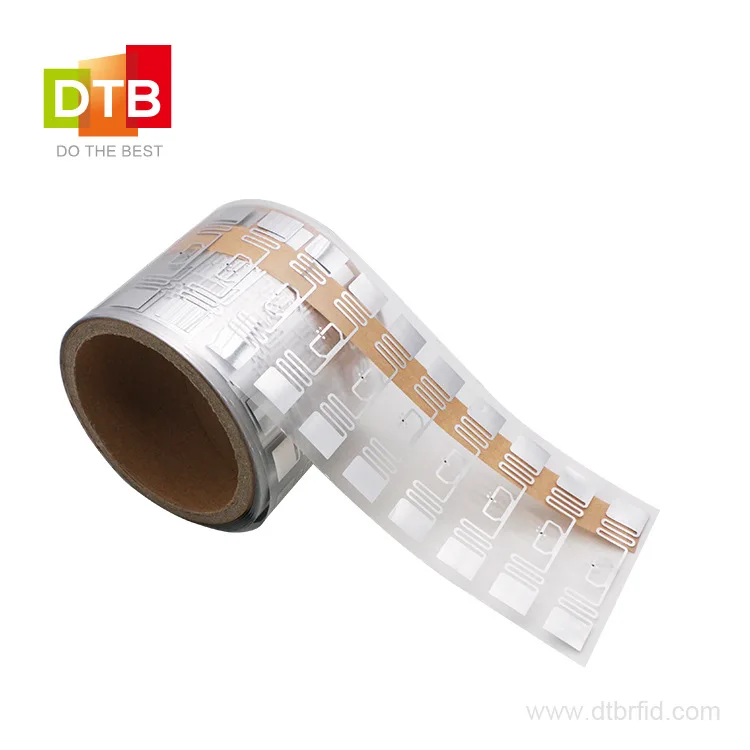

Dry label
Antenna + Chip
Wet label
Antenna + Chip + Adhesive Layer

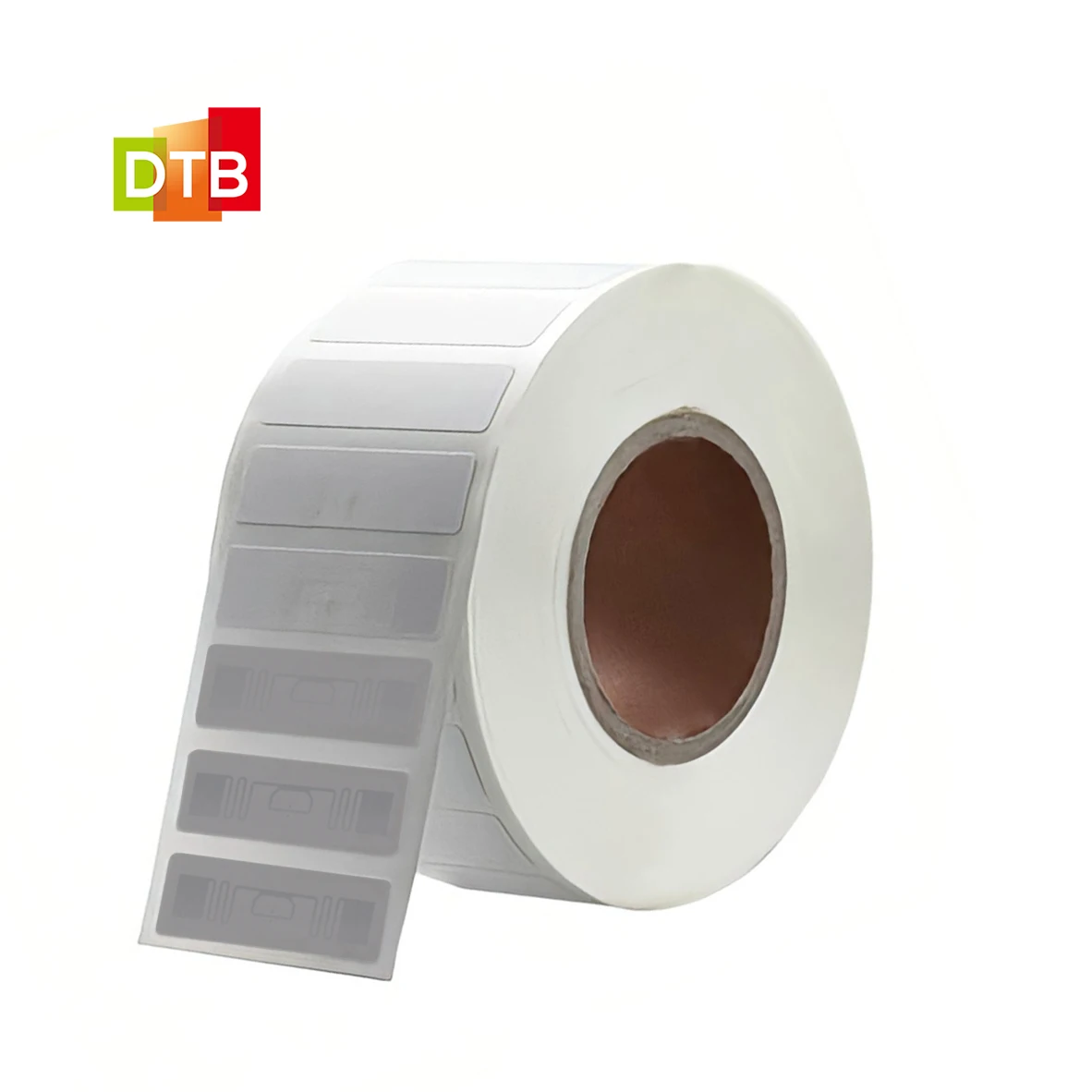

White label
Coated paper + antenna+chip +adhesive layer
White label printing
Coated paper + printing +
antenna + chip + adhesive layer
Application
You can quickly query product information
Can quickly realize conference sign -in
and attendance
You can quickly open the software such as navigation
Can quickly realize conference sign -in and attendance
You can quickly open the software such as navigation
Can quickly realize conference sign -in and attendance
You can quickly open the software such as navigation
Can quickly realize conference sign -in and attendance

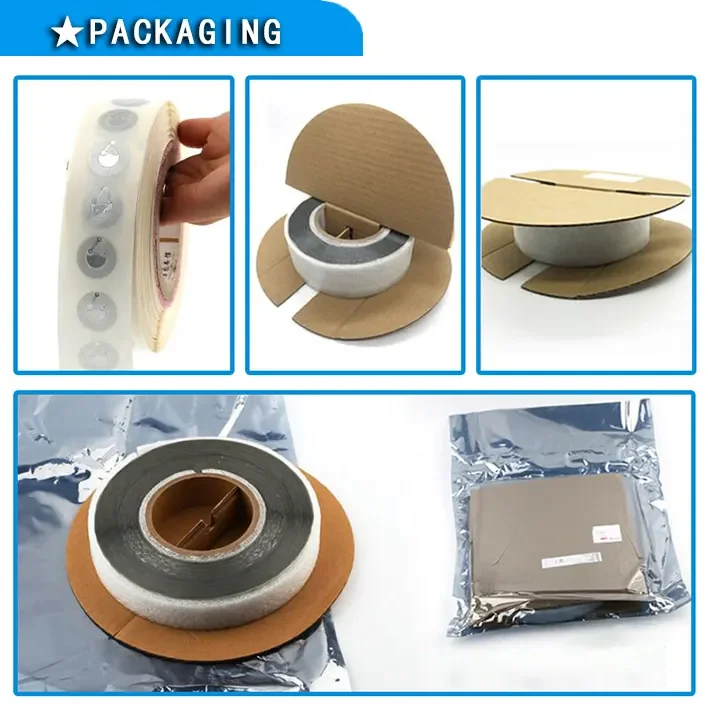

Packing & Delivery

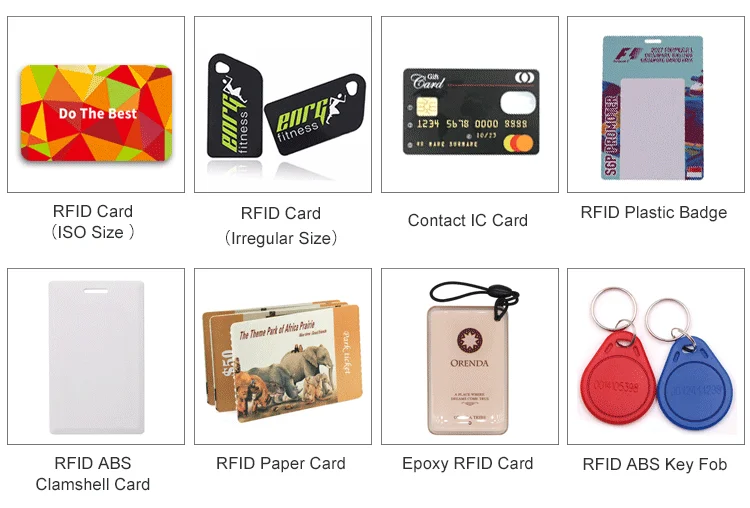

Related Products
Company Profile
Shenzhen DTB RFID Co., Ltd.
Shenzhen DTB RFID Co., Ltd. established in 2008, is an IOT technology company focusing on R&D and sales of RFID cards, RFID tags, RFID wristbands and RFID readers. We have more than 10 product patents and software copyrights, passed ISO 9001:2015 quality management system certification, ,and we can provide customized services such as encoding, encryption, printing, engraving, etc.
DTB focuses on the application of RFID technology in the two key areas of supply chain management and asset management, and independently develops and designs high-performance RFID tags and other products. These products are widely used in logistics, retail, manufacturing, footwear and apparel industries.
The sales market of our RFID products and service solutions covers more than 100 countries in America, Europe, East Asia, Southeast Asia, and the Middle East. So we can guarantee the timely supply and quality requirements of the products, provide customers with the best products and services
To do the best for all, it is the faith to help DTB move forward. It also help us to offer better quality and better service to be your best partner in business.
DTB focuses on the application of RFID technology in the two key areas of supply chain management and asset management, and independently develops and designs high-performance RFID tags and other products. These products are widely used in logistics, retail, manufacturing, footwear and apparel industries.
The sales market of our RFID products and service solutions covers more than 100 countries in America, Europe, East Asia, Southeast Asia, and the Middle East. So we can guarantee the timely supply and quality requirements of the products, provide customers with the best products and services
To do the best for all, it is the faith to help DTB move forward. It also help us to offer better quality and better service to be your best partner in business.
FAQ
1. Are you Manufacturer ?
Yes. Our factory is located in Shenzhen, and we have been involved in this industry more than 10 years.
2. What is your MOQ?
It is very flexible.Usually, our MOQ is 500pcs, for some items, the MOQ is 1000pcs.
3.What is your payment terms?
For bulk order:50% deposit and 50% before delivery by TT Or Western Union.
For Samples order Below USD100, Paypal is OK.
4. What do you usually deliver the goods?
By DHL, Fedex, TNT, etc. It takes 3-7 working days door to door service.
Some bulk order, also send by air shipment.
5. Can you offer free sample?
If the stock available,free samples can be provided any time.
6.What's your production capacity?
RFID Tag:5,000,000pcs/month
RFID Card: 3,000,000pcs/month
RFID Inlay: 5,000,000pcs/month
Yes. Our factory is located in Shenzhen, and we have been involved in this industry more than 10 years.
2. What is your MOQ?
It is very flexible.Usually, our MOQ is 500pcs, for some items, the MOQ is 1000pcs.
3.What is your payment terms?
For bulk order:50% deposit and 50% before delivery by TT Or Western Union.
For Samples order Below USD100, Paypal is OK.
4. What do you usually deliver the goods?
By DHL, Fedex, TNT, etc. It takes 3-7 working days door to door service.
Some bulk order, also send by air shipment.
5. Can you offer free sample?
If the stock available,free samples can be provided any time.
6.What's your production capacity?
RFID Tag:5,000,000pcs/month
RFID Card: 3,000,000pcs/month
RFID Inlay: 5,000,000pcs/month

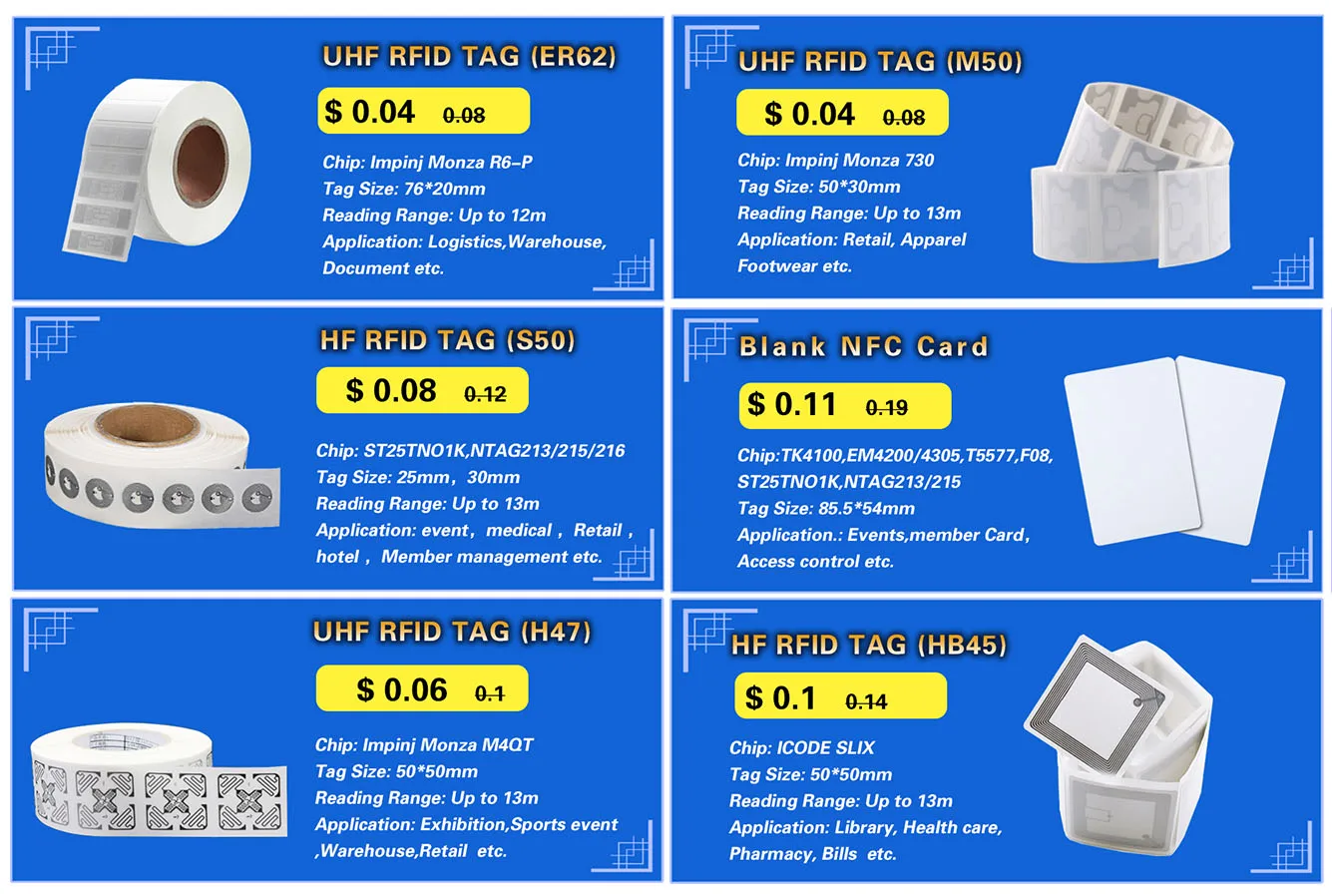

We Recommend
