best selling waste oil burner manufacturers source tire oil burner spot supply
- Category: Boiler Parts >>>
- Supplier: Zhengzhou,Bona,Heat,Energy,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

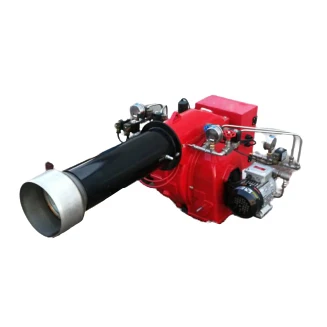

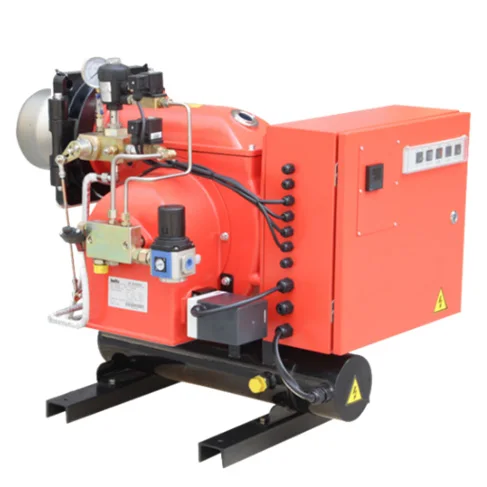

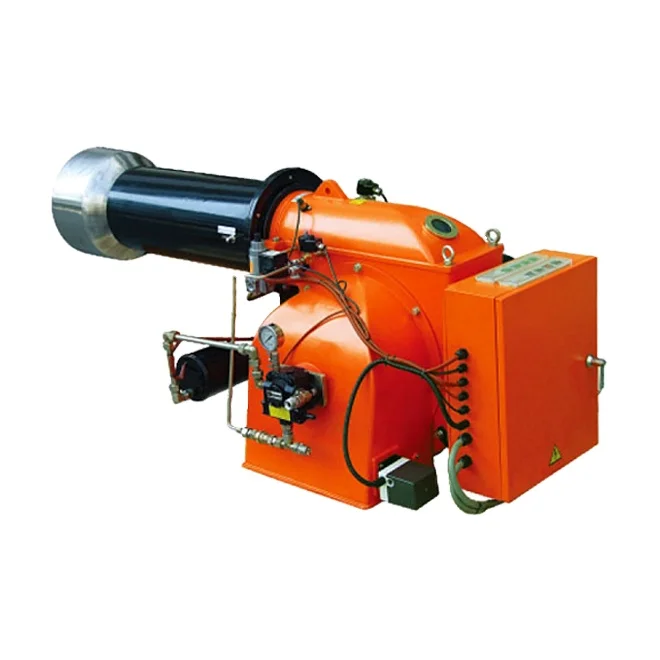

Heavy oil burner.
Two-stage operation (large/small).
Mechanical pressure atomization.
By adjusting the combustion air and combustion head, the best combustion parameters can be obtained.
Equipped with a thermometer, an electric fuel preheater for minimum temperature and temperature regulation.
A flange and an insulating sealing ring are used to connect and fix the boiler.
Combustion air inlet with flow adjustment device.
Adjustable combustion head with steel blast tube and flame disc.
The three-phase motor drives the fan and oil pump.
The photoresistor detects the flame.
The standard electrical protection grade is IP40.
Two-stage operation (large/small).
Mechanical pressure atomization.
By adjusting the combustion air and combustion head, the best combustion parameters can be obtained.
Equipped with a thermometer, an electric fuel preheater for minimum temperature and temperature regulation.
A flange and an insulating sealing ring are used to connect and fix the boiler.
Combustion air inlet with flow adjustment device.
Adjustable combustion head with steel blast tube and flame disc.
The three-phase motor drives the fan and oil pump.
The photoresistor detects the flame.
The standard electrical protection grade is IP40.

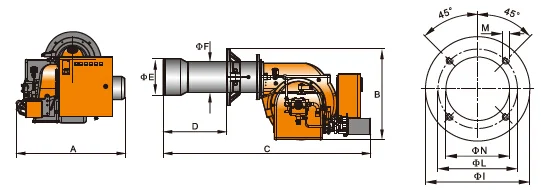

PRODUCT SPECIFICATIONS
Power Kw | Heavy oil flow kg/h | Burner Model | Series Number | Power Supply | Motor Power Kw | Packing Size L x P x H mm | Weight Kg |
446 ~ 837 | 40 ~ 75 | BNH 75 F | 101049 | 3N 380V 50Hz | 1.1 | 1450x830x815 | 108 |
558 ~ 1116 | 50 ~ 100 | BNH 100 F | 101050 | 3N 380V 50Hz | 1.5 | 1450x830x815 | 116 |
669 ~ 1451 | 60 ~ 130 | BNH 120 F | 101051 | 3N 380V 50Hz | 2.2 | 1450x830x815 | 170 |
725 ~ 2009 | 65 ~ 180 | BNH 180 F | 101052 | 3N 380V 50Hz | 3 | 1450x830x815 | 195 |
937 ~ 3170 | 80 ~ 280 | BNH 250 F | 101053 | 3N 380V 50Hz | 7.5 | 1620x1200x960 | 255 |
1220 ~ 3460 | 109 ~ 310 | BNH 300 F | 101054 | 3N 380V 50Hz | 7.5 | 1620x1200x960 | 295 |
1284 ~ 3907 | 115 ~ 350 | BNH 350 F | 101055 | 3N 380V 50Hz | 9 | 1620x1200x960 | 305 |
1840 ~ 5500 | 165 ~ 490 | BNH 600 F | 101056 | 3N 380V 50Hz | 15 | 1620x1200x960 | 325 |
