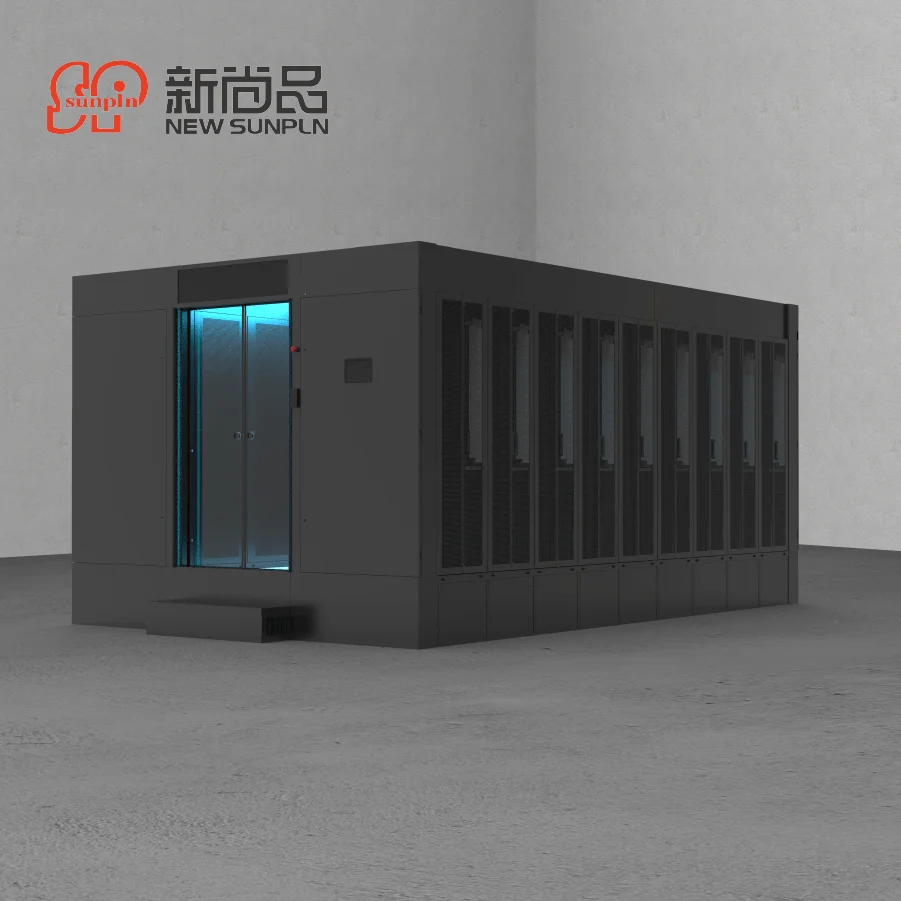

5G building smart IDC customization containersied data center
- Category: >>>
- Supplier: NEW SUNPLN TECHNOLOGY INDUSTRIAL CO. LTD.
Share on (1600738708281):
Product Overview
Description

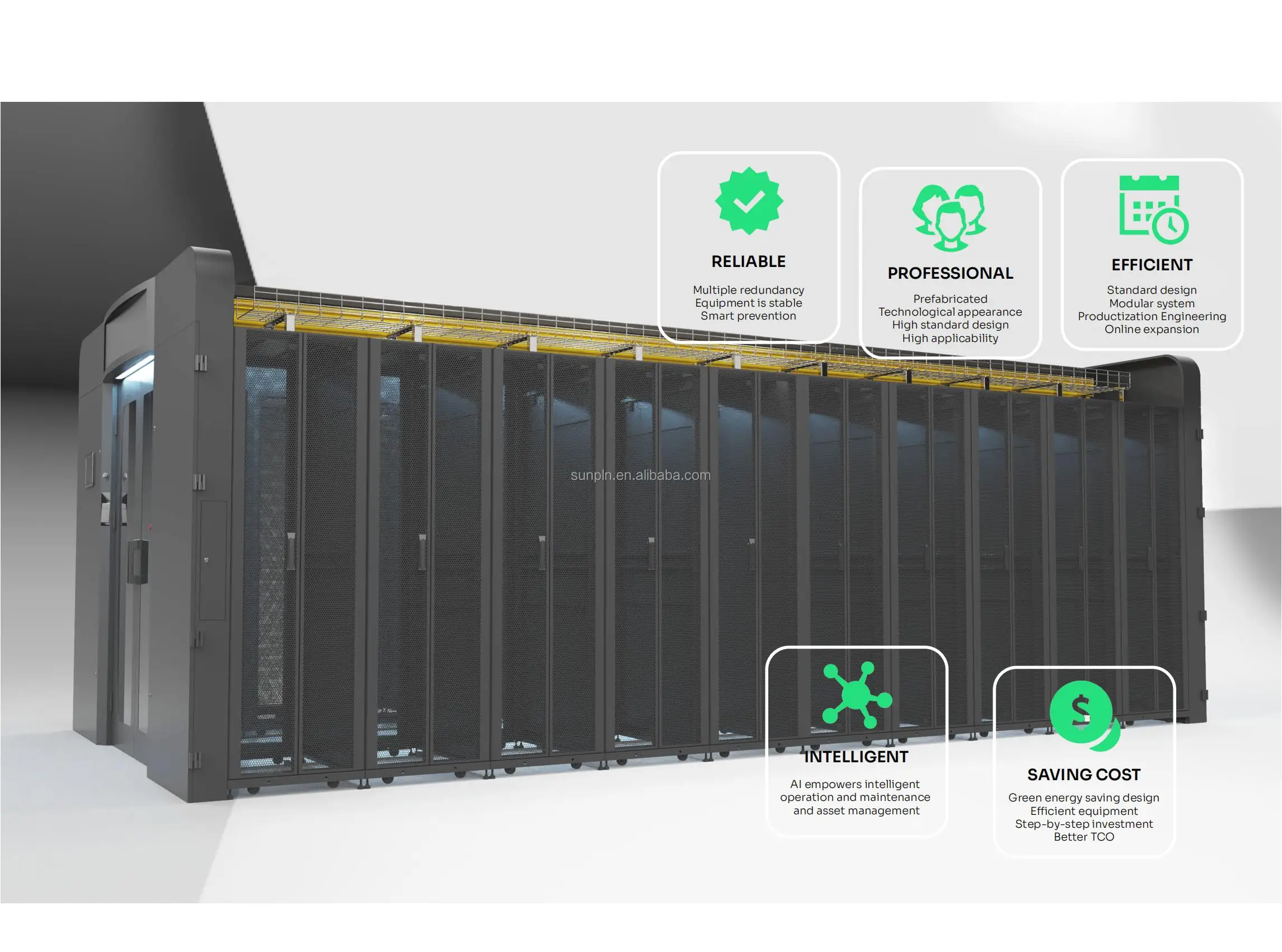

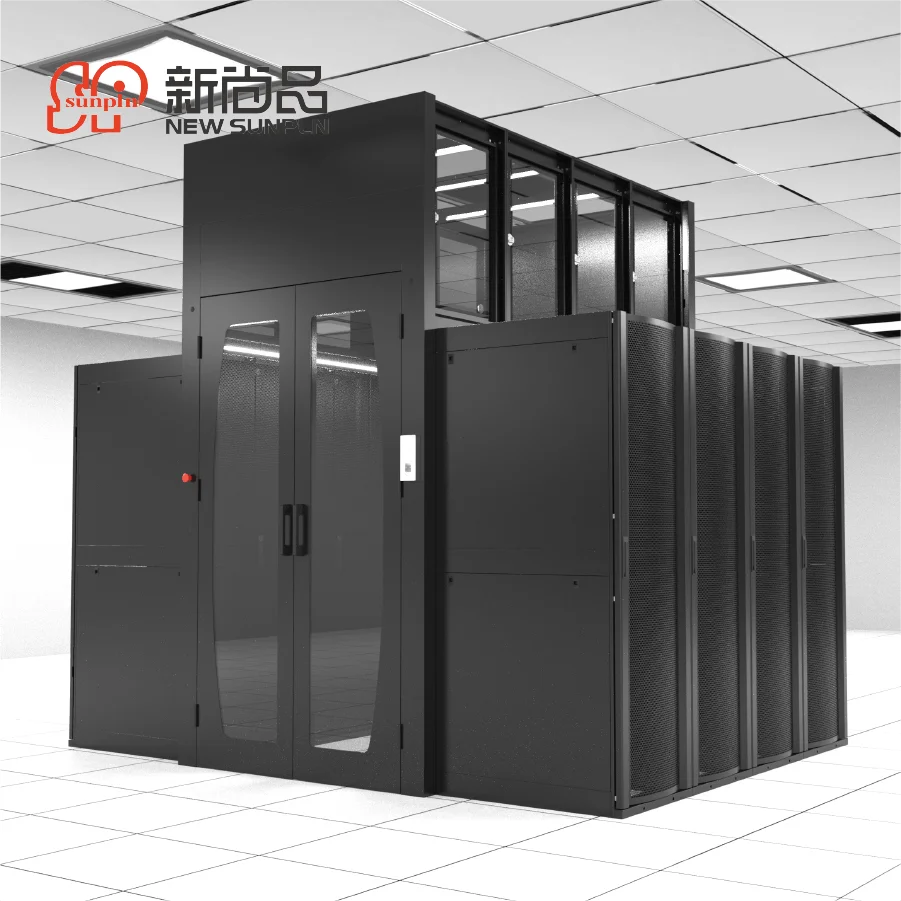

5G building smart IDC customization containersied data center
Product Description
5G building smart IDC customization containersied data center

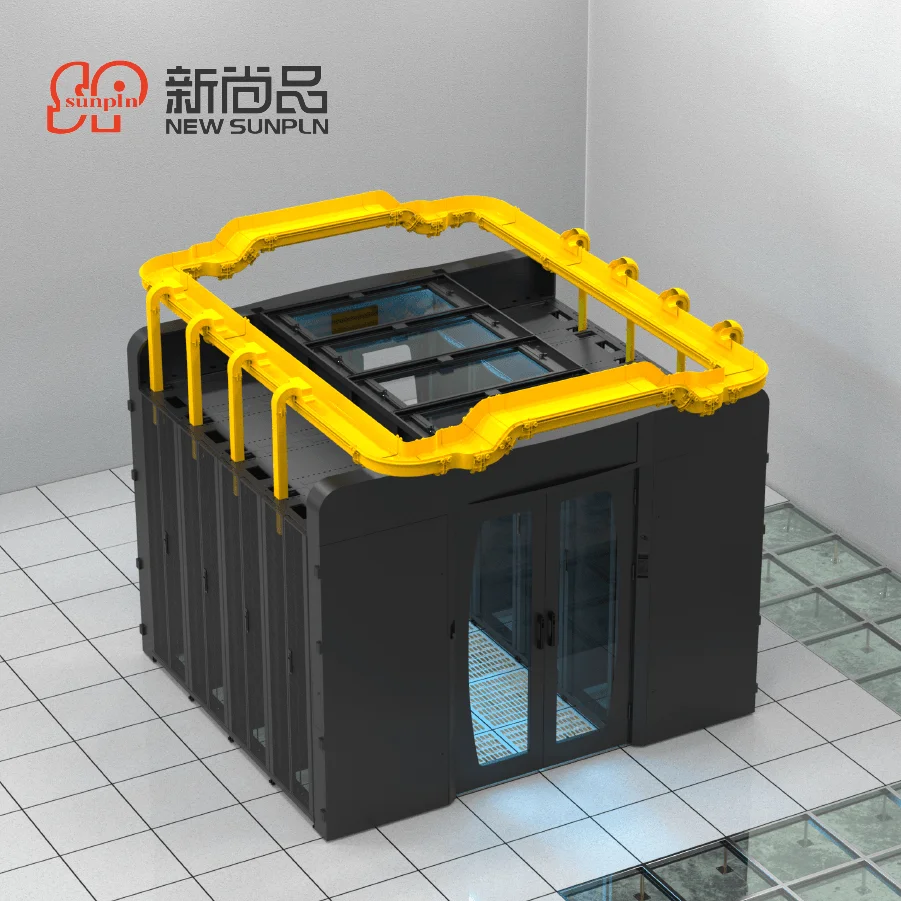

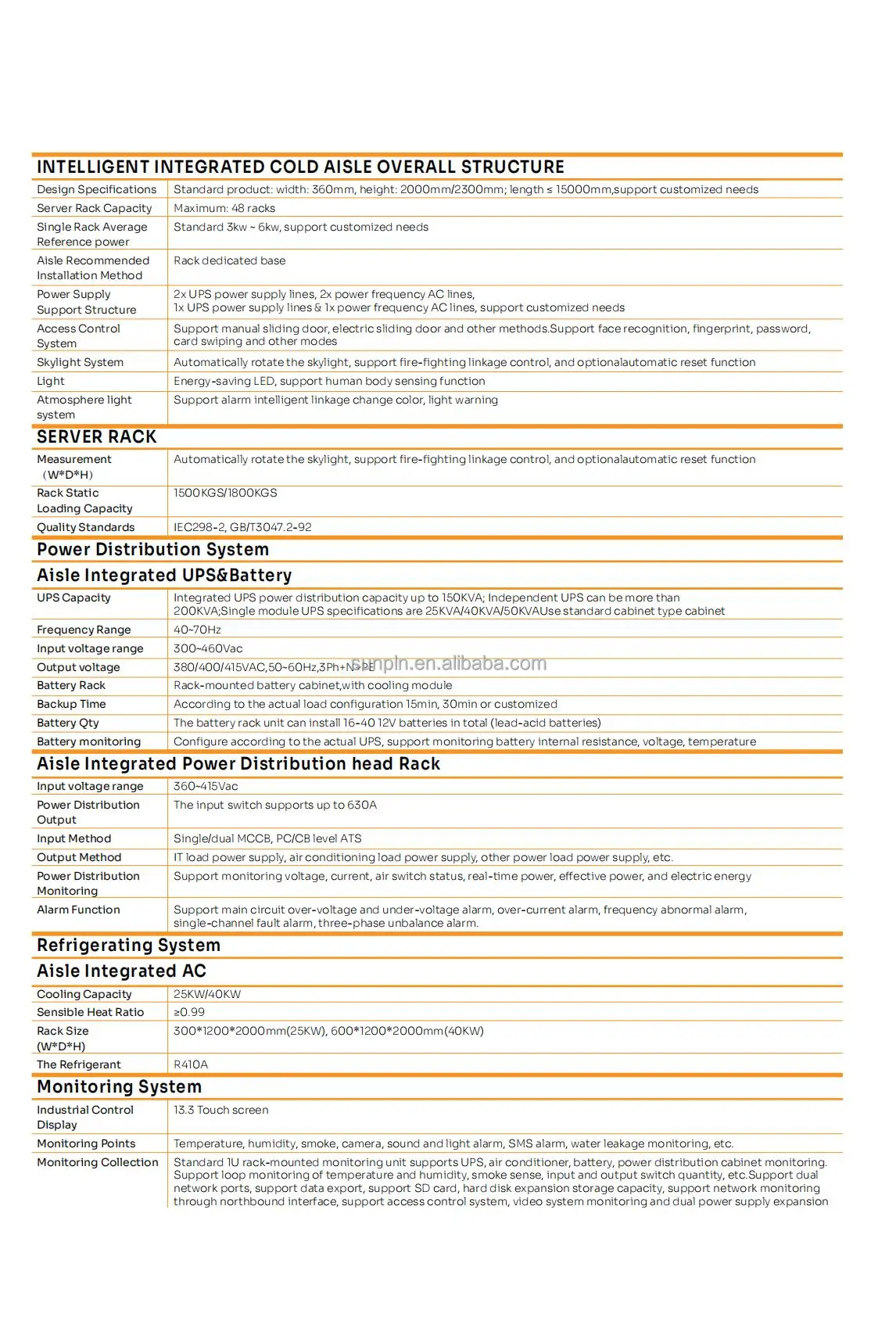

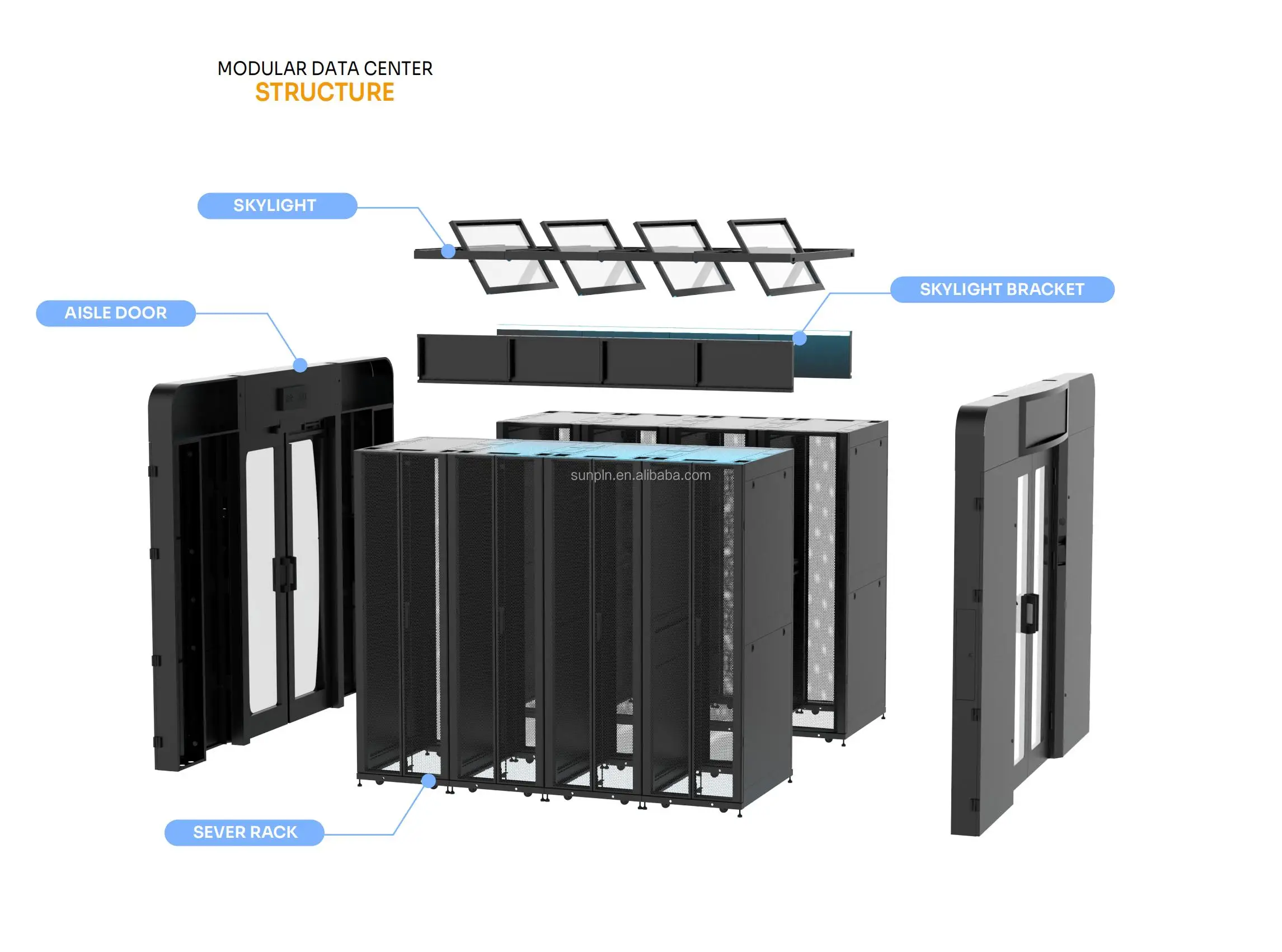

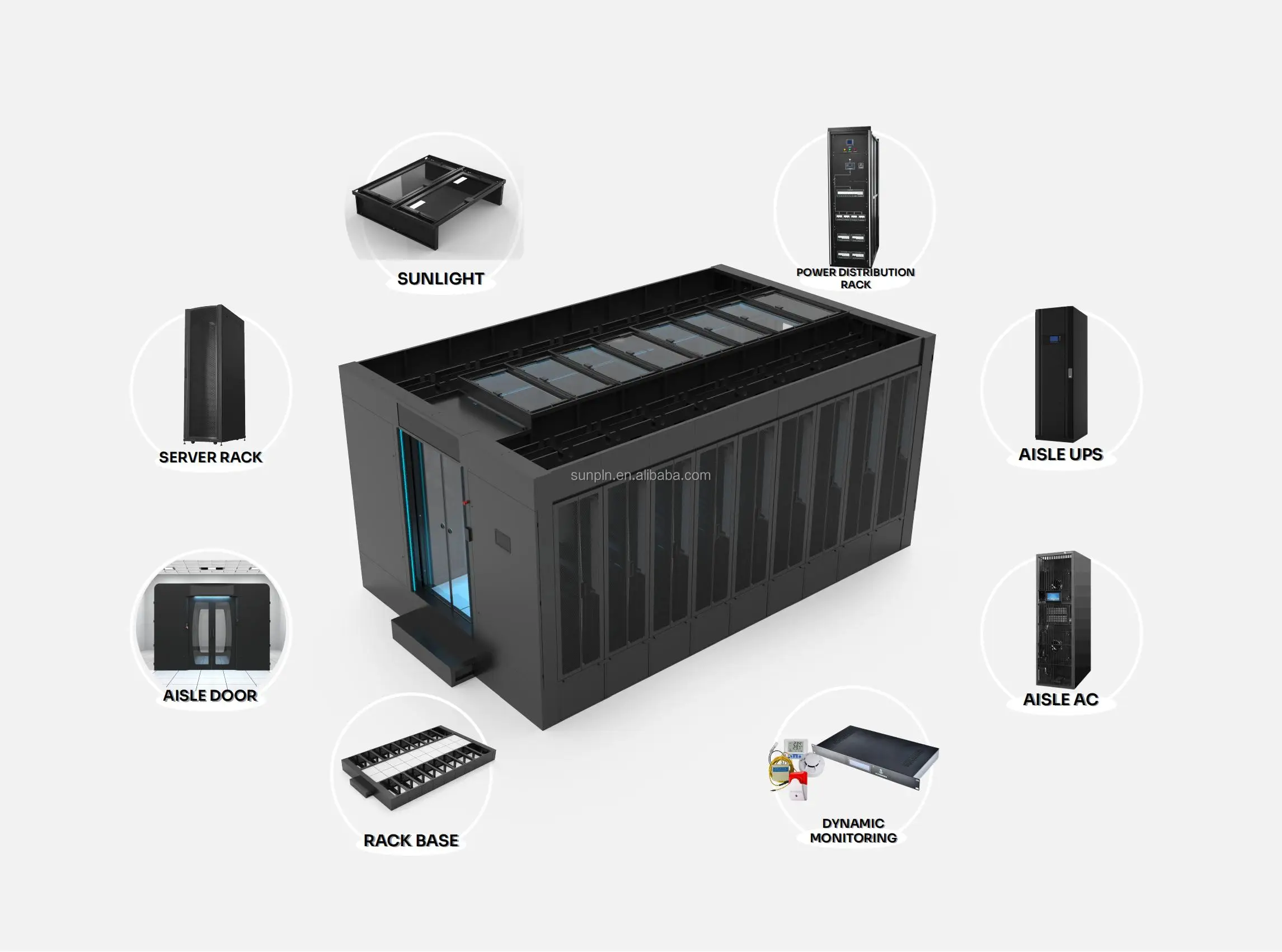

| INTELLIGENT INTEGRATED COLD AISLE OVERALL STRUCTURE | |
| Design Specfications | Standard product: width: 360mm, height: 2000mm/2300mm; length ≤ 15000mm,support customized needs |
| Server Rack Capacity | Maximum: 48 racks |
| Single Rack Average Reference power | Standard 3kw ~ 6kw, support customized needs |
| Aisle Recommended Installation Method | Rack dedicated base |
| Power Supply Support Structure | 2x UPS power supply lines, 2x power frequency AC lines, 1x UPS power supply lines & 1x power frequency AC lines, support customized needs |

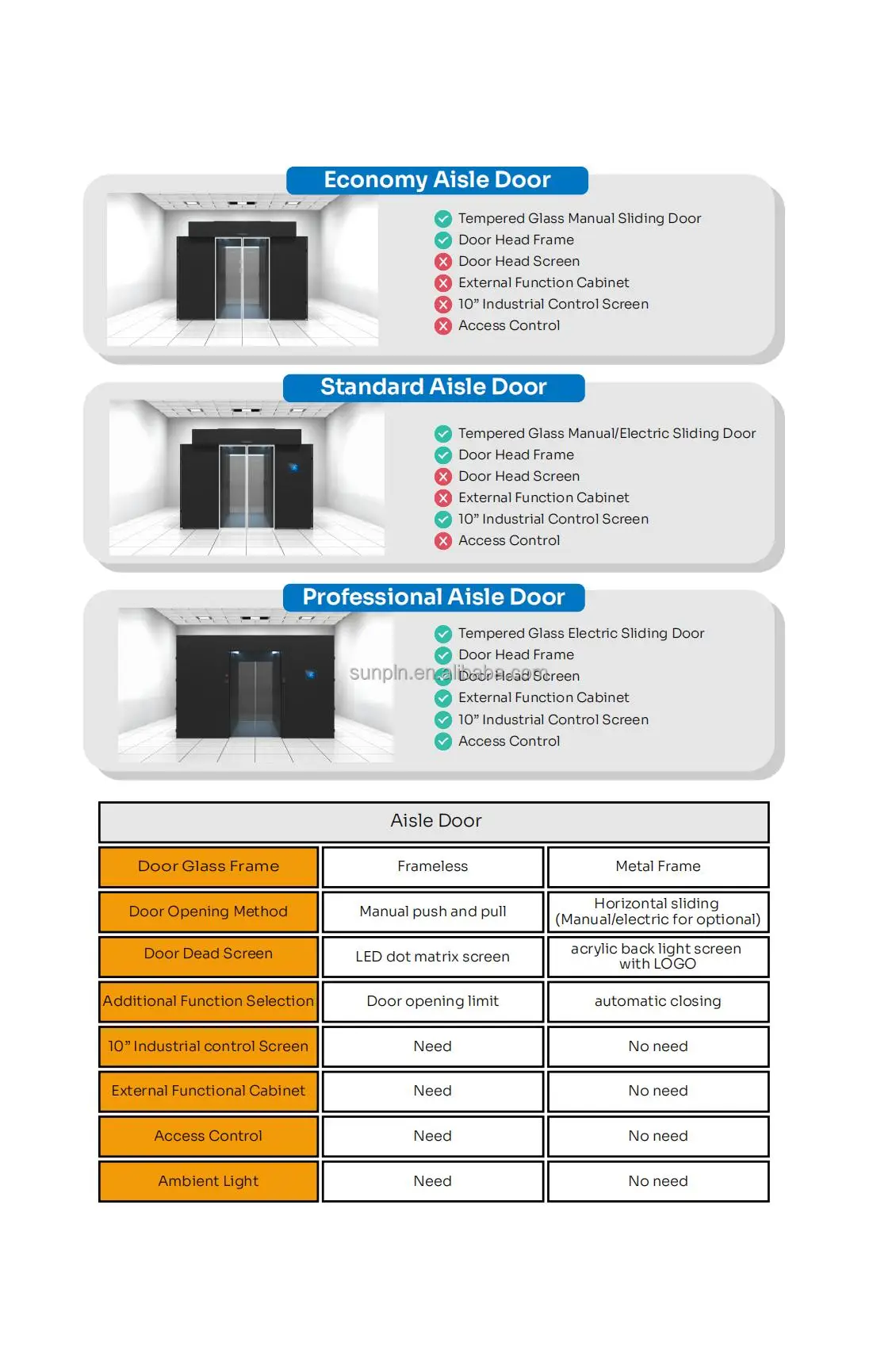

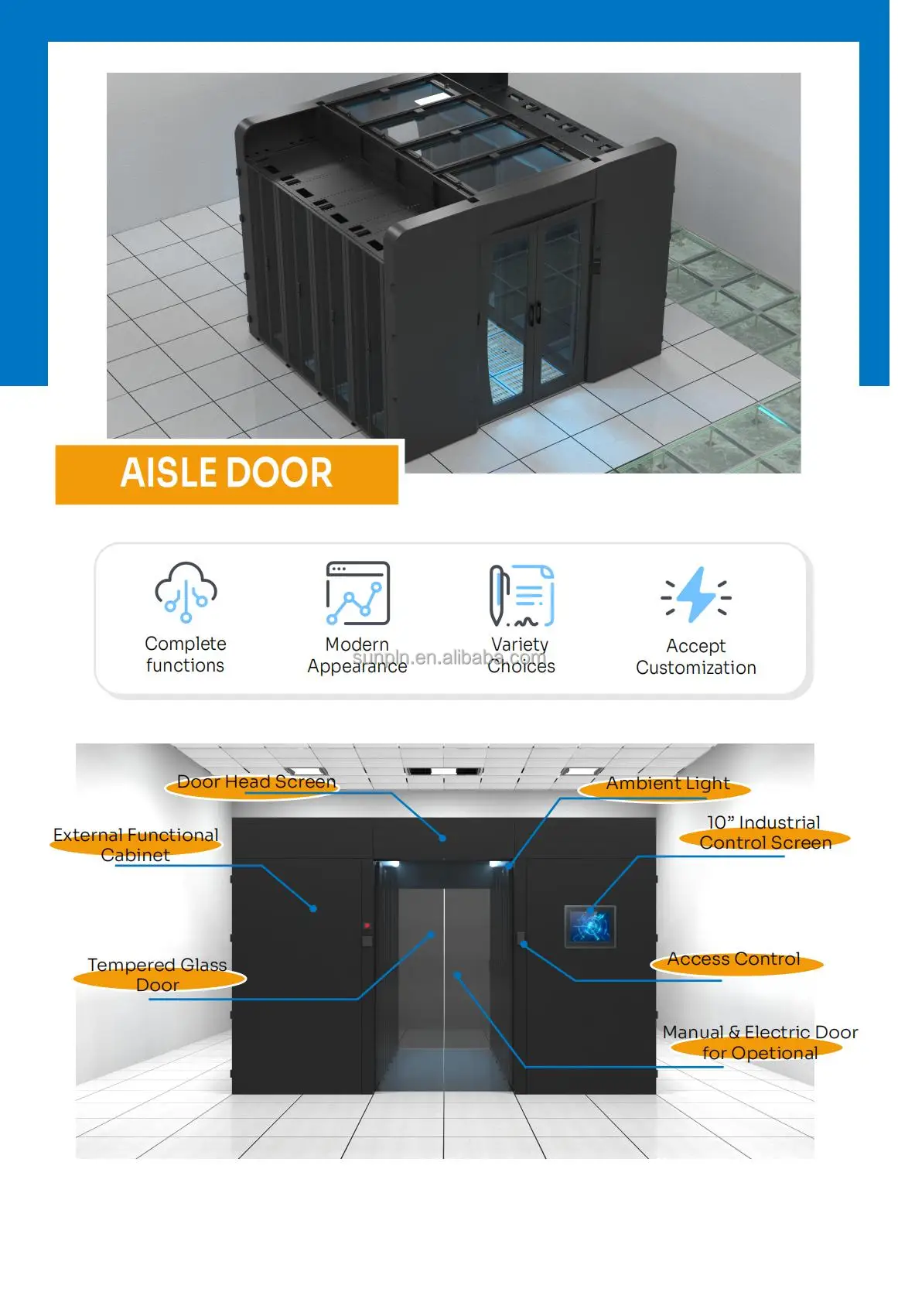

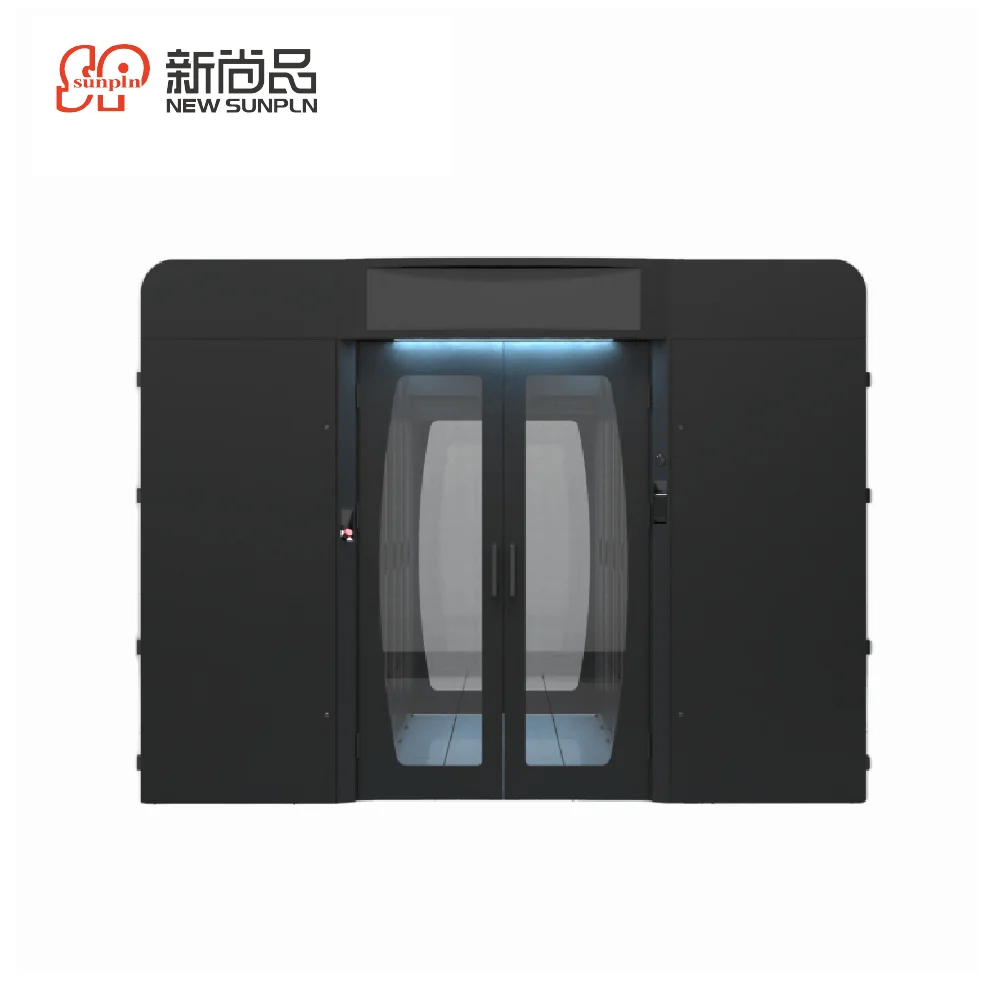

| Access Control System | Support manual sliding door, electric sliding door and other methods.Support face recognition, fingerprint, password, card swiping and other modes |

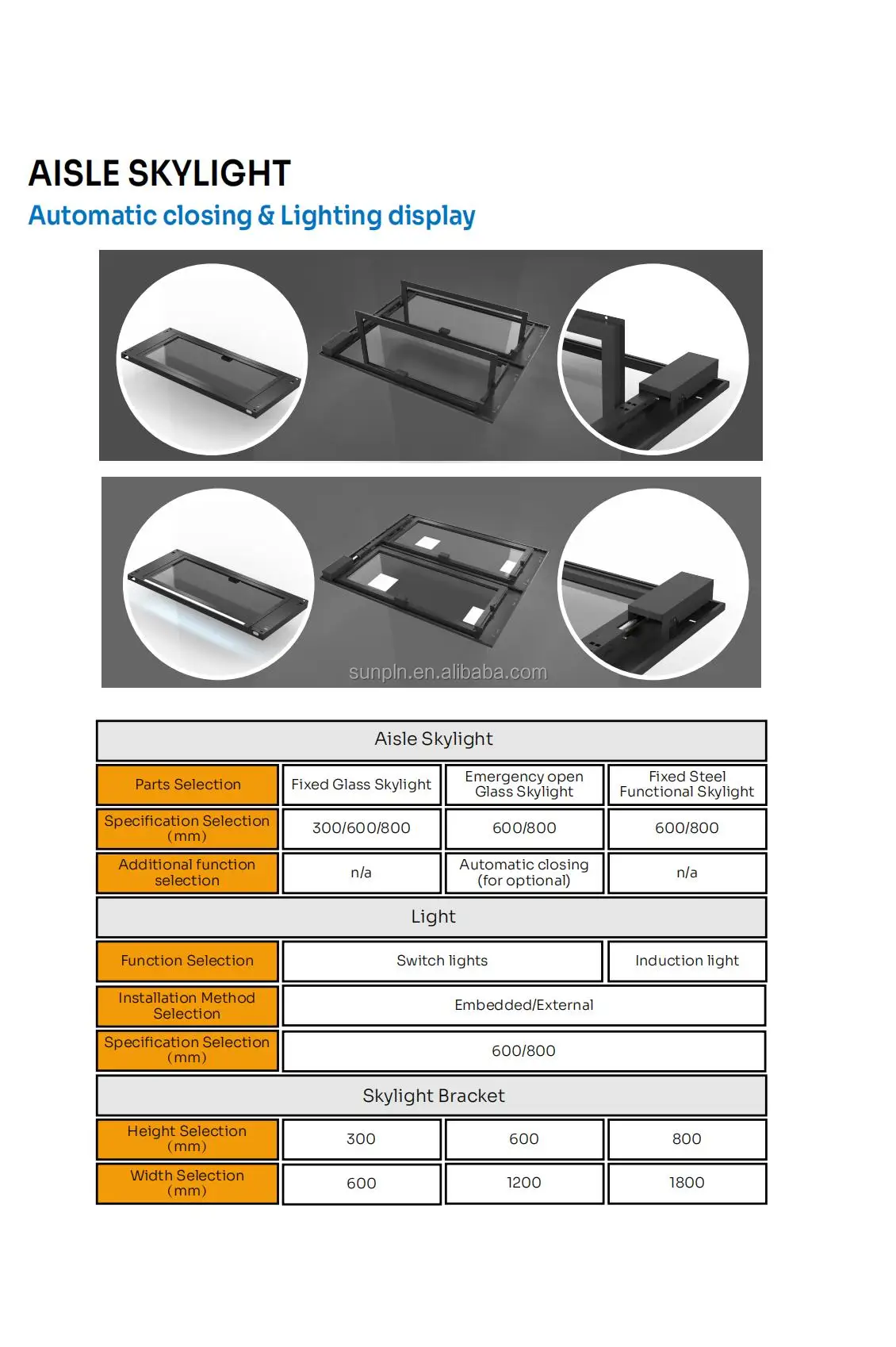

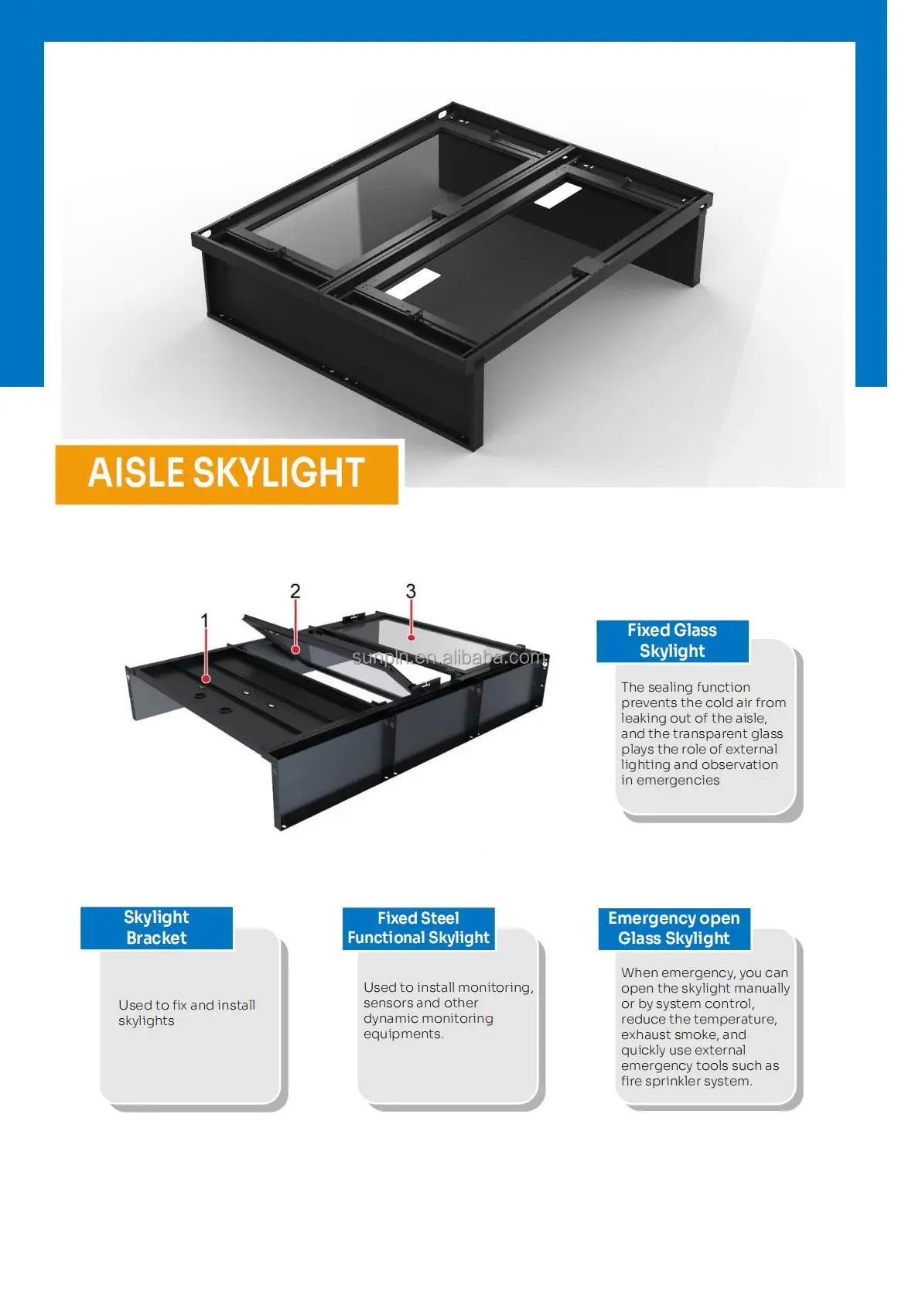

| Skylight System | Automatically rotate the skylight, support fire-fighting linkage control, and optionalautomatic reset function |
| Light | Energy-saving LED, support human body sensing function |
| Atmosphere light system | Support alarm intelligent linkage change color, light warning |
| SERVER RACK | |
| Measurement (W*D*H) | Automatically rotate the skylight, support fire-fighting linkage control, and optionalautomatic reset function |
| Rack Static Loading Capacity | 1500KGS/1800KGS |
| Quality Standards | IEC298-2, GB/T3047 .2-92 |
| Power Distribution System | |
| Aisle Integrated UPS&Battery | |
| UPS Capacity | Integrated UPS power distribution capacity up to 150KVA; Independent UPS can be more than 200KVA;Single module UPS specifications are 25KVA/40KVA/50KVAUse standard cabinet type cabinet |
| Frequency Range | 40~70Hz |
| Input voltage range | 300~460Vac |
| Output voltage | 380/400/415VAC,50~60Hz,3Ph+N+PE |
| Battery Rack | Rack- mounted battery cabinet,with cooling module |
| Backup Time | According to the actual load configuration 15min, 30min or customized |
| Battery Qty | The battery rack unit can install 16-40 12V batteries in total (lead-acid batteries) |
| Battery monitoring | Configure according to the actual UPS, support monitoring battery internal resistance, voltage, temperature |
| Aisle Integrated Power Distribution head Rack | |
| Input voltage range | 360~415Vac |
| Power Distribution Output | The input switch supports up to 630A |
| Input Method | Single/dual MCCB, PC/CB level ATS |
| Output Method | IT load power supply, air conditioning load power supply, other power load power supply, etc. |
| Power Distribution Monitoring | Support monitoring voltage, current, air switch status, real-time power, effective power, and electric energy |
| Alarm Function | Support main circuit over-voltage and under-voltage alarm, over-current alarm, frequency abnormal alarm, single-channel fault alarm, three- phase unbalance alarm . |
| Refrigerating System Aisle Integrated AC | |
| Cooling Capacity | 25KW/40KW |
| Sensible Heat Ratio | ≥0 .99 |
| Rack Size (W*D*H) | 300*1200*2000mm(25KW), 600*1200*2000mm(40KW) |
| The Refrigerant | R410A |

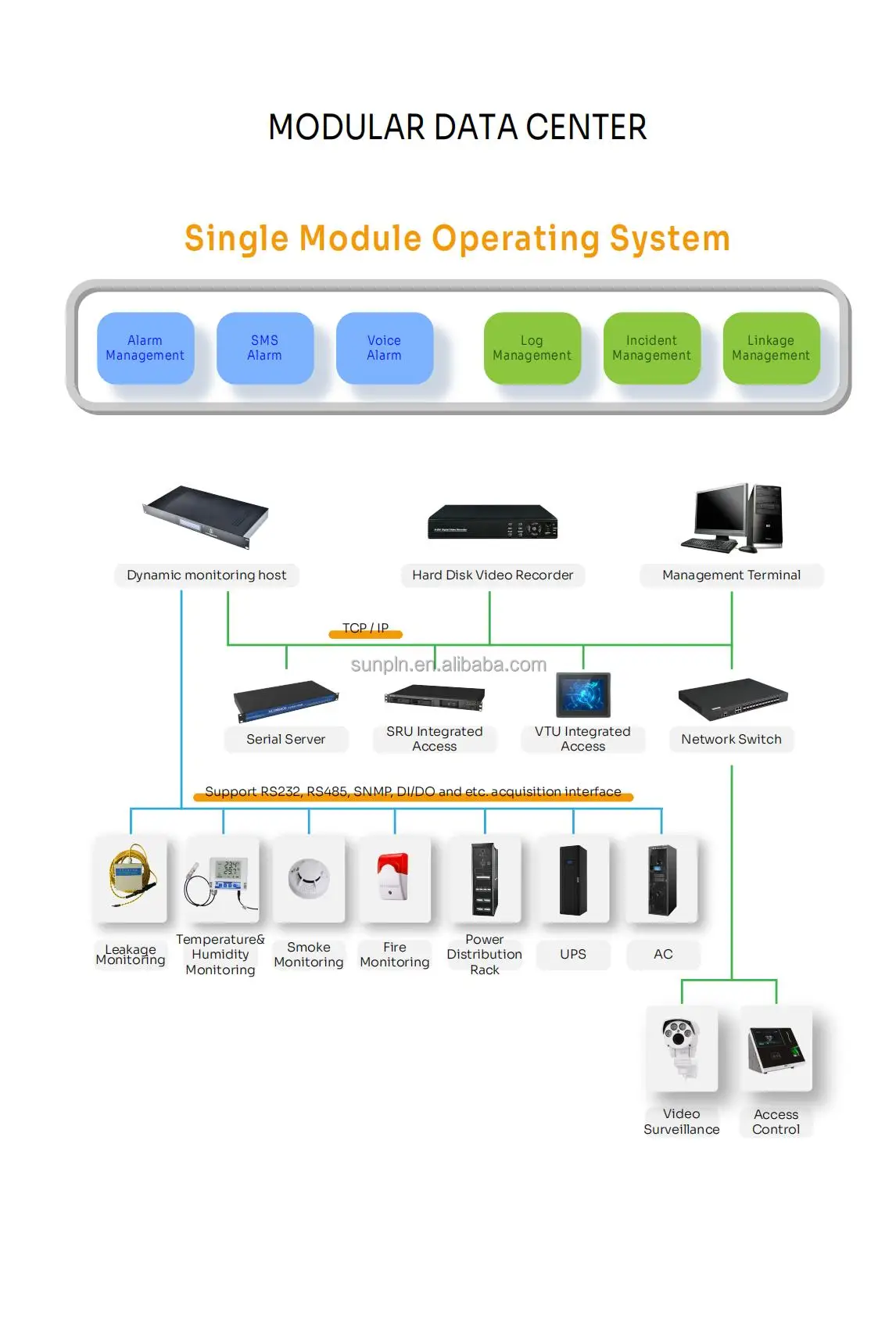

| Monitoring System | |
| Industrial Control Display | 13.3 Touch screen |
| Monitoring Points | Temperature, humidity, smoke, camera, sound and light alarm, SMS alarm, water leakage monitoring, etc. |
| Monitoring Collection | Standard 1U rack- mounted monitoring unit supports UPS, air conditioner, battery, power distribution cabinet monitoring . Support loop monitoring of temperature and humidity, smoke sense, input and output switch quantity, etc.Support dual network ports, support data export, support SD card, hard disk expansion storage capacity, support network monitoring through northbound interface, support access control system, video system monitoring and dual power supply expansion |
Our Services
5G building smart IDC customization containersied data center
Company Information
5G building smart IDC customization containersied data center
Packaging & Shipping
5G building smart IDC customization containersied data center
FAQ
5G building smart IDC customization containersied data center
1. Why choose Sunpln?
a. we are 17 years factory in producing data center infrastructure products.
b. we have 20+ people in quality management.
c. we have 50+ Process and R&D technicians.
d. we have 80000+ suquare meter factory area.
2. It takes how many days for products preparation?
20-30 days.
3. What's the trading term for selecting?
FOB, EXW, CIF, CFR, DDP, DDU.
4. I want to buy but I don't have any experience about international trading, what can I do?
Contact the sales for delivery door to door.
5. Which certification we have got?
For manufacturer: ISO 9001: 2008, OHSAS 18001, ISO 14001:2004
