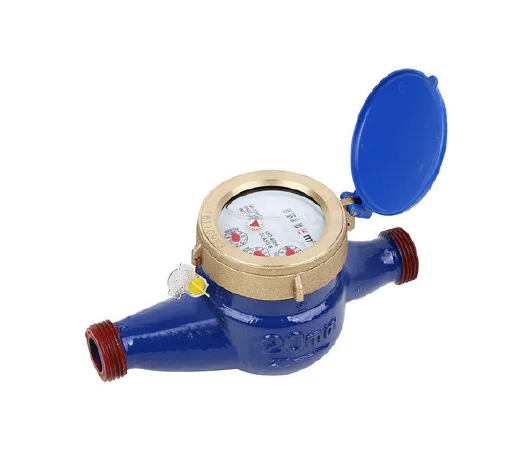

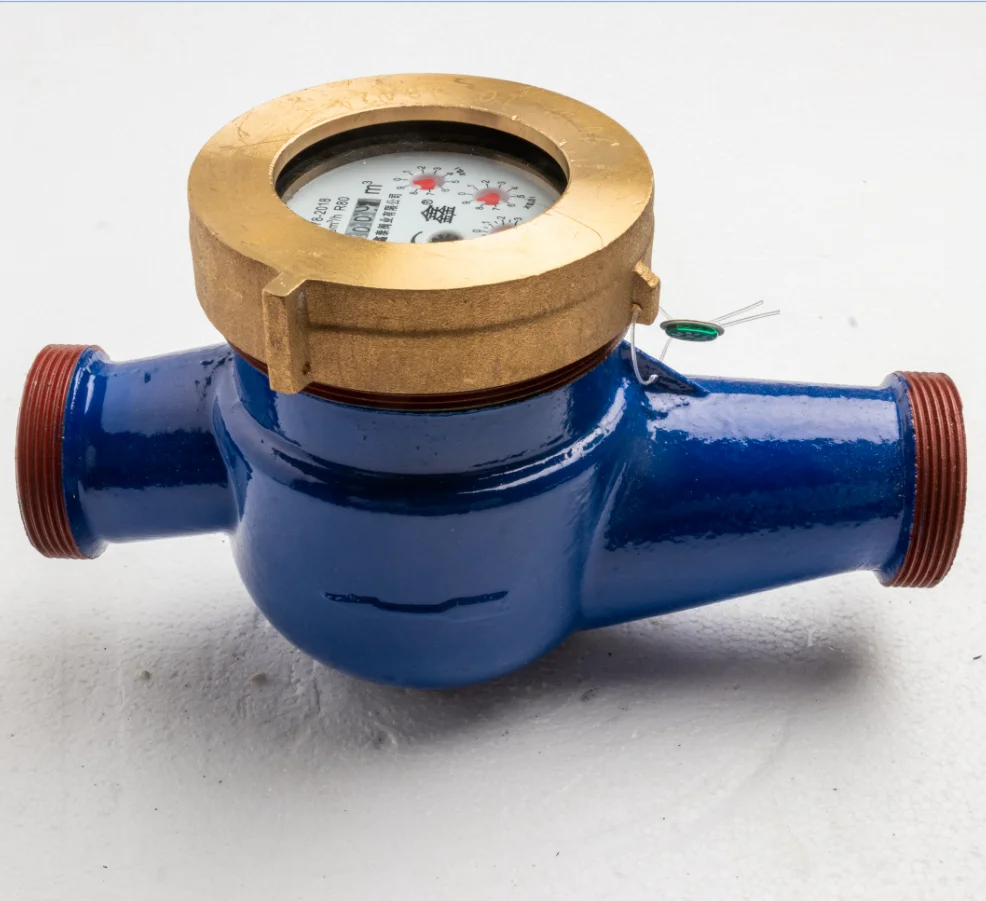

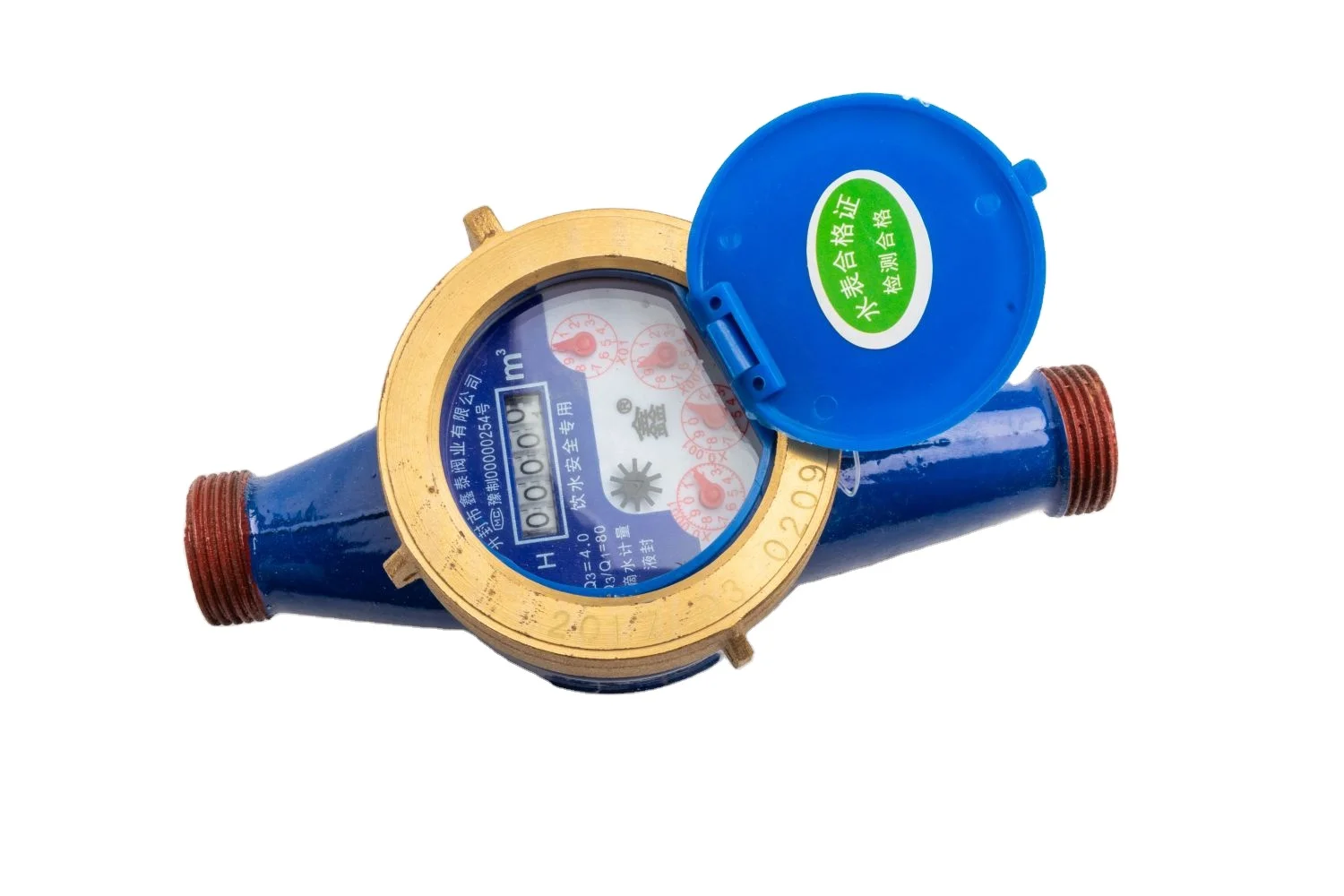

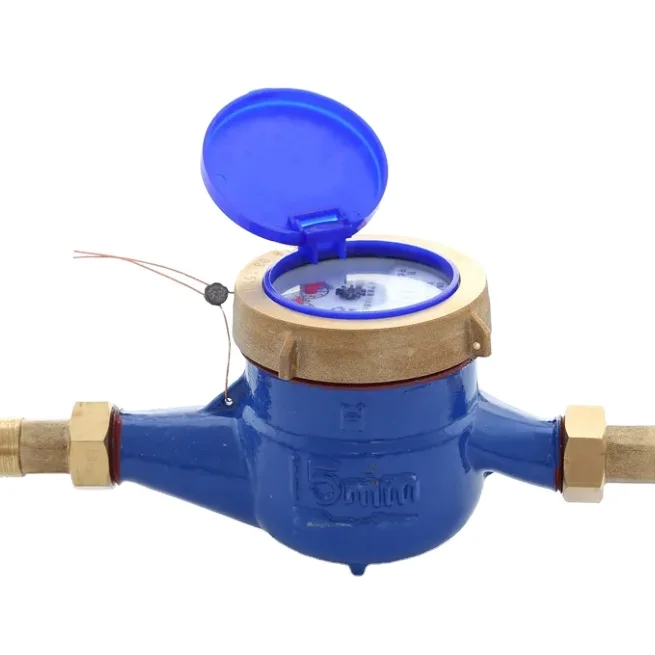

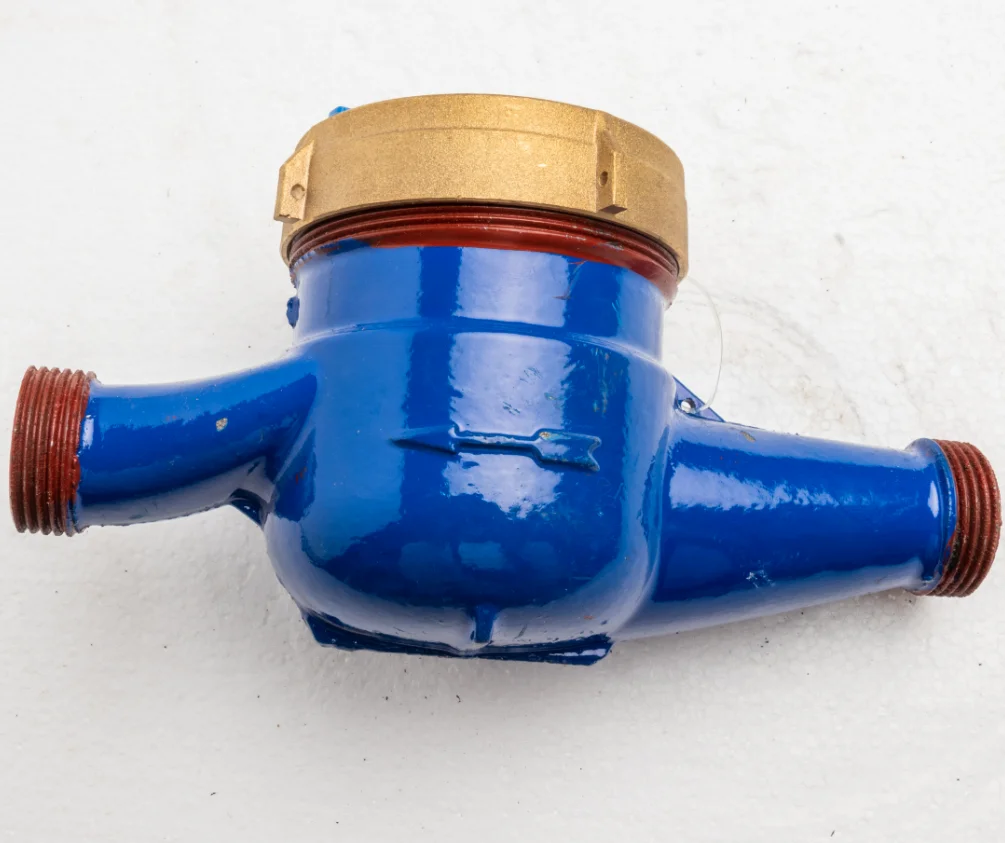

best selling dn15 water meter supplier liquid sealed R160 multi jet water meters
- Category: >>>
- Supplier: Kaifeng Xintai Valve Co. Ltd.
Share on (1600738729461):
Product Overview
Description
Product Description
Dimension
Model | Nominal Caliber | Lenght | Width | Height | Connection Thread | Connection Thread | ||||||
L | L1 | W | H | d | D | |||||||
mm | Mark | |||||||||||
LXSY-15E | 15 | 165 | 260 | 99 | 106 | R 1/2 | G 3/4 | |||||
LXSY-20E | 20 | 195 | 300 | 99 | 106 | R 3/4 | G1 | |||||
LXSY-25E | 25 | 225 | 345 | 104 | 112 | R 1 | G 1 1/4 | |||||
LXSY-40E | 40 | 245 | 365 | 128 | 156 | R 1 1/2 | G2 | |||||
Specification
Nominal Caiber DN | Range Ratio Q3/Q1 | Over Flow | Common Flow | Transitional Flow | Min Flow | Mix Display | Max Display | |||
Q4 | Q3 | Q2 | Q1 | m³/h | ||||||
mm | m³/h | L/h | ||||||||
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
160 | 25 | 15.6 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | 0.0001 | 99999 | |||
160 | 40 | 25 | ||||||||
25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 0.0001 | 99999 | |||
160 | 63 | 39.4 | ||||||||
40 | 80 | 20 | 16 | 320 | 200 | 0.001 | 999999 | |||
160 | 160 | 100 | ||||||||
1. The maximum allow error is 5% from the low zone including Q1 to the low zone that not include Q2; from the high zone including Q2 to the high zone including overload Q2, the maximum allowable error is 2%
2. The water meter is wet, and the wheel drives between the counting mechanism and the measuring mechanism; 3. The word wheel part adopts liquid seal, the pointer part keeps filling with water for a long time, and the mechanism is tight;
4. High measurement accuracy, small initial flow.
5. Max Permissible working pressure is 1.0MPa
6. The maximum permissible temperature of the measured liquid is 30 degrees Celsius
7. Pressure Loss is △P63
8. Up and down flow field sensitivity grade U10D5
9. Unmeasured reverse flow
