Cycolac MG47TG Injection Molding Plastic ABS Resin
- Category: >>>
- Supplier: Shenzhen Samtion Chemical Co. Ltd.
Share on (1600738765373):
Product Overview
Description
Products Description

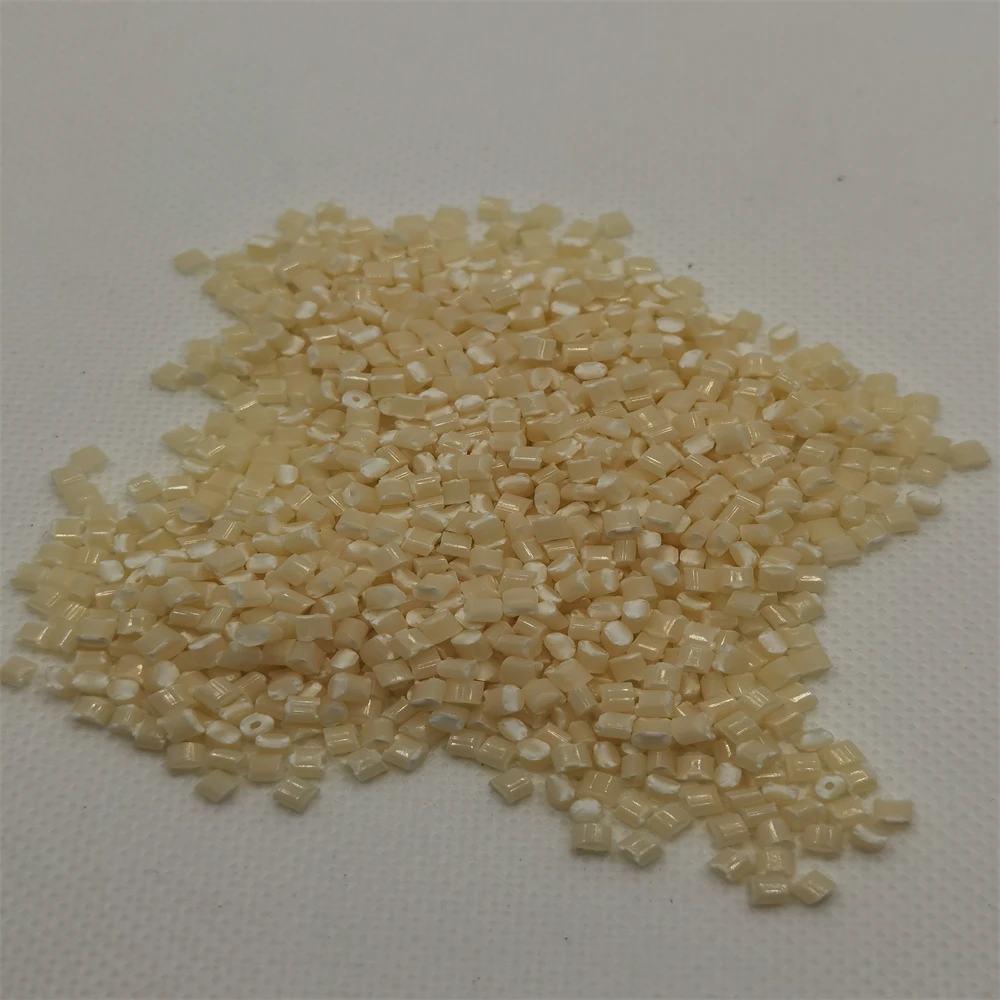

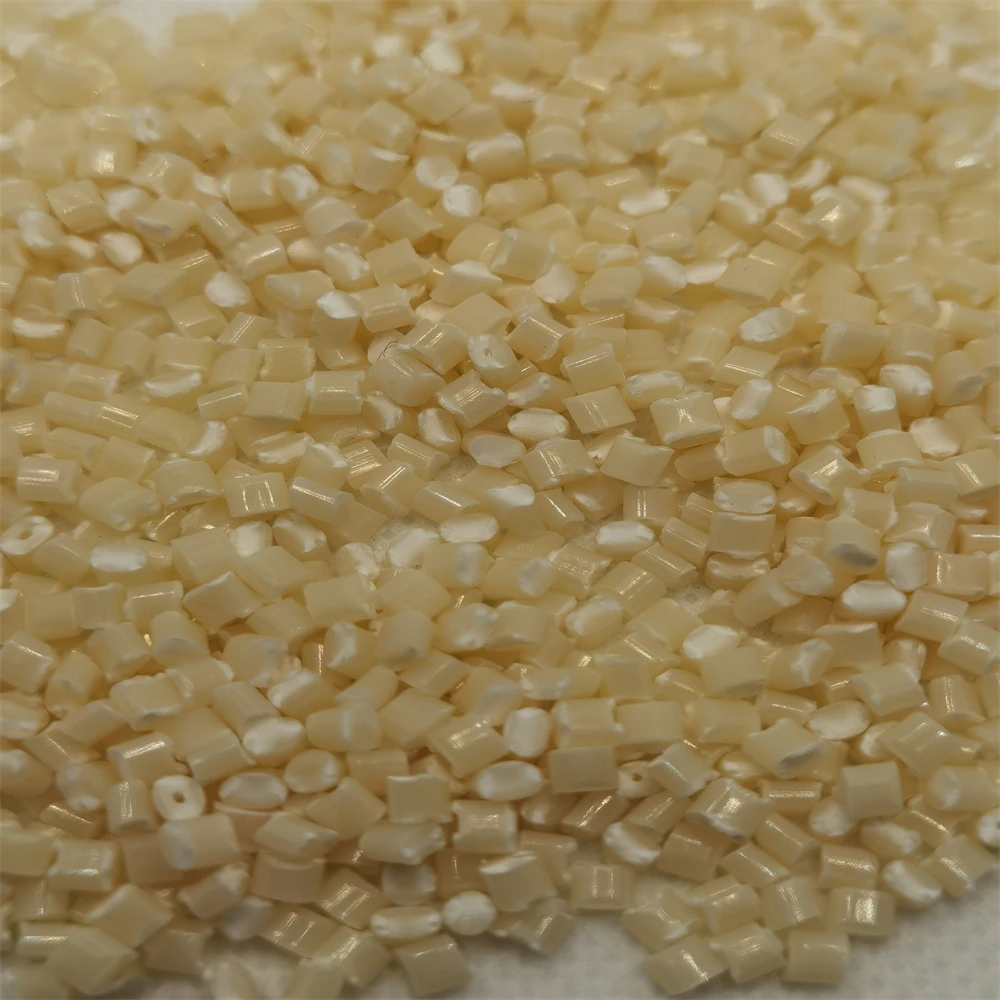

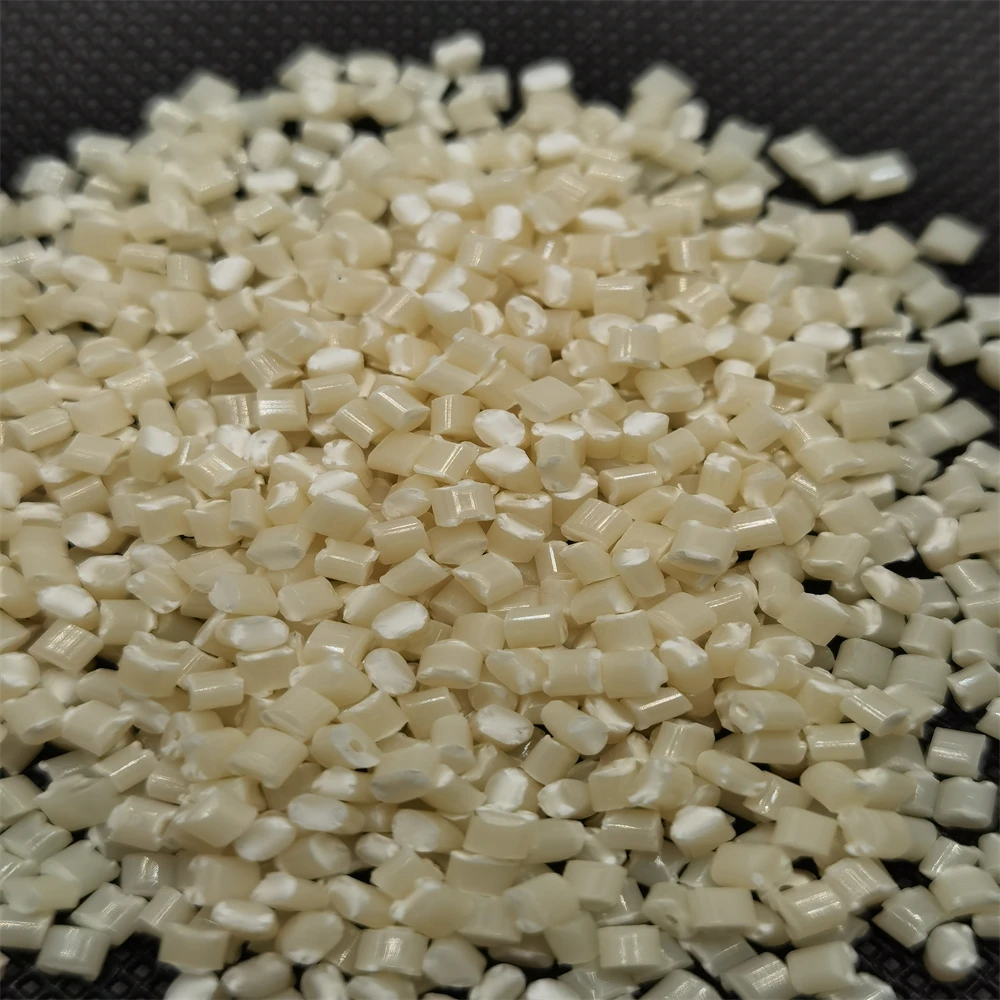

Cycolac ABS MG47TG
Cycolac MG47TG resin is Multi-purpose, injection molding ABS providing a favorable balance of engineering properties
Improved Tg.
Improved Tg.
Cycolac ABS resin is a terpolymer formed by blending an amorphous thermoplastic copolymer of acrylonitrile and styrene with an elastomeric component, such as polybutadiene or a butadiene polymer. By altering the ratio of these three monomers, Cycolac resins can offer an expansive assortment of performance properties tailored to meet a wide range of end-use requirements.
Product Paramenters
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 5 mm/min | 44 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 5 mm/min | 33 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 5 mm/min | 2 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 24 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 2270 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
Tensile Stress, yield, 5 mm/min | 50 | MPa | ISO 527 |
Tensile Stress, break, 5 mm/min | 35 | MPa | ISO 527 |
Tensile Strain, yield, 5 mm/min | 2.6 | % | ISO 527 |
Tensile Strain, break, 5 mm/min | 24.8 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2530 | MPa | ISO 527 |
Flexural Stress, yield, 2 mm/min | 76 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2410 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 320 | J/m | ASTM D 256 |
Izod Impact, notched, -30°C | 133 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 30 | J | ASTM D 3763 |
Izod Impact, notched 80*10*4 +23°C | 23 | kJ/m² | ISO 180/1A |
Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 18 | kJ/m² | ISO 179/1eA |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 98 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 3.2 mm, unannealed | 97 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 84 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 8.82E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 8.82E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, flow | 8.82E-05 | 1/°C | ISO 11359-2 |
CTE, -40°C to 40°C, xflow | 8.82E-05 | 1/°C | ISO 11359-2 |
Vicat Softening Temp, Rate B/50 | 100 | °C | ISO 306 |
Vicat Softening Temp, Rate B/120 | 100 | °C | ISO 306 |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 82 | °C | ISO 75/Af |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.05 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | Method |
Melt Flow Rate, 230°C/3.8 kgf | 5.6 | g/10 min | ASTM D 1238 |
Melt Viscosity, 240°C, 1000 sec-1 | 2300 | poise | ASTM D 3825 |
Density | 1.05 | g/cm³ | ISO 1183 |
Water Absorption, (23°C/sat) | 1 | % | ISO 62 |
Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
Melt Flow Rate, 220°C/10.0 kg | 17 | g/10 min | ISO 1133 |
Melt Volume Rate, MVR at 220°C/5.0 kg | 14 | cm³/10 min | ISO 1133 |
Company Profile
The Shenzhen Samtion Chemical Co., Ltd
Focus on the export and production support of engineering plastics and special modified materials
Focus on the export and production support of engineering plastics and special modified materials
15 Years Experience
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
Our Advantages
1.Professional focus:
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service:
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers'
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting:

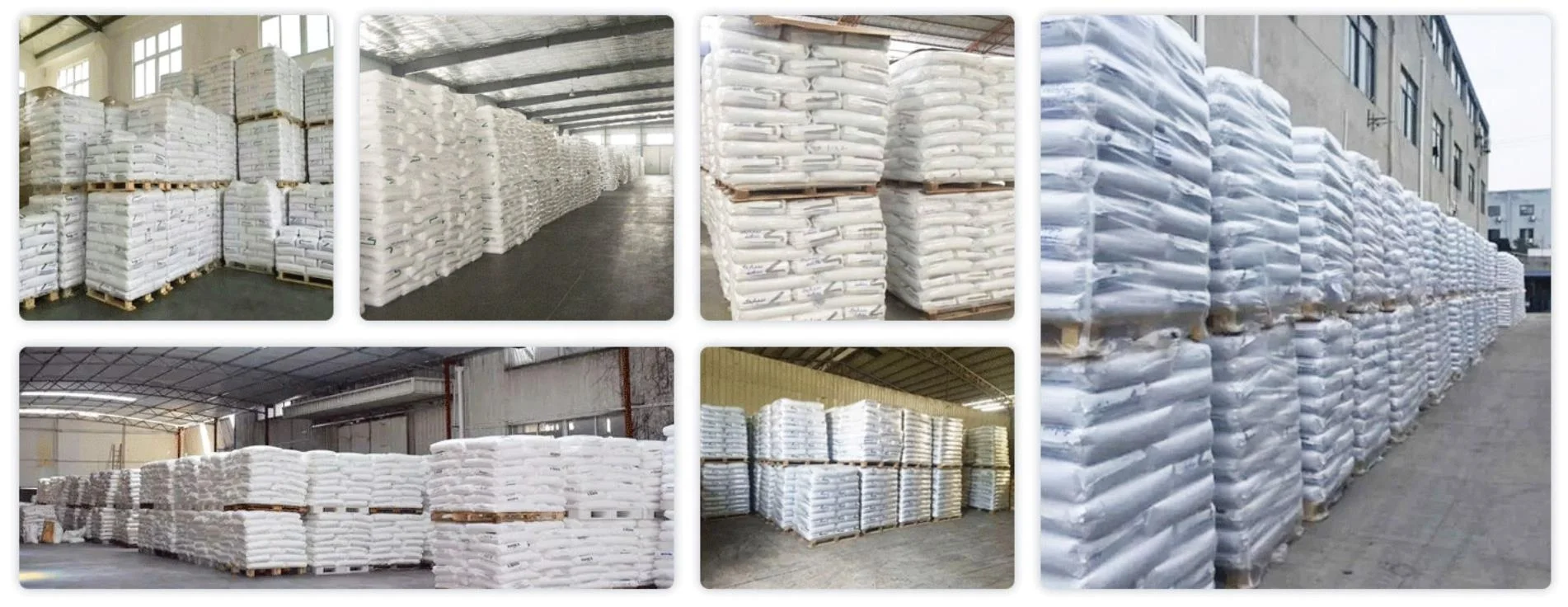

Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer's material supply chain.
4.Logistics distribution:
We have long-term and stable logistics partners. According to the needs of customers, we formulate efficient istribution plans and deliver high-quality products to customers in time.
5. Speed advantage:
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
6. Small batch type selection technical support
Accept small batch orders of 5kg at least; The rofessional engineer team can cooperate with customers to carry out material selection in the early stage of production, and provide corresponding material recommendations ccording to customer production and product requirements
7. Quality assurance:
Our products are all from well-known manufacturers. Each batch of materials has various inspection reports and certificates including original factory certificate, MSDS, ROHS, SGS, reach,, EU, UL, COC / COA, etc.
