China famous Automatic All in One price High speed for fabric Laminating Machine with Technical Support and PLC
- Category: >>>
- Supplier: Zhejiang Cidihuakai Import And Export Trade Co. Ltd.
Share on (1600738768167):
Product Overview
Description
Product Describe
This machine is Casting Lamination Compounding Machine, which can accept LDPE、PPEVA、EAA…etc lamination grade material, using for film(BOPP、BOPET、CPP、CPE、…etc)、Paper、Aluminum Foil、Non-woven…etc as base material for compounding lamination. Widely used in medical packaging, food packaging, office packaging, industrial packaging and other packaging.

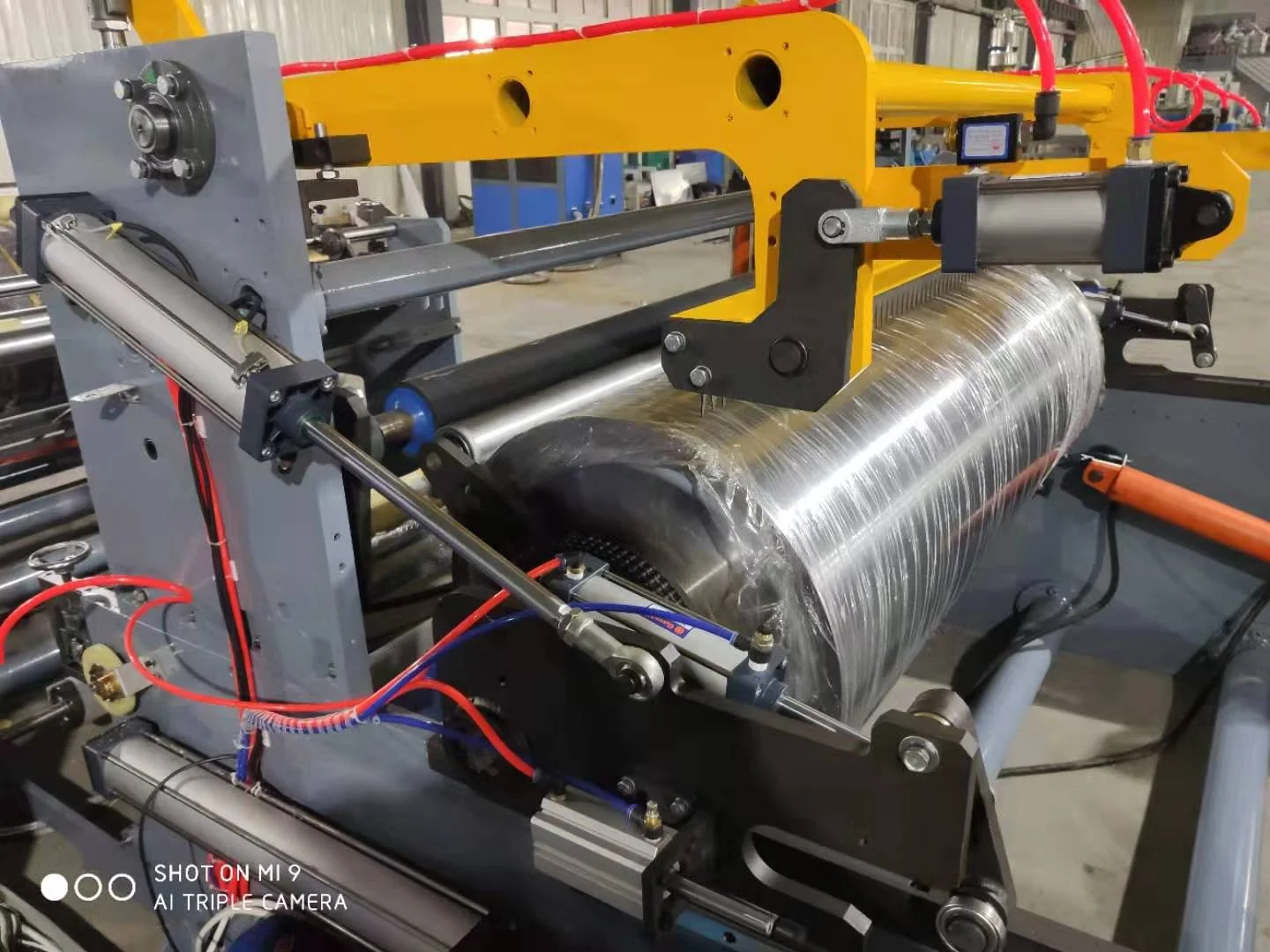

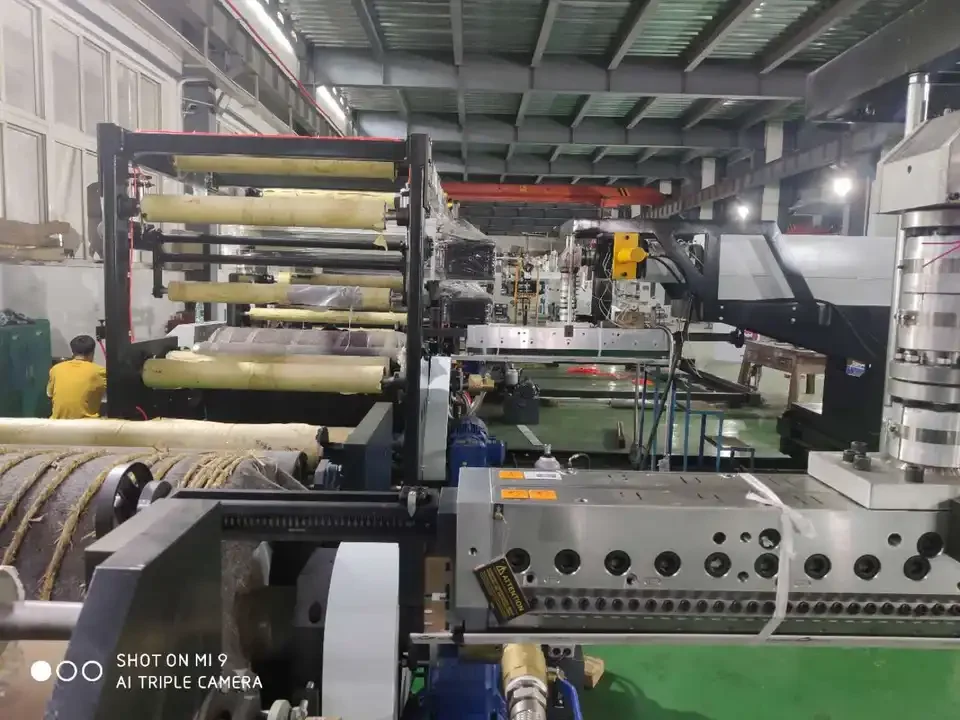

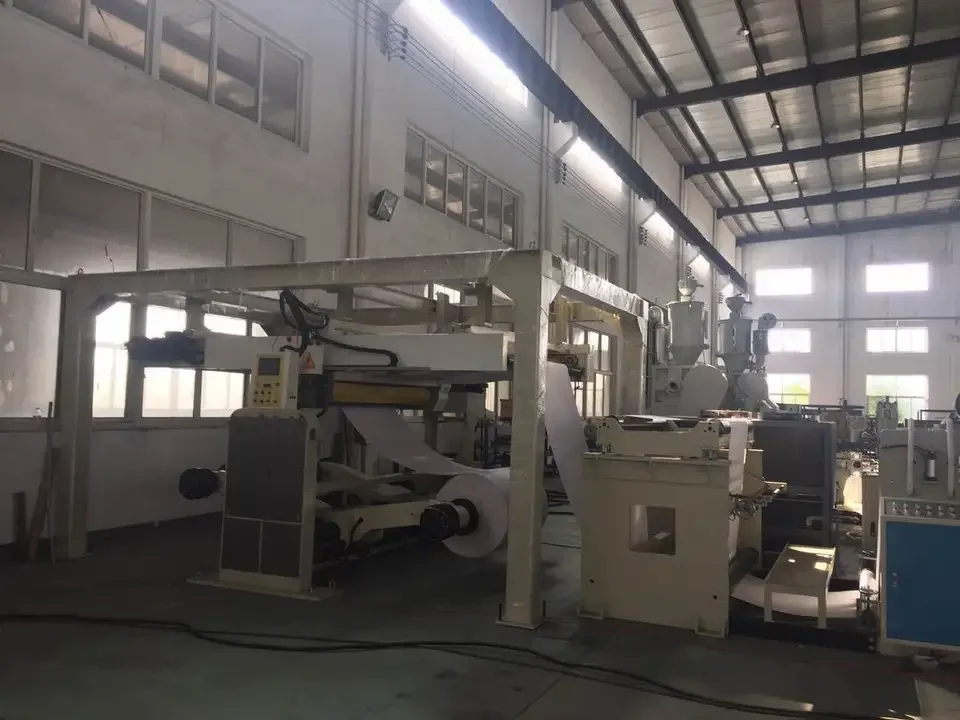

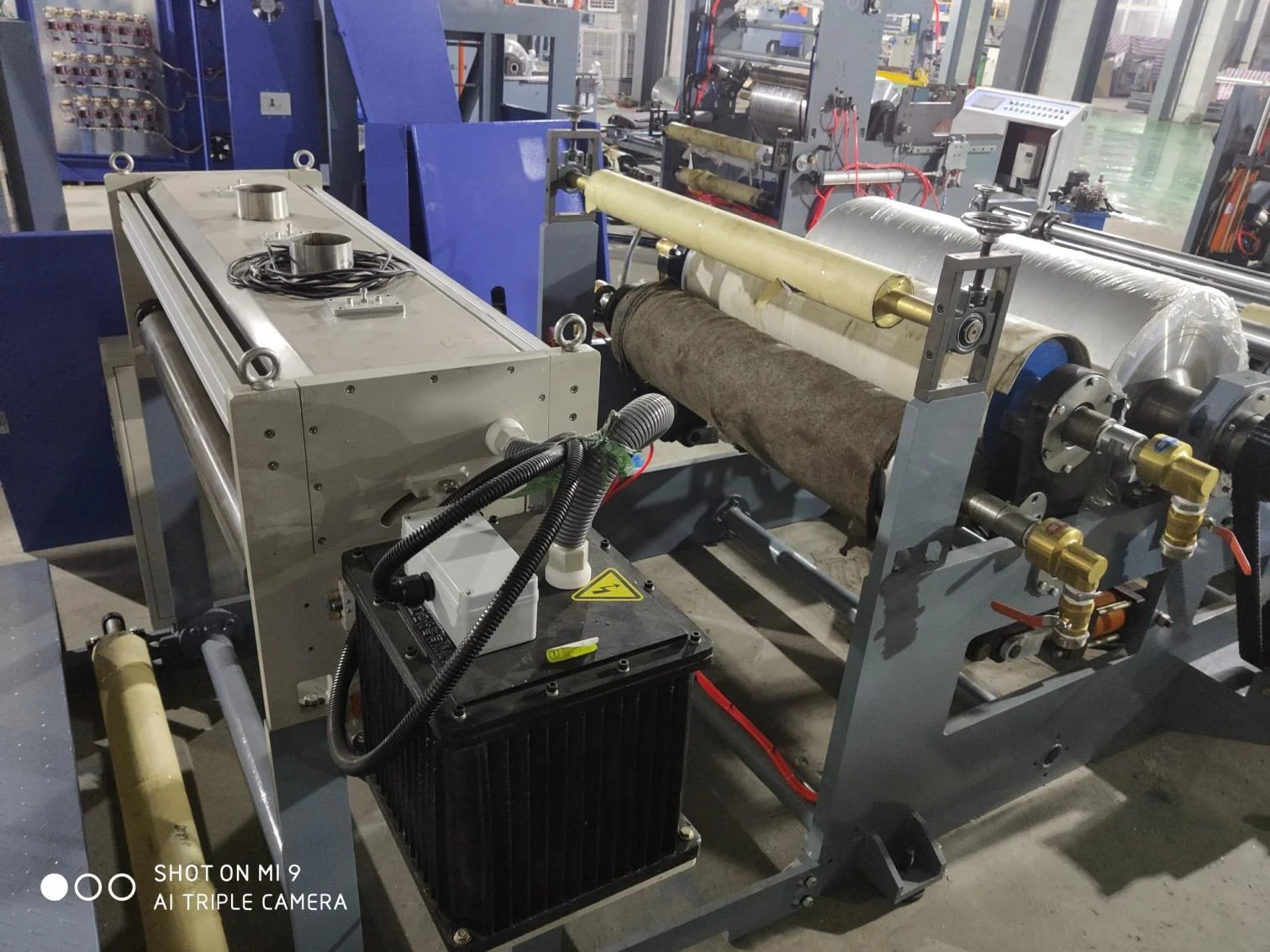

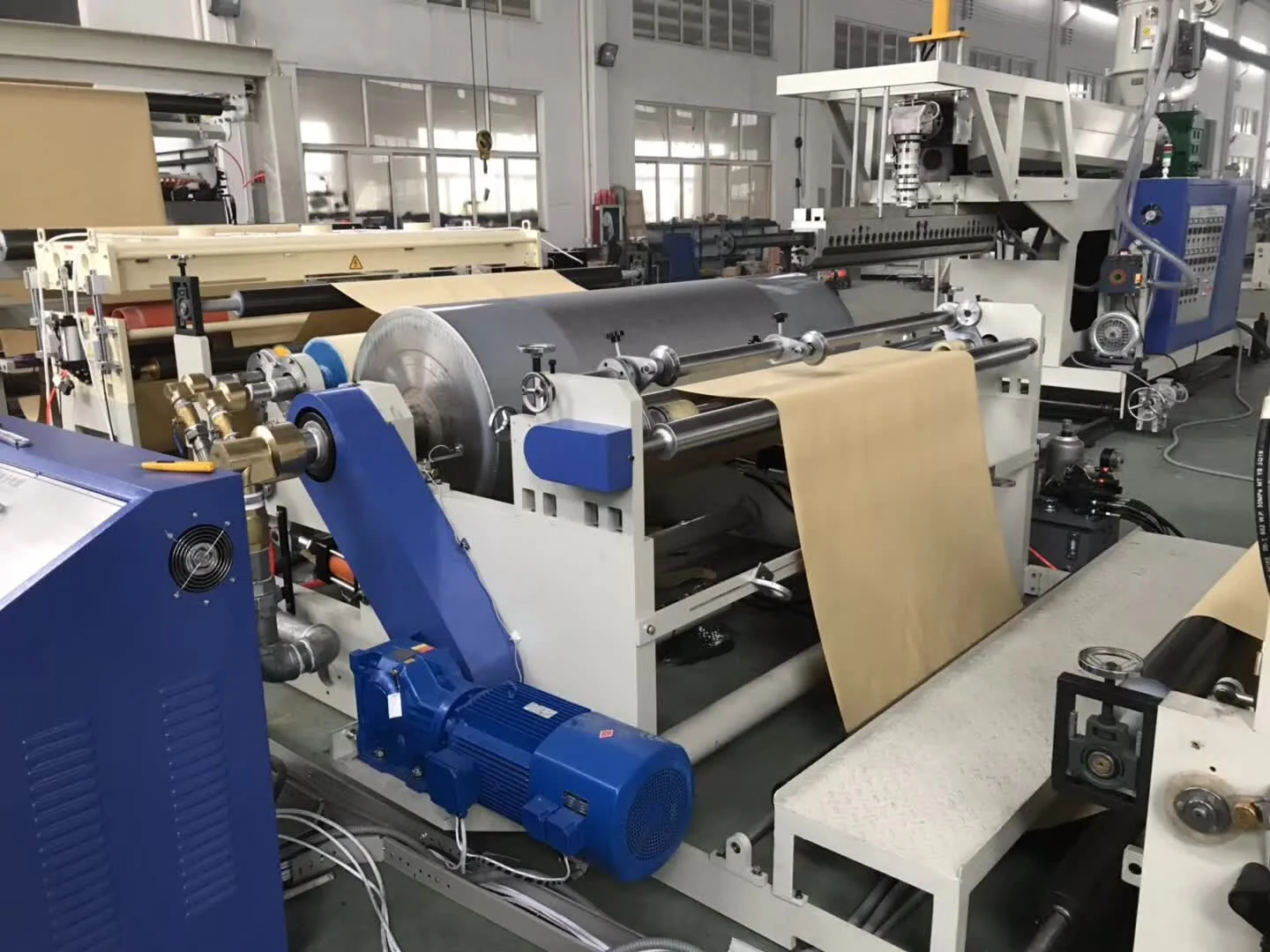

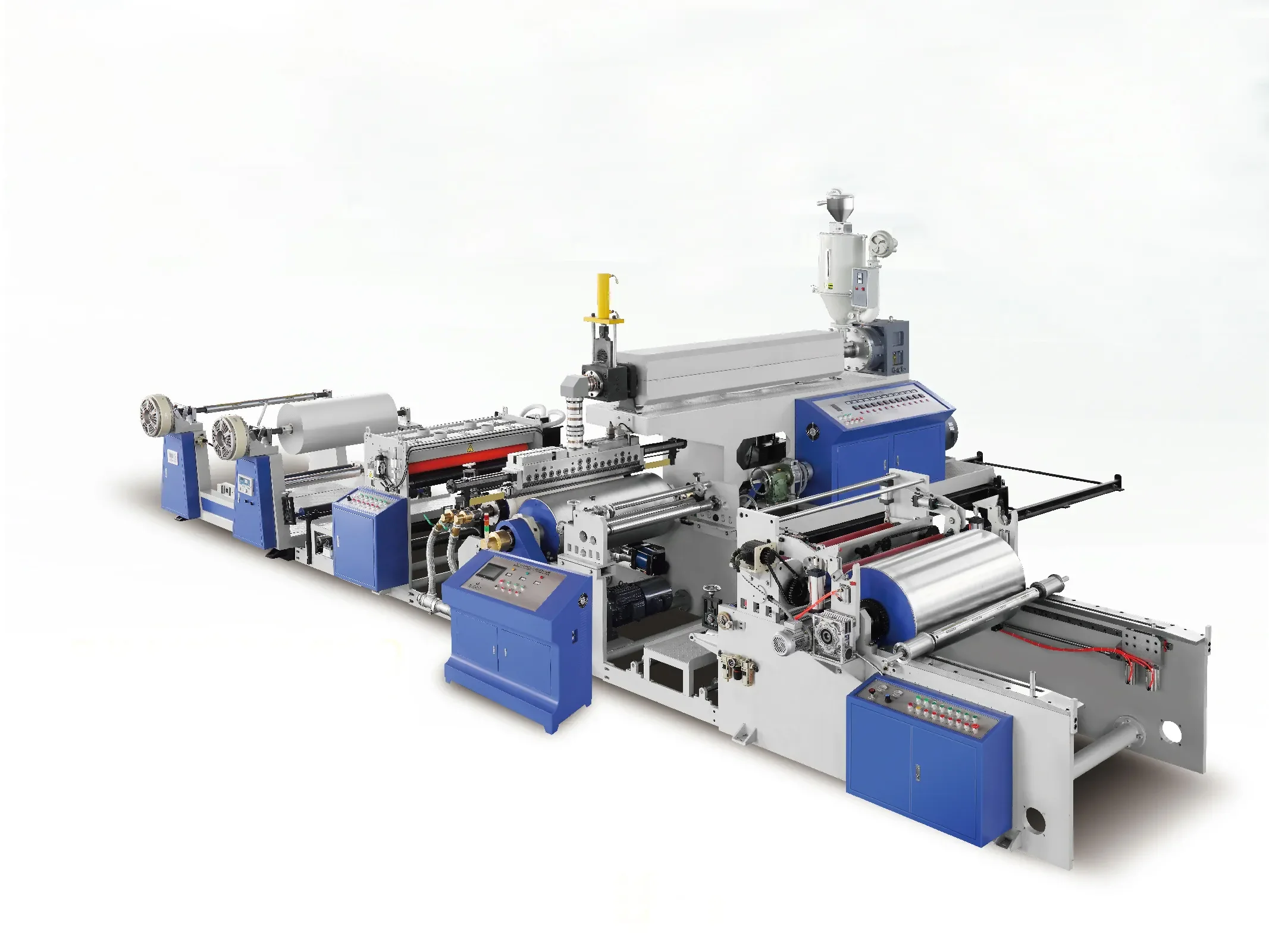

Product Picture

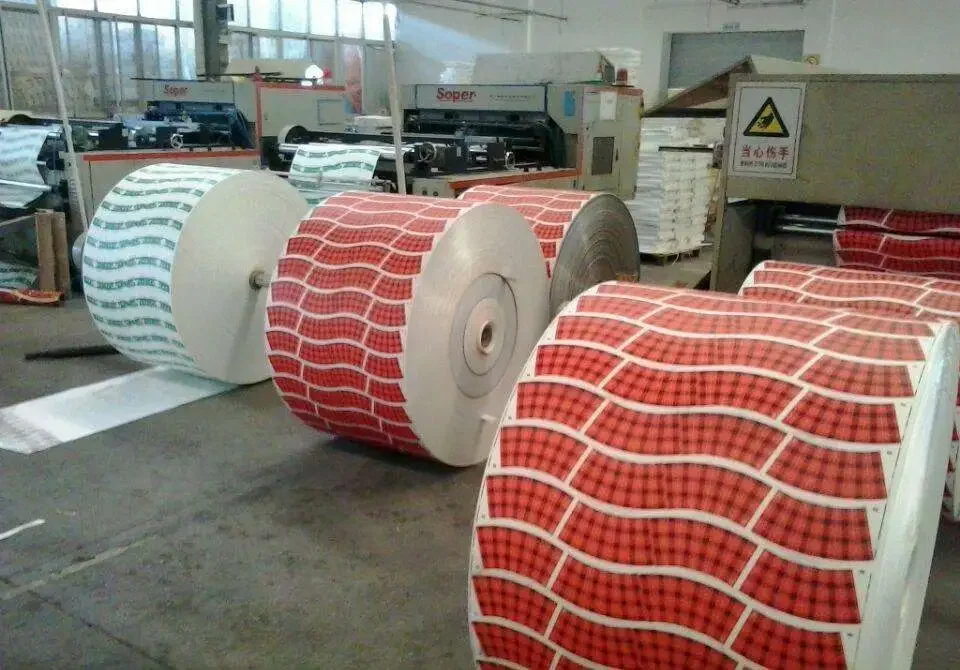

Sample Pictures

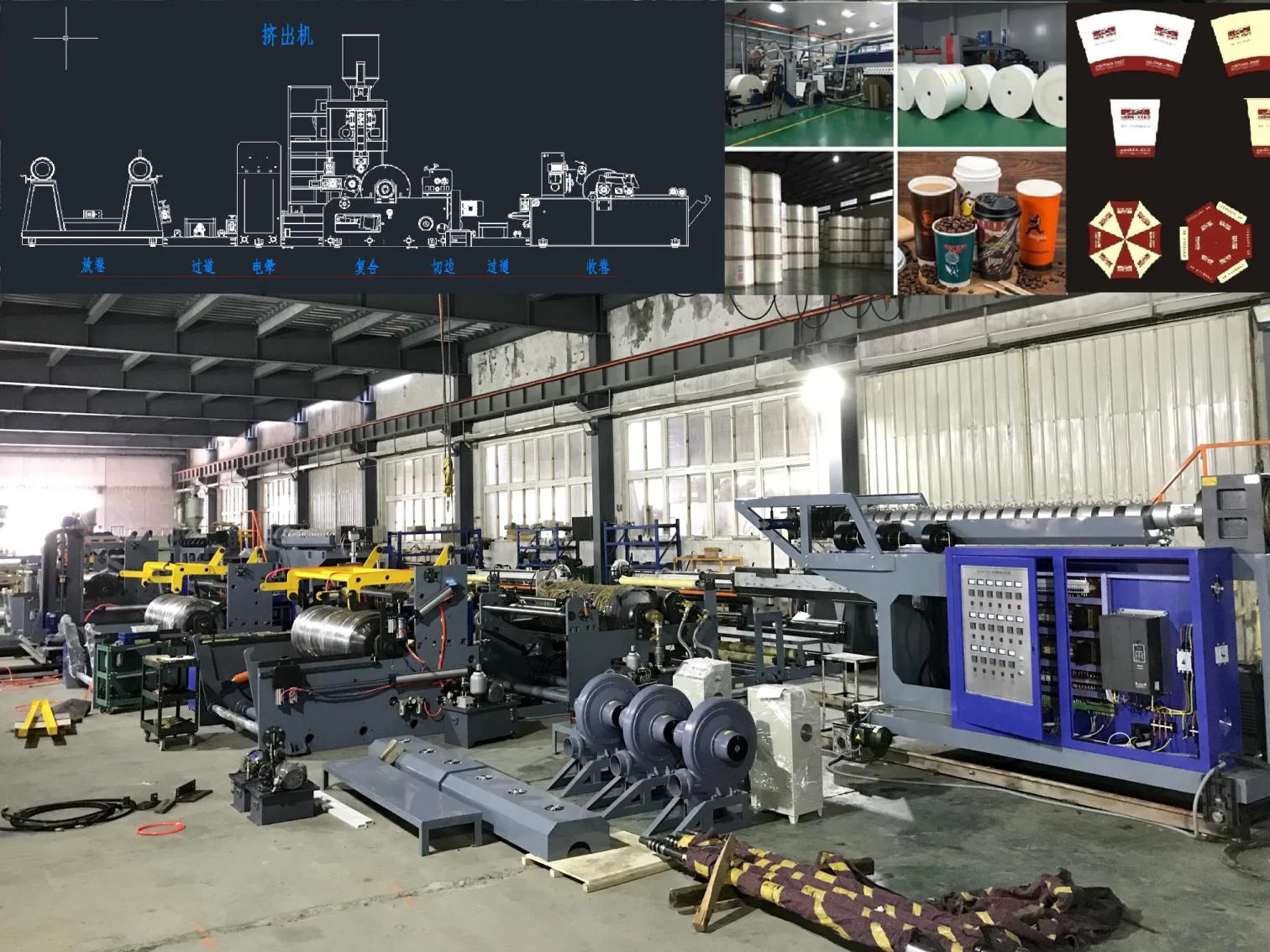

This production line is extrusion composite production line, suitable for LDPE, PP, EVA, EAA coating grade resin, can be used for plastic film (BOPP, BOPET, CPP, CPE, etc.), paper, aluminum foil, non-woven fabric as the base material composite production. Widely used in medicine packaging film, food packaging film, printing office packaging, engineering construction packaging and other composite flexible packaging materials fields.

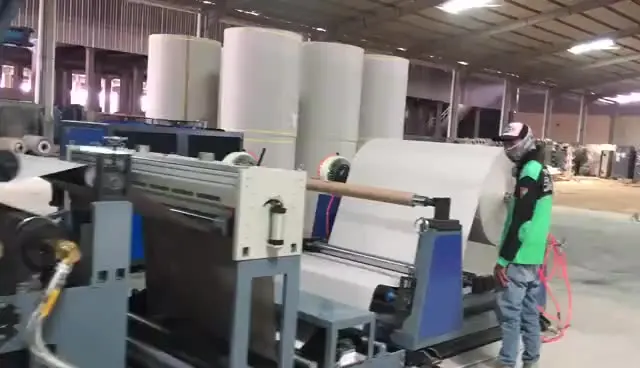

Video Dexcription
Machine components

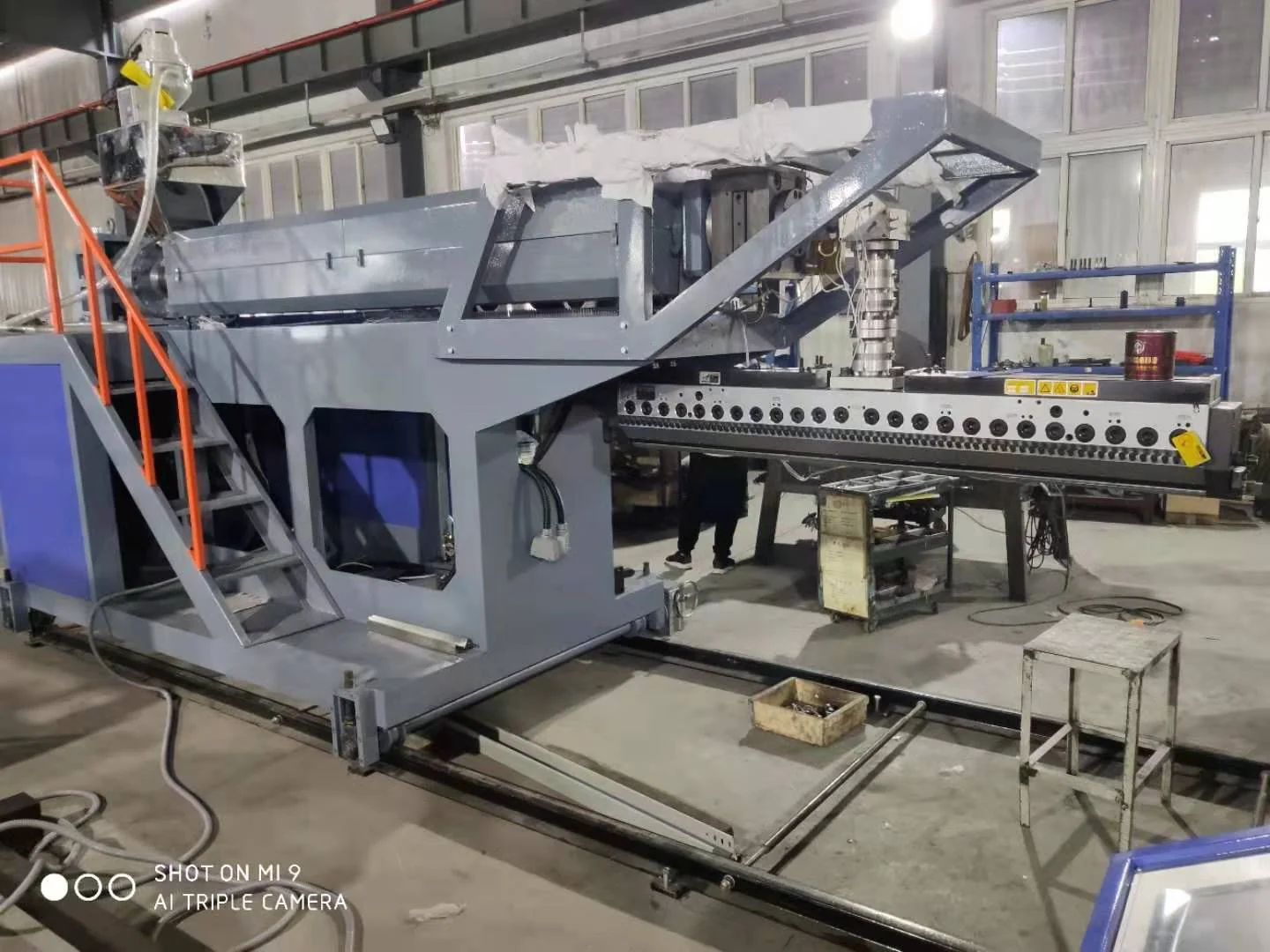

1、SJ100/33 Extruder 1 Set
2、Net Changer 1 Set
3、Static Mixer 1 Set
4、T-Die 1 Set
5、Extruder vehicle 1 Set
6、Auto-Loader 1 Set
7、Extruder & T-Die Heating Control 1 Set

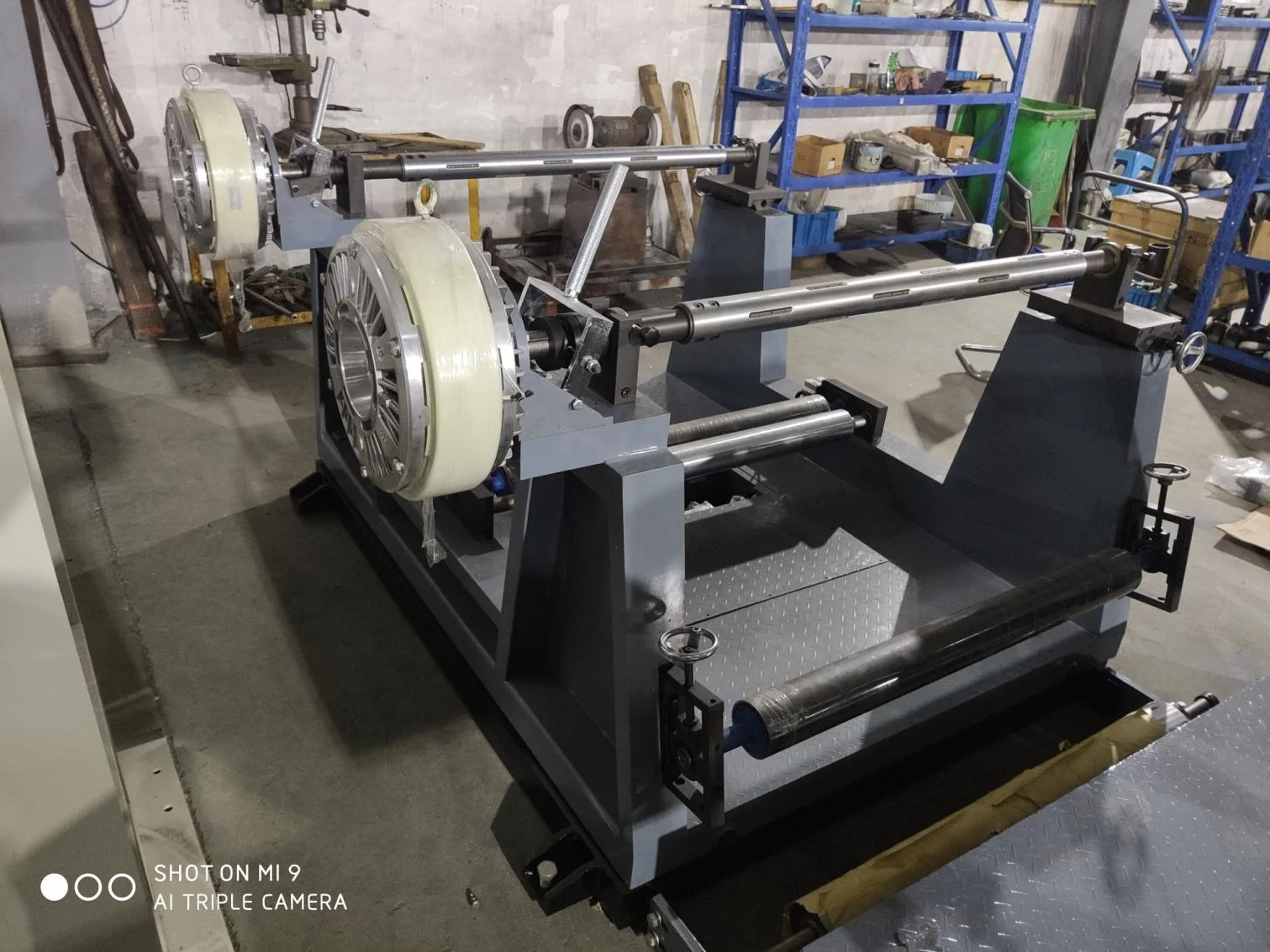

8、Double Station Un-Winder 1 Set
9、Corona Treatment 1 Set
10、Compounding Unit 1 Set
11、Trimming 1 Set
12、Winder 1 Set
13、Control Unit 1 Set
14、Protection
15、Electric Brand
2、Net Changer 1 Set
3、Static Mixer 1 Set
4、T-Die 1 Set
5、Extruder vehicle 1 Set
6、Auto-Loader 1 Set
7、Extruder & T-Die Heating Control 1 Set
8、Double Station Un-Winder 1 Set
9、Corona Treatment 1 Set
10、Compounding Unit 1 Set
11、Trimming 1 Set
12、Winder 1 Set
13、Control Unit 1 Set
14、Protection
15、Electric Brand
Product Paremeter
Model | JDLM 1300/100 |
Screw Dia | φ100 mm |
L/D | 33:1 |
Finished film width | 600-1200mm |
Lamination Thickness | 0.01-0.10 mm |
Usable Resin(Coating Grade) | LDPE、LLDPE、PP、EVA、EAA |
Design Line Speed | 210 m/min |
Max. Extrusion Capacity | 300kg/h |
Main Motor Power | 45 kw |
Total power | 135kw |
Dia.of Main Unwinding | ≤φ1300 mm |
Dia.of Winding | ≤φ1500 mm |
Weight | 12t |
Overall Dimension(L×W×H) | 10000×9000×3200 mm |
Power Supply | 380/3/4/50(Volt/Ph/Line/Hz) |
