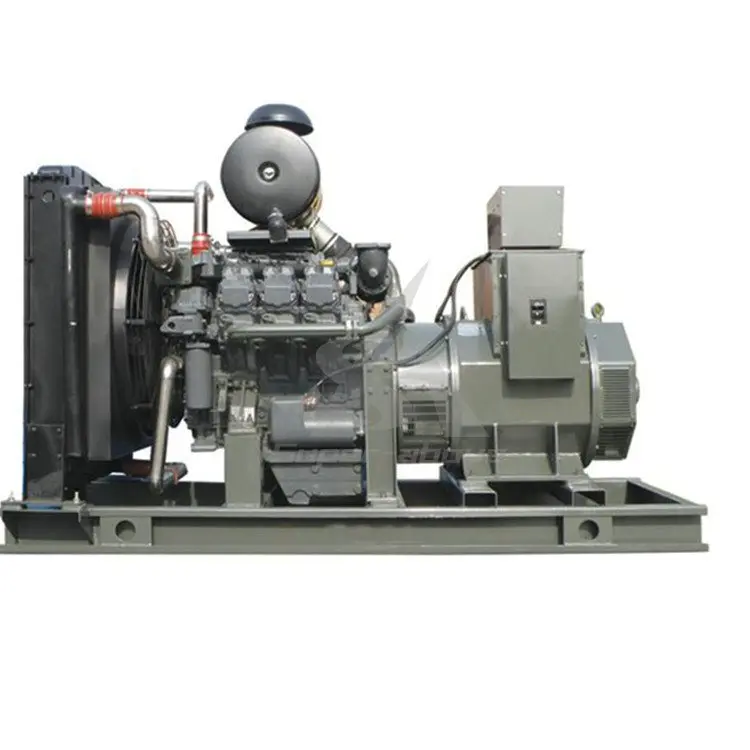

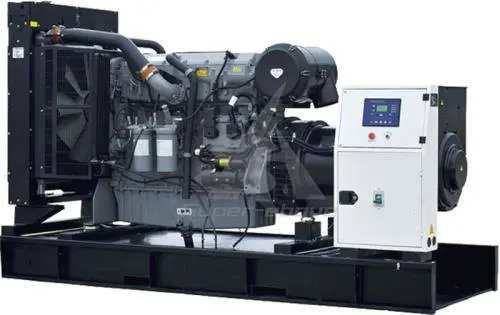

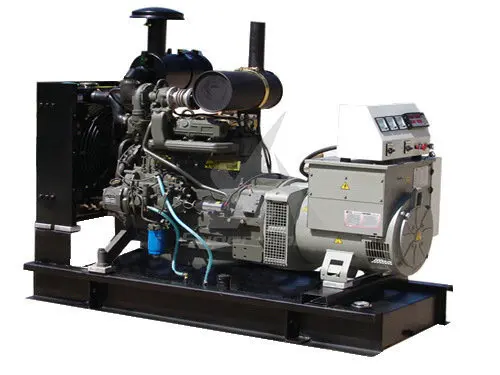

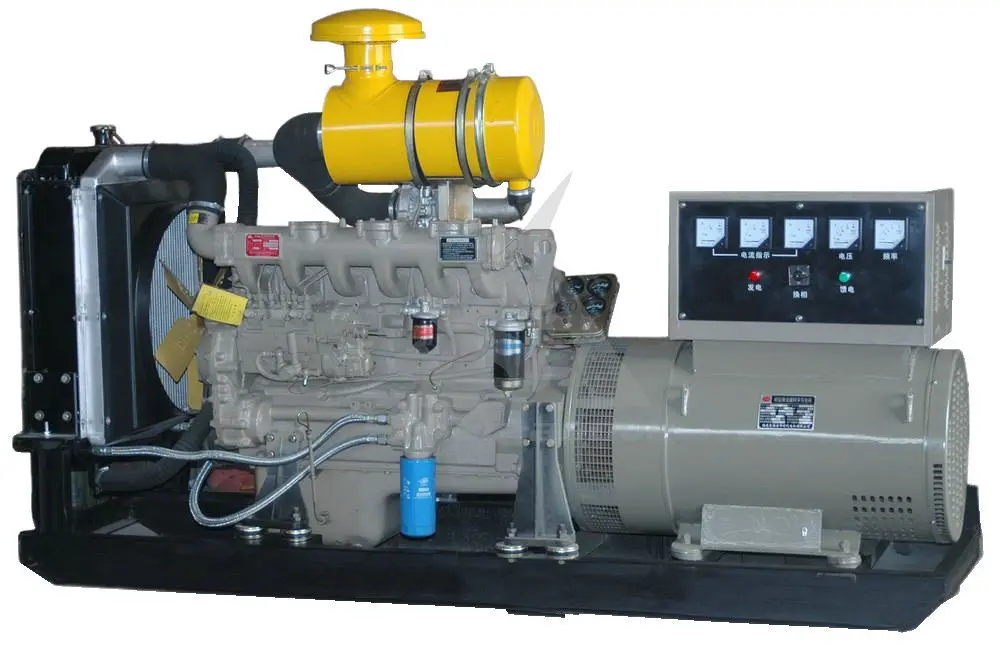

CE Certified 100kw Diesel Generators with Pks Engine
- Category: >>>
- Supplier: Shanghai Super-Above Industry Holdings Co. Ltd.
Share on (1600738776296):
Product Overview
Description
Products Description
Configuration Spec.
1) Powered by brand new original Volvo water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Technical parameters
Diesel generator Details | ||
Model | SAP-125GF | |
Power | 125KVA | |
Frequency | 50HZ | |
Voltage | 380/220v(voltage can be customized) | |
Optional Type | Open/soundproof/trailer | |
Size of Open type | 2500*950*1450mm | |
Weight of Open type | 1350kg | |
With Diesel Engine | ||
Brand&model | PKS 1106A-70TG1 | |
Cylinders | 6 in line arrangement | |
Bore*Stroke | 105*135mm | |
Displacement | 7.01L | |
Fuel Consumption at 100% Load | 199g/kw.h | |
Speed Governor | Electronic | |
With Alternator | ||
Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon | |
Exciter type | Single bearing,brushless,Self-excited | |
Power factor | 0.8 | |
Voltage adjust range | ≥5% | |
Insulation Grade | H | |
Protection Grade | IP23 | |
With Controller | ||
Optional brands | Deepsea/ComAp/Smartgen | |
Details Images
Sales Service
About Us
Packaging & Shipping
FAQ
1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
