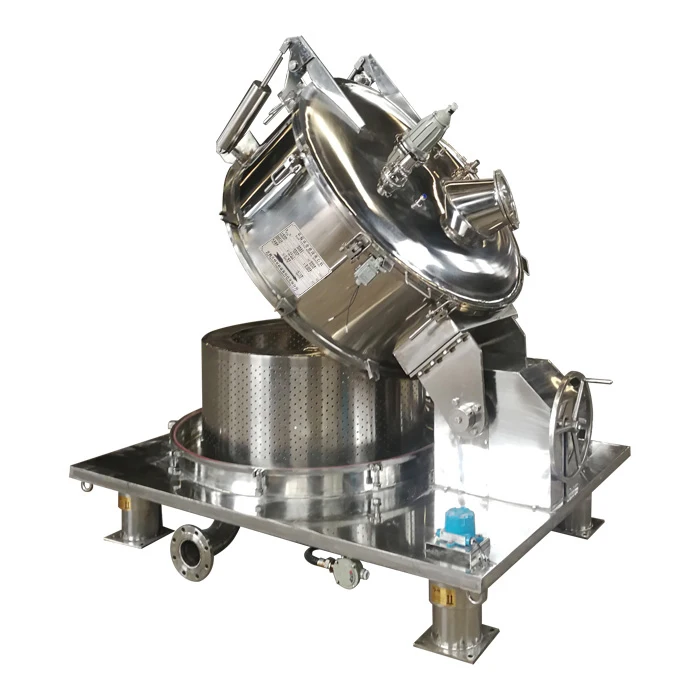

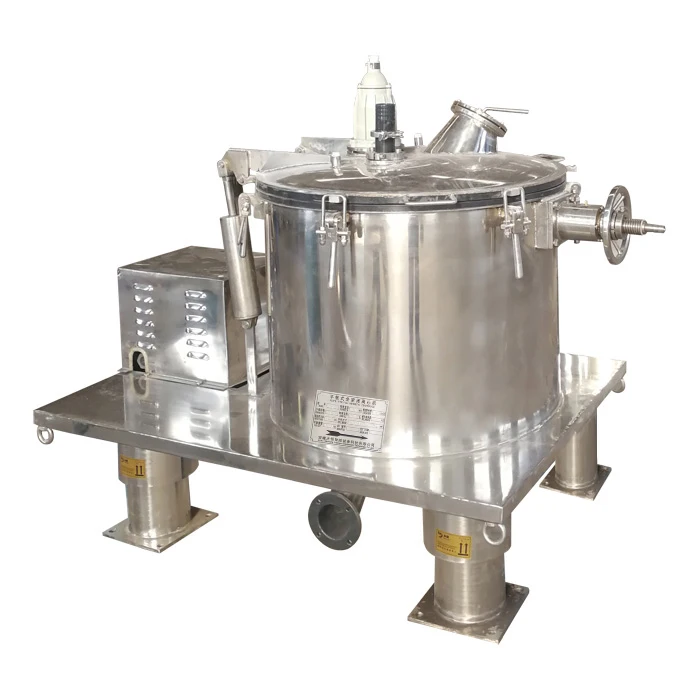

Fully Automatic Centrifuge Top Suspension Scraper Discharge Flat Plate Centrifuge
- Category: >>>
- Supplier: Zhengzhou Mingyi Instrument Equipment Co. Ltd.
Share on (1600738797386):
Product Overview
Description
PS series centrifuges are intermittent centrifuges designed according to the requirements of the national drug production GMP regulations and the needs of domestic customers. The material is fed from the top of the centrifuge, separated by the high-speed rotation of the drum, and the filter cake can be washed manually. After the separation, it can be braked electrically or manually, and the material can be unloaded manually.
Product Description

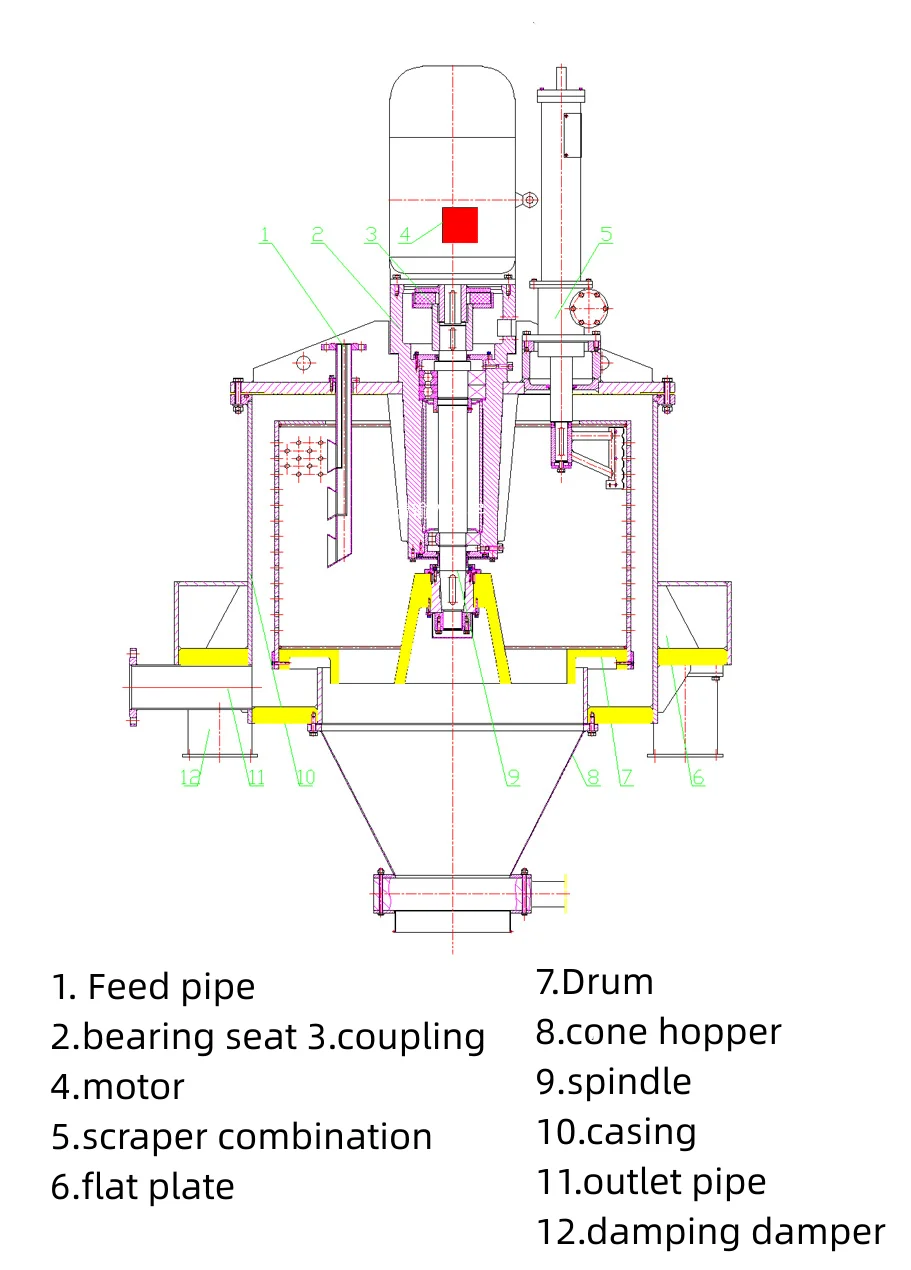

product features
The upper-mounted motor transmission mode, the transmission and drum rotation center coincide with the machine center, and the operation is stable.
Liquid damping shock absorber, no foundation electrical equipment, easy to operate and maintain.
The casing and the machine base are rigidly connected with a full load-bearing structure, and the structure is simple and compact.
The independent shaft symmetrical seat, the bearing support span is large, the center of gravity of the drum is low, and the bearing capacity is large.
No belt drive, no friction dust.
Fully automatic operation program control, reliable and safe operation.
Nitrogen protection device can be configured to realize the application in explosion-proof occasions.
Liquid damping shock absorber, no foundation electrical equipment, easy to operate and maintain.
The casing and the machine base are rigidly connected with a full load-bearing structure, and the structure is simple and compact.
The independent shaft symmetrical seat, the bearing support span is large, the center of gravity of the drum is low, and the bearing capacity is large.
No belt drive, no friction dust.
Fully automatic operation program control, reliable and safe operation.
Nitrogen protection device can be configured to realize the application in explosion-proof occasions.

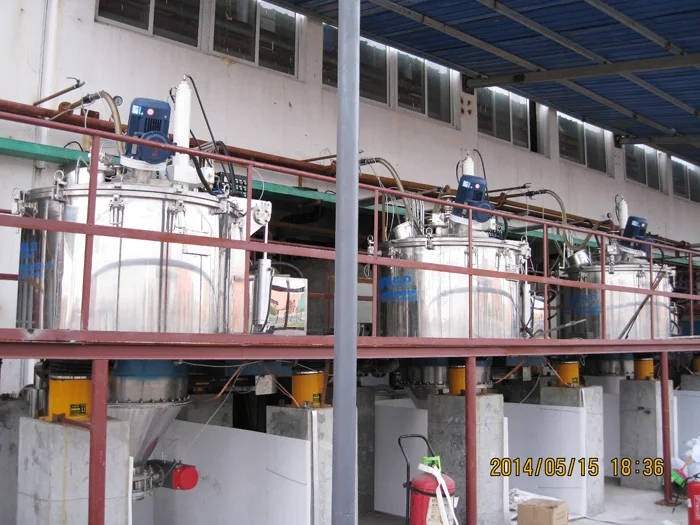

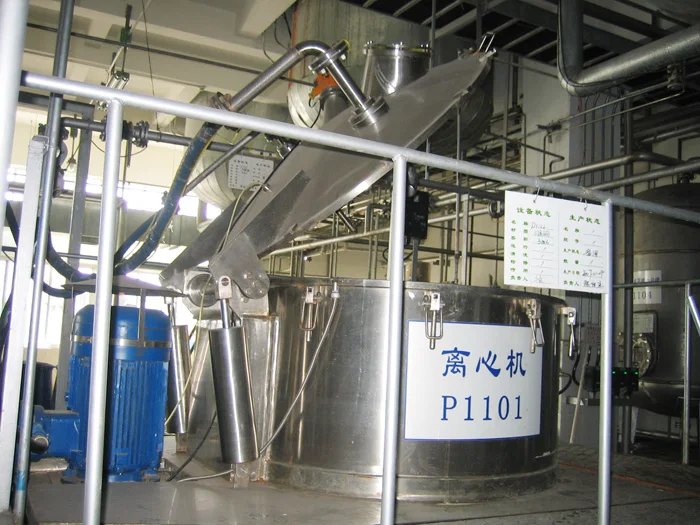

Case presentation
Specification
project | PAUT1250NA | PAUT1250NB | PAUT1320N | PAUT1500N | PAUT1600N | PBL1200 | PBL1250 |
Drum diameter(mm) | 1250 | 1250 | 1320 | 1500 | 1600 | 1200 | 1250 |
Drum speed(r/min) | 980 | 980 | 900 | 850 | 750 | 500 | 500 |
Separation factor (Fr) | 672 | 672 | 598 | 606 | 504 | 1000 | 1000 |
Working capacity (L) | 350 | 460 | 490 | 650 | 900 | 670 | 700 |
Loading limit (Kg) | 420 | 600 | 660 | 880 | 1200 | 250 | 300 |
Motor power (KW) | 22 | 30 | 30 | 37 | 45 | 350 | 420 |
Dimensions (L*W*H)(mm) | 2000*2000*2200 | 2000*2000*2480 | 2000*2000*2480 | 2600*2350*2700 | 2700*2350*2900 | 15 | 18.5 |
Machine weight(Kg) | 4200 | 5000 | 5500 | 8500 | 10000 | 1800*1800*1420 | 1800*1800*1420 |
