US DLC LISTED LED gas station Light explosion proof led light lamp Explosive proof Recessed Canopy Light Fixtures

Product Overview

Description

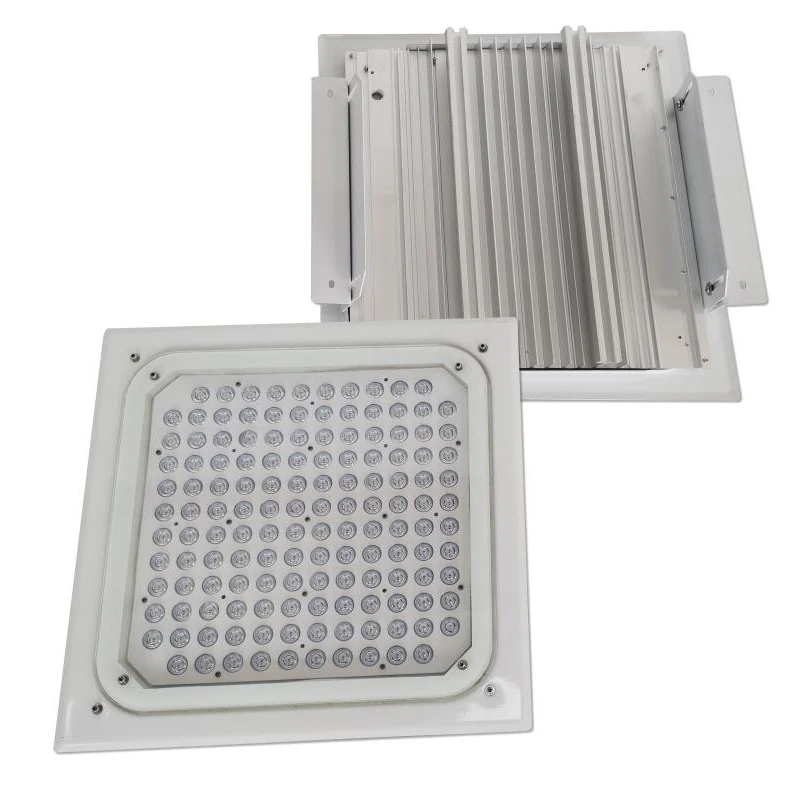

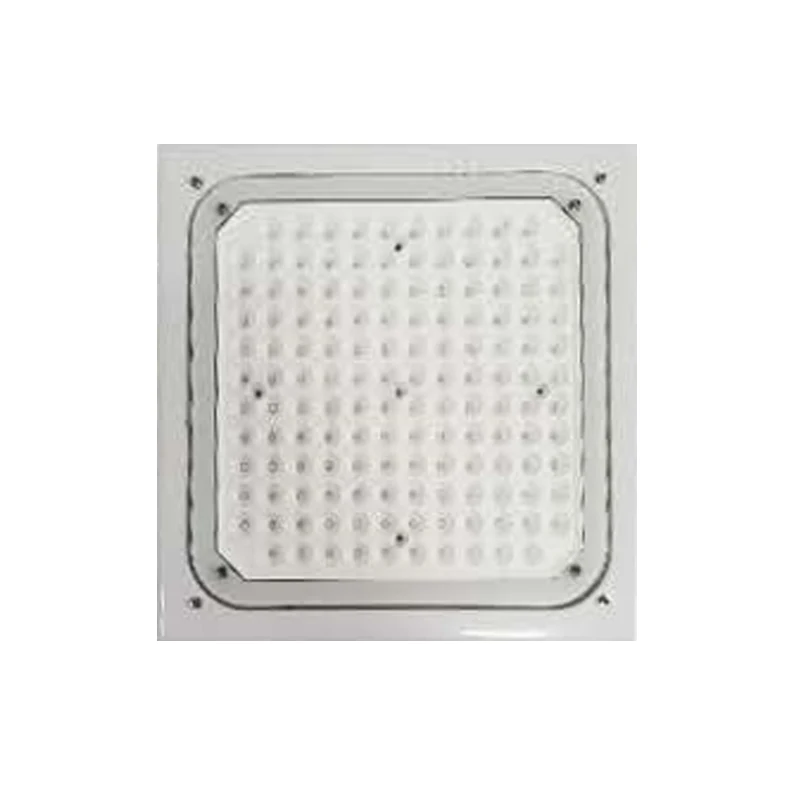

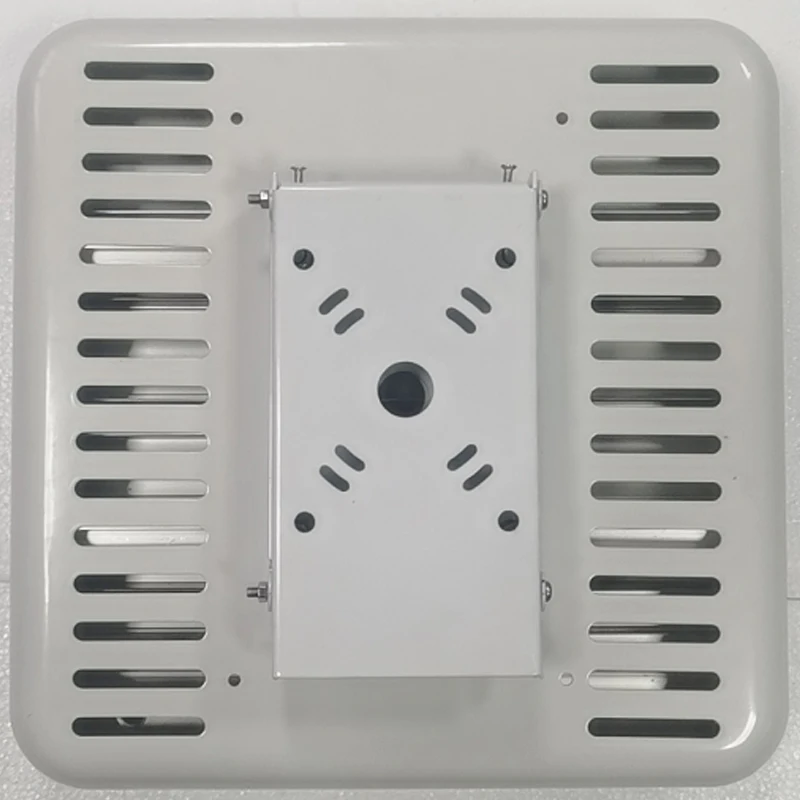

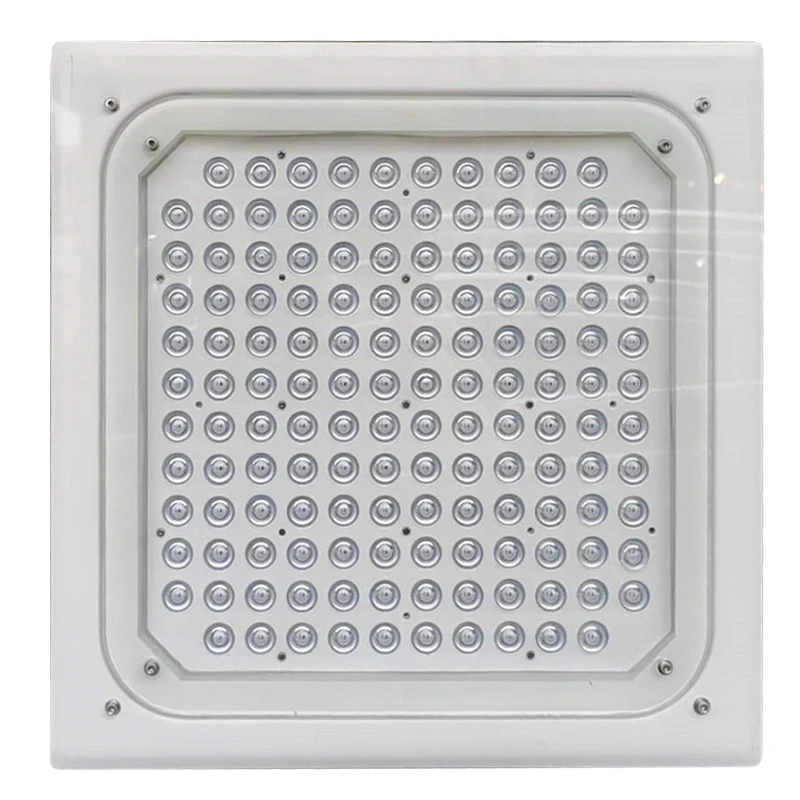

LED gas station Lighting


      Shenzhen Nibbe Optoelectronic Technology Co., Ltd. is a high & new tech enterprise, specialized in developing, producing, and marketing LED explosion-proof lightings, LED tri-proof lightings, LED commercial lightings, explosion-proof electric appliances, lighting fixture installation accessories, and etc. We are the supplier for several famous enterprises, such as SINOPEC, CNPC, CNOOC, and etc. Our products have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries and regions.







Features:

1.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.

2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.

4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

5.Beautiful appearance, several types of installation methods available.



LED ATEX Explosion Proof Light





Specifications
Name	LED gas station Lighting
Lighting source	Bridgelux COB LED
Parameter	Value
Power Consumption	60W/80W/100W/120W
Input Voltage	95-265V/ 24V DC
Frequency	47-63 Hz
Beam Angle	140°
Corrosion-proof Grade	WF2
IP Grade	IP67
Power Factor	>0.90
Total Harmonic Current	<20%
Lamp Efficiency(%)	≥90%
Color Temperature(K)	Warm white:2700-4000K; Pure white: 5000-6500K
Junction Temperature(TJ))	<55°C
Color Rendering Index(CRI)	Ra>70
Light Effect	>80lm/W
Ambient Environment	Temperature: -30°C—55°C; Humidity: 10-90%RH(25°C)
Storage Temperature	-40°C-60°C
Lifespan	>50000Hs
Material	Aluminum Alloy
Cable Entry	Φ8~Φ14mm
Threaded Fitting	G3/4"
Installation Height	2~4m
Net Weight	3Kg



Features:
Adapts high-power LED chip
Can be mounted easily
Environment-friendly
Low discharge
High lighting effect
Less start up time
Maintenance-free
Crystal lens shape decide luminous intensity distribution
Unitary structure
Nice heat radiation effect
Reliable
Shock-proof designs
Corrosion, water and high temperature-resistant
Can be mounted in pedestal or on ceiling
Used as floodlight at various explosive/flammable places, military sites, indoor/outdoor operation and construction sites
Suitable for various harsh environments



LED gas station Lighting







Application:

Applied to petro station
