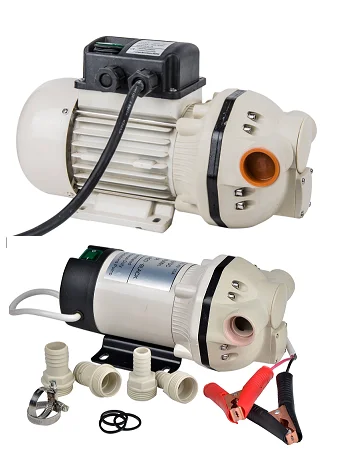

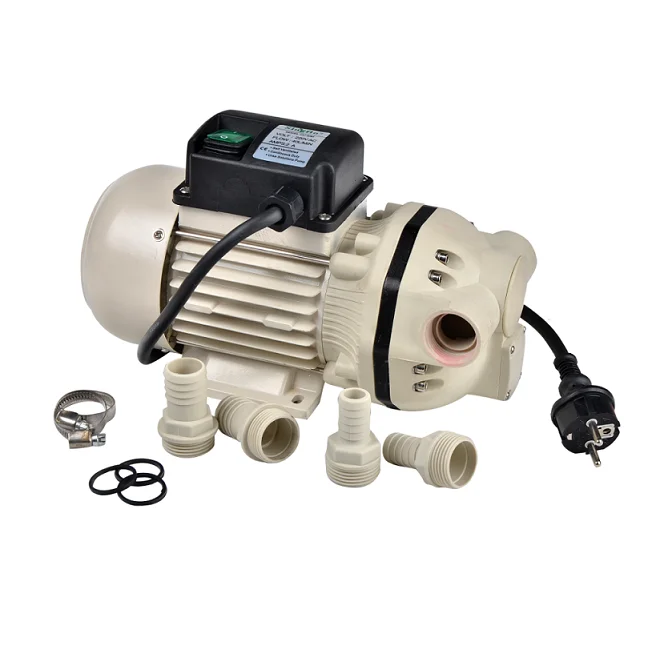

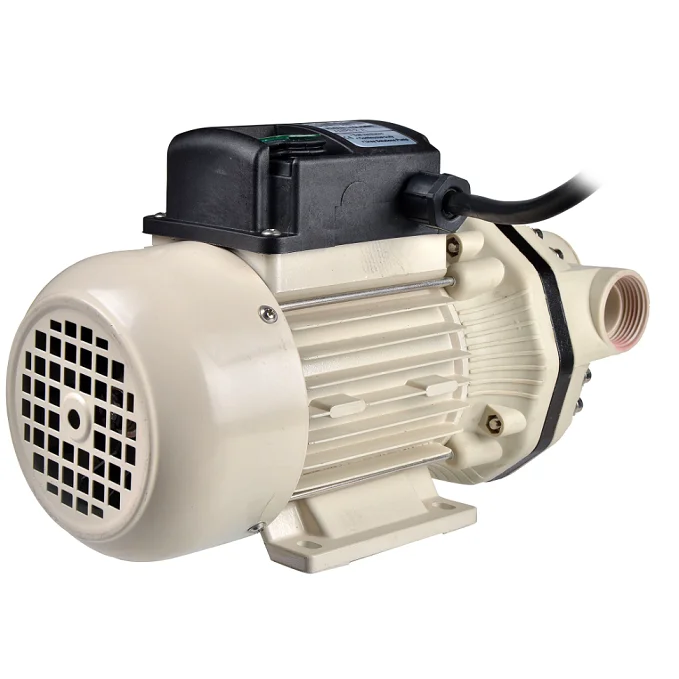

HV 50S 115V adblue pump AUS32/Adblue Sytem/Urea Solution IBC pump system

Product Overview

Description

 HV-30S  115V adblue suction pump for DEF Dispensing system





Application:

Ideal for unloading from Chemical liquid transfer,Totes or Drums of adblue, Diesel Exhaust Fluid, Detergents, Soaps, Acids and Alkalis.

Function:

* Permanent magnet and continuous duty
* Built-in pressure switch automatically starts and stops pump when faucets is opened and closed
* Self-priming so pump can be located above water tank
* Runs dry for extended periods of time without damage
* Hold excellent motor keep stable temperature of pump



IBC system related products:



Item No		Description			Images
Adblue automatic nozzles		Automatic Trigger nozzle with safety cut out valve Materials of construction stainless steel, viton Fitting:3/4'' BSPP Flow range:0~60L/min Max.pressure:5 bar
Adblue Manual Nozzles		Filling Nozzle manual Trigger Nozzle Fittings:19mm barb Flow range:0~80L/min Max.pressure:3.5Bar
Adblue meter(K24)		Type:Inline turbine meter polyamide body Flow range:10~120L/min Accuracy:+-1% Pressure:10bar Connections:BSPT 1'' or NPT1''
Adblue EPDM hose		Size:19mm ID transfer hose supplied complete with 1''BSPT Type:EPDM Internal diameter:19mm Wall Thickness:4mm Flow range:0~60L/min
Sec Suction Coupling		Type: Female coupling Fitting:3/4'' BSPP Flow(max): 40L/min (0.6bar max.pressure drop) Pressure(max.2bar)
Bracket Set Nozzle holder		Design specially for this system Bracket set material: Iron



FAQ:

1. Q: Are you a manufacturer or trading company?

    A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.



2. Q:What's your products MOQ?

    A: Different model has different MOQ, pls check with salesman.

3. Q: How can I get some samples?

   A: Usually we can’t offer free sample, pls pay the sample and express fee, the      sample costing can be             deducted in your first large order.



4 Q:  What's your delivery time?

    A:  1.The samples can be sent to you within 3-5days.

         2.The batch order can be shipped to you within 5-15days after order confirmation

5 : Q:What's your warranty & after service policy?

     A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts                     free to you

6  Q: How many qty so I can get your OEM service with myself brand name?

    A:  Different Models have different MOQ requirement, pls consult our salesman.



7  Q: What's the payment can you accept?

     A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
