Large Ozone Generator 100G 200G Water Treatment Machinery PLC Control High Concentration Ozone Generator
- Category: >>>
- Supplier: Dino Trading (Guangzhou) Co. Ltd.
Share on (1600738825244):
Product Overview
Description
Products Description
FEATURE
High-voltage electrode material: high-hardness 6063 aluminum alloy, heat
treatment before processing to eliminate thermal deformation after processing,
and passivation treatment on the surface to prevent ozone corrosion.
treatment before processing to eliminate thermal deformation after processing,
and passivation treatment on the surface to prevent ozone corrosion.
Product Paramenters
Specification for 50G 100G 300G 500G Oxygen feeding PLC Ozone Generator | ||||||||
DNO-100G-P | DNO-300G-P | DNO-500G-P | ||||||
Ozone machine parameters | Gas feeding | Oxygen | Oxygen | Oxygen | ||||
Oxygen flow rate | 10L/min | 40L/min | 60L/min | |||||
Ozone output | 100g/h | 300g/h | 500g/h | |||||
Power | 2.1KW | 2.6KW | 3.85KW | |||||
Dimension | 60*50*140cm | 70*60*140cm | 80*70*170cm | |||||
Net weight | 103kg | 107kg | 120kg | |||||
Ozone concentration | 170-230mg/L | 135-228mg/L | 140-200mg/L | |||||
Adjustable ozone output | 0-100% | 0-100% | 0-100% | |||||
Intake port size | Φ10mm | Φ12mm | Φ20mm | |||||
Outlet port size | Φ10mm | Φ10mm | Φ10mm | |||||
Cooling medium | Cooling water consumption | 2m3/h | 2m3/h | 2m3/h | ||||
Rated temperature | 23°C | 20°C | 20°C | |||||
Temperature rise in inlet and outlet | 3-5°C | 3-5°C | 3-5°C | |||||
Dimensions of inlet and outlet water interface | DN15 | DN15 | DN15 | |||||
Ozone Power Requirements | Voltage | 220VAC | 220VAC | 220VAC | ||||
Frequency | 50-60Hz | 60Hz | 60Hz | |||||
Power supply connection | 3×1.5mm2 | 3×2.5mm2 | 3×4mm2 | |||||
Power factory | 0.96cos | 0.96cos | 0.96cos | |||||
Power consumption | 1.1KW | 2.3KW | 3.5KW | |||||
Company Introduction
FAQ
Q1: Do you provide OEM or ODM customized service?
A: Yes, we provide OEM and ODM service. We are sure to be your unique and reliable partner of ODM/OEM business.
Q2: What’s your MOQ?
A: Normally, if silk logo in products, MOQ: 50pcs/item . If use customized packaging, quantity need be negotiated.
Q3: Are there samples available before orders?
A: Yes, it can Sample cost can be refunded after your formal orders quantity more than 100units.
Q4: Can we use our own designed package? What kinds of packaging material you use for?
A: Yes, size, color, logo and packaging style of product are customized. Packaging materials we offer two packaging options, one is standard export carton with foam inside, another is composite plate.
Q5: When’s your delivery time?
A: Generally, 5-7 working days for samples, within 30-40 days for mass production.
Q6: How can we pay?
A: T/T, Western Union, PayPal etc. are acceptable.
Q7:How about of your after-sale service?
A:1years warranty, if product is broken in first month, we will offer free spare to you including free express fee.
Q8:Have your products been passed any authoriative certification?
A:Yes, most of our products have been passed CE and ROHS testing and have relative certificate
Q9:How about of your ozone generator disinfection
A:Our ozone generator is high quality machine, the bactericidal performance of daily bacteria reach to 99%, it have good
disinfcetion affect in water or in air.

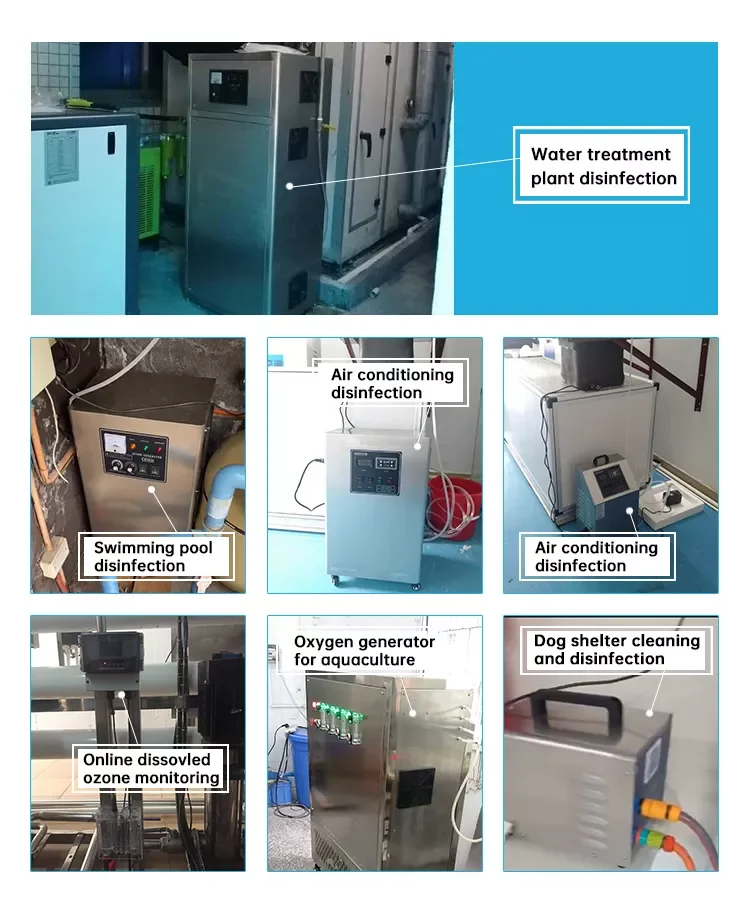

Q10:Where of your ozone generator can use for?
A: it can use for water disinfection or sterilization or air sterilization and air water purification, such as swimming pool,
factories, school, canteen, warehouse, hotel, etc.
Q11. What kinds of ozone generator Dino produce?
A: We produce Air Ozone Generator for air disinfection , Oxygen Ozone Generator for water disinfection, Ozone Water System for object surface disinfection, Ceramic ozone generator for kitchen remove grease, and Oxygen Generator for large scale industry production disinfection.
Q2: What’s your MOQ?
A: Normally, if silk logo in products, MOQ: 50pcs/item . If use customized packaging, quantity need be negotiated.
Q3: Are there samples available before orders?
A: Yes, it can Sample cost can be refunded after your formal orders quantity more than 100units.
Q4: Can we use our own designed package? What kinds of packaging material you use for?
A: Yes, size, color, logo and packaging style of product are customized. Packaging materials we offer two packaging options, one is standard export carton with foam inside, another is composite plate.
Q5: When’s your delivery time?
A: Generally, 5-7 working days for samples, within 30-40 days for mass production.
Q6: How can we pay?
A: T/T, Western Union, PayPal etc. are acceptable.
Q7:How about of your after-sale service?
A:1years warranty, if product is broken in first month, we will offer free spare to you including free express fee.
Q8:Have your products been passed any authoriative certification?
A:Yes, most of our products have been passed CE and ROHS testing and have relative certificate
Q9:How about of your ozone generator disinfection
A:Our ozone generator is high quality machine, the bactericidal performance of daily bacteria reach to 99%, it have good
disinfcetion affect in water or in air.
Q10:Where of your ozone generator can use for?
A: it can use for water disinfection or sterilization or air sterilization and air water purification, such as swimming pool,
factories, school, canteen, warehouse, hotel, etc.
Q11. What kinds of ozone generator Dino produce?
A: We produce Air Ozone Generator for air disinfection , Oxygen Ozone Generator for water disinfection, Ozone Water System for object surface disinfection, Ceramic ozone generator for kitchen remove grease, and Oxygen Generator for large scale industry production disinfection.
