Product Overview

Description

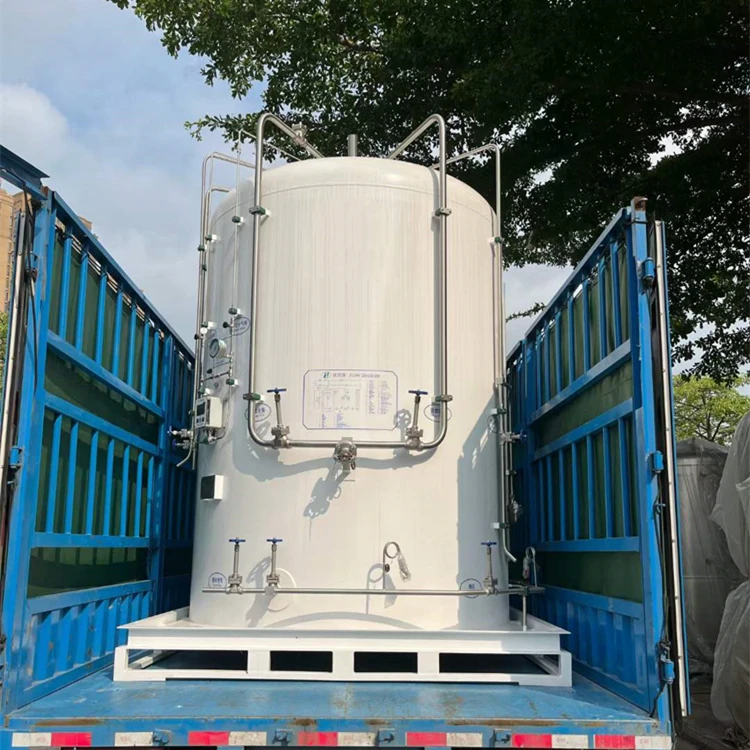

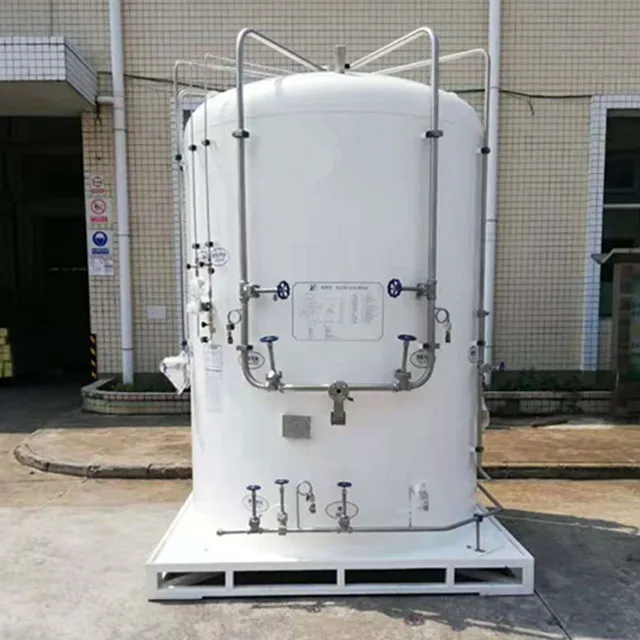

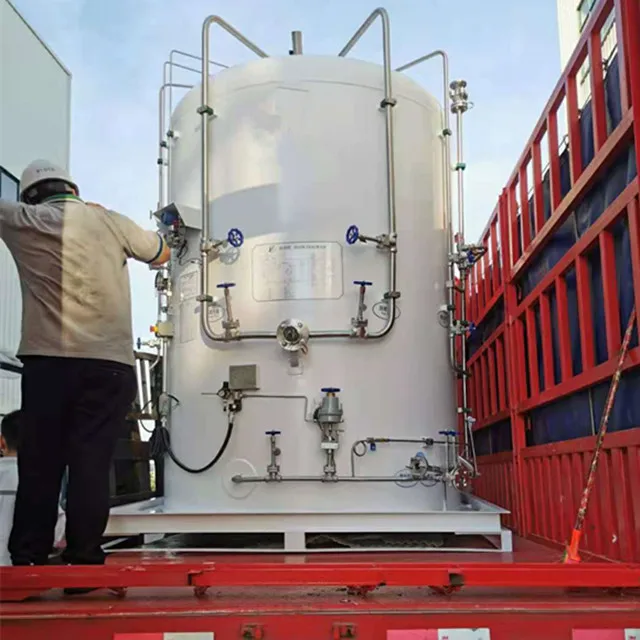

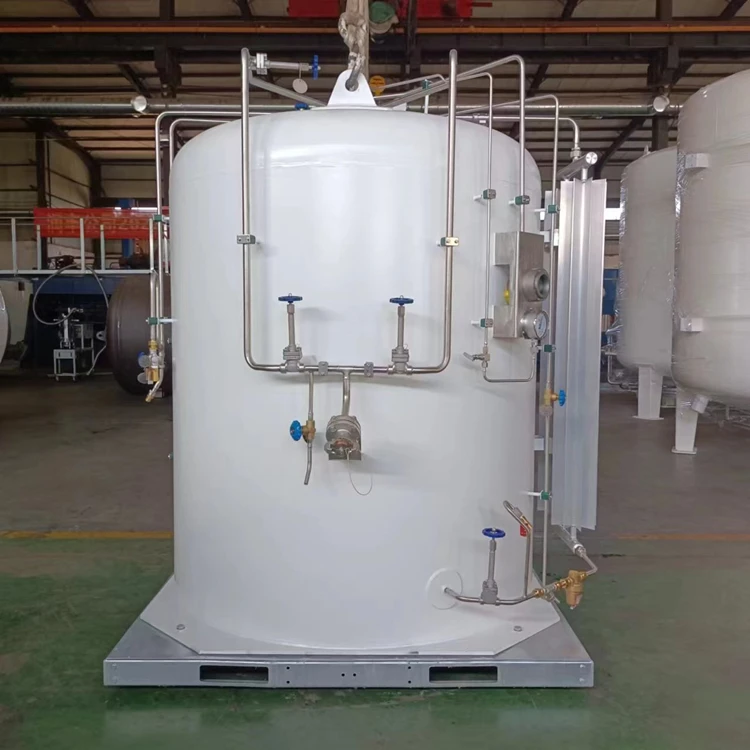

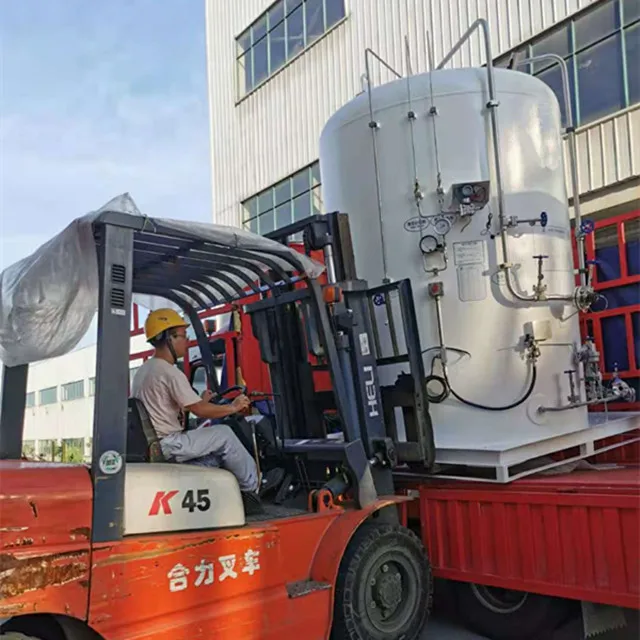

China Hot Sale 5000L 1.6MPa New Type Liquid Nitrogen Oxygen Micro Bulk Tank

Micro Bulk is a small cryogenic liquid storage tank, is a new design gas storage transfer equipment with a more economical and convenient distribution and use design for industry, laboratory and medicine, which is more reliable, safer and economical. The general volume is 1-5m3, the pressure can reach 3.6mpa. It is characterized by no need to replace cylinders frequently, convenient operation, reduce liquid waste, save time, no weighing,It is used in cutting, welding, cryogenic laboratory, small hospitals etc.

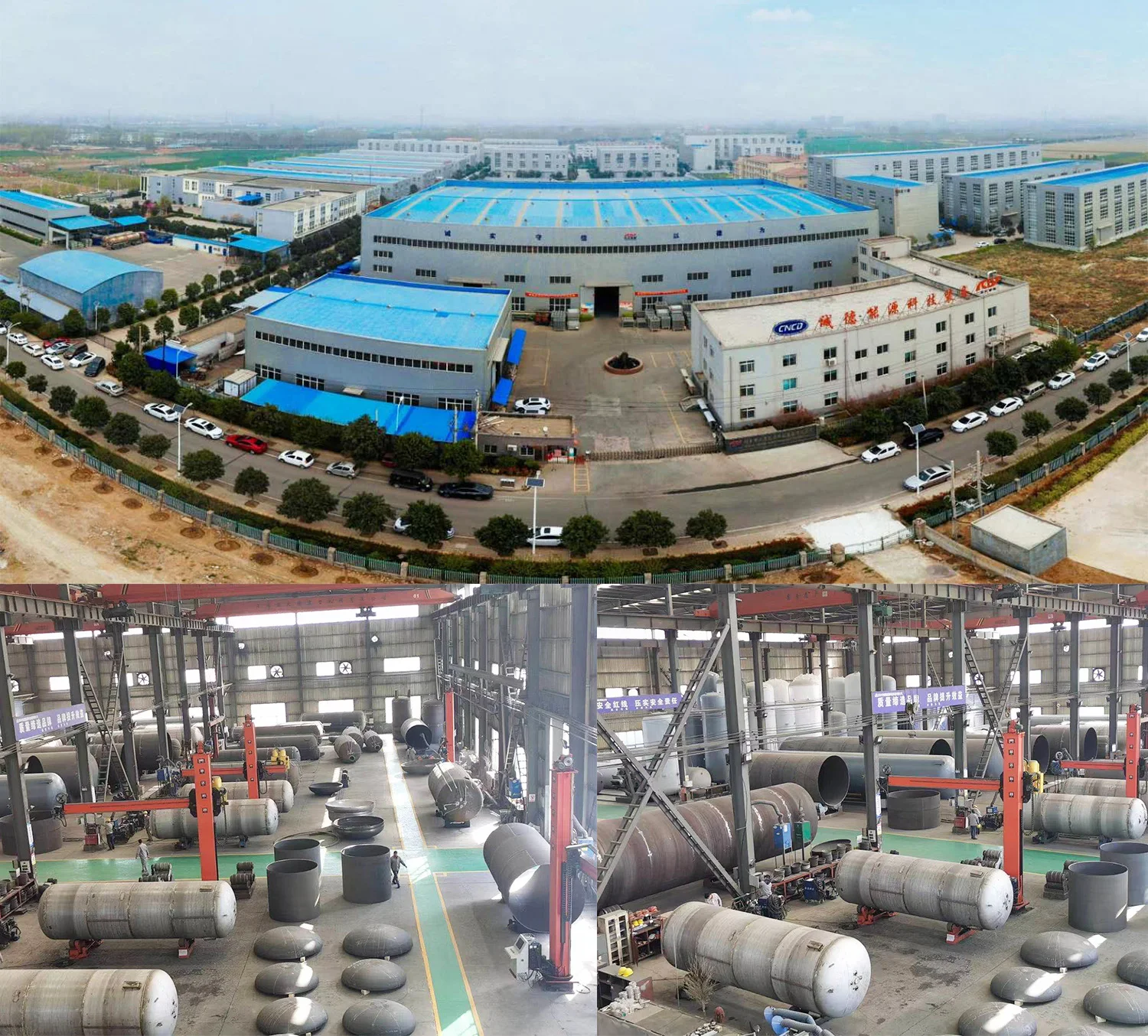

Production site

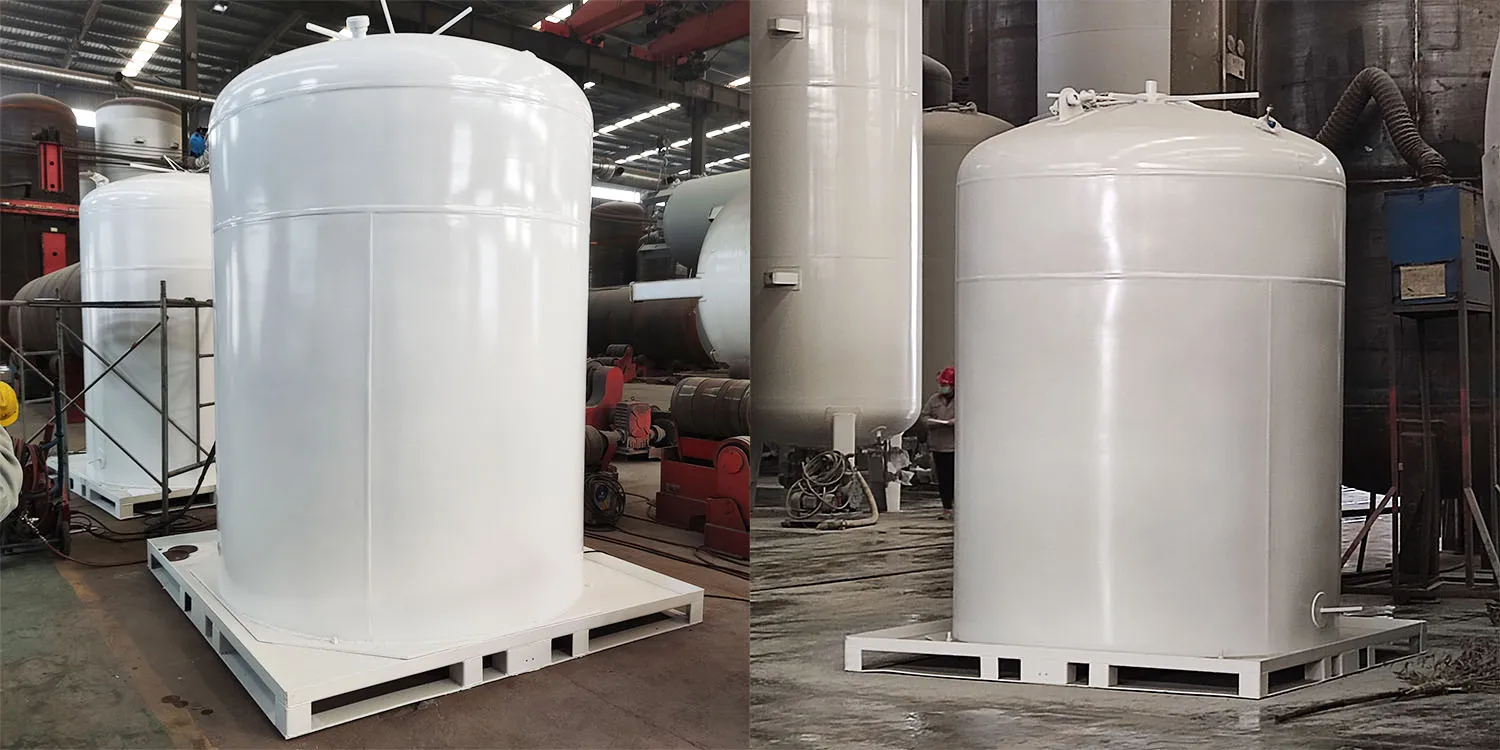

Semi-finished product



Technical Parameter:

Specifications	Design Pressure (MPa)	Dimensions (L*W*H)(mm)	Weight(Kg)	Effective Volume (m³)	Filling medium
1000L	1.6	1392*1619*2225mm	910	1	LO2/LN2/LAr/LNG
	2.5		950
	3.5		1035
2000L	1.6	1650*1873*2826mm	1340	2
	2.5		1500
	3.5		1650
3000L	1.6	1900*2080*2900mm	1652	2.85
	2.5		1850
	3.5		2077
5000L	1.6	2250*2500*3070mm	2750	4.75
	2.5		3050
	3.5		3430

(Specific cryogenic liquid storage with given pressureand effective volume can be manufactured as customer required)

Product advantage:

1.All stainless steel container design for a variety of harsh conditions.

2.Personalized system design, convenient disassembly, simple operation, convenient maintenance.

3.High-precision digital display liquid level meter, help users set up online monitoring system.

4.Higher than the standard adiabatic performance, prolong the non-destructive storage time.

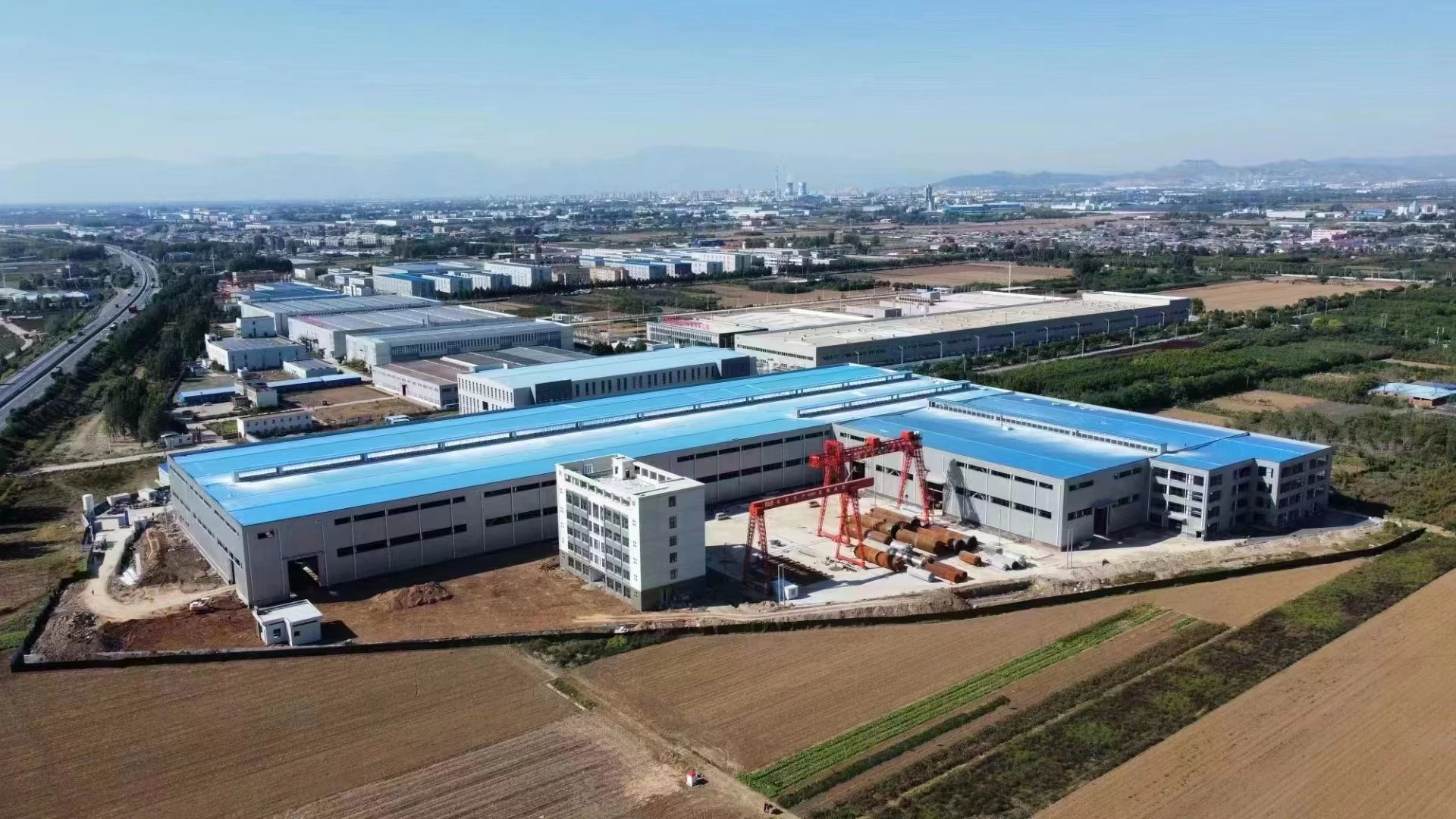

 Xinxiang Chengde Energy Technology Equipment Co.Ltd(original Chengde Gas Equipment Co. Ltd.) was founded in 2002,company is located in Industrial Park,Fengquan district,Xinxiang city, Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.The company has been committed to the pressure vessels.Low-temperature cryogenic equipment and gas equipment in the field of research and development design manufacture and installation.

Our main products have cryogenic liquid storage tank,LNG storage tank,cryogenic liquid pump,ambient vaporizer, water bath vaporizer, LPG electric vaporizer,cryogenic liquid cylinders(VGL),cryogenic nitrogen dewar container,cryogenic liquid micro tank,ISO tank container,LPG storage tank,semi-trailer tank,air separation plant etc.Liquid oxygen,nitrogen,argon,carbon dioxide and other industrial gases complete equipment engineering;LNG refueling station,LNG vaporizing station,Storage station, peak regulating station complete sets of equipment engineering.

The company more than 30000 square meter for workshop.Our company have exported products to foreign countries more than 20 years have rich experience in production and exported,products have exported to more than 68 countries also have branch office in the Vietnam.
