New design CATL lithium bettry powered electric mini digger for sale remote control safty hight quality cheap mini excavator
- Category: Excavators >>>
- Supplier: Walle,Machinery,Shanghai,Ltd.
Share on:
Product Overview
Description
Product Description
üZERO EMISSION
0 emission at the point of use makes our world greener and cleaner
üLOW NOISE, LOW VIBRATION
Quieter than many household appliance, enable you
to work anytime, anywhere
üOPERATION COST REDUCTION
maintenance free battery, low electricity cost, no fuel handling
üFULL DAY’S WORK
ability to work at sensitive environments and enclosed space for a
full shift on a single charge

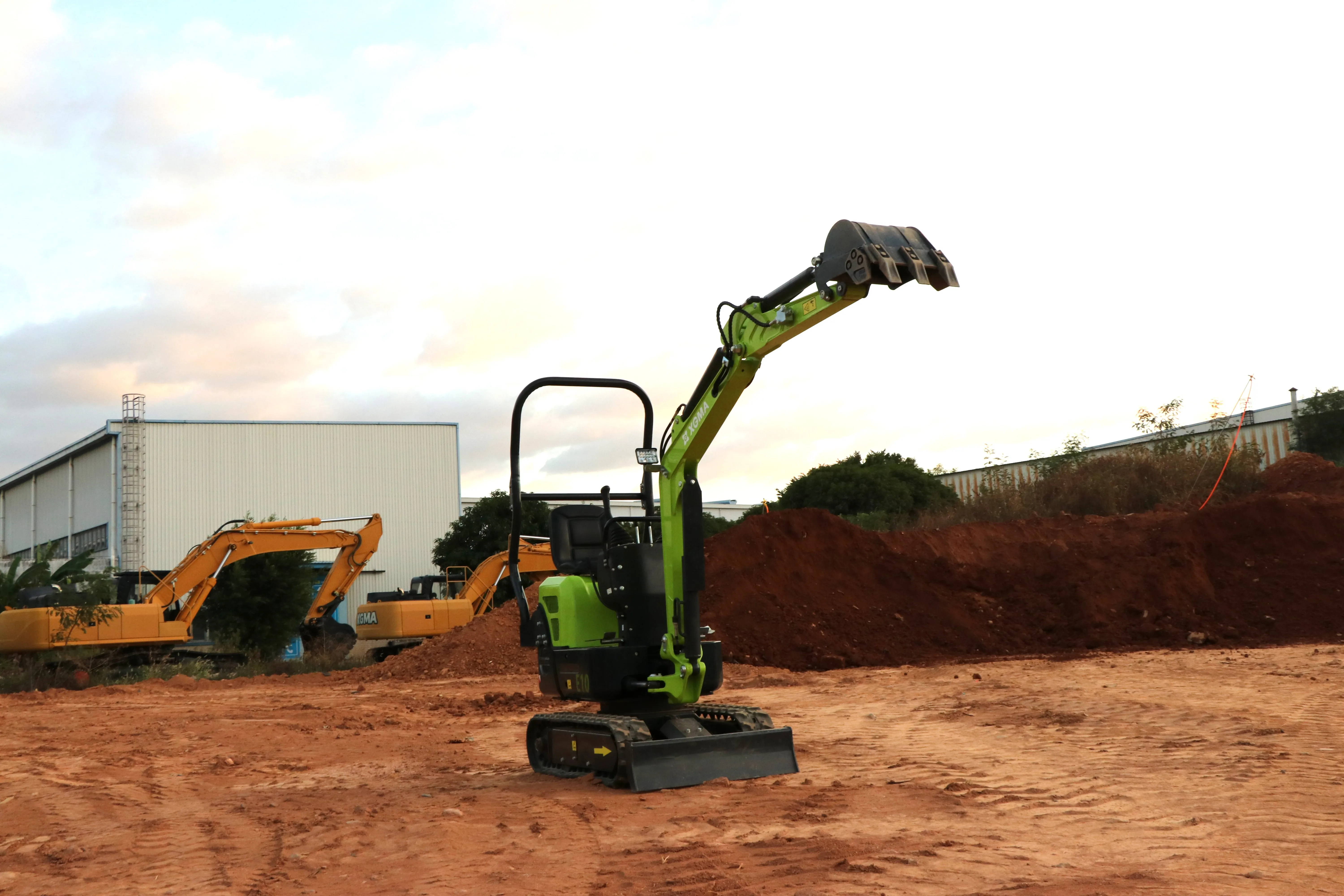

The innovative new battery powered electric EE10 series mini excavators deliver the freedom to work anytime, anywhere, without any compromise on performance. Its eco friendly, cost effective unique features, togather with traditional charactors such as super compact, sturdiness, durability as well as versatility, make it a perfect machine for environment sensitive and enclosed job sites.
The li-ion batteries require no maintenance, electricity costs a lot less than diesel, and a substaintial reduction in noise, vibration and heat, ensure long lasting comfort and productivity.
The machie shares the same structure, canopy, dig end, hydraulics and controls as the fuel engine powered model performs in exactly the same way with variety of attachment, undercarrier options, but the revolutionary powertrain makes your work greener, safier and easer.
| Model | E10 | ||
| Electric Systems | Baterry type | LFP | |
| Baterry brand | CATL | ||
| Baterry capacity | kW.h | 6.44 | |
| System voltage | v | 48 | |
| Intermittent runtime (Continuous) | hrs | 8(4) | |
| Charging | On-board charger | ||
| Indicative charge time (on-board) | hrs | 8 @110v / 6@ 220v | |
| Off-board fast charge (optional) | hrs | [email protected] | |
| Motor type | AC | ||
| Motor power (continuous / peak) | HP (kw) | 5.36/8.05(4/6) | |
| Operating Performance | Operating weight | lb (kg) | 2028(920) |
| Standard bucket capacity | cu.ft (cu.m) | 0.78 (0.022) | |
| Max. arm digging force | lb (kg) | 1201(545) | |
| Max. bucket breakout force | lb (kg) | 1411(640) | |
| Max. traction force | lb (kg) | 1345(610) | |
| Max.boom cylinder lifting force | lb (kg) | 584(265) | |
| Unit swing speed(Max.speed) | rpm | 8 | |
| *Boom swing angle left/right | degree | 65/55 | |
| Drive Performance | Max travel speed | mph (km/h) | 1(1.63) |
| Ground contact pressure | psi (kpa) | 3.48(24) | |
| Track type | Rubber | ||
| Gradeability | % | 30 | |
| Hydraulics | Total hydraulic flow | gal/min (L/min) | 4.75(18) |
| Max. operating pressure | psi (mpa) | 2610(18) | |
| Reservoir capacity | gal (ltr) | 3.17(12) | |
| Dimensions | A Overall transportation length | ft. in. (mm) | 9'09''(2770) |
| B Overall transportation width | ft. in. (mm) | 2'79''(850) | |
| C Overall transportaion height | ft. in. (mm) | 6'81''(2077) | |
| D Standard Width of bottom chassis | ft. in. (mm) | 2'74''(835) | |
| * max.extend | ft. in. (mm) | 3'15''(960) | |
| * min. retract | ft. in. (mm) | 2'49''(760) | |
| E Track width | ft. in. (mm) | 2'16''(658) | |
| Rubber width | in. (mm) | 5.9''(180) | |
| F *Tops canopy max. height | ft. in. (mm) | 7'09''(2160) | |
| *Rops canopy max.height | ft. in. (mm) | 7'02''(2140) | |
| *Rops canopy min.height | ft. in. (mm) | 5'20''(1585) | |
| G Max. digging height | ft. in. (mm) | 8'20''(2490) | |
| H Max. dump height | ft. in. (mm) | 6'04''(1842) | |
| I Max.diging depth | ft. in. (mm) | 5'64''(1720) | |
| J Max. vertical dig depth | ft. in. (mm) | 5'25'' (1600) | |
| K Max. digging radius @groud | ft. in. (mm) | 9'51''(2900) | |
| L Maximum reach | ft. in. (mm) | 9'71''(2960) | |
| M blade Max. lift above ground | in. (mm) | 4.7''(120) | |
| N blade Max. drop below ground | in. (mm) | 9.9''(250) | |
| O Min. turning radius | ft.in. (mm) | 4'53''(1380) | |
| P Front transportation length | ft. in. (mm) | ||
| Q Rear tansportation length | ft. in. (mm) | 2'38''(725) | |
| R Left Horizontal distance | ft. in. (mm) | 1'35''(410) | |
| S Right Horizontal distance | ft. in. (mm) | 1'57''(480) | |
| T Min. tail turning radius | ft. in. (mm) | 2'78''(846) | |

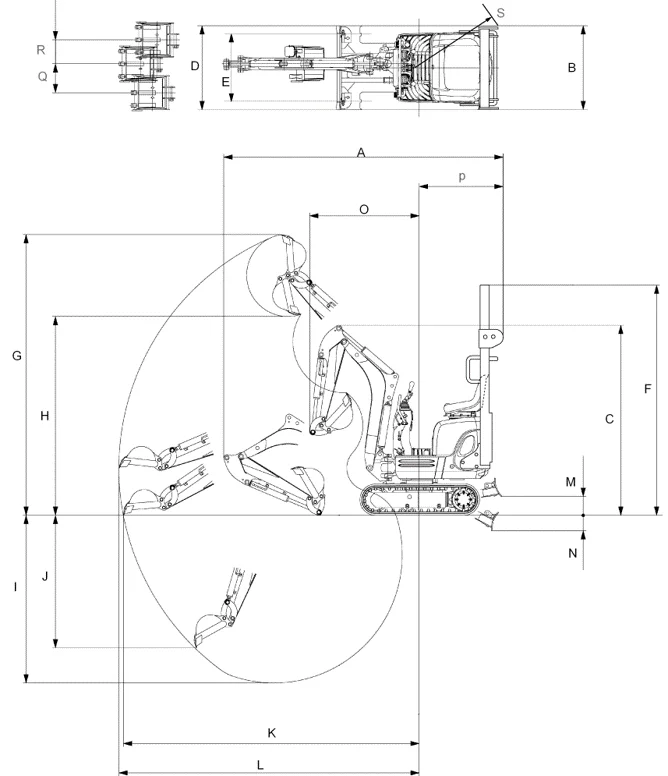

| DIMENSIONS | unit: ft-in(mm) | ||||||||
| A | B | C | D | E | F | G | H | I | J |
| 8'11.1" (2720) | 2'10.5" (875) | 6'9.8" (2077) | 2'8.9" (835) | 2'1.9" (657) | 7'0.3" (2140) | 7'108" (2490) | 6'05" (1842) | 5'7.7" (1720) | 5'3" (1600) |
| K | L | M | N | O | P | Q | R | S | |
| 4'9.1" (1450) | 9'10.1" (3000) | 0'4.7" (120) | 0'9.9" (250) | 4'6.4" (1380) | 2'4.6" (725) | 1'4.2" (410) | 1'6.9" (480) | 2'9.3" (846) | |
| D*: | Max. extend/Min retract 3'1.8" (960) / 2'5.9"(760) with optional retractable undercarriage | ||||||||
Packaging & Shipping
Company Information
Wellemac is an one-stop compact and light duty equipment provider for industries including landscaping, garden, agricultural, Forrest, utility and municipal, as well as general constructions, which means we can offer a package solution for any jobs in these application - whether you need small digging machines and small track dumper or a mini trencher or wood chippers, we will provide you the best fit and cost effective machines for your needs. A variety of compact and maneuverable machines with easy-to-use attachments will definitely assure you the total cost savings .
We strive to make a safe and a green world by investing on technology and design innovation, smart manufacturing and new energy solutions.
FAQ
1. Q: Is Lithium iron phosphate battery safe?
A: The square li-iron phosphate battery made by top EV battery manufacturer, is the safest type of Lithium battery as they will not overheat and heat-related, failures are extremely rare, and even if punctured they will not catch on fire
2. Q: What is the run time?
A: The standard battery pack delivers 4 hours of continuous use, which is typical of actual machine usage in a standard full day's work , the EE10 can operate throughout a full 8-hour day, using operator breaks to recharge the batteries
3. Q: What is the charge time?
A: The on board charger gives a full charge time of 8 hours@ 110V supply or 6 hours @230V supply. The fast charge option has a charging time from empty of 2hours @230V supply
4. Q: How long will the batteries last?
A: Even after 2000 full charge and discharge cycles (expected to be over 10 years) the batteries still have over 85% of their capacity left
5. Q: How does the machine perform?
A: The machine shares the same structure, canopy, dig end, hydraulics and controls as the diesel and performs in exactly the same way. The only change is that the power pack changes from a diesel to electric.
6. Q: Is there any extra maintenance to do on the battery?
A: There is no maintenance required on the battery packs at all and daily checks are reduced to a minimum; increasing time on site.
7. Q: How can I make the payment?
A: Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
8. Q:How to install our mini crawler excavator?
A: we can provide detailed installation video/pictures, or send engineers team.
9. Q: Any other good service your company can provide?
A: Yes,we can provide good after-sale and fast delivery.
10. Q: Can I order mix order?
A: Yes. of course.
11. Q: How long of the warranty period?
A: All our products have a 1 year warranty after sale; if any one breaks when it is still under warranty,please just contact us. We'll solving problems properly.
12. Q: How can i believe you and your factory?
A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and w e will welcome you enthusiasm. so we can establish good cooperation with each other.
reply you in 24 hours, if you are urgent, we can reply you soonest
